¶ General Description
The Delta 41 is a multi-band, direct-connect antenna for cellular and long-range LPWAN applications. It supports 2G, 3G, 4G, LTE-M, NB-IoT and 868/915 MHz ISM applications.
Offering 3 dBi gain and 71% radiation efficiency, its broad compatibility makes it a versatile choice for low-power IoT deployments, including remote monitoring, smart metering and industrial telemetry.

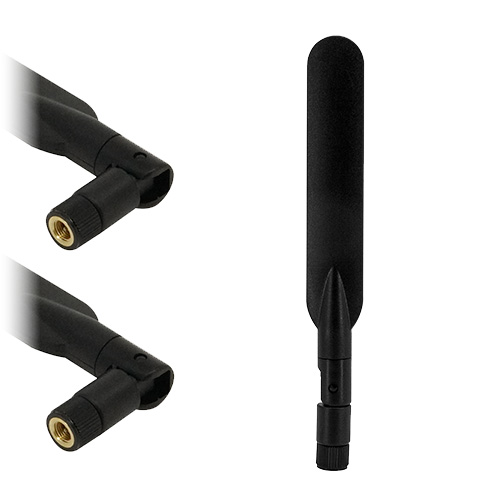

The flat ABS body connects directly through an SMA interface, while the 90° hinged design allows the antenna to be positioned for the best signal reception. Its omnidirectional radiation pattern and adjustable design provide flexible installation without requiring a separate mounting arrangement.
¶ Key Features
- 2G, 3G & 4G cellular connectivity
- LTE-M, NB-IoT & ISM 868/915 MHz band support
- 3 dBi gain
- Omnidirectional coverage
- Adjustable, direct-connect 90° hinged design
¶ Typical Applications
-
Smart metering & utility monitoring
-
Remote environmental & agricultural sensing
-
Industrial telemetry & equipment monitoring
-
Asset tracking & fleet management
-
Cellular & LPWAN gateways
3 dBi
Average Gain
|
Omnidirectional
All-Round Coverage
|
Cellular
2G—4G
|
LPWAN
Long-Range IoT Connectivity
|
90° Hinged Design
Position for Best Reception
|
Product Features
2G
GSM
3G
UMTS
4G
LTE
BLE
Bluetooth
IEEE
802.15.4
IP
65
ISM
868
ISM
915
LoRa
Wireless
LTE
CAT-M
LTE
NB-IoT
WIFI
2.4 GHz
Cellular Band Support
B1
B2
B3
B4
B5
B7
B8
B9
B10
B11
B12
B13
B14
B17
B18
B19
B20
B21
B23
B24
B25
B26
B27
B28
B28A
B29
B30
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B44
B45
B50
B51
B52
B53
B54
B65
B66
B67
B68
B69
B70
B74
B75
B76
B85
B103
B106
5G NR Band Support
n1
n2
n3
n5
n7
n8
n12
n13
n14
n18
n20
n24
n25
n26
n28
n29
n30
n34
n38
n39
n40
n41
n50
n51
n53
n54
n65
n66
n67
n68
n70
n74
n75
n76
n80
n81
n82
n83
n84
n85
n86
n89
n90
n91
n92
n93
n94
n95
n97
n98
n99
n100
n101
n106
n109
¶ Electrical Specifications
| Frequency Range: | 700–960 MHz 1700–2700 MHz |
| Impedance: | 50 Ohm |
| Polarisation: | Vertical |
| Radiation Pattern: | Omnidirectional |
| Average Gain: | |
| 700–960 MHz: | 2.95 dBi |
| 1700–2700 MHz: | 3.63 dBi |
| Average Radiation Efficiency: | |
| 700–960 MHz: | 69.81% |
| 1700–2700 MHz: | 73.10% |
| Required Ground Plane: | Free space |
¶ Environmental Specifications
| Operating Temperature Range: | -20°C to 65°C |
| Storage Temperature Range: | -20°C to 65°C |

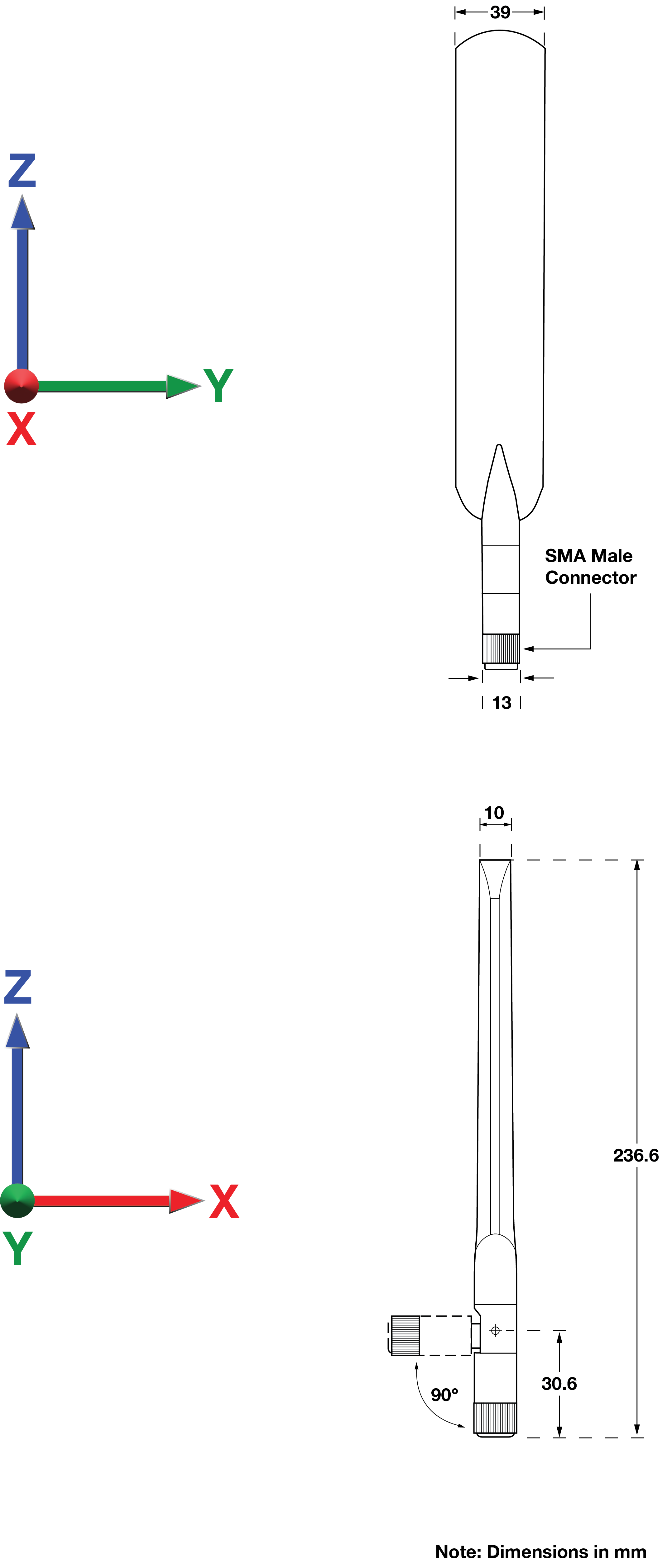

¶ Mechanical Specifications
| Dimensions: | L = 236.6 mm W = 39 mm D = 10 mm |
| Weight: | 53 g |
| Connector: | SMA Male |
| Mounting Method: | Direct connect |
| Housing Material: | ABS 757 |

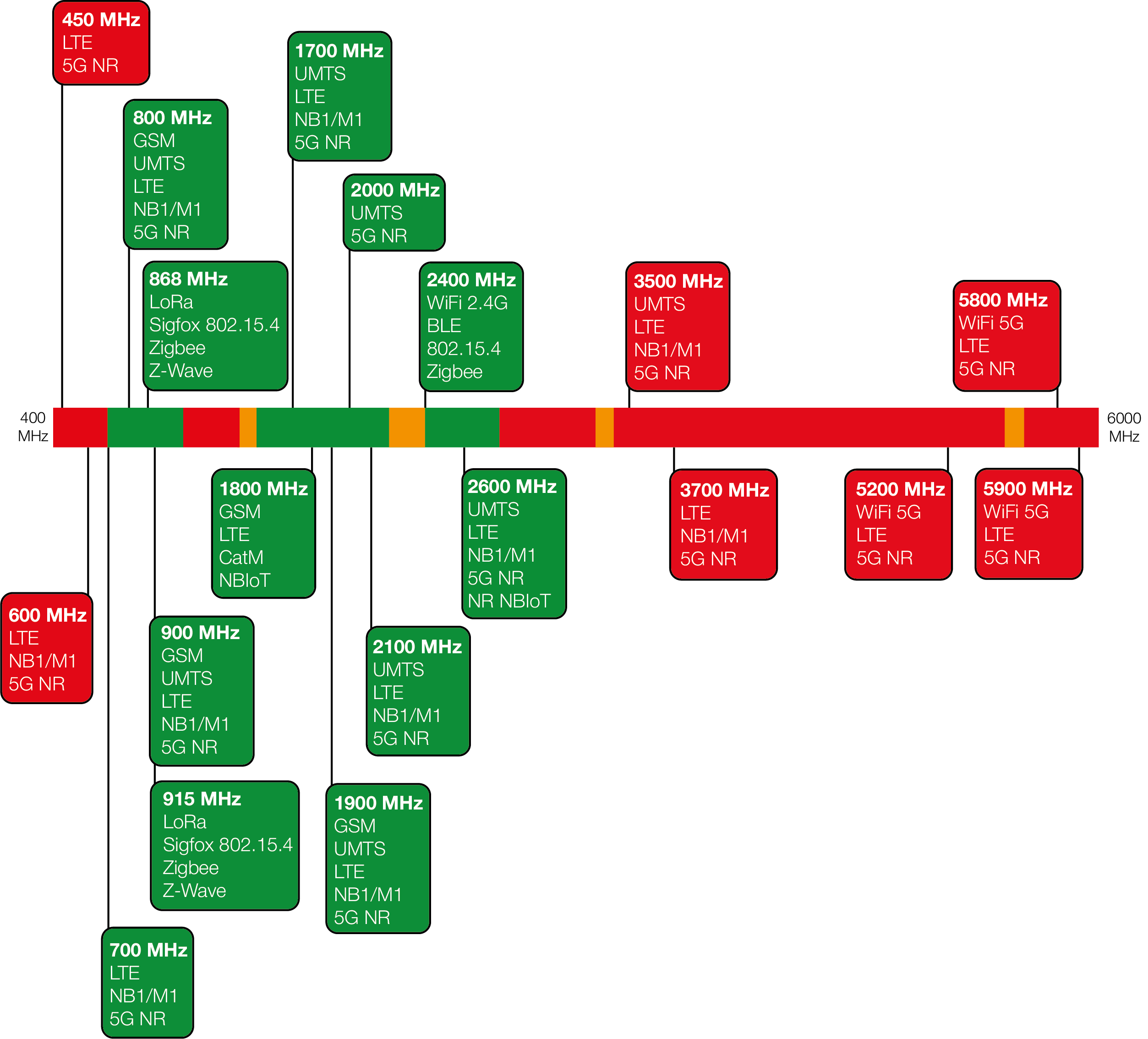

¶ Spectrum Coverage*
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking into consideration the VSWR and radiated efficiency of the antenna.
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

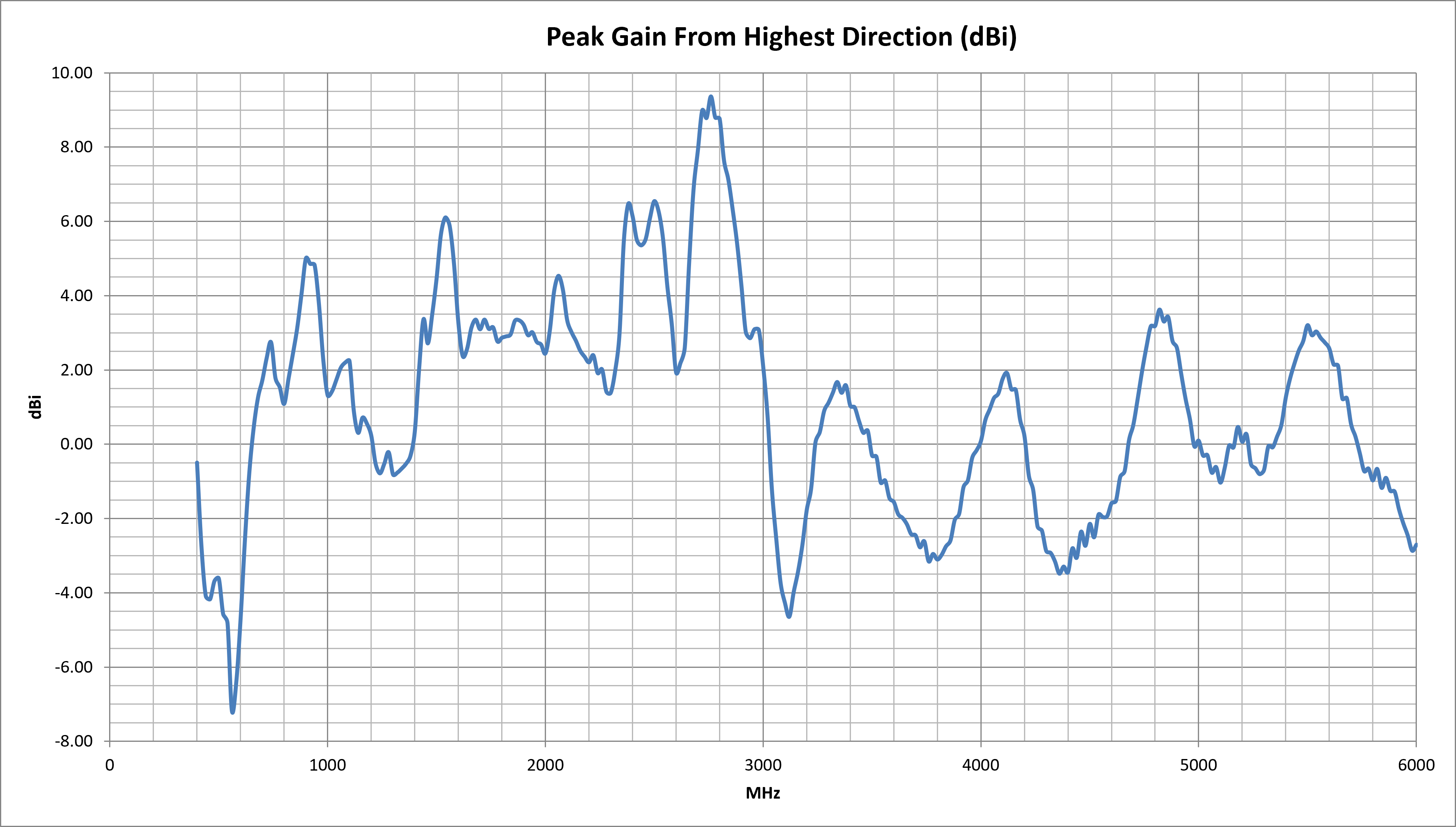

¶ Peak Gain vs. Frequency

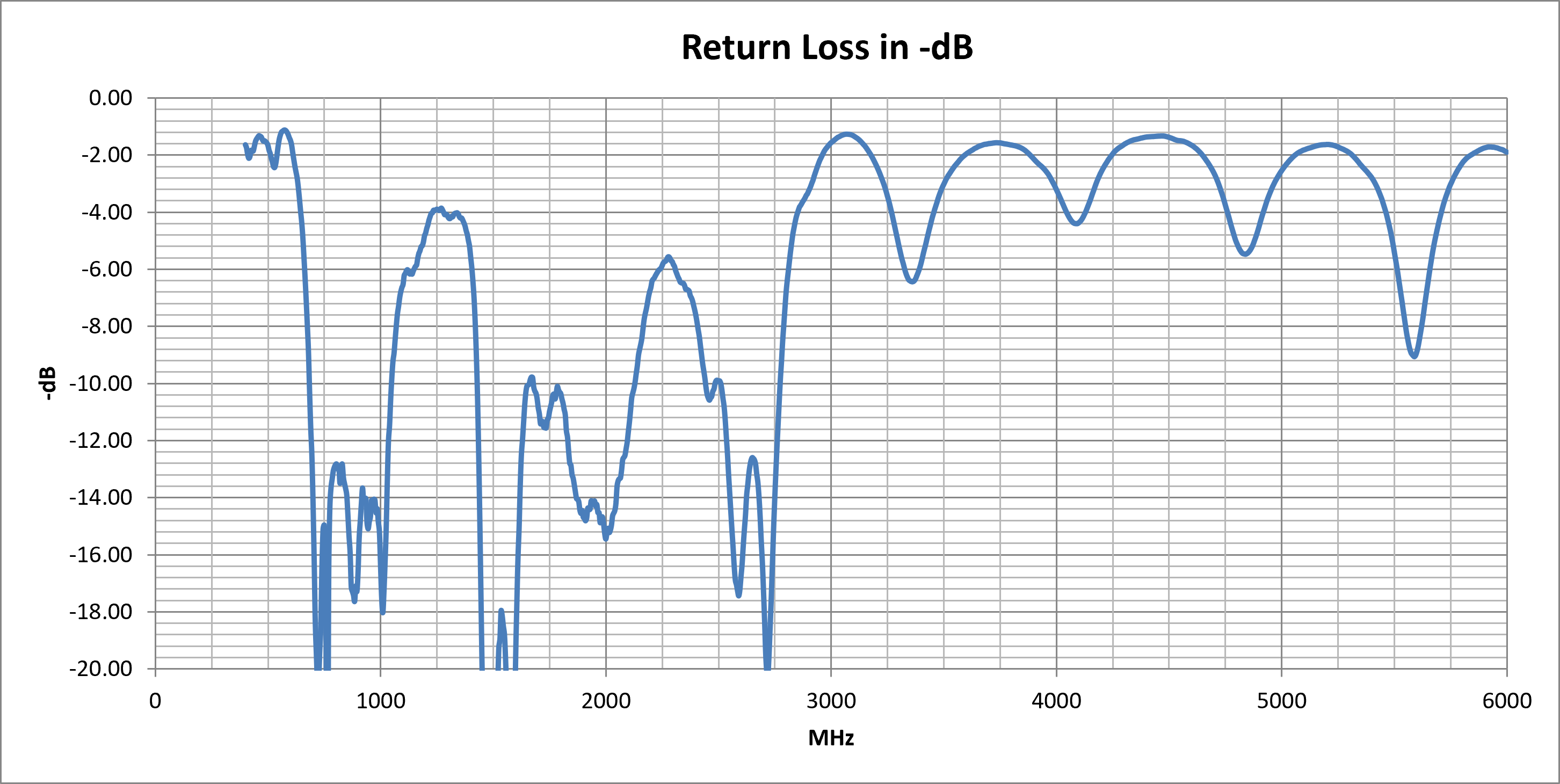

¶ Return Loss

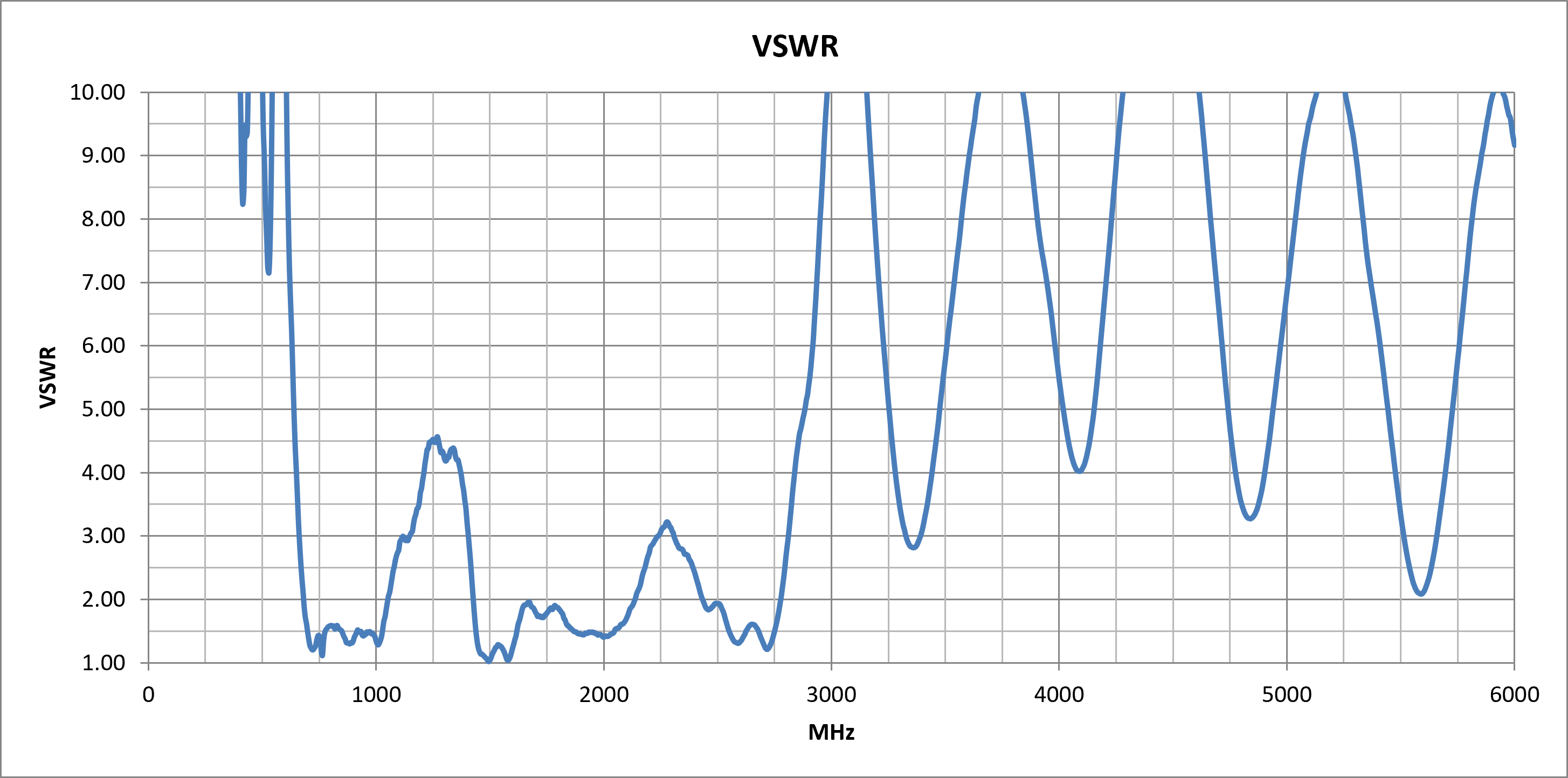

¶ VSWR

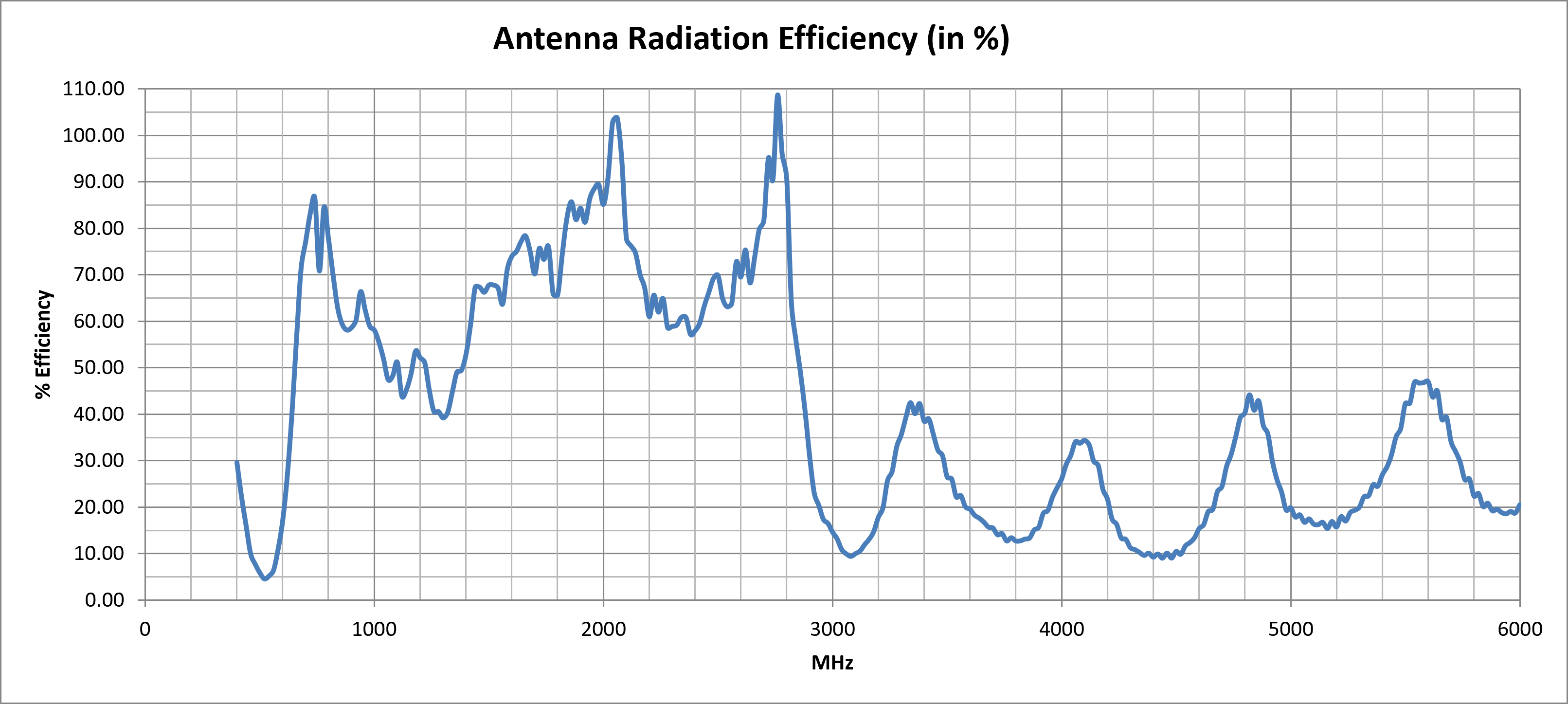

¶ Radiation Efficiency
¶ Cellular Bands*
| GSM (2G) Bands | UMTS (3G) Bands | E-UTRA (4G) Bands | NR (5G) Bands | Uplink (MHz) | Downlink (MHz) | Average Upload Efficiency (%) | Average Download Efficiency (%) | Maximum Upload VSWR | Maximum Download VSWR | Use Indicator |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | n1 | 1920 - 1980 | 2110 - 2170 | 86.70 | 73.56 | 1.49 | 2.38 | ↑ | |
| PCS-1900 | 2 | 2 | n2 | 1850 - 1910 | 1930 - 1990 | 83.68 | 87.66 | 1.56 | 1.49 | ↑ |
| DCS-1800 | 3 | 3 | n3 | 1710 - 1785 | 1805 - 1880 | 72.99 | 79.75 | 1.91 | 1.84 | ↑ |
| 4 | 4 | 1710 - 1755 | 2110 - 2155 | 74.39 | 74.84 | 1.81 | 2.17 | ↑ | ||
| GSM-850 | 5 | 5 | n5 | 824 - 849 | 869 - 894 | 64.32 | 58.33 | 1.59 | 1.33 | ↑ |
| 6 | 830 - 840 | 875 - 885 | 64.56 | 58.19 | 1.59 | 1.32 | ↑ | |||
| 7 | 7 | n7 | 2500 - 2570 | 2620 - 2690 | 65.10 | 74.21 | 1.94 | 1.61 | ↑ | |
| E-GSM-900 | 8 | 8 | n8 | 880 - 915 | 925 - 960 | 58.72 | 64.24 | 1.48 | 1.50 | ↑ |
| 9 | 9 | 1749.9 - 1784.9 | 1844.9 - 1879.9 | 71.52 | 84.01 | 1.91 | 1.59 | ↑ | ||
| 10 | 10 | 1710 - 1770 | 2110 - 2170 | 74.34 | 73.56 | 1.87 | 2.38 | ↑ | ||
| 11 | 11 | 1427.9 - 1447.9 | 1475.9 - 1495.9 | 65.83 | 66.73 | 1.97 | 1.10 | ↑ | ||
| 12 | 12 | n12 | 699 - 716 | 729 - 746 | 79.37 | 85.06 | 1.52 | 1.43 | ↑ | |
| 13 | 13 | n13 | 777 - 787 | 746 - 756 | 83.36 | 77.86 | 1.56 | 1.43 | ↑ | |
| 14 | 14 | n14 | 788 - 798 | 758 - 768 | 80.04 | 73.16 | 1.59 | 1.27 | ↑ | |
| 17 | 704 - 716 | 734 - 746 | 80.13 | 85.06 | 1.40 | 1.43 | ↑ | |||
| 18 | n18 | 815 - 830 | 860 - 875 | 68.98 | 58.84 | 1.59 | 1.41 | ↑ | ||
| 19 | 19 | 830 - 845 | 875 - 890 | 63.83 | 58.22 | 1.59 | 1.32 | ↑ | ||
| 20 | 20 | n20 | 832 - 862 | 791 - 821 | 61.77 | 75.22 | 1.58 | 1.59 | ↑ | |
| 21 | 21 | 1447.9 - 1462.9 | 1495.9 - 1510.9 | 67.28 | 67.72 | 1.27 | 1.14 | ↑ | ||
| 23 | 2000 - 2020 | 2180 - 2200 | 88.05 | 64.05 | 1.43 | 2.74 | ↑ | |||
| 24 | n24 | 1626.5 - 1660.5 | 1525 - 1559 | 77.19 | 66.32 | 1.92 | 1.29 | ↑ | ||
| 25 | 25 | n25 | 1850 - 1915 | 1930 - 1995 | 83.58 | 87.58 | 1.56 | 1.49 | ↑ | |
| 26 | 26 | n26 | 814 - 849 | 859 - 894 | 66.01 | 58.54 | 1.59 | 1.42 | ↑ | |
| 27 | 807 - 824 | 852 - 869 | 71.60 | 59.48 | 1.59 | 1.49 | ↑ | |||
| 28 | n28 | 703 - 748 | 758 - 803 | 82.96 | 78.86 | 1.43 | 1.59 | ↑ | ||
| 28A | 703 - 733 | 758 - 788 | 82.18 | 78.71 | 1.42 | 1.56 | ↑ | |||
| 29 | n29 | - | 717 - 728 | - | 83.53 | - | 1.23 | ↑ | ||
| 30 | n30 | 2305 - 2315 | 2350 - 2360 | 59.02 | 60.81 | 3.05 | 2.76 | □ | ||
| 32 | 32 | - | 1452 - 1496 | - | 66.89 | - | 1.21 | ↑ | ||
| 33 | 1900 - 1920 | 1900 - 1920 | 82.81 | 82.81 | 1.47 | 1.47 | ↑ | |||
| 34 | n34 | 2010 - 2025 | 2010 - 2025 | 90.51 | 90.51 | 1.43 | 1.43 | ↑ | ||
| 35 | 1850 - 1910 | 1850 - 1910 | 83.68 | 83.68 | 1.56 | 1.56 | ↑ | |||
| 36 | 1930 - 1990 | 1930 - 1990 | 87.66 | 87.66 | 1.49 | 1.49 | ↑ | |||
| 37 | 1910 - 1930 | 1910 - 1930 | 82.30 | 82.30 | 1.47 | 1.47 | ↑ | |||
| 38 | n38 | 2570 - 2620 | 2570 - 2620 | 71.53 | 71.53 | 1.46 | 1.46 | ↑ | ||
| 39 | n39 | 1880 - 1920 | 1880 - 1920 | 82.95 | 82.95 | 1.49 | 1.49 | ↑ | ||
| 40 | n40 | 2300 - 2400 | 2300 - 2400 | 59.27 | 59.27 | 3.08 | 3.08 | □ | ||
| 41 | n41 | 2496 - 2690 | 2496 - 2690 | 70.14 | 70.14 | 1.94 | 1.94 | ↑ | ||
| 44 | 703 - 803 | 703 - 803 | 80.45 | 80.45 | 1.59 | 1.59 | ↑ | |||
| 45 | 1447 - 1467 | 1447 - 1467 | 67.23 | 67.23 | 1.29 | 1.29 | ↑ | |||
| 50 | n50 | 1432 - 1517 | 1432 - 1517 | 67.04 | 67.04 | 1.78 | 1.78 | ↑ | ||
| 51 | n51 | 1427 - 1432 | 1427 - 1432 | 63.09 | 63.09 | 2.02 | 2.02 | ↑ | ||
| 52 | 3300 - 3400 | 3300 - 3400 | 40.22 | 40.22 | 3.47 | 3.47 | □ | |||
| 53 | n53 | 2483.5 - 2495 | 2483.5 - 2495 | 69.48 | 69.48 | 1.94 | 1.94 | ↑ | ||
| 54 | n54 | 1670 - 1675 | 1670 - 1675 | 76.25 | 76.25 | 1.96 | 1.96 | ↑ | ||
| 65 | n65 | 1920 - 2010 | 2110 - 2200 | 86.80 | 70.81 | 1.49 | 2.74 | ↑ | ||
| 66 | n66 | 1710 - 1780 | 2110 - 2200 | 73.50 | 70.81 | 1.87 | 2.74 | ↑ | ||
| 67 | n67 | - | 738 - 758 | - | 80.12 | - | 1.43 | ↑ | ||
| 68 | n68 | 698 - 728 | 753 - 783 | 80.90 | 77.34 | 1.54 | 1.54 | ↑ | ||
| 69 | - | 2570 - 2620 | - | 71.53 | - | 1.46 | ↑ | |||
| 70 | n70 | 1695 - 1710 | 1995 - 2020 | 71.28 | 87.57 | 1.85 | 1.43 | ↑ | ||
| 74 | n74 | 1427 - 1470 | 1475 - 1518 | 66.44 | 67.24 | 2.02 | 1.19 | ↑ | ||
| 75 | n75 | - | 1432 - 1517 | - | 67.04 | - | 1.78 | ↑ | ||
| 76 | n76 | - | 1427 - 1432 | - | 63.09 | - | 2.02 | ↑ | ||
| n80 | 1710 - 1785 | - | 72.99 | - | 1.91 | - | ↑ | |||
| n81 | 880 - 915 | - | 58.72 | - | 1.48 | - | ↑ | |||
| n82 | 832 - 862 | - | 61.77 | - | 1.58 | - | ↑ | |||
| n83 | 703 - 748 | - | 82.96 | - | 1.43 | - | ↑ | |||
| n84 | 1920 - 1980 | - | 86.70 | - | 1.49 | - | ↑ | |||
| 85 | n85 | 698 - 716 | 728 - 746 | 79.22 | 85.04 | 1.54 | 1.43 | ↑ | ||
| n86 | 1710 - 1780 | - | 73.50 | - | 1.87 | - | ↑ | |||
| n89 | 824 - 849 | - | 64.32 | - | 1.59 | - | ↑ | |||
| n90 | 2496 - 2690 | 2496 - 2690 | 70.14 | 70.14 | 1.94 | 1.94 | ↑ | |||
| n91 | 832 - 862 | 1427 - 1432 | 61.77 | 63.09 | 1.58 | 2.02 | ↑ | |||
| n92 | 832 - 862 | 1432 - 1517 | 61.77 | 67.04 | 1.58 | 1.78 | ↑ | |||
| n93 | 880 - 915 | 1427 - 1432 | 58.72 | 63.09 | 1.48 | 2.02 | ↑ | |||
| n94 | 880 - 915 | 1432 - 1517 | 58.72 | 67.04 | 1.48 | 1.78 | ↑ | |||
| n95 | 2010 - 2025 | - | 90.51 | - | 1.43 | - | ↑ | |||
| n97 | 2300 - 2400 | - | 59.27 | - | 3.08 | - | □ | |||
| n98 | 1880 - 1920 | - | 82.95 | - | 1.49 | - | ↑ | |||
| n99 | 1626.5 - 1660.5 | - | 77.19 | - | 1.92 | - | ↑ | |||
| n100 | 874.4 - 880 | 919.4 - 925 | 58.25 | 60.94 | 1.32 | 1.52 | ↑ | |||
| n101 | 1900 - 1910 | 1900 - 1910 | 83.57 | 83.57 | 1.45 | 1.45 | ↑ | |||
| 103 | 787 - 788 | 757 - 758 | 81.94 | 72.76 | 1.56 | 1.30 | ↑ | |||
| 106 | n106 | 896 - 901 | 935 - 940 | 58.58 | 65.61 | 1.36 | 1.50 | ↑ | ||
| n109 | 703 - 733 | 1432 - 1517 | 82.18 | 67.04 | 1.42 | 1.78 | ↑ | |||
| n110 | 1390 - 1395 | 1432 - 1435 | 51.56 | 64.70 | 3.57 | 1.78 | ↓ | |||
| 112 | - | 470 - 608 | - | 8.29 | - | 15.40 | ↓ | |||
| 113 | - | 606 - 698 | - | 49.57 | - | 10.27 | ↓ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |
¶ ISM Standards Frequency Support*
| Application | Frequency Range (MHz) | Average Efficiency (%) | Maximum VSWR | Peak Gain from highest direction (dBi) | Use Indicator |
|---|---|---|---|---|---|
| ISM 868 MHz | 863 - 870 | 58.90 | 1.39 | 3.60 | ↑ |
| ISM 915 MHz | 902 - 928 | 60.12 | 1.52 | 5.00 | ↑ |
| ISM 2.4 GHz | 2400 - 2500 | 64.42 | 2.42 | 6.55 | ↑ |
| WiFi 2.4G channels 1-11 | 2401 - 2473 | 62.68 | 2.41 | 6.12 | ↑ |
| WiFi 2.4G channels 1-13 | 2401 - 2483 | 63.43 | 2.41 | 6.16 | ↑ |
| WiFi 2.4G channels 1-14 | 2401 - 2495 | 64.20 | 2.41 | 6.44 | ↑ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

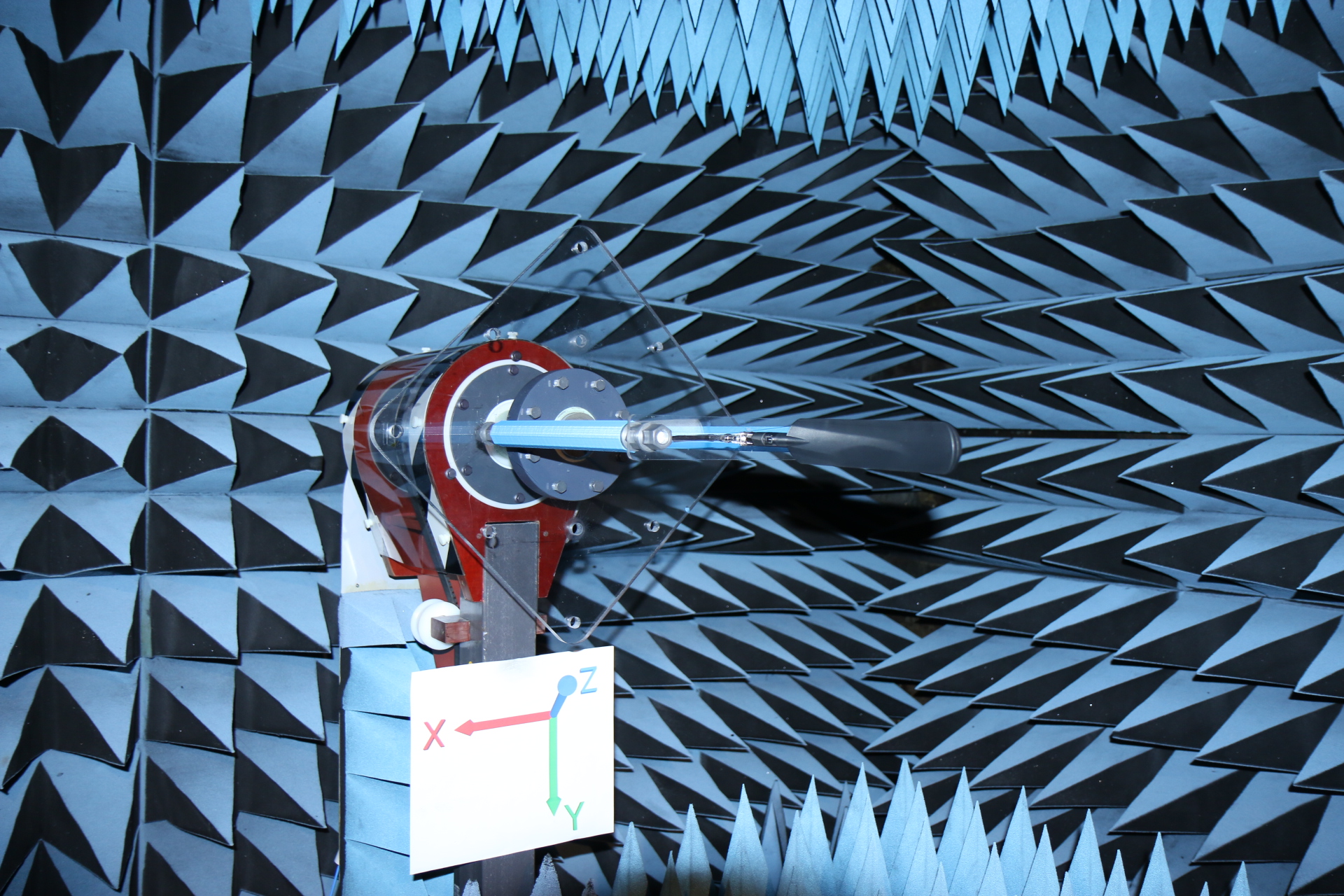

¶ Test Setup (in Free Space)

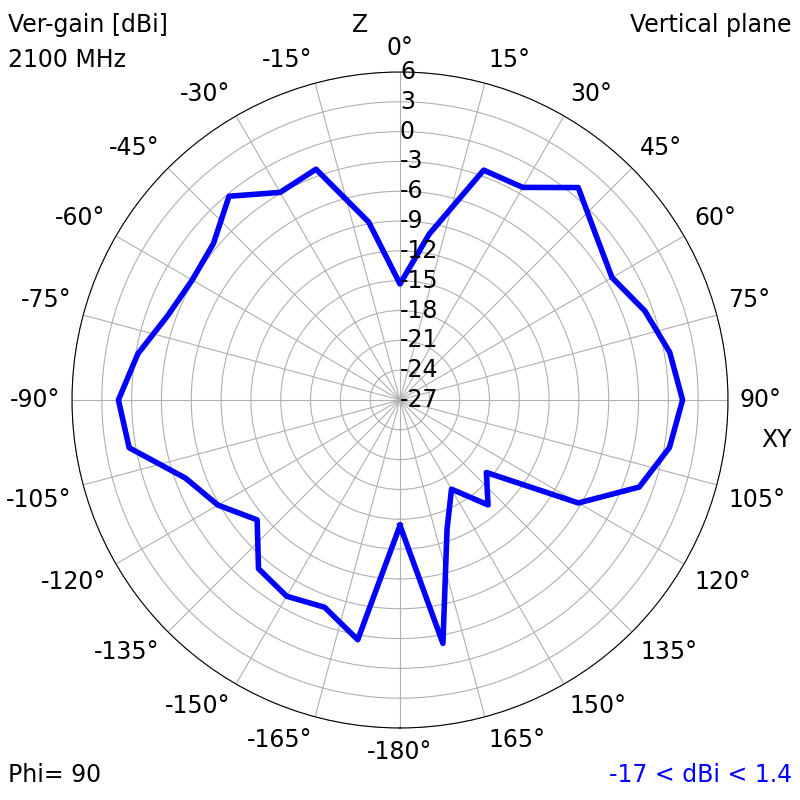

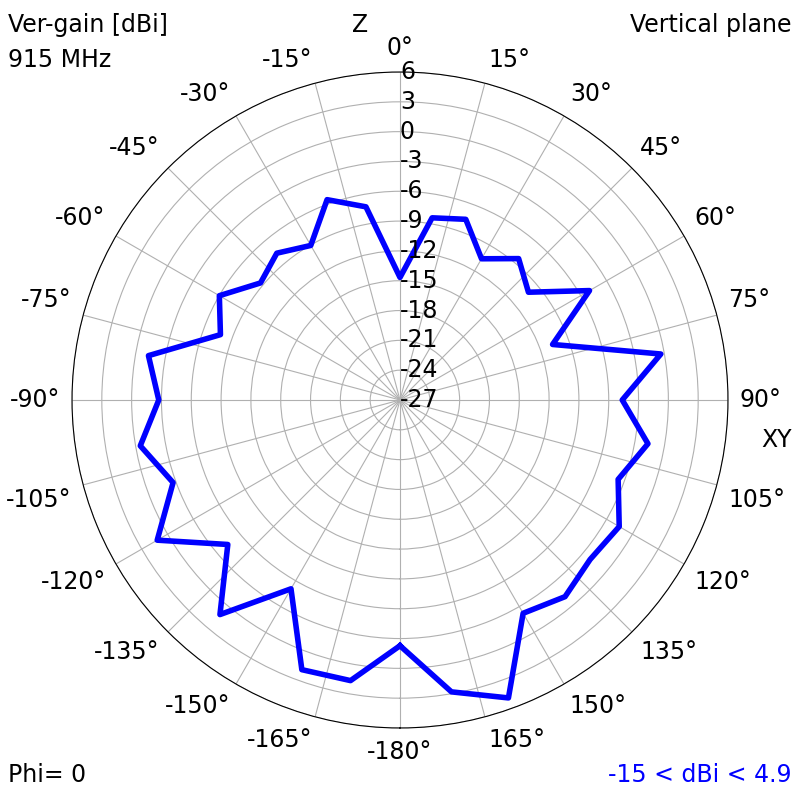

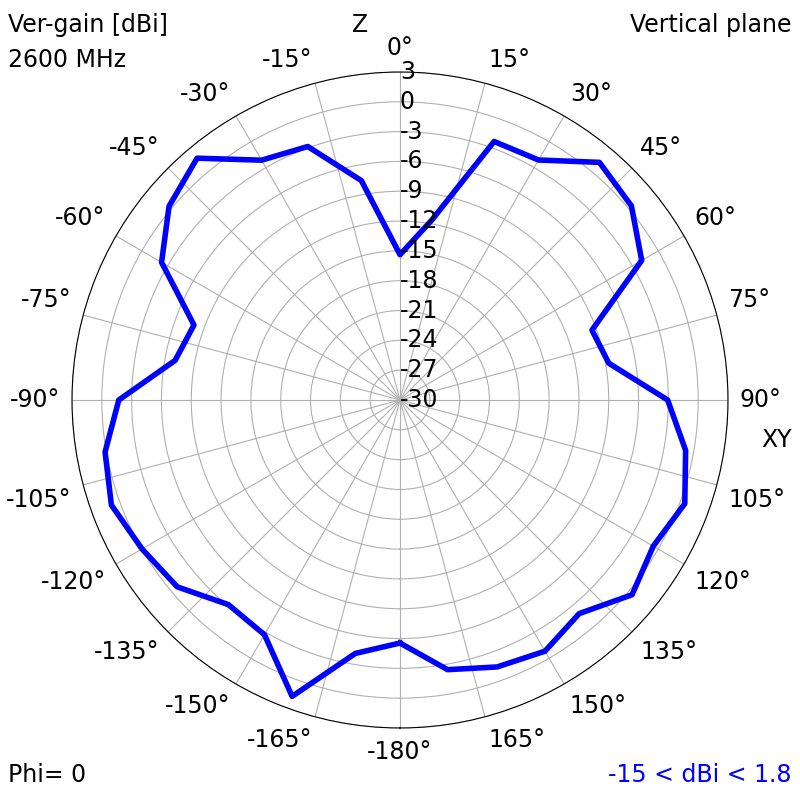

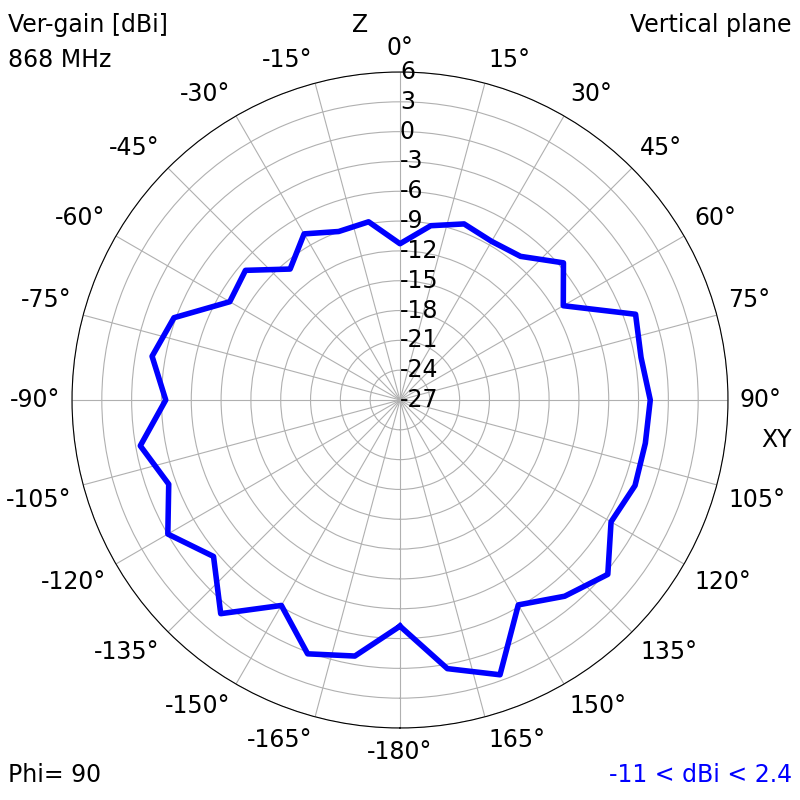

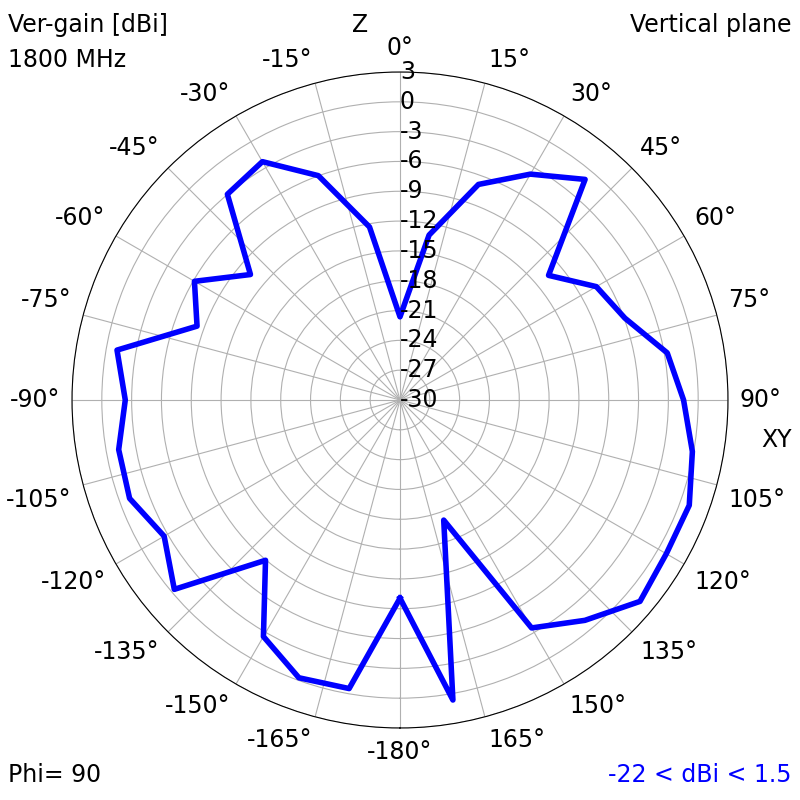

¶ 2D Radiation Plots

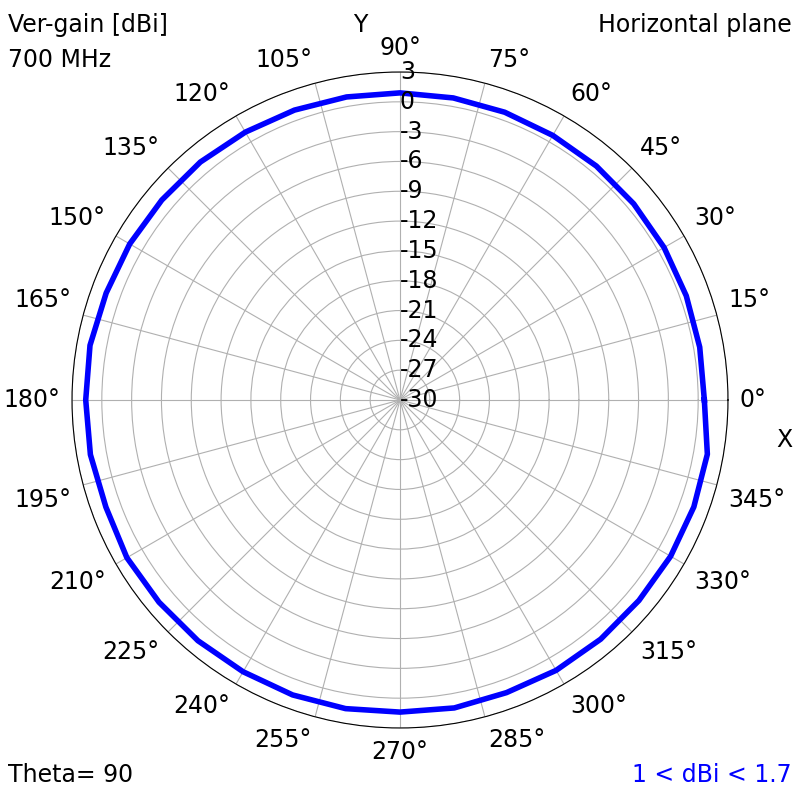

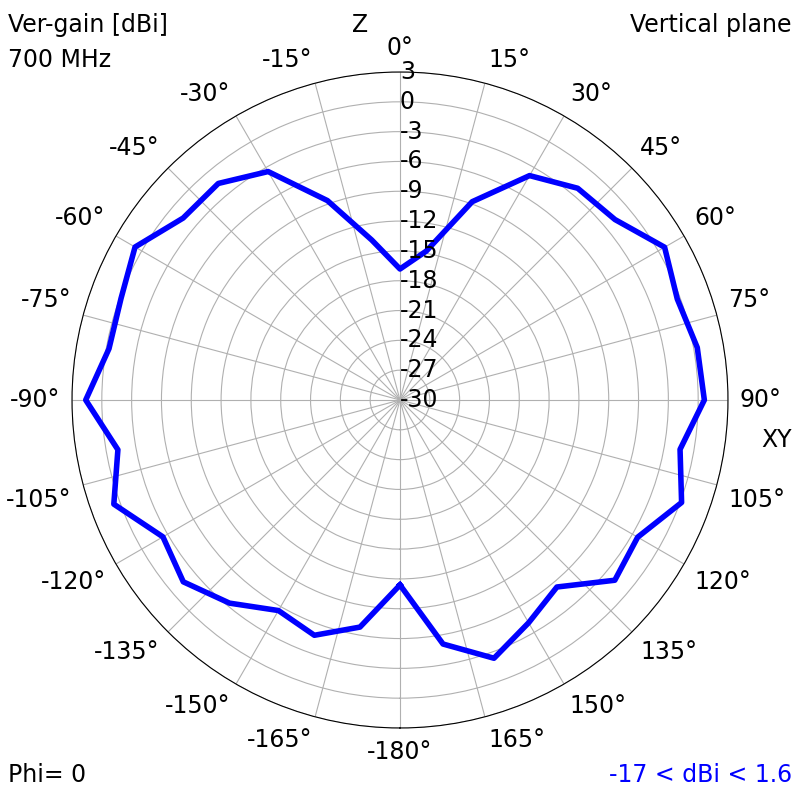

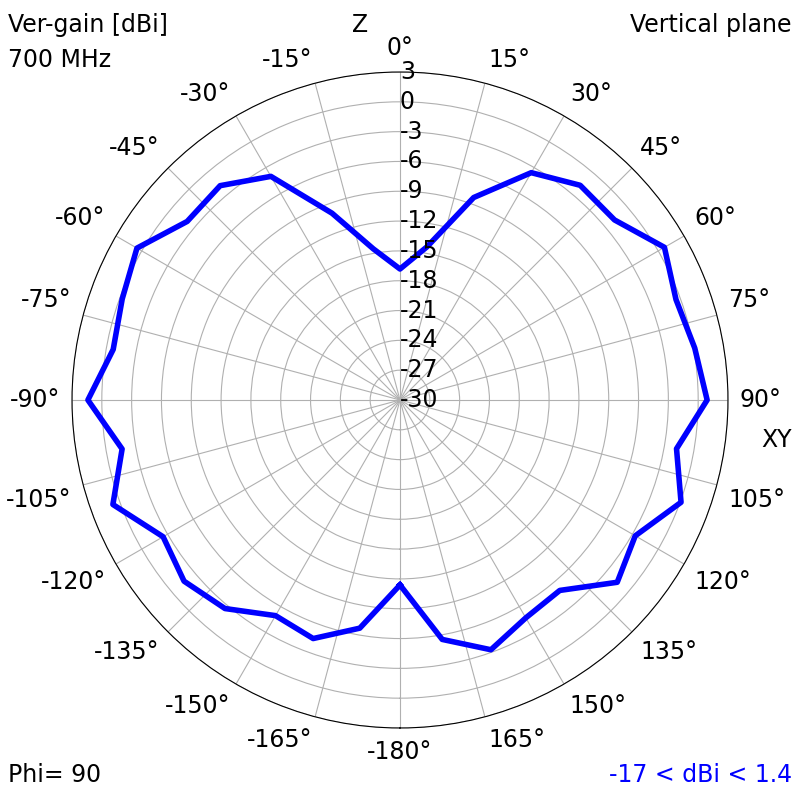

| 700 MHz | ||
|
|
|

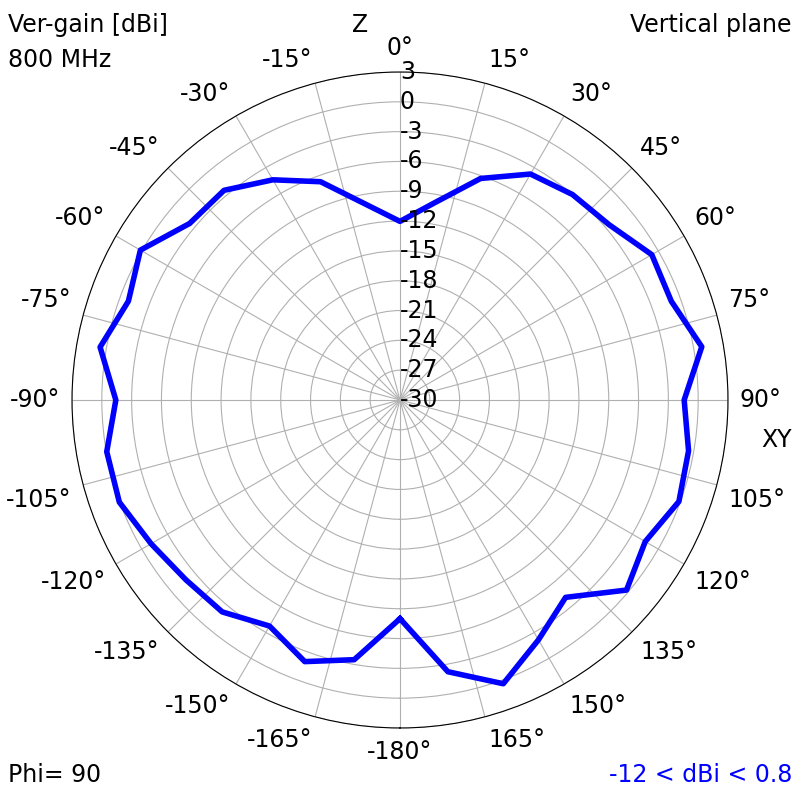

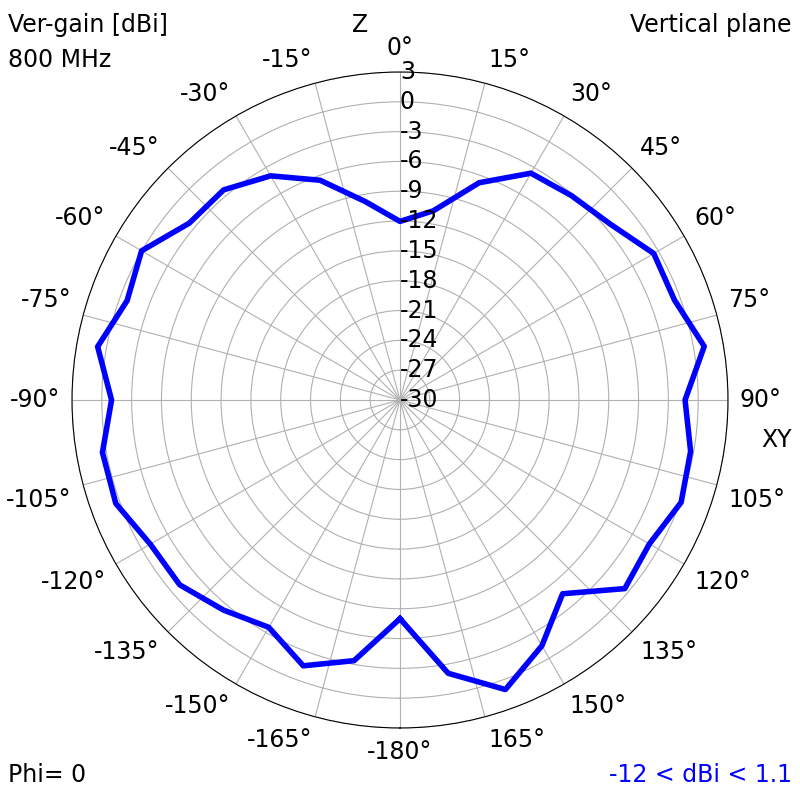

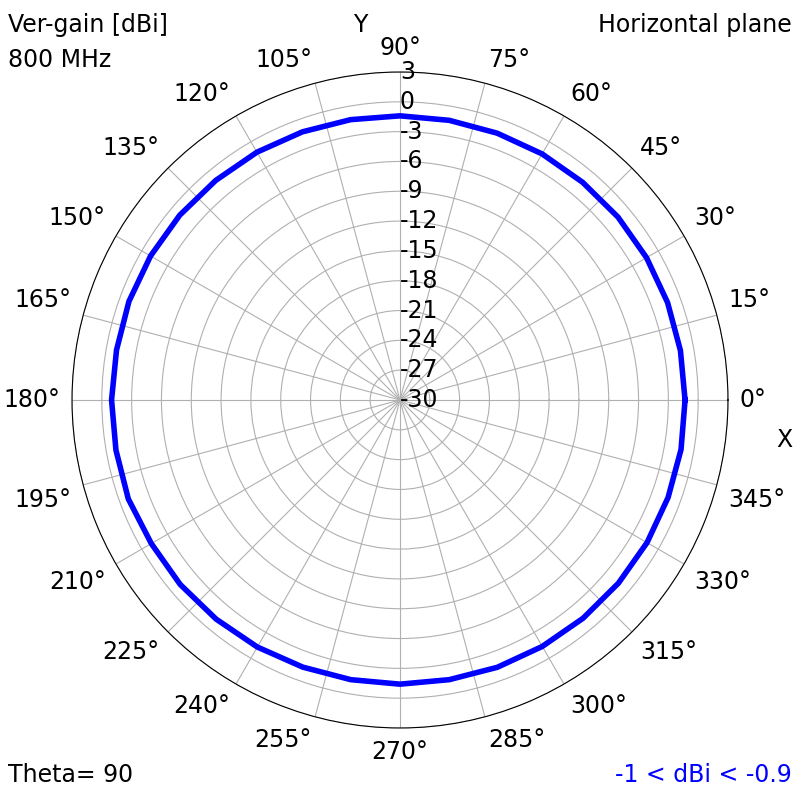

| 800 MHz | ||
|
|
|

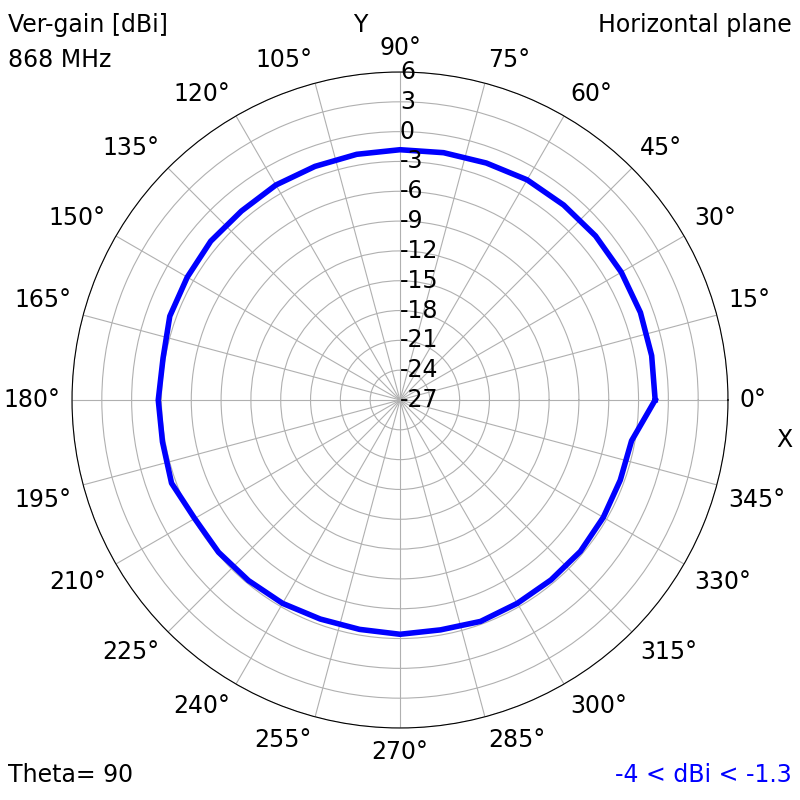

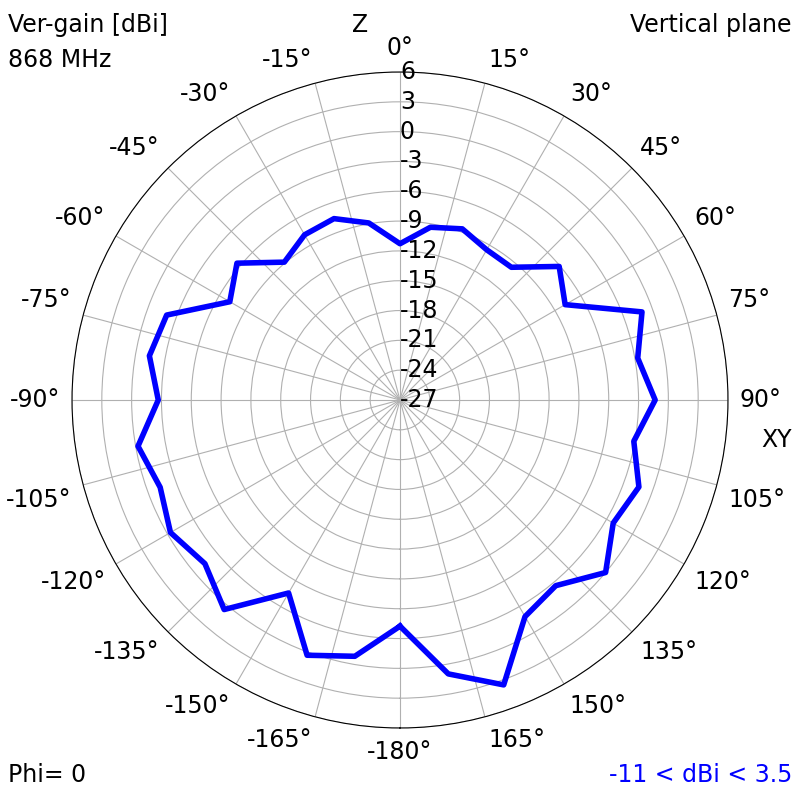

| 868 MHz | ||
|
|
|

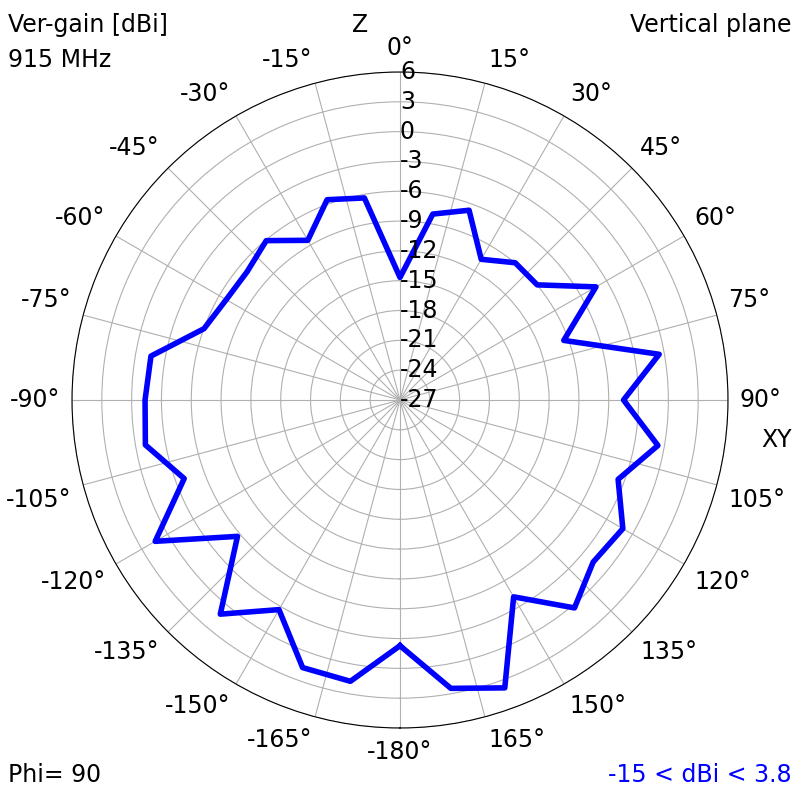

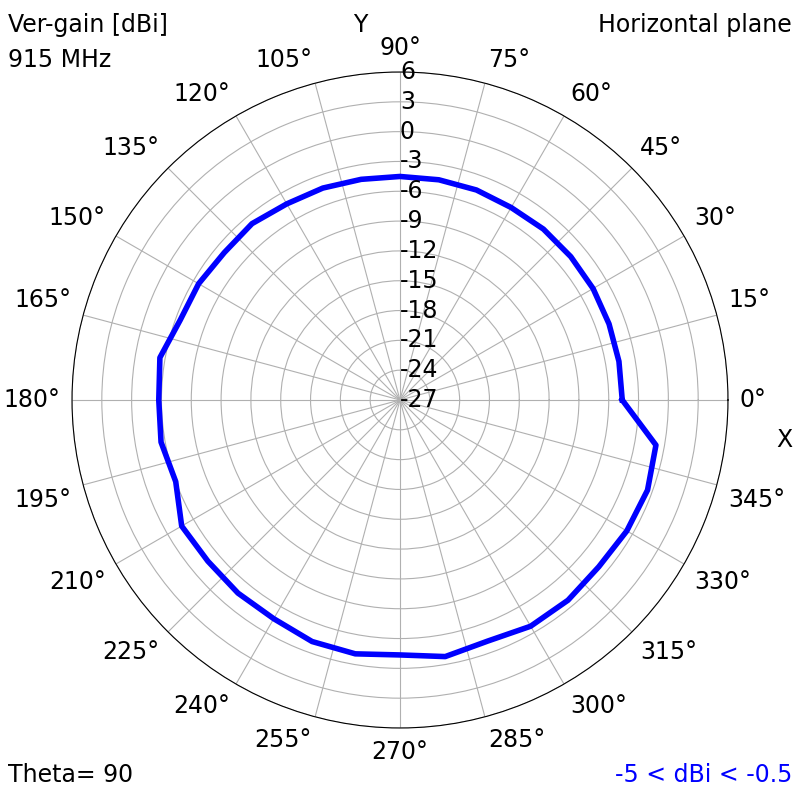

| 915 MHz | ||
|
|
|

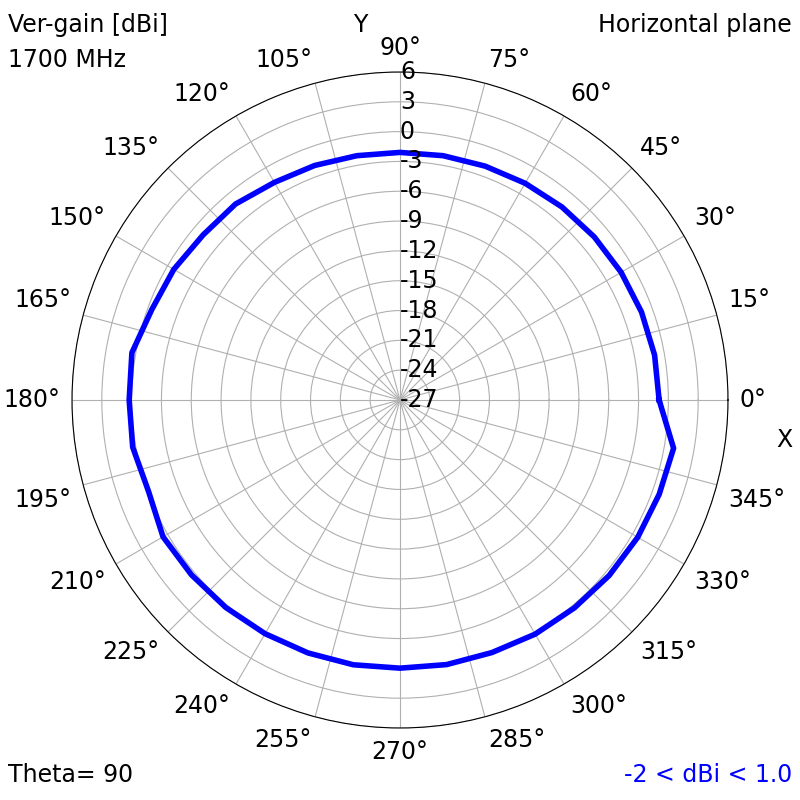

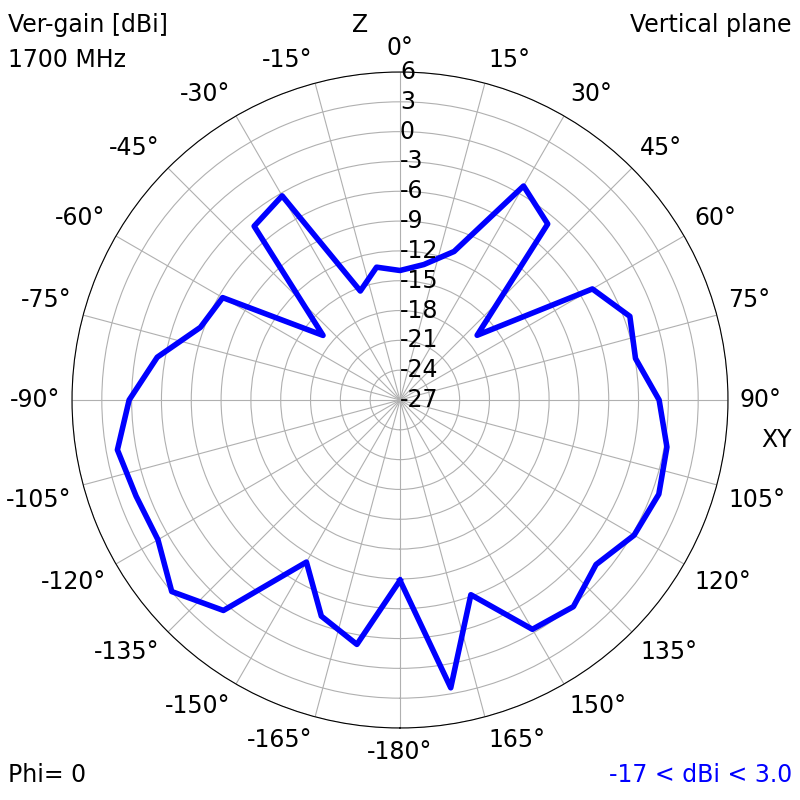

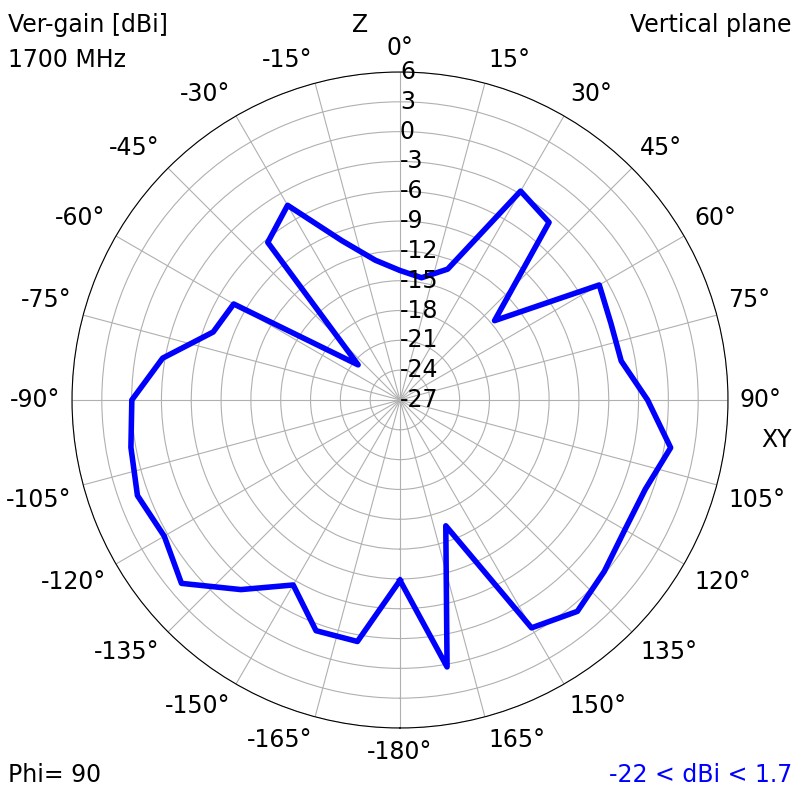

| 1700 MHz | ||
|
|
|

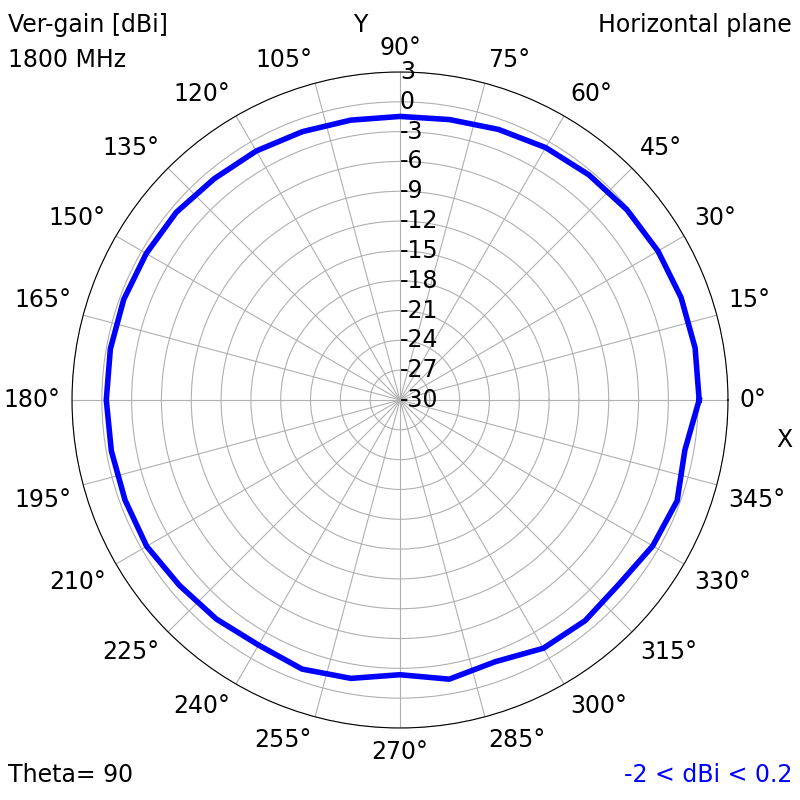

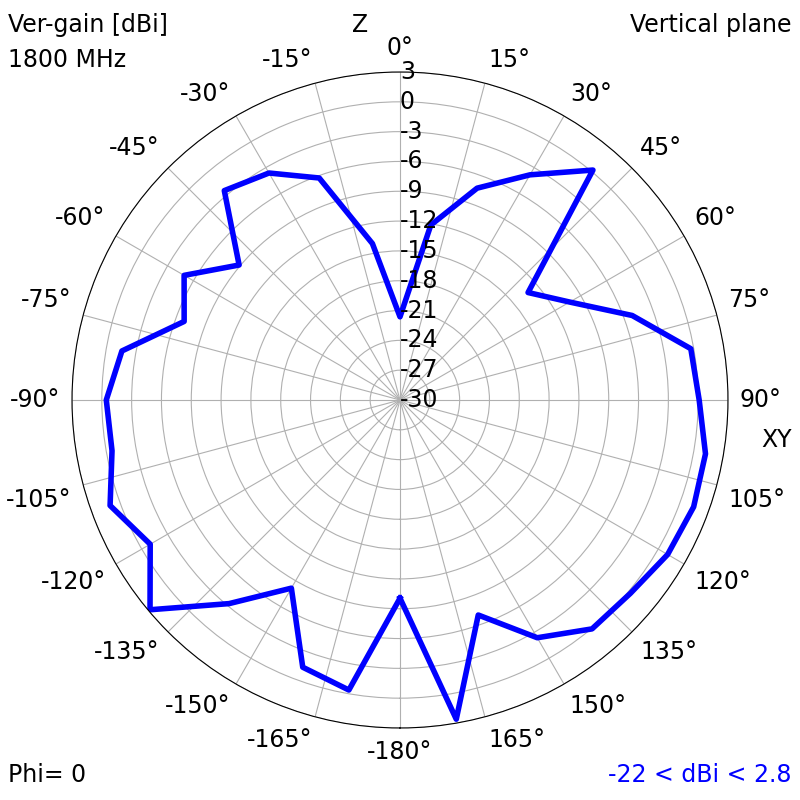

| 1800 MHz | ||
|
|
|

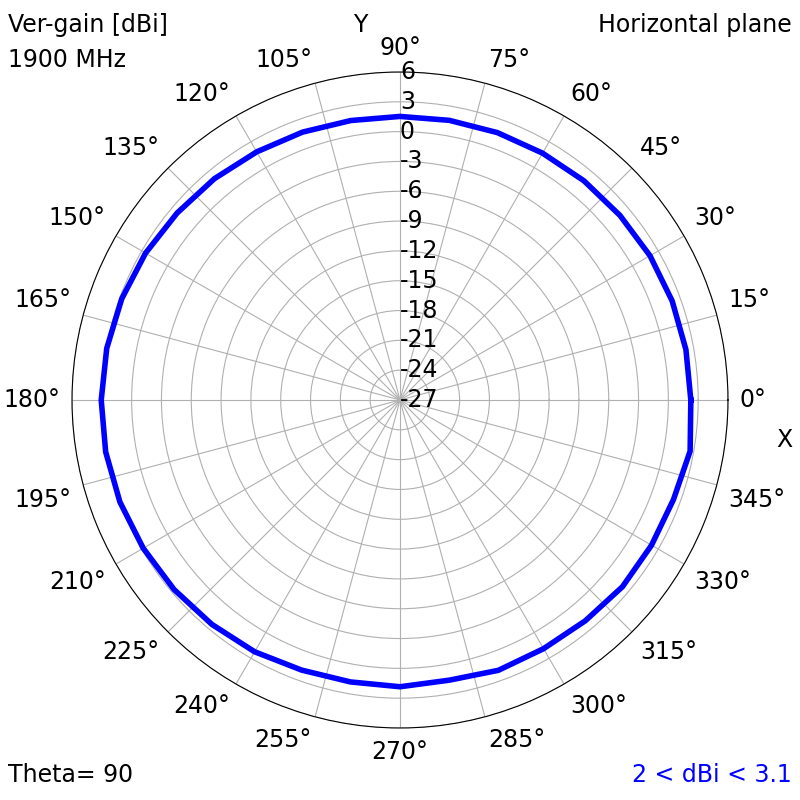

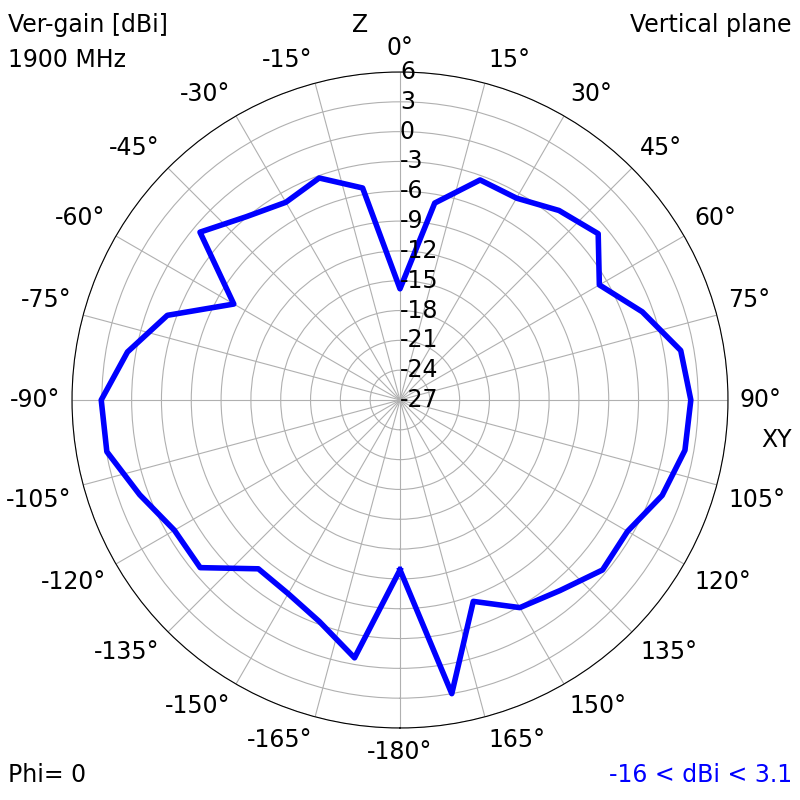

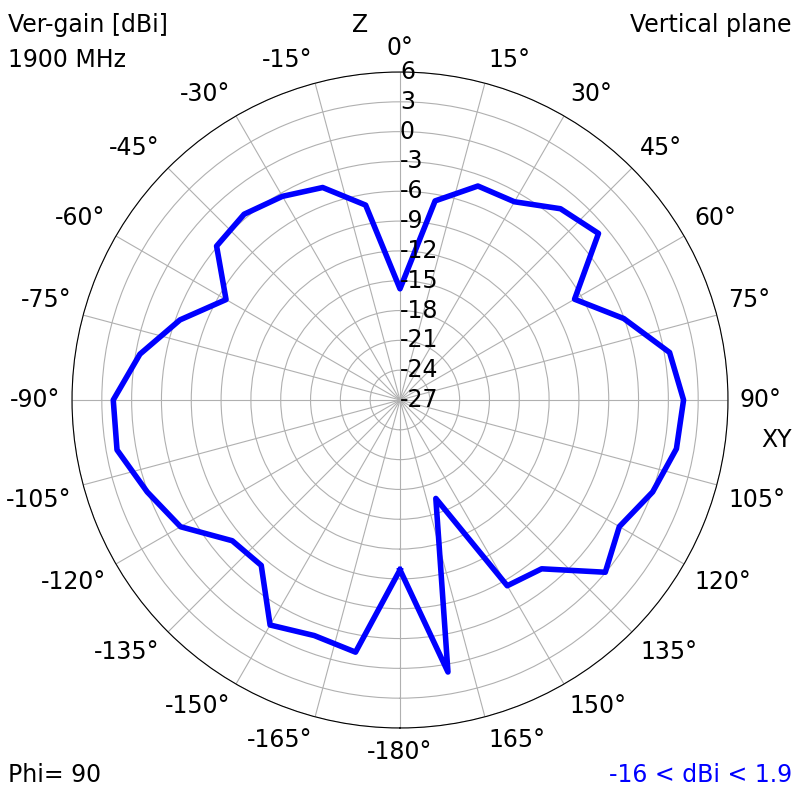

| 1900 MHz | ||
|
|
|

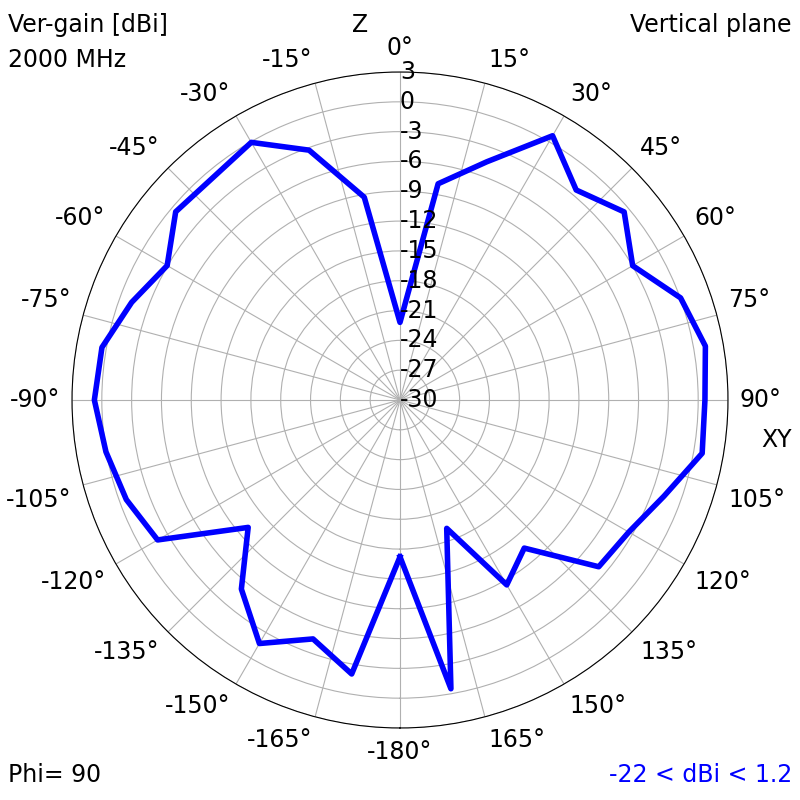

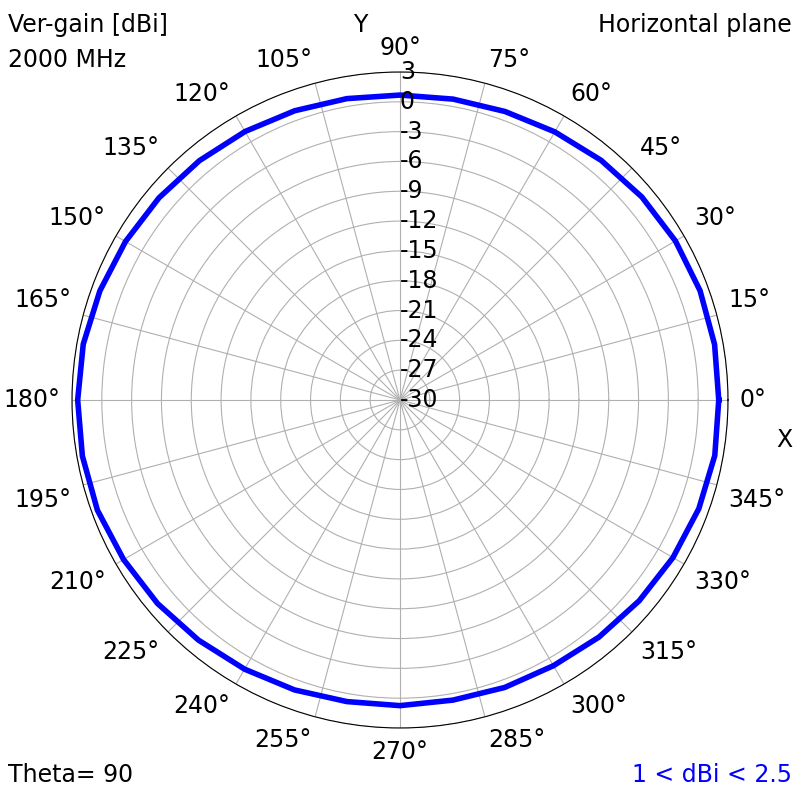

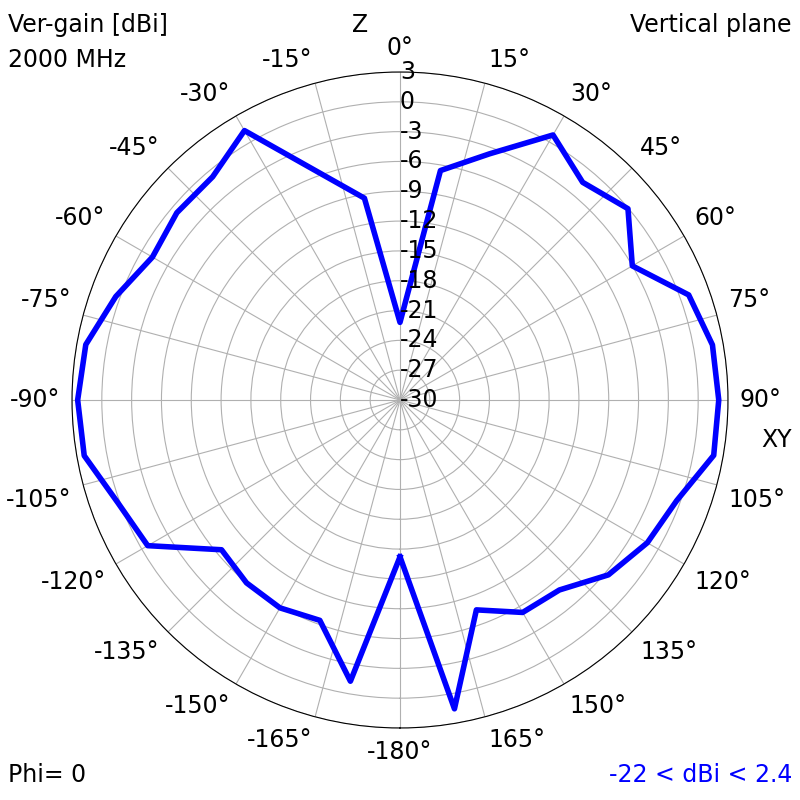

| 2000 MHz | ||
|
|
|

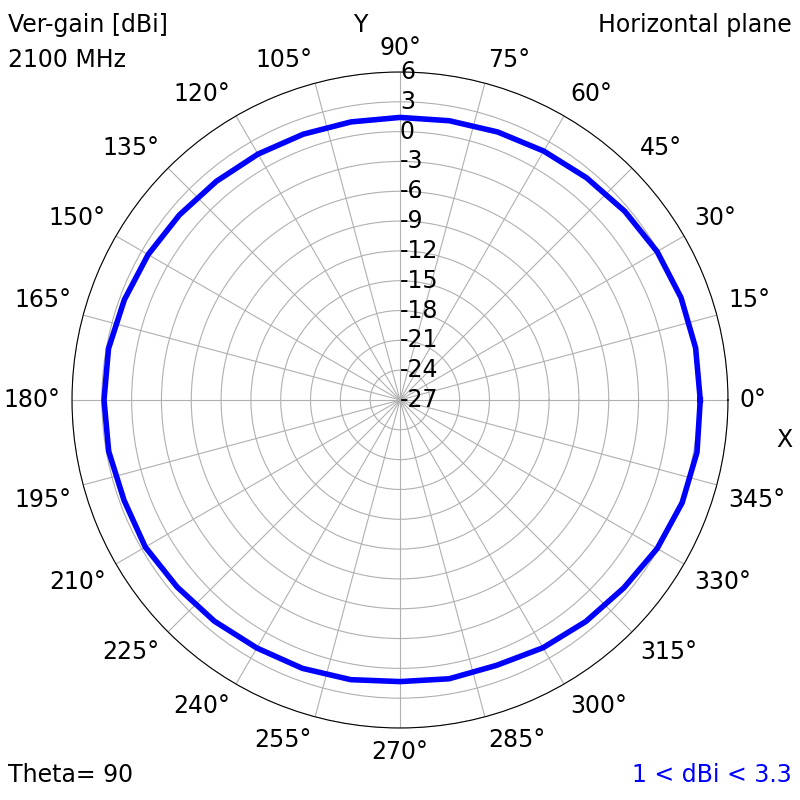

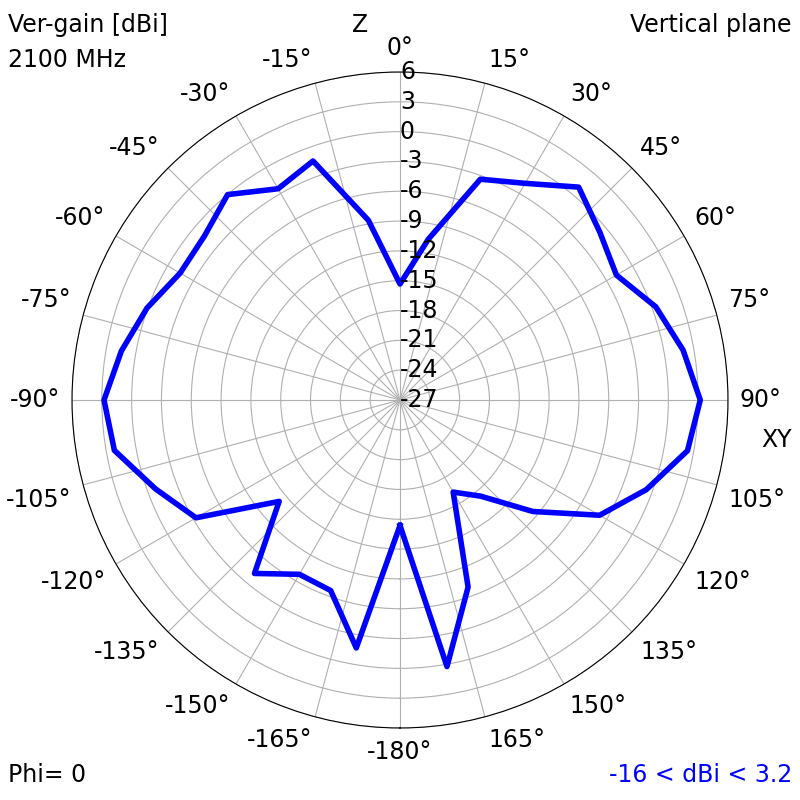

| 2100 MHz | ||
|
|
|

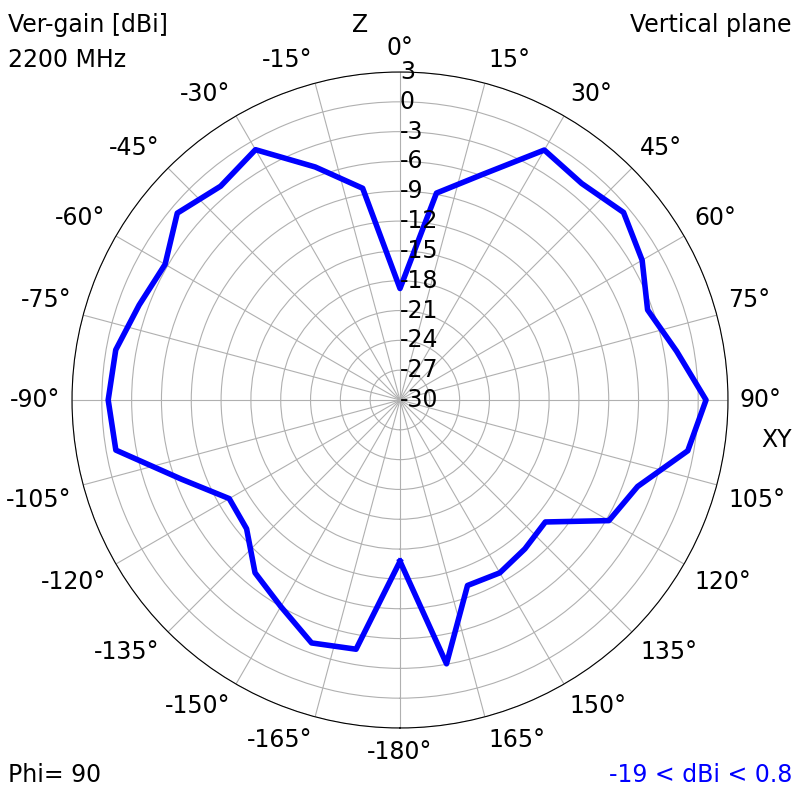

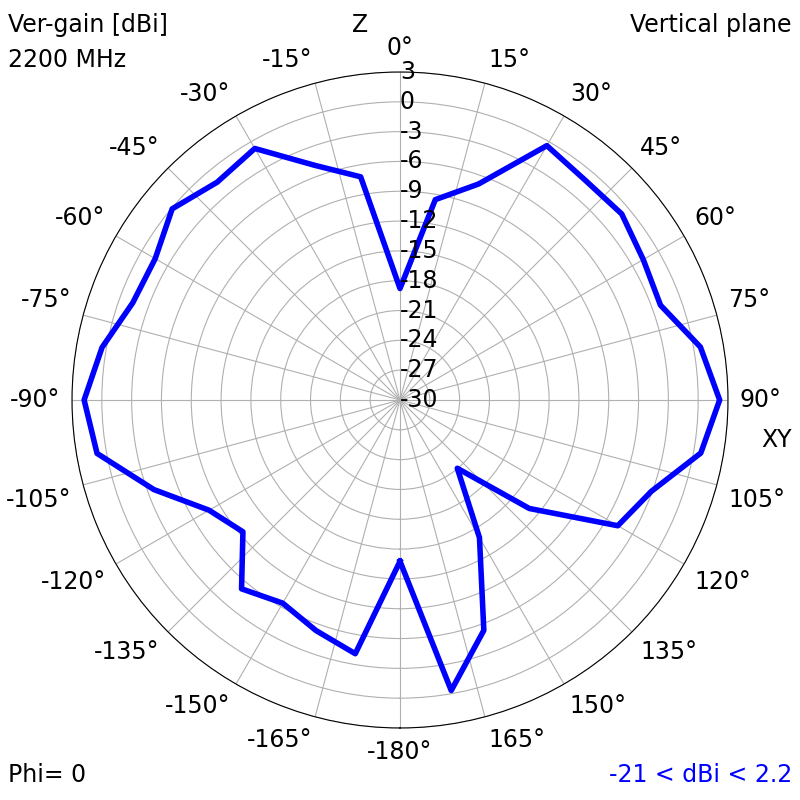

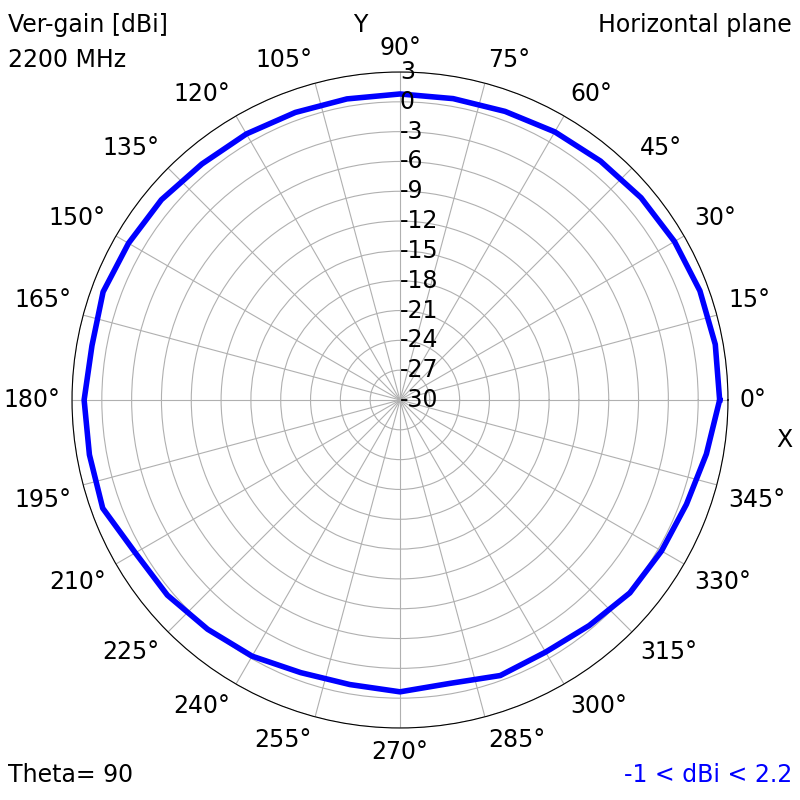

| 2200 MHz | ||
|
|
|

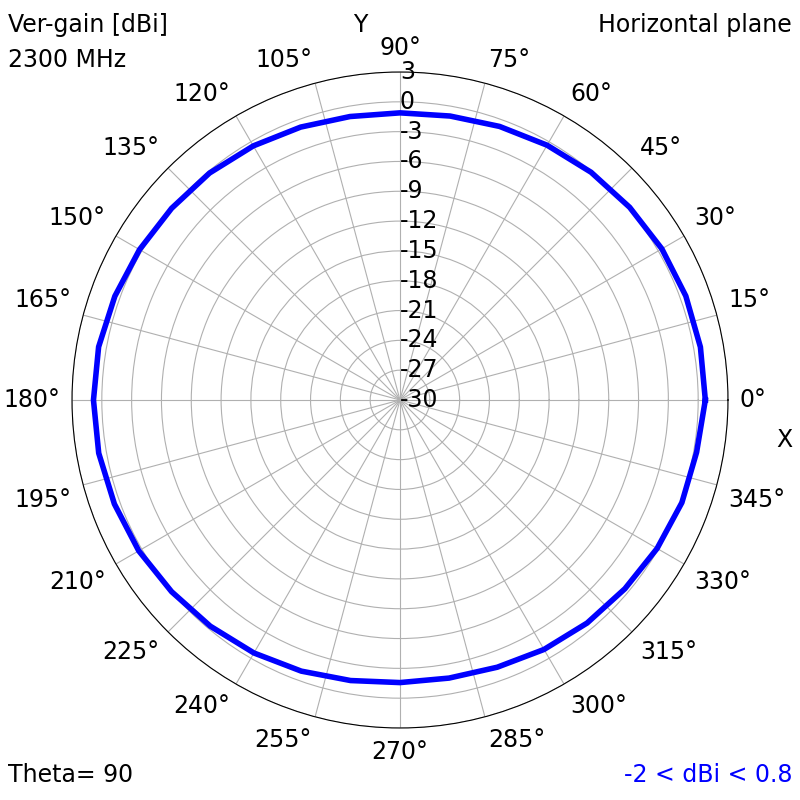

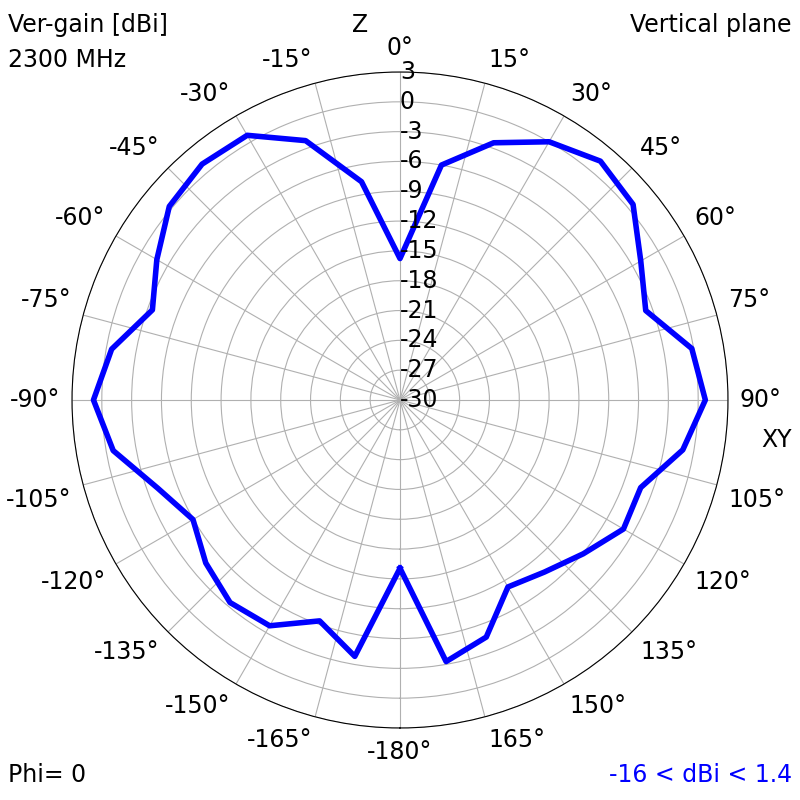

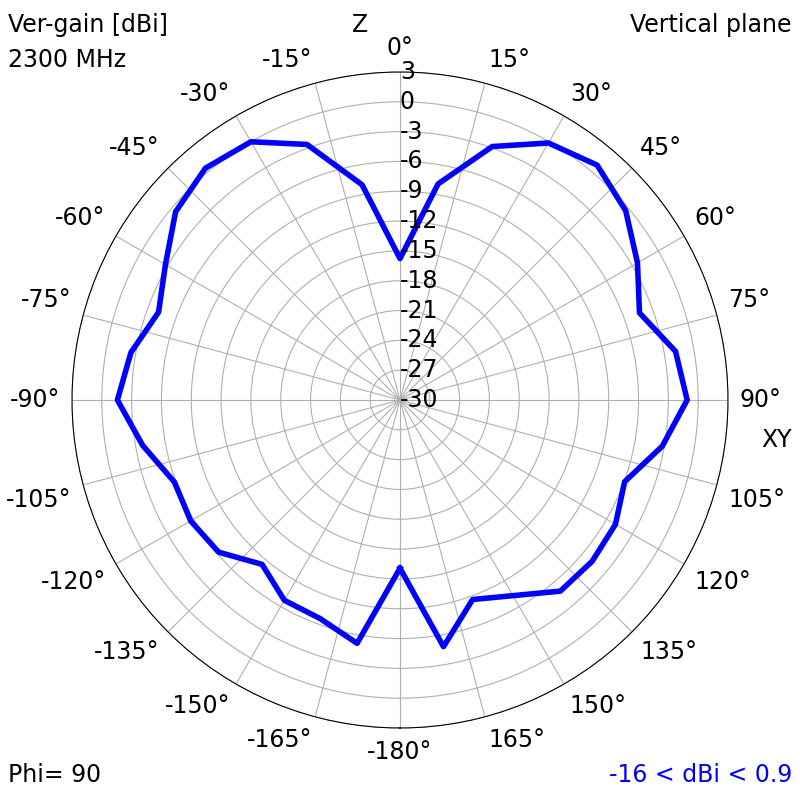

| 2300 MHz | ||
|
|
|

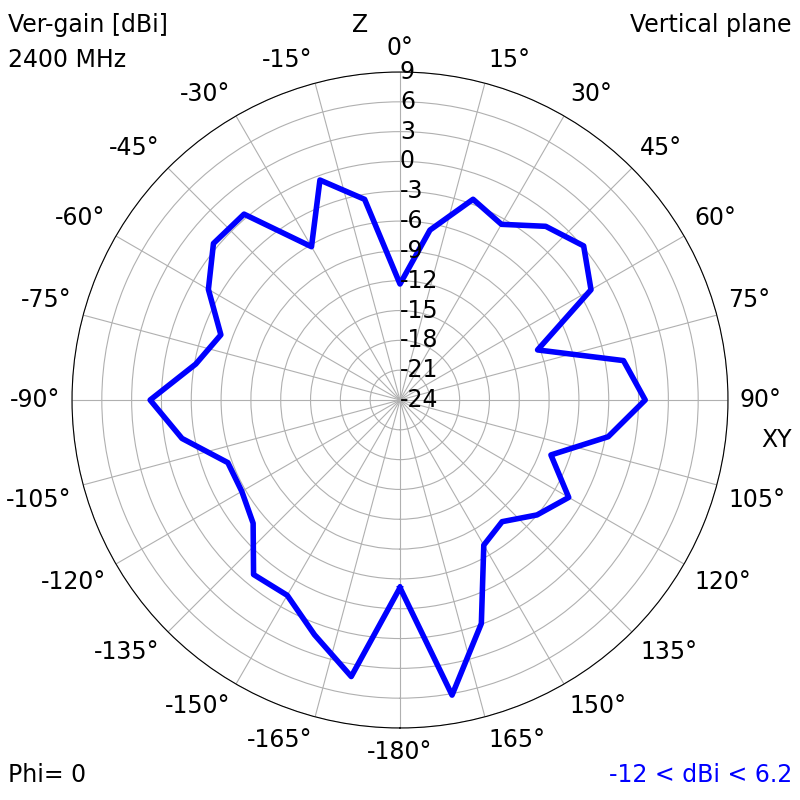

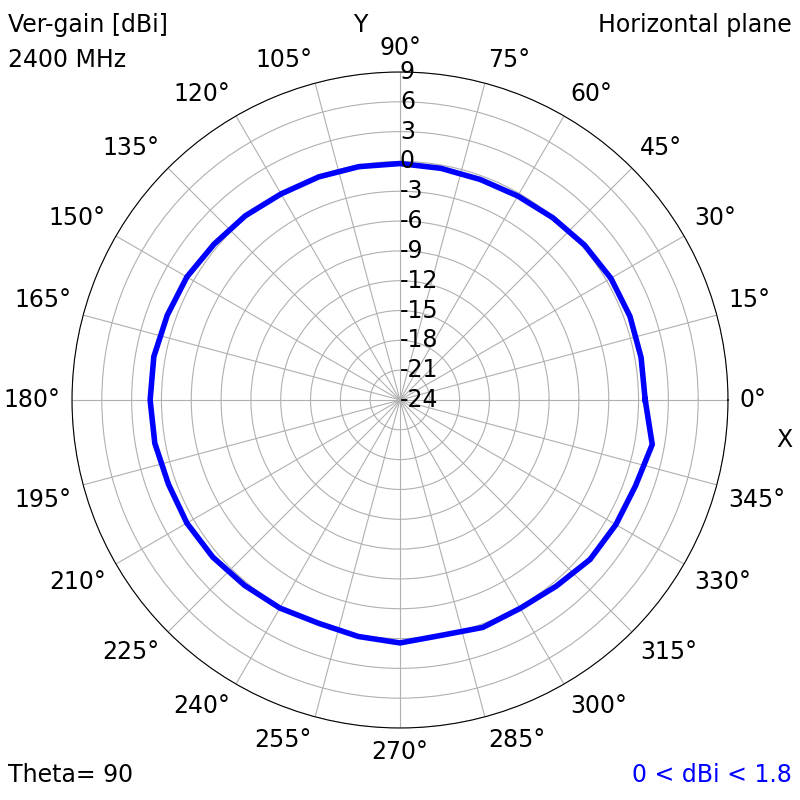

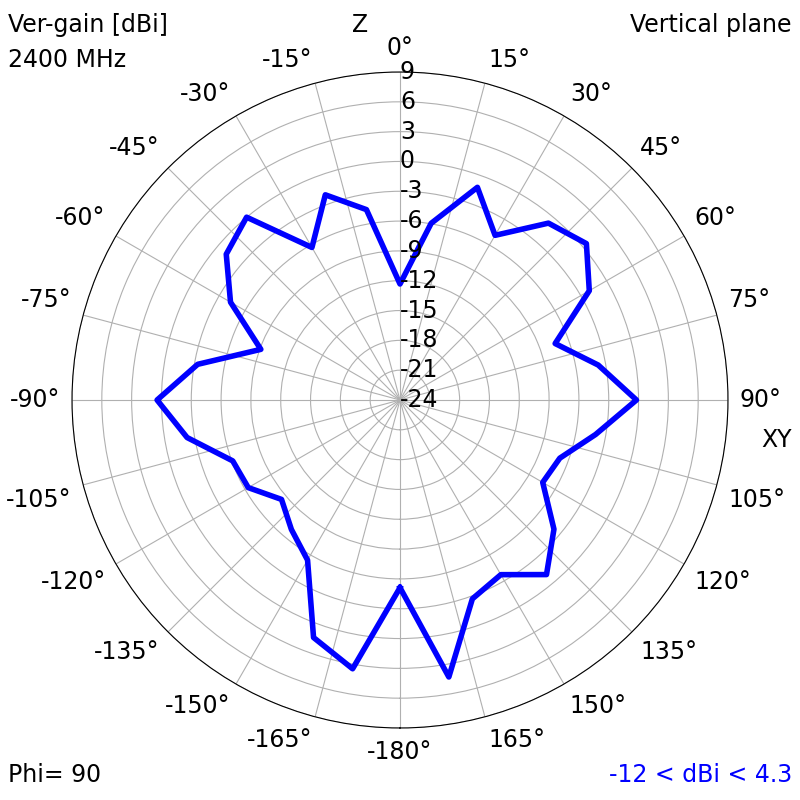

| 2400 MHz | ||
|
|
|

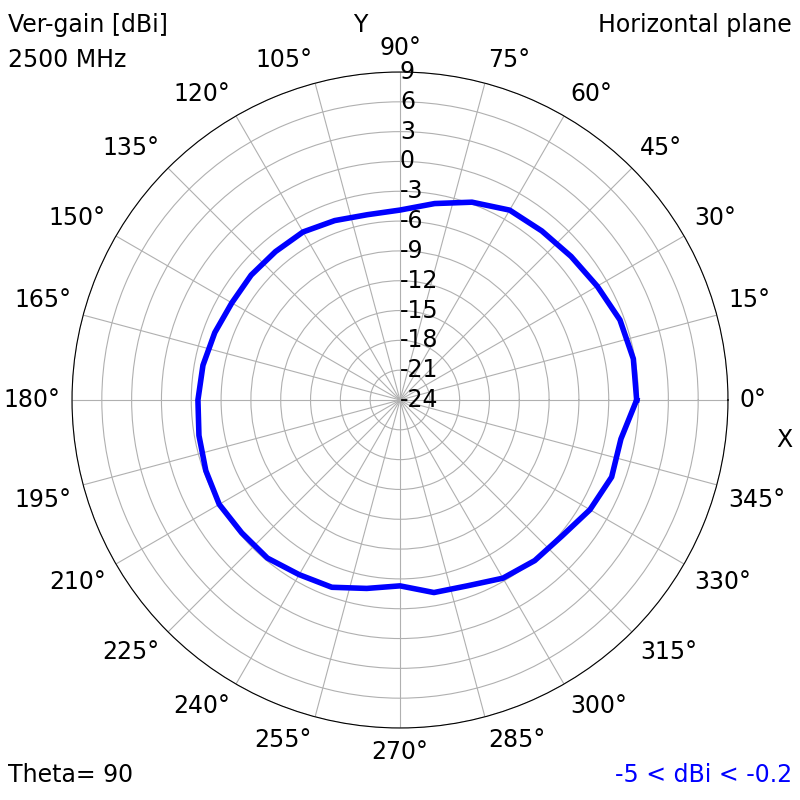

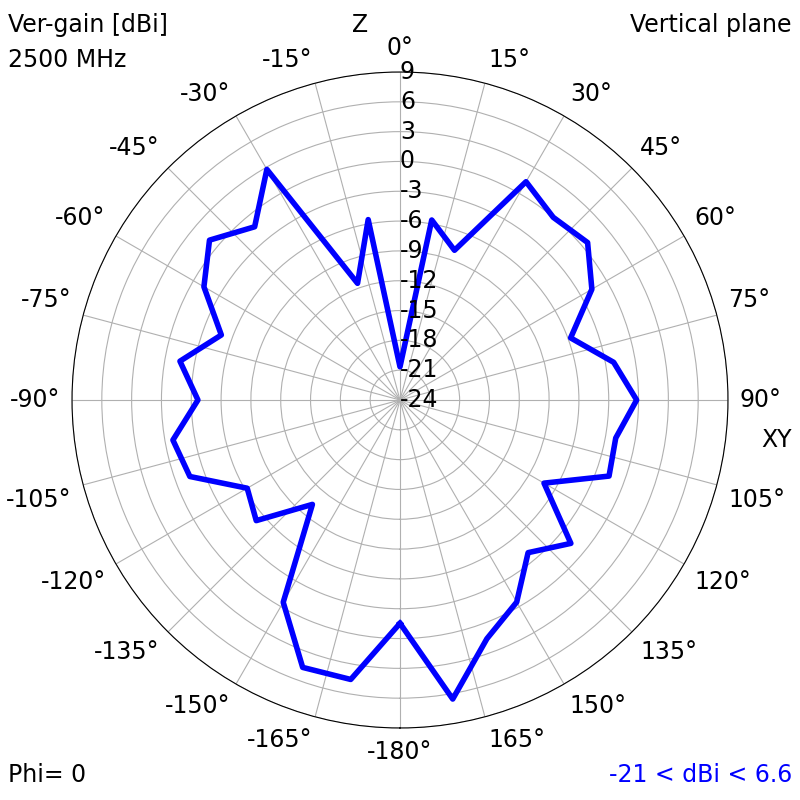

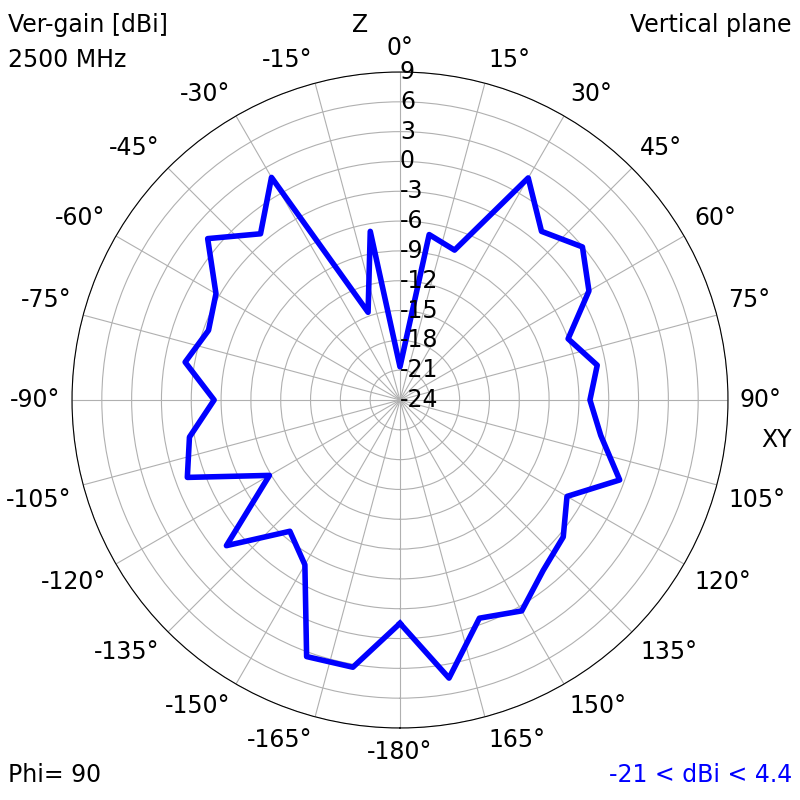

| 2500 MHz | ||
|
|
|

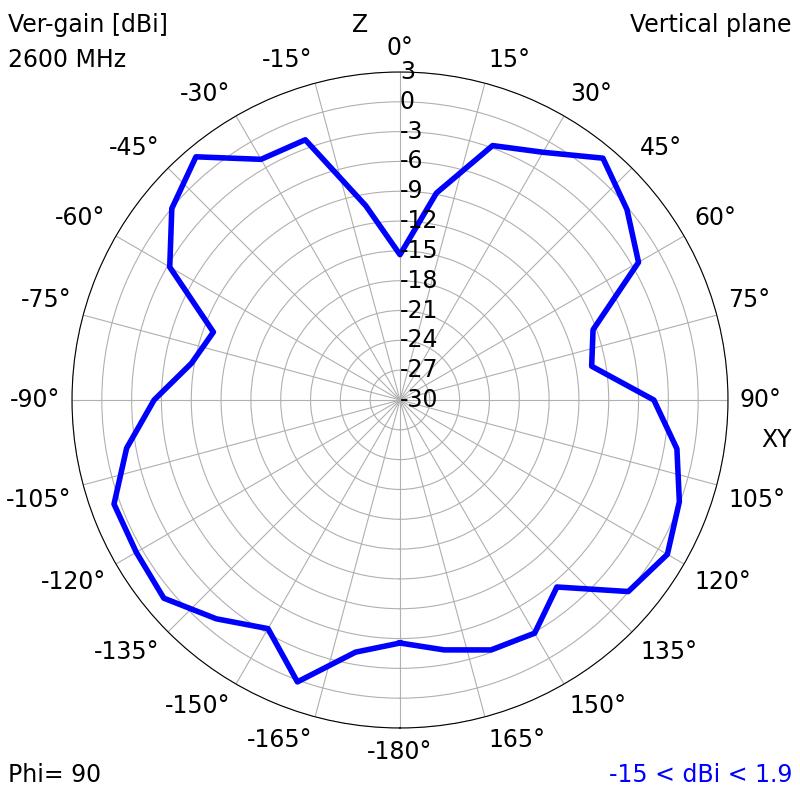

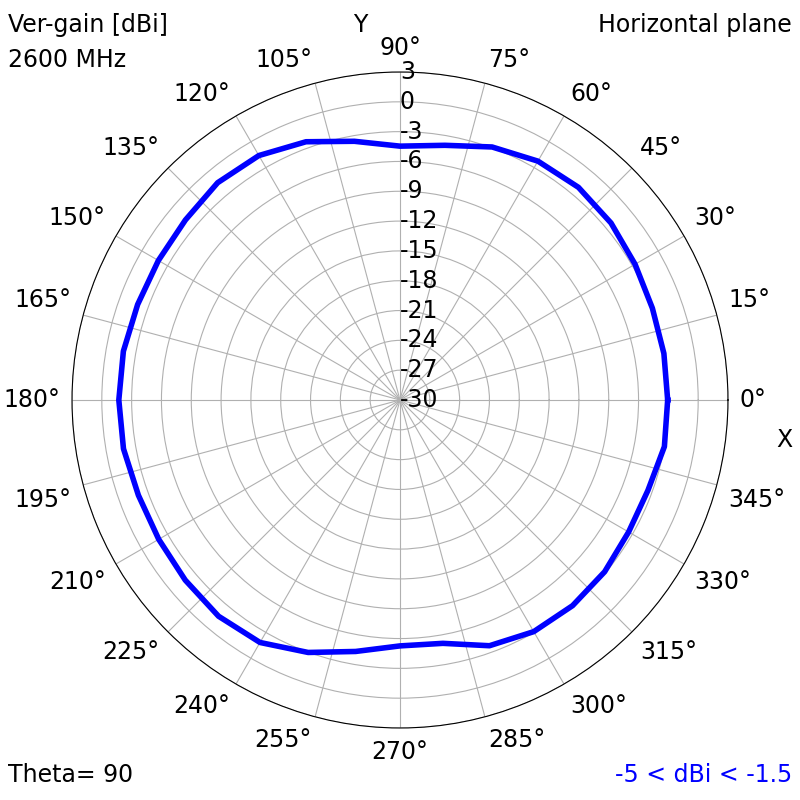

| 2600 MHz | ||
|
|
|

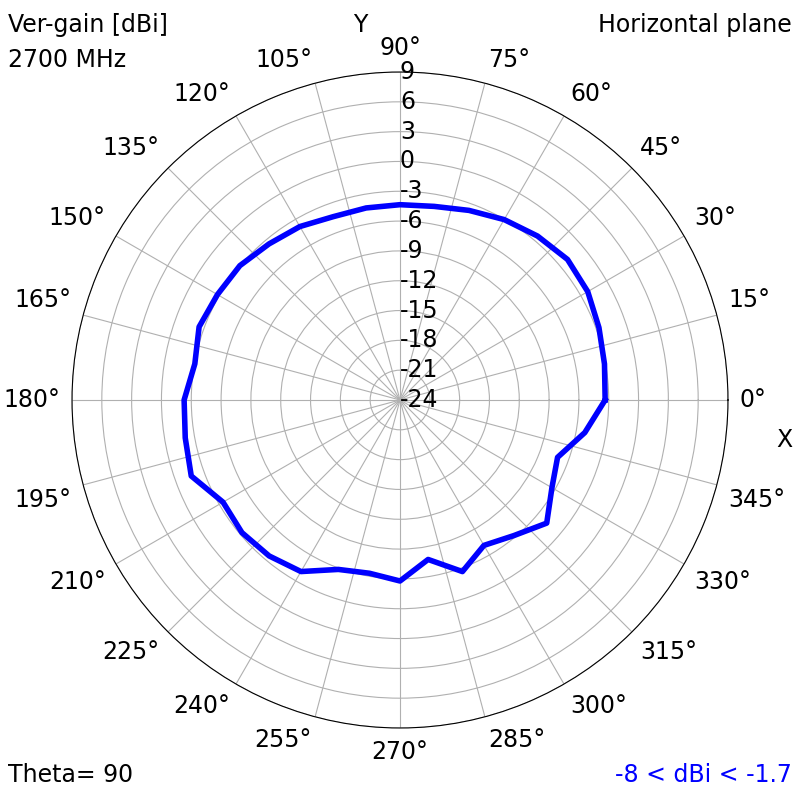

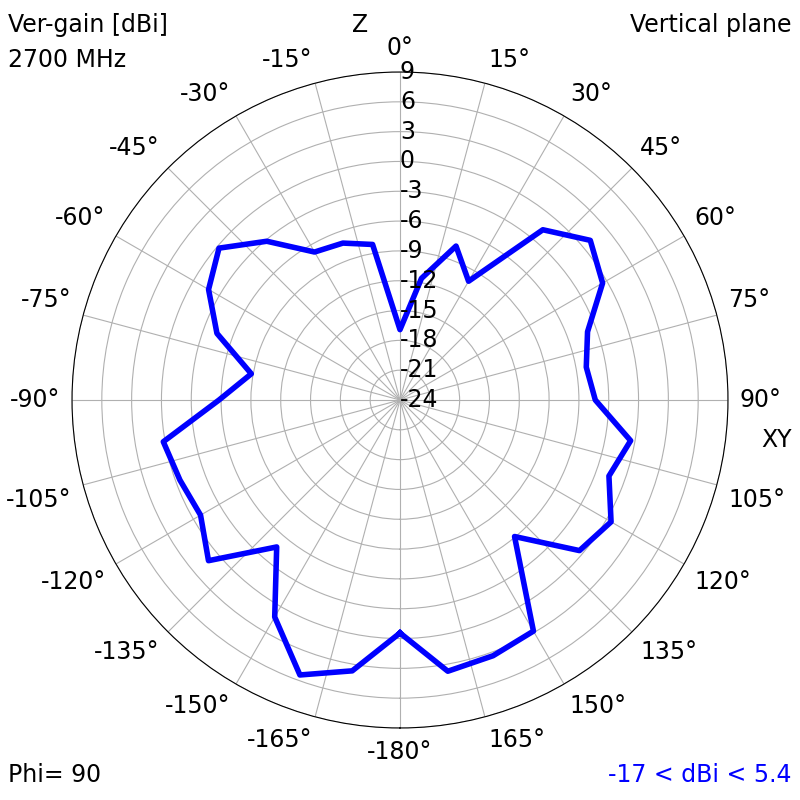

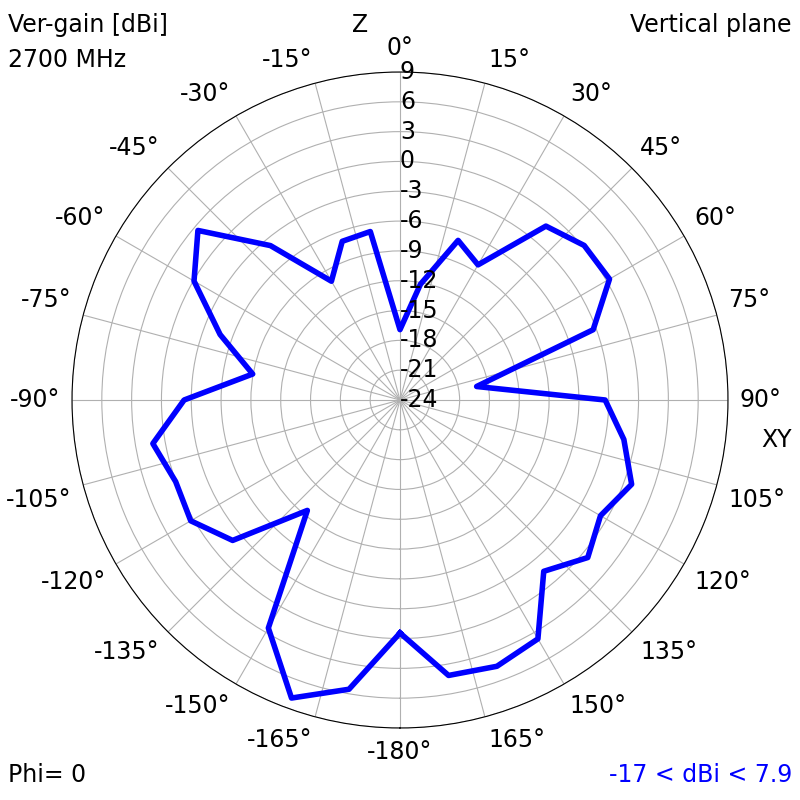

| 2700 MHz | ||
|
|
|

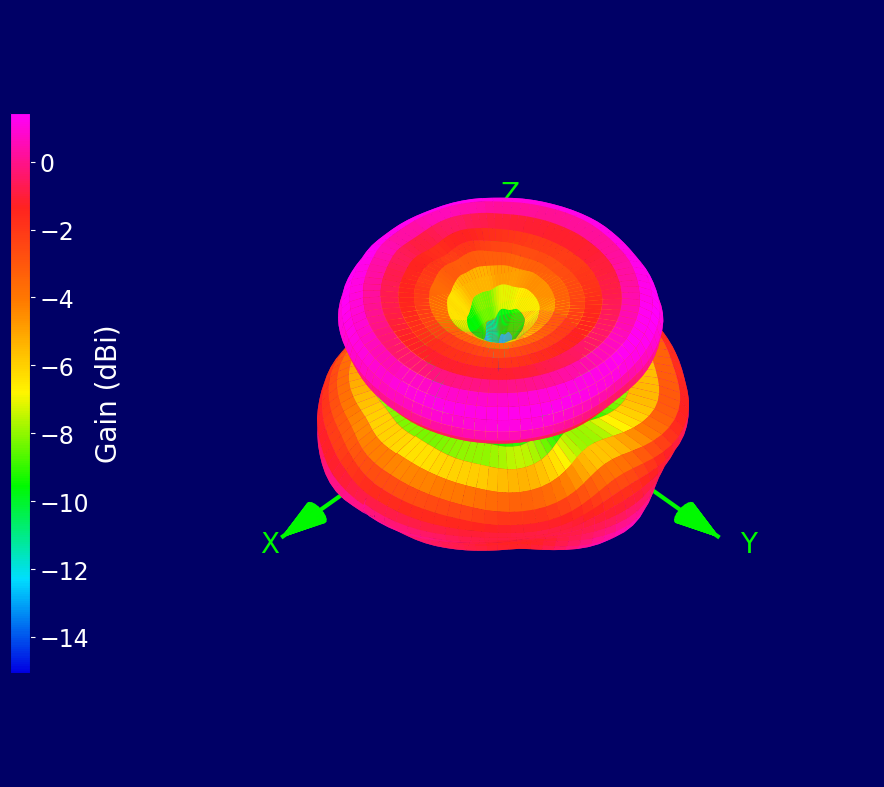

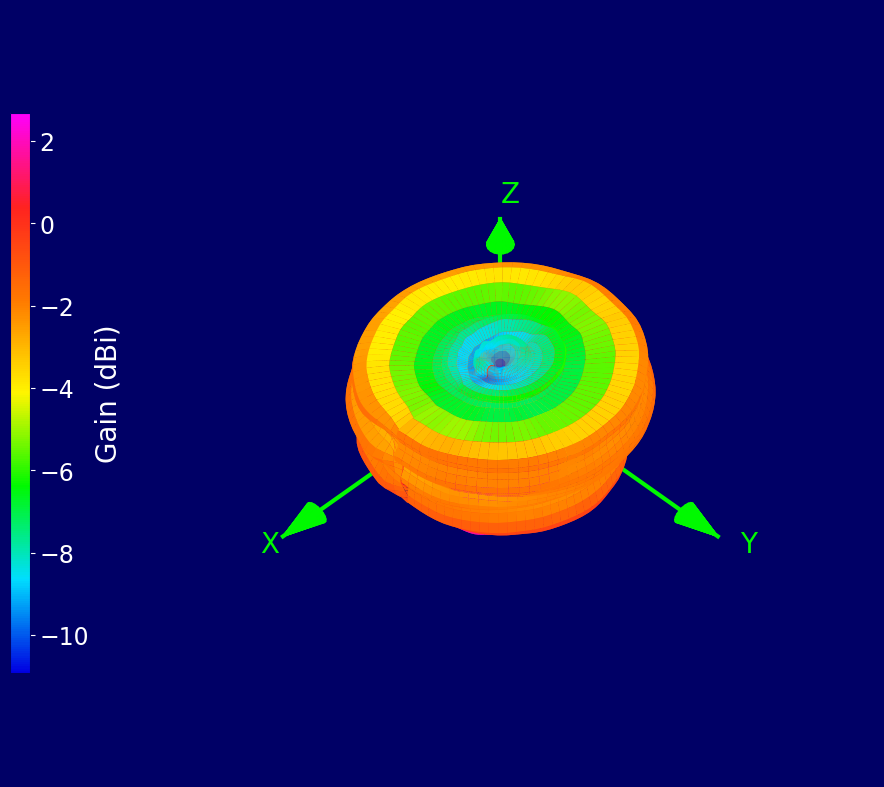

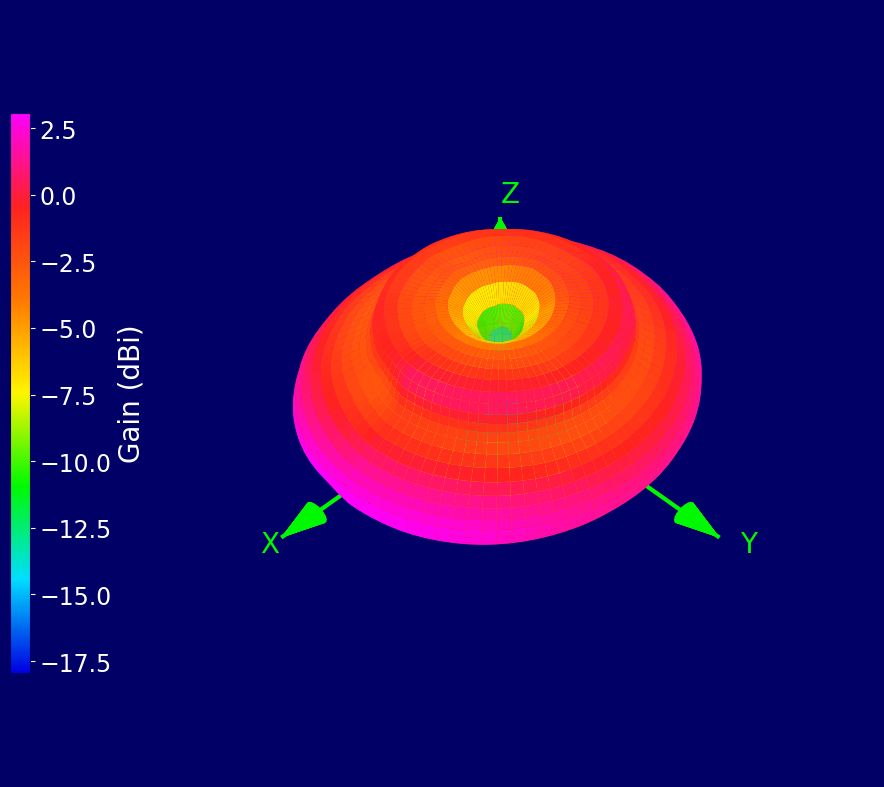

¶ 3D Radiation Plots

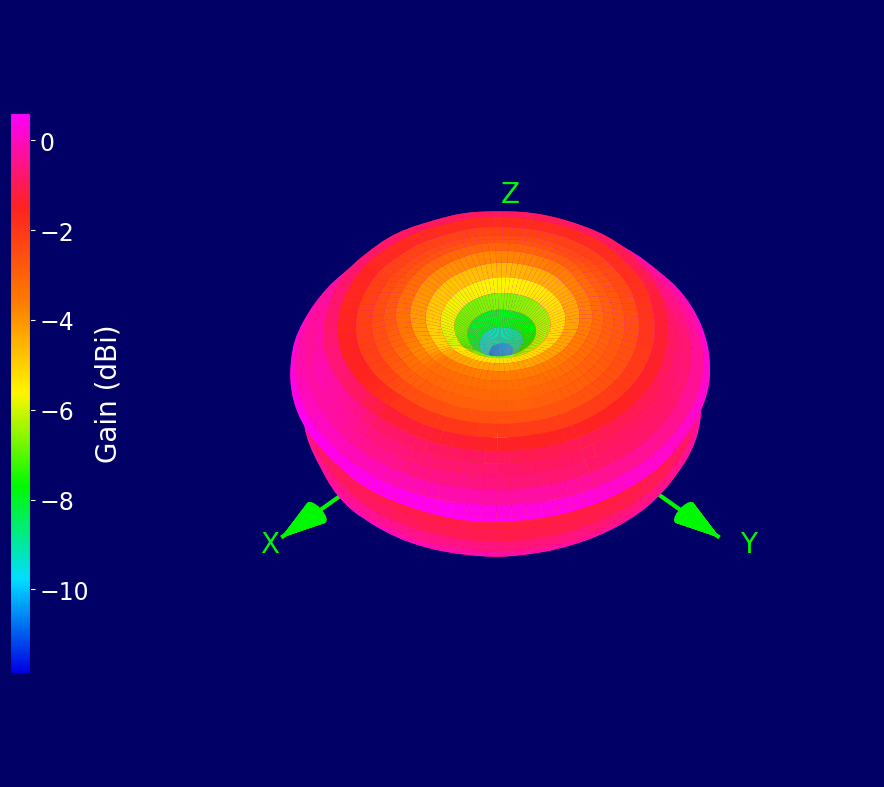

| 700 MHz | 800 MHz | 868 MHz |
|
|
|

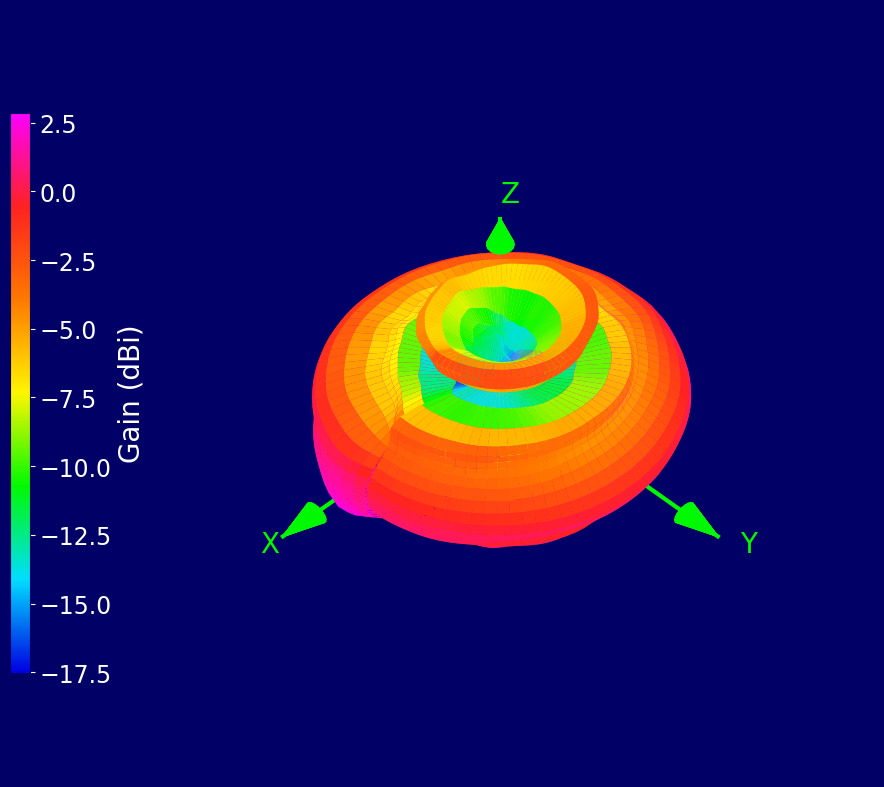

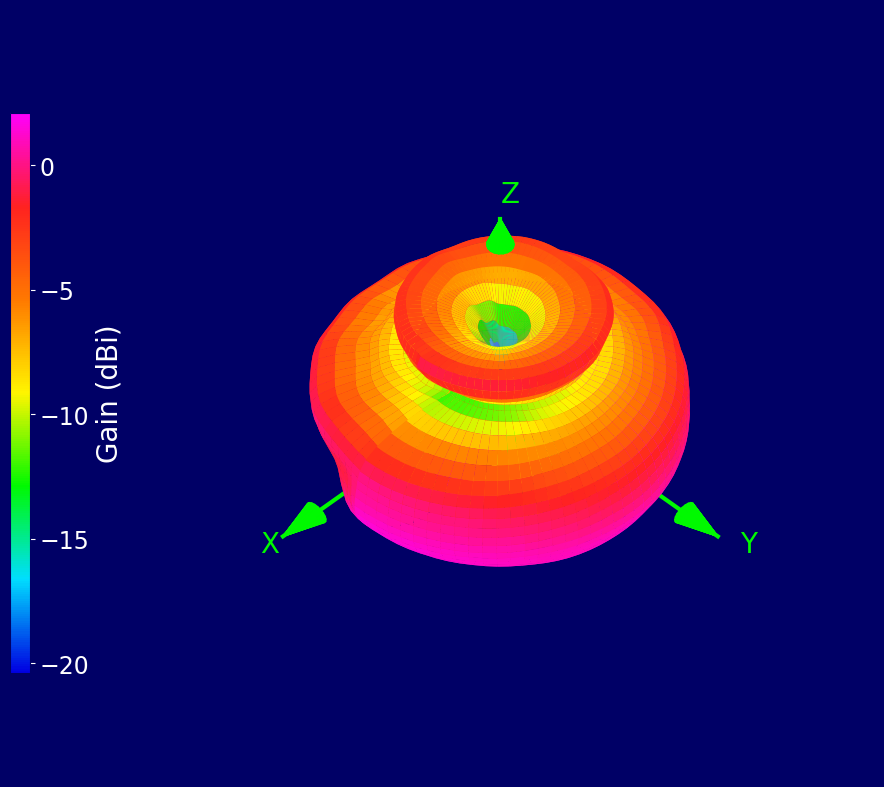

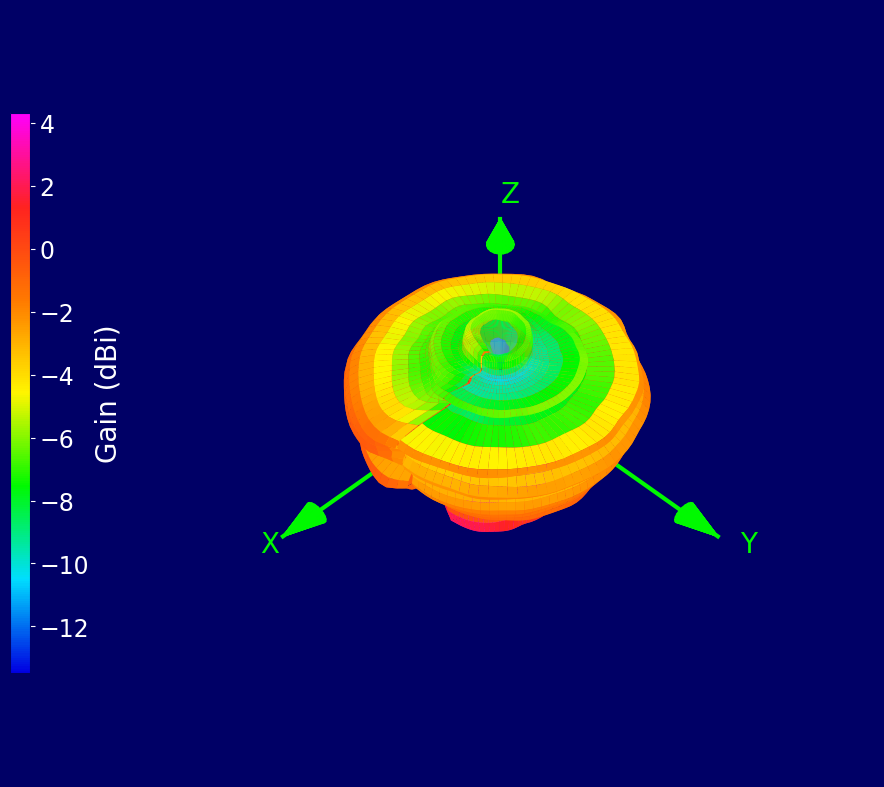

| 915 MHz | 1700 MHz | 1800 MHz |
|
|
|

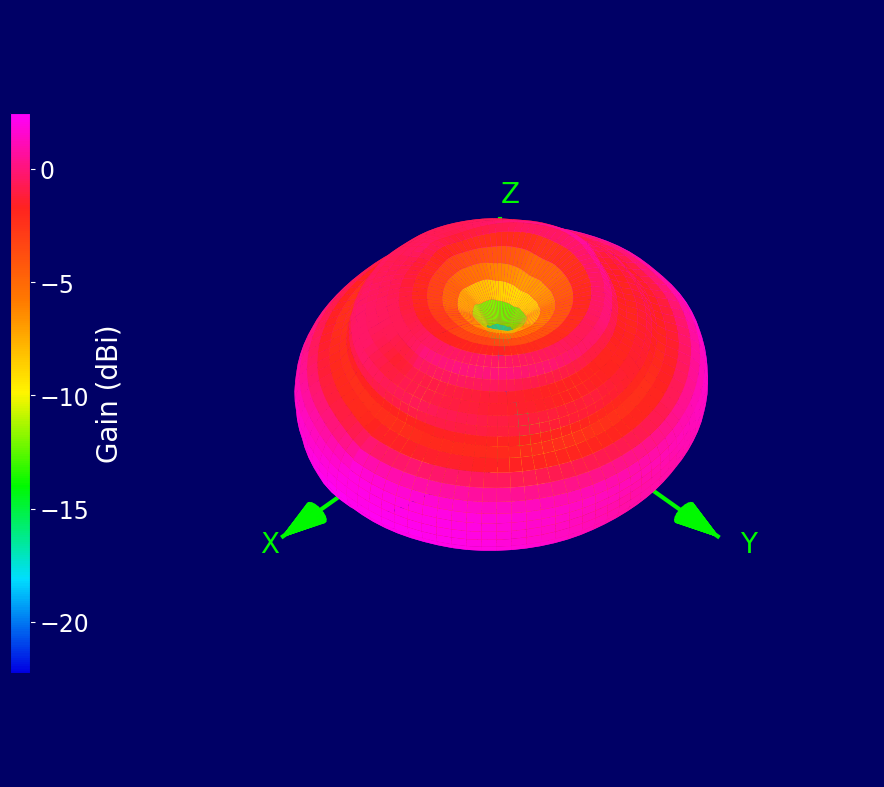

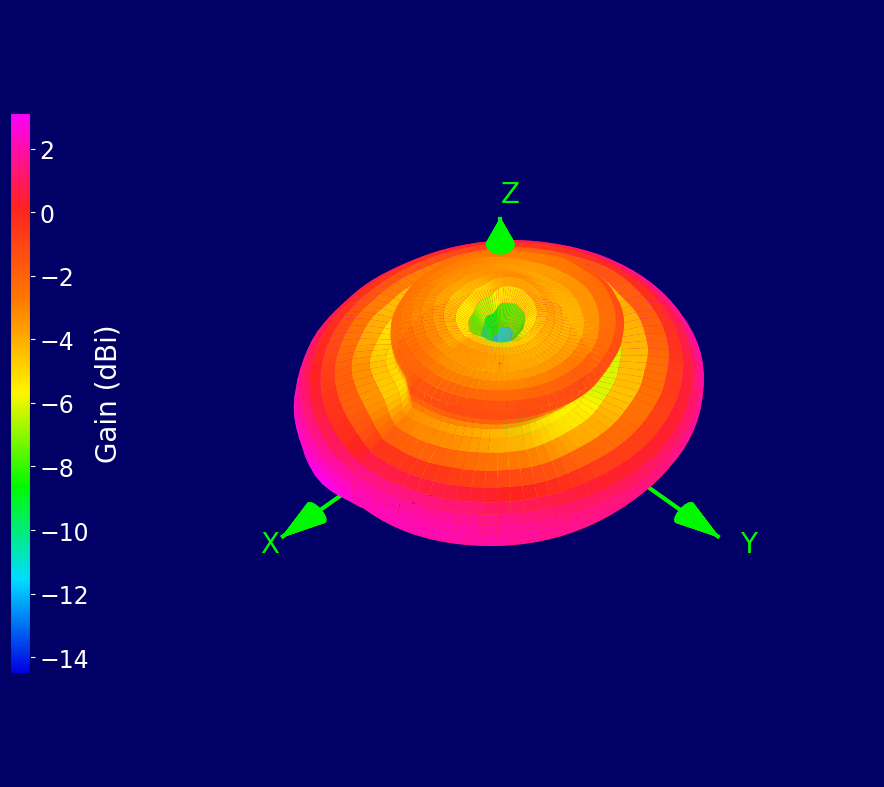

| 1900 MHz | 2000 MHz | 2100 MHz |
|
|
|

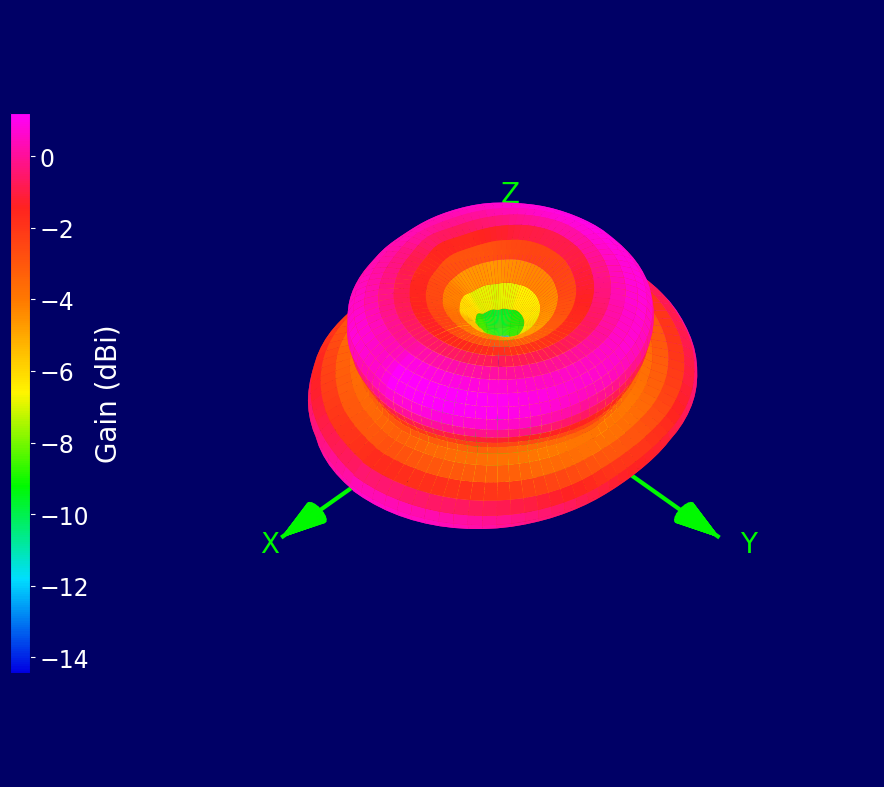

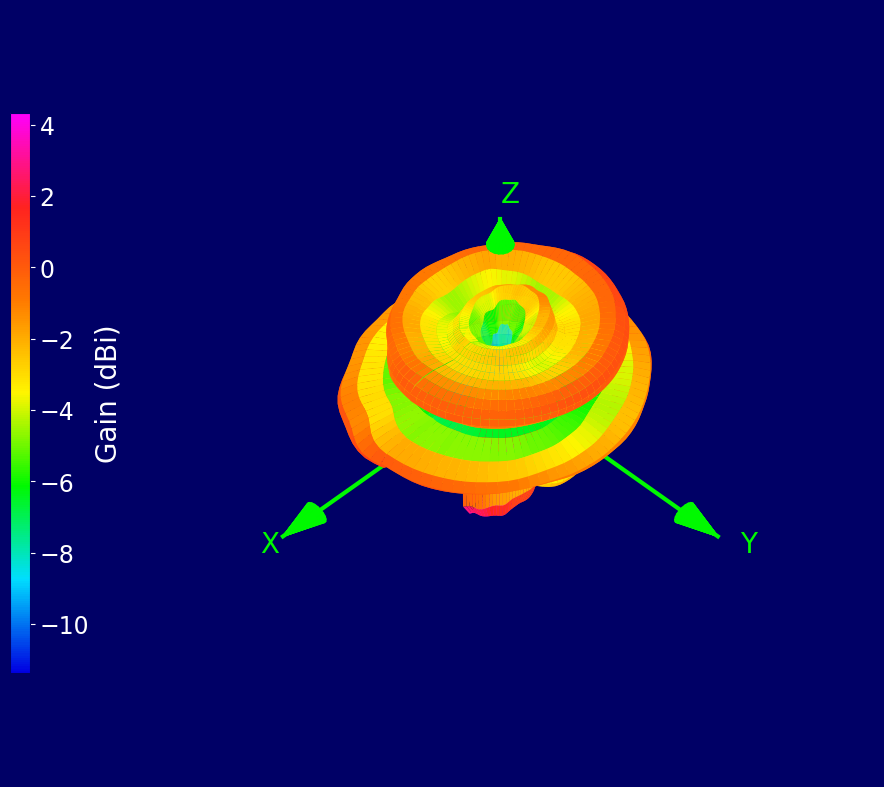

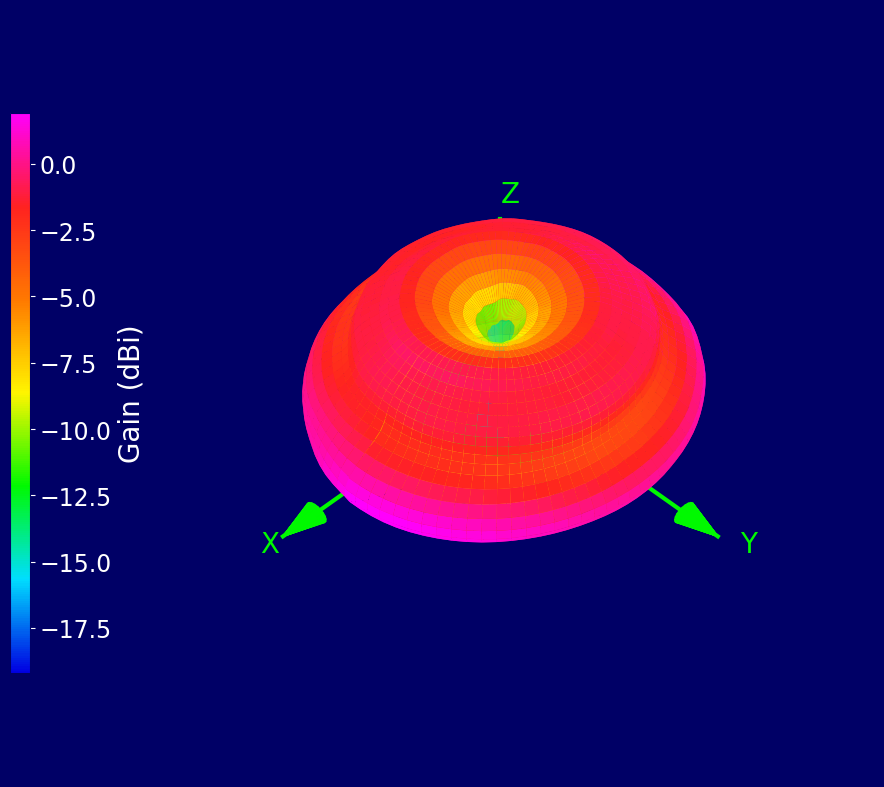

| 2200 MHz | 2300 MHz | 2400 MHz |
|
|
|

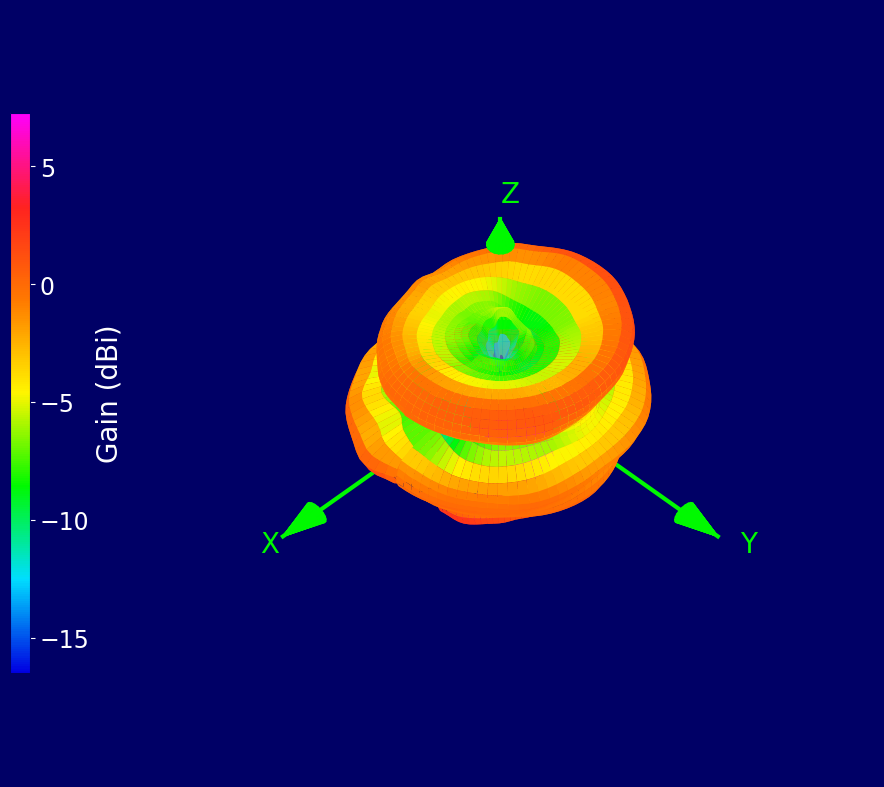

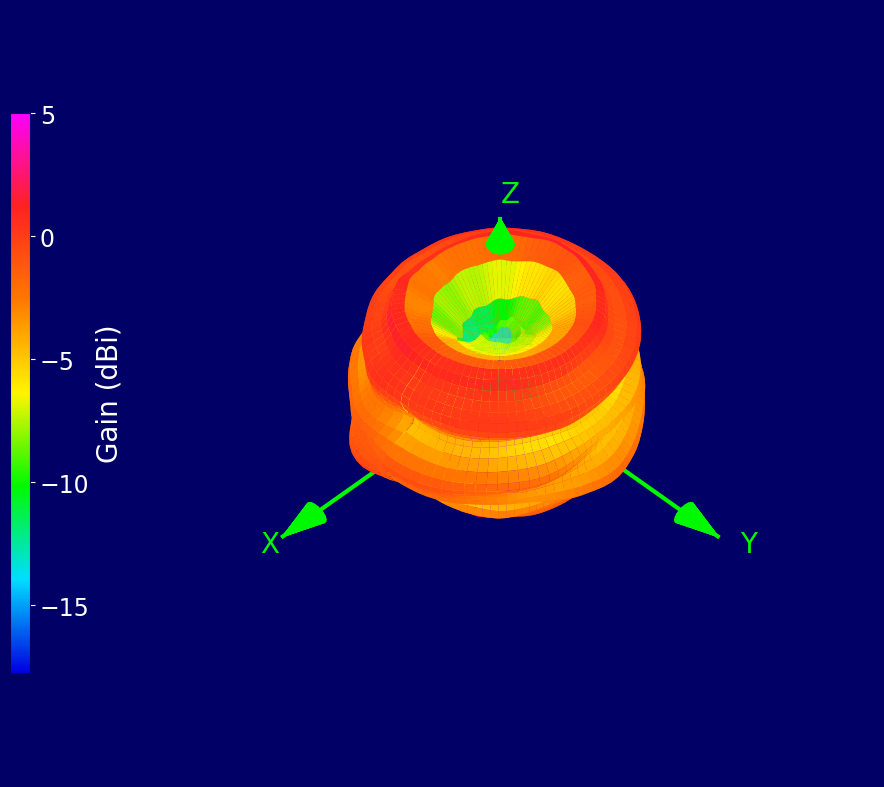

| 2500 MHz | 2600 MHz | 2700 MHz |
|
|
|
¶ Ordering Details
| Part Number | Description |
|---|---|
| DELTA41/x/SMAM/S/S/32 |
Large Flat 4G & LPWAN Hinged Antenna SMA Male Connector |
