¶ General Description

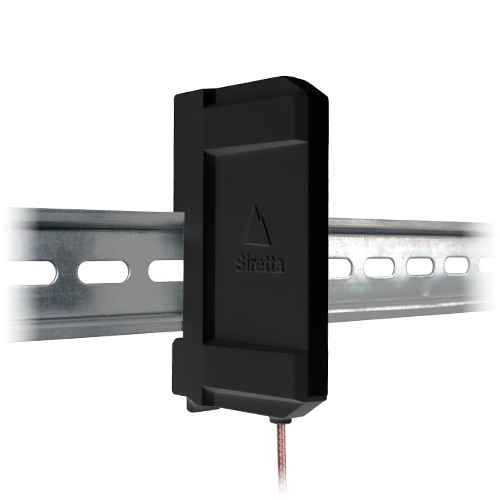

The Delta 68 is a compact DIN-rail mounted antenna designed for reliable wireless connectivity in industrial infrastructure equipment. Supporting 2G, 3G, 4G LTE, LTE-M, NB-IoT and 5G NR, together with Wi-Fi, Bluetooth and ISM technologies, it is ideal for industrial IoT gateways, smart utility equipment and connected control systems.
With approximately 0–3 dBi gain, the Delta 68 delivers dependable omnidirectional performance while supporting multiple wireless technologies from a single antenna, reducing installation complexity and the need for multiple antennas.
The DIN EN 50022 / IEC 60715 mounting format enables fast, secure installation on standard 35 mm DIN rails – creating a neat, space-efficient installation while maintaining the correct vertical orientation. A right-angle Fakra-D jack connector is supplied as standard, with alternative connector options available for greater installation flexibility.
¶ Key Features
- Provides connectivity for 2G, 3G, 4G LTE, LTE-M, NB-IoT & 5G NR
- Supports Wi-Fi, Bluetooth & ISM wireless technologies
- 0–3 dBi gain
- DIN EN 50022 / IEC 60715 35 mm DIN-rail mounting
- Rugged housing suited to long-term infrastructure deployments
¶ Typical Applications
- Electrical and control cabinets
- Smart metering and utility infrastructure
- Industrial routers and IoT gateways
- Building automation and smart infrastructure
- Remote monitoring and telemetry systems
Wideband
Coverage
|
0–3 dBi
Gain
|
Cellular
2G–5G Support
|
Wi-Fi & ISM
2.4 GHz & 5 GHz
|
DIN-Rail Mount
DIN EN 50022 / IEC 60715
|
Product Features
2G
GSM
3G
UMTS
4G
LTE
5G
NR
BLE
Bluetooth
IEEE
802.15.4
ISM
868
ISM
915
ISM
2.4G
LoRa
Wireless
LTE
CAT-M
LTE
NB-IoT
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
Cellular Band Support
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B13
B14
B17
B18
B19
B20
B21
B23
B25
B26
B27
B28
B29
B30
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B43
B45
B50
B51
B53
B54
B65
B66
B67
B69
B70
B74
B75
B76
B103
B106
B111
5G NR Band Support
n1
n2
n3
n5
n7
n8
n13
n14
n18
n20
n25
n26
n28
n29
n30
n34
n38
n39
n40
n41
n50
n51
n53
n54
n65
n66
n67
n70
n74
n75
n76
n80
n81
n82
n84
n86
n89
n90
n91
n92
n93
n94
n95
n97
n98
n100
n101
n106
n109
n110
¶ Electrical Specifications
| Frequency Range: | 700–960 MHz 1700–6000 MHz |
| Impedance: | 50 Ohm |
| Polarisation: | Vertical |
| Gain | 0–3 dBi |
| Radiation Efficiency: | 50% |
| Max Input Power: | 10 W |
| Required Ground Plane: | Tested on DIN-rail |
¶ Environmental Specifications
| Operating Temperature range: | -30°C to 70°C |
| Storage Temperature range: | -40°C to 85°C |
¶ Mechanical Specifications

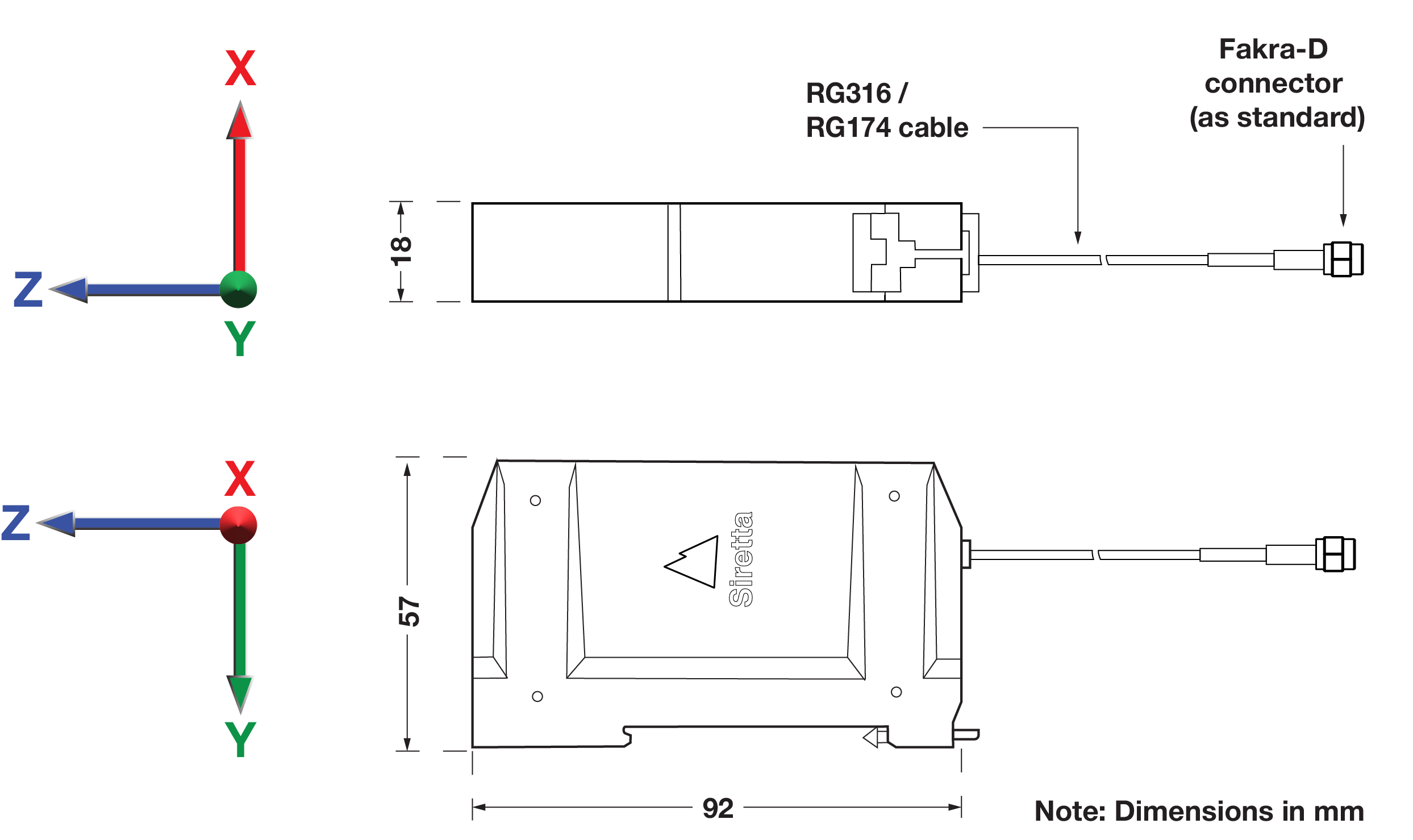

| Dimensions: | L = 92 mm W = 57 mm D = 18 mm |
| Weight: | 36 g |
| Cable: | RG316 / RG174 |
| Connector: | Fakra-D as standard (alternative connector options available on request) |
| Mounting method: | DIN-rail |
| Housing materials: | ABS (Black) |
| Flammability Rating: | UL94-V0 |

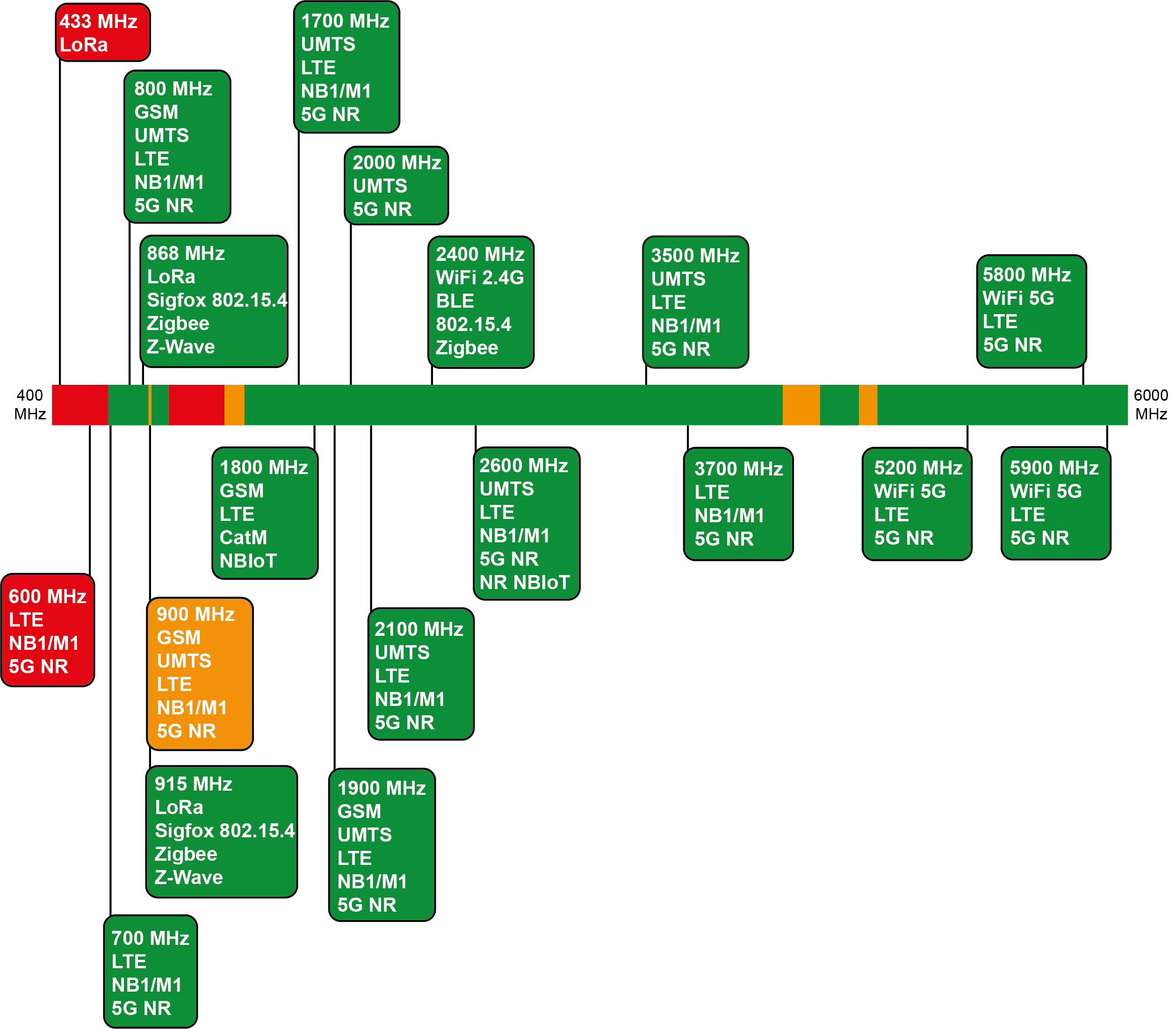

¶ Spectrum Coverage*
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency, taking into consideration the VSWR and radiated efficiency of the antenna.
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

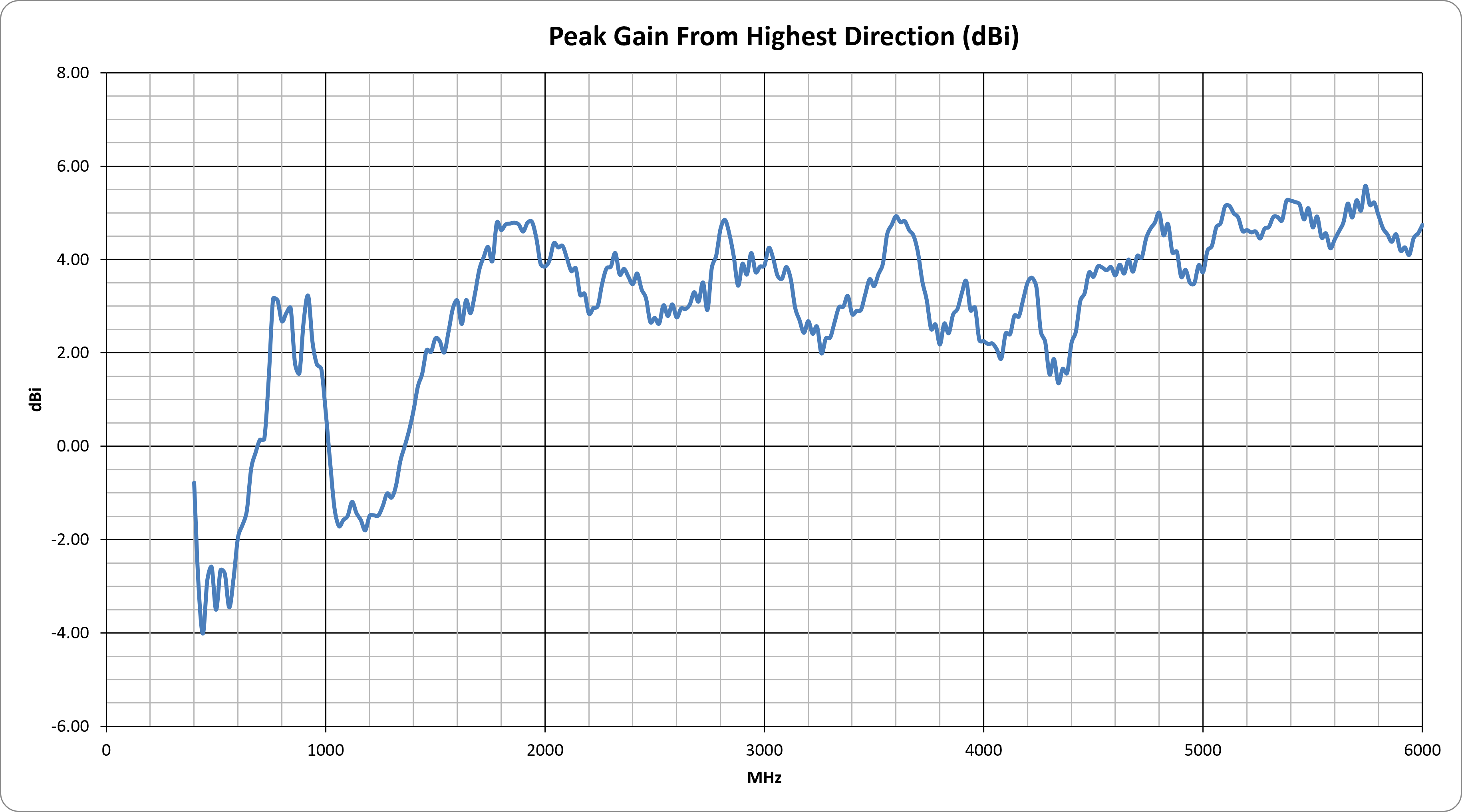

¶ Peak Gain vs. Frequency

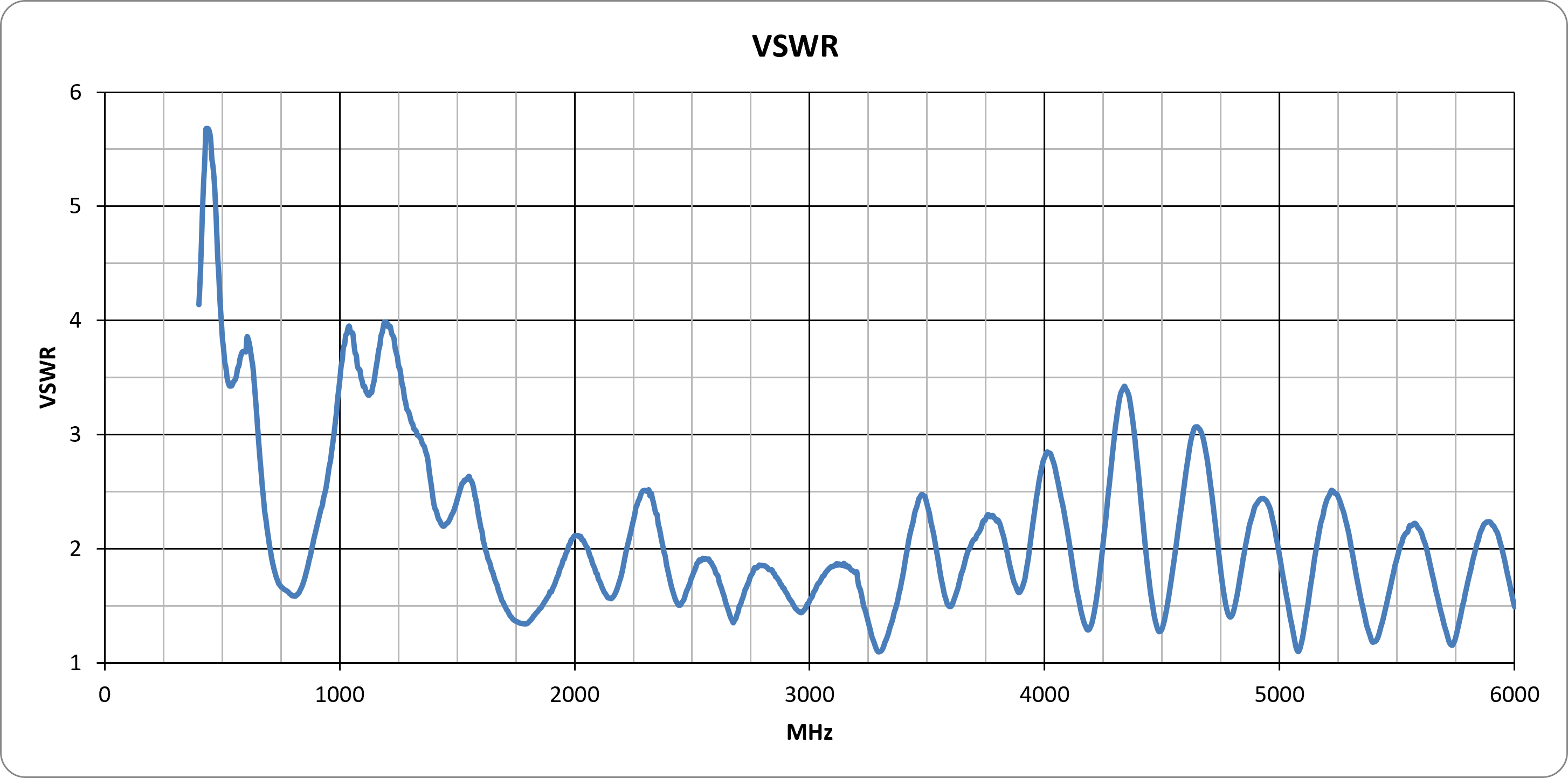

¶ VSWR

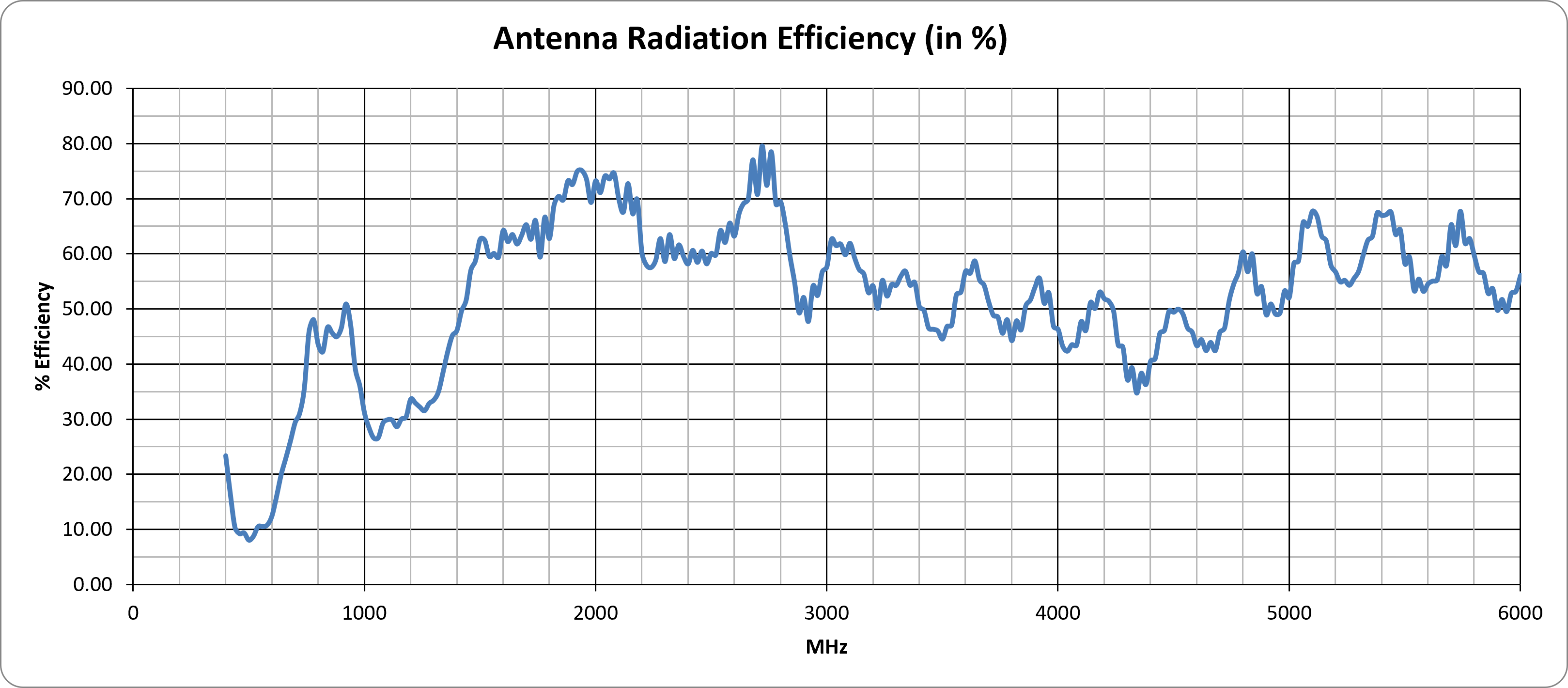

¶ Radiation Efficiency
¶ Cellular Bands*
| GSM (2G) Bands | UMTS (3G) Bands | E-UTRA (4G) Bands | NR (5G) Bands | Uplink (MHz) | Downlink (MHz) | Average Upload Efficiency (%) | Average Download Efficiency (%) | Maximum Upload VSWR | Maximum Download VSWR | Use Indicator |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | n1 | 1920 - 1980 | 2110 - 2170 | 73.65 | 69.43 | 2.05 | 1.69 | ↑ | |
| PCS-1900 | 2 | 2 | n2 | 1850 - 1910 | 1930 - 1990 | 72.03 | 72.87 | 1.67 | 2.09 | ↑ |
| DCS-1800 | 3 | 3 | n3 | 1710 - 1785 | 1805 - 1880 | 63.57 | 69.68 | 1.46 | 1.56 | ↑ |
| 4 | 4 | 1710 - 1755 | 2110 - 2155 | 63.87 | 69.92 | 1.46 | 1.69 | ↑ | ||
| GSM-850 | 5 | 5 | n5 | 824 - 849 | 869 - 894 | 45.46 | 45.38 | 1.73 | 2.12 | ↑ |
| 6 | 830 - 840 | 875 - 885 | 45.57 | 45.12 | 1.68 | 2.04 | ↑ | |||
| 7 | 7 | n7 | 2500 - 2570 | 2620 - 2690 | 61.91 | 71.18 | 1.91 | 1.68 | ↑ | |
| E-GSM-900 | 8 | 8 | n8 | 880 - 915 | 925 - 960 | 46.81 | 45.53 | 2.31 | 2.77 | ↑ |
| 9 | 9 | 1749.9 - 1784.9 | 1844.9 - 1879.9 | 62.94 | 70.91 | 1.36 | 1.56 | ↑ | ||
| 10 | 10 | 1710 - 1770 | 2110 - 2170 | 63.13 | 69.43 | 1.46 | 1.69 | ↑ | ||
| 11 | 11 | 1427.9 - 1447.9 | 1475.9 - 1495.9 | 51.70 | 59.95 | 2.23 | 2.40 | ↑ | ||
| 12 | 12 | n12 | 699 - 716 | 729 - 746 | 30.03 | 35.38 | 2.05 | 1.75 | ↑ | |
| 13 | 13 | n13 | 777 - 787 | 746 - 756 | 47.47 | 41.24 | 1.62 | 1.68 | ↑ | |
| 14 | 14 | n14 | 788 - 798 | 758 - 768 | 45.14 | 46.07 | 1.60 | 1.65 | ↑ | |
| 17 | 704 - 716 | 734 - 746 | 30.25 | 36.07 | 1.99 | 1.73 | ↑ | |||
| 18 | n18 | 815 - 830 | 860 - 875 | 43.06 | 45.43 | 1.63 | 1.94 | ↑ | ||
| 19 | 19 | 830 - 845 | 875 - 890 | 45.89 | 45.27 | 1.71 | 2.09 | ↑ | ||
| 20 | 20 | n20 | 832 - 862 | 791 - 821 | 46.04 | 43.39 | 1.83 | 1.60 | ↑ | |
| 21 | 21 | 1447.9 - 1462.9 | 1495.9 - 1510.9 | 55.73 | 62.52 | 2.24 | 2.51 | ↑ | ||
| 22 | 22 | 3410 - 3490 | 3510 - 3590 | 47.15 | 49.96 | 2.47 | 2.30 | ↑ | ||
| 24 | n24 | 1626.5 - 1660.5 | 1525 - 1559 | 62.82 | 60.20 | 1.94 | 2.63 | ↑ | ||
| 25 | 25 | n25 | 1850 - 1915 | 1930 - 1995 | 72.19 | 72.79 | 1.69 | 2.10 | ↑ | |
| 26 | 26 | n26 | 814 - 849 | 859 - 894 | 44.63 | 45.43 | 1.73 | 2.12 | ↑ | |
| 27 | 807 - 824 | 852 - 869 | 42.69 | 45.71 | 1.61 | 1.90 | ↑ | |||
| 28 | n28 | 703 - 748 | 758 - 803 | 33.01 | 46.14 | 2.00 | 1.65 | ↑ | ||
| 28A | 703 - 733 | 758 - 788 | 31.34 | 46.90 | 2.00 | 1.65 | ↑ | |||
| 29 | n29 | 717 - 728 | - | 31.74 | - | 1.85 | ↑ | |||
| 30 | n30 | 2305 - 2315 | 2350 - 2360 | 61.07 | 61.03 | 2.52 | 2.30 | ↑ | ||
| 31 | n31 | 452.5 - 457.5 | 462.5 - 467.5 | 9.53 | 9.28 | 5.51 | 5.29 | ↓ | ||
| 32 | 32 | 1452 - 1496 | - | 58.41 | - | 2.40 | ↑ | |||
| 33 | 1900 - 1920 | 1900 - 1920 | 73.80 | 73.80 | 1.72 | 1.72 | ↑ | |||
| 34 | n34 | 2010 - 2025 | 2010 - 2025 | 71.61 | 71.61 | 2.11 | 2.11 | ↑ | ||
| 35 | 1850 - 1910 | 1850 - 1910 | 72.03 | 72.03 | 1.67 | 1.67 | ↑ | |||
| 36 | 1930 - 1990 | 1930 - 1990 | 72.87 | 72.87 | 2.09 | 2.09 | ↑ | |||
| 37 | 1910 - 1930 | 1910 - 1930 | 74.71 | 74.71 | 1.77 | 1.77 | ↑ | |||
| 38 | n38 | 2570 - 2620 | 2570 - 2620 | 64.83 | 64.83 | 1.91 | 1.91 | ↑ | ||
| 39 | n39 | 1880 - 1920 | 1880 - 1920 | 73.38 | 73.38 | 1.72 | 1.72 | ↑ | ||
| 40 | n40 | 2300 - 2400 | 2300 - 2400 | 60.46 | 60.46 | 2.52 | 2.52 | ↑ | ||
| 41 | n41 | 2496 - 2690 | 2496 - 2690 | 65.97 | 65.97 | 1.91 | 1.91 | ↑ | ||
| 42 | 3400 - 3600 | 3400 - 3600 | 48.66 | 48.66 | 2.47 | 2.47 | ↑ | |||
| 43 | 3600 - 3800 | 3600 - 3800 | 51.78 | 51.78 | 2.30 | 2.30 | ↑ | |||
| 44 | 703 - 803 | 703 - 803 | 39.84 | 39.84 | 2.00 | 2.00 | ↑ | |||
| 45 | 1447 - 1467 | 1447 - 1467 | 55.99 | 55.99 | 2.25 | 2.25 | ↑ | |||
| 46 | n46 | 5150 - 5925 | 5150 - 5925 | 59.00 | 59.00 | 2.51 | 2.51 | ↑ | ||
| 47 | n47 | 5855 - 5925 | 5855 - 5925 | 51.99 | 51.99 | 2.24 | 2.24 | ↑ | ||
| 48 | n48 | 3550 - 3700 | 3550 - 3700 | 54.99 | 54.99 | 2.08 | 2.08 | ↑ | ||
| 49 | 3550 - 3700 | 3550 - 3700 | 54.99 | 54.99 | 2.08 | 2.08 | ↑ | |||
| 50 | n50 | 1432 - 1517 | 1432 - 1517 | 58.03 | 58.03 | 2.55 | 2.55 | ↑ | ||
| 51 | n51 | 1427 - 1432 | 1427 - 1432 | 50.60 | 50.60 | 2.24 | 2.24 | ↑ | ||
| 52 | 3300 - 3400 | 3300 - 3400 | 54.88 | 54.88 | 1.81 | 1.81 | ↑ | |||
| 53 | n53 | 2483.5 - 2495 | 2483.5 - 2495 | 59.09 | 59.09 | 1.74 | 1.74 | ↑ | ||
| 54 | n54 | 1670 - 1675 | 1670 - 1675 | 62.79 | 62.79 | 1.68 | 1.68 | ↑ | ||
| 65 | n65 | 1920 - 2010 | 2110 - 2200 | 73.03 | 68.43 | 2.11 | 1.79 | ↑ | ||
| 66 | n66 | 1710 - 1780 | 2110 - 2200 | 63.38 | 68.43 | 1.46 | 1.79 | ↑ | ||
| 67 | n67 | 738 - 758 | - | 39.74 | - | 1.70 | ↑ | |||
| 68 | n68 | 698 - 728 | 753 - 783 | 30.65 | 46.34 | 2.06 | 1.66 | ↑ | ||
| 69 | 2570 - 2620 | - | 64.83 | - | 1.91 | ↑ | ||||
| 70 | n70 | 1695 - 1710 | 1995 - 2020 | 64.79 | 72.32 | 1.53 | 2.11 | ↑ | ||
| 71 | n71 | 663 - 698 | 617 - 652 | 26.19 | 18.81 | 2.72 | 3.77 | ↓ | ||
| 72 | n72 | 451 - 456 | 461 - 466 | 9.61 | 9.27 | 5.55 | 5.33 | ↓ | ||
| 73 | 450 - 455 | 460 - 465 | 9.67 | 9.26 | 5.59 | 5.35 | ↓ | |||
| 74 | n74 | 1427 - 1470 | 1475 - 1518 | 54.05 | 61.24 | 2.27 | 2.56 | ↑ | ||
| 75 | n75 | 1432 - 1517 | - | 58.03 | - | 2.55 | ↑ | |||
| 76 | n76 | 1427 - 1432 | - | 50.60 | - | 2.24 | ↑ | |||
| n77 | 3300 - 4200 | 3300 - 4200 | 50.02 | 50.02 | 2.85 | 2.85 | ↑ | |||
| n78 | 3300 - 3800 | 3300 - 3800 | 51.15 | 51.15 | 2.47 | 2.47 | ↑ | |||
| n79 | 4400 - 5000 | 4400 - 5000 | 49.24 | 49.24 | 3.07 | 3.07 | □ | |||
| n80 | 1710 - 1785 | 63.57 | - | 1.46 | - | ↑ | ||||
| n81 | 880 - 915 | 46.81 | - | 2.31 | - | ↑ | ||||
| n82 | 832 - 862 | 46.04 | - | 1.83 | - | ↑ | ||||
| n83 | 703 - 748 | 33.01 | - | 2.00 | - | ↑ | ||||
| n84 | 1920 - 1980 | 73.65 | - | 2.05 | - | ↑ | ||||
| 85 | n85 | 698 - 716 | 728 - 746 | 29.98 | 35.25 | 2.06 | 1.76 | ↑ | ||
| n86 | 1710 - 1780 | 63.38 | - | 1.46 | - | ↑ | ||||
| 87 | n87 | 410 - 415 | 420 - 425 | 19.05 | 15.69 | 4.95 | 5.40 | ↓ | ||
| 88 | n88 | 412 - 417 | 422 - 427 | 18.35 | 15.08 | 5.05 | 5.51 | ↓ | ||
| n89 | 824 - 849 | 45.46 | - | 1.73 | - | ↑ | ||||
| n90 | 2496 - 2690 | 2496 - 2690 | 65.97 | 65.97 | 1.91 | 1.91 | ↑ | |||
| n91 | 832 - 862 | 1427 - 1432 | 46.04 | 50.60 | 1.83 | 2.24 | ↑ | |||
| n92 | 832 - 862 | 1432 - 1517 | 46.04 | 58.03 | 1.83 | 2.55 | ↑ | |||
| n93 | 880 - 915 | 1427 - 1432 | 46.81 | 50.60 | 2.31 | 2.24 | ↑ | |||
| n94 | 880 - 915 | 1432 - 1517 | 46.81 | 58.03 | 2.31 | 2.55 | ↑ | |||
| n95 | 2010 - 2025 | 71.61 | - | 2.11 | - | ↑ | ||||
| n97 | 2300 - 2400 | 60.46 | - | 2.52 | - | ↑ | ||||
| n98 | 1880 - 1920 | 73.38 | - | 1.72 | - | ↑ | ||||
| n99 | 1626.5 - 1660.5 | 62.82 | - | 1.94 | - | ↑ | ||||
| n100 | 874.4 - 880 | 919.4 - 925 | 45.08 | 50.51 | 2.00 | 2.38 | ↑ | |||
| n101 | 1900 - 1910 | 1900 - 1910 | 73.21 | 73.21 | 1.67 | 1.67 | ↑ | |||
| 103 | 787 - 788 | 757 - 758 | 46.38 | 44.54 | 1.60 | 1.65 | ↑ | |||
| n105 | 663 - 703 | 612 - 652 | 26.59 | 18.34 | 2.72 | 3.82 | ↓ | |||
| 106 | n106 | 896 - 901 | 935 - 940 | 46.46 | 47.67 | 2.19 | 2.52 | ↑ | ||
| 107 | 612 - 652 | - | 18.34 | - | 3.82 | ↓ | ||||
| 108 | 470 - 698 | - | 14.69 | - | 5.05 | ↓ | ||||
| n109 | 703 - 733 | 1432 - 1517 | 31.34 | 58.03 | 2.00 | 2.55 | ↑ | |||
| n110 | 1390 - 1395 | 1432 - 1435 | 45.78 | 51.00 | 2.54 | 2.22 | ↑ | |||
| 111 | 1800 - 1810 | 1820 - 1830 | 64.32 | 69.27 | 1.37 | 1.42 | ↑ | |||
| 112 | 470 - 608 | - | 10.09 | - | 5.05 | ↓ | ||||
| 113 | 606 - 698 | - | 21.56 | - | 3.85 | ↓ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |
¶ ISM Standards Frequency Support*
| Application | Frequency Range (MHz) | Efficiency (%) | Maximum VSWR | Peak Gain from highest direction (dBi) | Use Indicator |
|---|---|---|---|---|---|
| ISM 433 MHz | 433.05 - 434.79 | 12.22 | 5.68 | -3.65 | ↓ |
| ISM 868 MHz | 863 - 870 | 45.47 | 1.91 | 1.74 | ↑ |
| ISM 915 MHz | 902 - 928 | 49.34 | 2.41 | 3.22 | ↑ |
| ISM 2.4 GHz | 2400 - 2500 | 59.41 | 1.77 | 3.70 | ↑ |
| Wi-Fi 2.4G | 2401 - 2483 | 59.45 | 1.76 | 3.70 | ↑ |
| Wi-Fi 2.4G (USA) | 2401 - 2473 | 59.57 | 1.76 | 3.70 | ↑ |
| Wi-Fi 2.4G (Japan) | 2401 - 2495 | 59.40 | 1.76 | 3.70 | ↑ |
| Wi-Fi 5G (all channels) | 5150 - 5990 | 58.46 | 2.51 | 5.58 | ↑ |
| Wi-Fi 5G (Ch 32-48) | 5150 - 5250 | 57.45 | 2.51 | 4.95 | ↑ |
| Wi-Fi 5G (Ch 32-64) | 5150 - 5330 | 57.15 | 2.51 | 4.95 | ↑ |
| Wi-Fi 5G (Ch 32-161) | 5150 - 5815 | 59.92 | 2.51 | 5.58 | ↑ |
| Wi-Fi 5G (Ch 32-173) | 5150 - 5875 | 59.52 | 2.51 | 5.58 | ↑ |
| ISM 5.8 GHz | 5725 - 5875 | 59.59 | 2.22 | 5.58 | ↑ |
| UWB band group 1, BAND_ID 1 | 3168 - 3696 | 52.35 | 2.47 | 4.93 | ↑ |
| UWB band group 1, BAND_ID 2 | 3696 - 4224 | 48.60 | 2.85 | 4.22 | ↑ |
| UWB band group 1, BAND_ID 3 | 4224 - 4752 | 44.24 | 3.42 | 4.58 | □ |
| UWB band group 2, BAND_ID 4 | 4752 - 5280 | 57.14 | 2.51 | 5.15 | ↑ |
| UWB band group 2, BAND_ID 5 | 5280 - 5808 | 60.70 | 2.25 | 5.58 | ↑ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

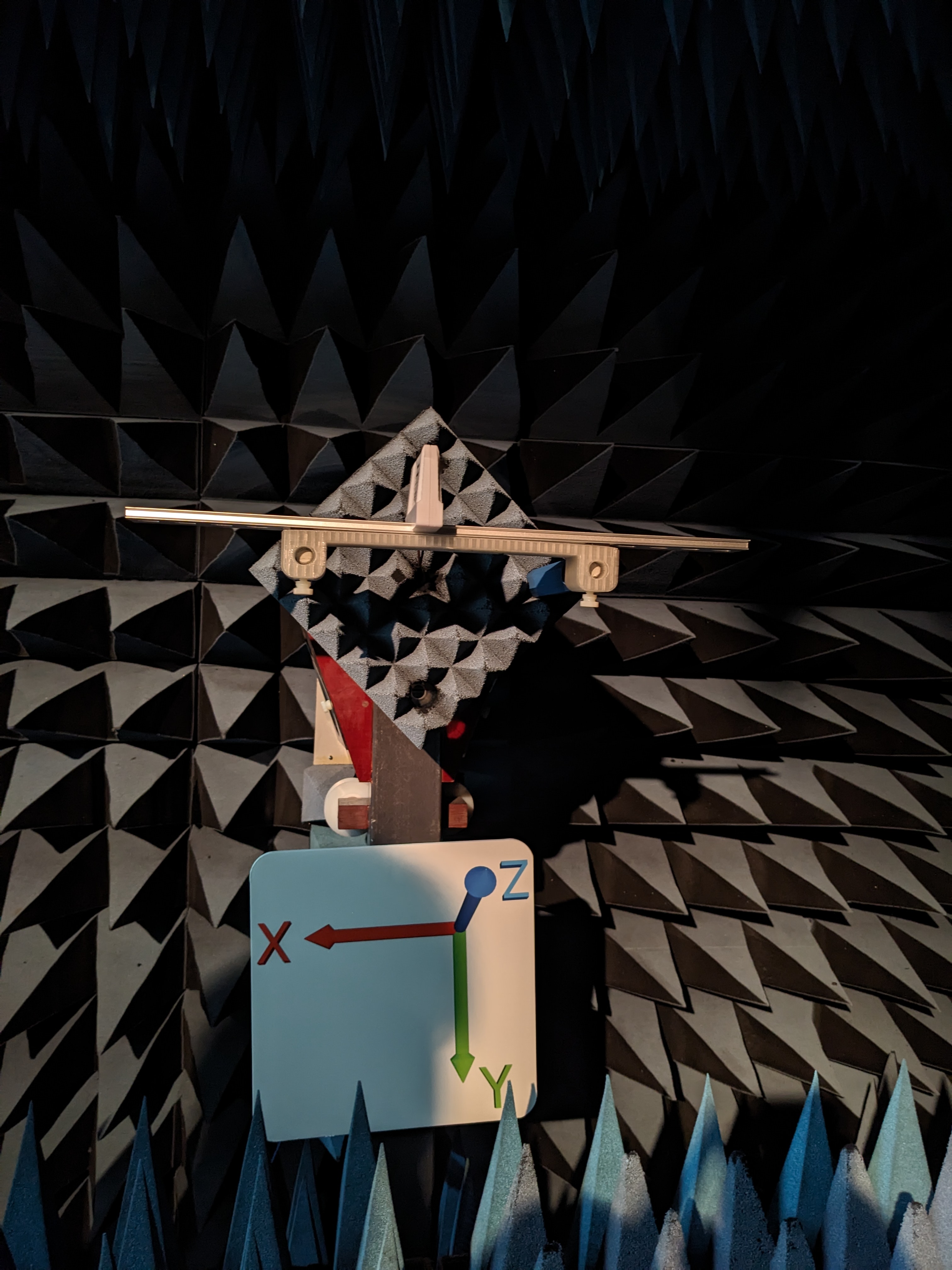

¶ Test Setup (on DIN-rail in Free Space)

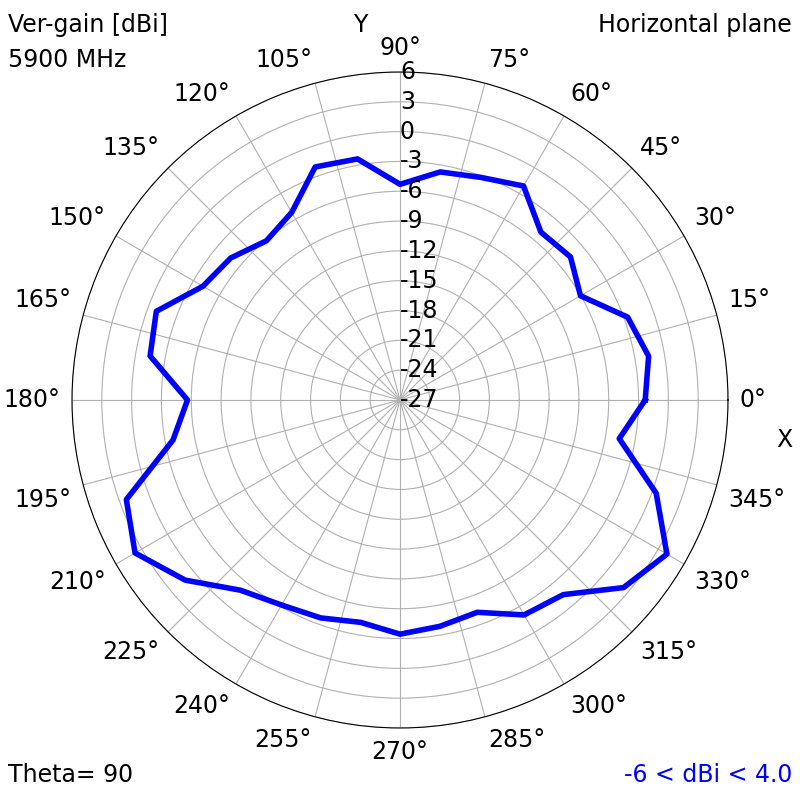

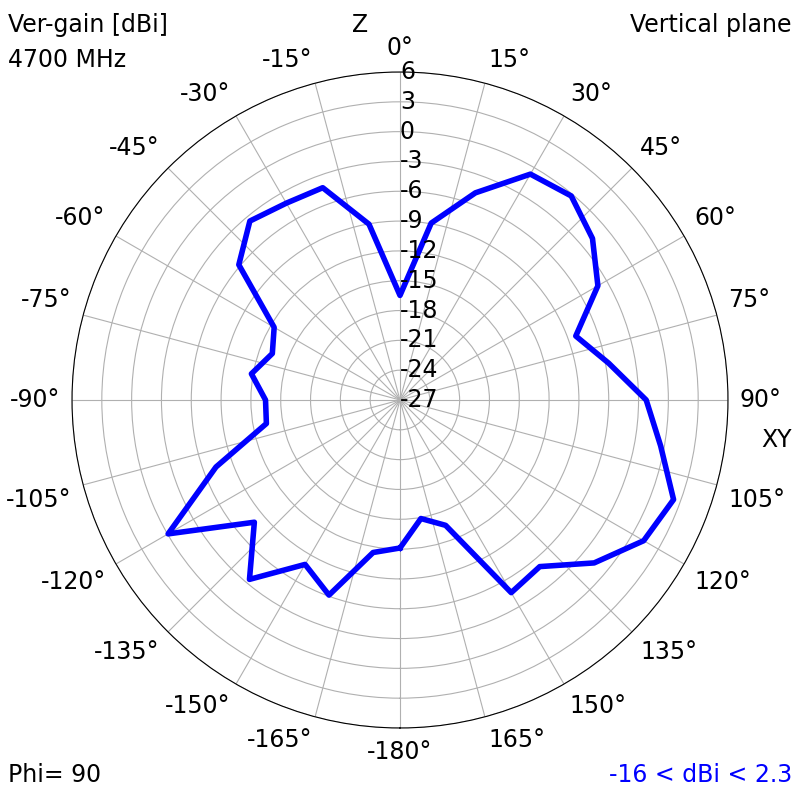

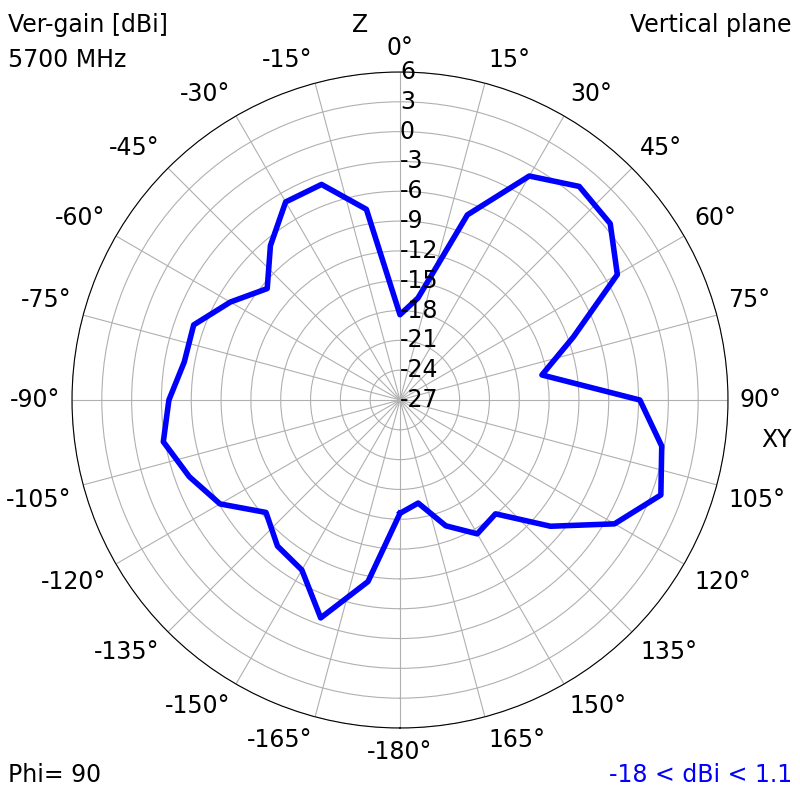

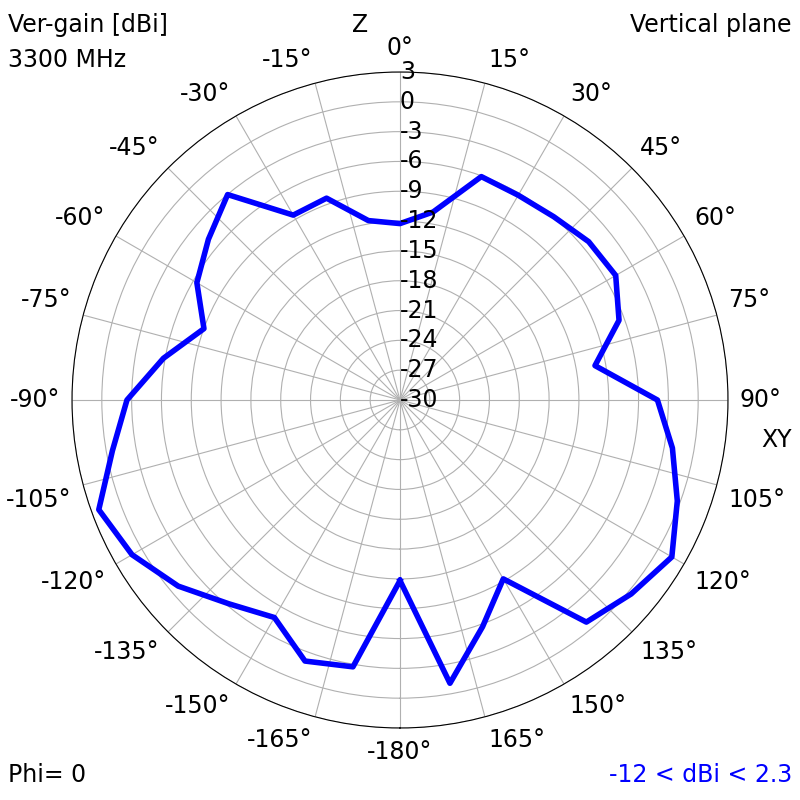

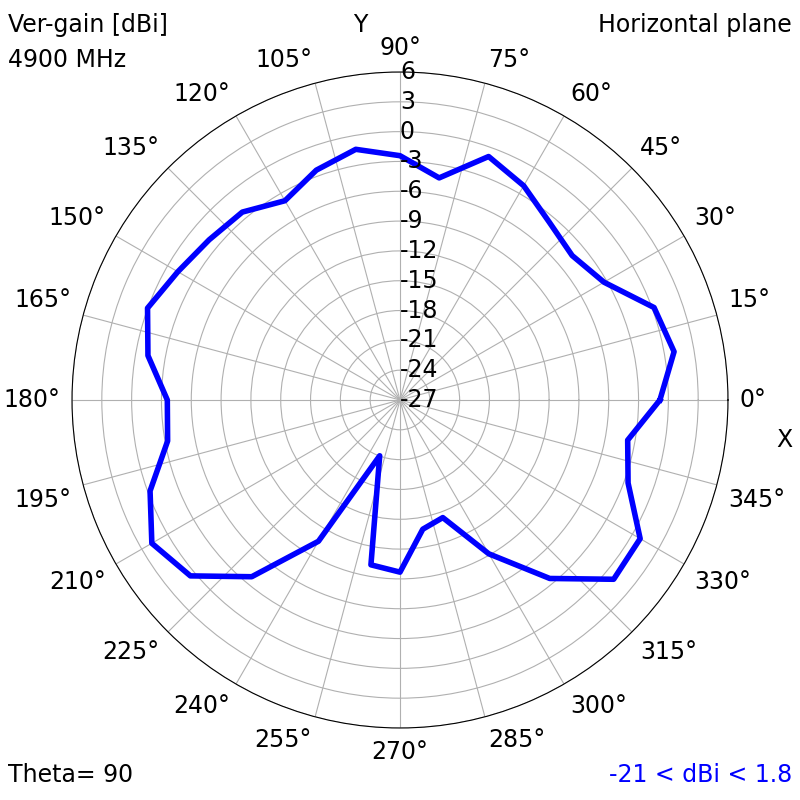

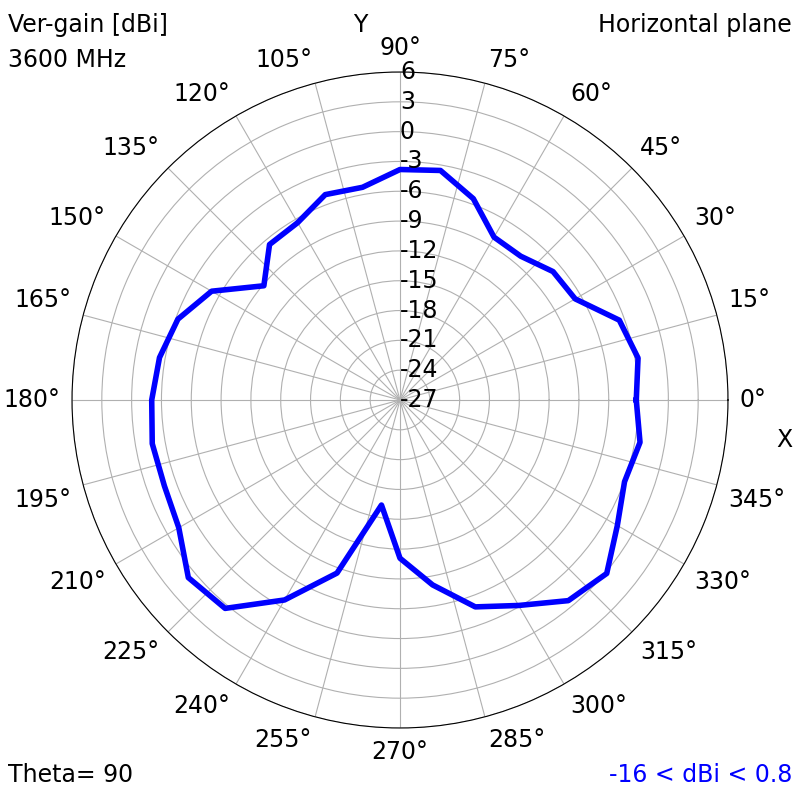

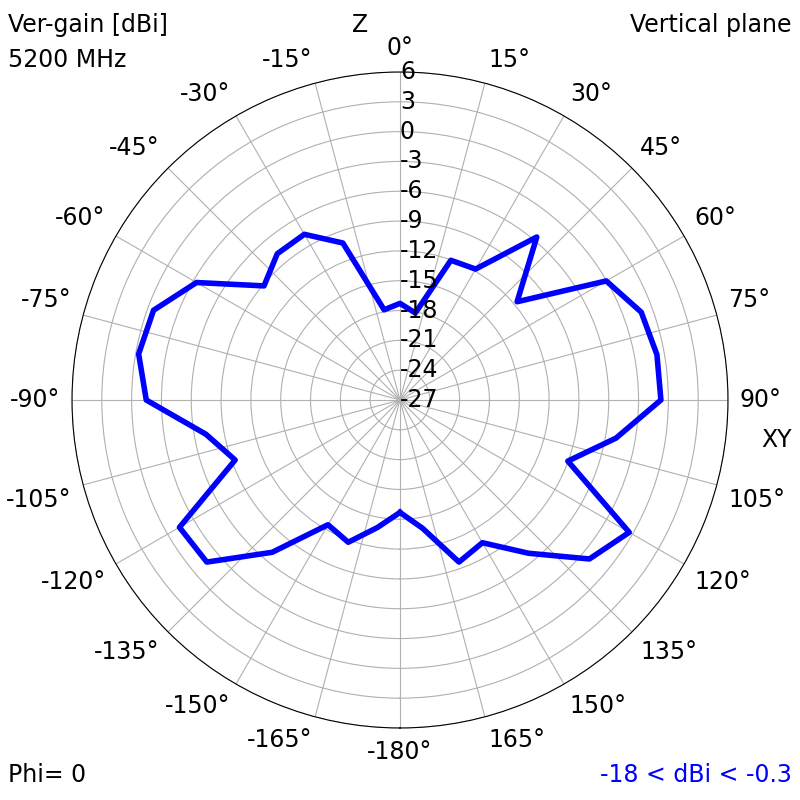

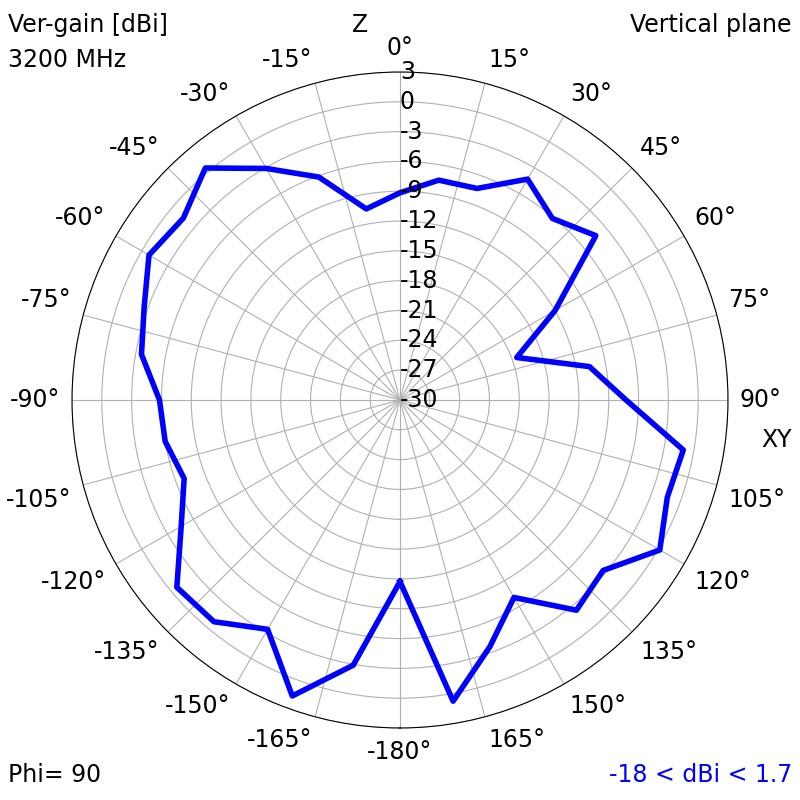

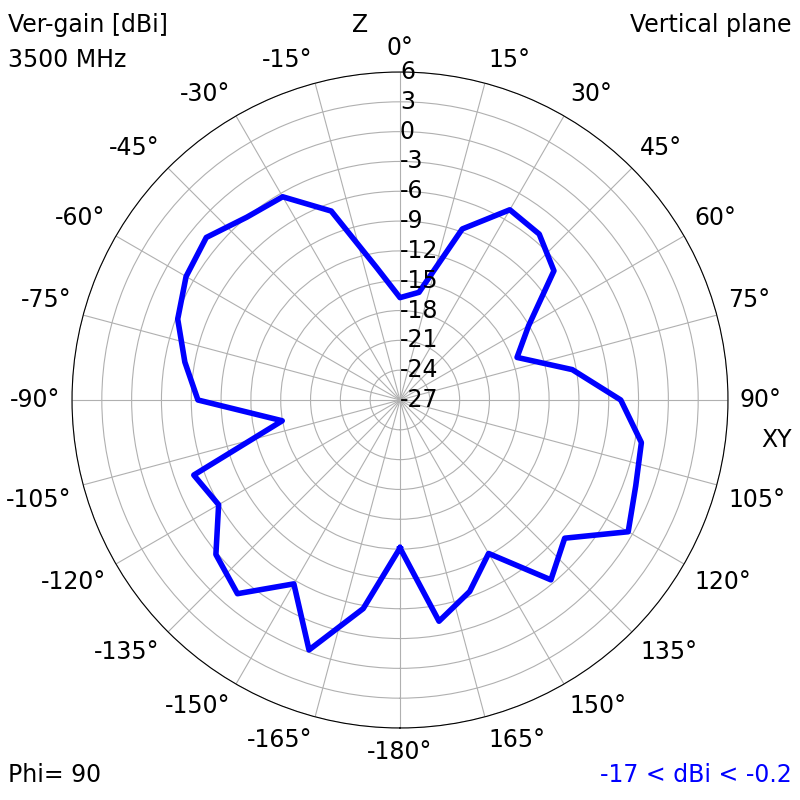

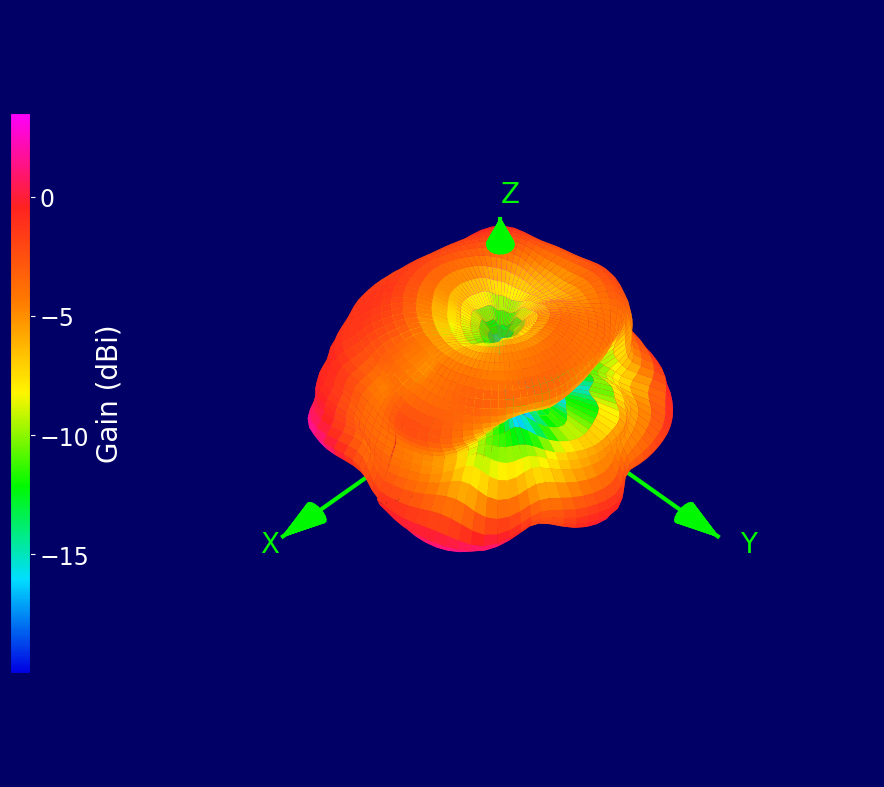

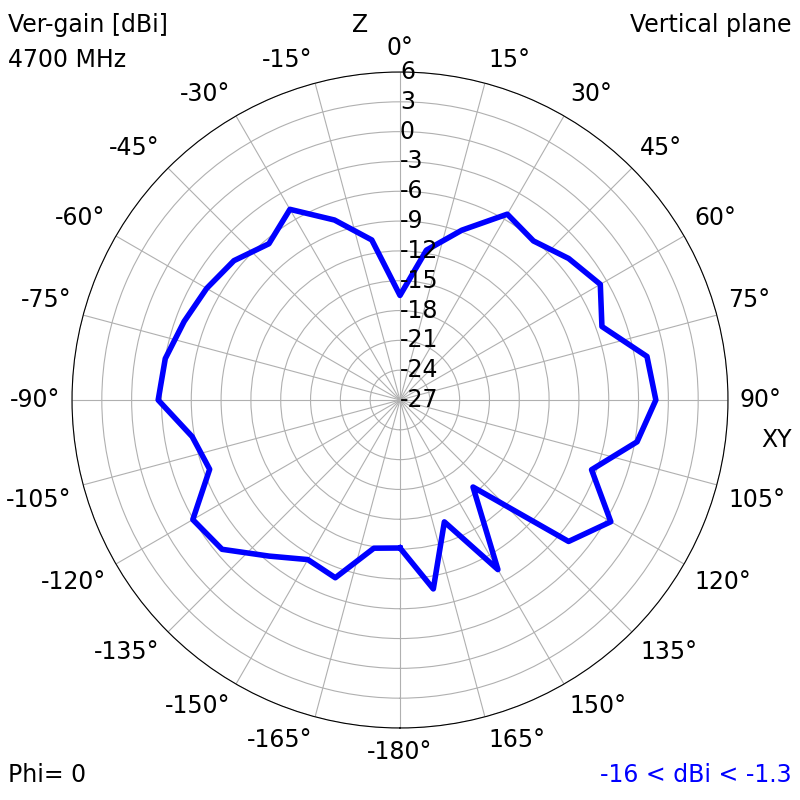

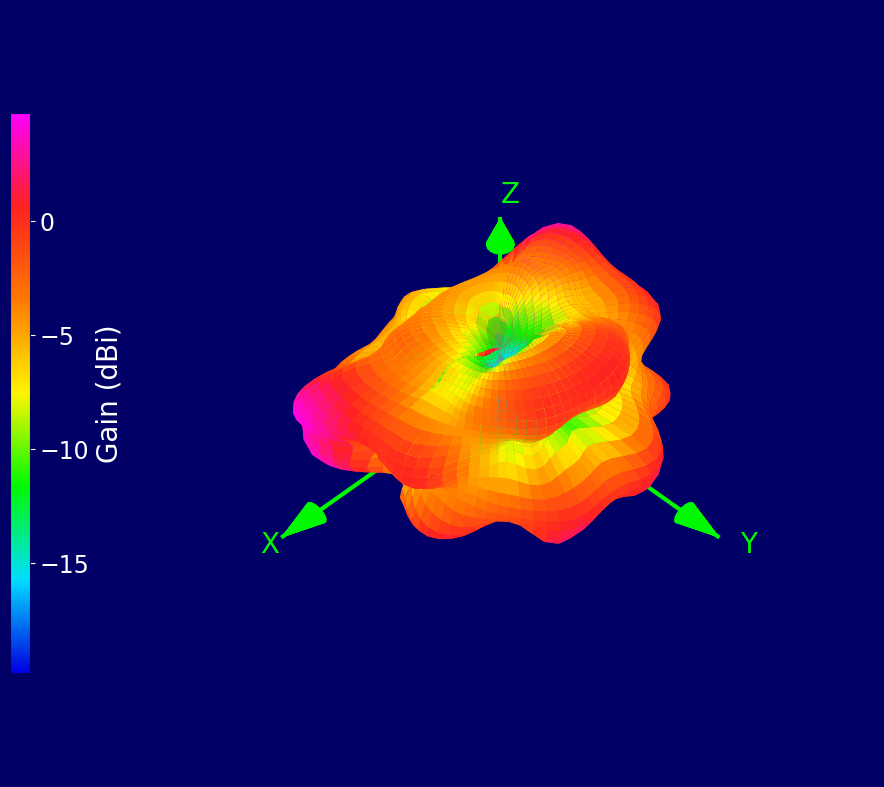

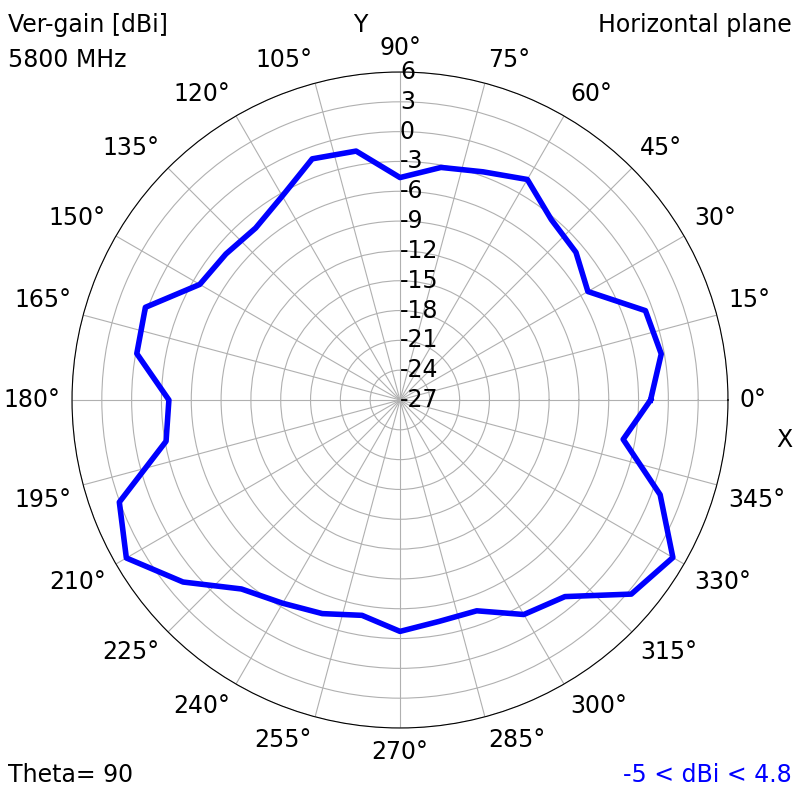

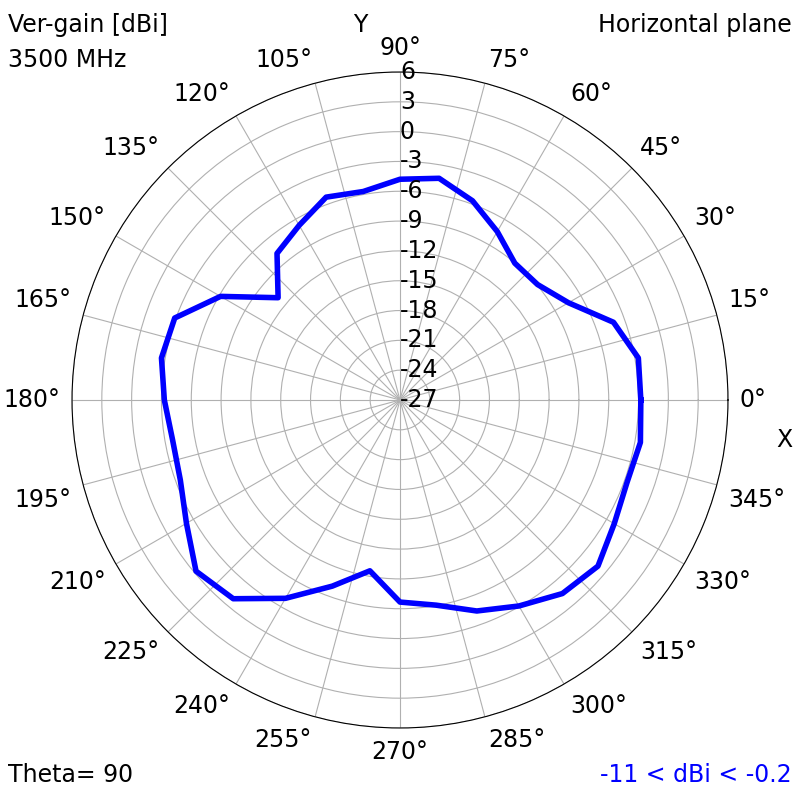

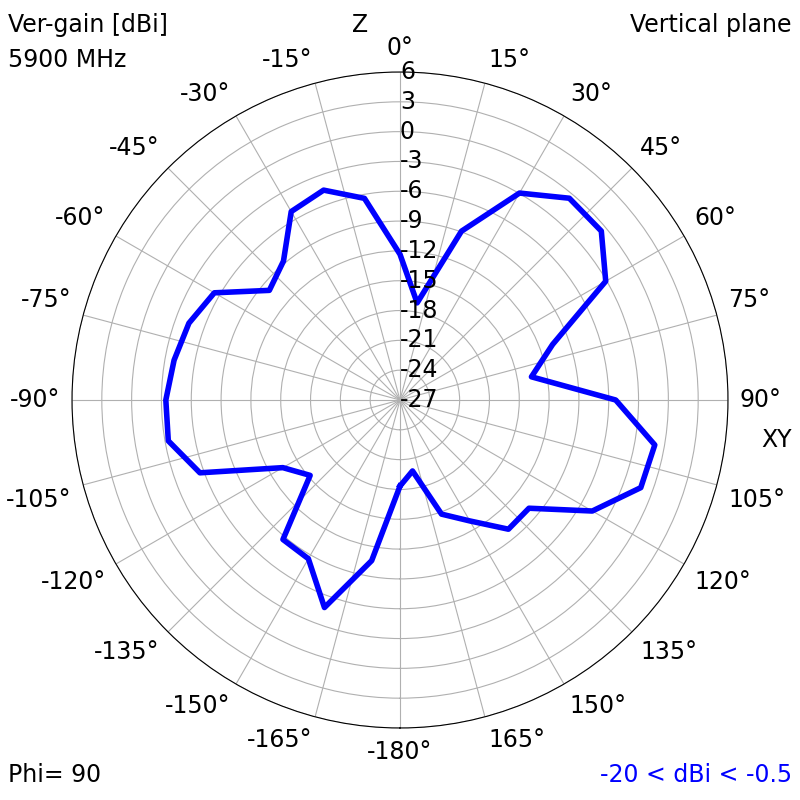

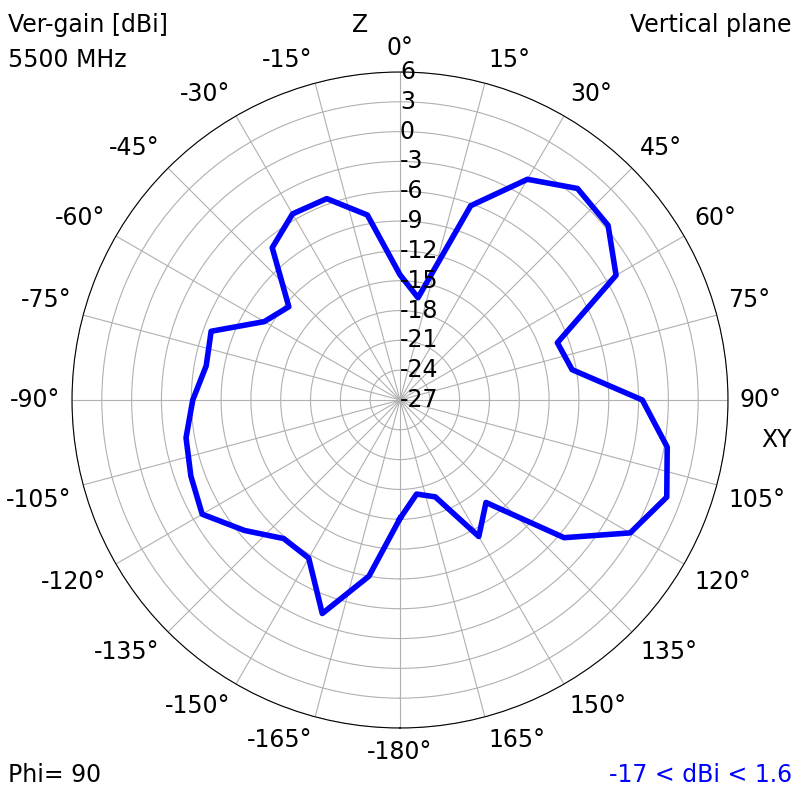

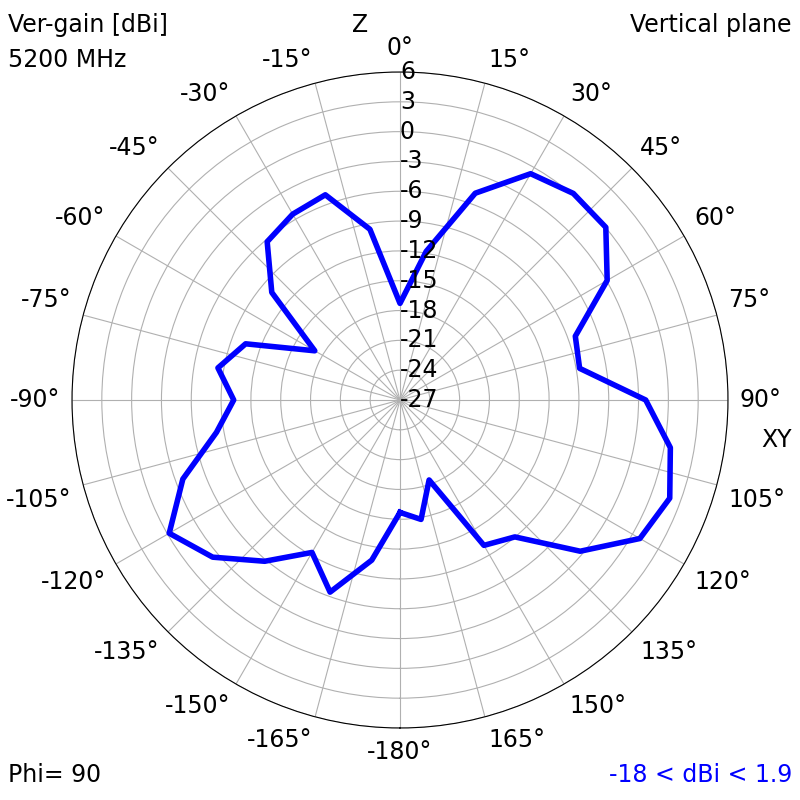

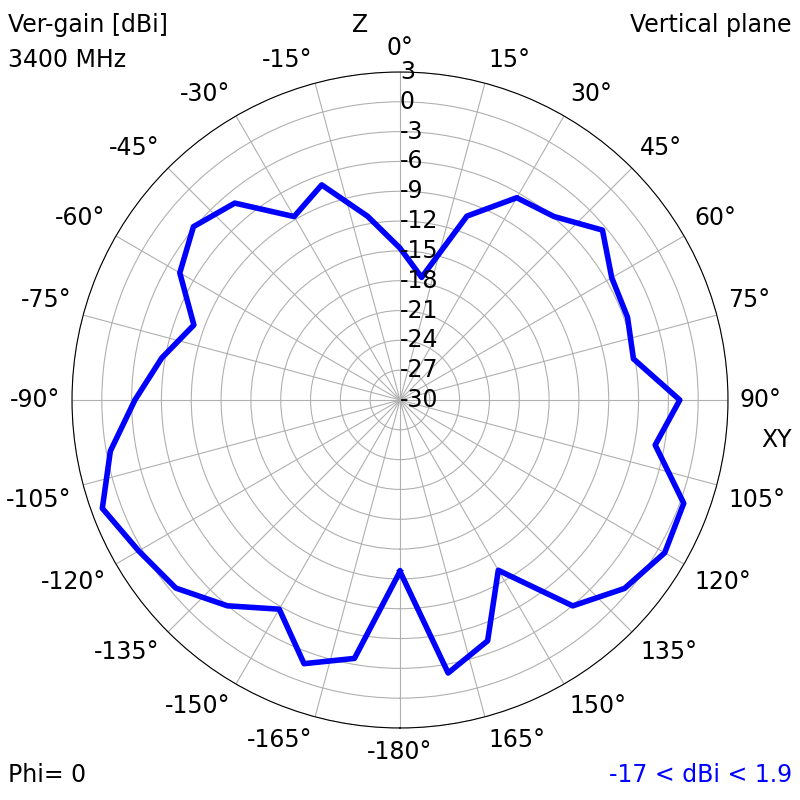

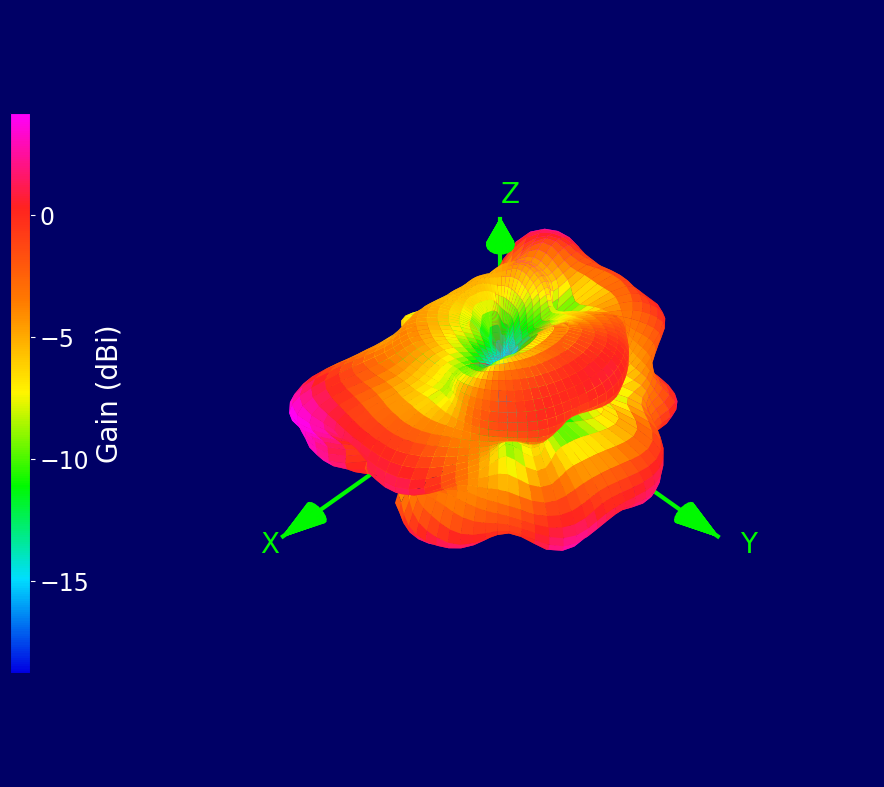

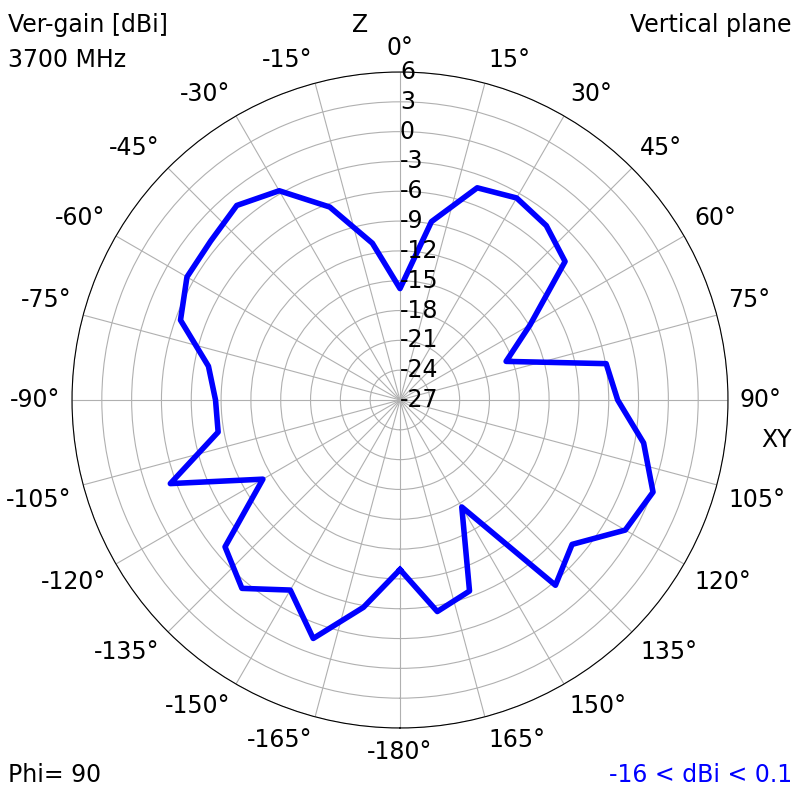

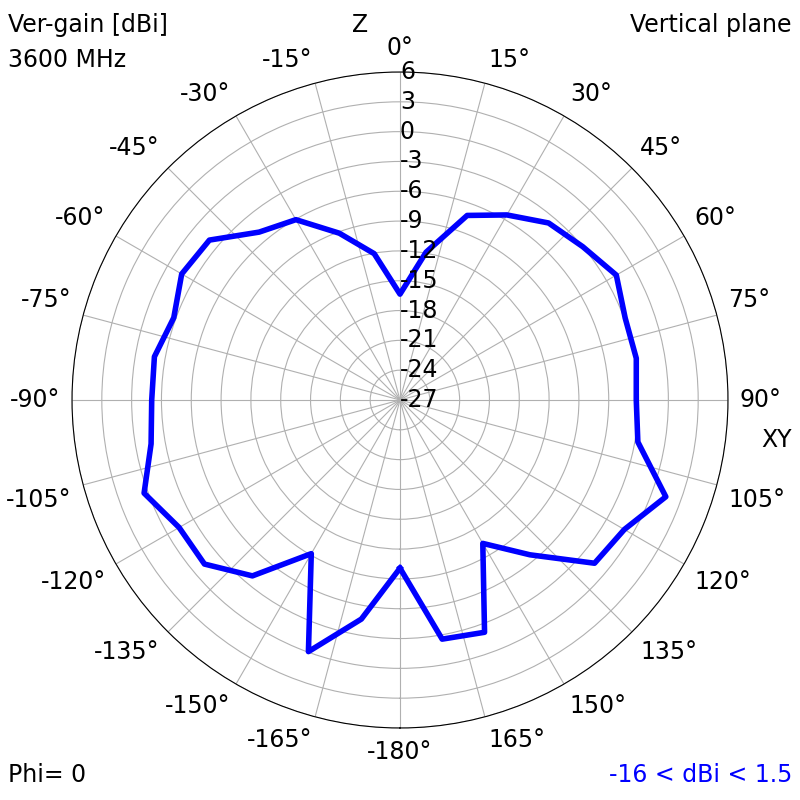

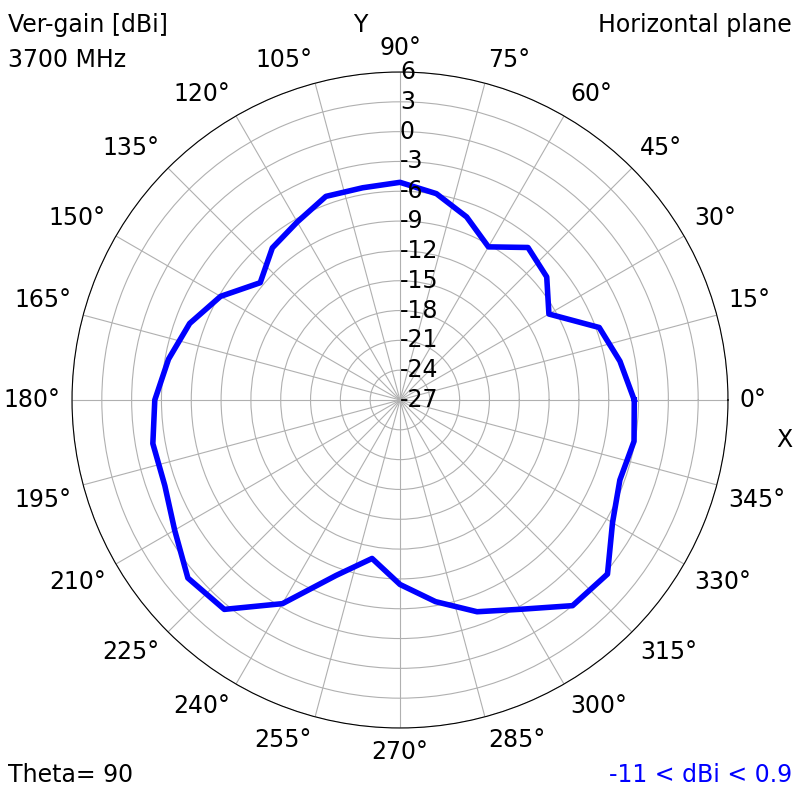

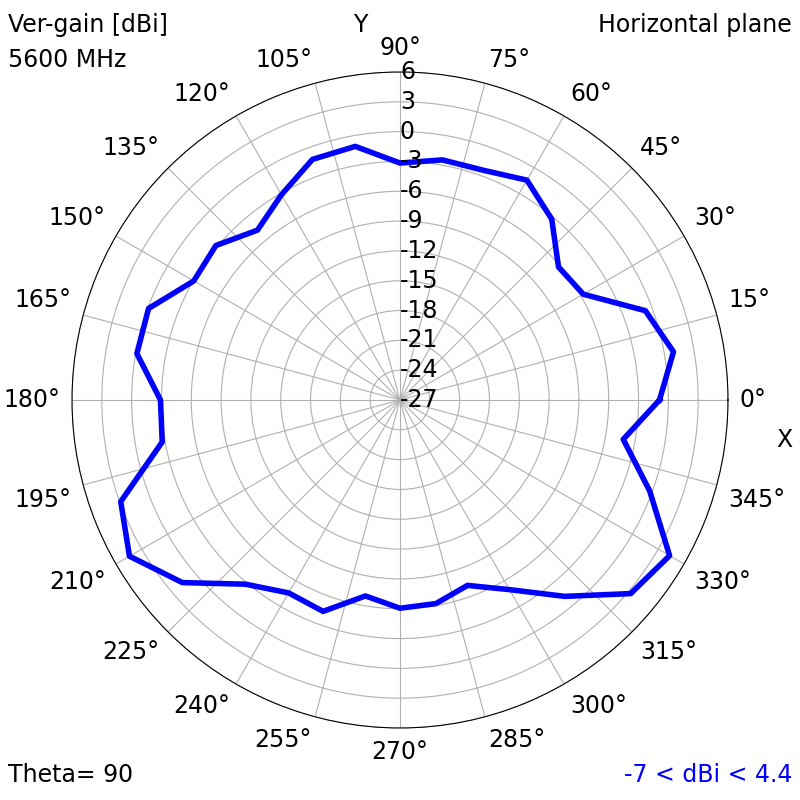

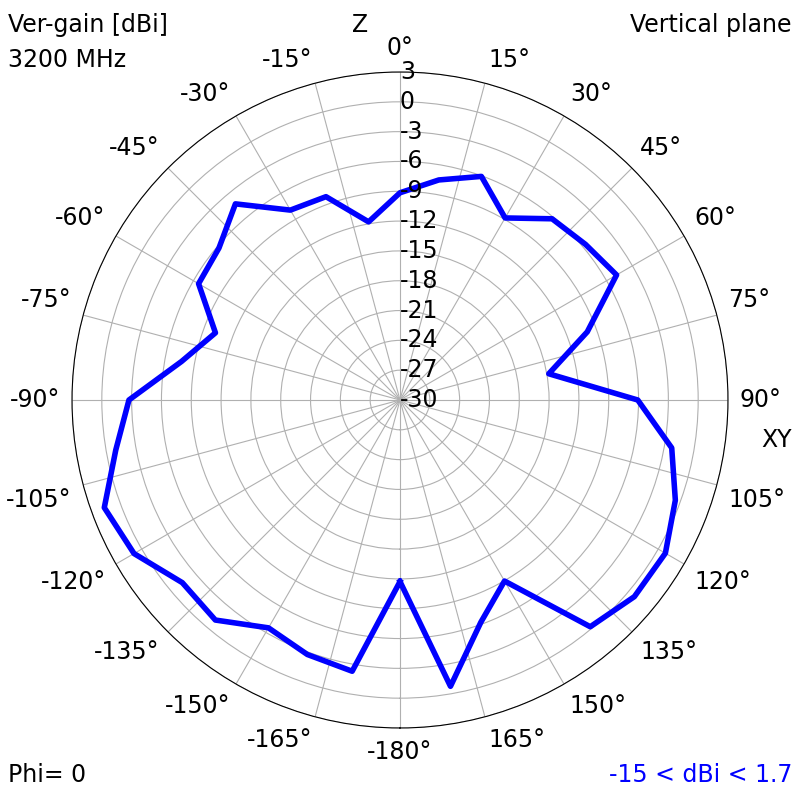

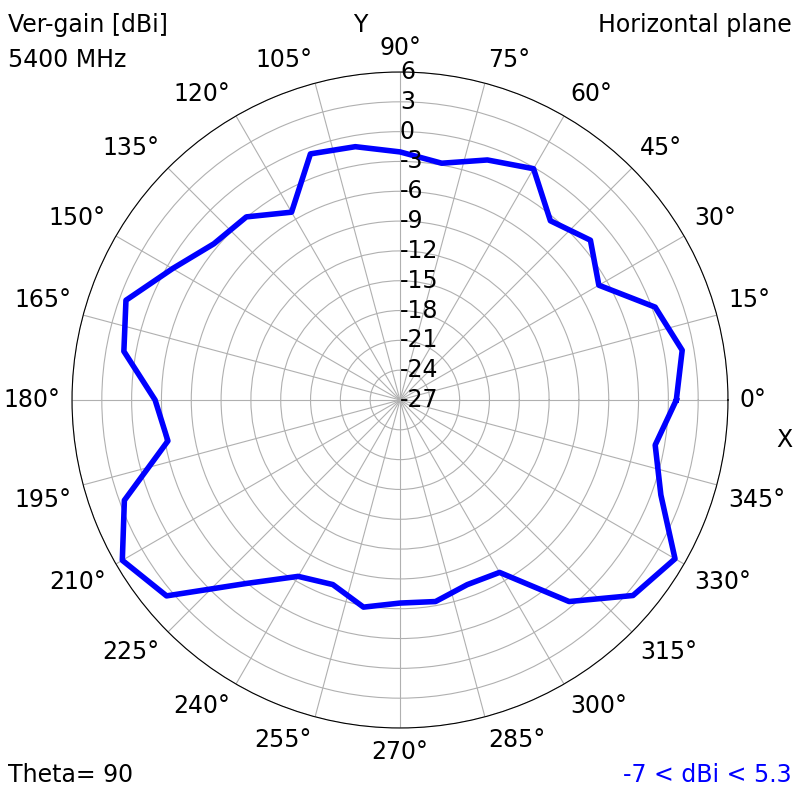

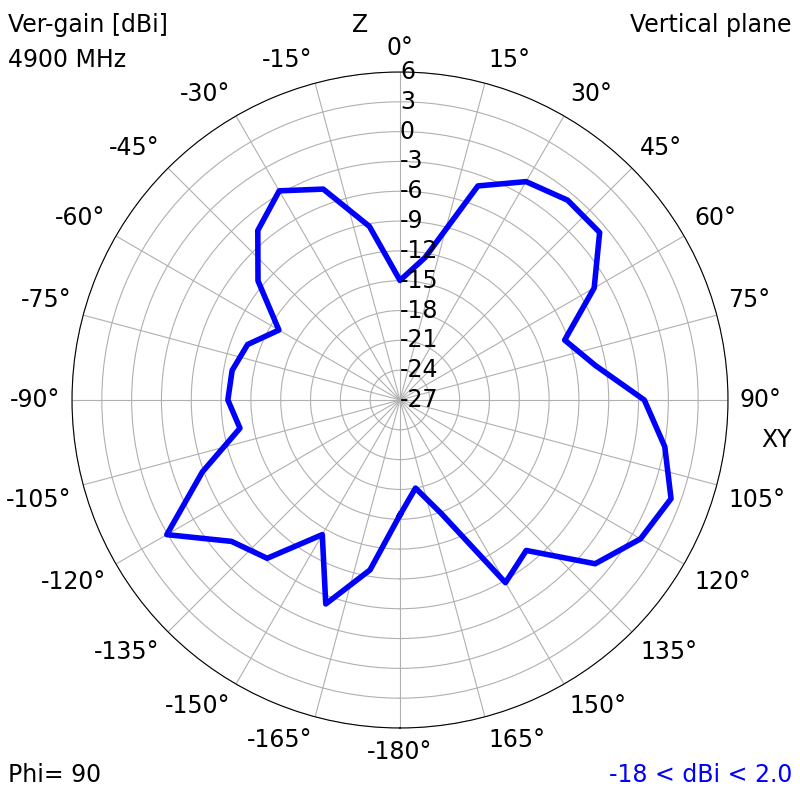

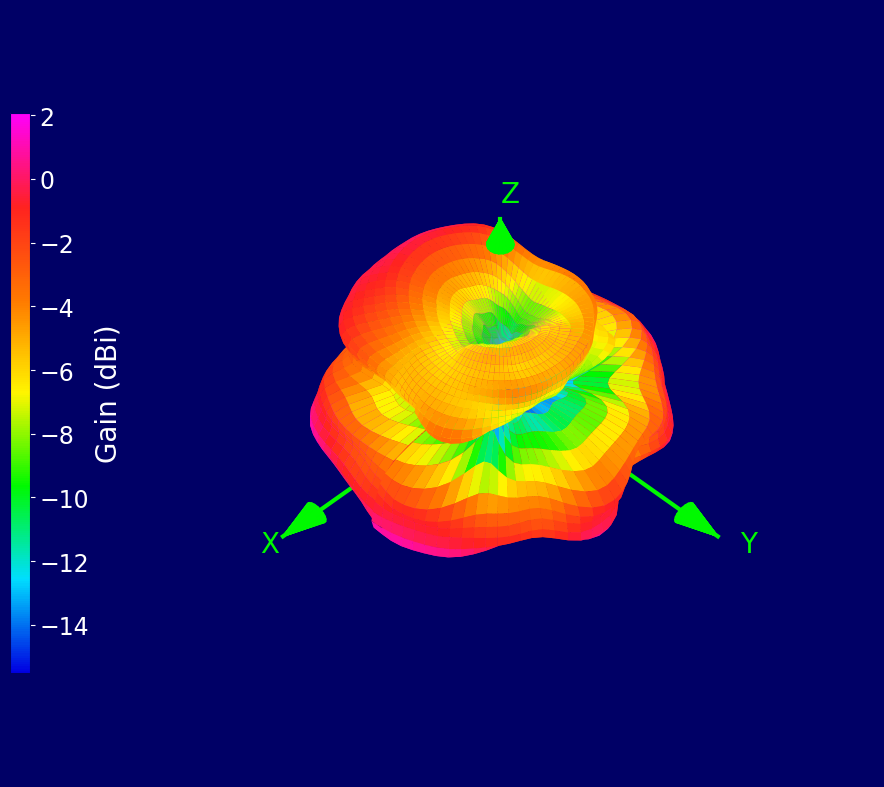

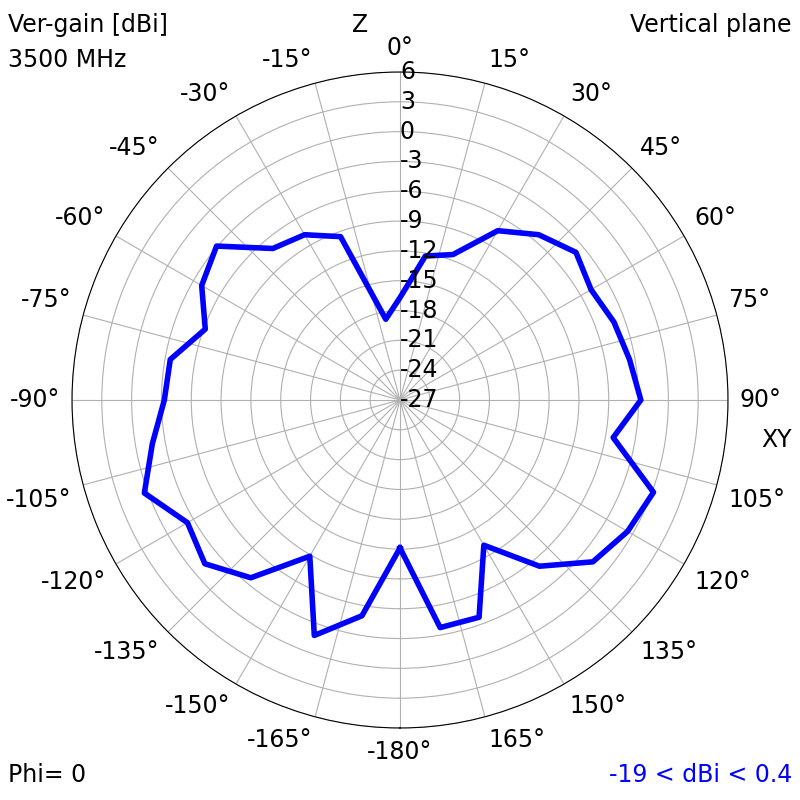

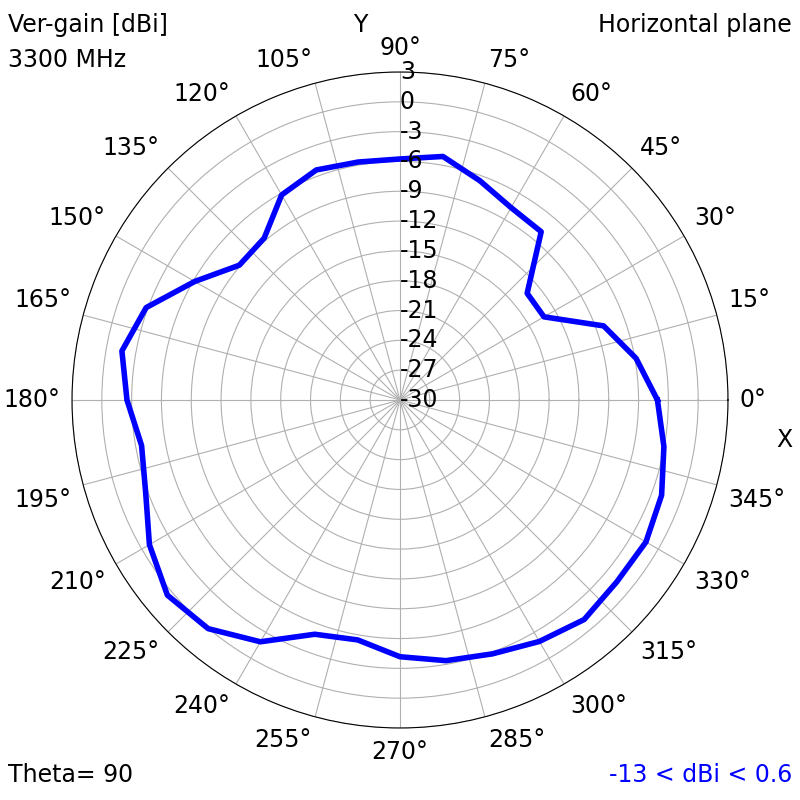

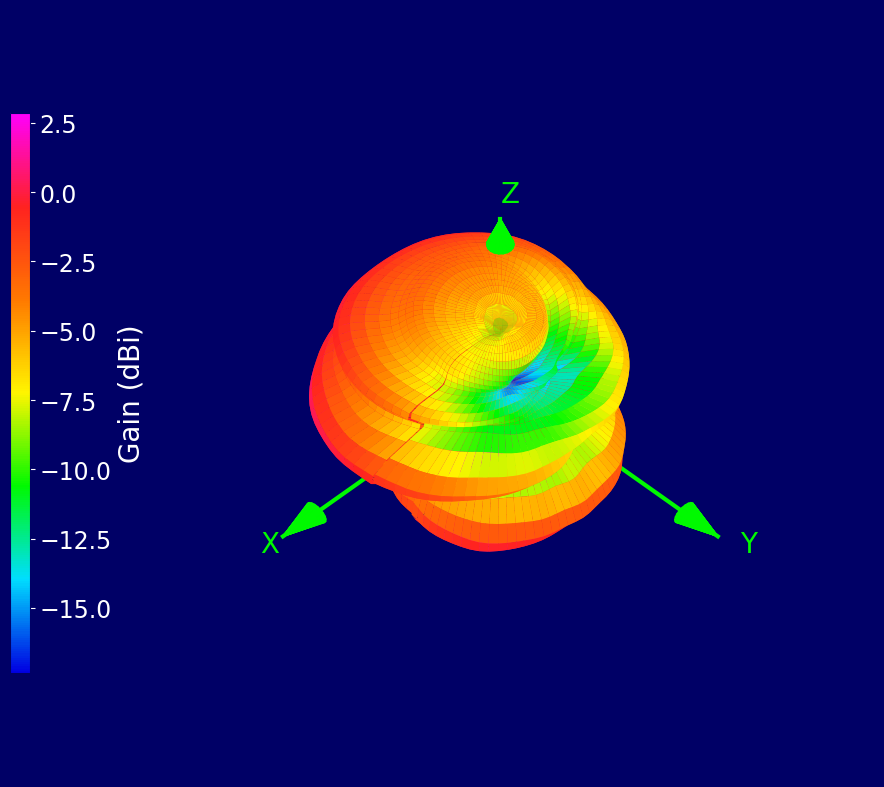

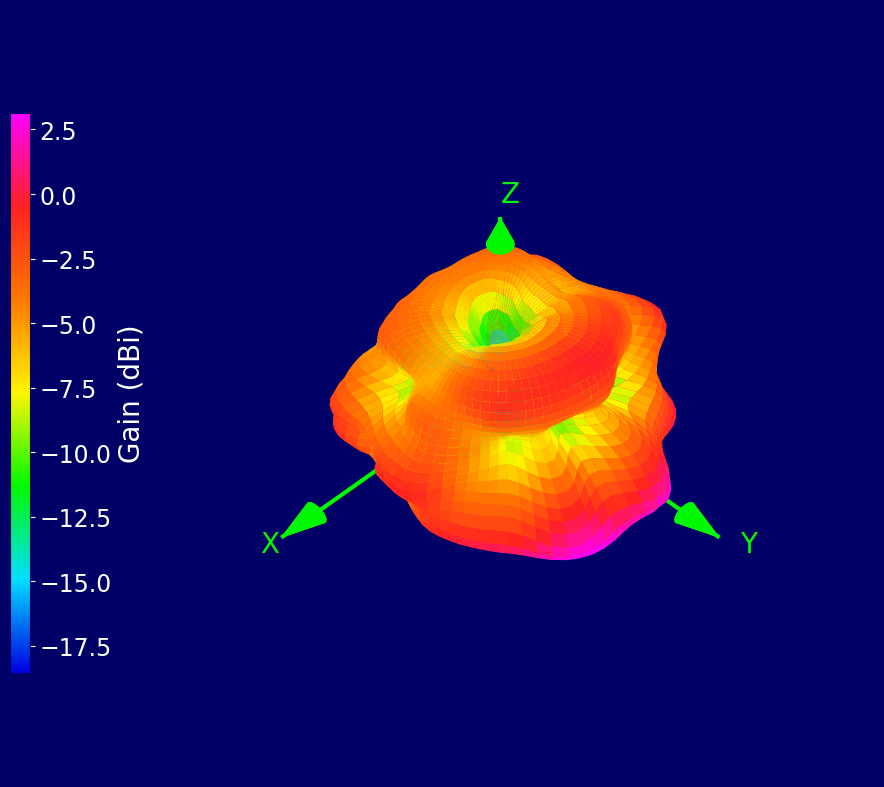

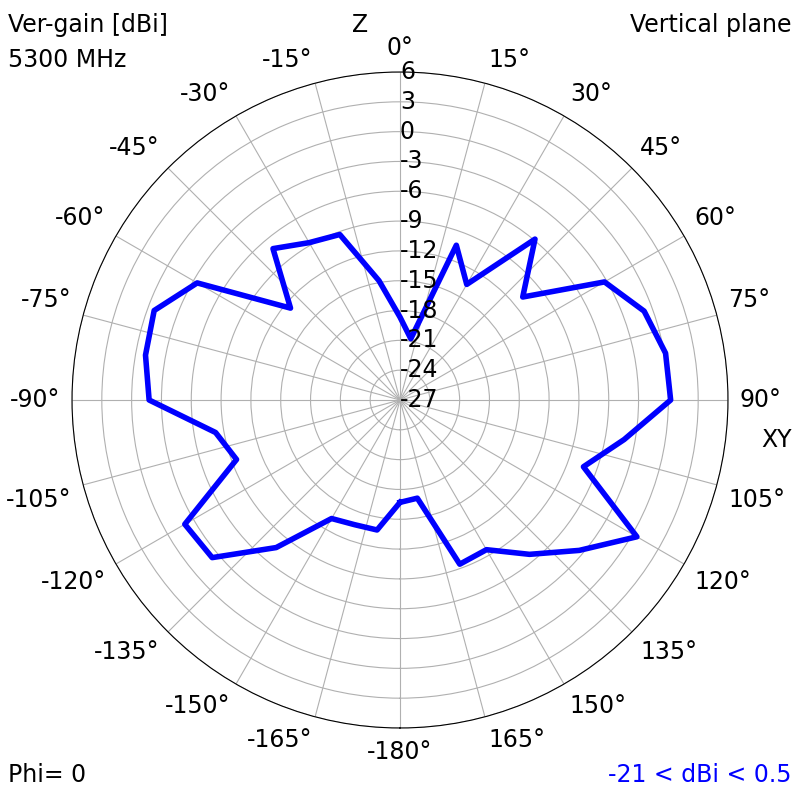

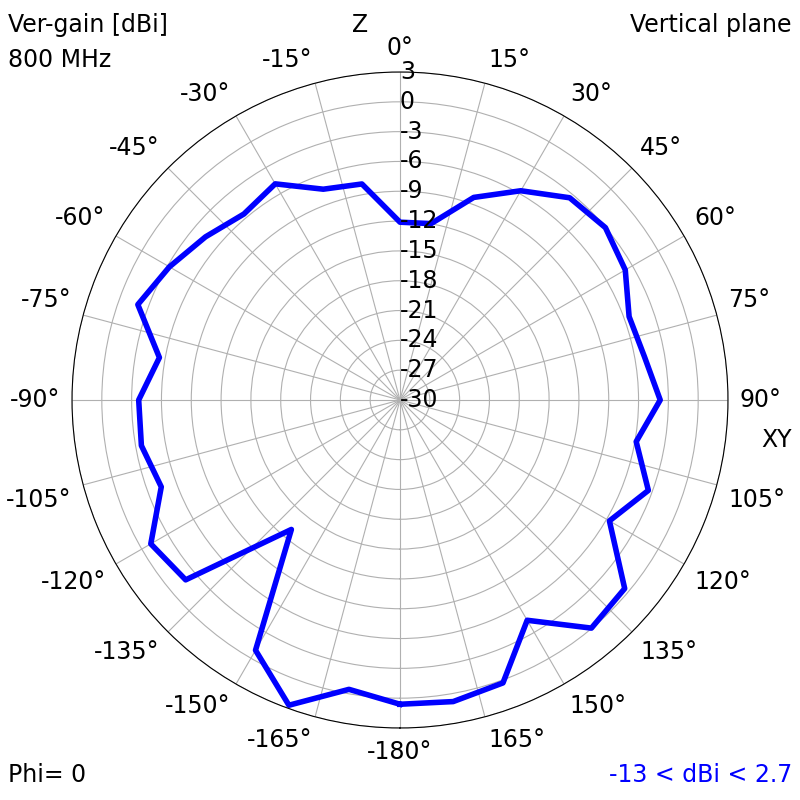

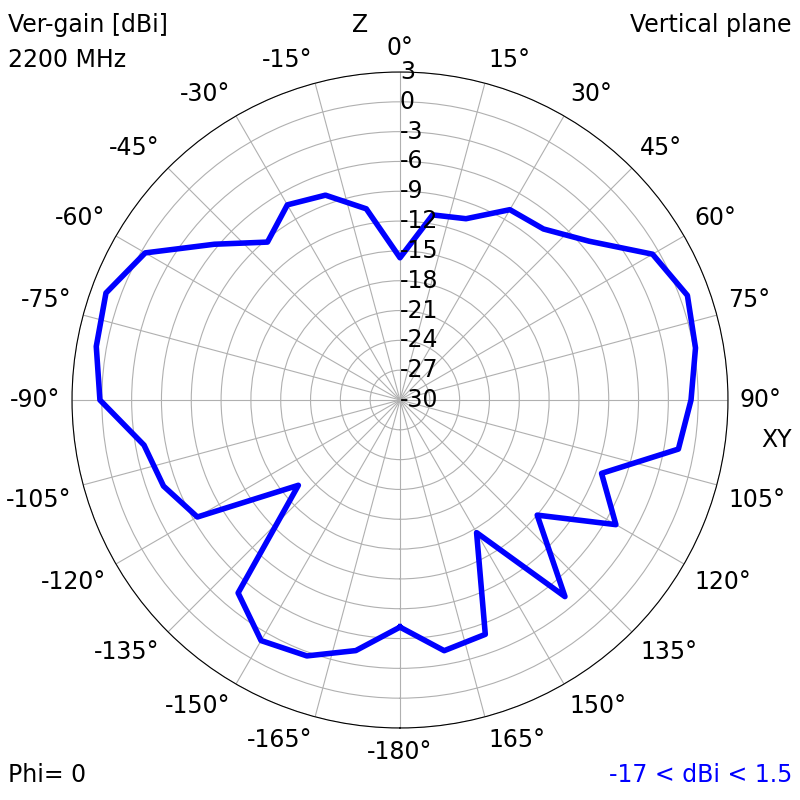

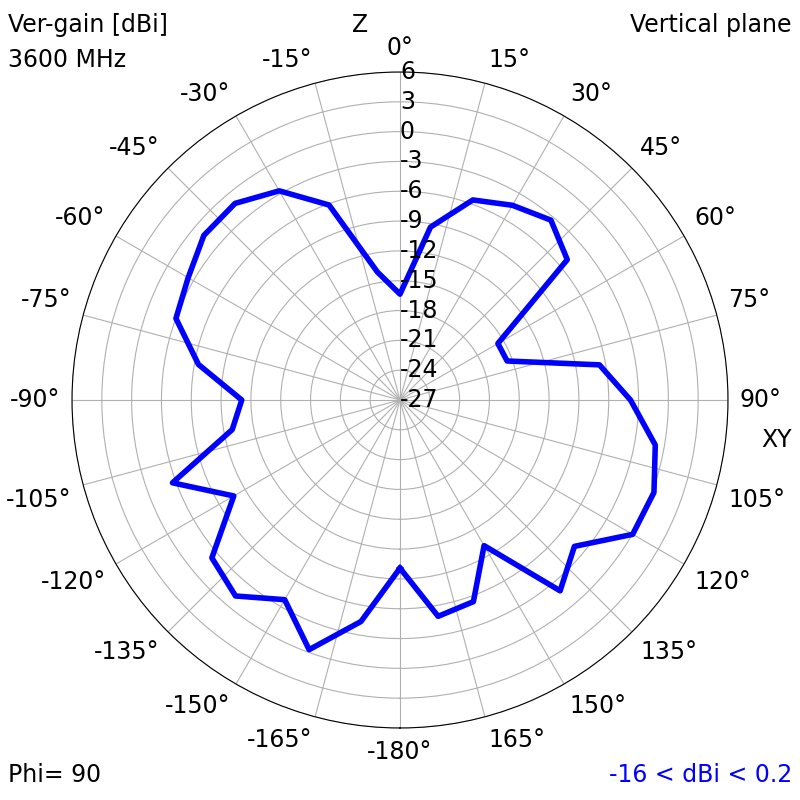

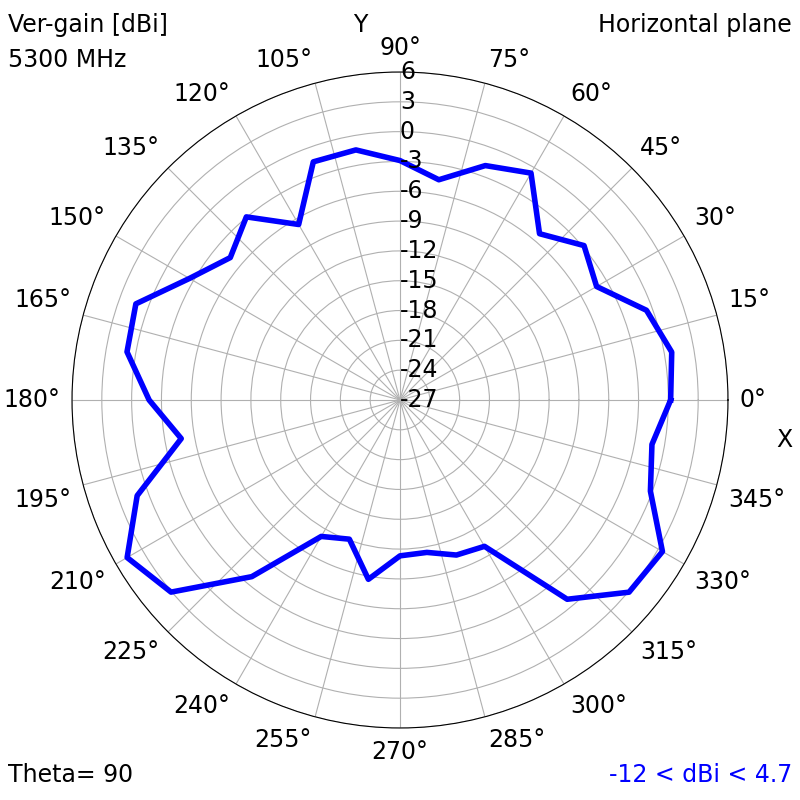

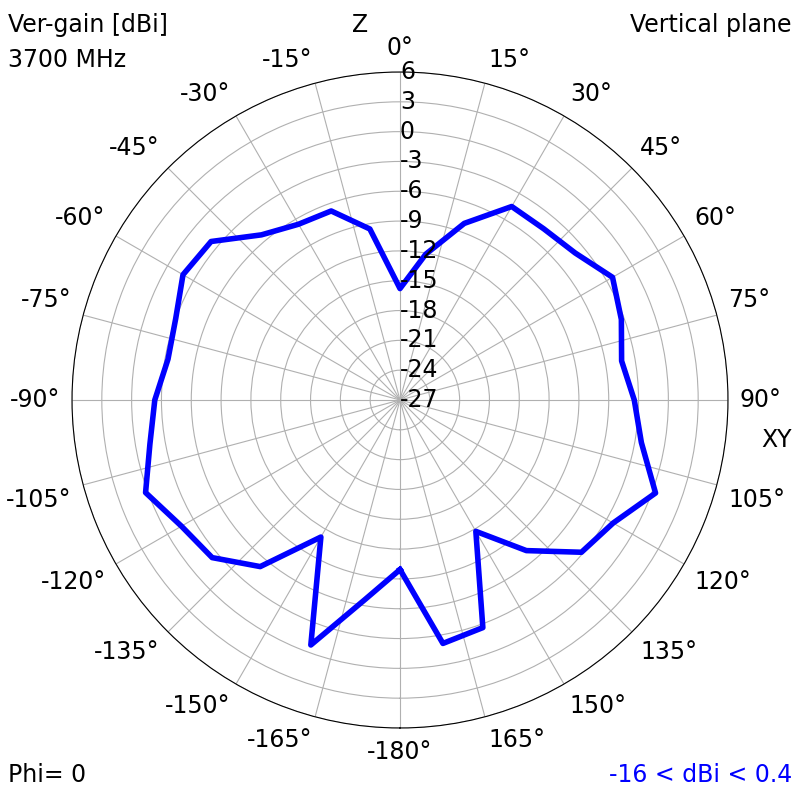

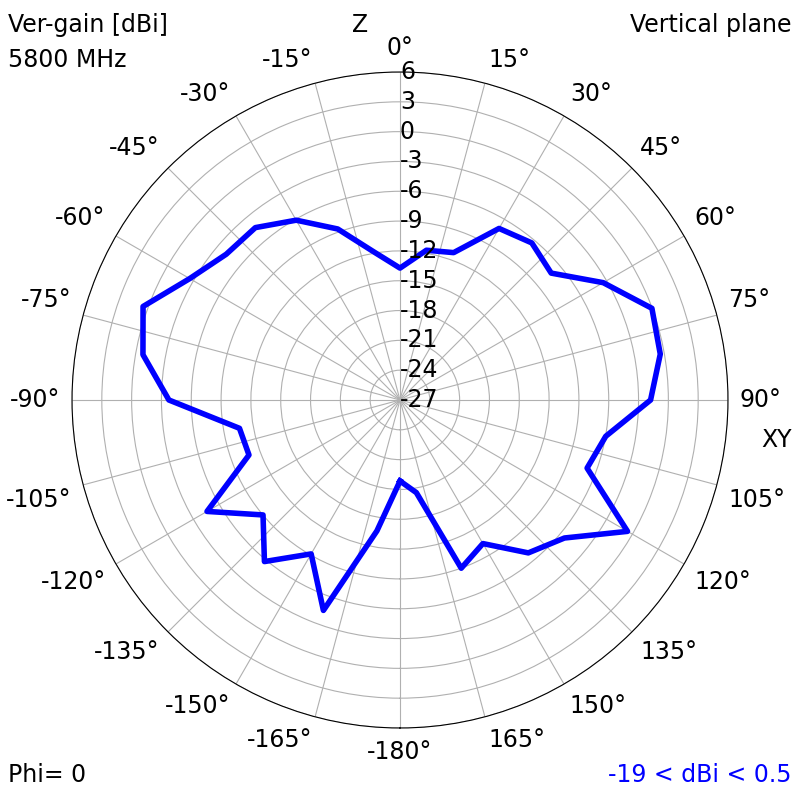

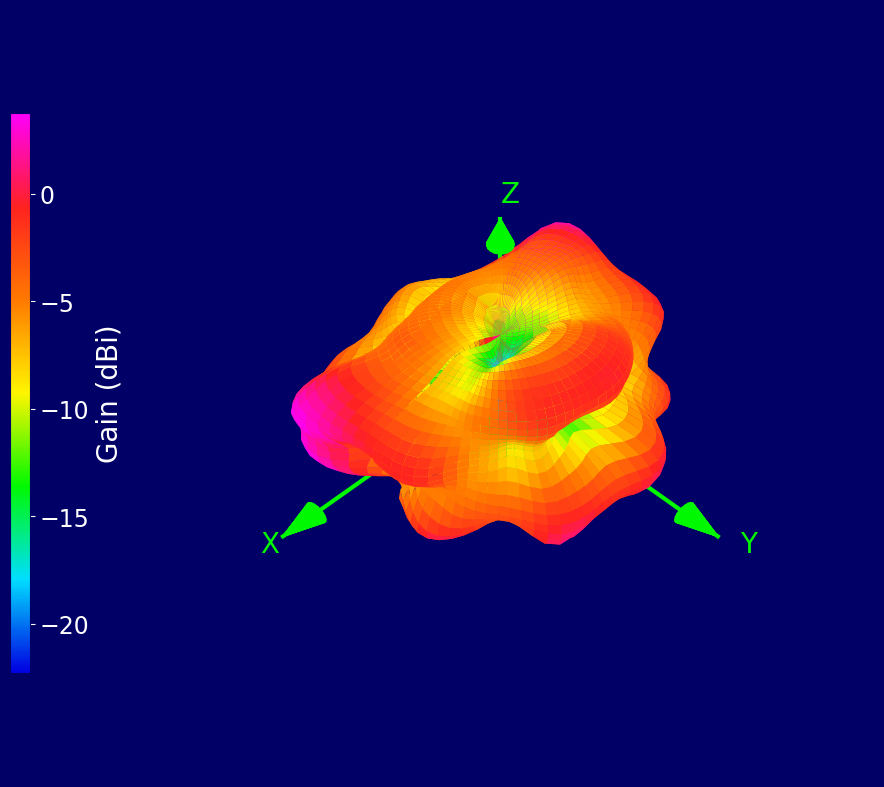

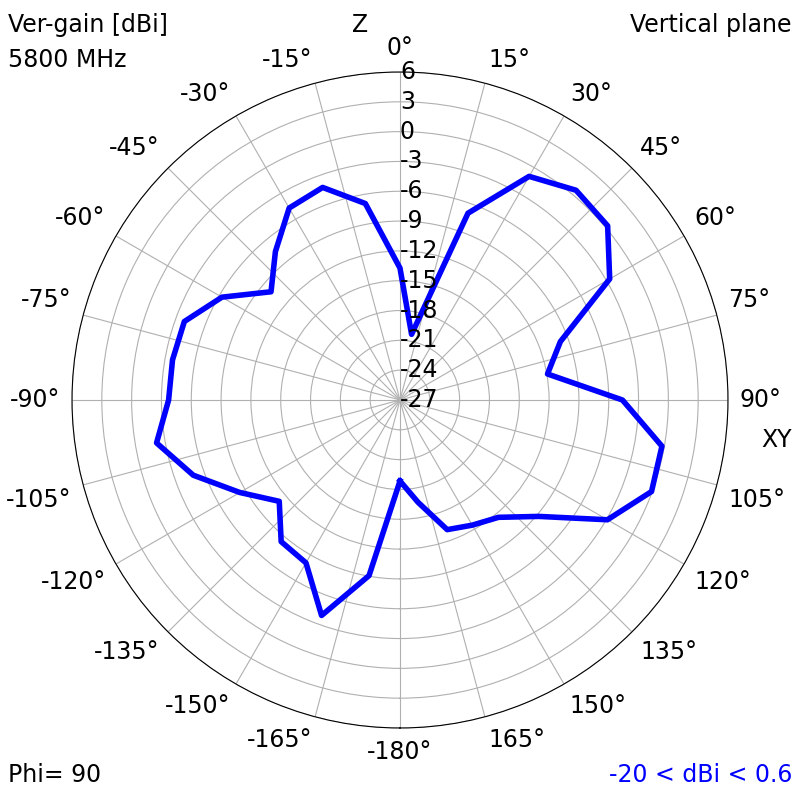

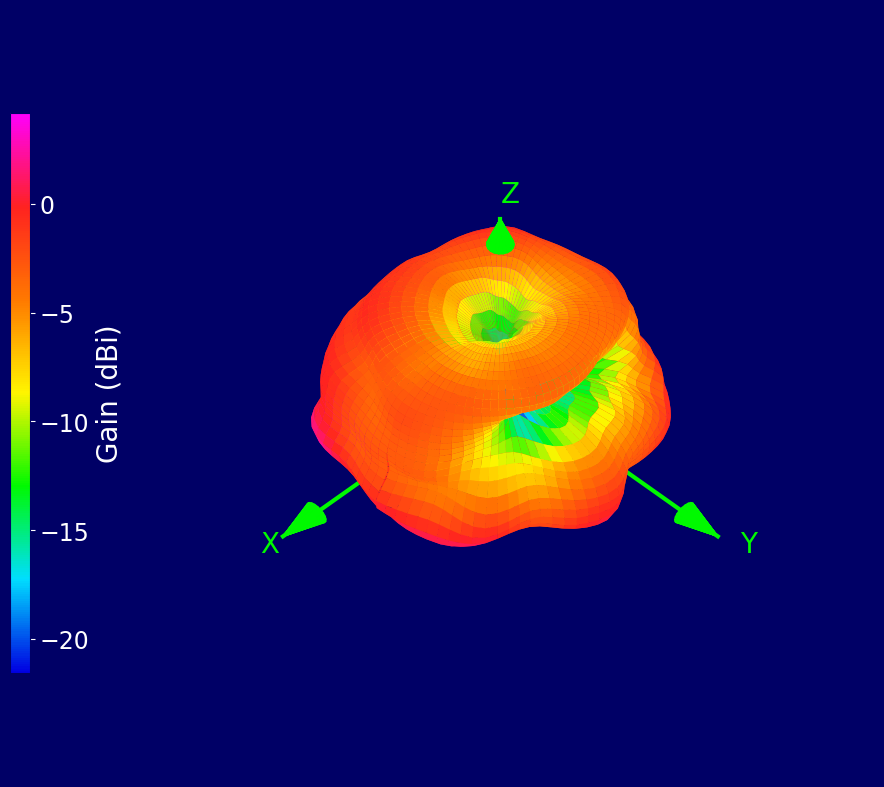

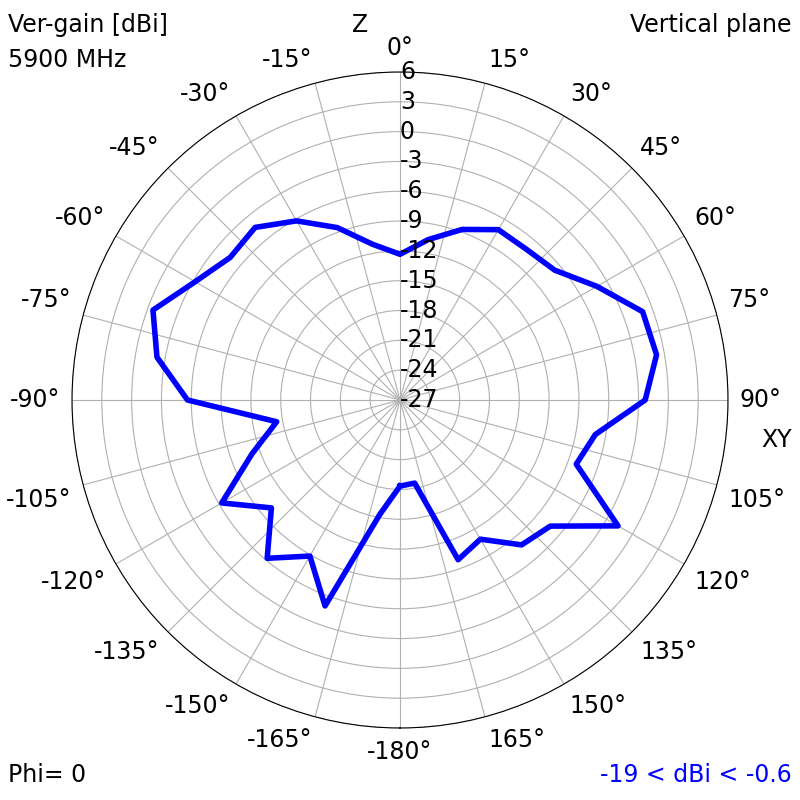

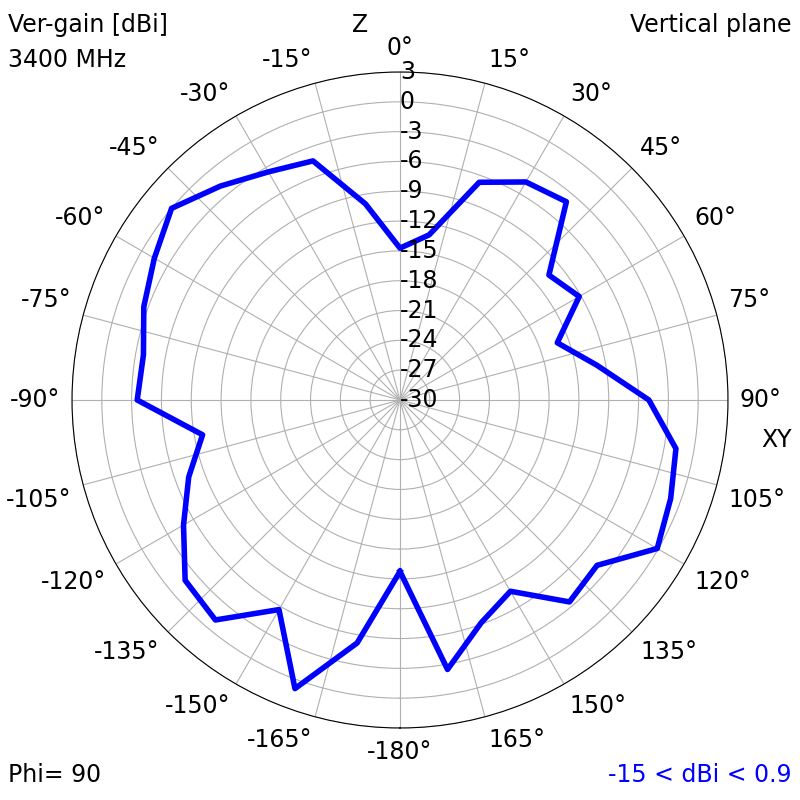

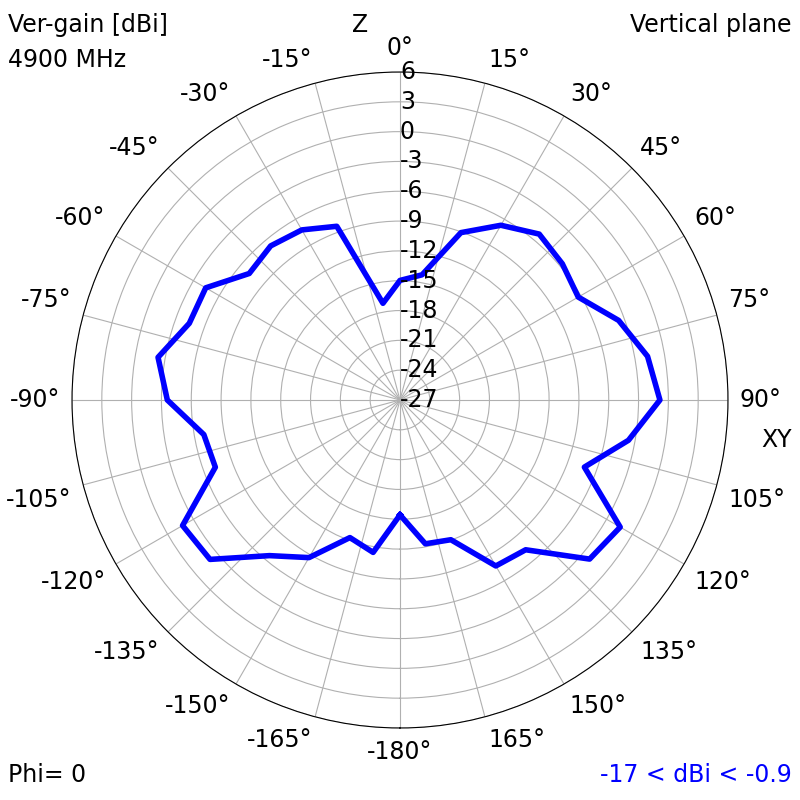

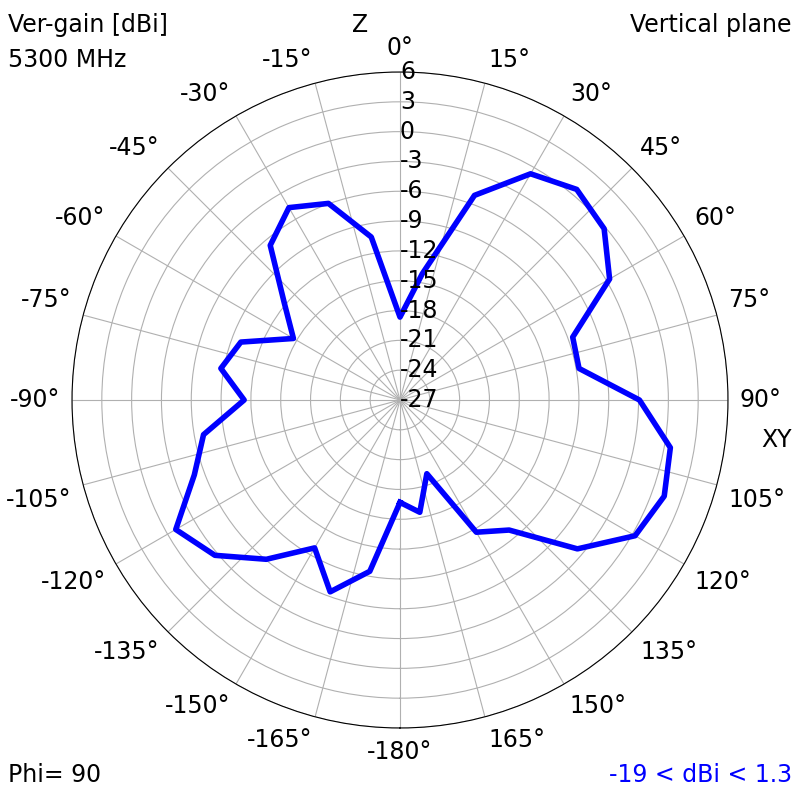

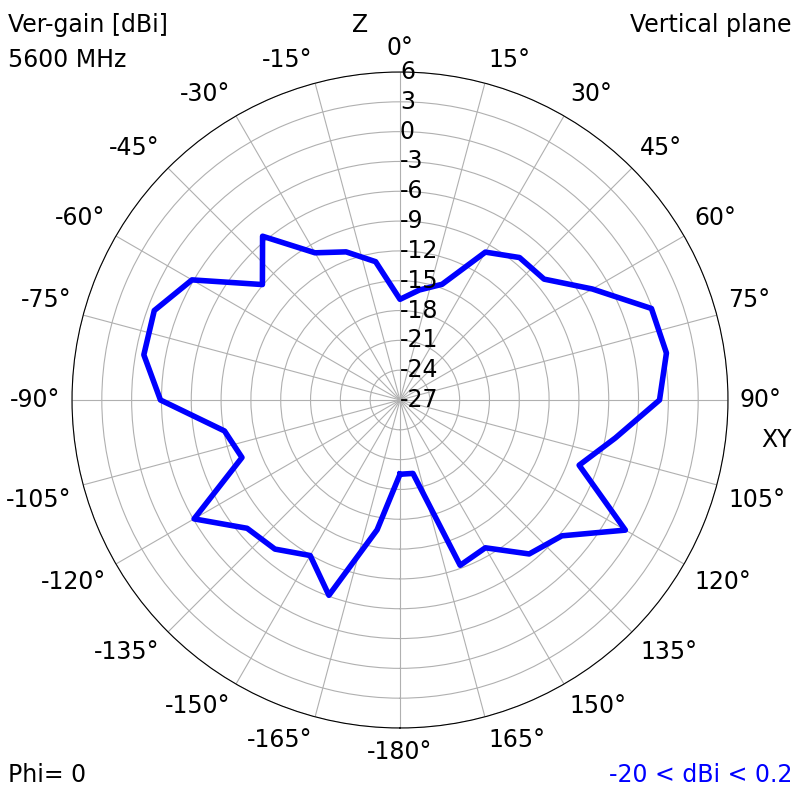

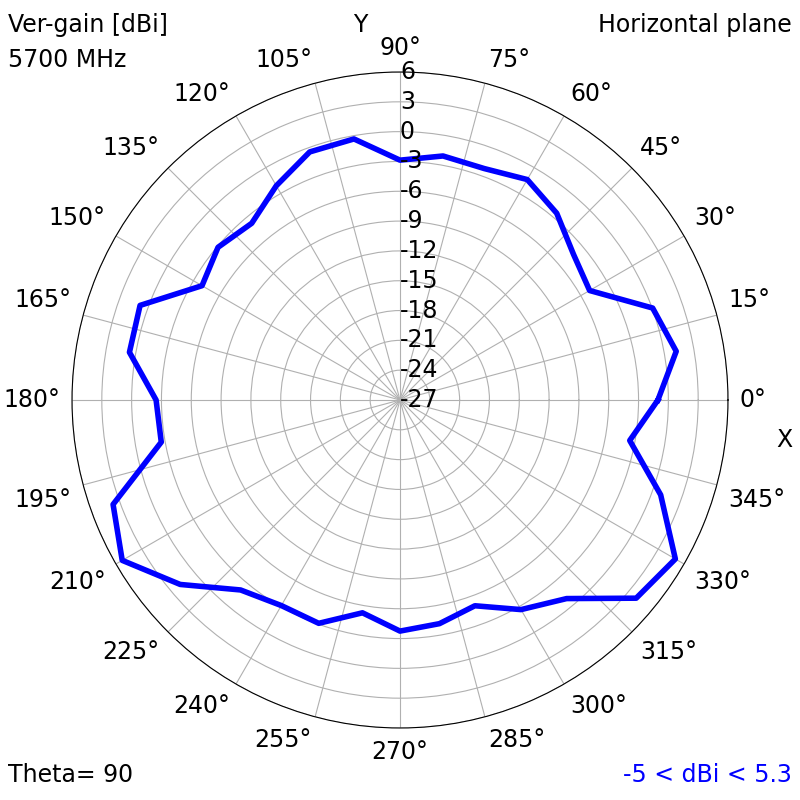

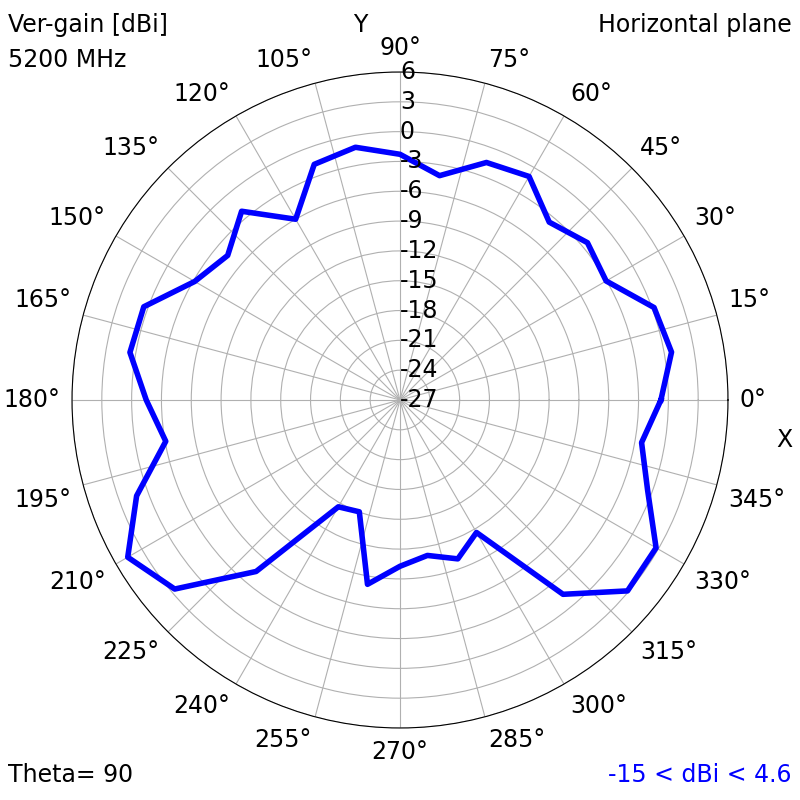

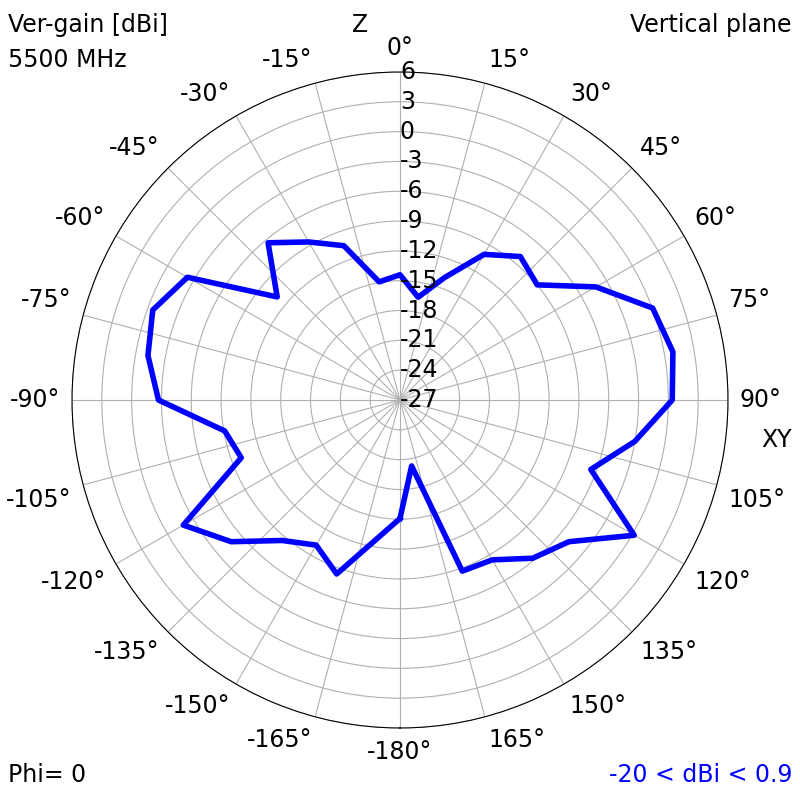

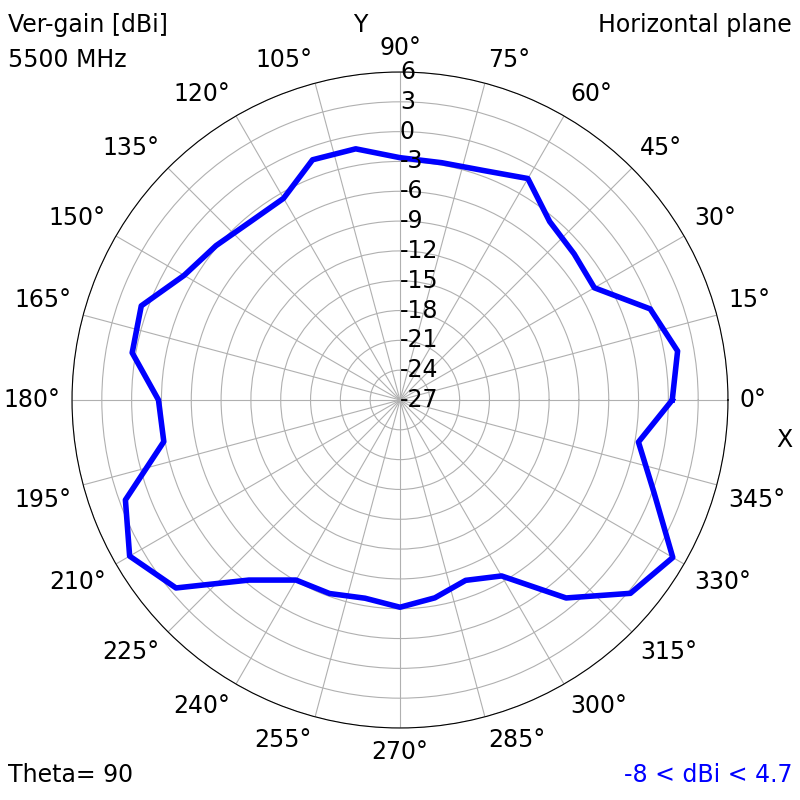

¶ 2D Radiation Plots

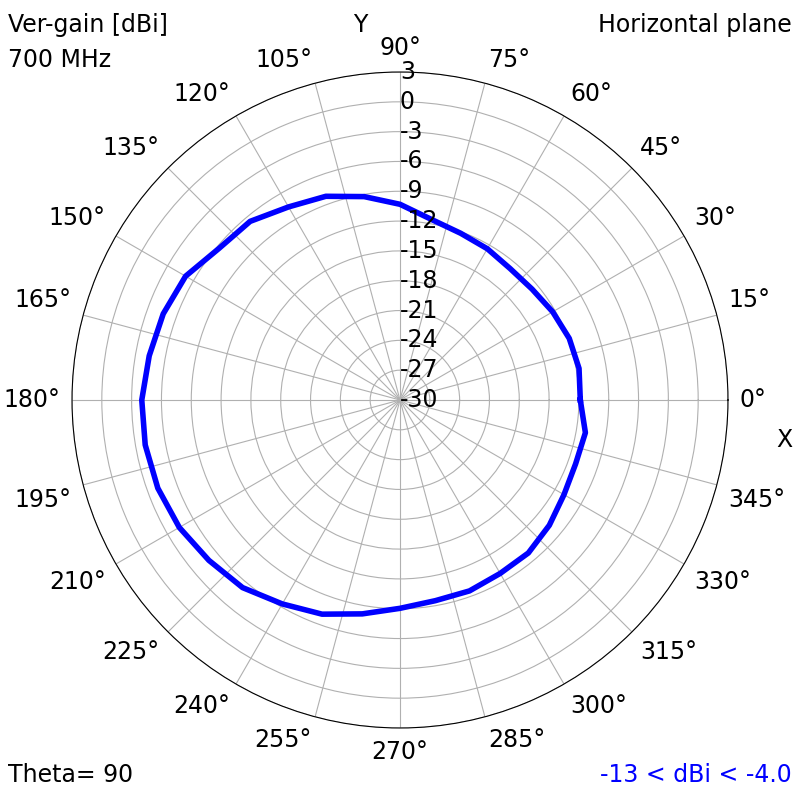

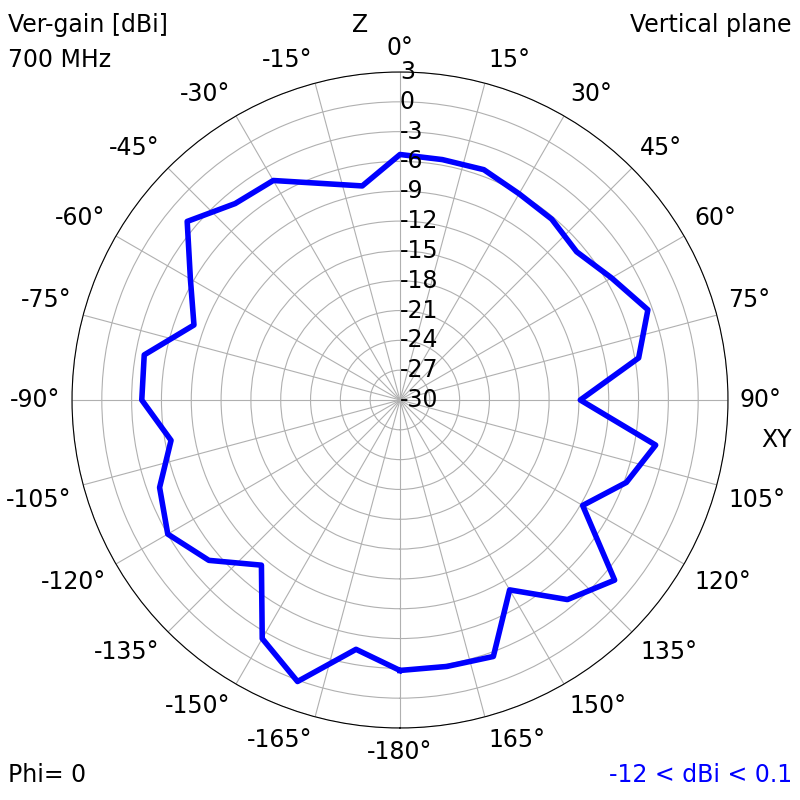

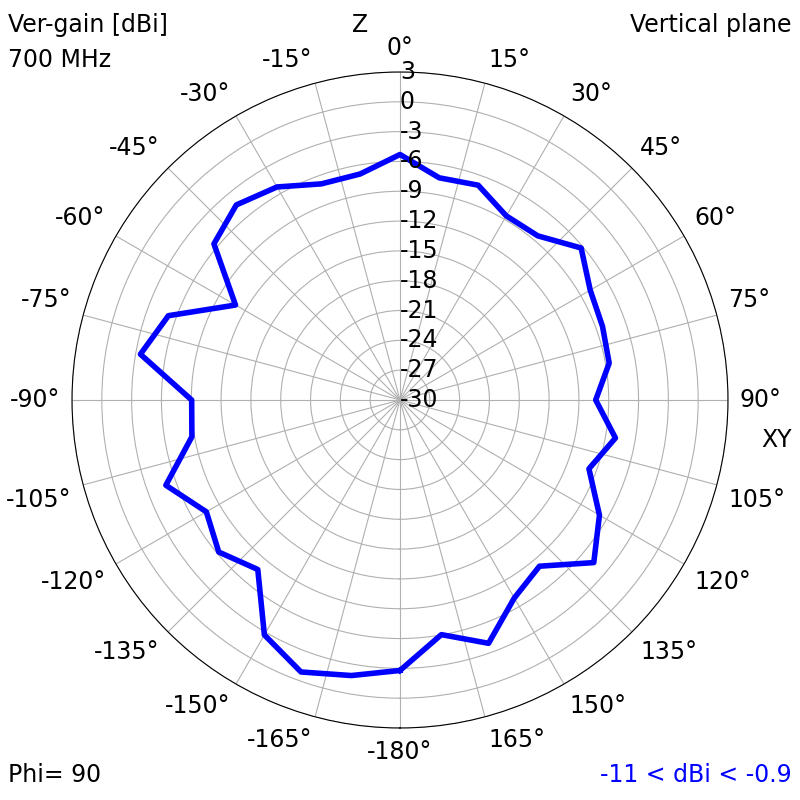

| 700 MHz | ||
|
|
|

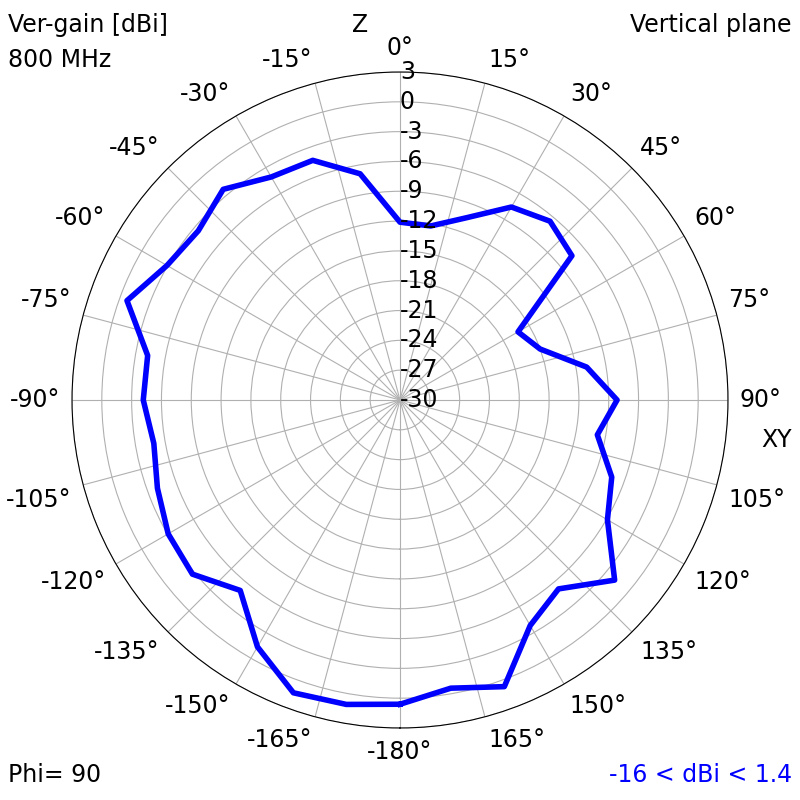

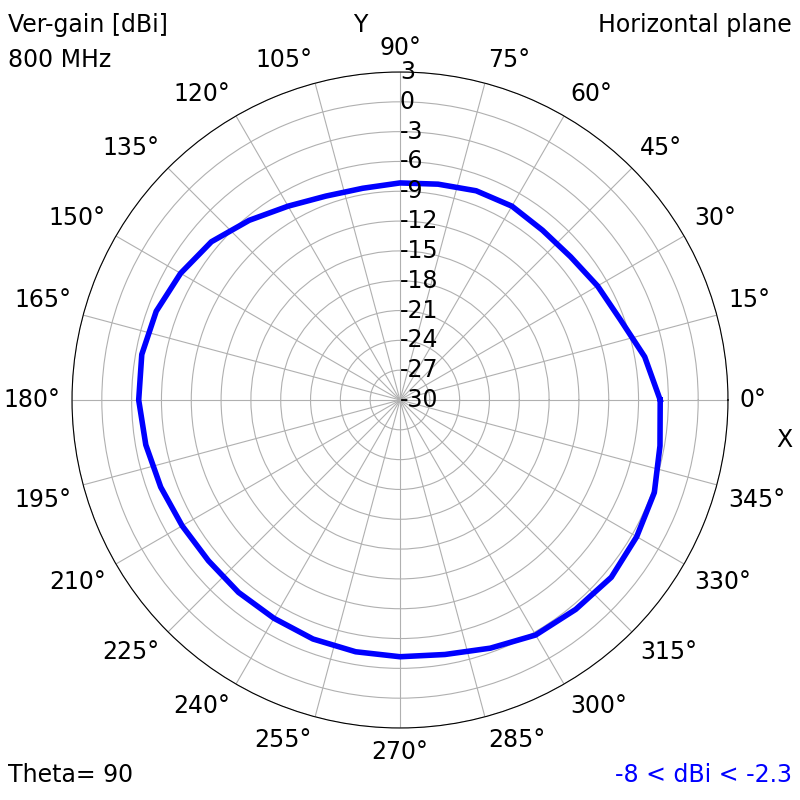

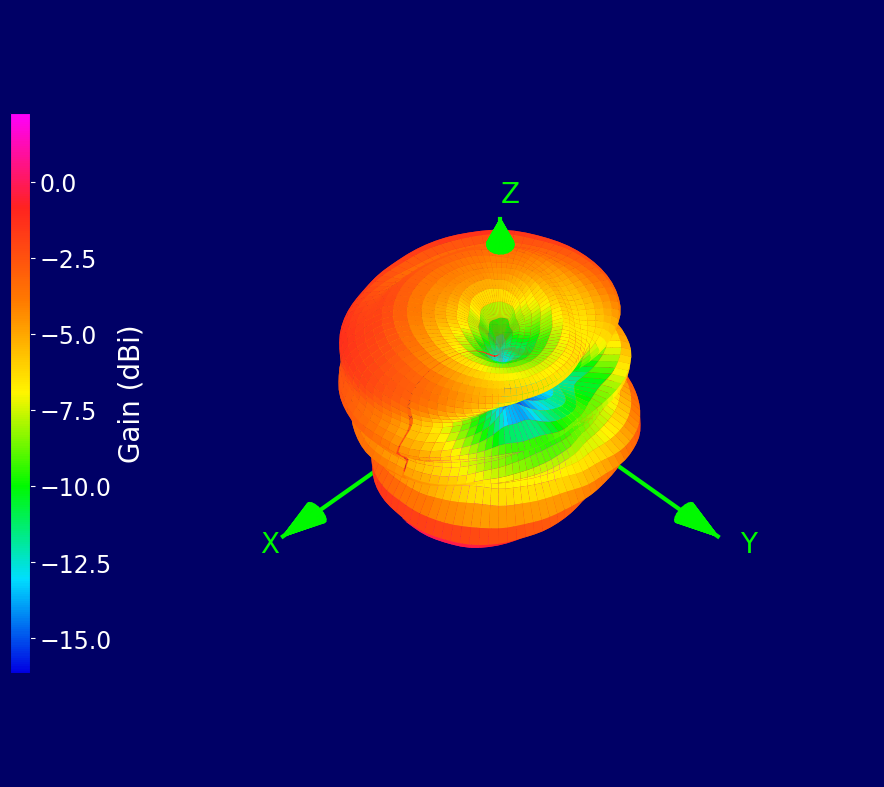

| 800 MHz | ||
|
|
|

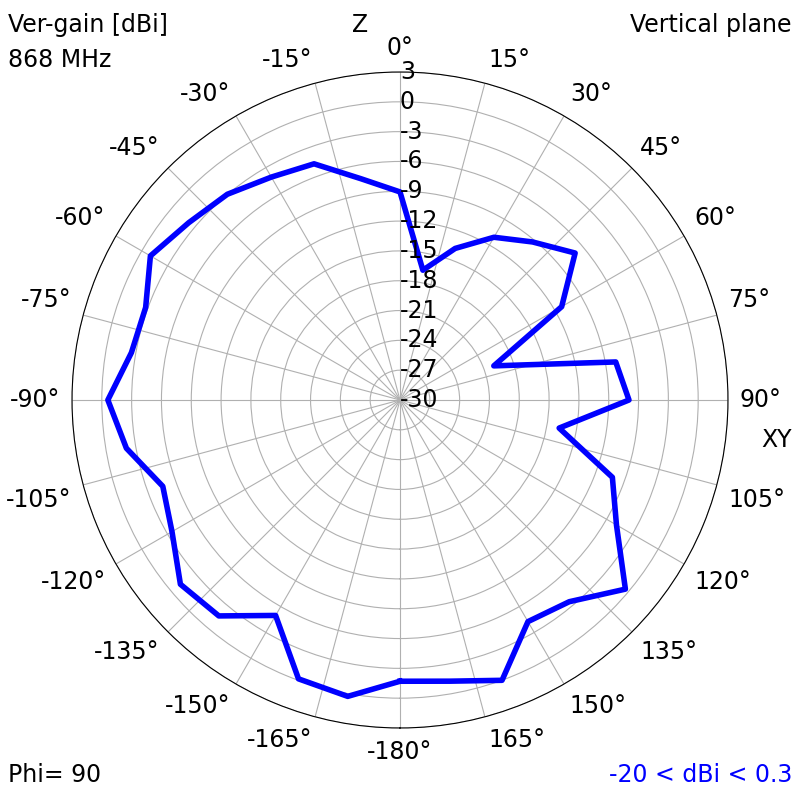

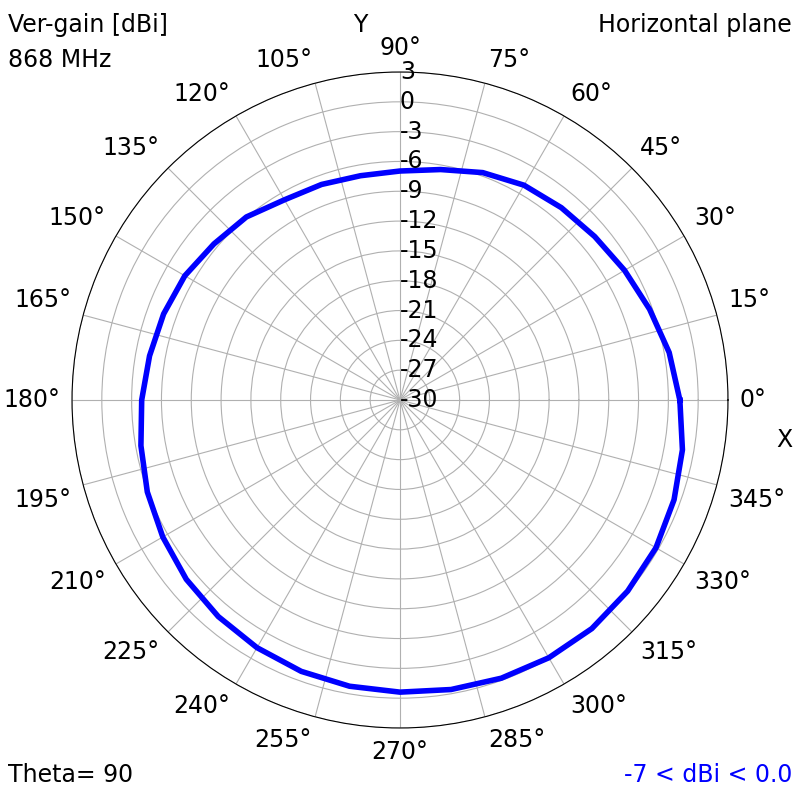

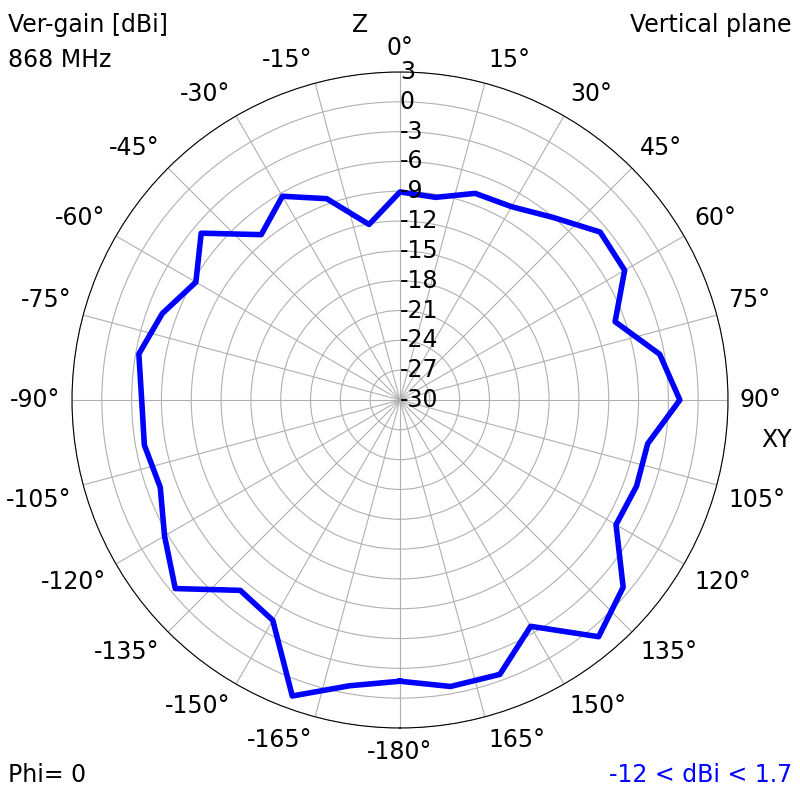

| 868 MHz | ||
|
|
|

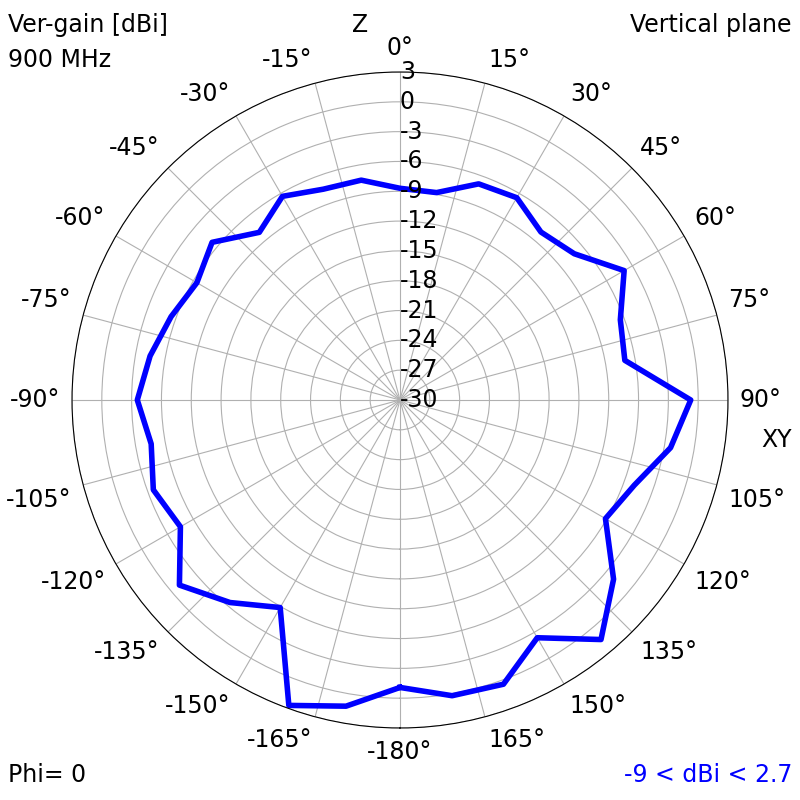

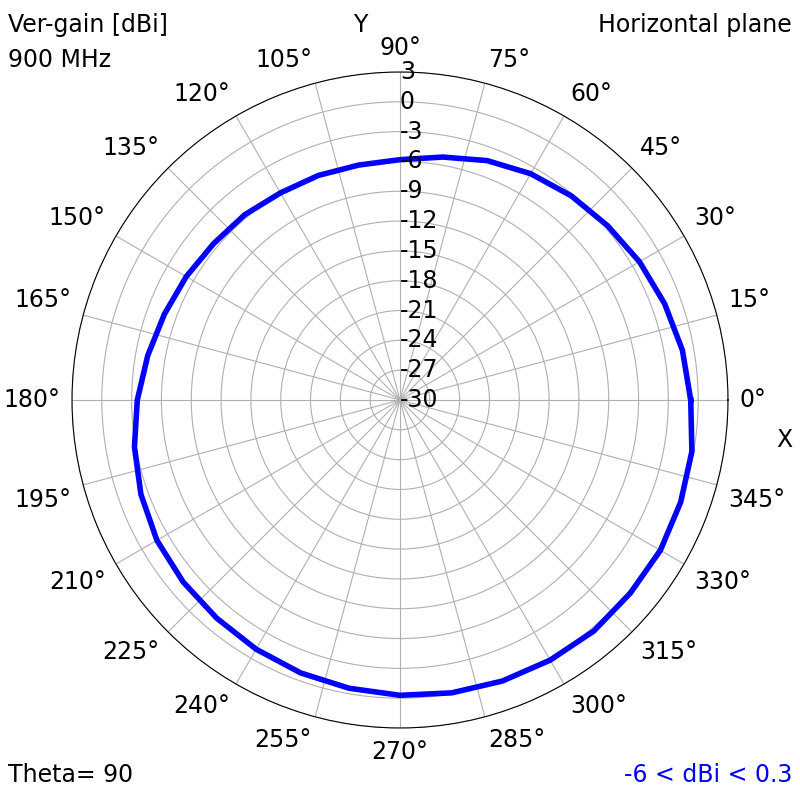

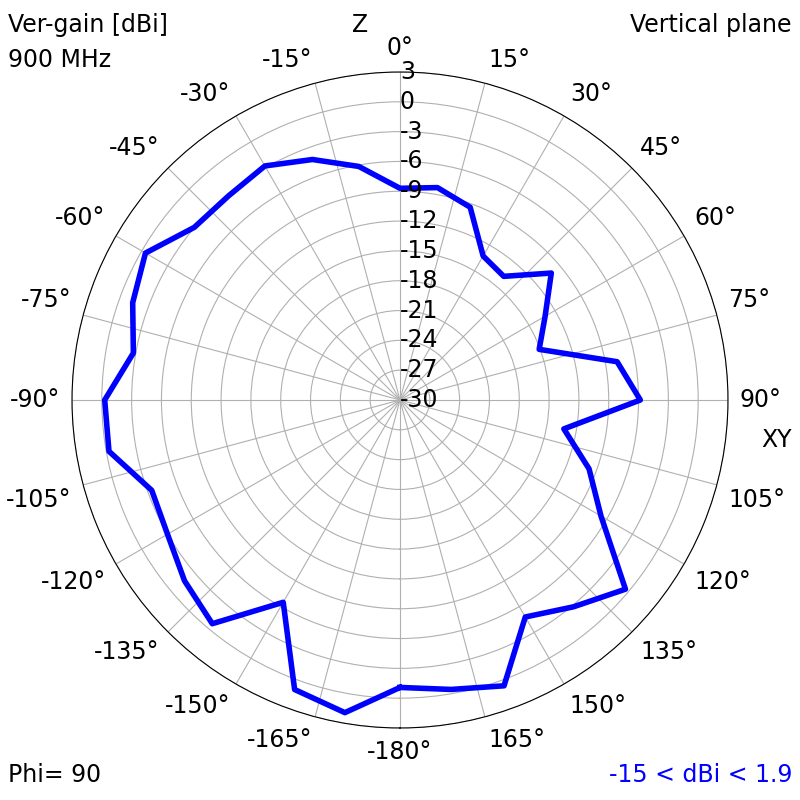

| 900 MHz | ||
|
|
|

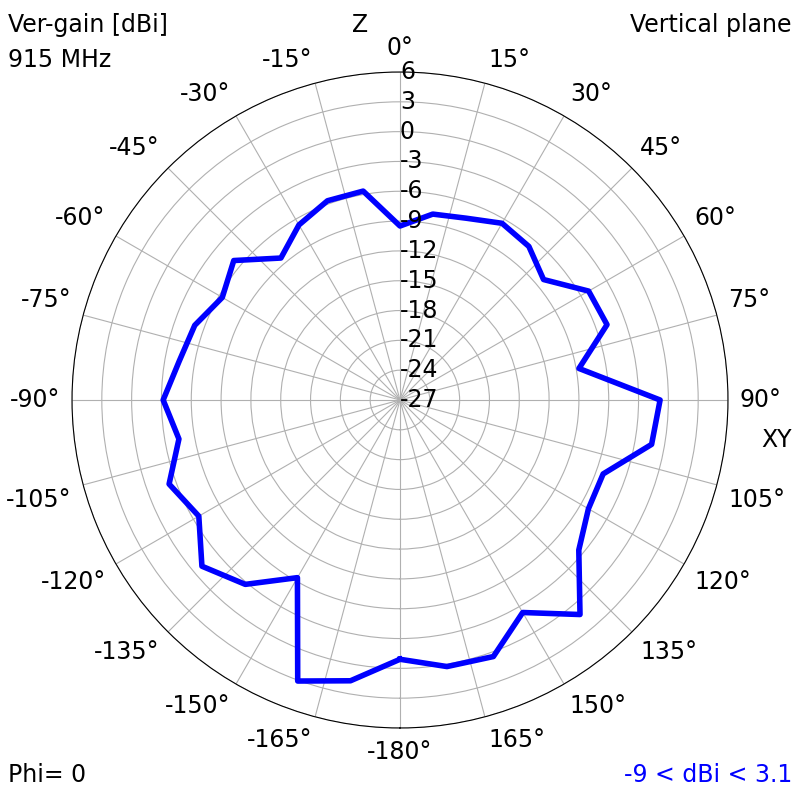

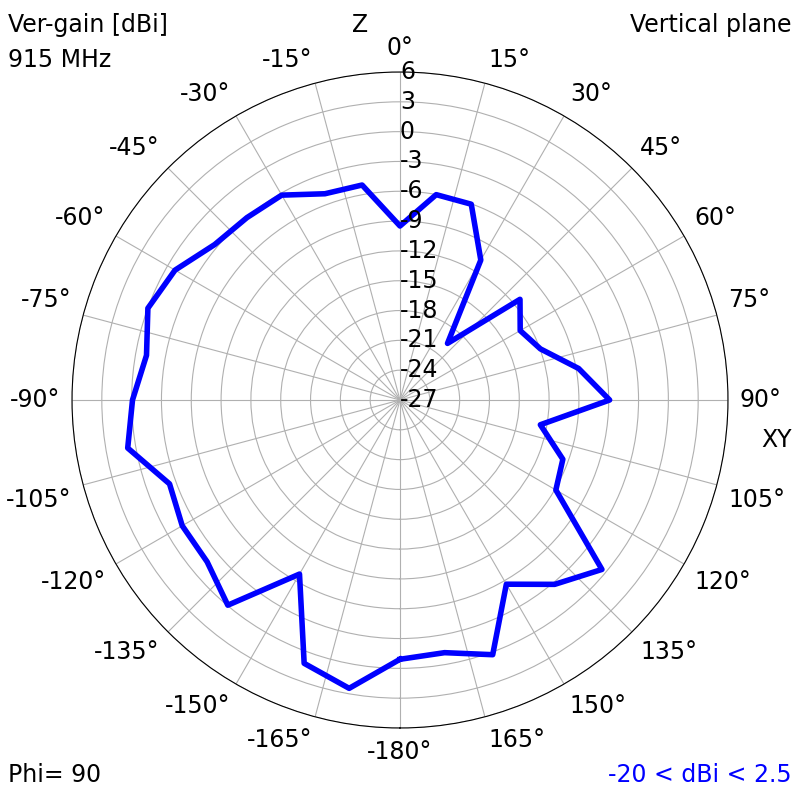

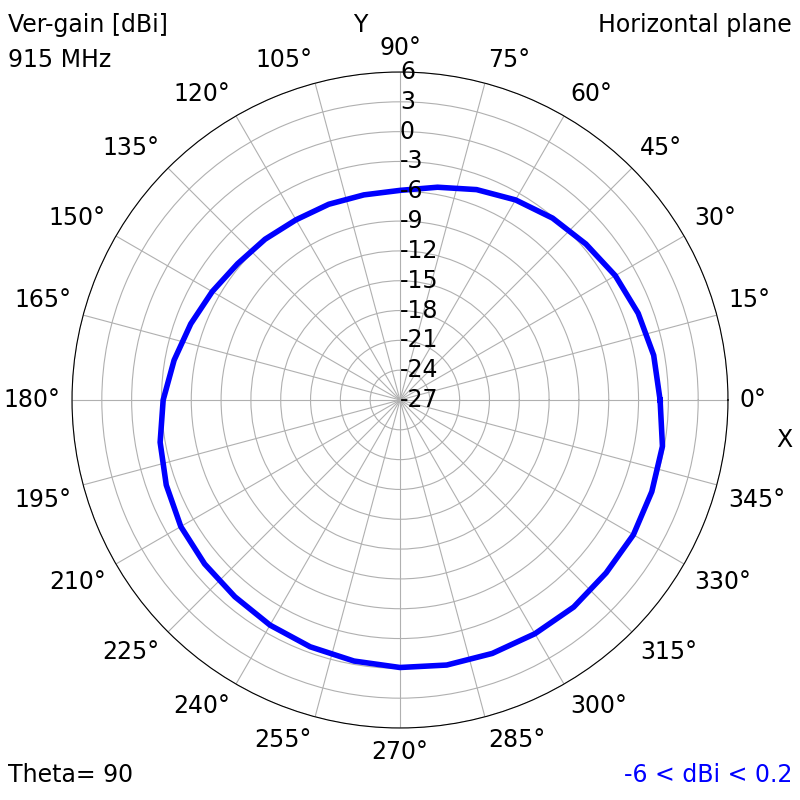

| 915 MHz | ||
|
|
|
| 1400 MHz | ||
|
|
|

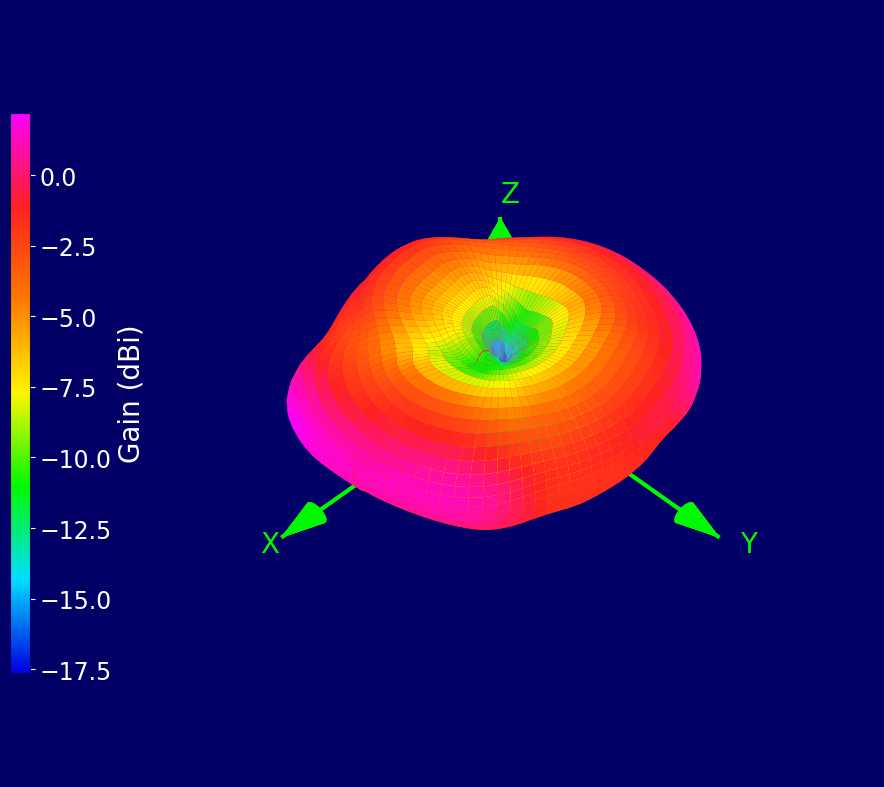

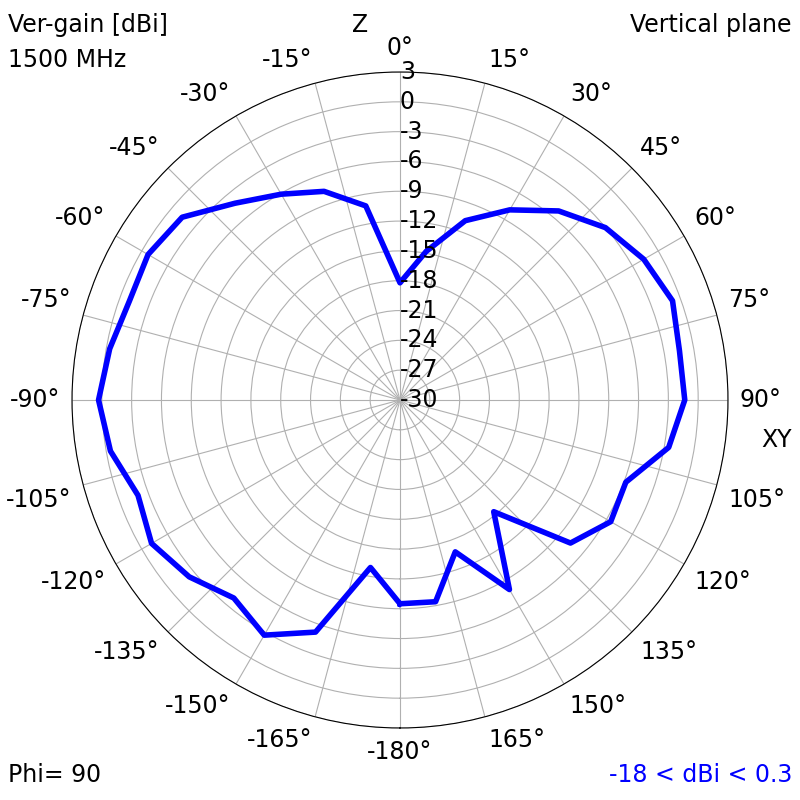

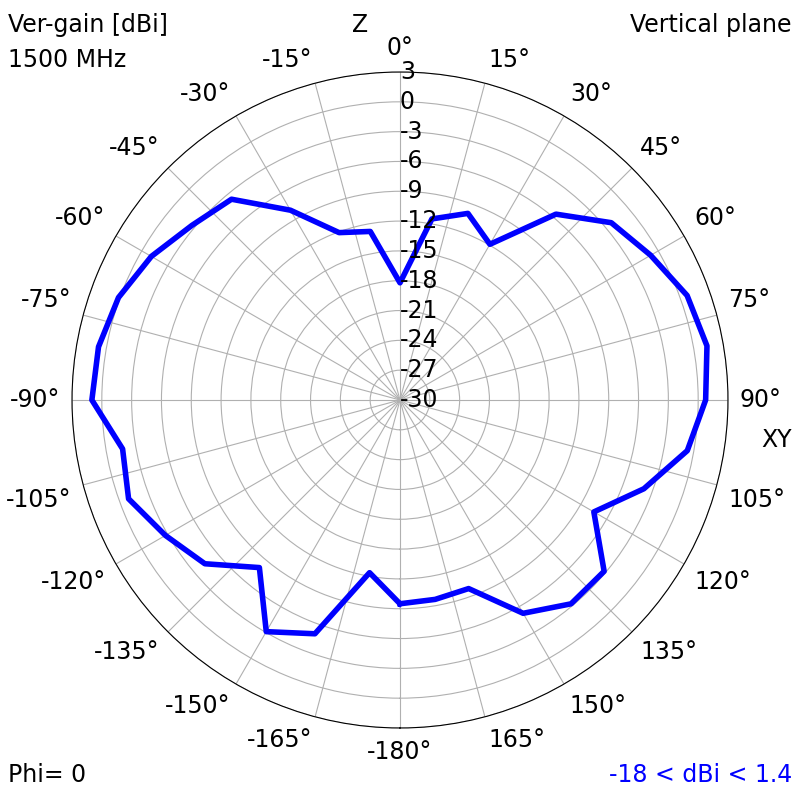

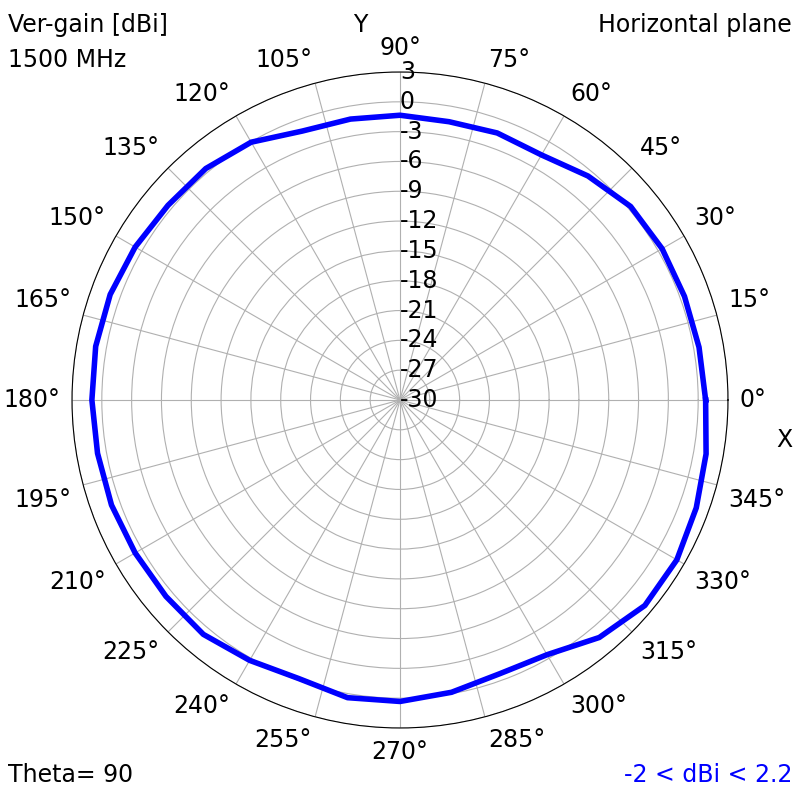

| 1500 MHz | ||
|
|
|
|

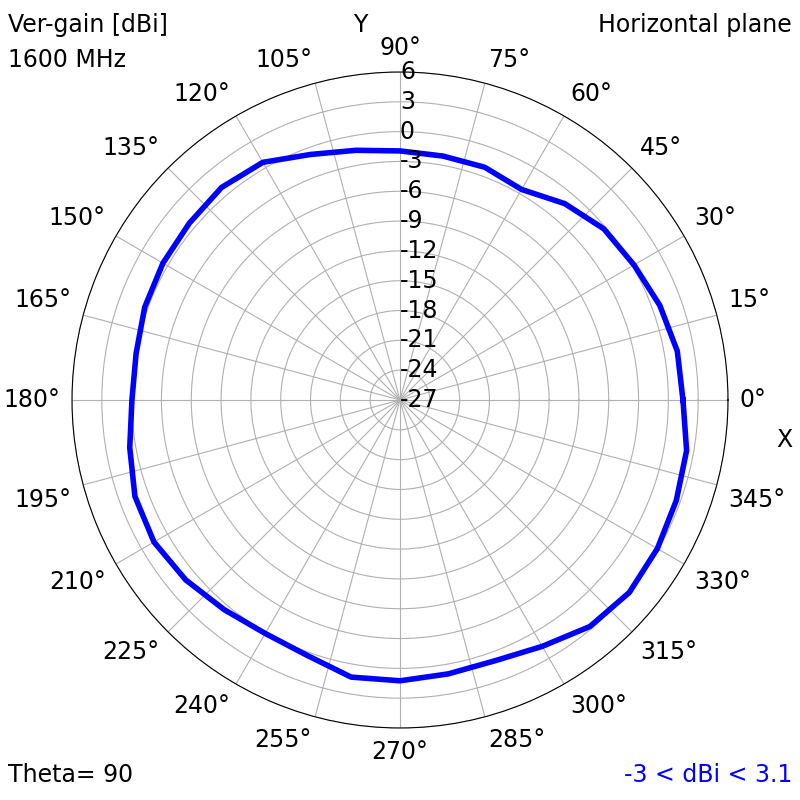

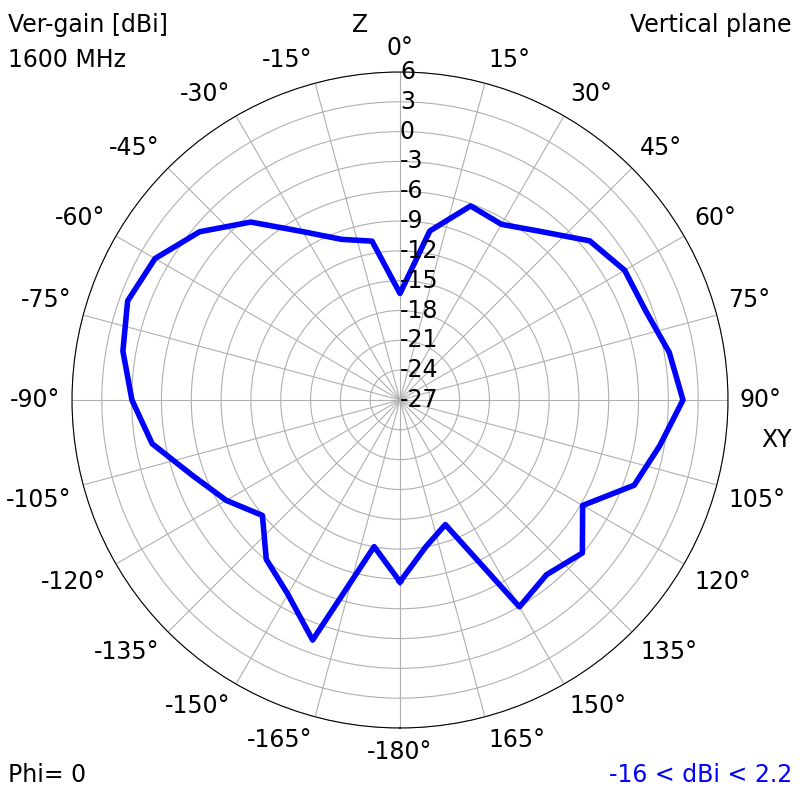

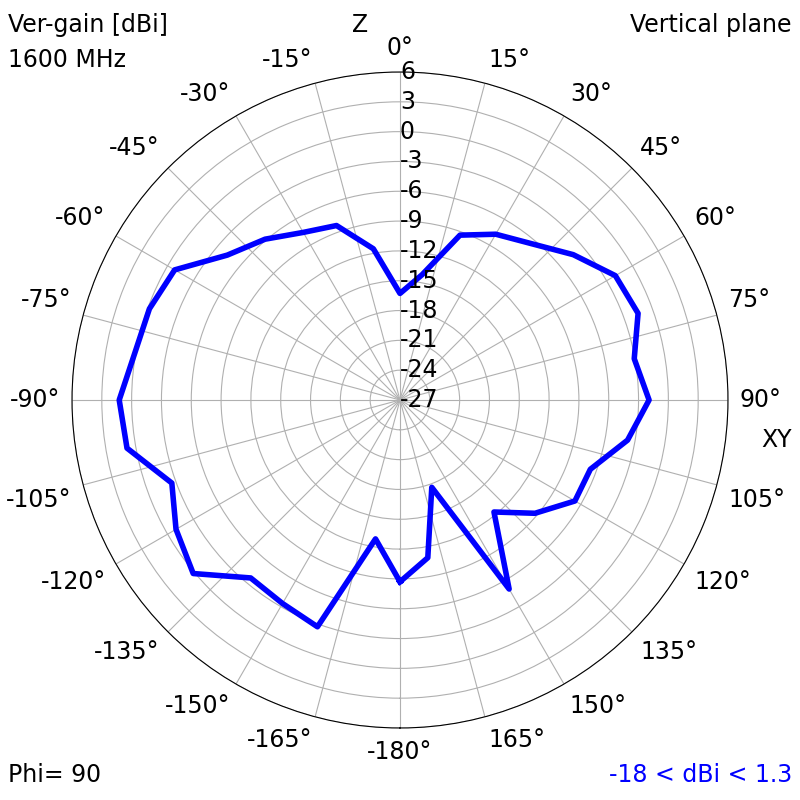

| 1600 MHz | ||
|
|
|

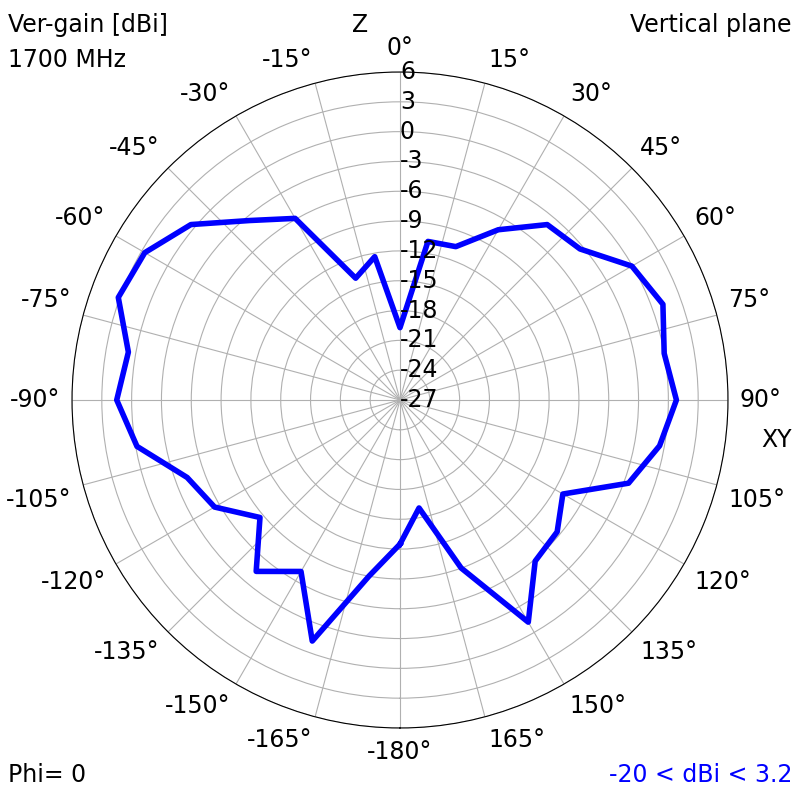

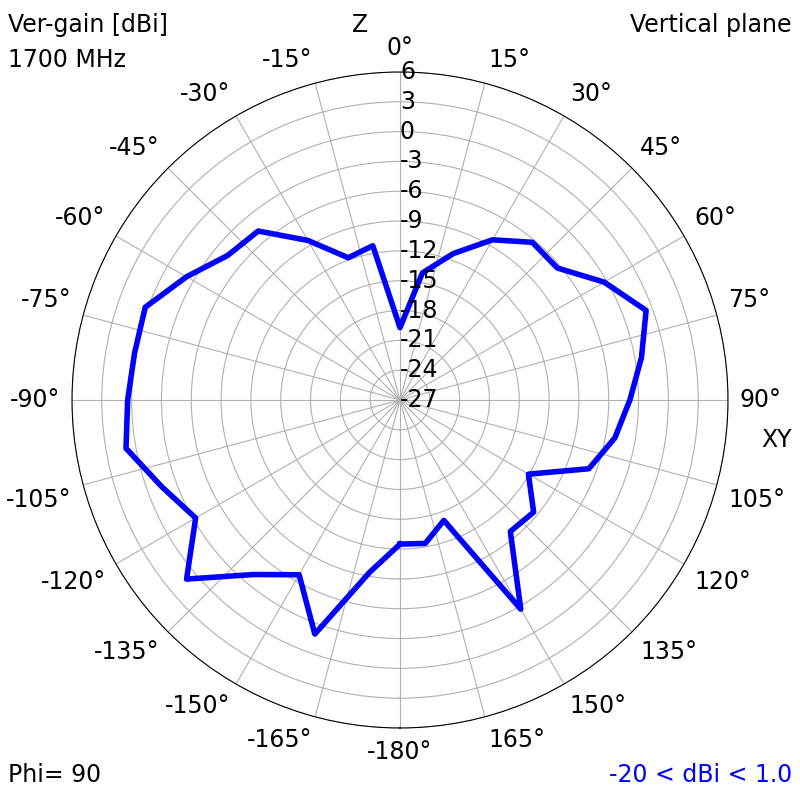

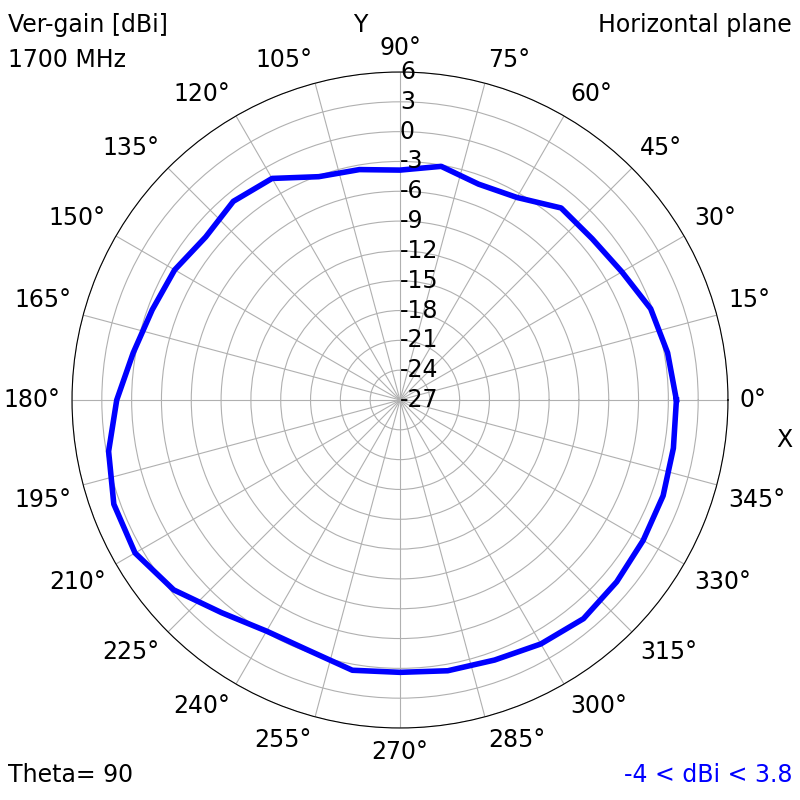

| 1700 MHz | ||
|
|
|

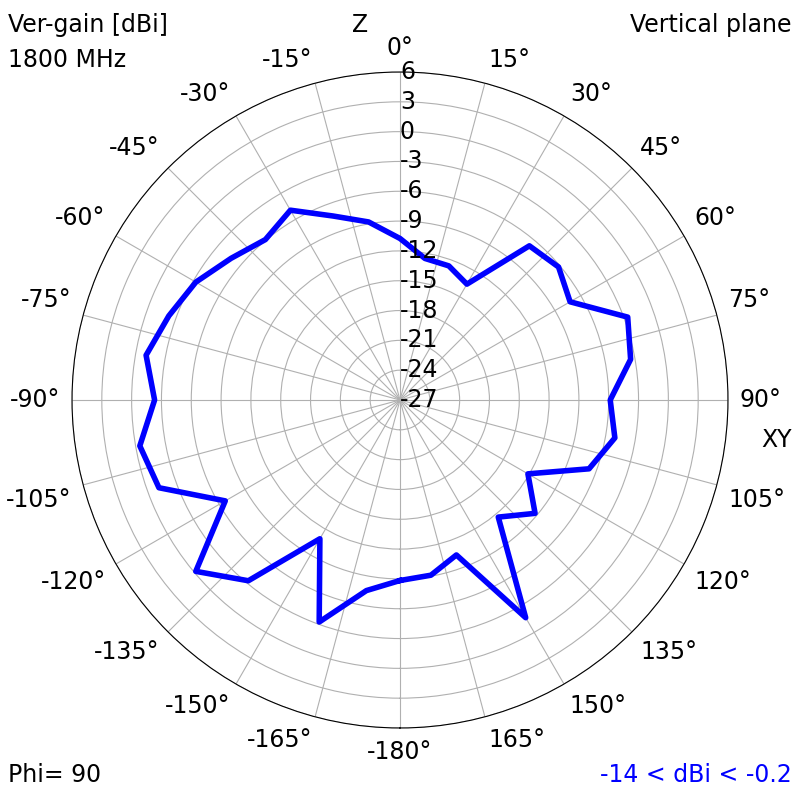

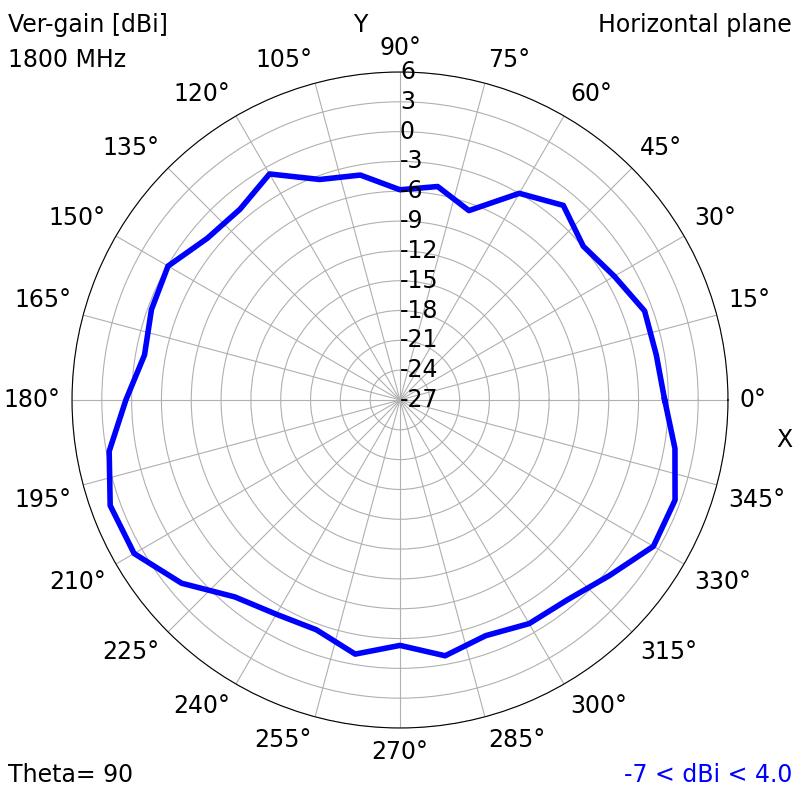

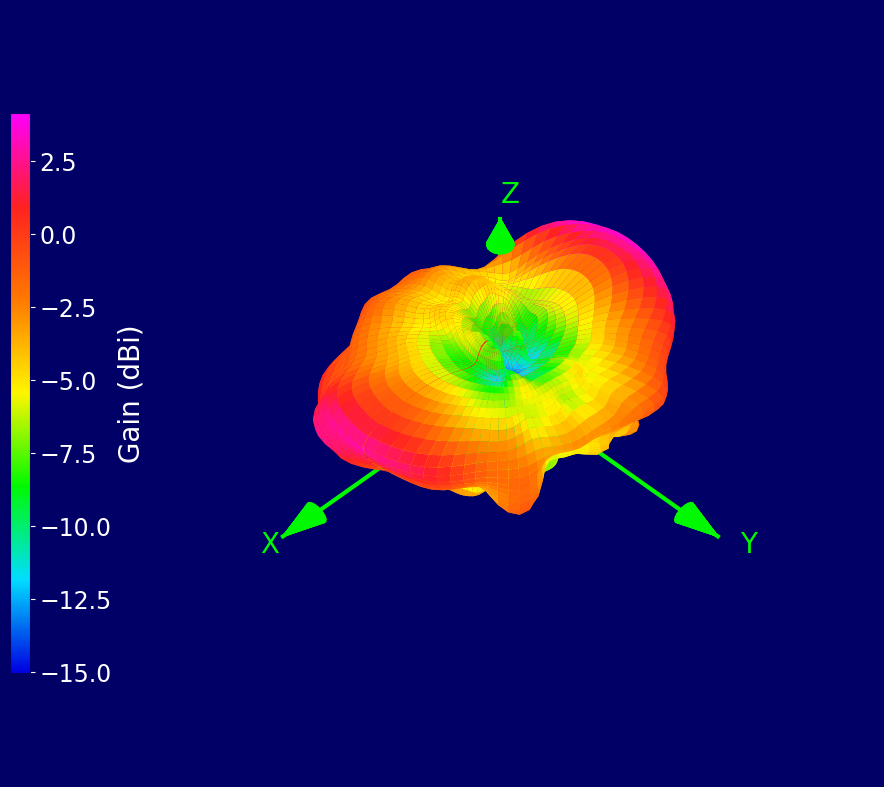

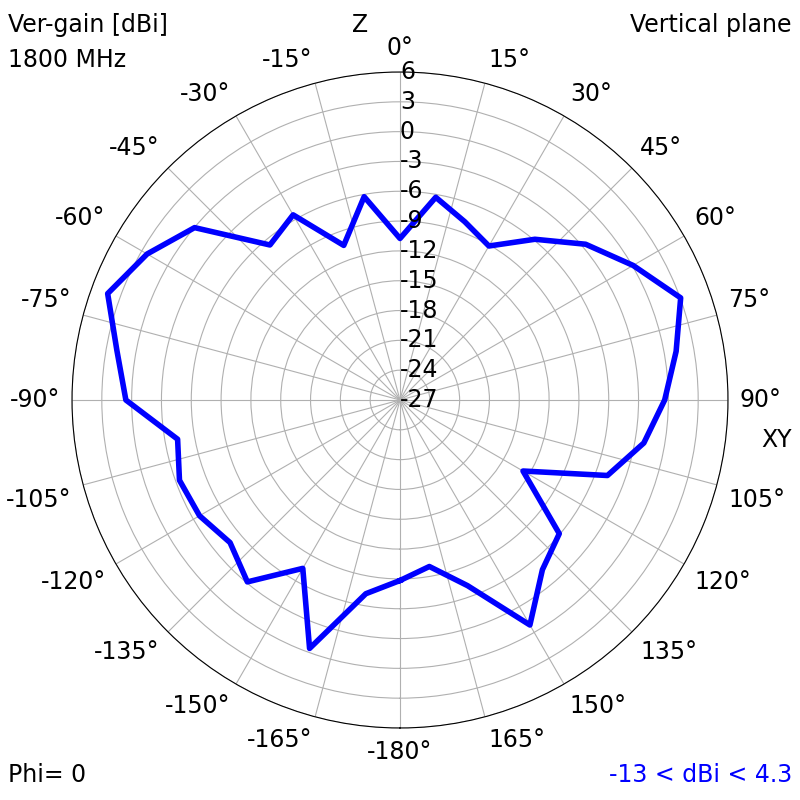

| 1800 MHz | ||
|
|
|

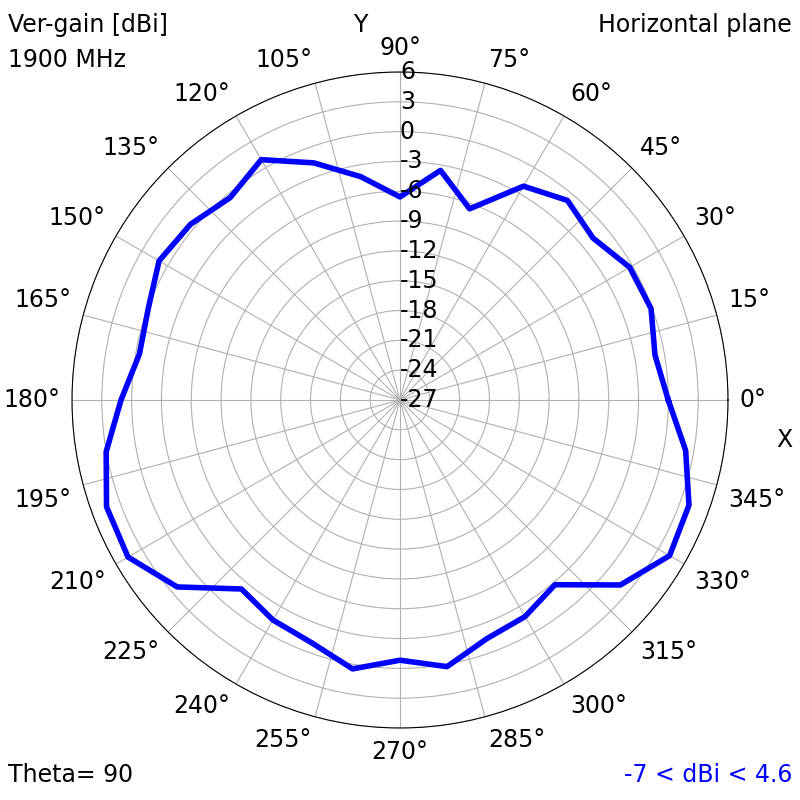

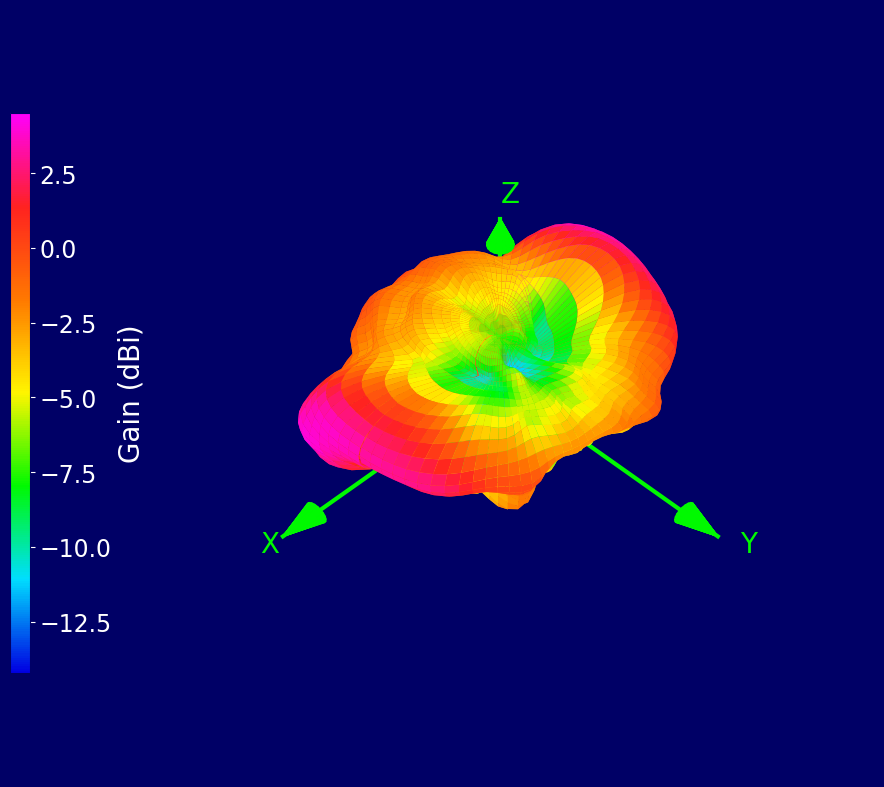

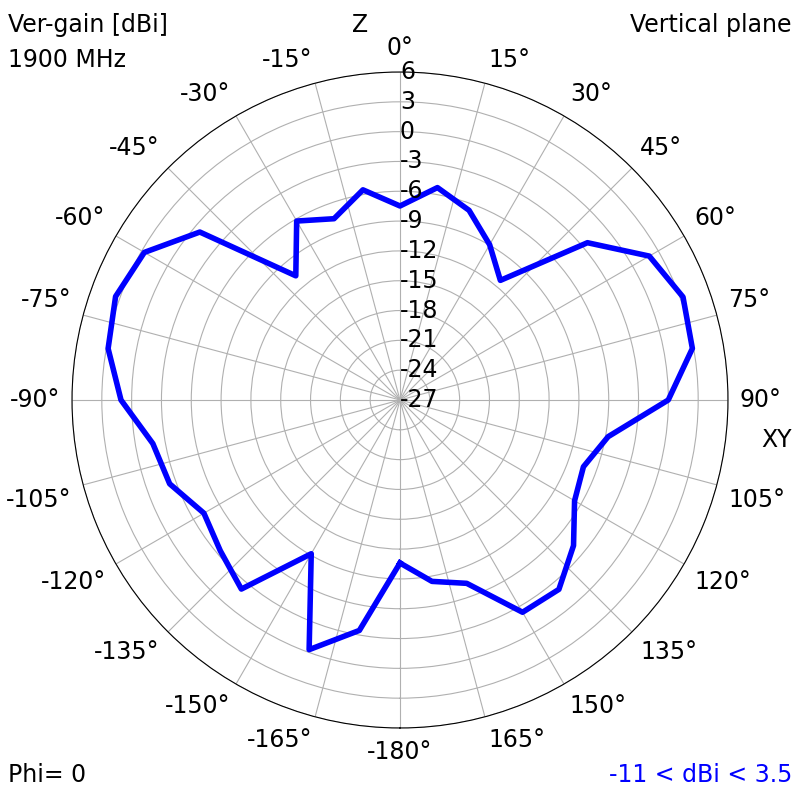

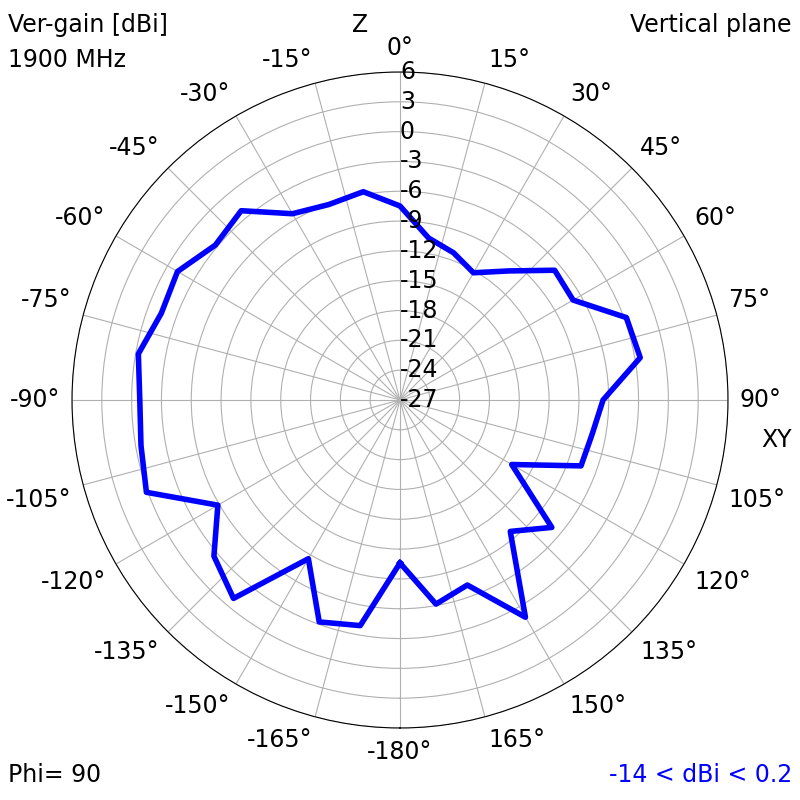

| 1900 MHz | ||
|
|
|

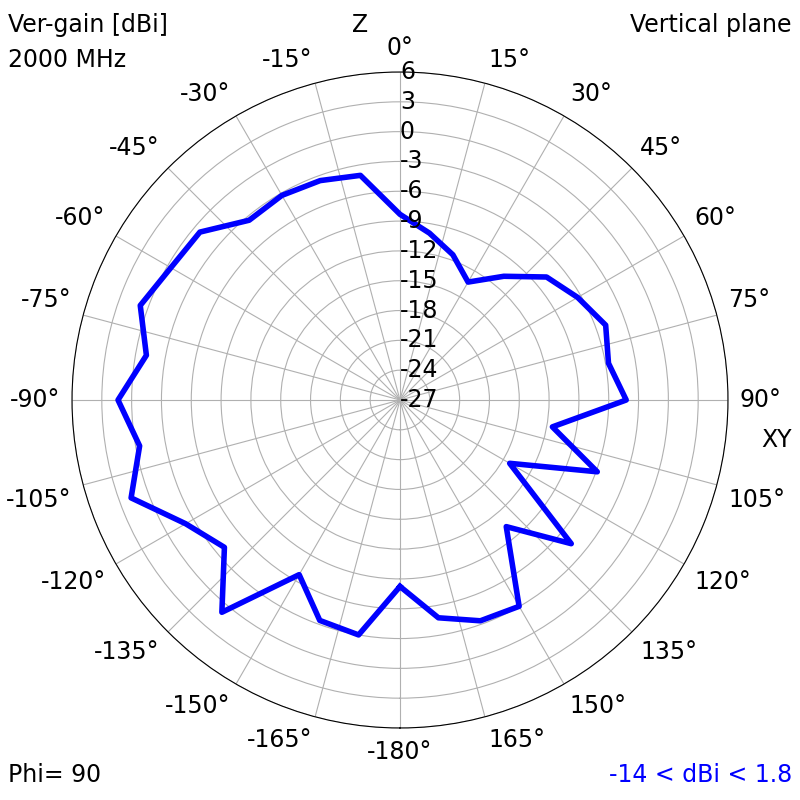

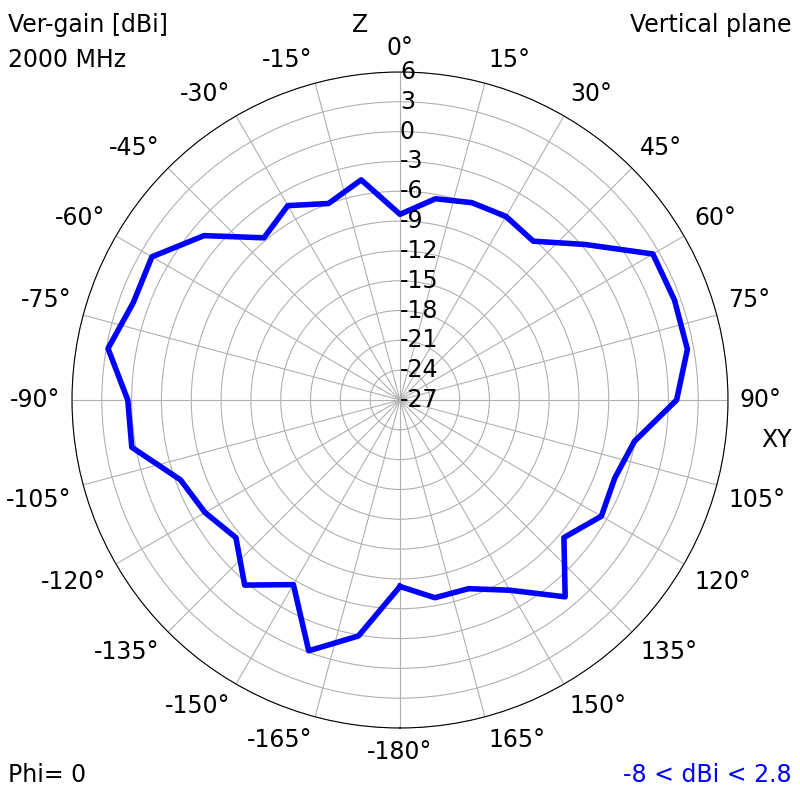

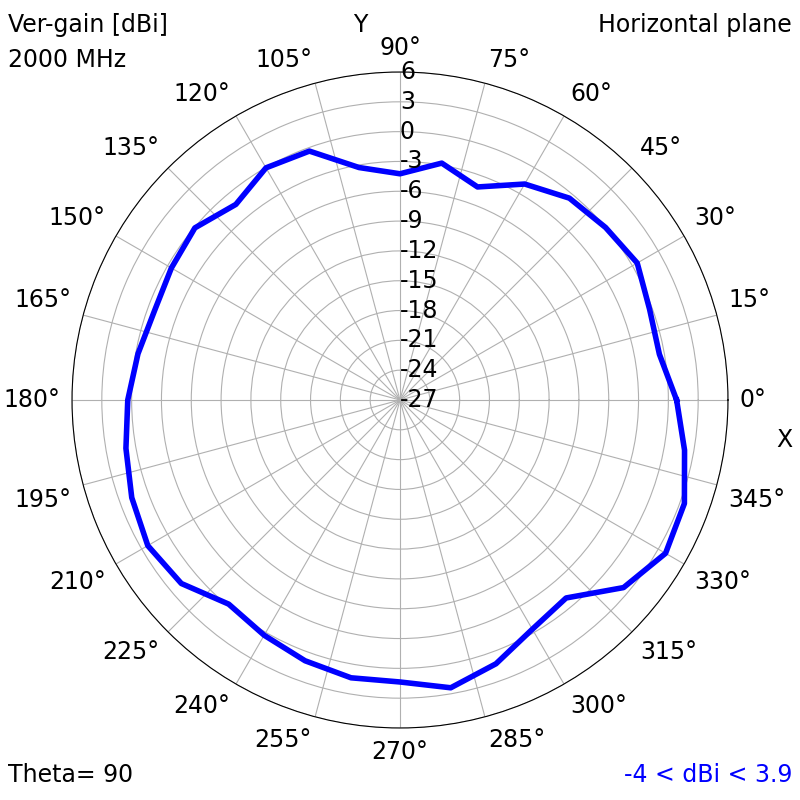

| 2000 MHz | ||
|
|
|

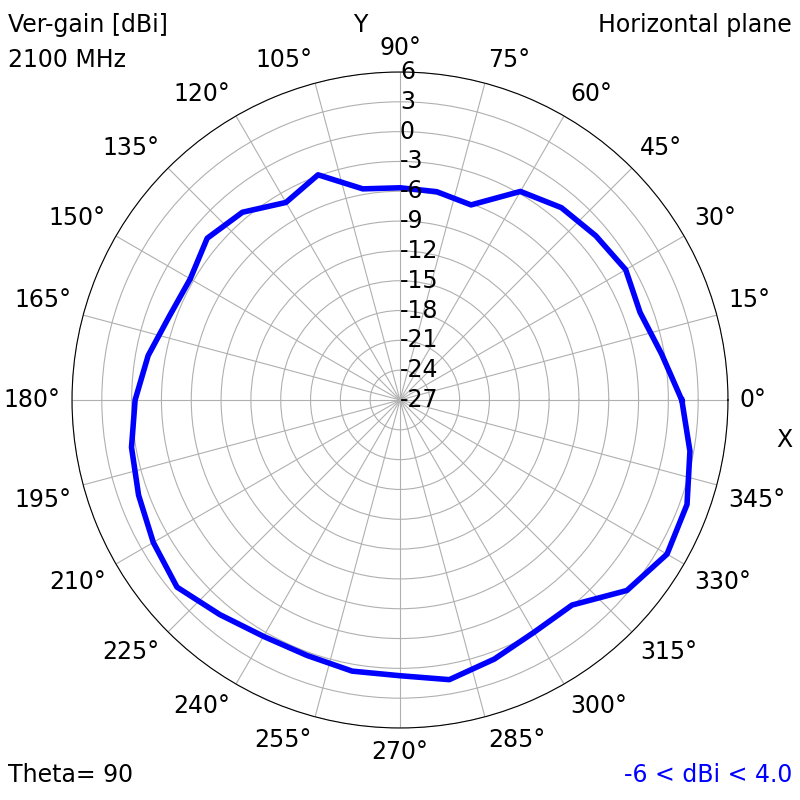

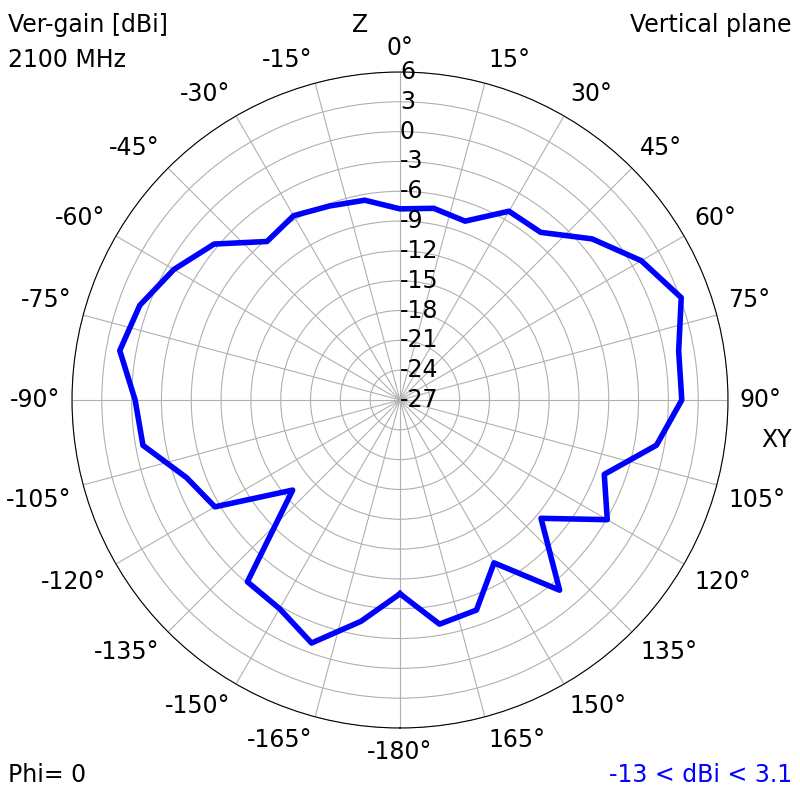

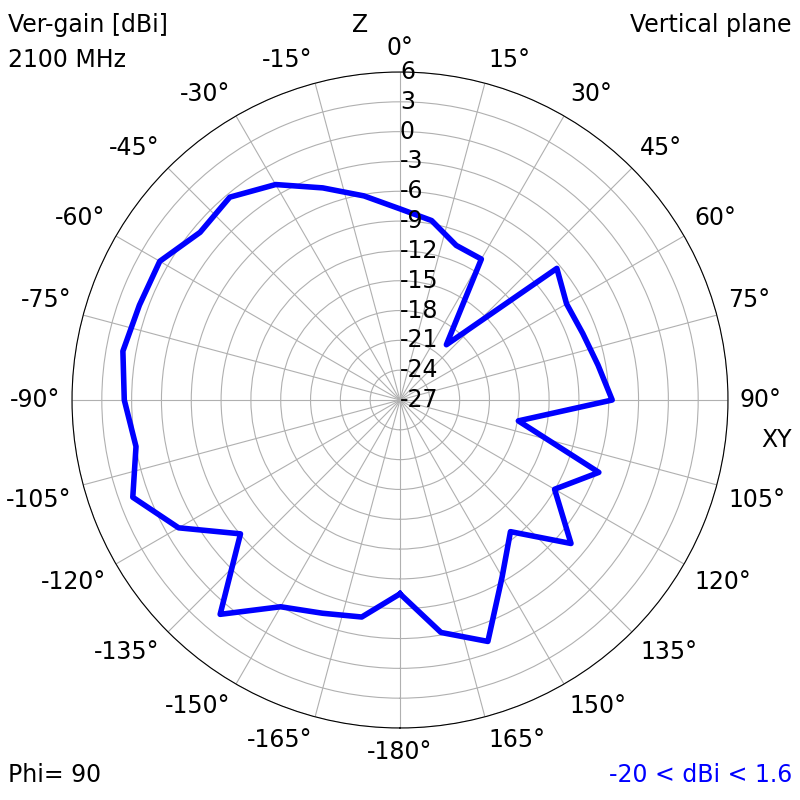

| 2100 MHz | ||
|
|
|

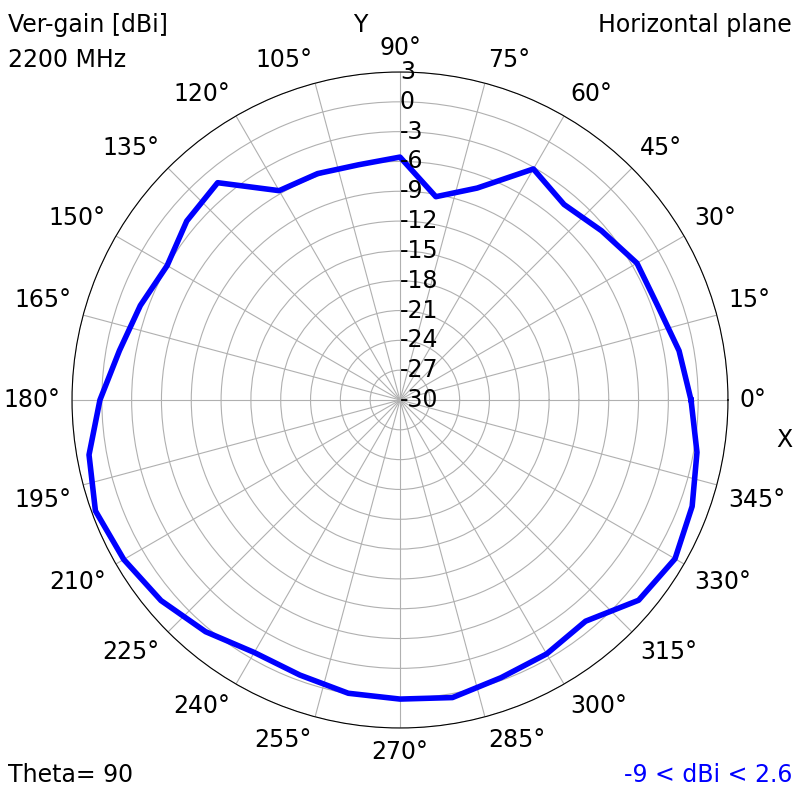

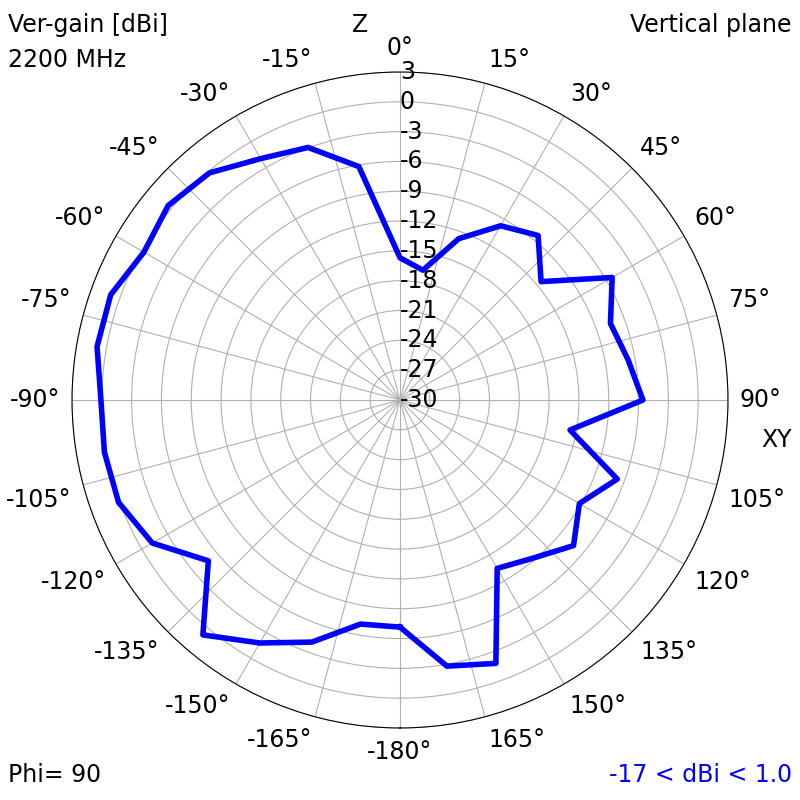

| 2200 MHz | ||
|
|
|

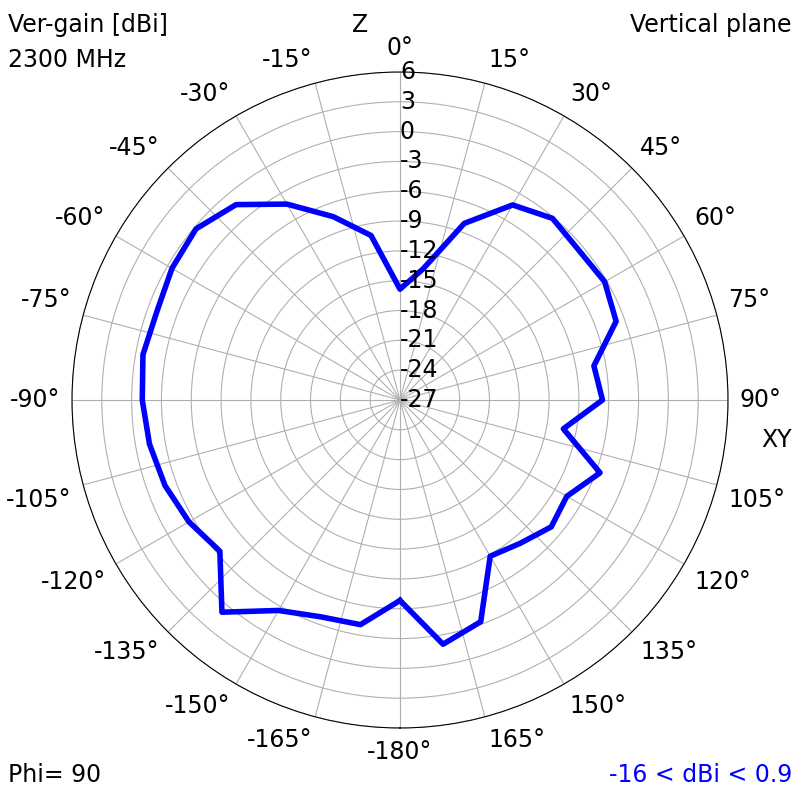

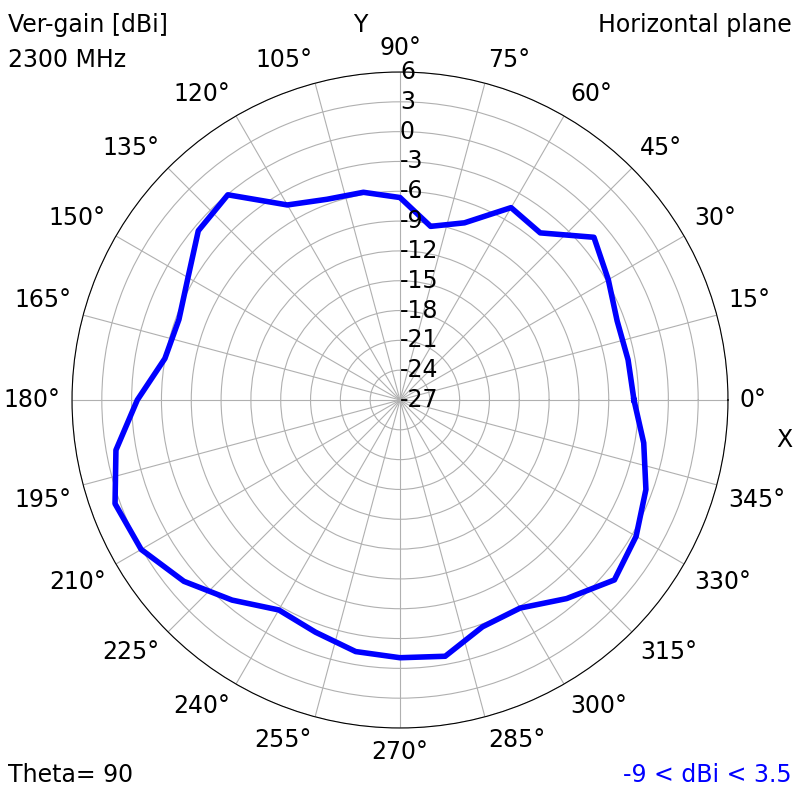

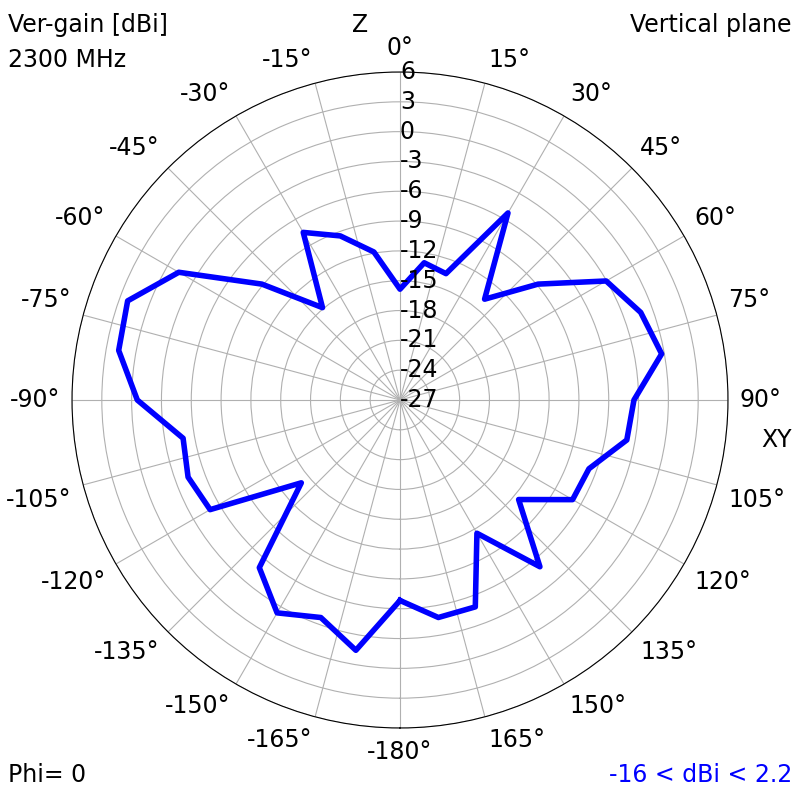

| 2300 MHz | ||
|
|
|

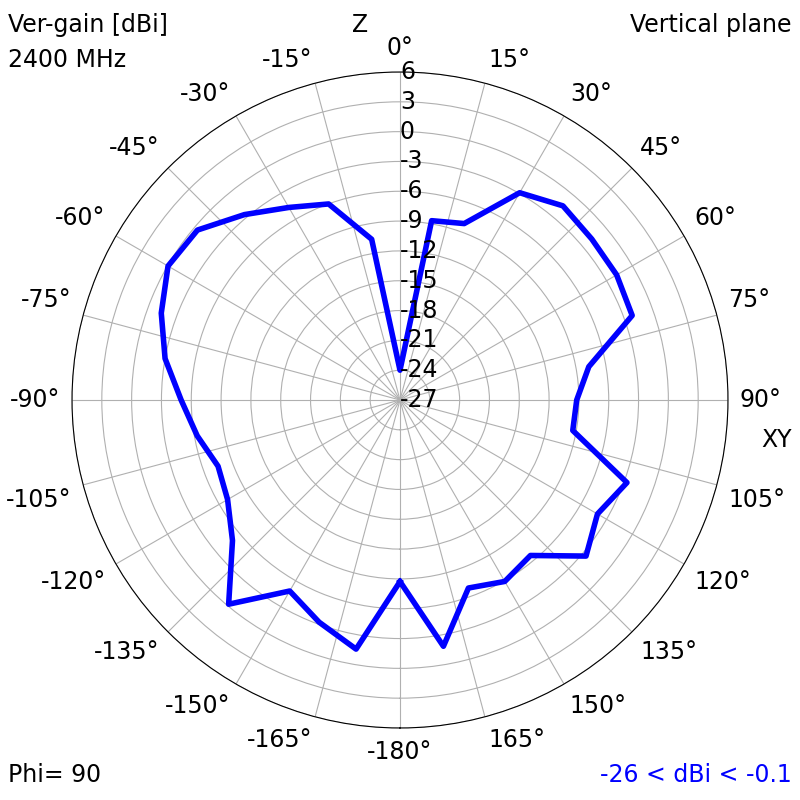

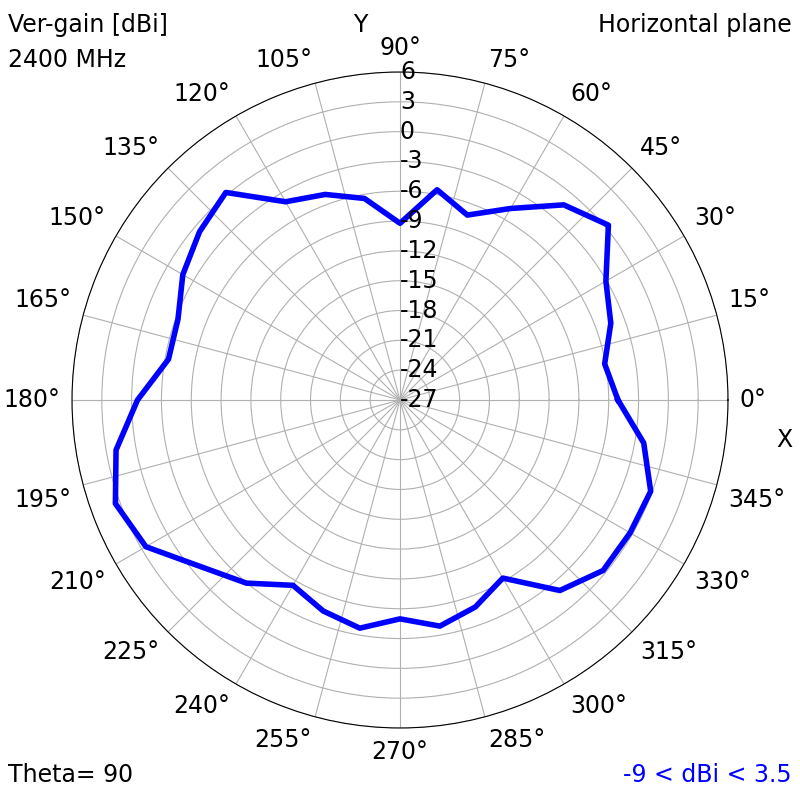

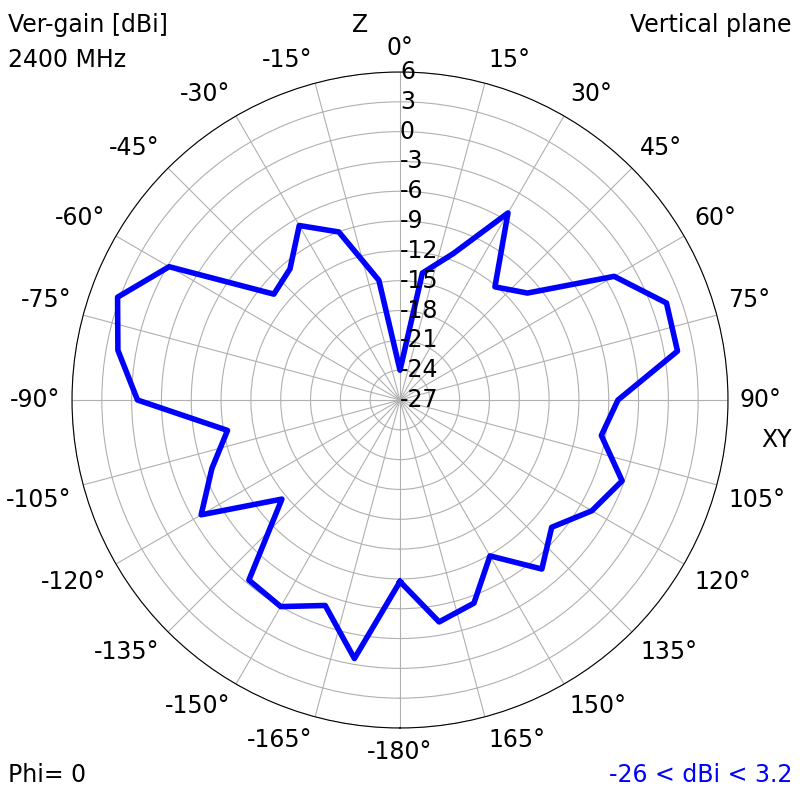

| 2400 MHz | ||
|
|
|

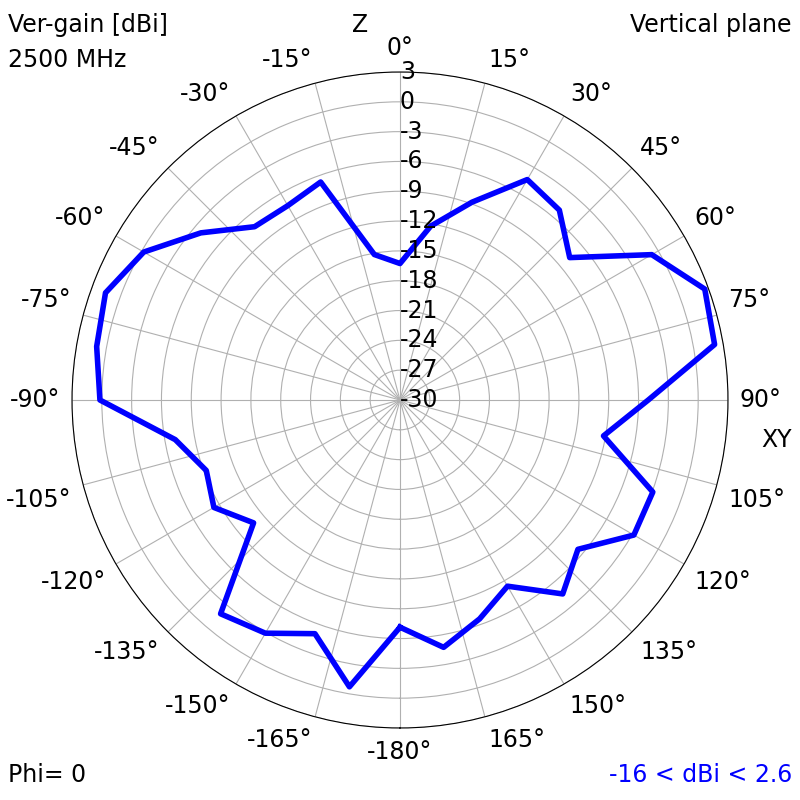

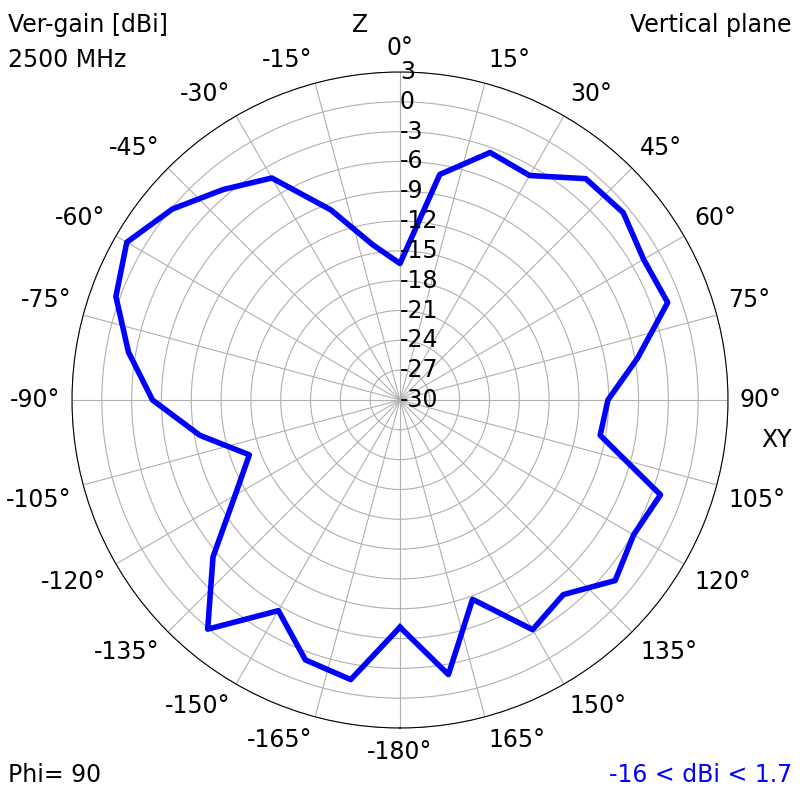

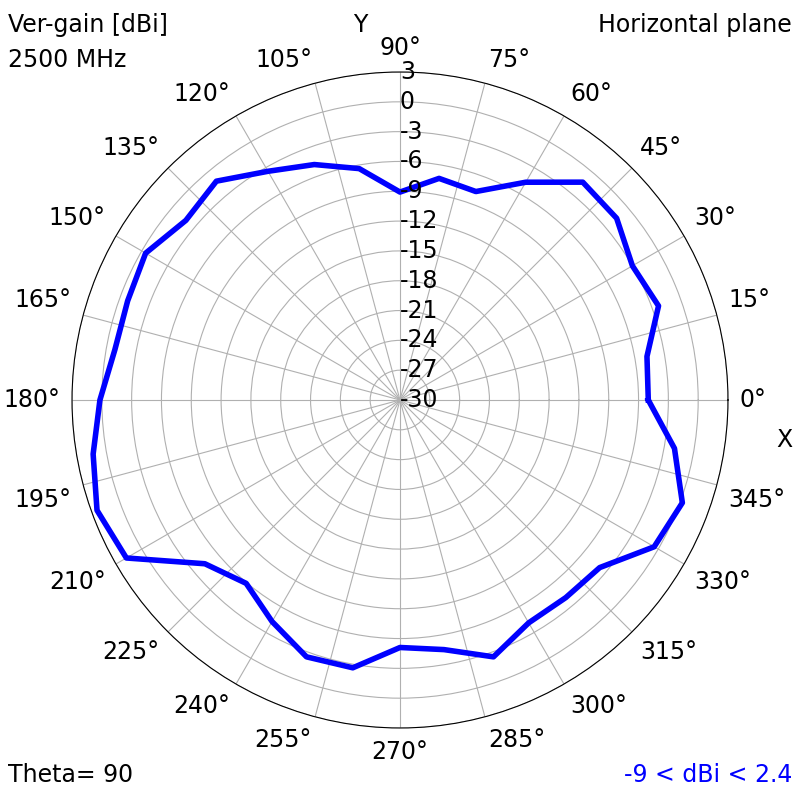

| 2500 MHz | ||
|
|
|

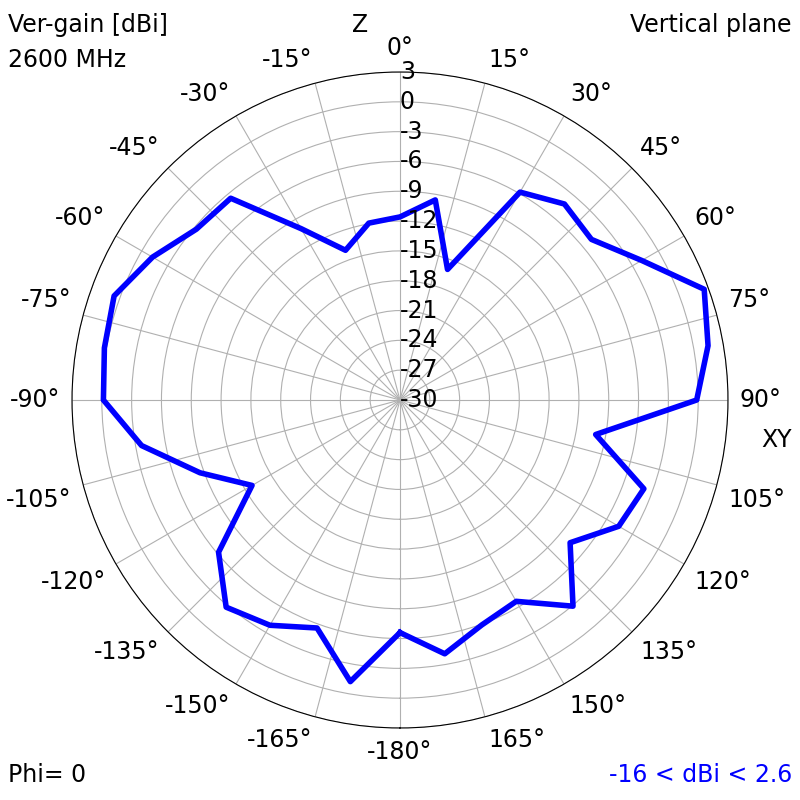

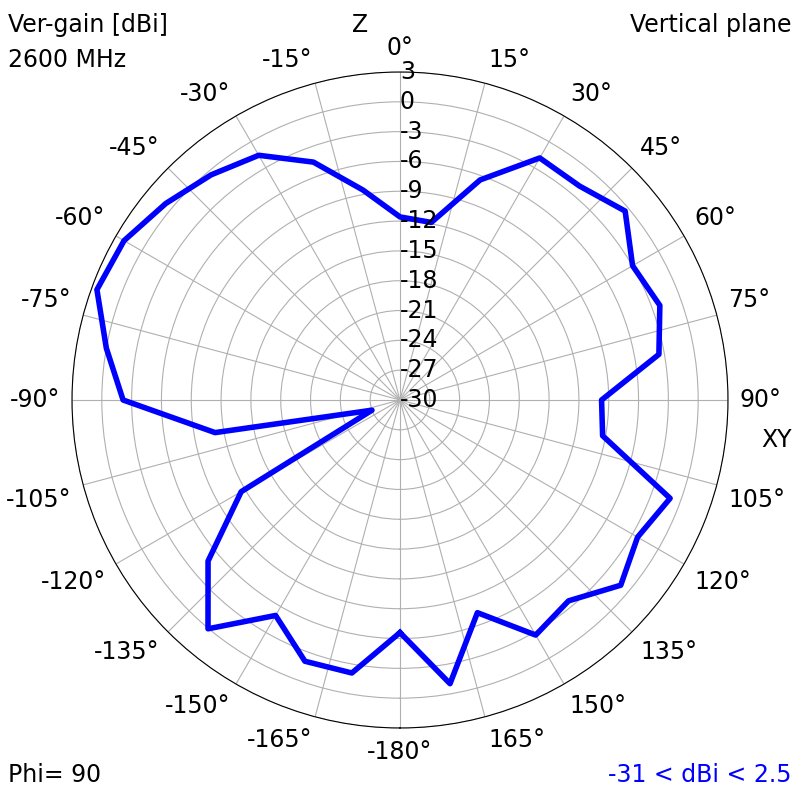

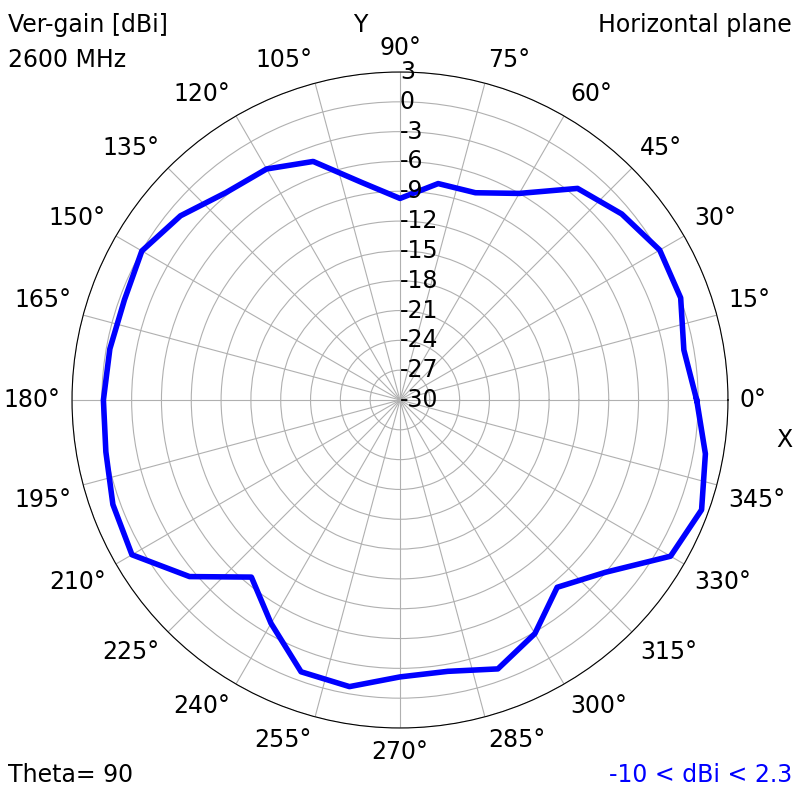

| 2600 MHz | ||
|
|
|

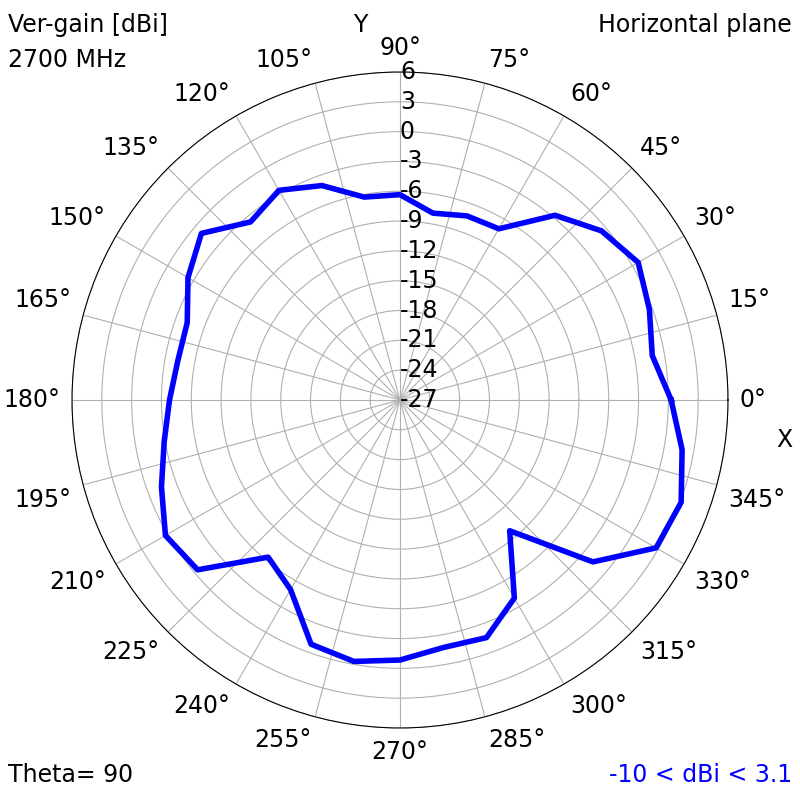

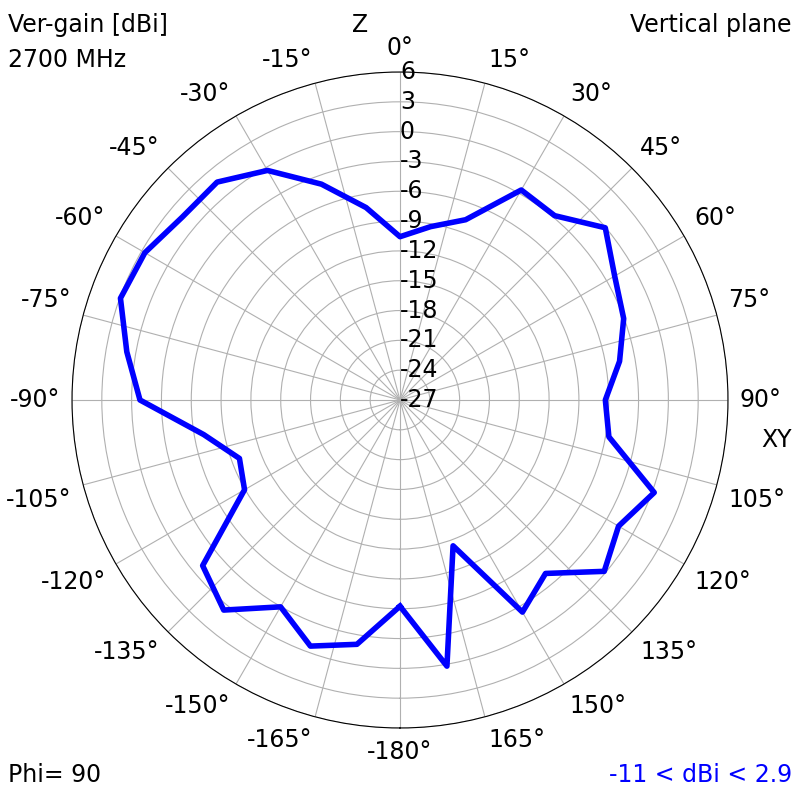

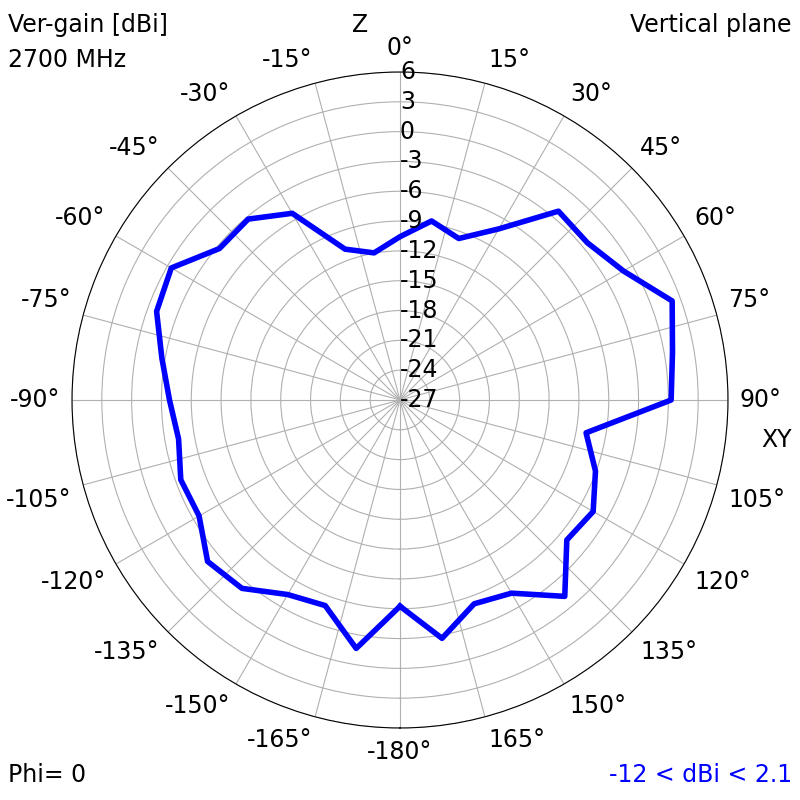

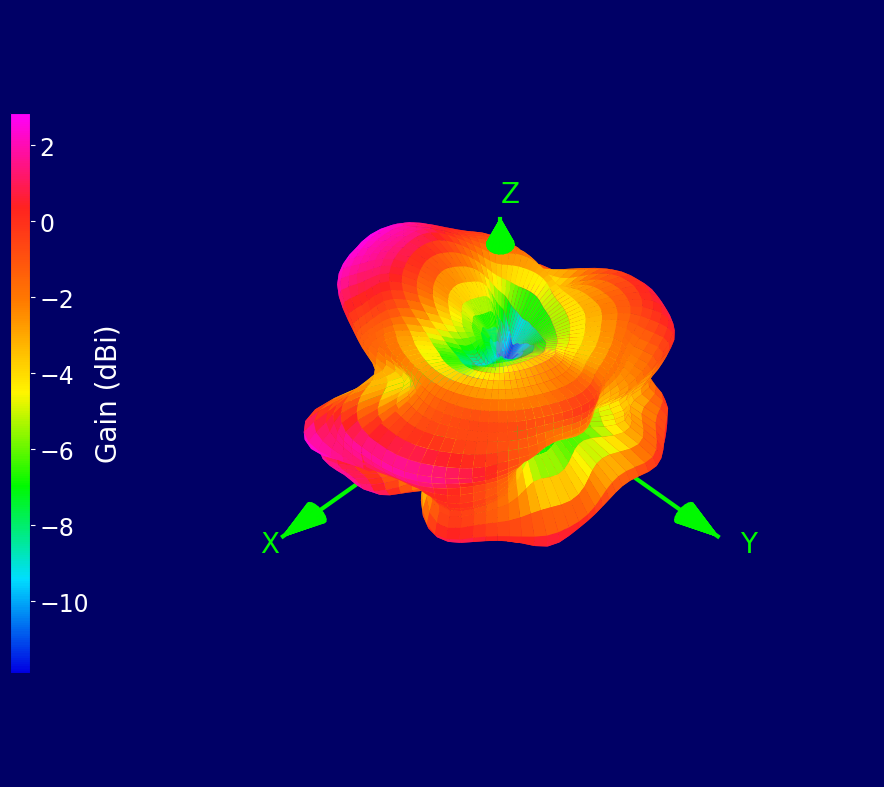

| 2700 MHz | ||
|
|
|

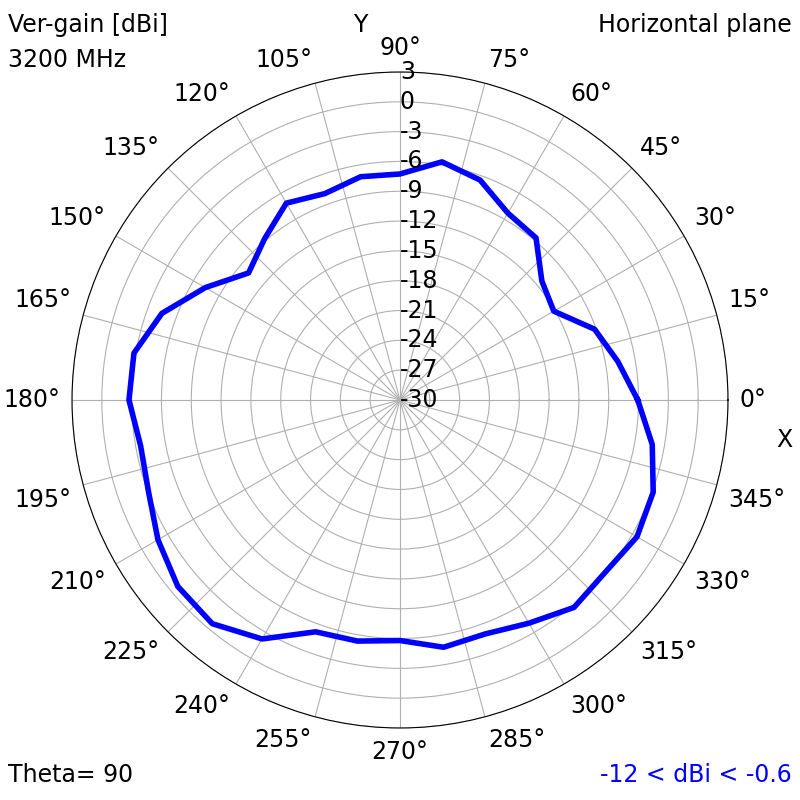

| 3200 MHz | ||
|
|
|

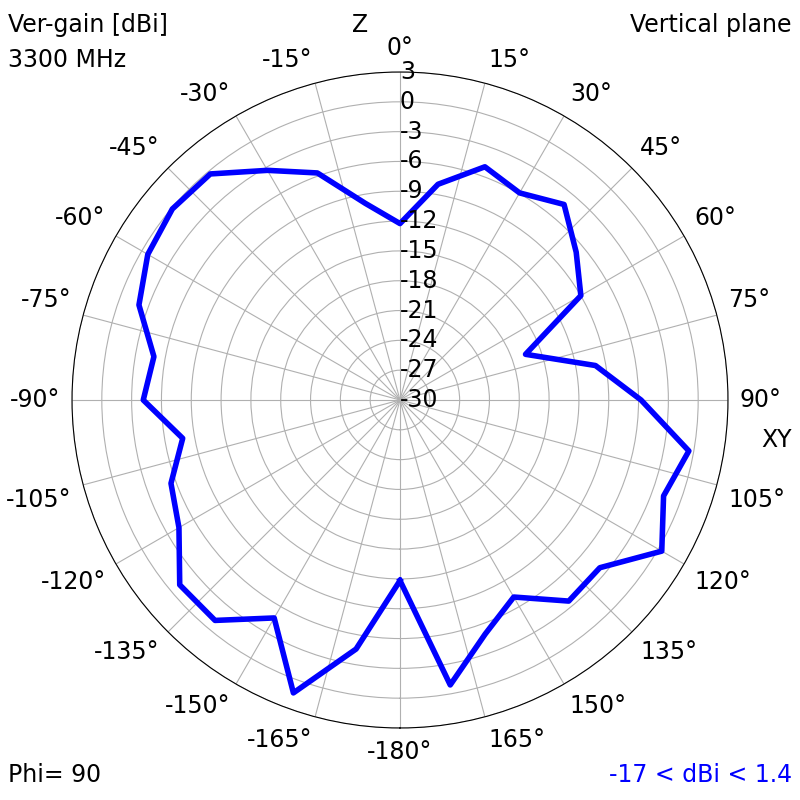

| 3300 MHz | ||
|
|
|

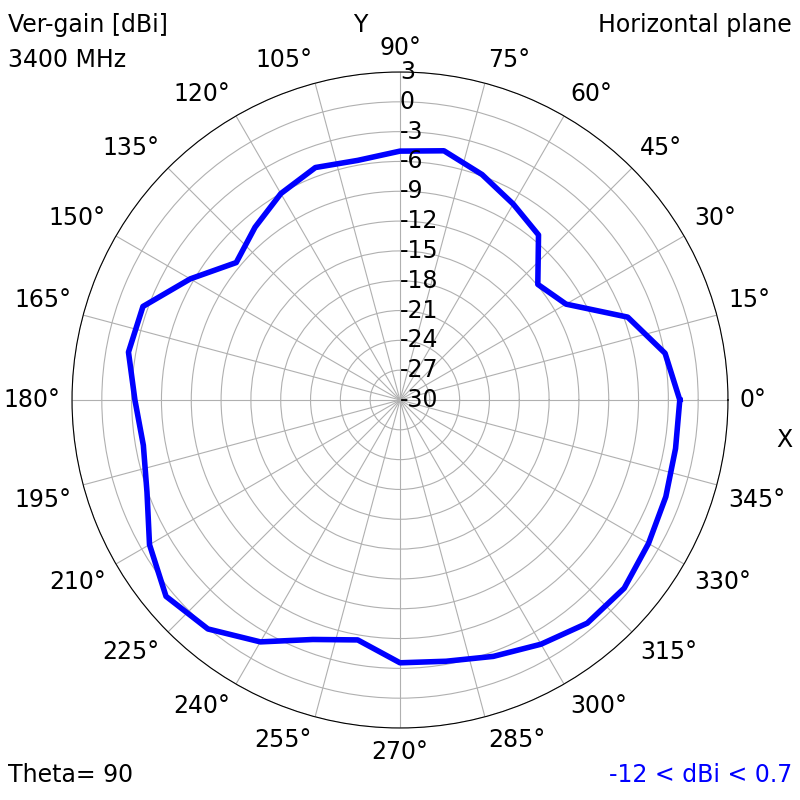

| 3400 MHz | ||
|
|
|
| 3500 MHz | ||
|
|
|
| 3600 MHz | ||
|
|
|
| 3700 MHz | ||
|
|
|

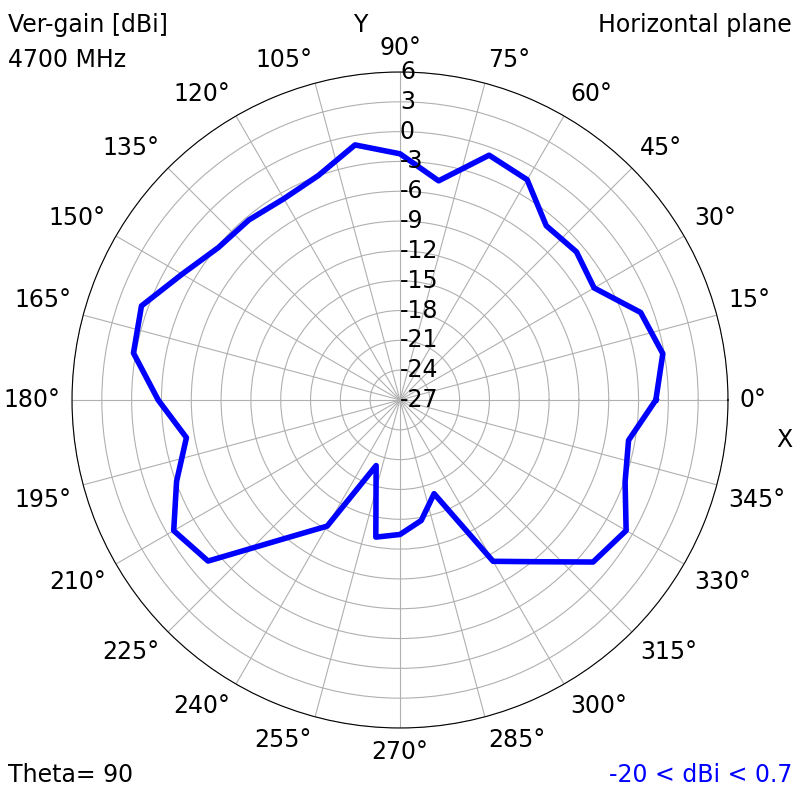

| 4700 MHz | ||
|
|
|
| 4900 MHz | ||
|
|
|
| 5200 MHz | ||
|
|
|
| 5300 MHz | ||
|
|
|

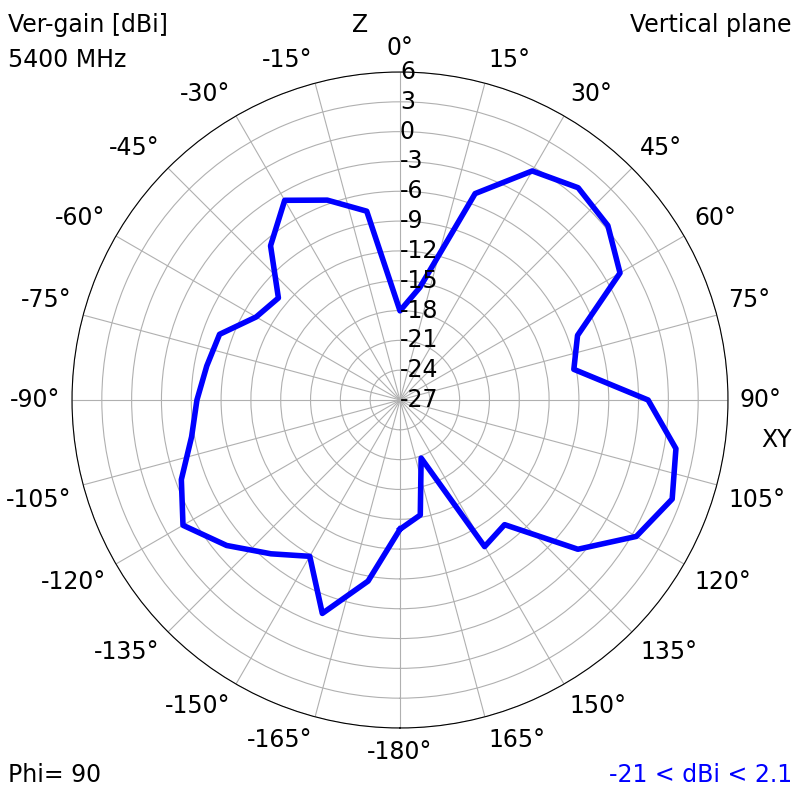

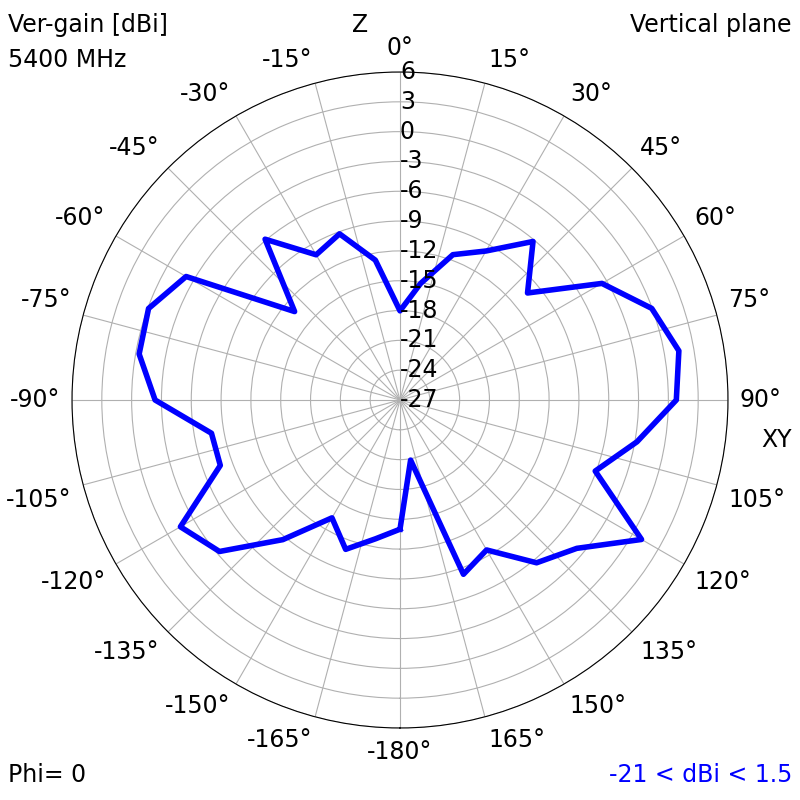

| 5400 MHz | ||
|
|
|
| 5500 MHz | ||
|
|
|

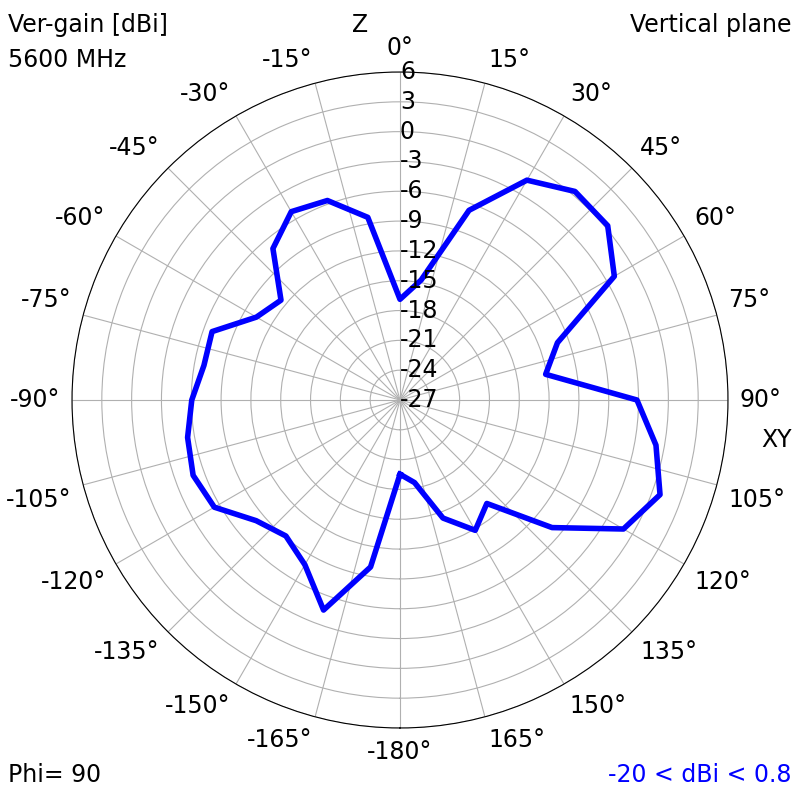

| 5600 MHz | ||
|
|
|

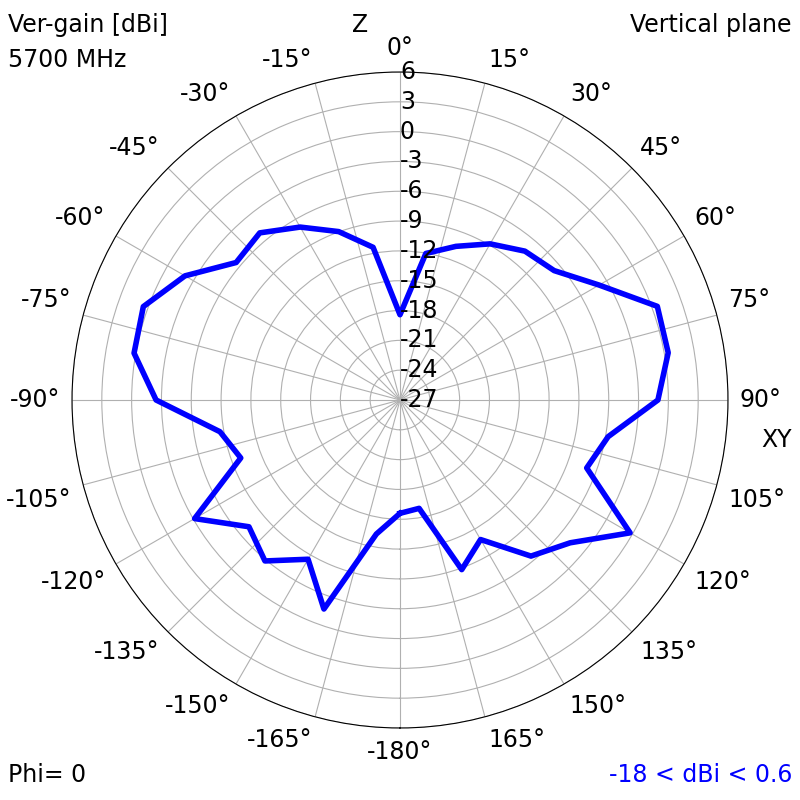

| 5700 MHz | ||
|
|
|
| 5800 MHz | ||
|
|
|
| 5900 MHz | ||
|
|
|
¶ 3D Radiation Plots

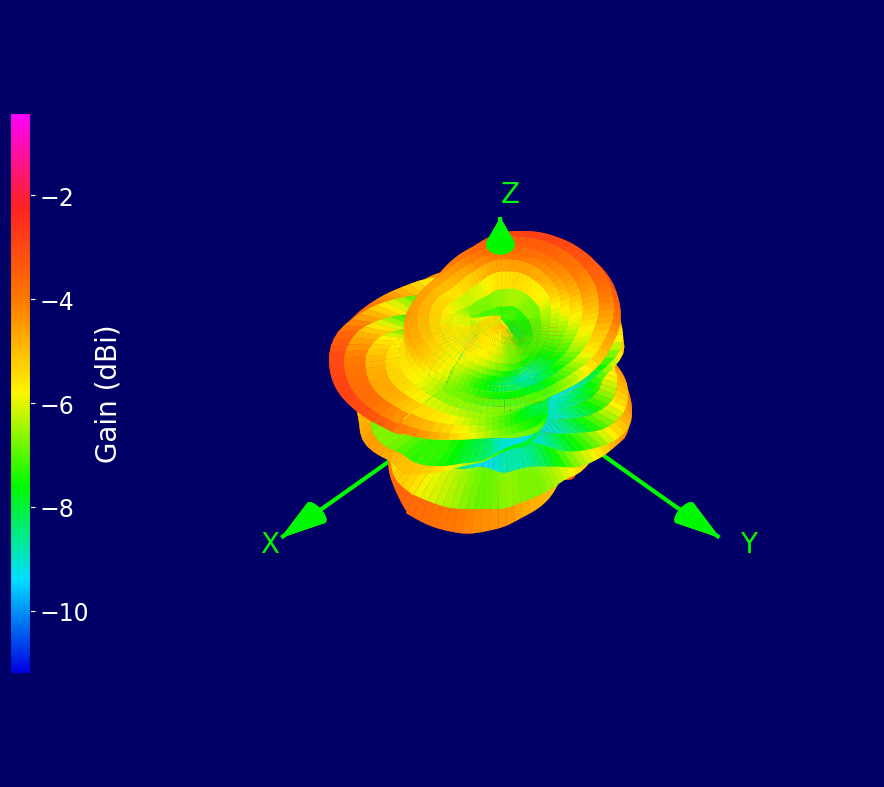

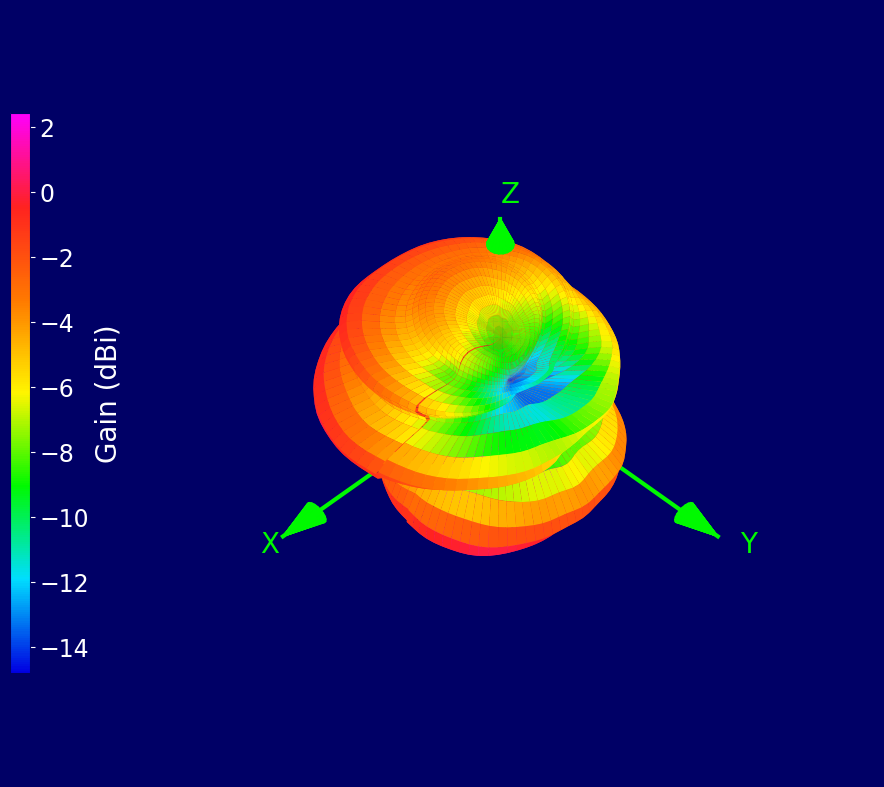

| 700 MHz | 800 MHz | 900 MHz |
|
|
|

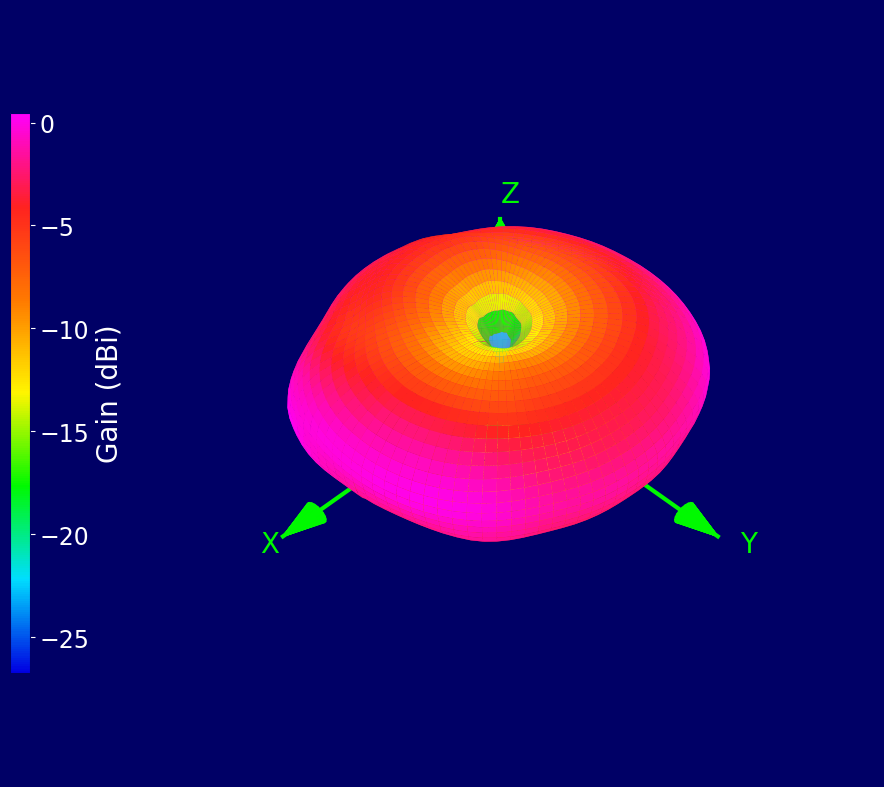

| 915 MHz | 1400 MHz | 1500 MHz |
|
|
|

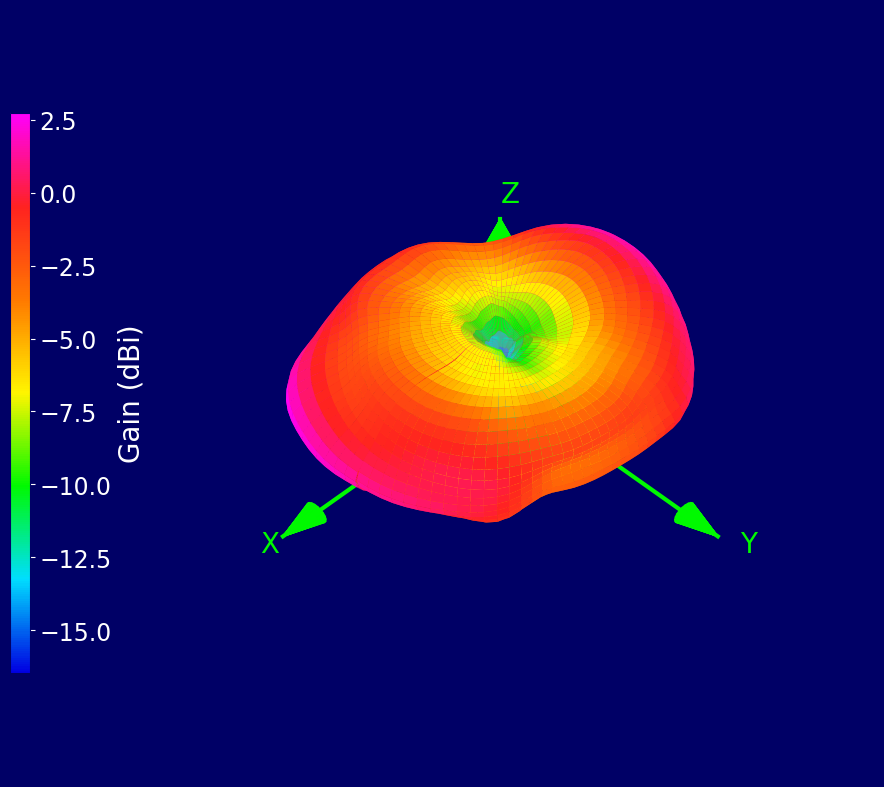

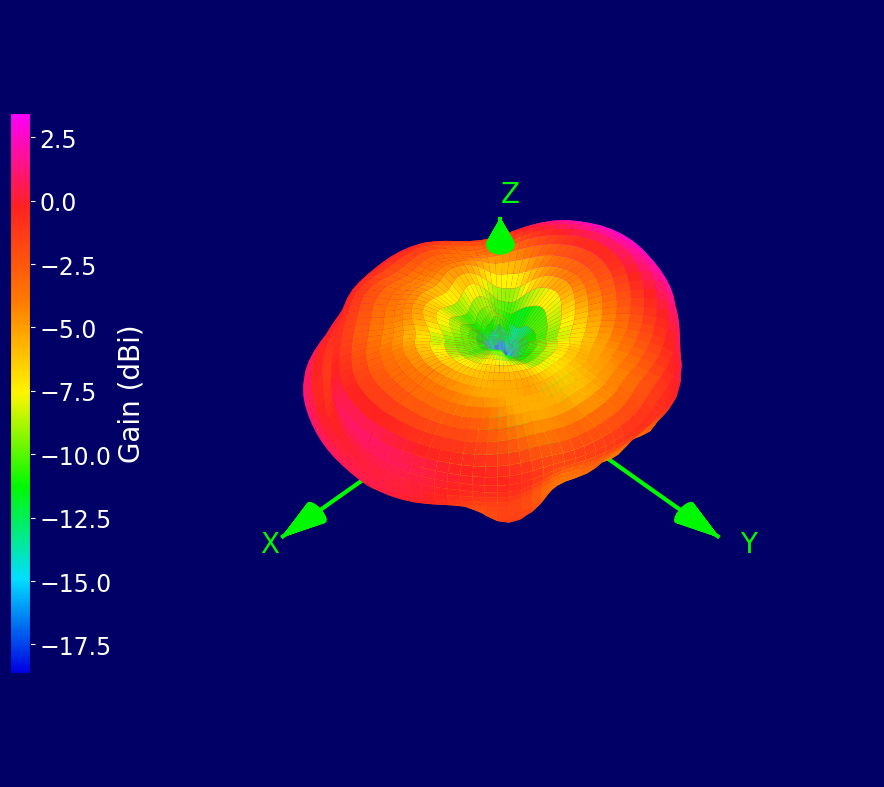

| 1600 MHz | 1700 MHz | 1800 MHz |
|
|
|

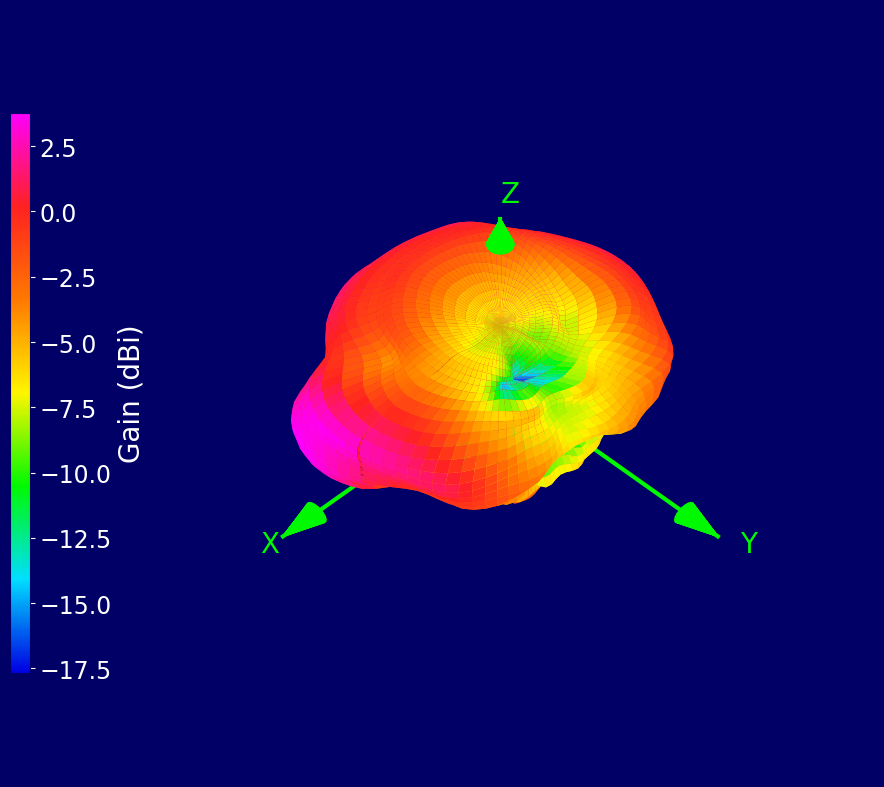

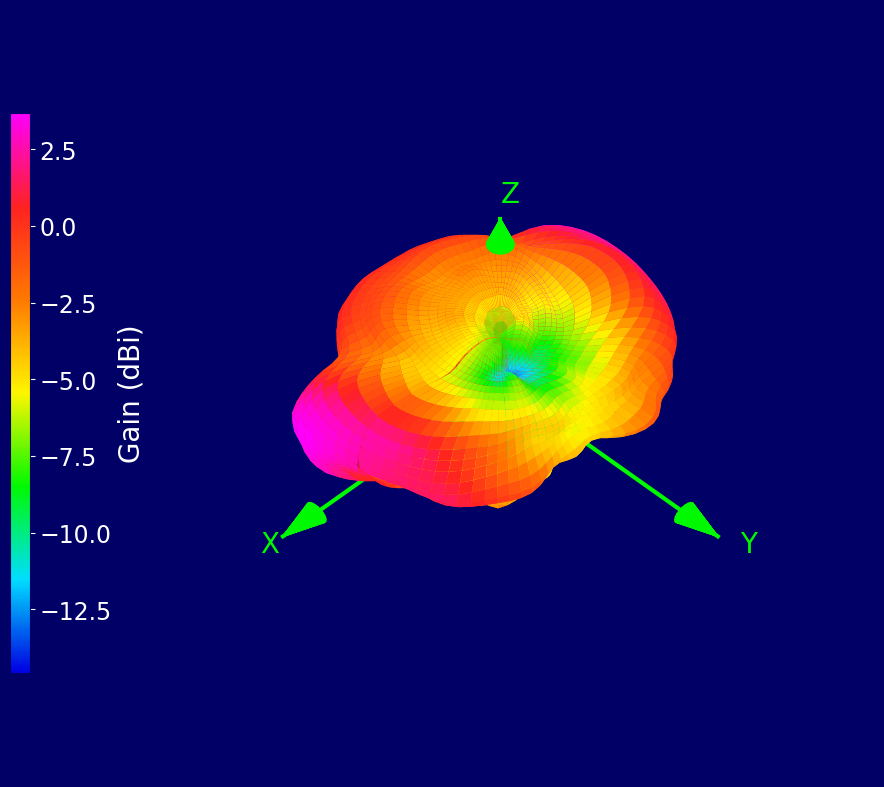

| 1900 MHz | 2000 MHz | 2100 MHz |
|
|
|

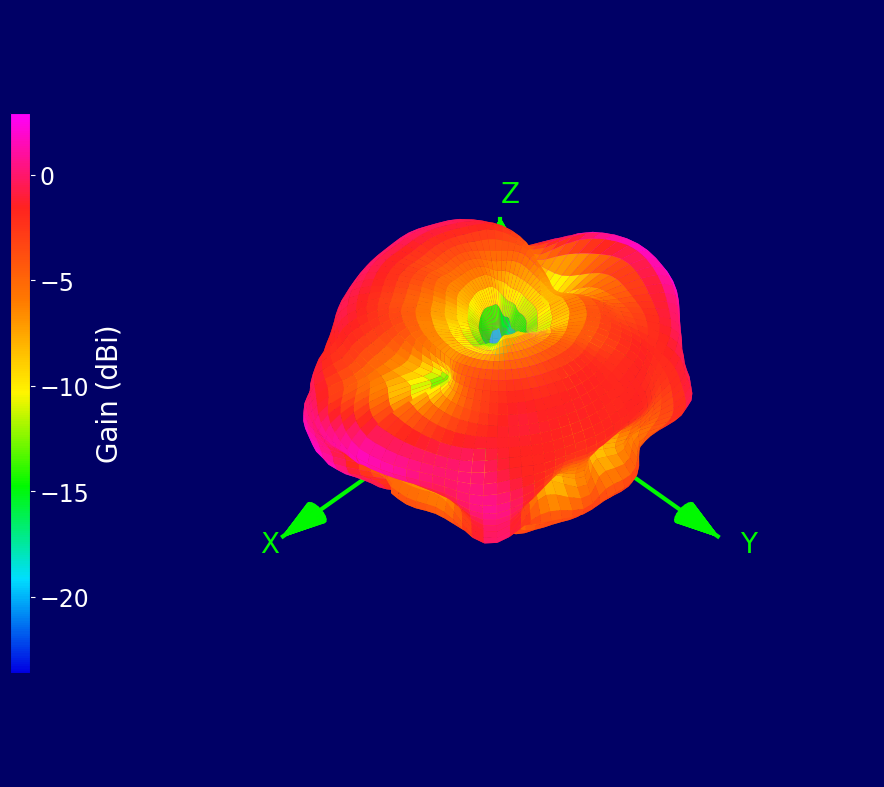

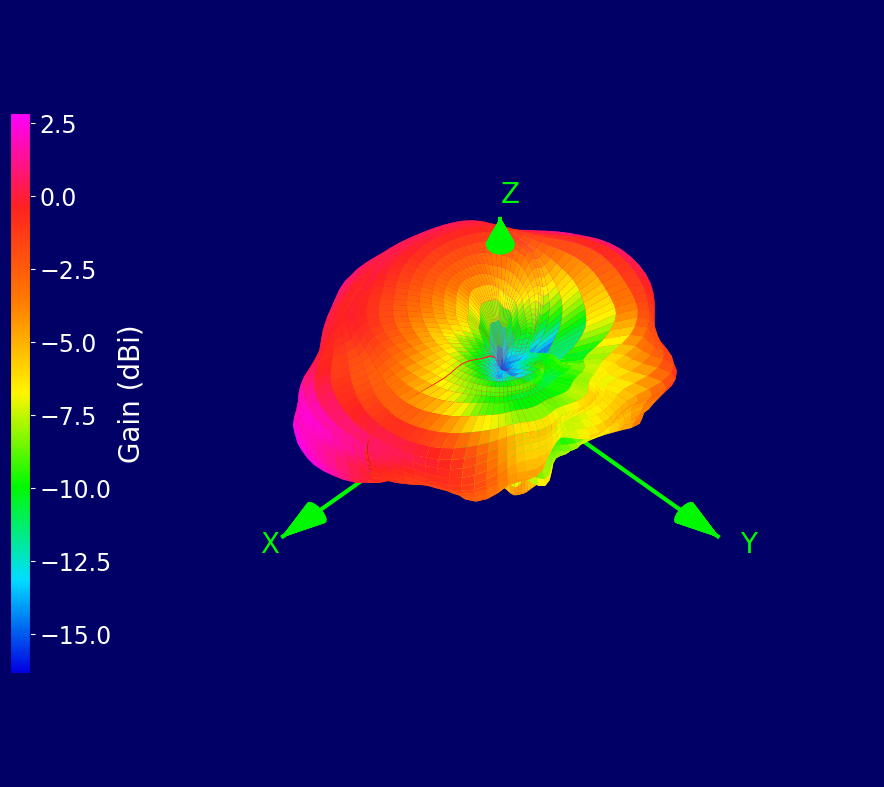

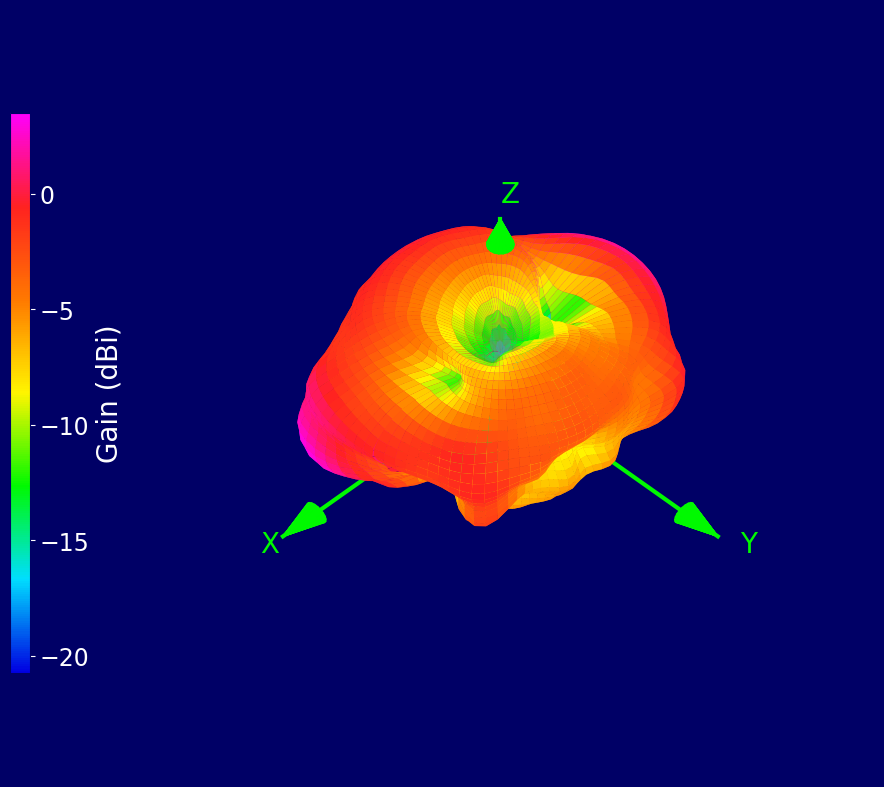

| 2200 MHz | 2300 MHz | 2400 MHz |
|
|
|

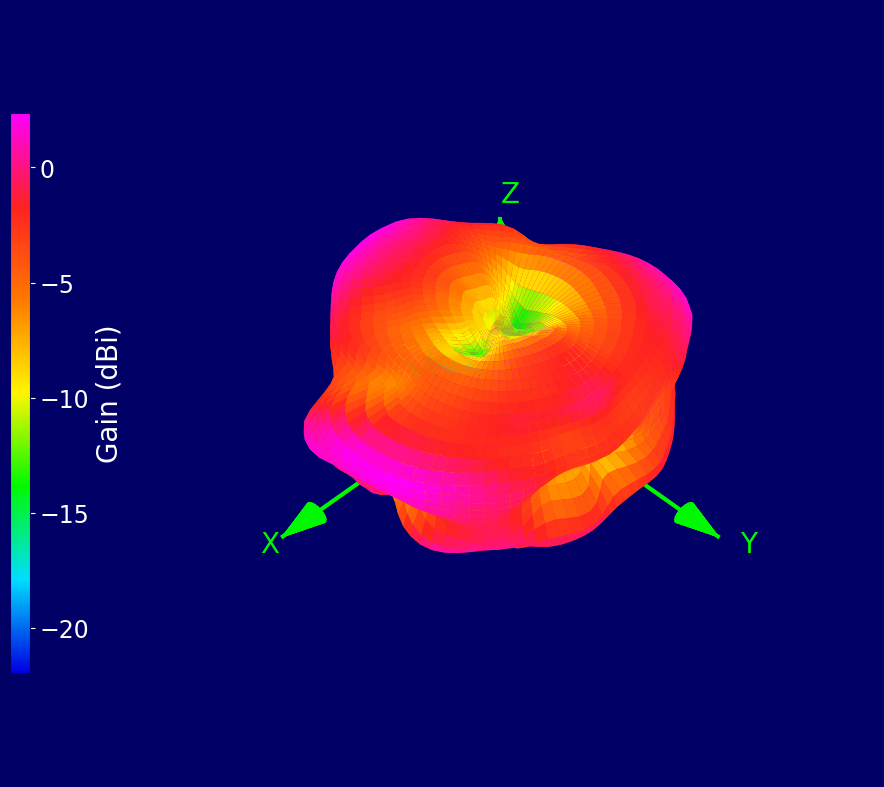

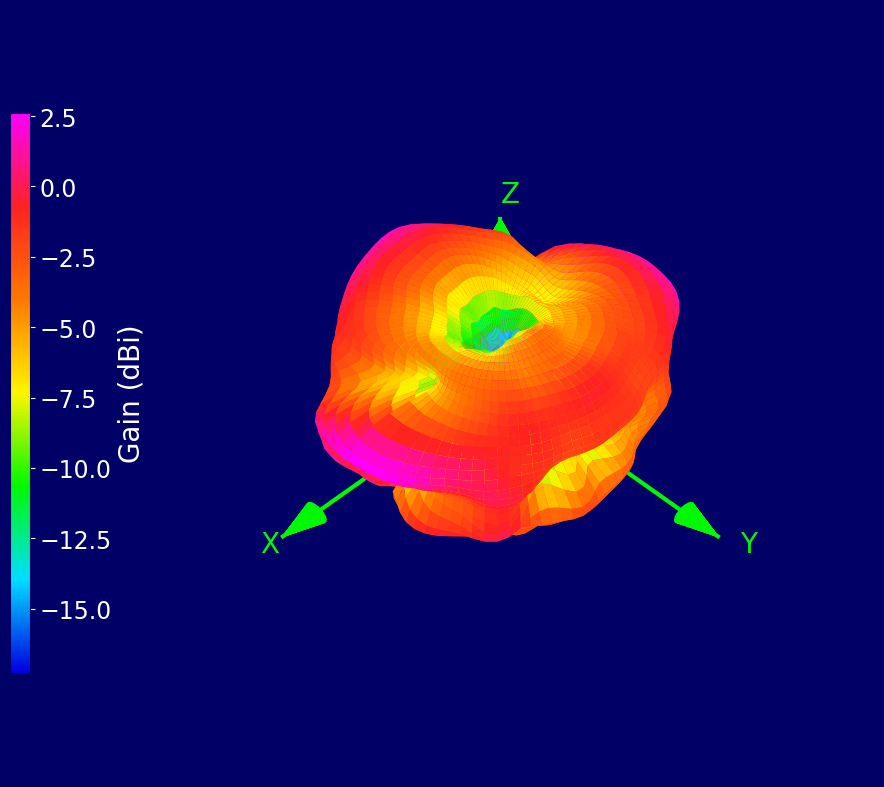

| 2500 MHz | 2600 MHz | 2700 MHz |
|
|
|

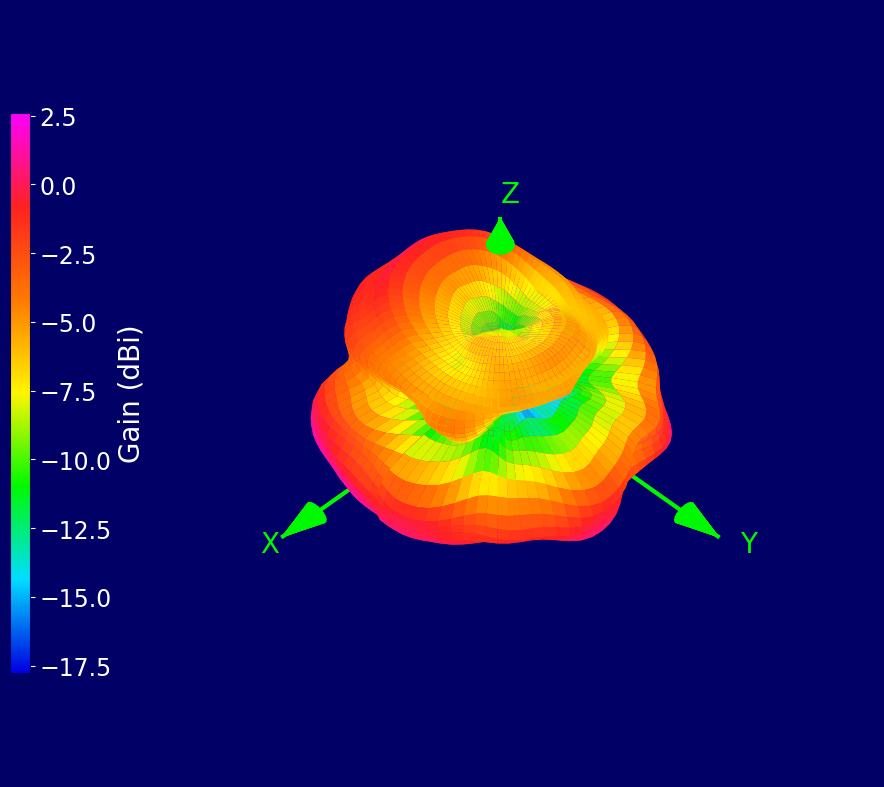

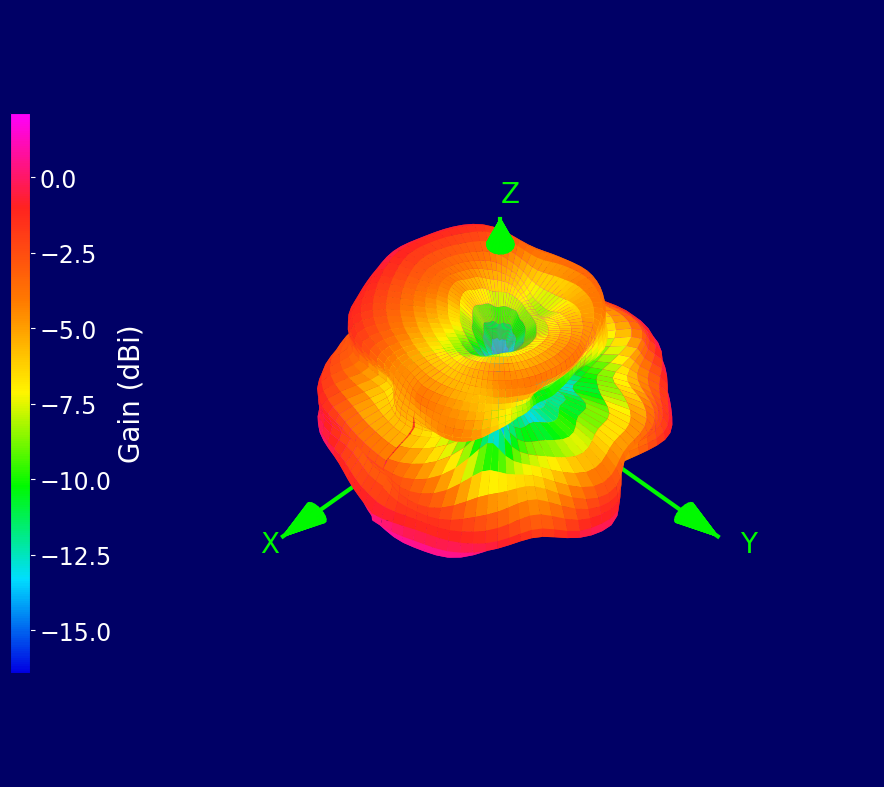

| 3200 MHz | 3300 MHz | 3400 MHz |
|
|
|

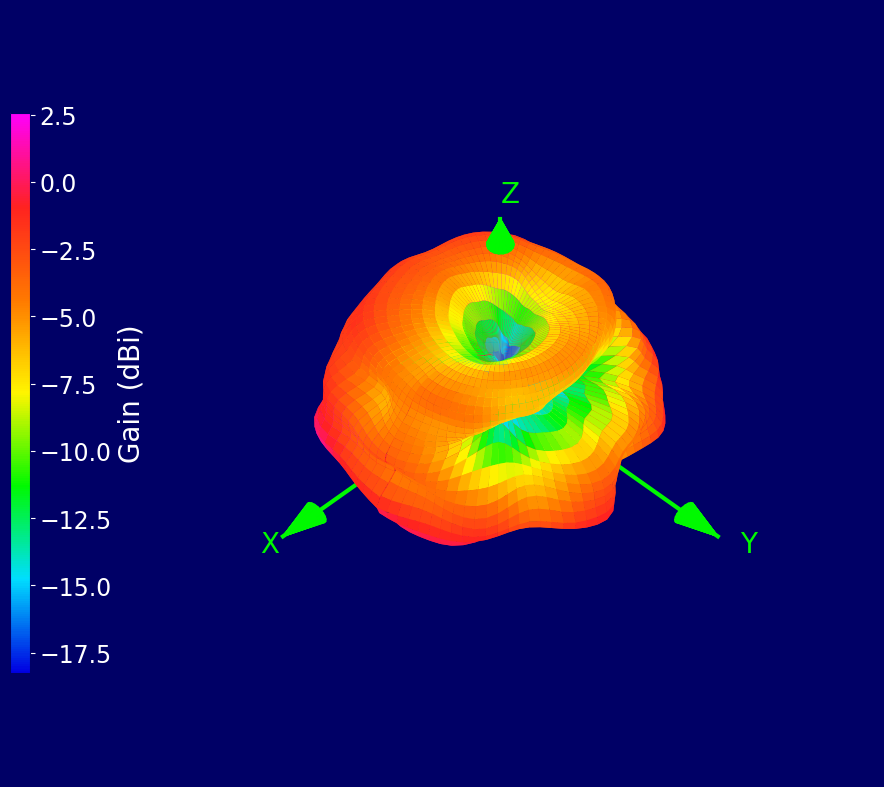

| 3500 MHz | 3600 MHz | 3700 MHz |
|
|
|

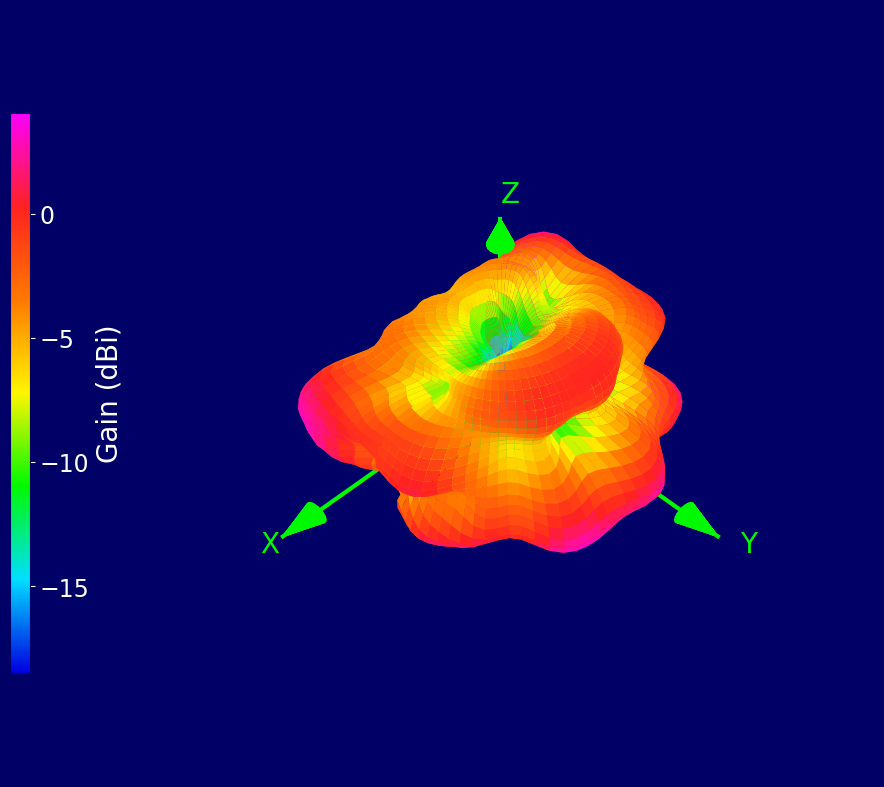

| 4700 MHz | 5200 MHz | 5300 MHz |
|
|
|

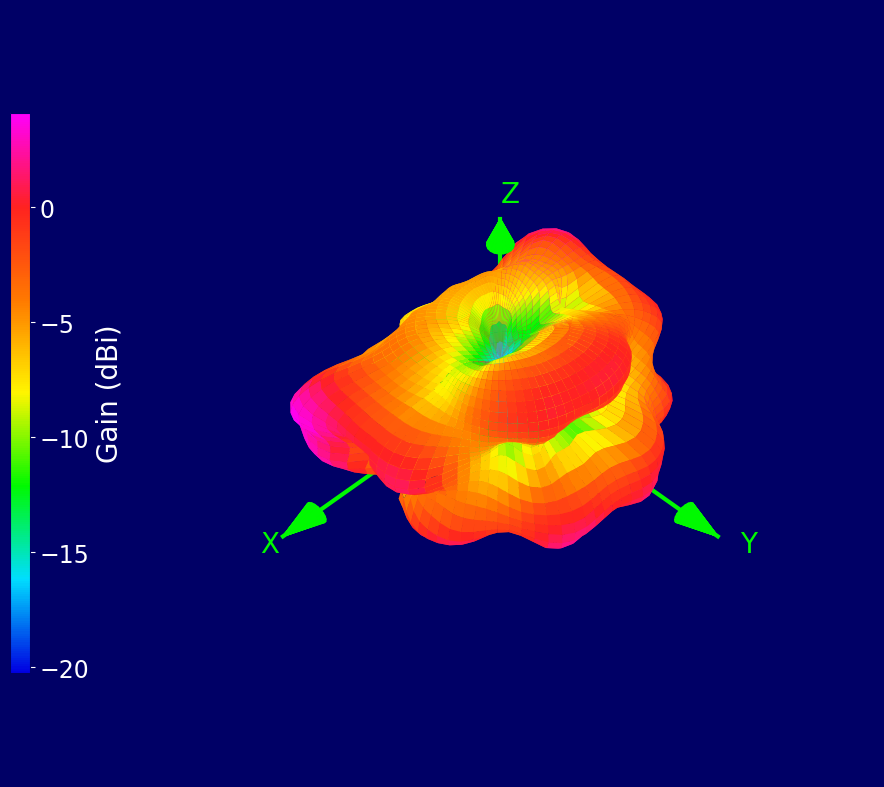

| 5400 MHz | 5500 MHz | 5600 MHz |
|
|
|

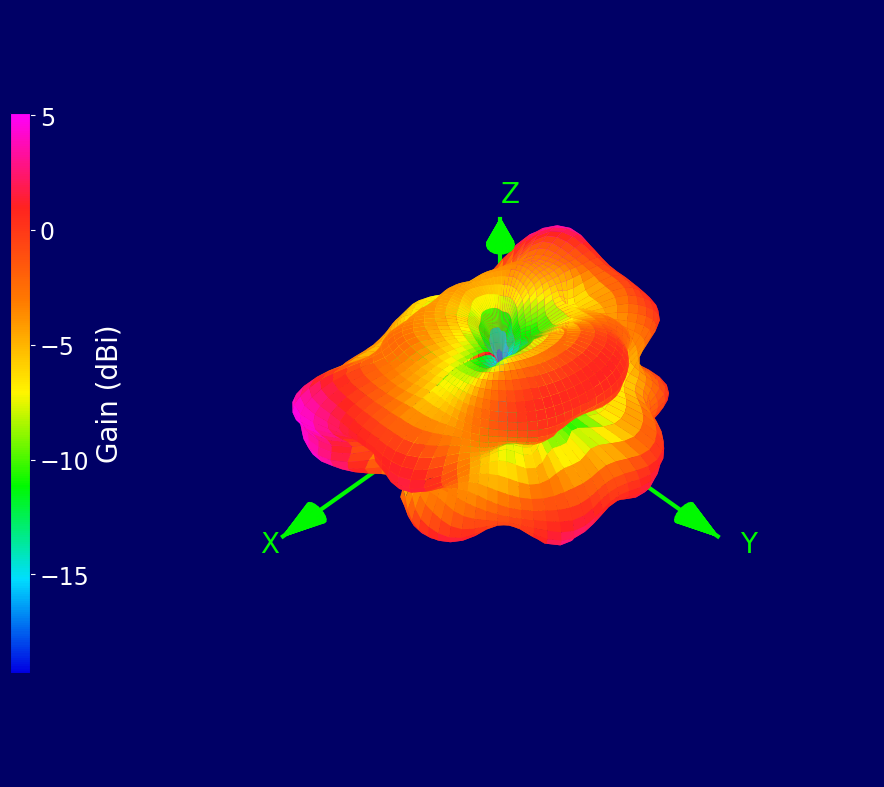

| 5700 MHz | 5800 MHz | 5900 MHz |
|
|
|
¶ Ordering Details
| Part Number | Description |
|---|---|
| DELTA68/0.15M/LL/FAKRA-D/RA/S/33 | Wideband 5G/4G, IoT & Wi-Fi DIN-Rail Antenna 0.15m Cable and Fakra-D Connector |
| DELTA68/0.3M/LL/FAKRA-D/RA/S/33 | Wideband 5G/4G, IoT & Wi-Fi DIN-Rail Antenna 0.3m Cable and Fakra-D Connector |
| DELTA68/0.15M/LL/SMAM/S/S/33 | Wideband 5G/4G, IoT & Wi-Fi DIN-Rail Antenna 0.15m Cable and SMA Male Connector |
| DELTA68/0.3M/LL/SMAM/S/S/33 | Wideband 5G/4G, IoT & Wi-Fi DIN-Rail Antenna 0.3m Cable and SMA Male Connector |
| DELTA68/0.15M/LL/SMAM/RP/S/33 | Wideband 5G/4G, IoT & Wi-Fi DIN-Rail Antenna 0.15m Cable and SMA Male Reverse Polarity Connector |
| DELTA68/0.3M/LL/SMAM/RP/S/33 | Wideband 5G/4G, IoT & Wi-Fi DIN-Rail Antenna 0.3m Cable and SMA Male Reverse Polarity Connector |
