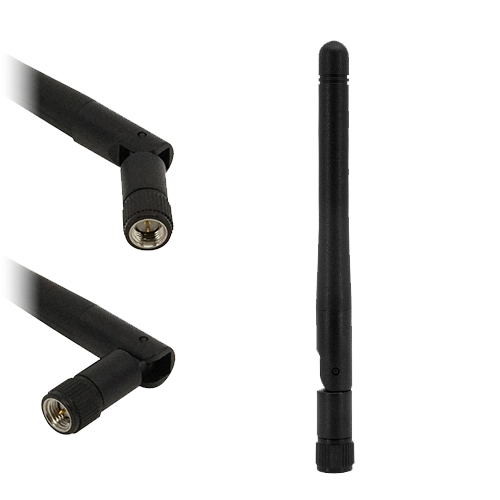

¶ General Description
The Delta 7A is a lightweight direct-connect antenna developed primarily for dual-band Wi-Fi, short-range wireless and industrial IoT equipment, with additional support for selected cellular bands. Its slim 108 mm profile and hinged joint allow the antenna to be positioned for optimum signal transmission, while the cable-free design simplifies installation.
Strong operation across 2300–2690 MHz supports selected 3G UMTS, 4G LTE, LTE-M, NB-IoT and 5G NR bands. Coverage from 2400–2500 MHz enables Wi-Fi, Bluetooth, BLE, IEEE 802.15.4 and ISM applications, while dependable performance across 5150–5990 MHz supports 5 GHz Wi-Fi and 5.8 GHz ISM operation. The antenna provides 0–3 dBi gain and 64% radiation efficiency.
A durable TPEE housing, low 10 g weight and omnidirectional radiation pattern make the antenna suitable for space-conscious equipment requiring dependable wireless connectivity. SMA male and reverse-polarity SMA male options enable direct connection to a wide range of compatible devices. Alternative connector types can be supplied for high-volume orders.
¶ Key Features
- Dual-band 2.4 GHz and 5 GHz Wi-Fi coverage
- 0–3 dBi gain
- Strong Wi‑Fi performance across the XY plane
- Adjustable, hinged direct-connect design
- Lightweight 10 g construction with durable TPEE housing
¶ Typical Applications
-
Wireless routers and gateways
-
Industrial IoT equipment
-
Wi-Fi access points and bridges
-
Smart building and automation systems
-
Connected monitoring and control devices
|
0–3 dBi
Gain
|
Cellular
3G–5G Support
|
Wi-Fi / ISM
2.4 GHz & 5 GHz
|
90° Hinged Design
Position for Best Reception
|
Product Features
Cellular Band Support
3G
UMTS
4G
LTE
5G
NR
BLE
Bluetooth
ISM
2.4G
ISM
5.8G
NR
NB-IoT
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
B7
B30
B33
B37
B38
B39
B40
B41
B46
B47
B53
B69
5G NR Band Support
n7
n30
n38
n39
n40
n41
n46
n47
n53
n79
n90
n97
n98
n101
¶ Electrical Specifications
| Usable Frequency Coverage: |
2300–2690 MHz 5150–5990 MHz |
| Impedance: | 50 Ohm |
| Polarisation: | Vertical |
| Average Gain: | |
| 2300–2690 MHz: | 7.82 dBi |
| 5150–5990 MHz: | 2.60 dBi |
| Average Radiation Efficiency: | |
| 2300–2690 MHz: | 66.59% |
| 5150–5990 MHz: | 63.20% |
| Max Input Power: | 5 W |
| Ground Plane Independent: | Yes |
¶ Environmental Specifications
| Operating Temperature range: | -20°C to 65 °C |
| Storage Temperature range: | -30°C to 75 °C |

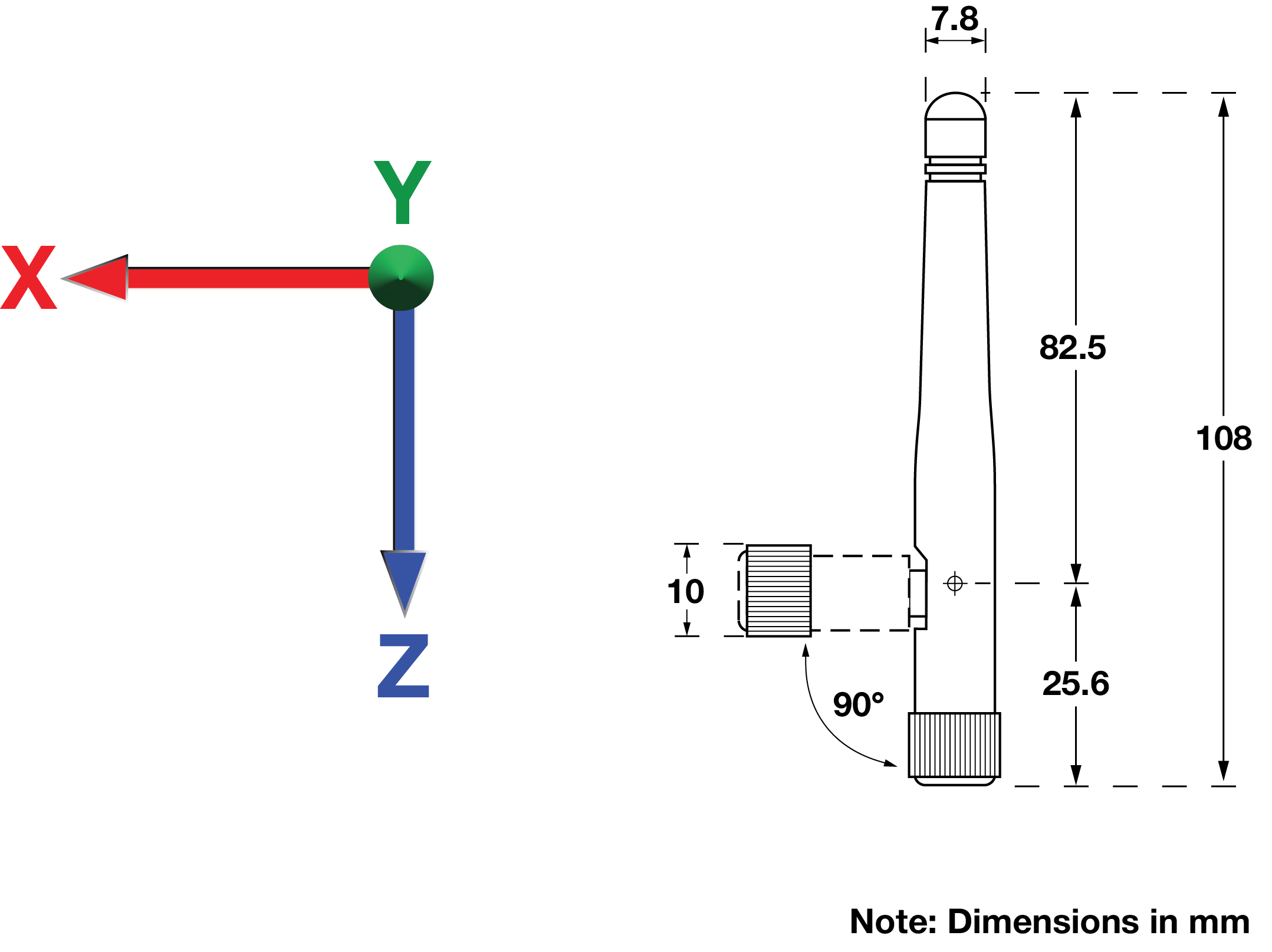

¶ Mechanical Specifications
| Dimensions: | Ø = 10 mm L = 108 mm |
| Weight: | 10 g |
| Connector: | SMA Male / SMA Male Reverse Polarity |
| Mounting method: | Direct connect |
| Housing materials: | TPEE |

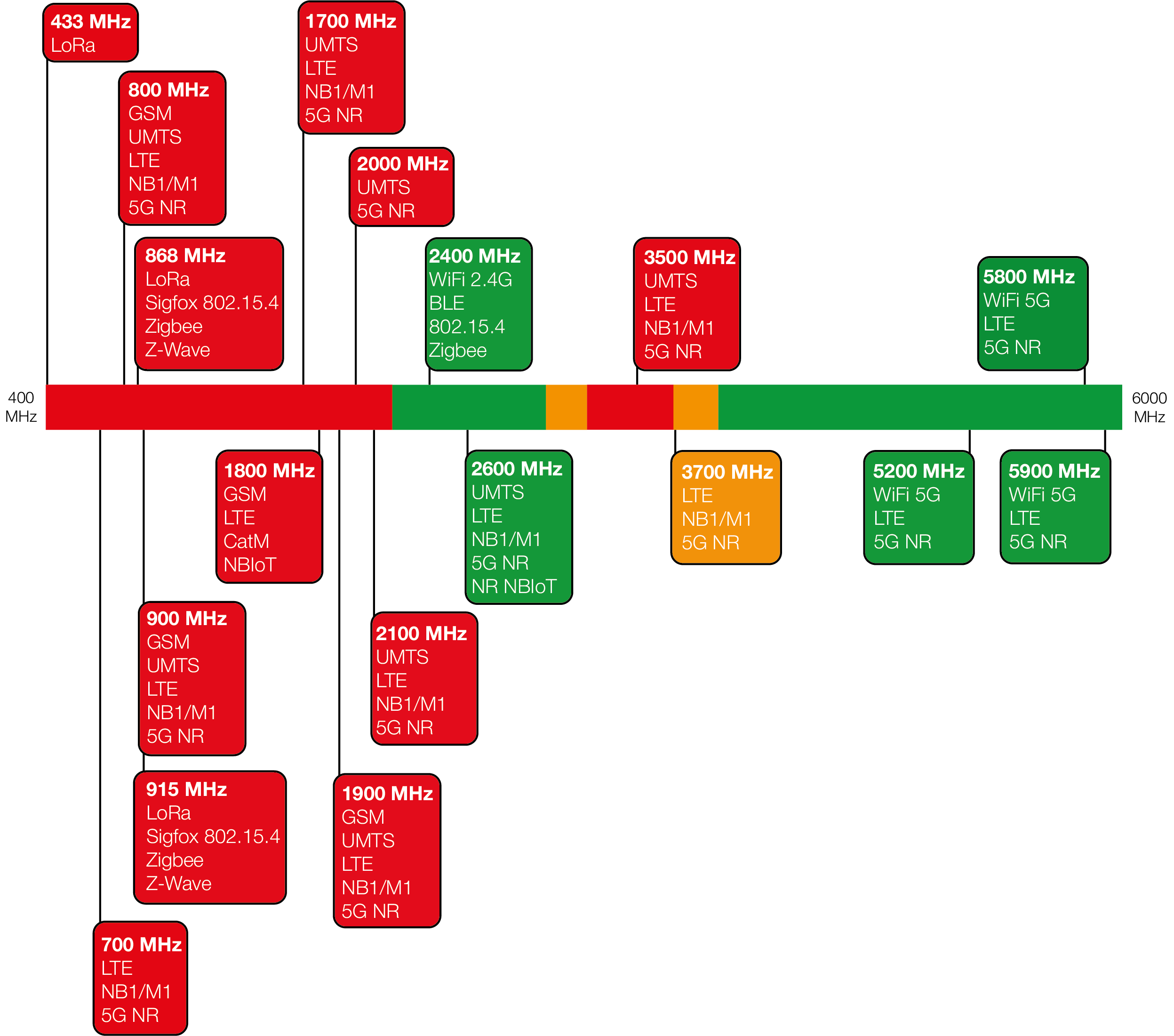

¶ Spectrum Coverage*
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency, taking into consideration the VSWR and radiated efficiency of the antenna.
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

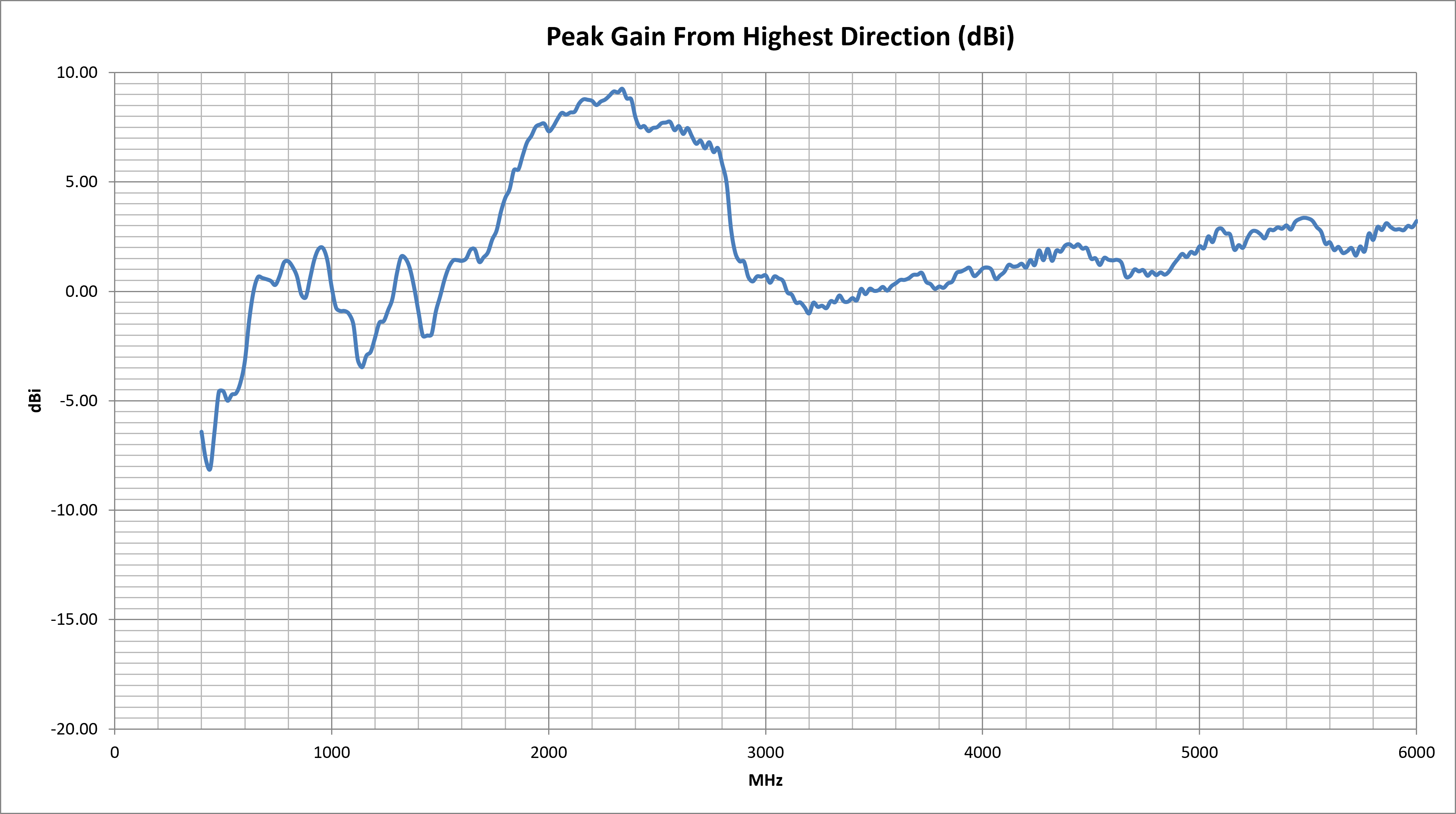

¶ Peak Gain vs. Frequency

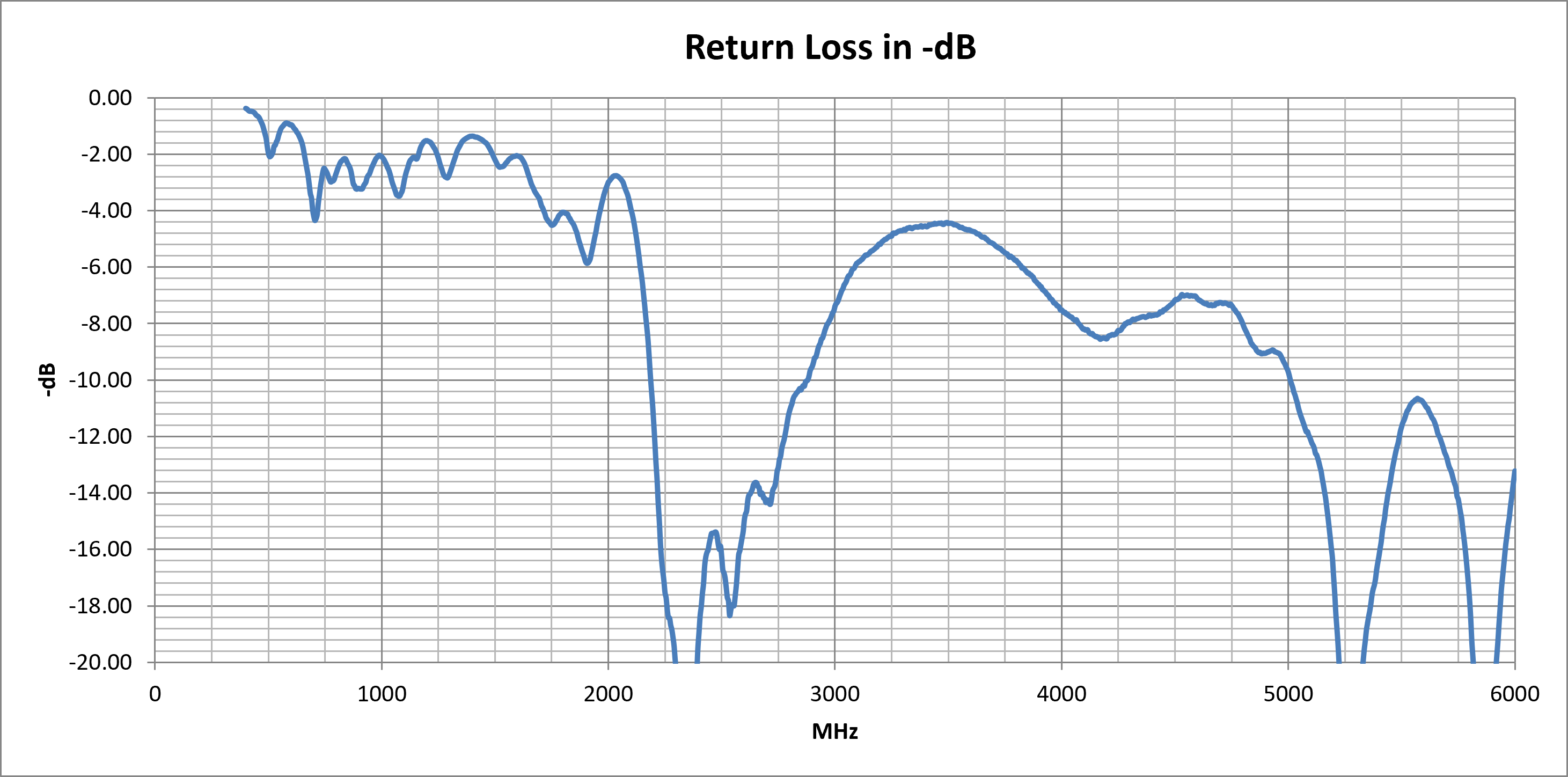

¶ Return Loss

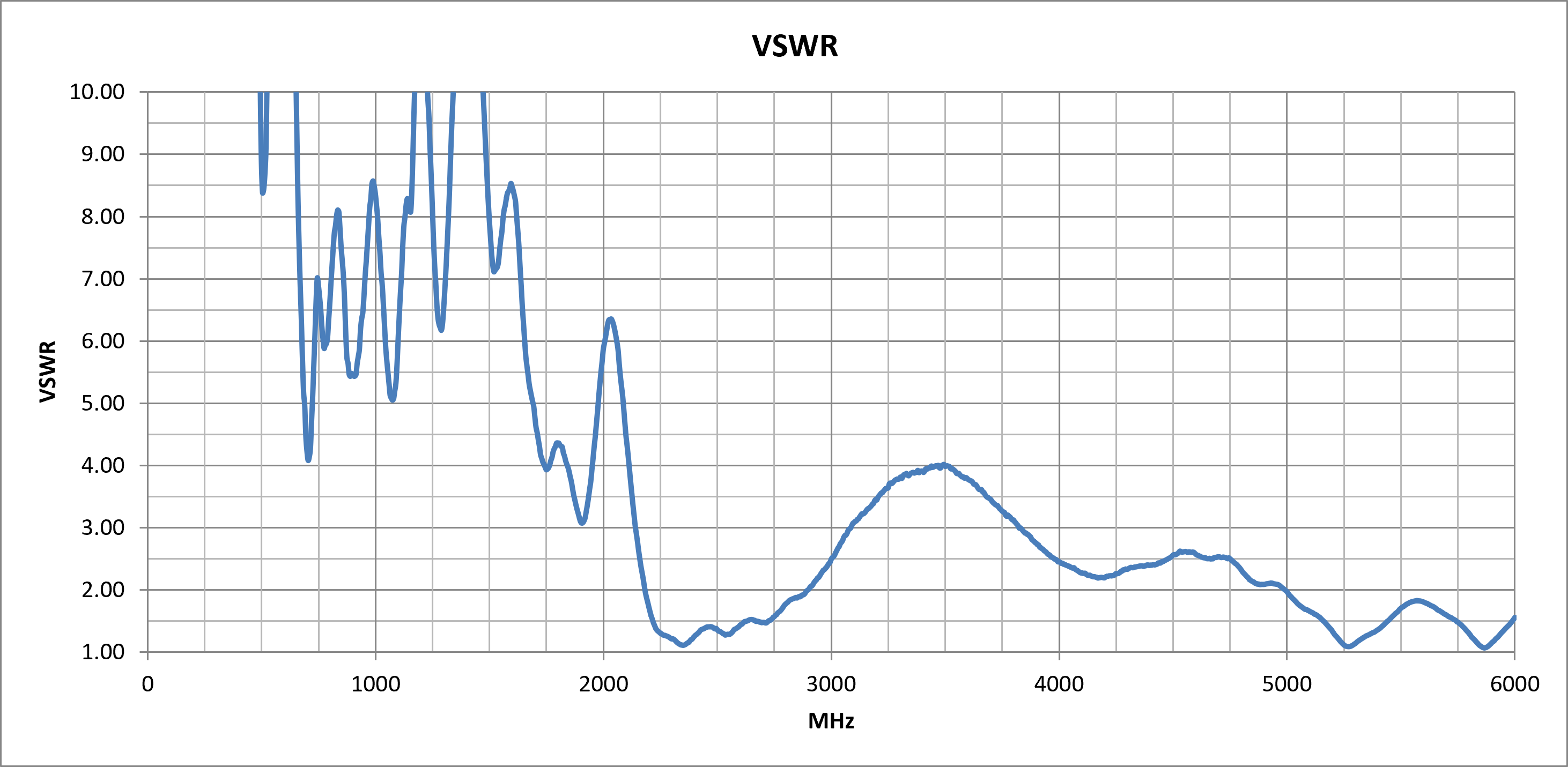

¶ VSWR

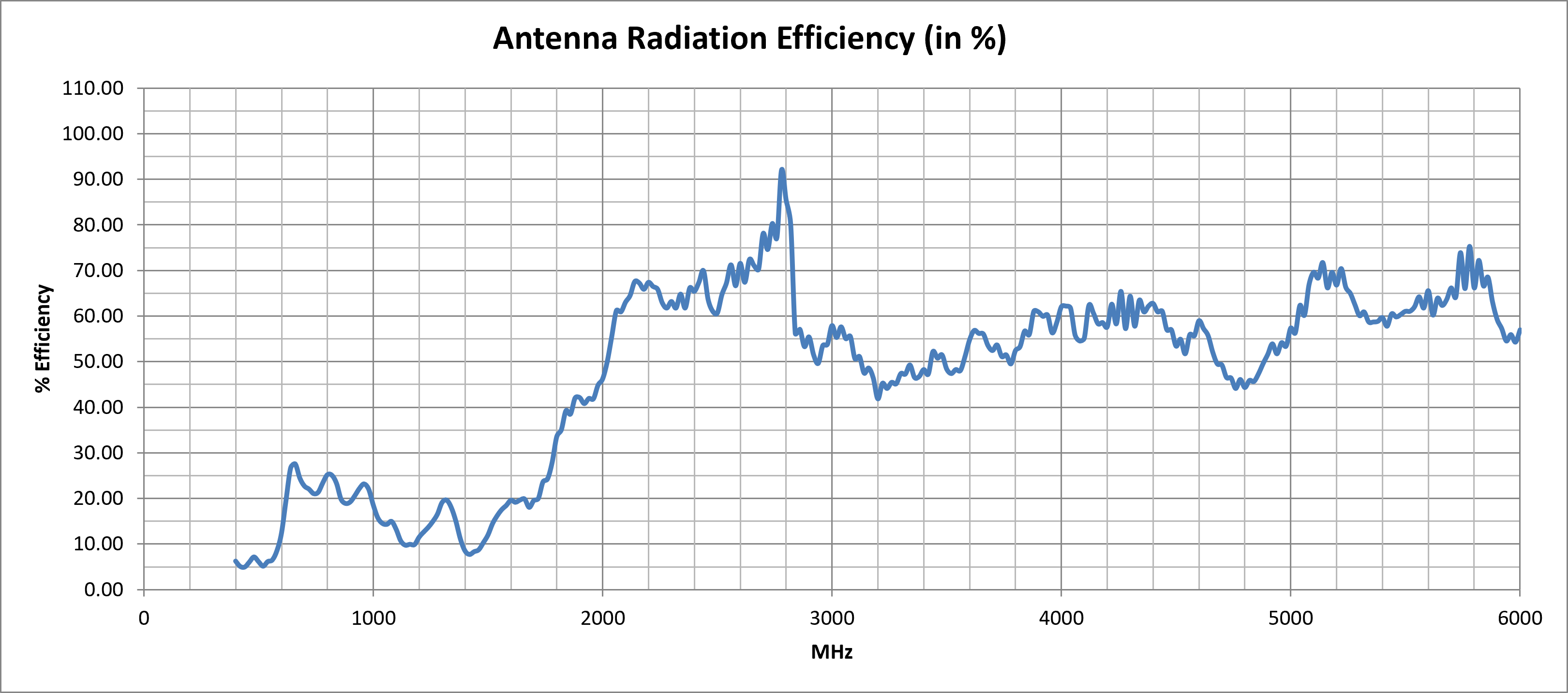

¶ Radiation Efficiency
¶ Cellular Bands*
| GSM (2G) Bands | UMTS (3G) Bands | E-UTRA (4G) Bands | NR (5G) Bands | Uplink (MHz) | Downlink (MHz) | Average Upload Efficiency (%) | Average Download Efficiency (%) | Maximum Upload VSWR | Maximum Download VSWR | Use Indicator |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | n1 | 1920 - 1980 | 2110 - 2170 | 42.24 | 66.37 | 5.10 | 4.13 | ↓ | |
| PCS-1900 | 2 | 2 | n2 | 1850 - 1910 | 1930 - 1990 | 40.90 | 42.92 | 3.90 | 5.50 | ↓ |
| DCS-1800 | 3 | 3 | n3 | 1710 - 1785 | 1805 - 1880 | 23.76 | 37.94 | 4.53 | 4.36 | ↓ |
| 4 | 4 | 1710 - 1755 | 2110 - 2155 | 22.11 | 66.13 | 4.53 | 4.13 | ↓ | ||
| GSM-850 | 5 | 5 | n5 | 824 - 849 | 869 - 894 | 23.51 | 19.10 | 8.11 | 6.23 | ↓ |
| 6 | 830 - 840 | 875 - 885 | 23.78 | 19.00 | 8.11 | 5.73 | ↓ | |||
| 7 | 7 | n7 | 2500 - 2570 | 2620 - 2690 | 66.59 | 71.02 | 1.36 | 1.53 | ↑ | |
| E-GSM-900 | 8 | 8 | n8 | 880 - 915 | 925 - 960 | 19.40 | 22.26 | 5.65 | 7.28 | ↓ |
| 9 | 9 | 1749.9 - 1784.9 | 1844.9 - 1879.9 | 25.91 | 39.66 | 4.27 | 3.97 | ↓ | ||
| 10 | 10 | 1710 - 1770 | 2110 - 2170 | 22.81 | 66.37 | 4.53 | 4.13 | ↓ | ||
| 11 | 11 | 1427.9 - 1447.9 | 1475.9 - 1495.9 | 8.28 | 10.82 | 12.24 | 9.75 | ↓ | ||
| 12 | 12 | n12 | 699 - 716 | 729 - 746 | 22.50 | 21.28 | 4.36 | 7.01 | ↓ | |
| 13 | 13 | n13 | 777 - 787 | 746 - 756 | 23.62 | 21.25 | 5.99 | 6.99 | ↓ | |
| 14 | 14 | n14 | 788 - 798 | 758 - 768 | 24.61 | 21.71 | 6.50 | 6.60 | ↓ | |
| 17 | 704 - 716 | 734 - 746 | 22.42 | 21.18 | 4.36 | 7.01 | ↓ | |||
| 18 | n18 | 815 - 830 | 860 - 875 | 24.83 | 19.48 | 8.02 | 7.03 | ↓ | ||
| 19 | 19 | 830 - 845 | 875 - 890 | 23.48 | 19.02 | 8.11 | 5.73 | ↓ | ||
| 20 | 20 | n20 | 832 - 862 | 791 - 821 | 22.02 | 25.07 | 8.11 | 7.76 | ↓ | |
| 21 | 21 | 1447.9 - 1462.9 | 1495.9 - 1510.9 | 8.69 | 12.44 | 11.46 | 8.20 | ↓ | ||
| 22 | 22 | 3410 - 3490 | 3510 - 3590 | 50.41 | 48.89 | 4.01 | 4.00 | ↓ | ||
| 23 | 2000 - 2020 | 2180 - 2200 | 48.12 | 66.69 | 6.28 | 2.06 | ↓ | |||
| 24 | n24 | 1626.5 - 1660.5 | 1525 - 1559 | 19.68 | 16.29 | 7.70 | 7.92 | ↓ | ||
| 25 | 25 | n25 | 1850 - 1915 | 1930 - 1995 | 40.94 | 43.14 | 3.90 | 5.67 | ↓ | |
| 26 | 26 | n26 | 814 - 849 | 859 - 894 | 23.95 | 19.26 | 8.11 | 7.08 | ↓ | |
| 27 | 807 - 824 | 852 - 869 | 25.10 | 20.04 | 7.83 | 7.41 | ↓ | |||
| 28 | n28 | 703 - 748 | 758 - 803 | 21.80 | 23.41 | 7.01 | 6.80 | ↓ | ||
| 28A | 703 - 733 | 758 - 788 | 22.10 | 22.71 | 5.92 | 6.60 | ↓ | |||
| 29 | n29 | - | 717 - 728 | - | 21.95 | - | 5.43 | ↓ | ||
| 30 | n30 | 2305 - 2315 | 2350 - 2360 | 62.52 | 62.57 | 1.22 | 1.12 | ↑ | ||
| 31 | n31 | 452.5 - 457.5 | 462.5 - 467.5 | 5.81 | 6.36 | 26.77 | 23.02 | ↓ | ||
| 32 | 32 | - | 1452 - 1496 | - | 9.92 | - | 11.23 | ↓ | ||
| 33 | 1900 - 1920 | 1900 - 1920 | 41.50 | 41.50 | 3.16 | 3.16 | □ | |||
| 34 | n34 | 2010 - 2025 | 2010 - 2025 | 49.61 | 49.61 | 6.34 | 6.34 | ↓ | ||
| 35 | 1850 - 1910 | 1850 - 1910 | 40.90 | 40.90 | 3.90 | 3.90 | ↓ | |||
| 36 | 1930 - 1990 | 1930 - 1990 | 42.92 | 42.92 | 5.50 | 5.50 | ↓ | |||
| 37 | 1910 - 1930 | 1910 - 1930 | 41.14 | 41.14 | 3.36 | 3.36 | □ | |||
| 38 | n38 | 2570 - 2620 | 2570 - 2620 | 69.04 | 69.04 | 1.49 | 1.49 | ↑ | ||
| 39 | n39 | 1880 - 1920 | 1880 - 1920 | 41.81 | 41.81 | 3.37 | 3.37 | □ | ||
| 40 | n40 | 2300 - 2400 | 2300 - 2400 | 63.81 | 63.81 | 1.25 | 1.25 | ↑ | ||
| 41 | n41 | 2496 - 2690 | 2496 - 2690 | 68.70 | 68.70 | 1.53 | 1.53 | ↑ | ||
| 42 | 3400 - 3600 | 3400 - 3600 | 49.69 | 49.69 | 4.02 | 4.02 | ↓ | |||
| 43 | 3600 - 3800 | 3600 - 3800 | 53.49 | 53.49 | 3.78 | 3.78 | ↓ | |||
| 44 | 703 - 803 | 703 - 803 | 22.47 | 22.47 | 7.01 | 7.01 | ↓ | |||
| 45 | 1447 - 1467 | 1447 - 1467 | 8.78 | 8.78 | 11.51 | 11.51 | ↓ | |||
| 46 | n46 | 5150 - 5925 | 5150 - 5925 | 63.86 | 63.86 | 1.83 | 1.83 | ↑ | ||
| 47 | n47 | 5855 - 5925 | 5855 - 5925 | 61.89 | 61.89 | 1.24 | 1.24 | ↑ | ||
| 48 | n48 | 3550 - 3700 | 3550 - 3700 | 53.75 | 53.75 | 3.87 | 3.87 | ↓ | ||
| 49 | 3550 - 3700 | 3550 - 3700 | 53.75 | 53.75 | 3.87 | 3.87 | ↓ | |||
| 50 | n50 | 1432 - 1517 | 1432 - 1517 | 10.27 | 10.27 | 12.08 | 12.08 | ↓ | ||
| 51 | n51 | 1427 - 1432 | 1427 - 1432 | 8.04 | 8.04 | 12.29 | 12.29 | ↓ | ||
| 52 | 3300 - 3400 | 3300 - 3400 | 47.57 | 47.57 | 3.92 | 3.92 | ↓ | |||
| 53 | n53 | 2483.5 - 2495 | 2483.5 - 2495 | 60.90 | 60.90 | 1.39 | 1.39 | ↑ | ||
| 54 | n54 | 1670 - 1675 | 1670 - 1675 | 18.76 | 18.76 | 5.46 | 5.46 | ↓ | ||
| 65 | n65 | 1920 - 2010 | 2110 - 2200 | 43.52 | 66.43 | 6.07 | 4.13 | ↓ | ||
| 66 | n66 | 1710 - 1780 | 2110 - 2200 | 23.41 | 66.43 | 4.53 | 4.13 | ↓ | ||
| 67 | n67 | - | 738 - 758 | - | 21.21 | - | 7.01 | ↓ | ||
| 68 | n68 | 698 - 728 | 753 - 783 | 22.30 | 22.28 | 5.43 | 6.79 | ↓ | ||
| 69 | - | 2570 - 2620 | - | 69.04 | - | 1.49 | ↑ | |||
| 70 | n70 | 1695 - 1710 | 1995 - 2020 | 19.60 | 47.71 | 4.95 | 6.28 | ↓ | ||
| 71 | n71 | 663 - 698 | 617 - 652 | 24.73 | 24.17 | 7.90 | 15.63 | ↓ | ||
| 72 | n72 | 451 - 456 | 461 - 466 | 5.73 | 6.28 | 27.11 | 23.83 | ↓ | ||
| 73 | 450 - 455 | 460 - 465 | 5.67 | 6.22 | 27.34 | 24.36 | ↓ | |||
| 74 | n74 | 1427 - 1470 | 1475 - 1518 | 8.58 | 11.86 | 12.29 | 9.82 | ↓ | ||
| 75 | n75 | - | 1432 - 1517 | - | 10.27 | - | 12.08 | ↓ | ||
| 76 | n76 | - | 1427 - 1432 | - | 8.04 | - | 12.29 | ↓ | ||
| n77 | 3300 - 4200 | 3300 - 4200 | 54.22 | 54.22 | 4.02 | 4.02 | ↓ | |||
| n78 | 3300 - 3800 | 3300 - 3800 | 50.78 | 50.78 | 4.02 | 4.02 | ↓ | |||
| n79 | 4400 - 5000 | 4400 - 5000 | 52.42 | 52.42 | 2.63 | 2.63 | ↑ | |||
| n80 | 1710 - 1785 | - | 23.76 | - | 4.53 | - | ↓ | |||
| n81 | 880 - 915 | - | 19.40 | - | 5.65 | - | ↓ | |||
| n82 | 832 - 862 | - | 22.02 | - | 8.11 | - | ↓ | |||
| n83 | 703 - 748 | - | 21.80 | - | 7.01 | - | ↓ | |||
| n84 | 1920 - 1980 | - | 42.24 | - | 5.10 | - | ↓ | |||
| 85 | n85 | 698 - 716 | 728 - 746 | 22.52 | 21.30 | 4.36 | 7.01 | ↓ | ||
| n86 | 1710 - 1780 | - | 23.41 | - | 4.53 | - | ↓ | |||
| 87 | n87 | 410 - 415 | 420 - 425 | 5.55 | 5.10 | 40.52 | 36.76 | ↓ | ||
| 88 | n88 | 412 - 417 | 422 - 427 | 5.44 | 5.09 | 39.18 | 36.76 | ↓ | ||
| n89 | 824 - 849 | - | 23.51 | - | 8.11 | - | ↓ | |||
| n90 | 2496 - 2690 | 2496 - 2690 | 68.70 | 68.70 | 1.53 | 1.53 | ↑ | |||
| n91 | 832 - 862 | 1427 - 1432 | 22.02 | 8.04 | 8.11 | 12.29 | ↓ | |||
| n92 | 832 - 862 | 1432 - 1517 | 22.02 | 10.27 | 8.11 | 12.08 | ↓ | |||
| n93 | 880 - 915 | 1427 - 1432 | 19.40 | 8.04 | 5.65 | 12.29 | ↓ | |||
| n94 | 880 - 915 | 1432 - 1517 | 19.40 | 10.27 | 5.65 | 12.08 | ↓ | |||
| n95 | 2010 - 2025 | - | 49.61 | - | 6.34 | - | ↓ | |||
| n97 | 2300 - 2400 | - | 63.81 | - | 1.25 | - | ↑ | |||
| n98 | 1880 - 1920 | - | 41.81 | - | 3.37 | - | □ | |||
| n99 | 1626.5 - 1660.5 | - | 19.68 | - | 7.70 | - | ↓ | |||
| n100 | 874.4 - 880 | 919.4 - 925 | 19.05 | 20.83 | 5.78 | 5.75 | ↓ | |||
| n101 | 1900 - 1910 | 1900 - 1910 | 41.84 | 41.84 | 3.10 | 3.10 | □ | |||
| 103 | 787 - 788 | 757 - 758 | 24.11 | 21.34 | 6.01 | 6.64 | ↓ | |||
| n105 | 663 - 703 | 612 - 652 | 24.49 | 23.36 | 7.90 | 16.35 | ↓ | |||
| 106 | n106 | 896 - 901 | 935 - 940 | 19.25 | 22.04 | 5.48 | 6.36 | ↓ | ||
| 107 | - | 612 - 652 | - | 23.36 | - | 16.35 | ↓ | |||
| 108 | - | 470 - 698 | - | 14.01 | - | 19.59 | ↓ | |||
| n109 | 703 - 733 | 1432 - 1517 | 22.10 | 10.27 | 5.92 | 12.08 | ↓ | |||
| n110 | 1390 - 1395 | 1432 - 1435 | 9.51 | 8.16 | 12.80 | 12.08 | ↓ | |||
| 111 | 1800 - 1810 | 1820 - 1830 | 33.95 | 36.12 | 4.36 | 4.30 | ↓ | |||
| 112 | - | 470 - 608 | - | 7.45 | - | 19.59 | ↓ | |||
| 113 | - | 606 - 698 | - | 23.86 | - | 17.55 | ↓ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |
¶ ISM Standards Frequency Support*
| Application | Frequency Range (MHz) | Average Efficiency (%) | Maximum VSWR | Peak Gain from highest direction (dBi) | Use Indicator |
|---|---|---|---|---|---|
| ISM 433 MHz | 433.05 - 434.79 | 5.03 | 34.70 | -7.95 | ↓ |
| ISM 868 MHz | 863 - 870 | 19.53 | 6.80 | -0.16 | ↓ |
| ISM 915 MHz | 902 - 928 | 20.32 | 5.82 | 1.66 | ↓ |
| ISM 2.4 GHz | 2400 - 2500 | 65.05 | 1.41 | 7.95 | ↑ |
| WiFi 2.4G channels 1-11 (DSSS) | 2401 - 2473 | 66.55 | 1.41 | 7.93 | ↑ |
| WiFi 2.4G channels 1-13 (DSSS) | 2401 - 2483 | 65.92 | 1.41 | 7.93 | ↑ |
| WiFi 2.4G channels 1-14 (DSSS) | 2401 - 2495 | 65.28 | 1.41 | 7.93 | ↑ |
| Citizens Broadband Radio Service | 3550 - 3700 | 53.75 | 3.87 | 0.77 | ↓ |
| WiFi CBRS channels 131-138 | 3655 - 3695 | 54.37 | 3.62 | 0.77 | ↓ |
| WiFi 5G (Ch 32-48) | 5150 - 5250 | 68.02 | 1.54 | 2.75 | ↑ |
| WiFi 5G (Ch 32-68) | 5150 - 5350 | 64.76 | 1.54 | 2.87 | ↑ |
| WiFi 5G (Ch 32-165) | 5150 - 5835 | 63.96 | 1.83 | 3.37 | ↑ |
| WiFi 5G (Ch 32-173) | 5150 - 5875 | 64.14 | 1.83 | 3.37 | ↑ |
| WiFi 5G (Ch 32-177) | 5150 - 5895 | 64.08 | 1.83 | 3.37 | ↑ |
| WiFi 5.9G (Ch 172-180) | 5855 - 5905 | 63.54 | 1.17 | 3.12 | ↑ |
| WiFi 5.9G (Ch 182-196) | 5905 - 5990 | 55.86 | 1.51 | 3.08 | ↑ |
| ISM 5.8 GHz | 5725 - 5875 | 69.39 | 1.54 | 3.12 | ↑ |
| UWB band group 1, BAND_ID 1 | 3168 - 3696 | 49.16 | 4.02 | 0.77 | ↓ |
| UWB band group 1, BAND_ID 2 | 3696 - 4224 | 57.26 | 3.47 | 1.44 | □ |
| UWB band group 1, BAND_ID 3 | 4224 - 4752 | 56.81 | 2.63 | 2.16 | ↑ |
| UWB band group 2, BAND_ID 4 | 4752 - 5280 | 58.07 | 2.50 | 2.88 | ↑ |
| UWB band group 2, BAND_ID 5 | 5280 - 5808 | 62.85 | 1.83 | 3.37 | ↑ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

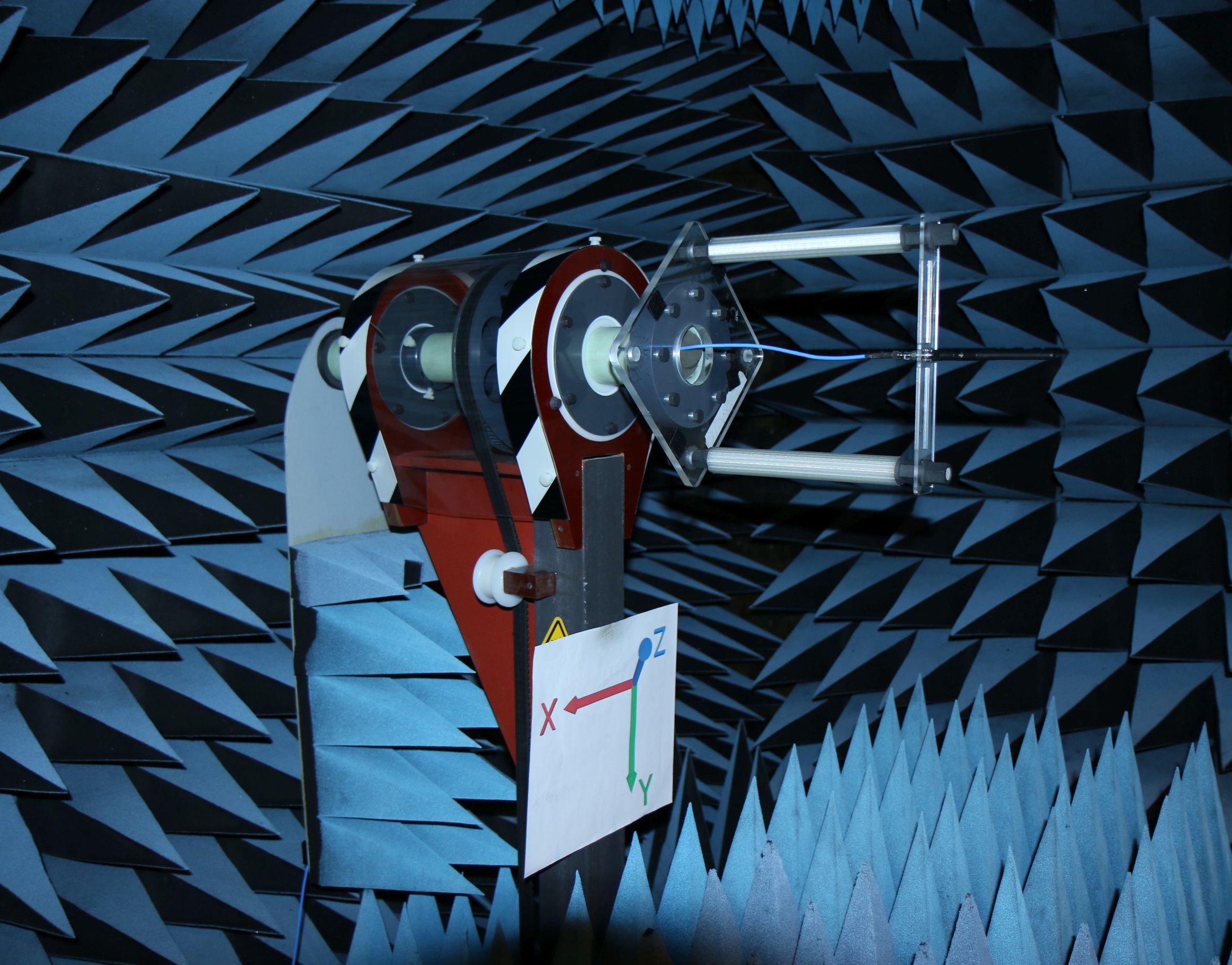

¶ Test Setup (in Free Space)

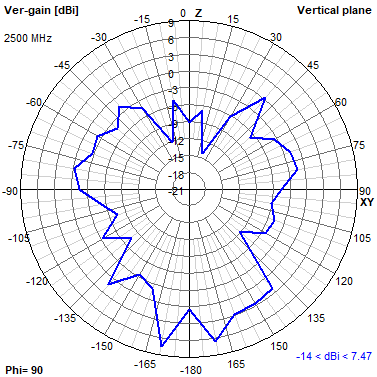

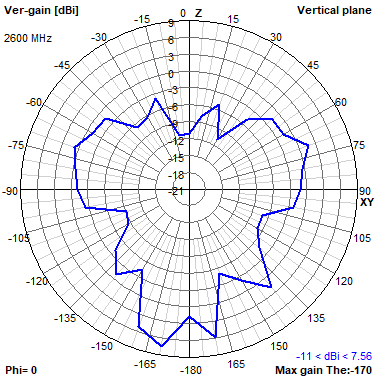

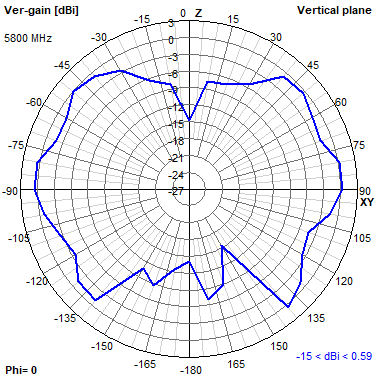

¶ 2D Radiation Plots

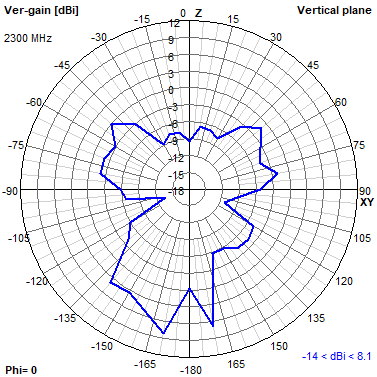

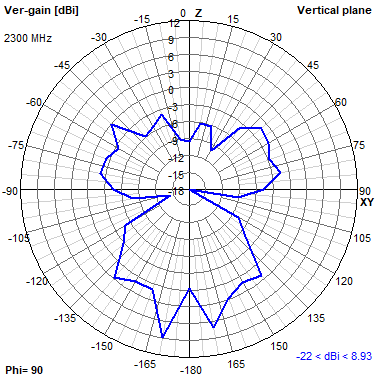

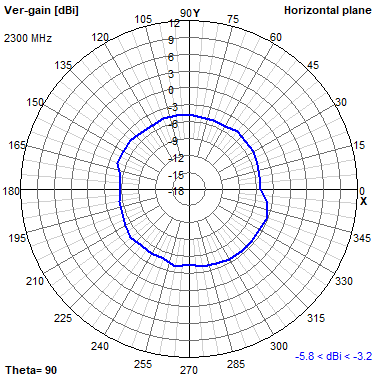

| 2300 MHz | ||
| XY | XZ | YZ |
|
|
|

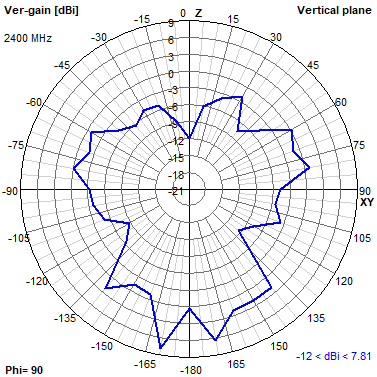

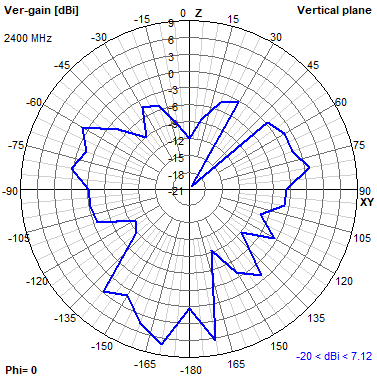

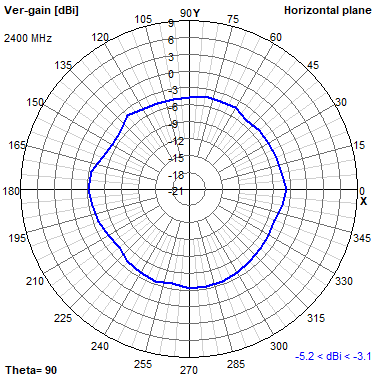

| 2400 MHz | ||
| XY | XZ | YZ |
|
|
|

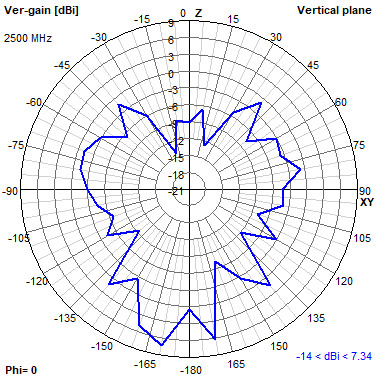

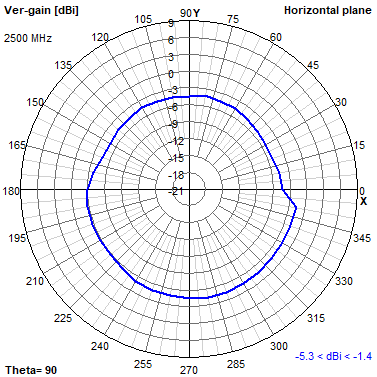

| 2500 MHz | ||
| XY | XZ | YZ |
|
|
|

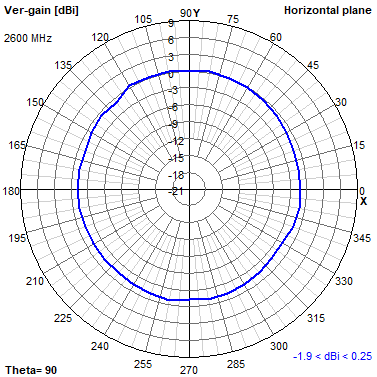

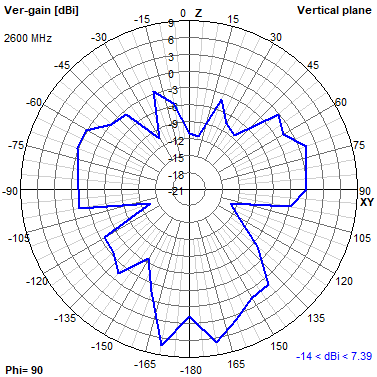

| 2600 MHz | ||
| XY | XZ | YZ |
|
|
|

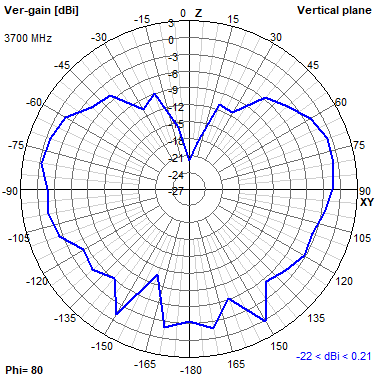

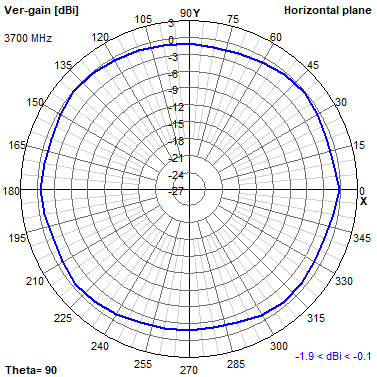

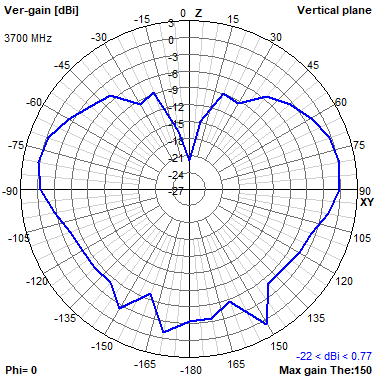

| 3700 MHz | ||
| XY | XZ | YZ |
|
|
|

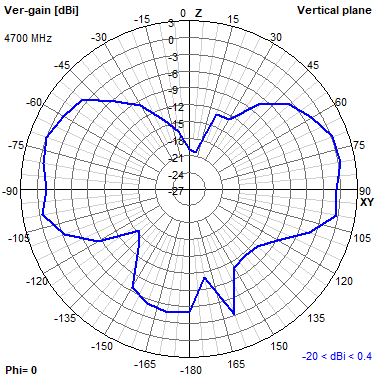

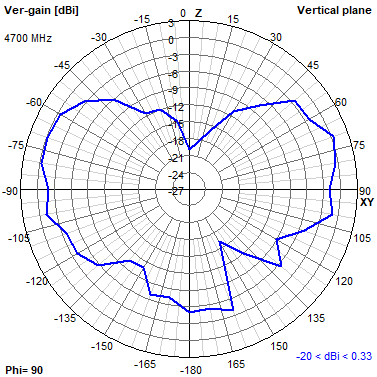

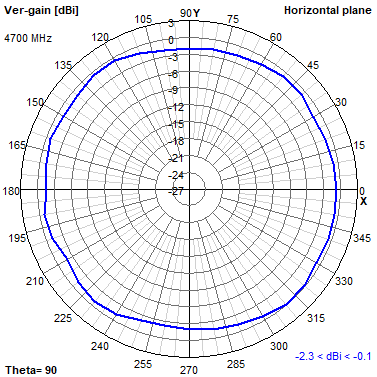

| 4700 MHz | ||
| XY | XZ | YZ |
|
|
|

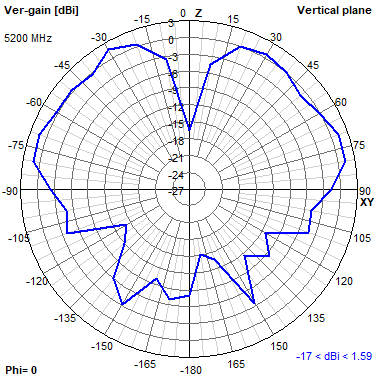

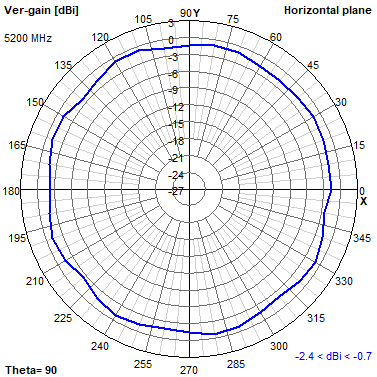

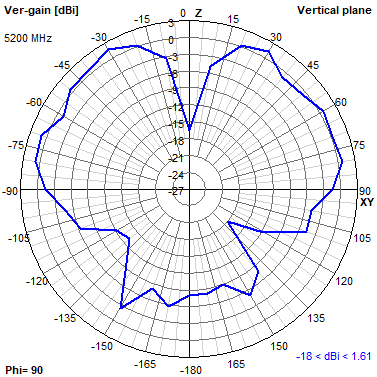

| 5200 MHz | ||
| XY | XZ | YZ |
|
|
|

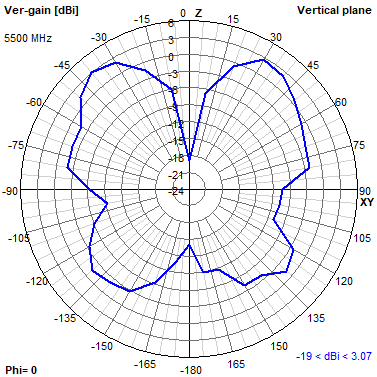

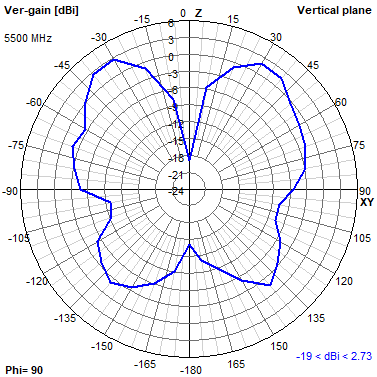

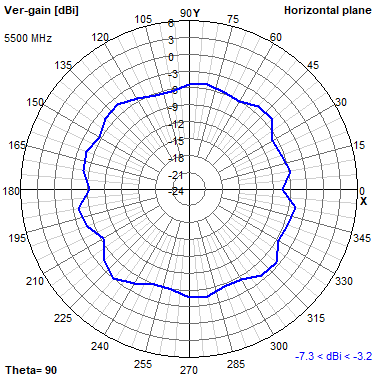

| 5500 MHz | ||
| XY | XZ | YZ |
|
|
|

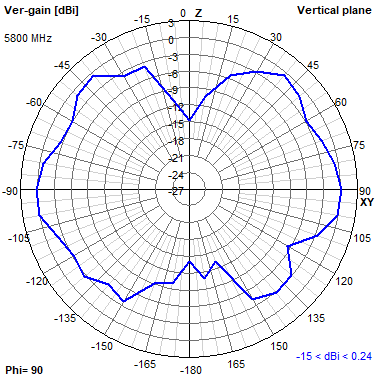

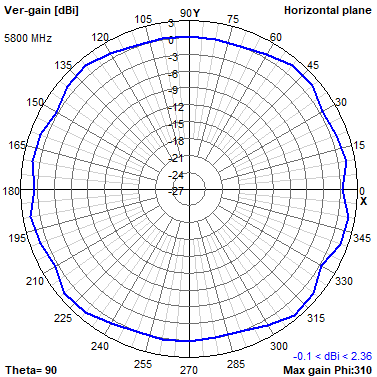

| 5800 MHz | ||
| XY | XZ | YZ |
|
|
|

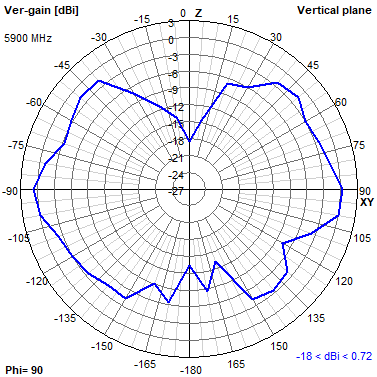

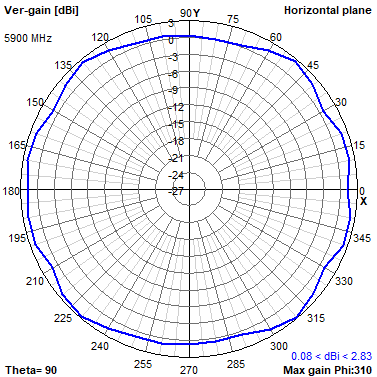

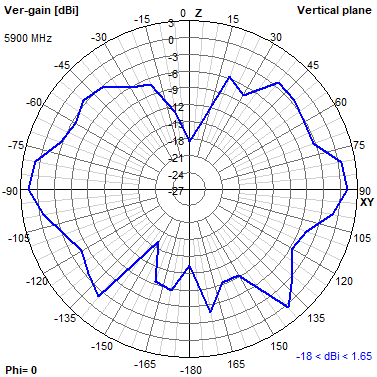

| 5900 MHz | ||
| XY | XZ | YZ |
|
|
|

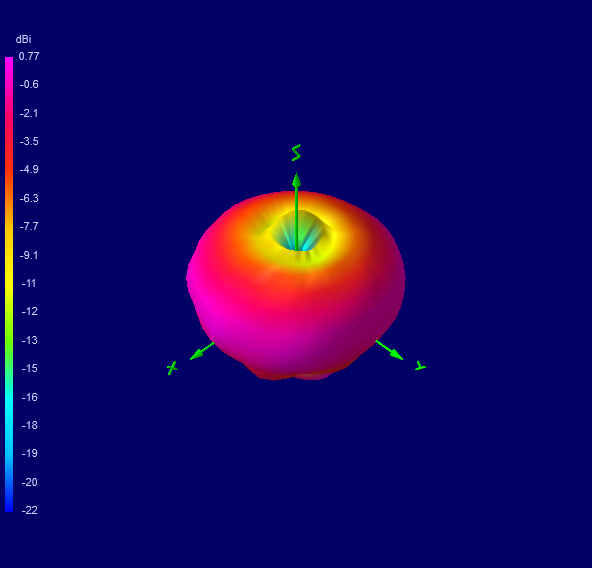

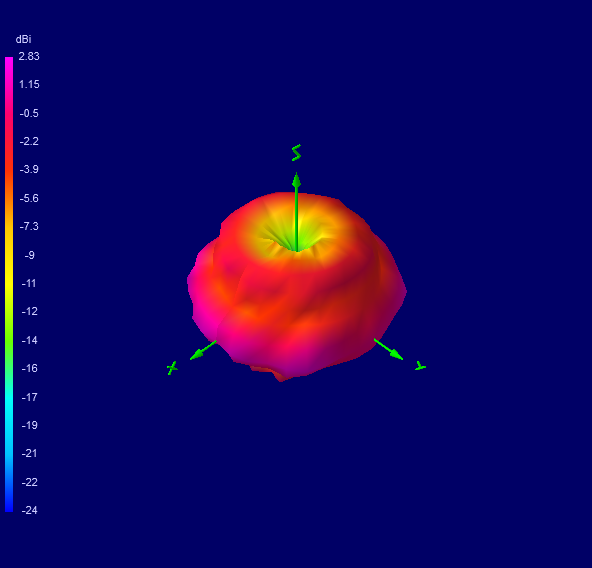

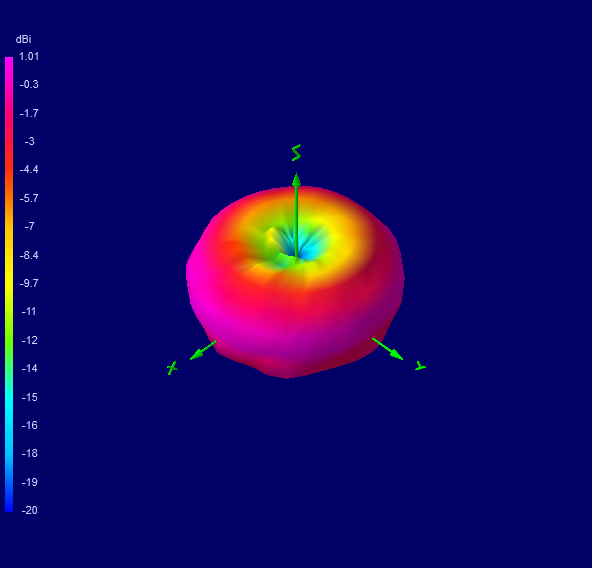

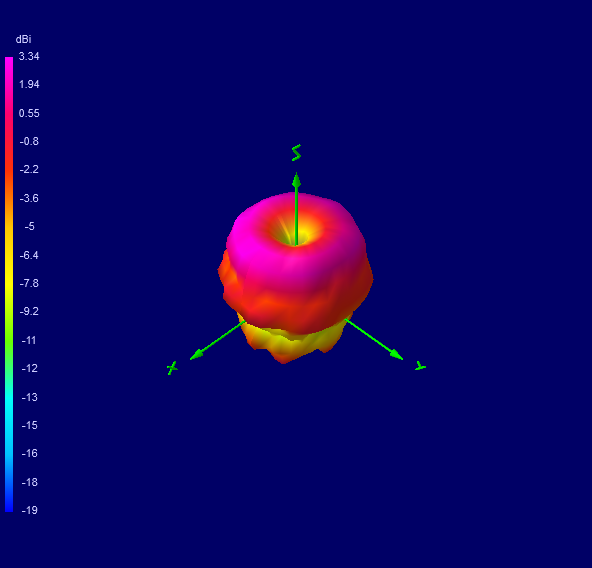

¶ 3D Radiation Plots

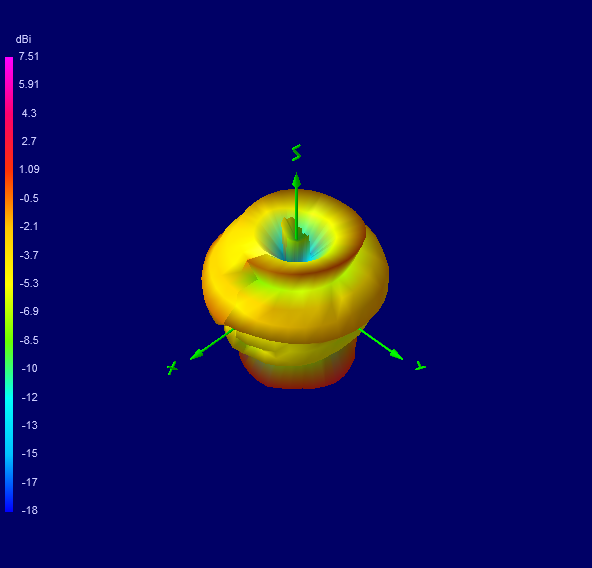

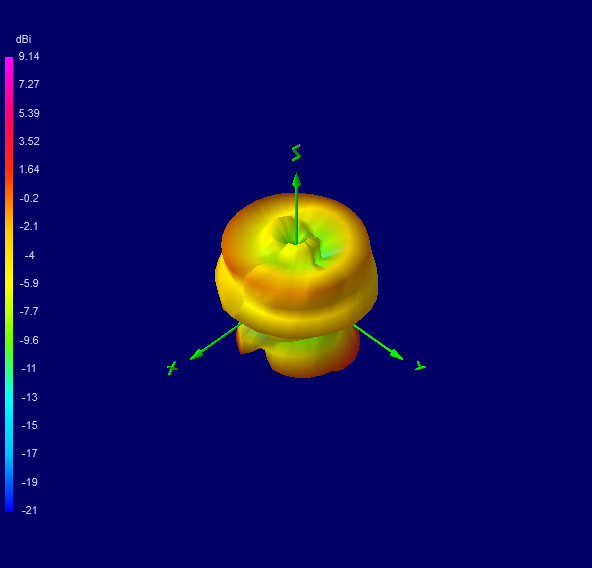

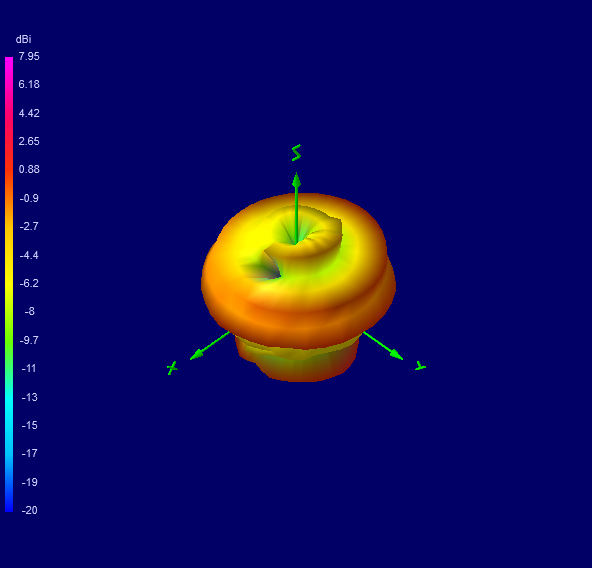

| 2300 MHz | 2400 MHz | 2500 MHz |
|
|
|

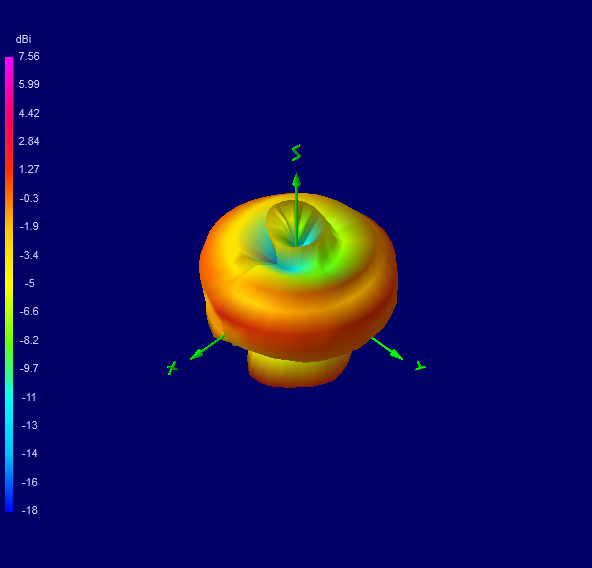

| 2600 MHz | 3700 MHz | 4700 MHz |
|
|
|

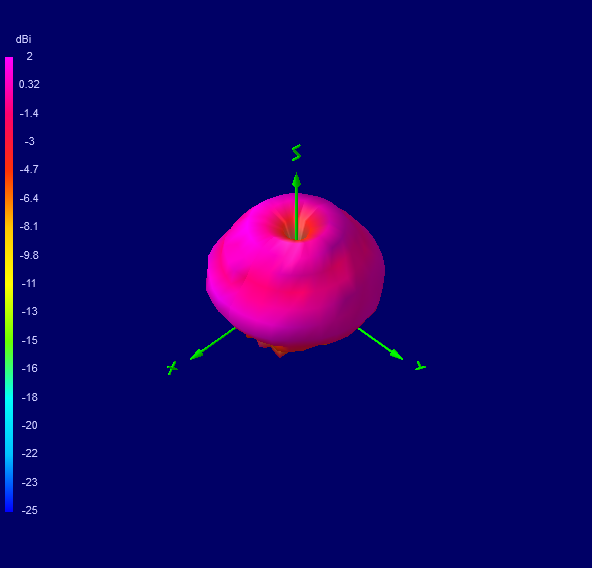

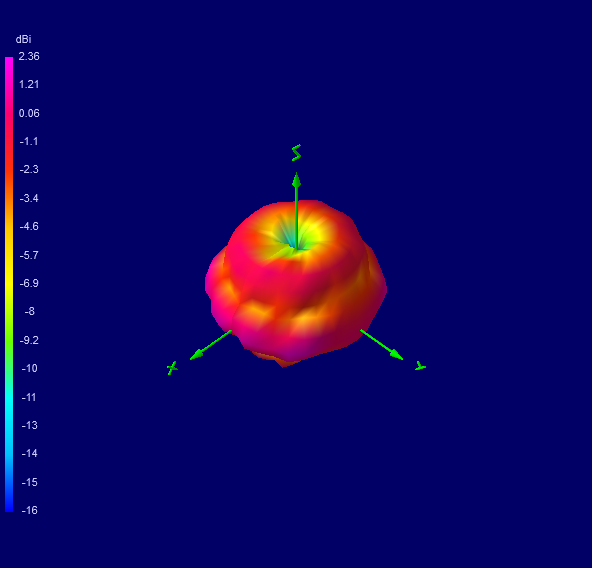

| 5200 MHz | 5500 MHz | 5800 MHz |
|
|
|
| 5900 MHz | ||
|
¶ Ordering Details
| Part Number | Description |
|---|---|
| DELTA7A/X/SMAM/S/S/11 | Dual-Band WiFi 108 mm Hinged Antenna SMA Male |
| DELTA7A/X/SMAM/RP/S/11 | Dual-Band WiFi 108 mm Hinged Antenna Reverse Polarity SMA Male |
