¶ General Description

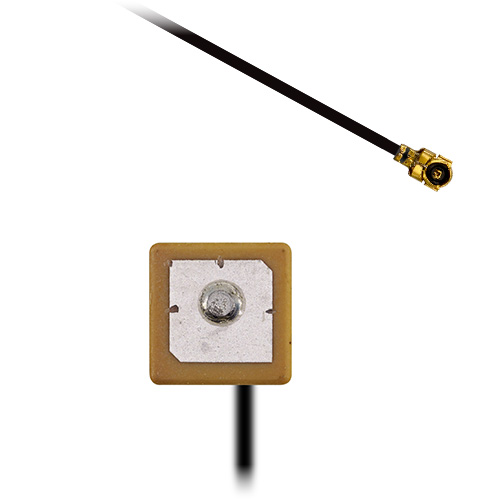

The Echo 19 is Siretta’s smallest embedded active GPS antenna, optimised for applications where space is at a premium. Measuring just 10 × 10 × 6.7 mm, it integrates a ceramic patch antenna with an onboard low noise amplifier to deliver strong GPS L1 reception despite its miniature size.With an RHCP gain of 17 dBiC and consistent top-hemisphere coverage, the Echo 19 provides robust satellite tracking and reliable performance. Its very low current consumption of ≤ 11 mA makes it an excellent choice for compact, battery-powered and mobile applications where efficiency and performance must coexist.
Supplied as standard with 100 mm of coax cable terminated with a U.FL/I-PEX connector. Alternative cable lengths and connector types can be fitted for volume orders.
¶ Key Features
- GPS L1 band support (1575.42 MHz)
- Miniature 10 × 10 mm ceramic patch form factor
- 17 dBiC RHCP gain
- Low power consumption (≤ 11 mA)
- Active antenna with integrated LNA
¶ Typical Applications
- Portable and handheld devices
- IoT asset tags and compact trackers
- Drones and UAV modules
- Embedded GPS modules in space-limited designs
|
GPS
L1 Antenna
|
UAV Optimised
Ideal for Aerial Platforms
|
RHCP Gain
17 dBiC
|
Embedded
Installation
|
Active
Integrated LNA
|
¶ Electrical Specifications
| Impedance: | 50 Ohm |
| Polarisation: | RHCP |
| Frequency Band: | 1575.42 MHz |
| Return Loss: | -10 dB |
| VSWR: | < 2 |
| Required Ground Plane: | Free Space |
| Peak RHCP Gain Top Hemisphere: |
16.52 dBiC |
| LNA Gain: | 16 dB |
| Noise Figure: | ≤ 1.5 dB |
| Supply Voltage: | 2.0 – 3.6 V DC |
| Current Consumption: | ≤ 11 mA |
¶ Environmental Specifications
| Operating Temperature Range: | -45°C to 85°C |
| Storage Temperature Range: | -45°C to 100°C |
| Relative Humidity: | Up to 95% |

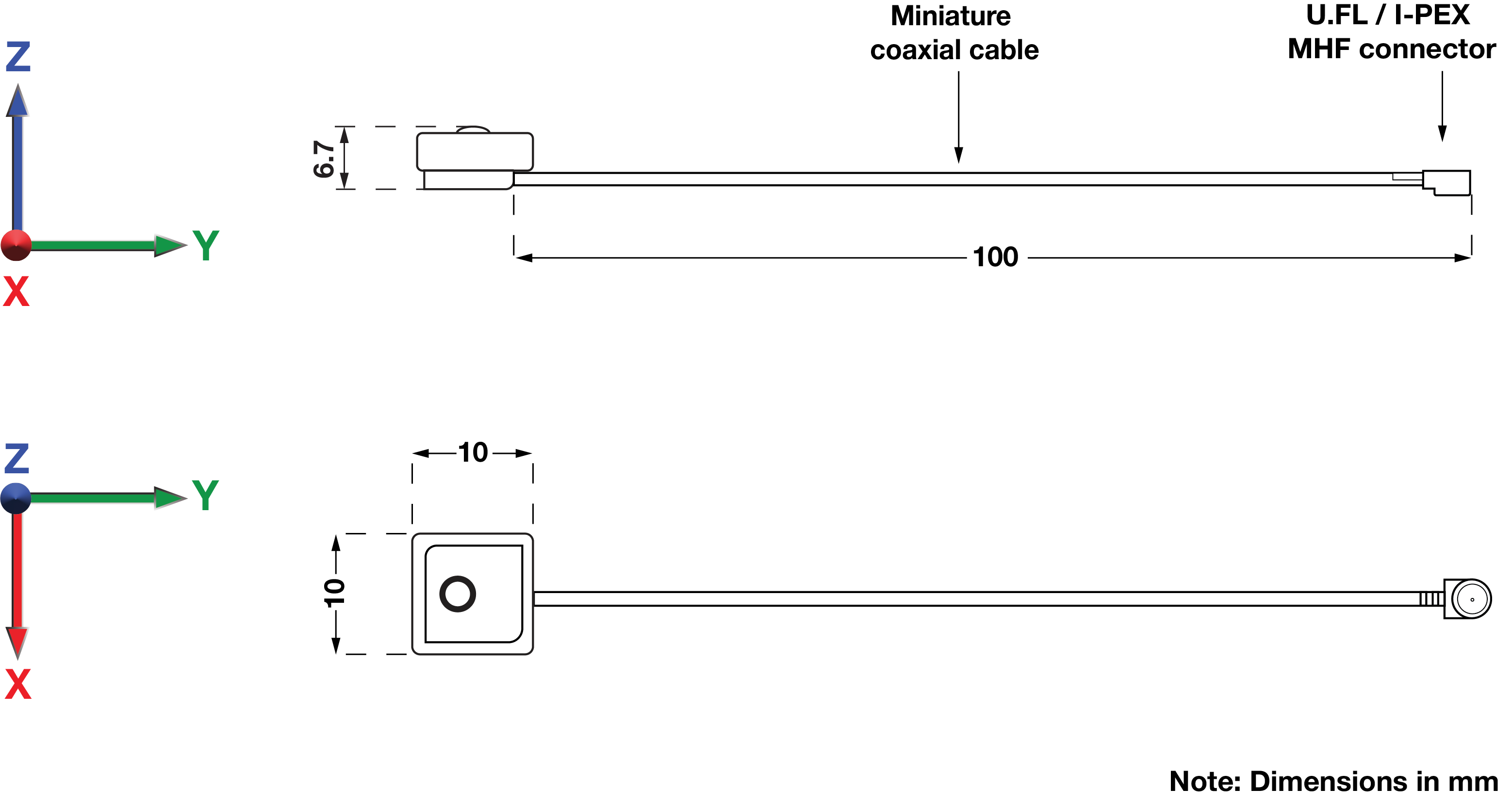

¶ Mechanical Specifications
| Dimensions: | 10 × 10 × 6.7 mm |
| Weight: | 3 g |
| Cable Type: | 1.13 mm coax |
| Cable Length: | 100 mm |
| Connector: | U.FL/I-PEX |
| Mounting Method: | Embedded |

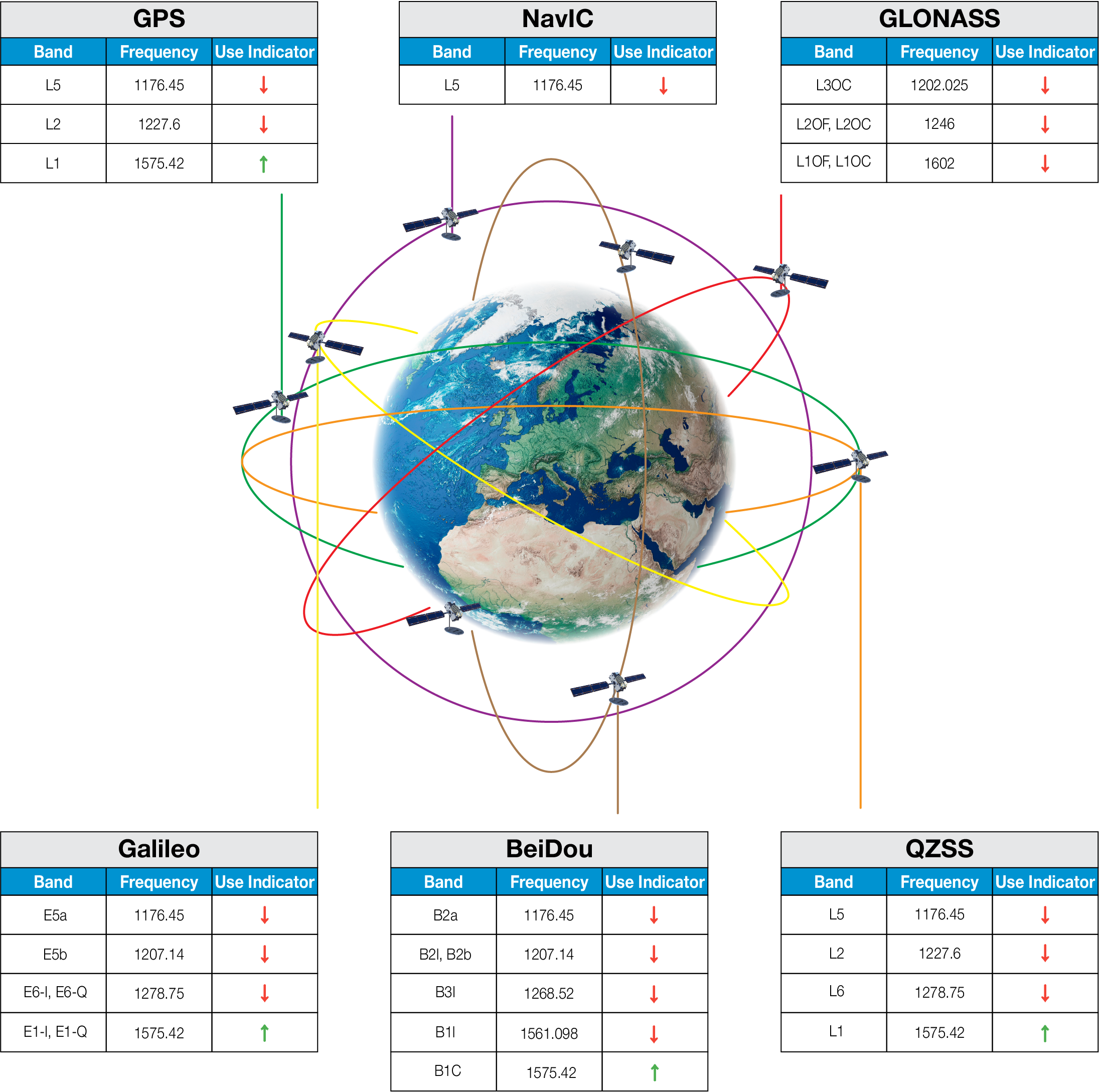

¶ Spectrum Coverage*
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |
¶ GNSS Standards Band Support
| Electrical Interface | Spherical RF Measurements | |||
|---|---|---|---|---|
| Centre Frequency (MHz) | VSWR | Return Loss (dB) | Average RHCP Gain (dBiC) | Peak RHCP Gain (dBiC) |
| 1575.42 | 1.9116 | -10.0864 | 11.16 | 16.52 |
| Top Hemisphere RF Measurements | Zenith RF Measurements | ||
|---|---|---|---|
| Centre Frequency (MHz) | Average RHCP Gain (dBiC) | Peak RHCP Gain (dBiC) | RHCP Gain at Zenith (dBiC) |
| 1575.42 | 13.31 | 16.52 | 12.75 |

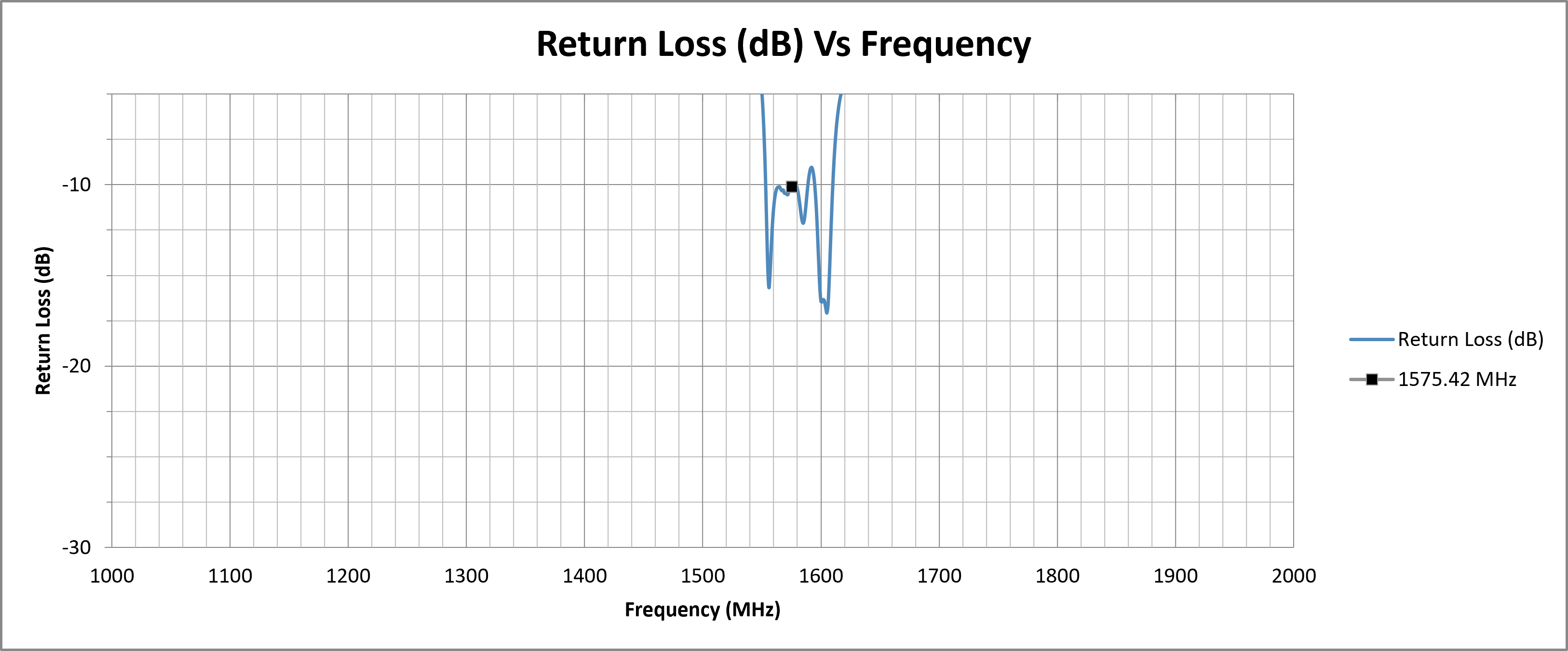

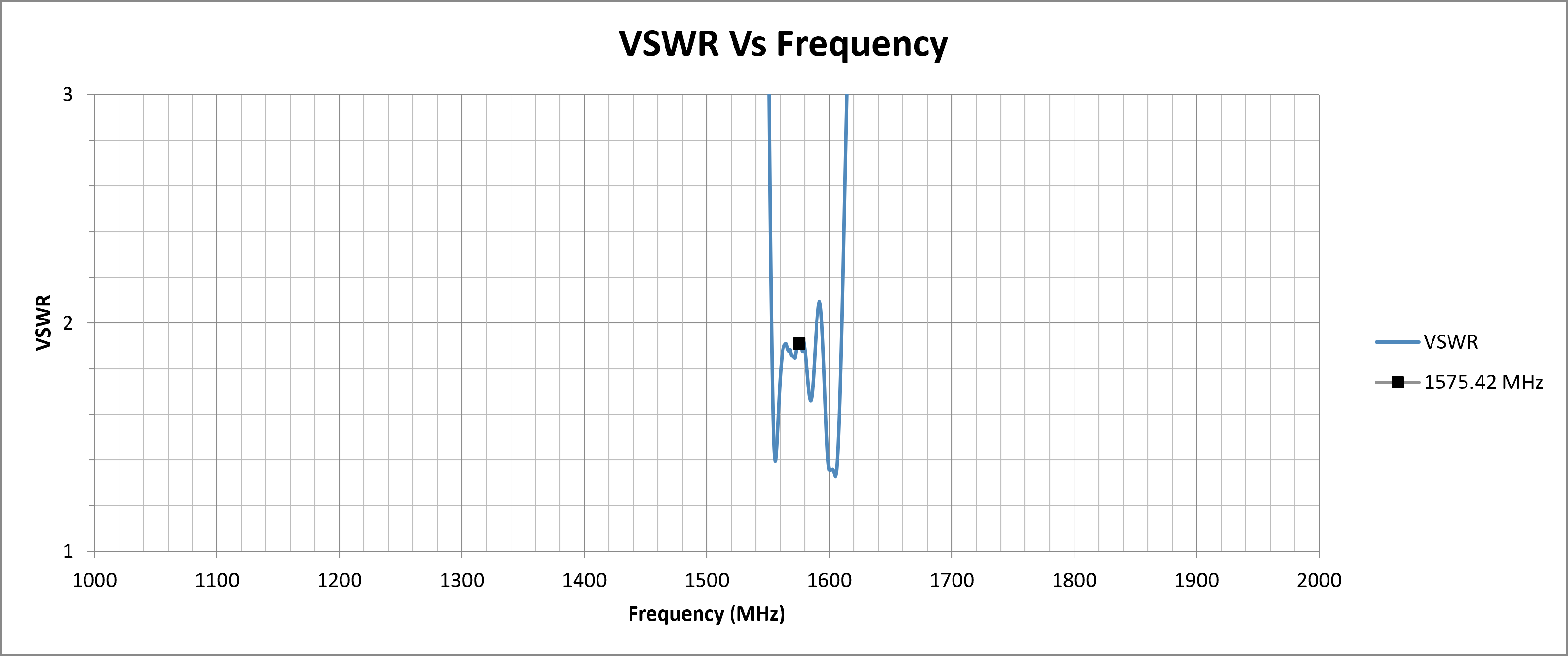

¶ RF Matching Performance
This section illustrates the antenna's impedance matching characteristics across the operating frequency range using VSWR and Return Loss measurements.

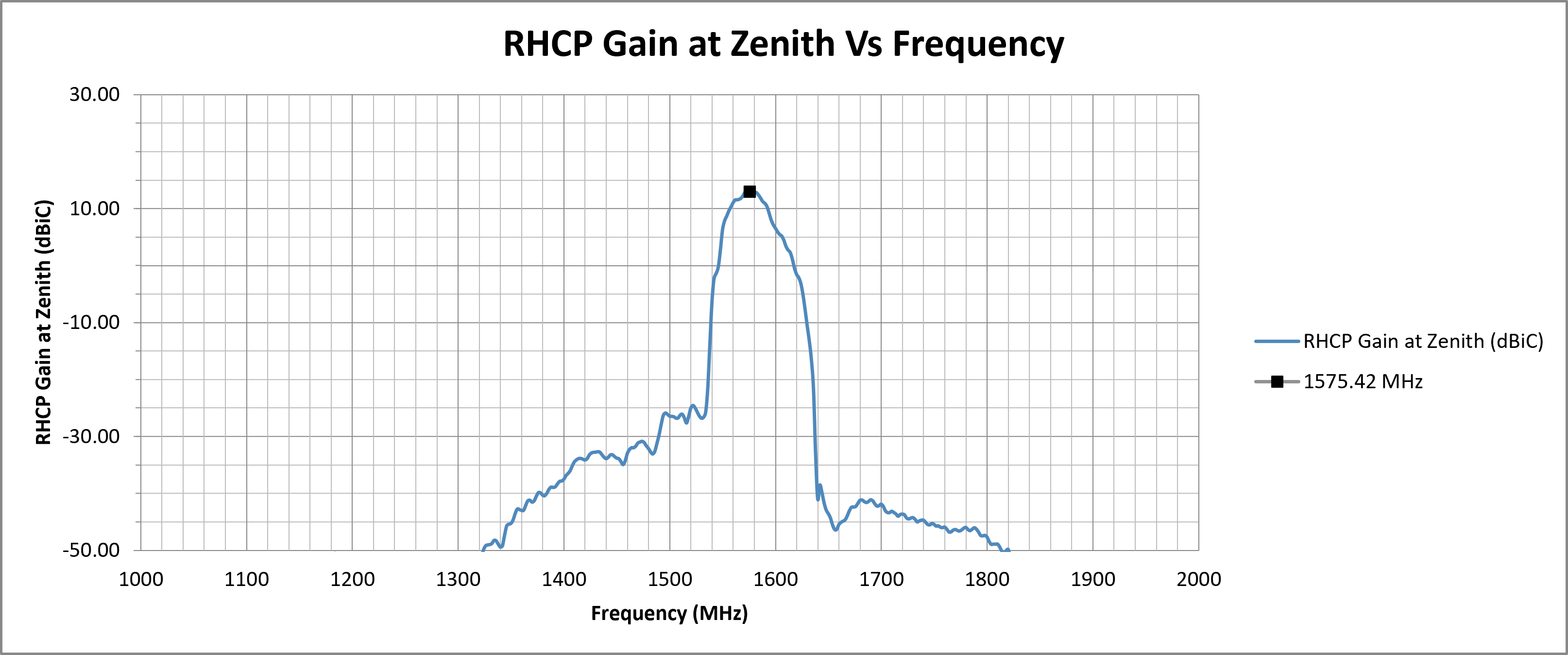

¶ RF Zenith

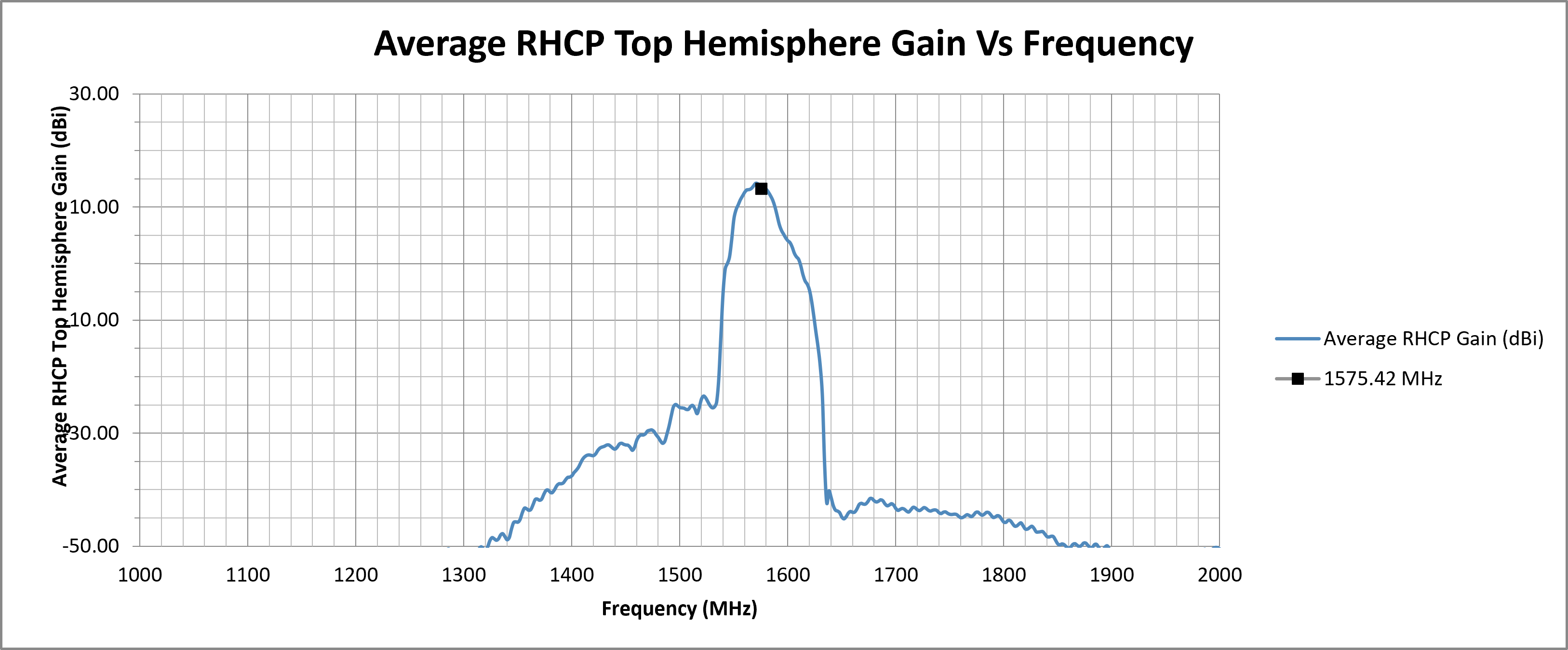

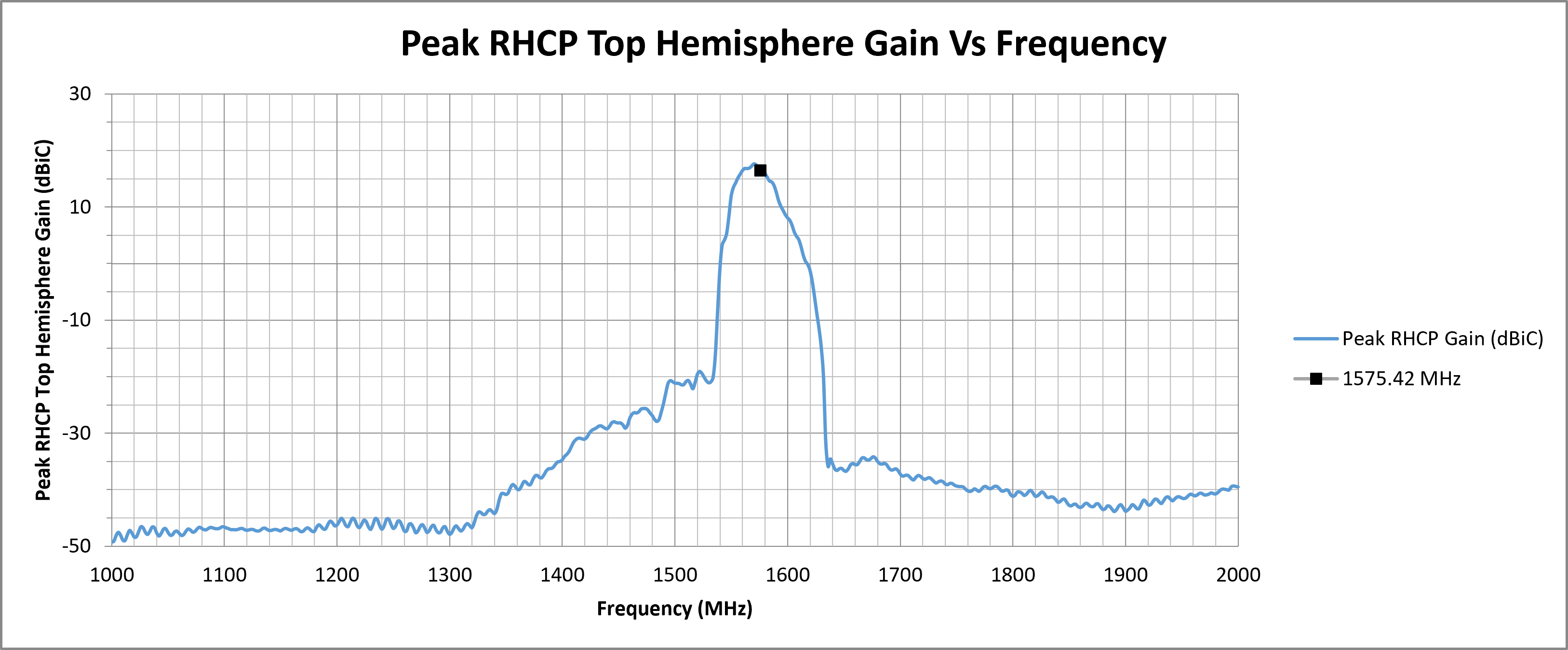

¶ RF Top Hemisphere

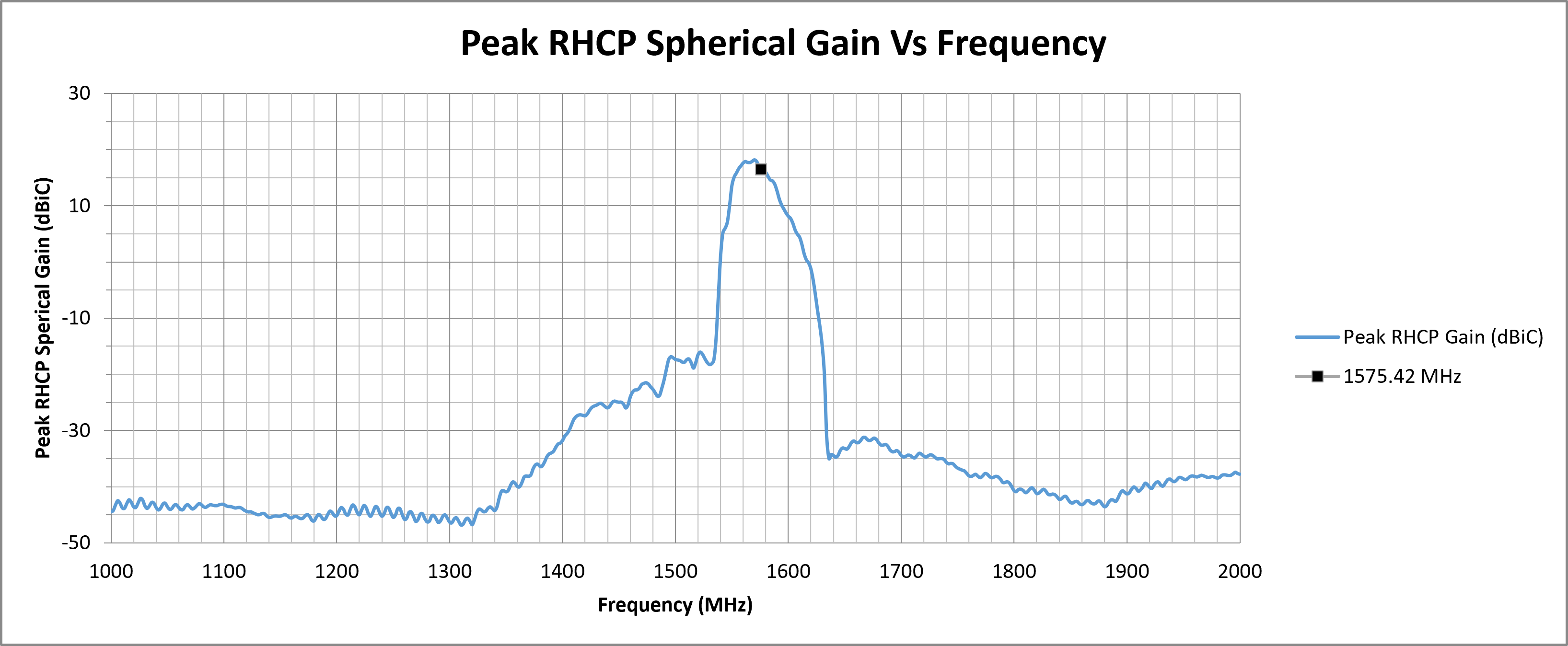

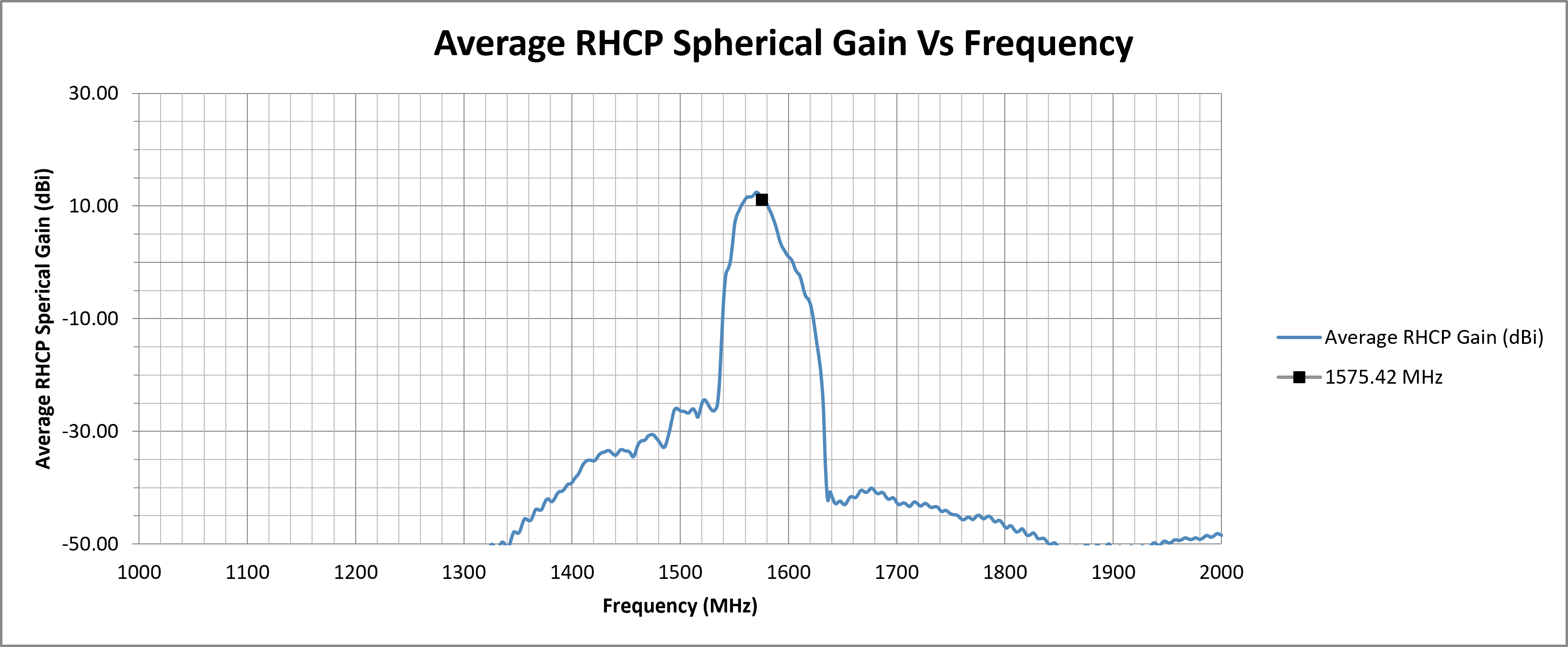

¶ RF Spherical
The following graphs display the Average and Peak RHCP Gain across the entire spherical coverage of the antenna. These metrics provide a comprehensive view of the antenna’s ability to receive signals from satellites at all elevations and directions.
Consistently high gain across the sphere ensures strong and stable GNSS reception in a variety of operating conditions.

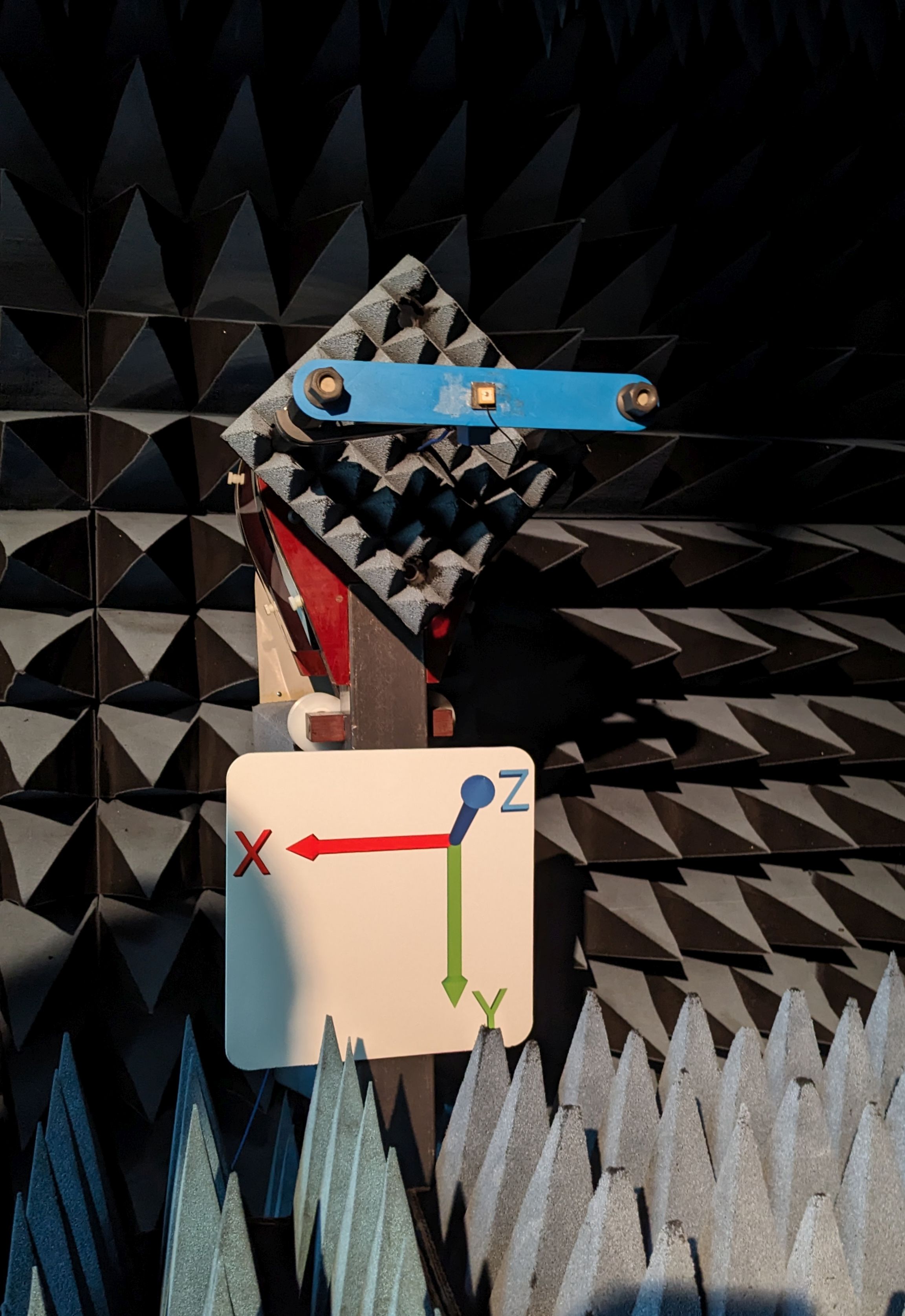

¶ Test Setup (in Free Space)

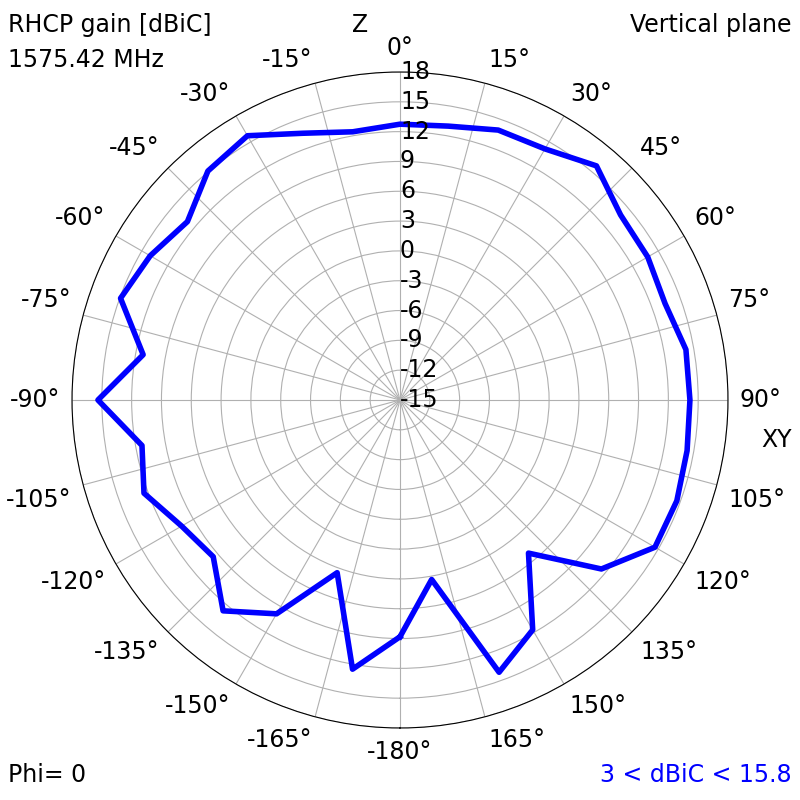

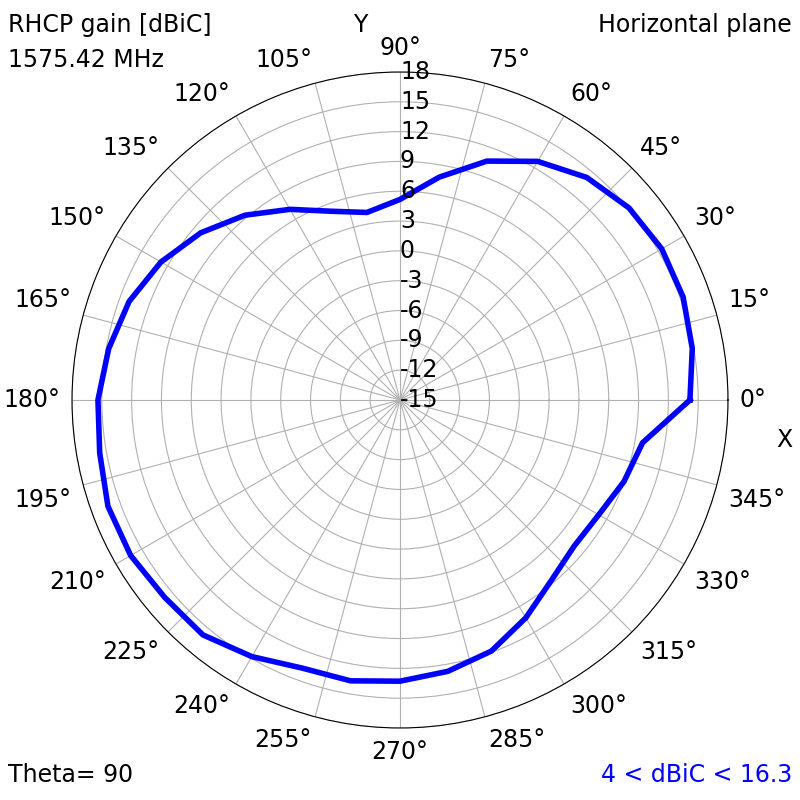

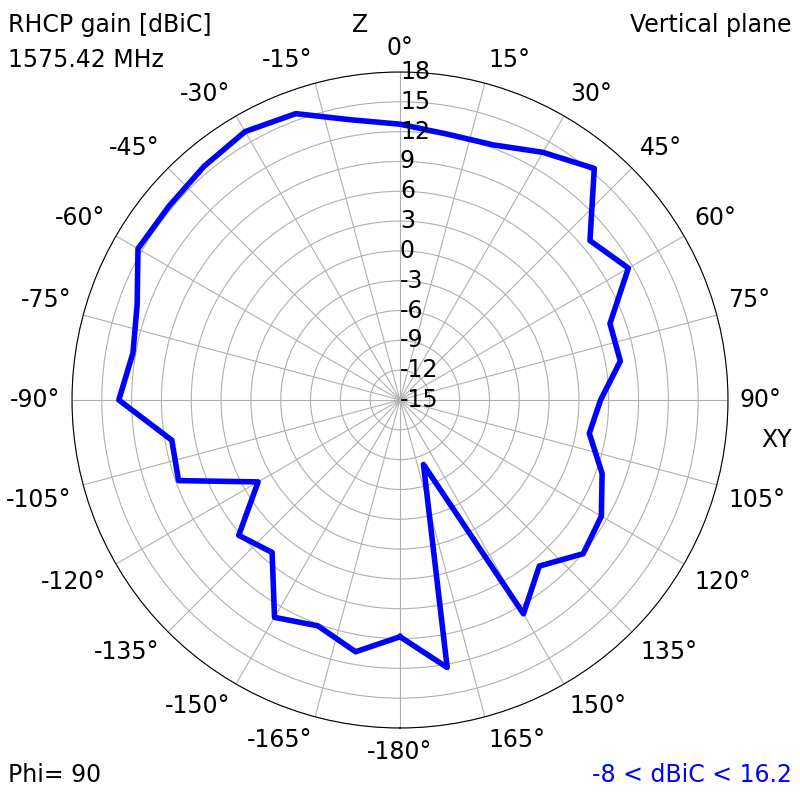

¶ 2D Radiation Plots (1575.42 MHz)
|
|
|

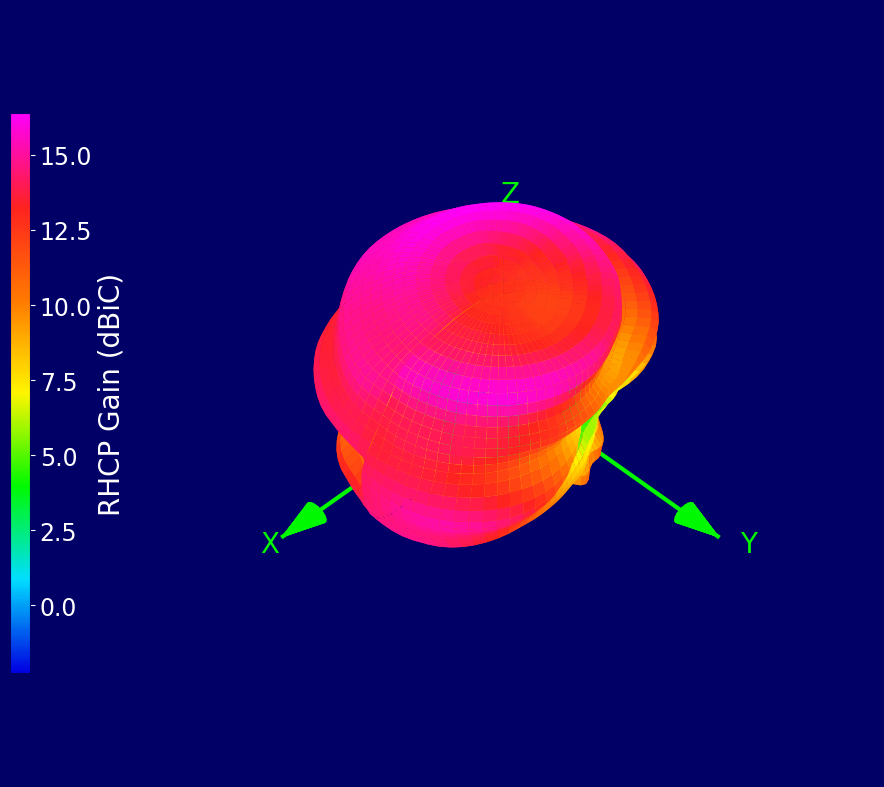

¶ 3D Radiation Plots (1575.42 MHz)
¶ Ordering Details
| Part Number | Description |
|---|---|
| ECHO19/0.1M/UFL/S/S/17 |
10 x 10 mm Active Ceramic Patch GPS L1 Embedded Antenna 100 mm Cable and U.FL/I-PEX Connector |
