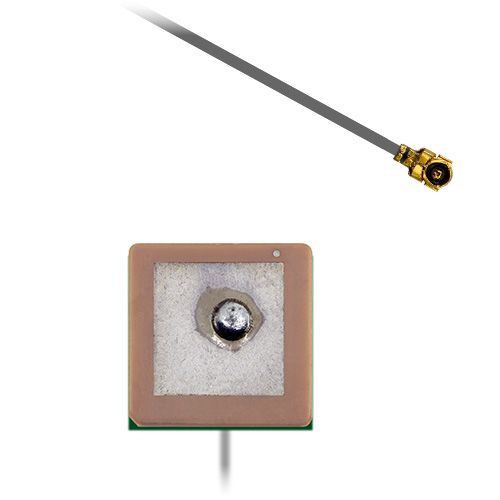

¶ General Description
The Echo 27 is a miniature embedded ceramic patch antenna designed for GPS L1 (1575.42 MHz) applications where space efficiency is critical.Despite its compact 15 mm footprint, the Echo 27 delivers strong performance with RHCP gain of 24 dBiC, ensuring reliable reception and fast satellite acquisition. The integrated LNA boosts sensitivity while maintaining low noise, providing stable operation even in challenging environments.
Its small size, efficient design, and low power consumption make it ideally suited to portable, low-power, and space-constrained GPS devices.
Supplied as standard with 100mm coax cable and terminated with a U.FL/I-PEX connector. Alternative cable lengths and connector types can be fitted for volume requirements.
¶ Key Features
- GPS L1 band support (1575.42 MHz)
- 24 dBiC RHCP gain
- Compact 15 × 15 × 7.45 mm embedded form factor
- Low voltage, low current design for power-sensitive devices
- Ceramic filter to suppress out-of-band noise
¶ Typical Applications
- IoT and asset tracking devices
- UAVs and drones
- Portable GNSS receivers
- Compact navigation modules
- Wearable GPS equipment
|
GPS
L1 Antenna
|
UAV Optimised
Ideal for Aerial Platforms
|
RHCP Gain
24 dBiC
|
Embedded
Installation
|
Active
Integrated LNA
|
¶ Electrical Specifications
| Impedance: | 50 Ω |
| Polarisation: | RHCP |
| Frequency Range: | 1575.42 MHz |
| Return Loss: | −10 dB |
| VSWR: | < 2 |
| Required Ground Plane: | 70 x 70 mm |
| Peak RHCP Gain Top Hemisphere: |
24.15 dBiC |
| LNA Gain: | 27 dB |
| Noise Figure: | 1.5 dB typ. |
| Supply Voltage: | 2.3 – 5.5 V DC |
| Current Consumption: | 6.6 – 16 mA |
¶ Environmental Specifications
| Operating Temperature Range: | −40 °C to 90 °C |
| Storage Temperature Range: | −40 °C to 90 °C |
| Relative Humidity: | 10 – 95% |

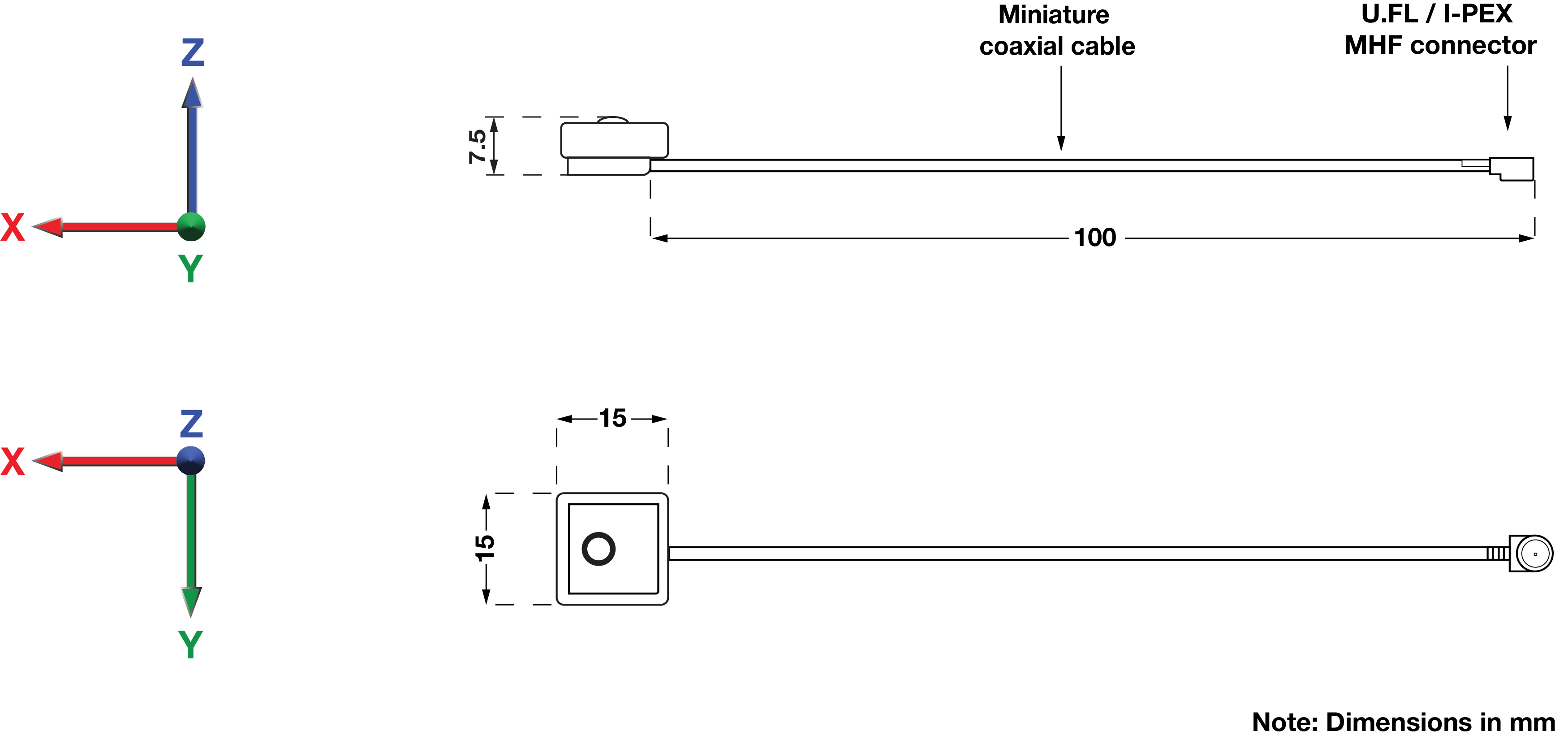

¶ Mechanical Specifications
| Dimensions: | 15 × 15 × 7.45 mm |
| Weight: | 6 g |
| Cable Type: | 1.13 mm coax |
| Cable Length: | 100 mm |
| Connector: | U.FL/I-PEX |
| Mounting Method: | Embedded |

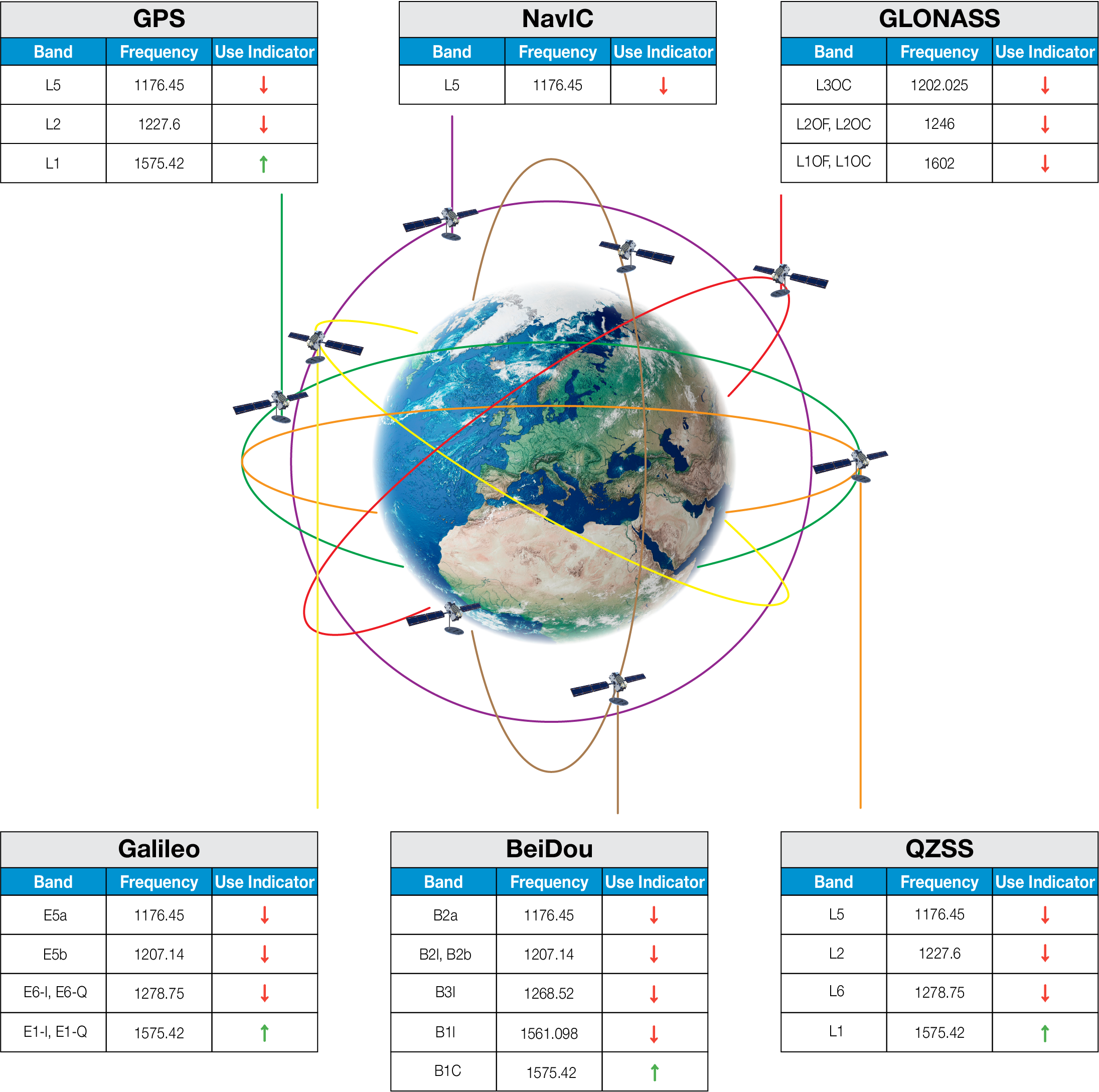

¶ Spectrum Coverage*
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |
¶ GNSS Standards Band Support
| Electrical Interface | Spherical RF Measurements | |||
|---|---|---|---|---|
| Centre Frequency (MHz) | VSWR | Return Loss (dB) | Average RHCP Gain (dBiC) | Peak RHCP Gain (dBiC) |
| 1575.42 | 1.9245 | -10.0040 | 15.91 | 24.15 |
| Top Hemisphere RF Measurements | Zenith RF Measurements | ||
|---|---|---|---|
| Centre Frequency (MHz) | Average RHCP Gain (dBiC) | Peak RHCP Gain (dBiC) | RHCP Gain at Zenith (dBiC) |
| 1575.42 | 19.56 | 24.15 | 23.36 |

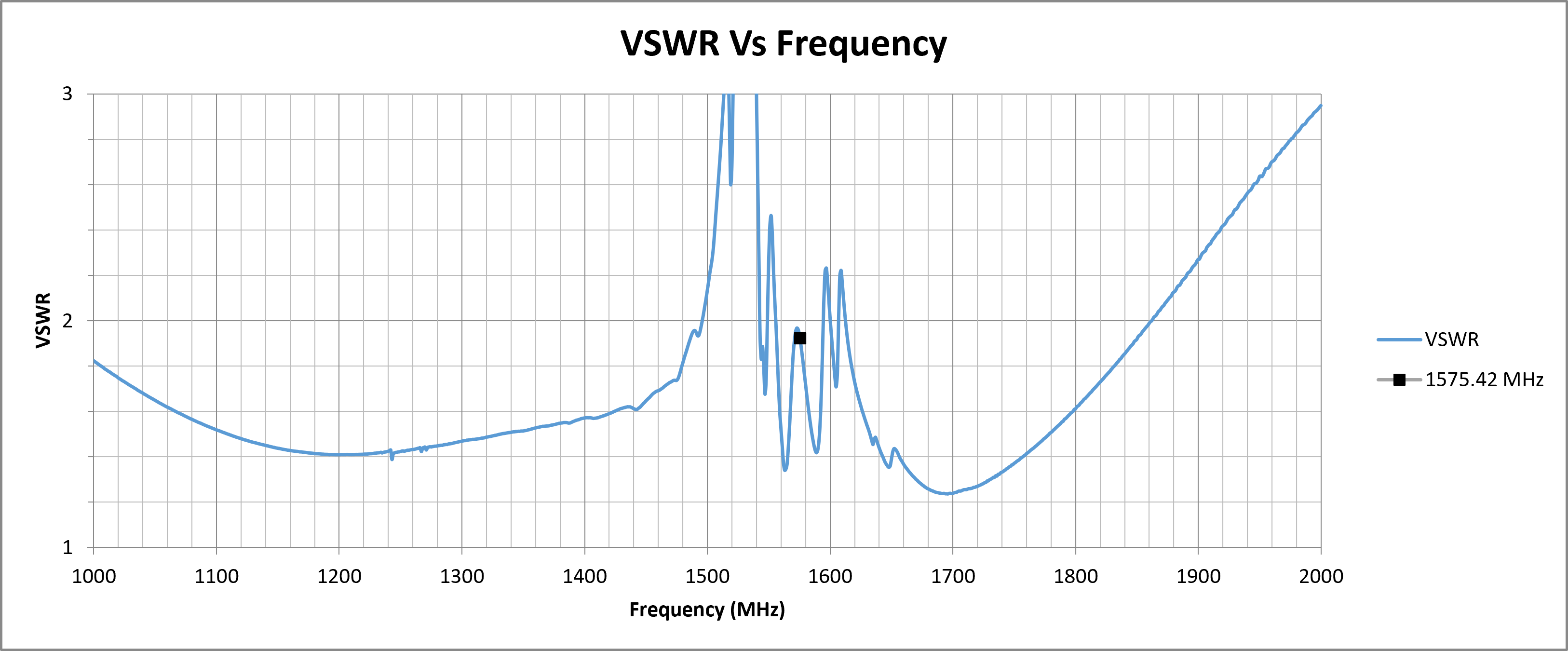

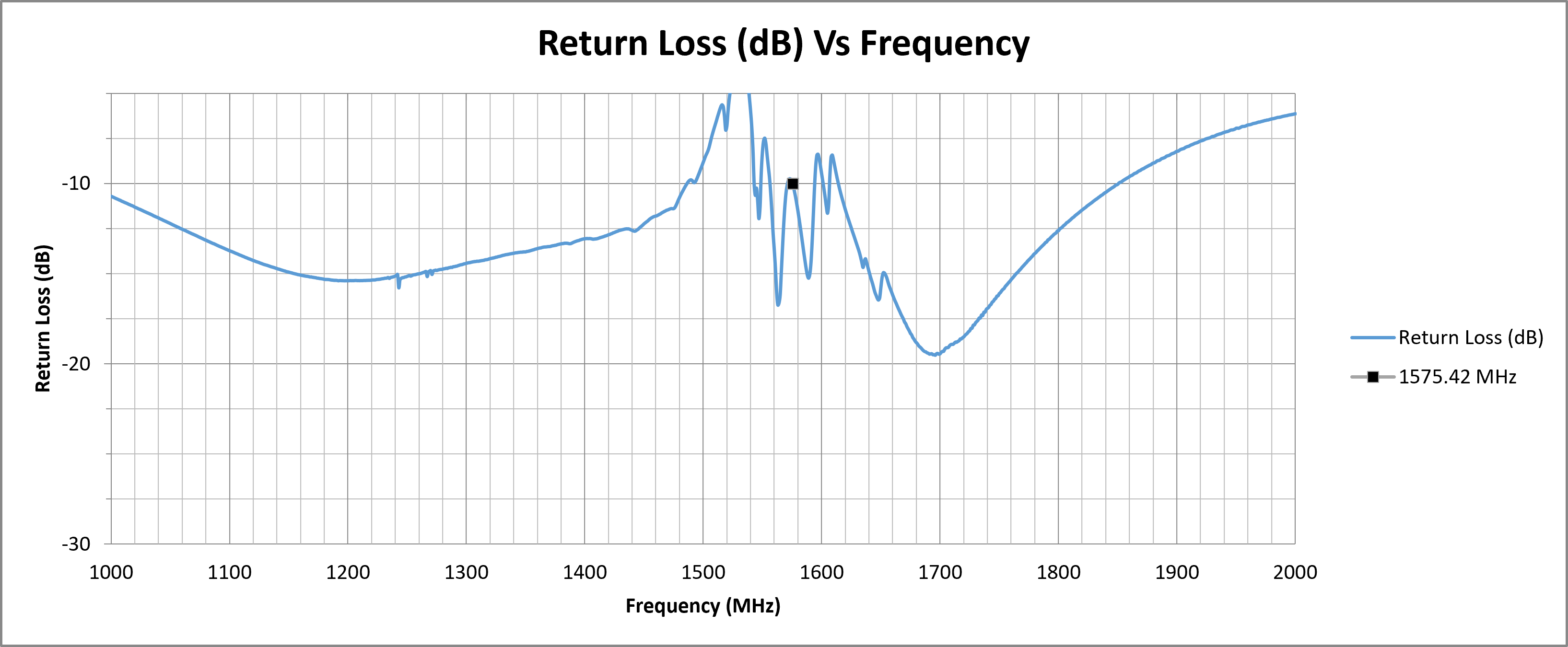

¶ RF Matching Performance
This section illustrates the antenna's impedance matching characteristics across the operating frequency range using VSWR and Return Loss measurements.

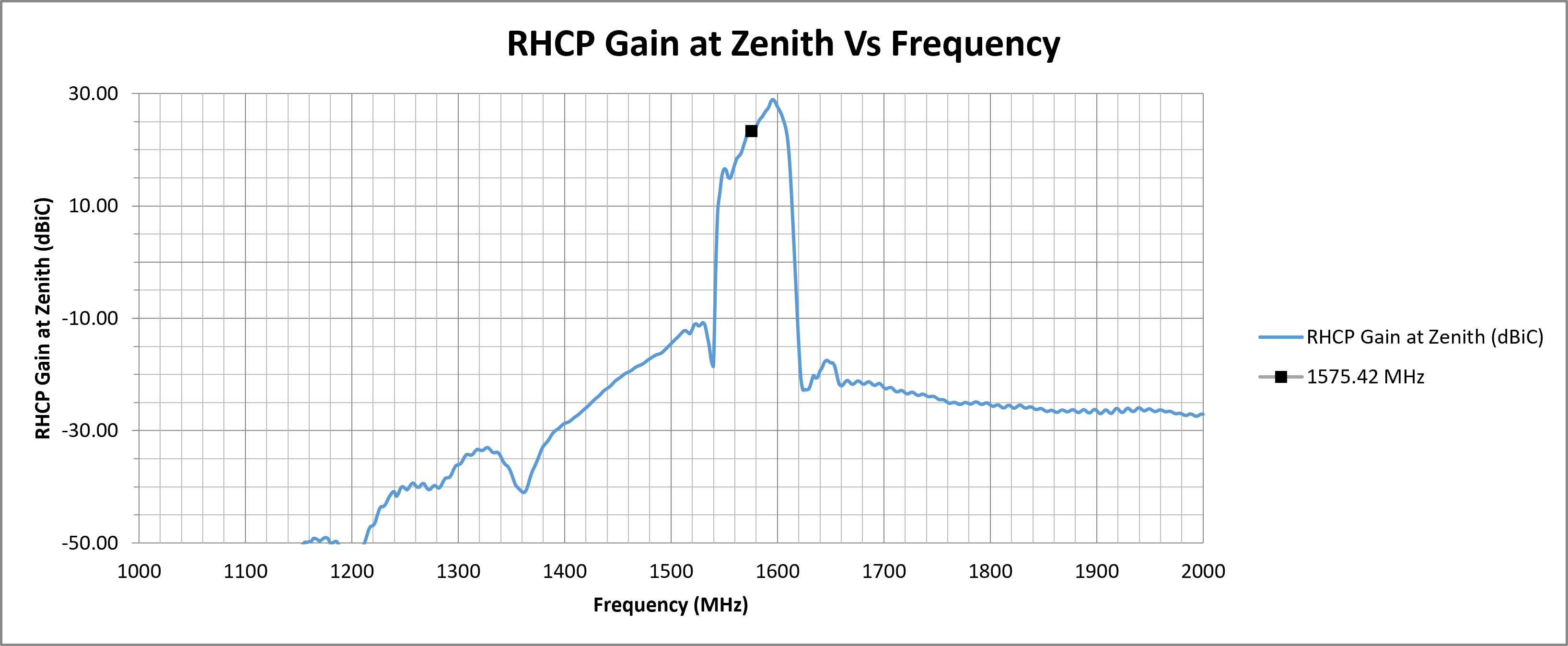

¶ RF Zenith

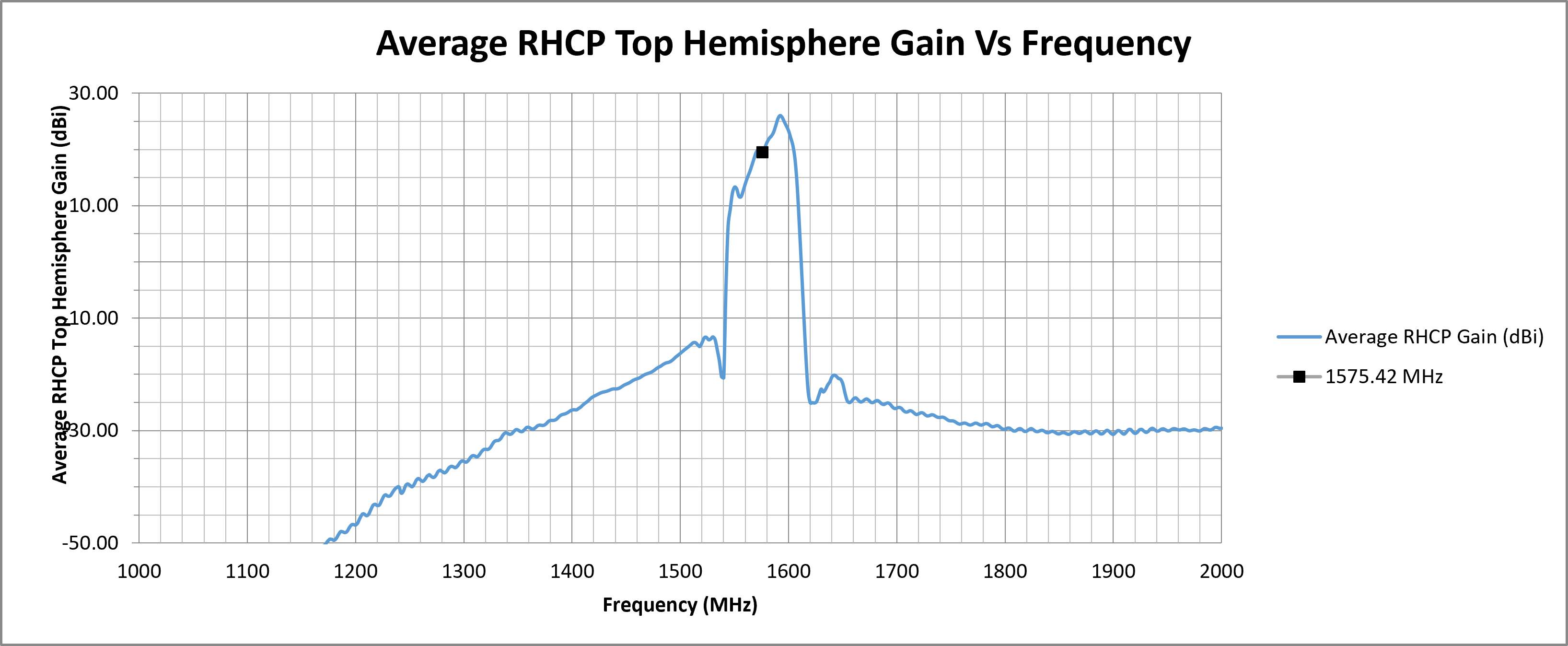

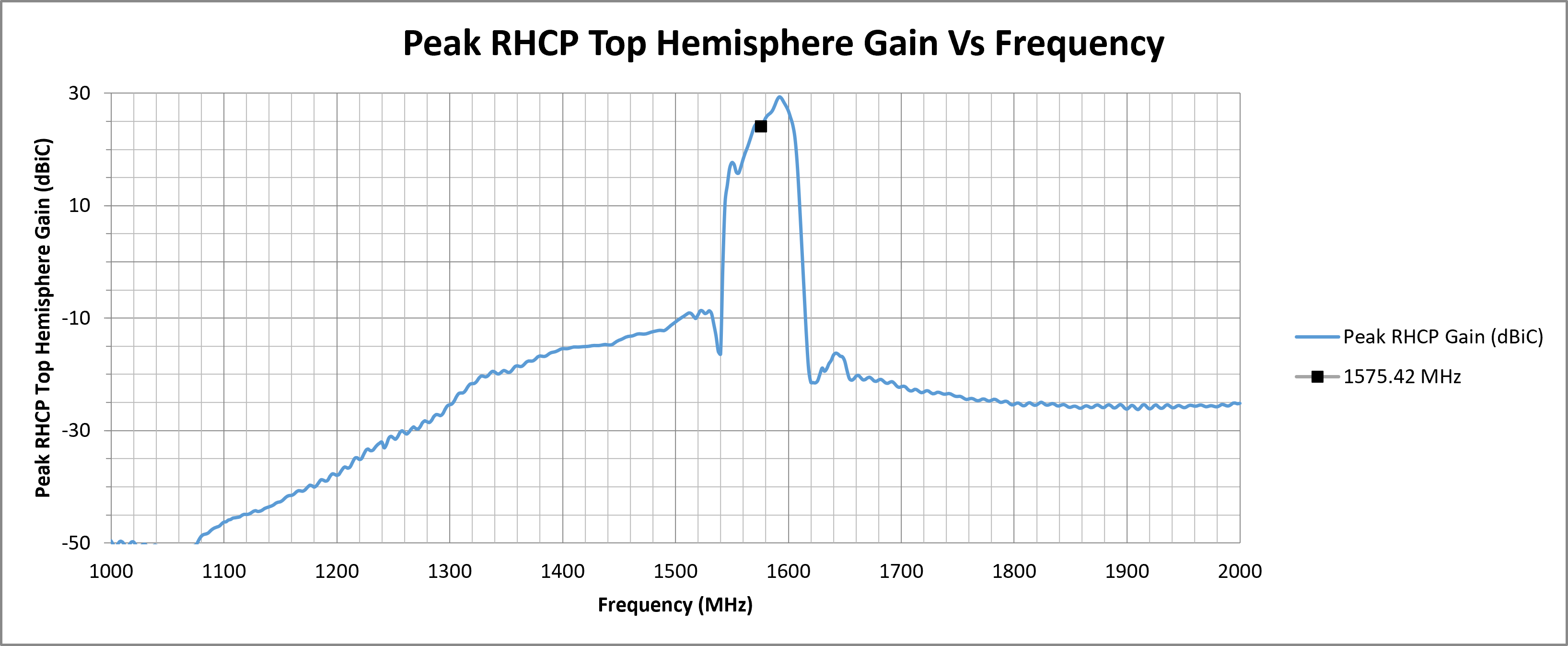

¶ RF Top Hemisphere

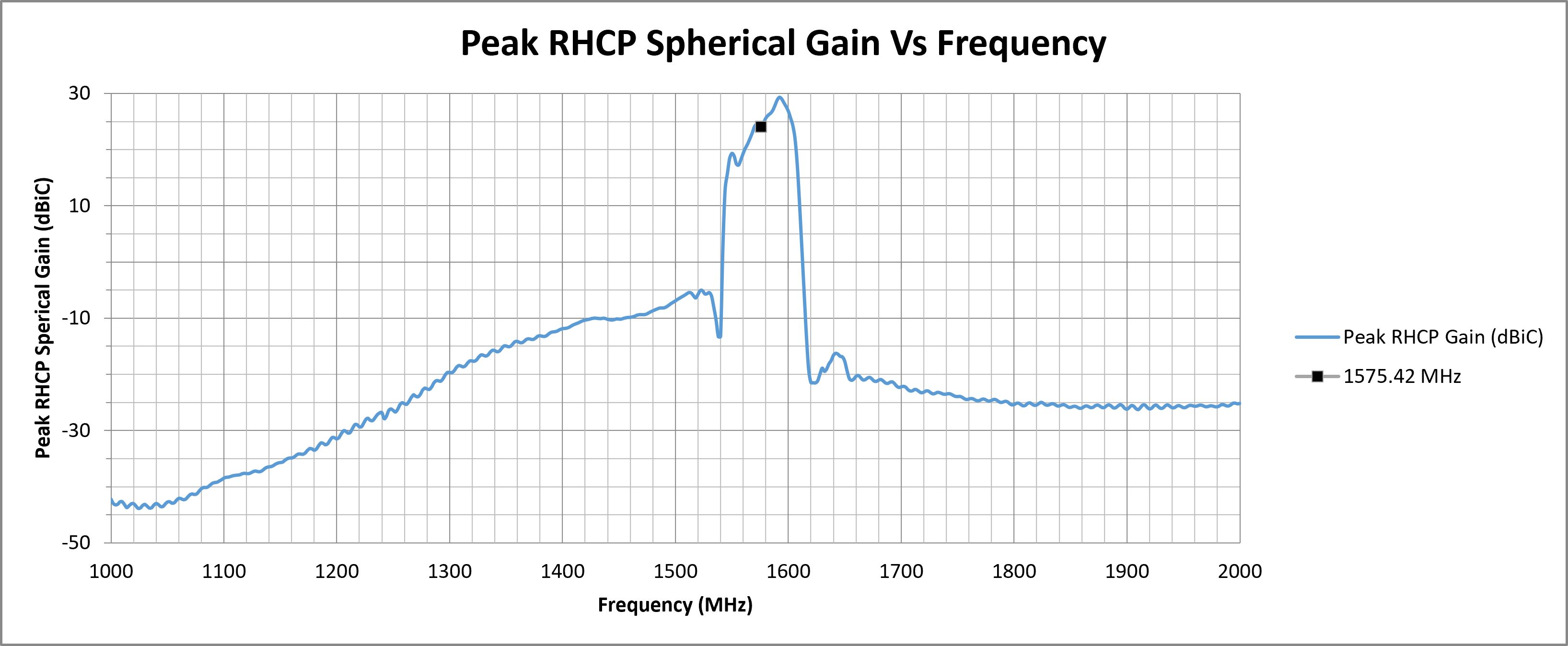

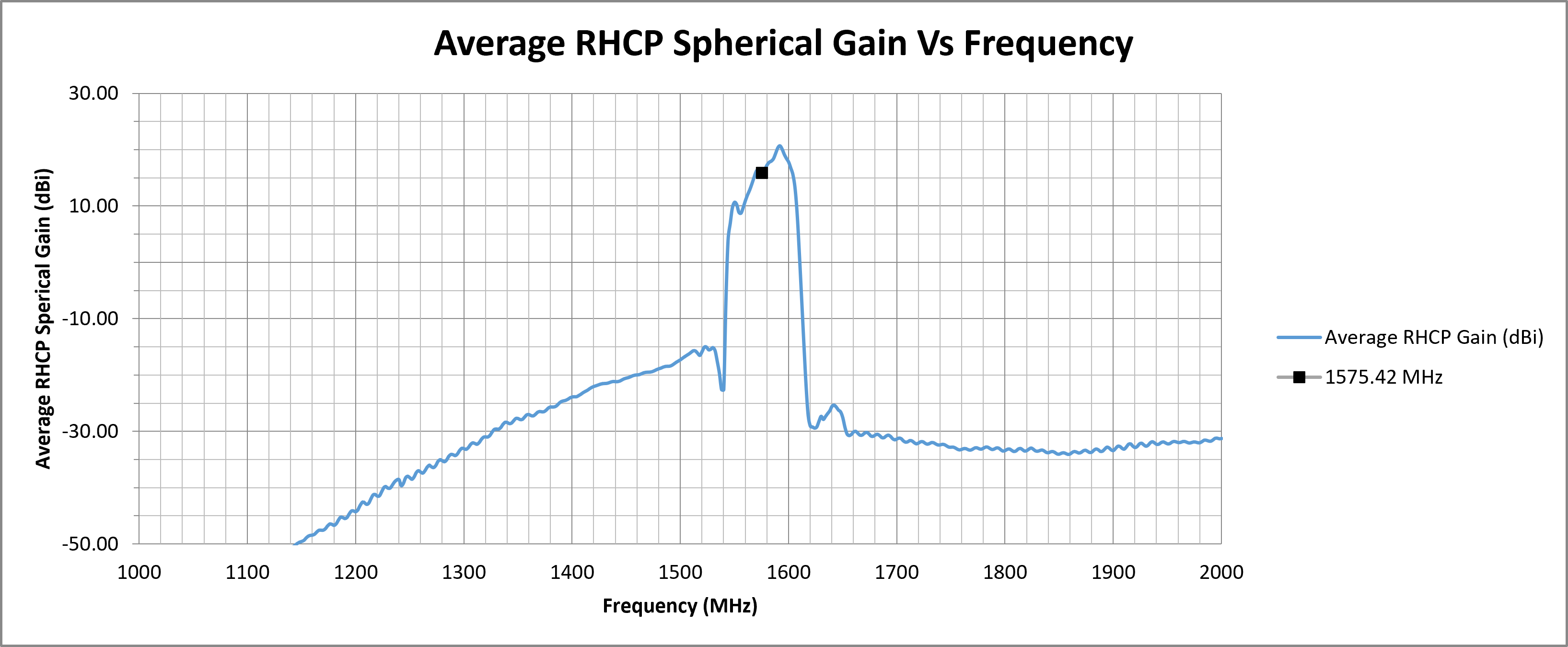

¶ RF Spherical
The following graphs display the Average and Peak RHCP Gain across the entire spherical coverage of the antenna. These metrics provide a comprehensive view of the antenna’s ability to receive signals from satellites at all elevations and directions.
Consistently high gain across the sphere ensures strong and stable GNSS reception in a variety of operating conditions.

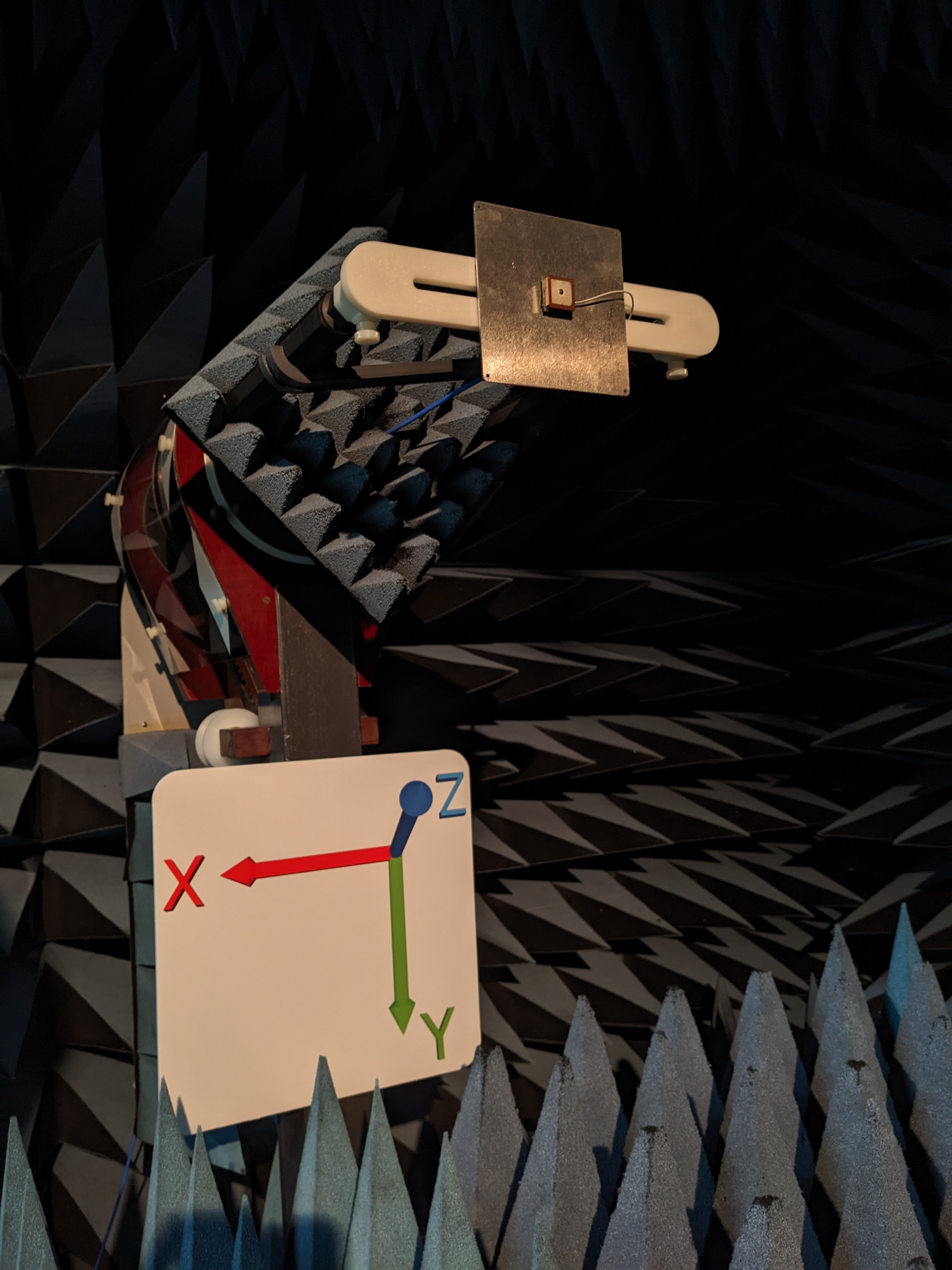

¶ Test Setup (on 100 x 100 mm Ground Plane)

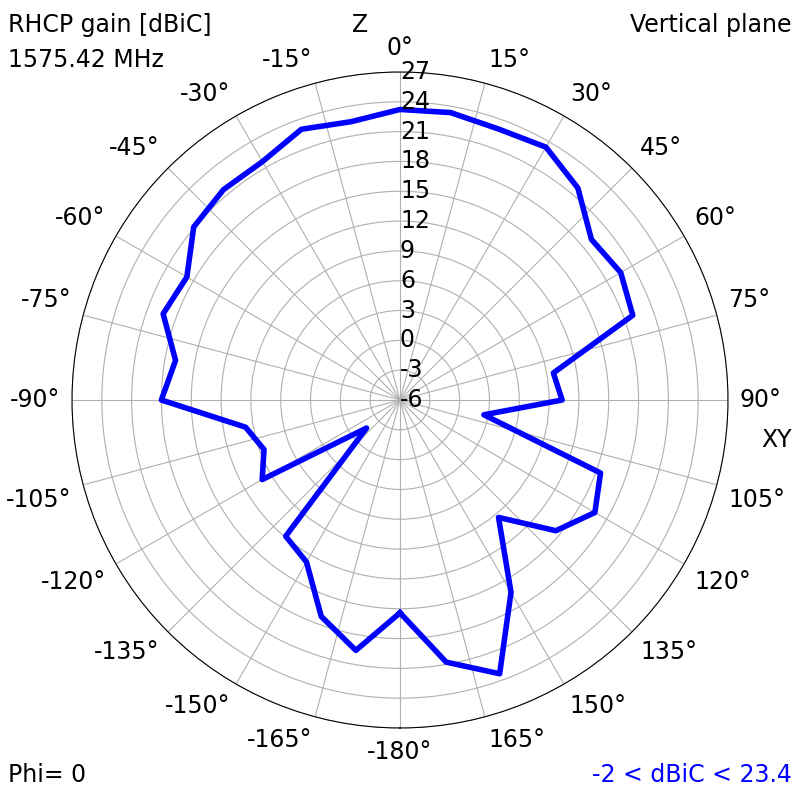

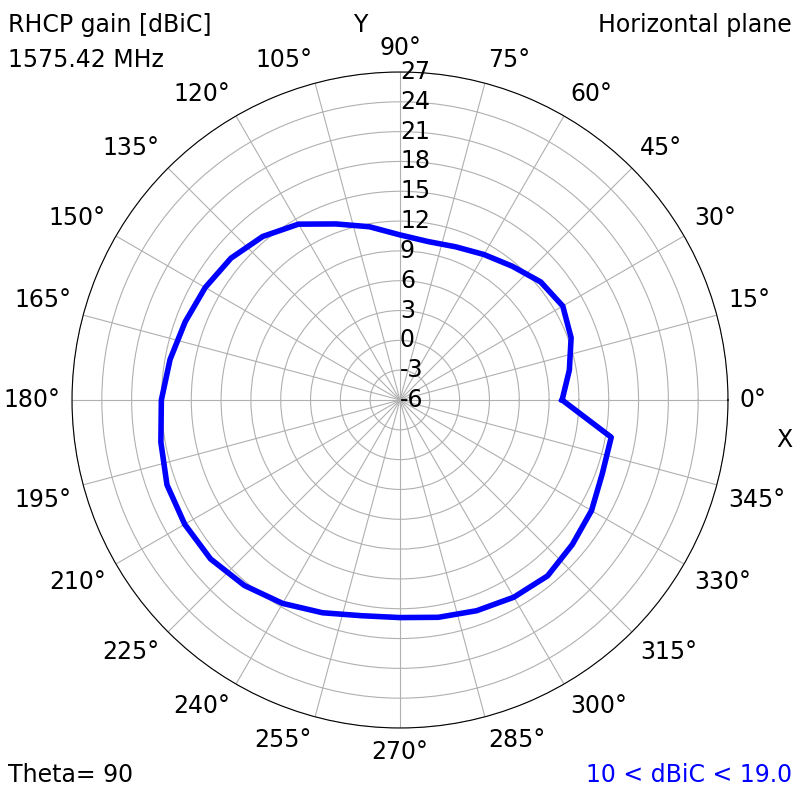

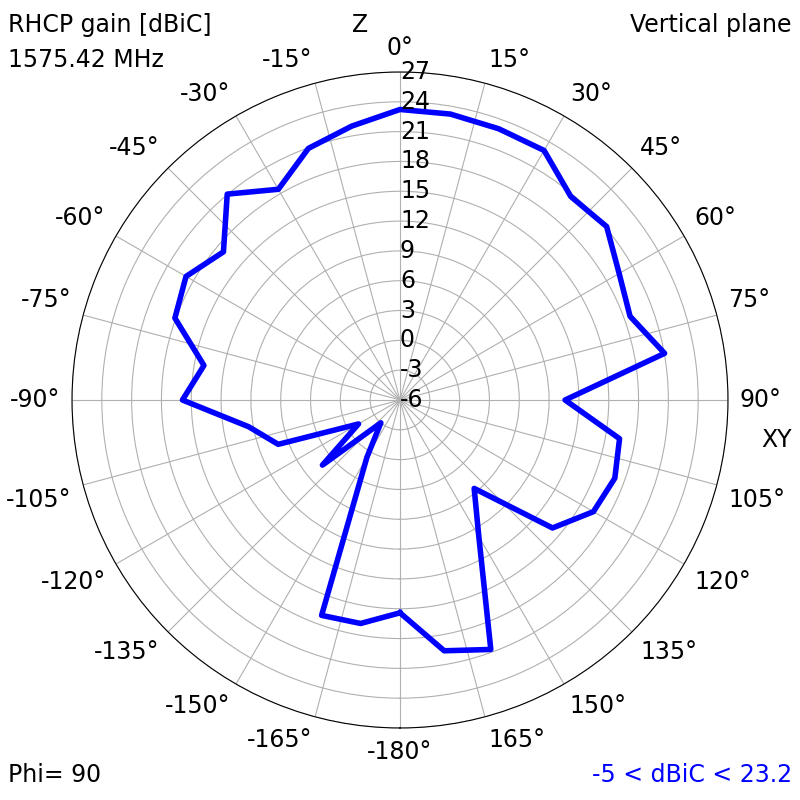

¶ 2D Radiation Plots (1575.42 MHz)
|
|
|

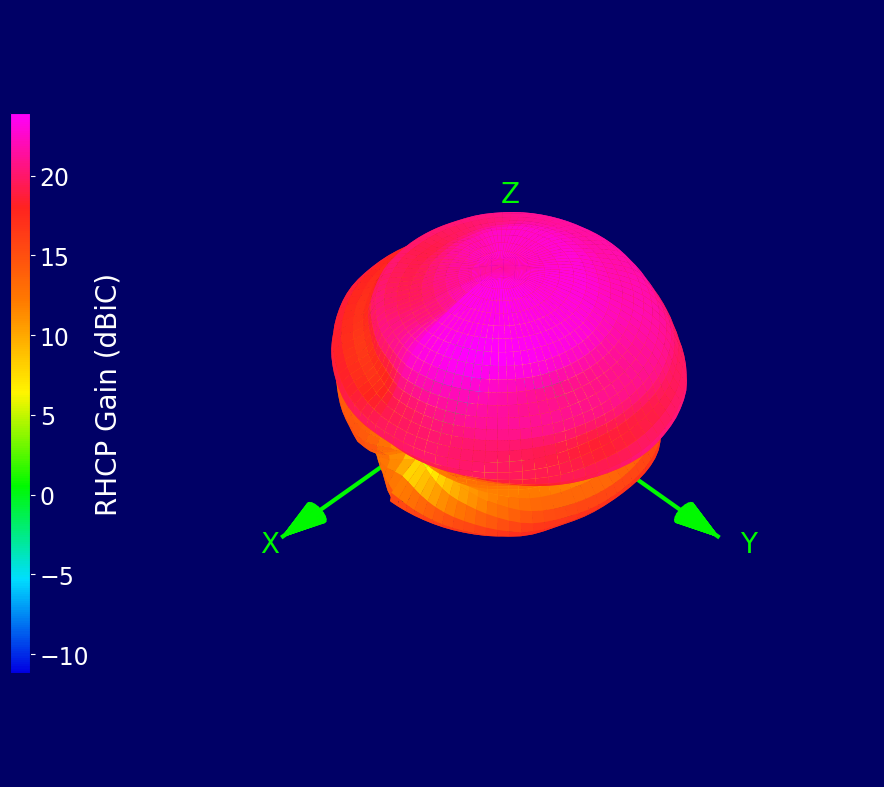

¶ 3D Radiation Plots (1575.42 MHz)
¶ Ordering Details
| Part Number | Description |
|---|---|
| ECHO27/0.1M/IPEX/S/S/15 |
15 x 15 mm Active Ceramic Patch GPS L1 Embedded Antenna 100 mm Cable and U.FL/I-PEX Connector |
