¶ General Description

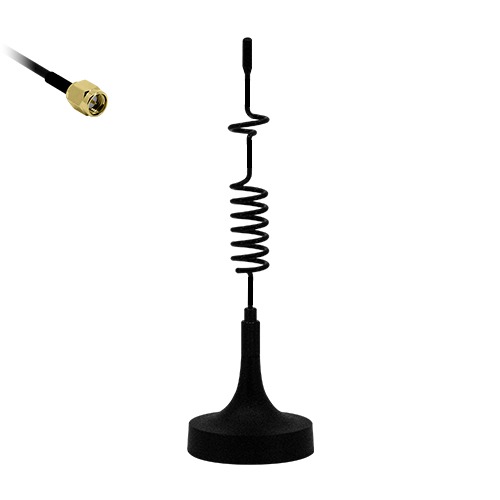

The Mike 2A is a half-wave magnetic-mount whip antenna engineered for reliable long-range sub-GHz wireless communications. Its flexible radiating element provides dependable omnidirectional coverage, while the magnetic base enables rapid installation on metal surfaces without permanent fixing.
Designed for LoRaWAN, proprietary LPWAN and other sub-GHz wireless technologies operating in the 868 MHz and 915 MHz ISM bands, the Mike 2A is ideal for smart metering, telemetry, remote monitoring, asset tracking and industrial IoT systems.
Supplied with either RG174 or low-loss LMR100 cable and SMA Male or FME Female connectors, the Mike 2A integrates easily into a wide range of applications, including vehicles, industrial equipment, control cabinets and other metal surfaces.
¶ Key Features
- Half-wave whip design for reliable sub-GHz wireless communications
- Designed for 868 MHz and 915 MHz ISM band operation
- Magnetic-mount base for fast, non-permanent installation
- Flexible radiating element with omnidirectional coverage
- Available with RG174 or low-loss LMR100 cable and SMA Male or FME Female connectors
¶ Typical Applications
-
Smart utility metering networks
-
Industrial telemetry and SCADA systems
-
Remote environmental and agricultural monitoring
-
Fleet, vehicle and mobile asset communications
-
Long-range wireless gateways and base stations
|
Half-Wave
Whip Design
|
ISM / LPWAN
868 & 915 MHz
|
Industrial IoT
Sub-GHz Wireless
|
Magnetic Mount
Rapid Deployment
|
| Usable Frequency Coverage: | 863 − 928 MHz |
| Impedance: | 50 Ohm |
| Polarisation: | Vertical |
| Average Gain: | |
| 868 MHz: | 1.48 dBi |
| 915 MHz: | 1.13 dBi |
| Average Radiation Efficiency: | |
| 868 MHz: | 49.82% |
| 915 MHz: | 44.96% |
| Max Input Power: | 10 W |
| Required Ground Plane: | Free space |
¶ Environmental Specifications
| Operating Temperature Range: | −40°C to 85°C |
| Storage Temperature Range: | −40°C to 85°C |
¶ Mechanical Specifications

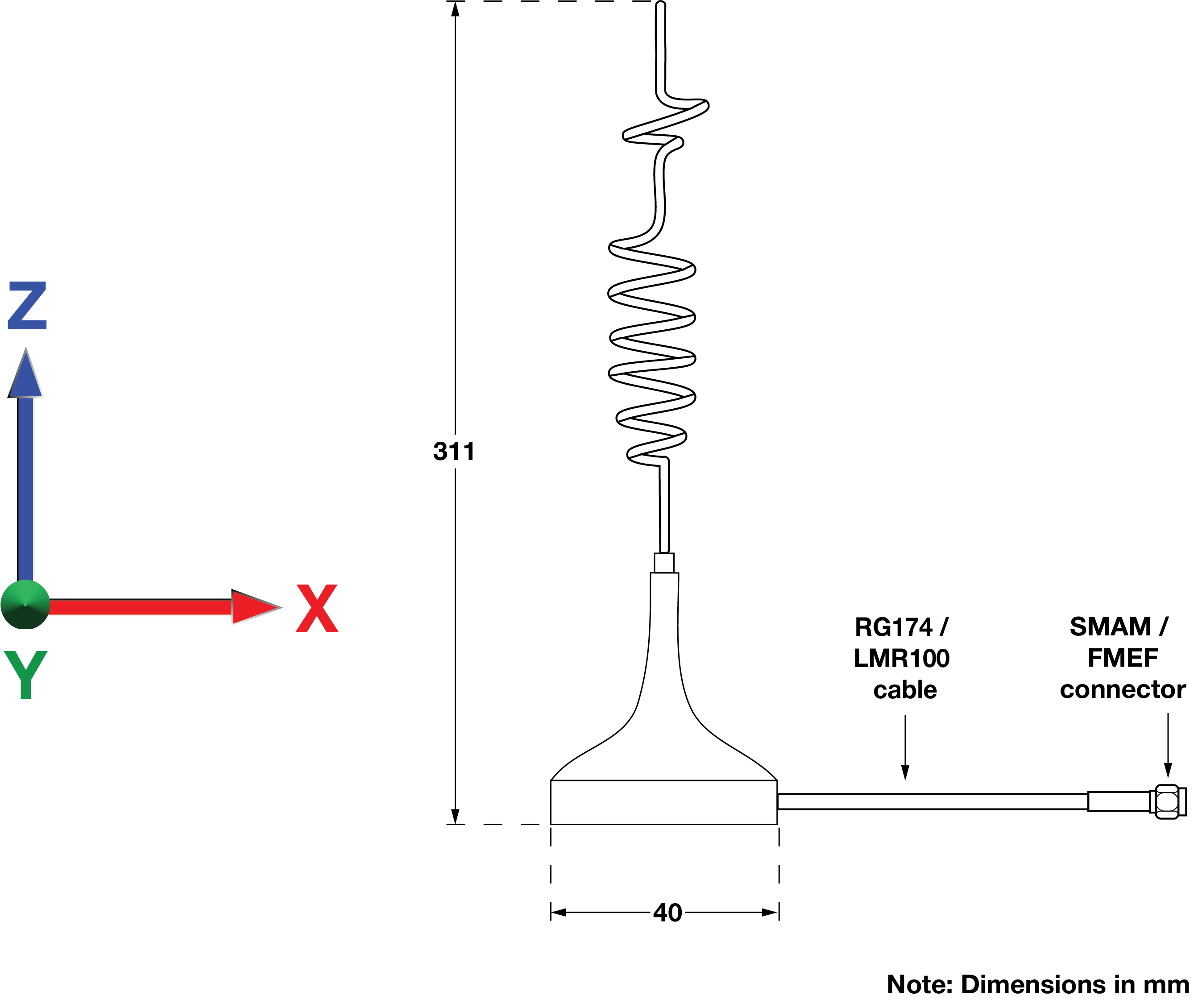

| Dimensions: |
Ø = 40 mm H = 311 mm |
| Weight: | 4.8 g |
| Cable: | RG174 or low-loss LMR100 |
| Connector: |
SMA Male / FME Female |
| Mounting Method: | Magnetic |
| Housing Material: | ABS |
¶ Spectrum Coverage*

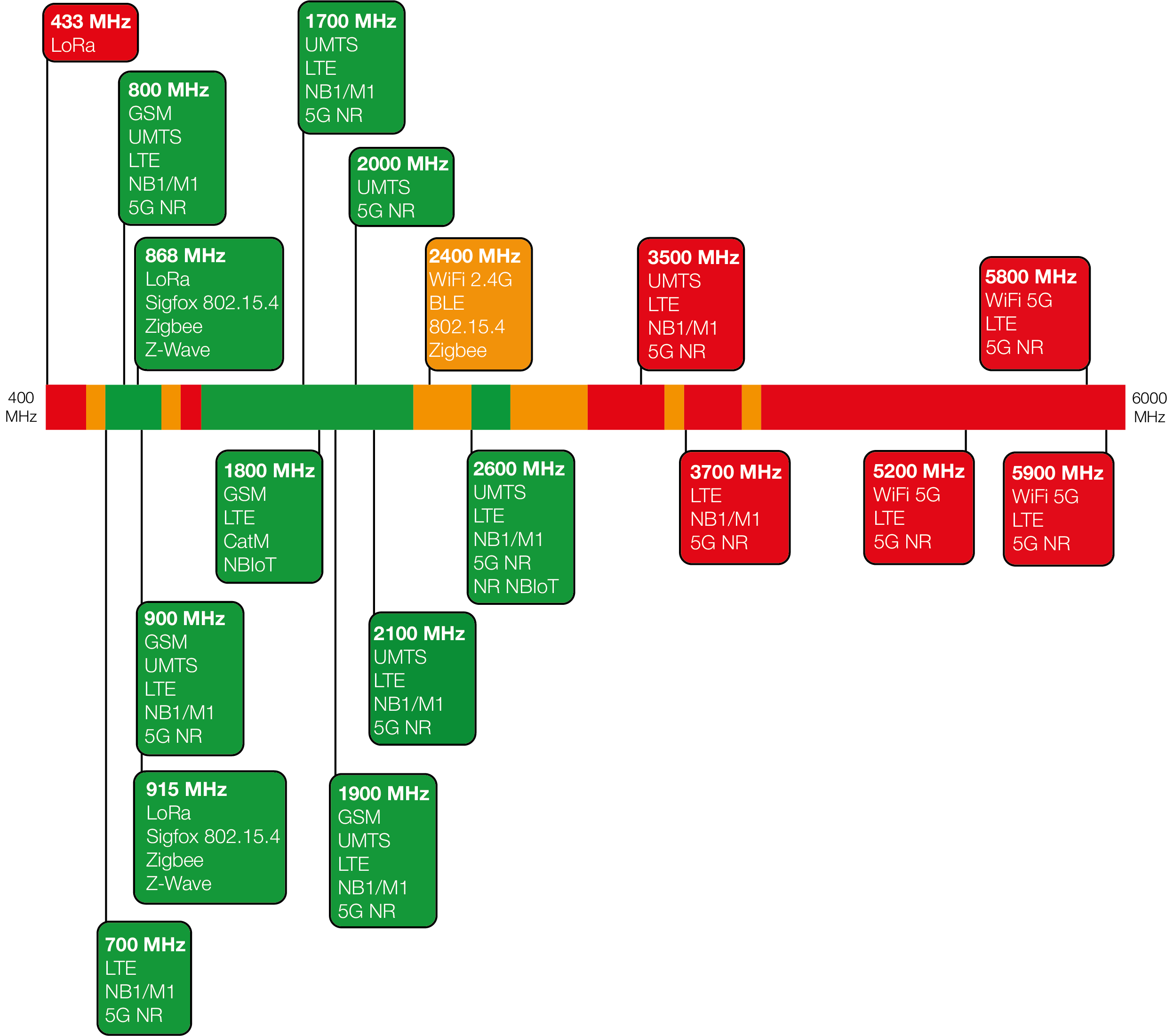

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency, taking into consideration the VSWR and radiated efficiency of the antenna.
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

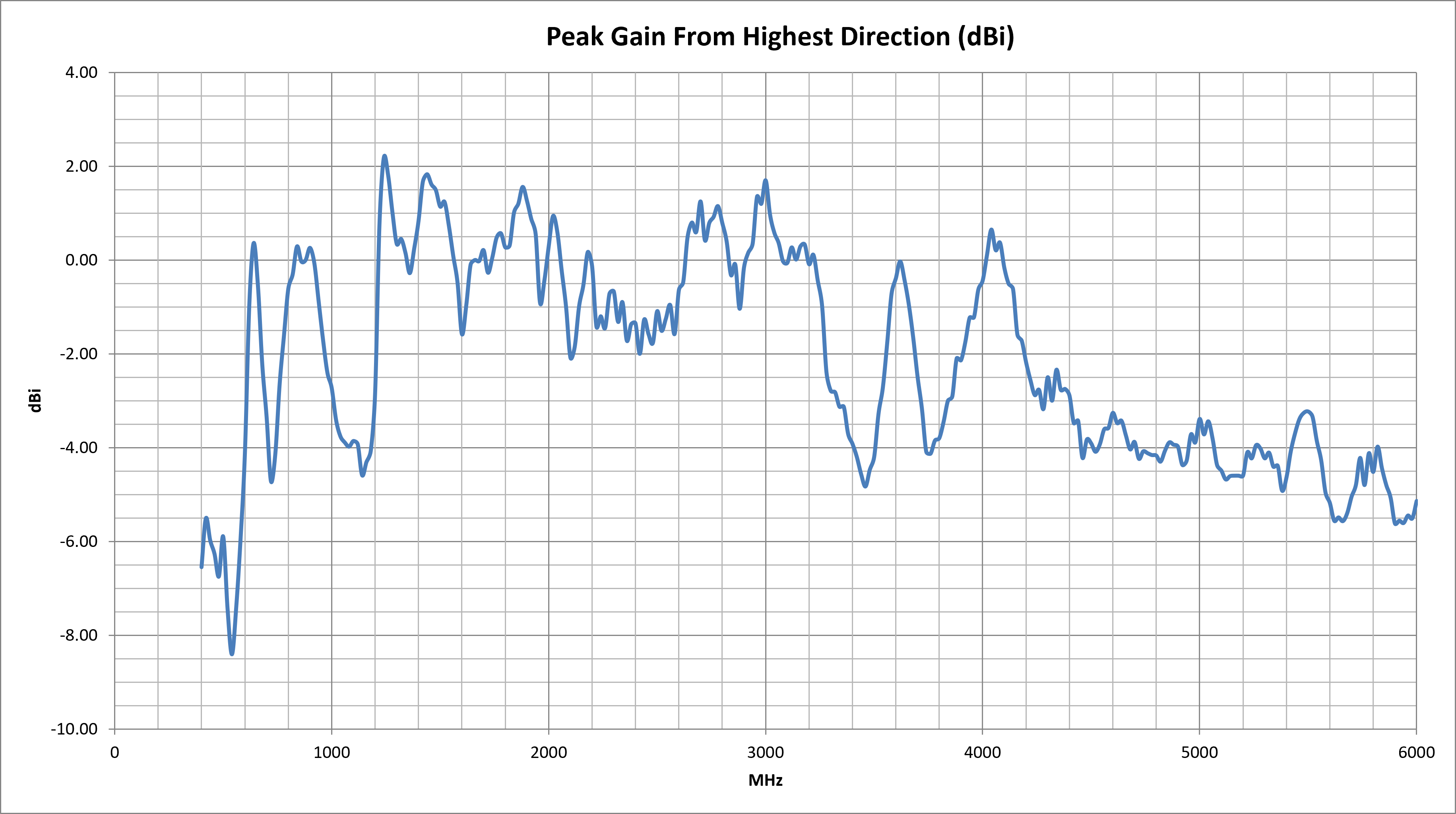

¶ Peak Gain vs. Frequency

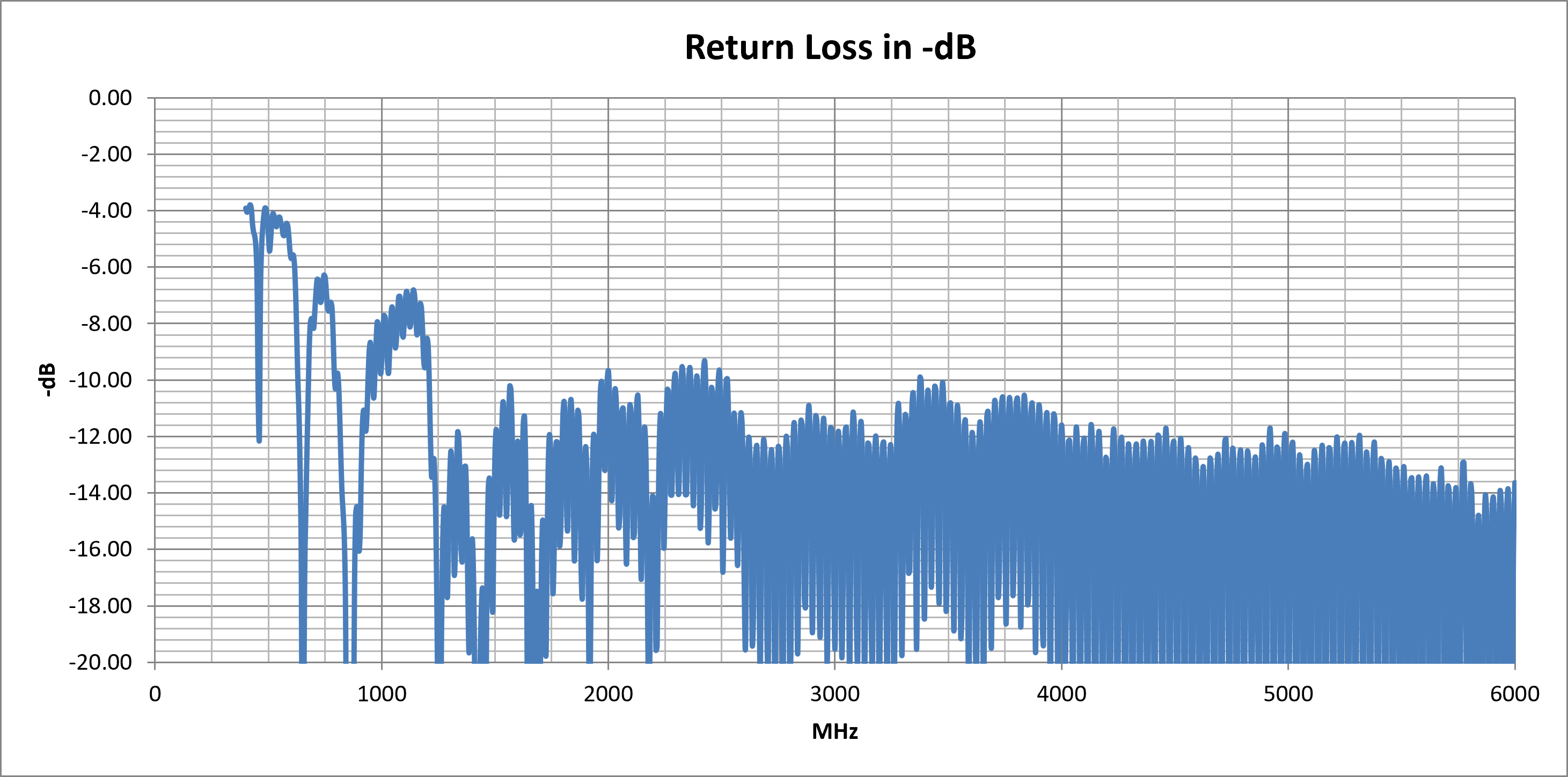

¶ Return Loss

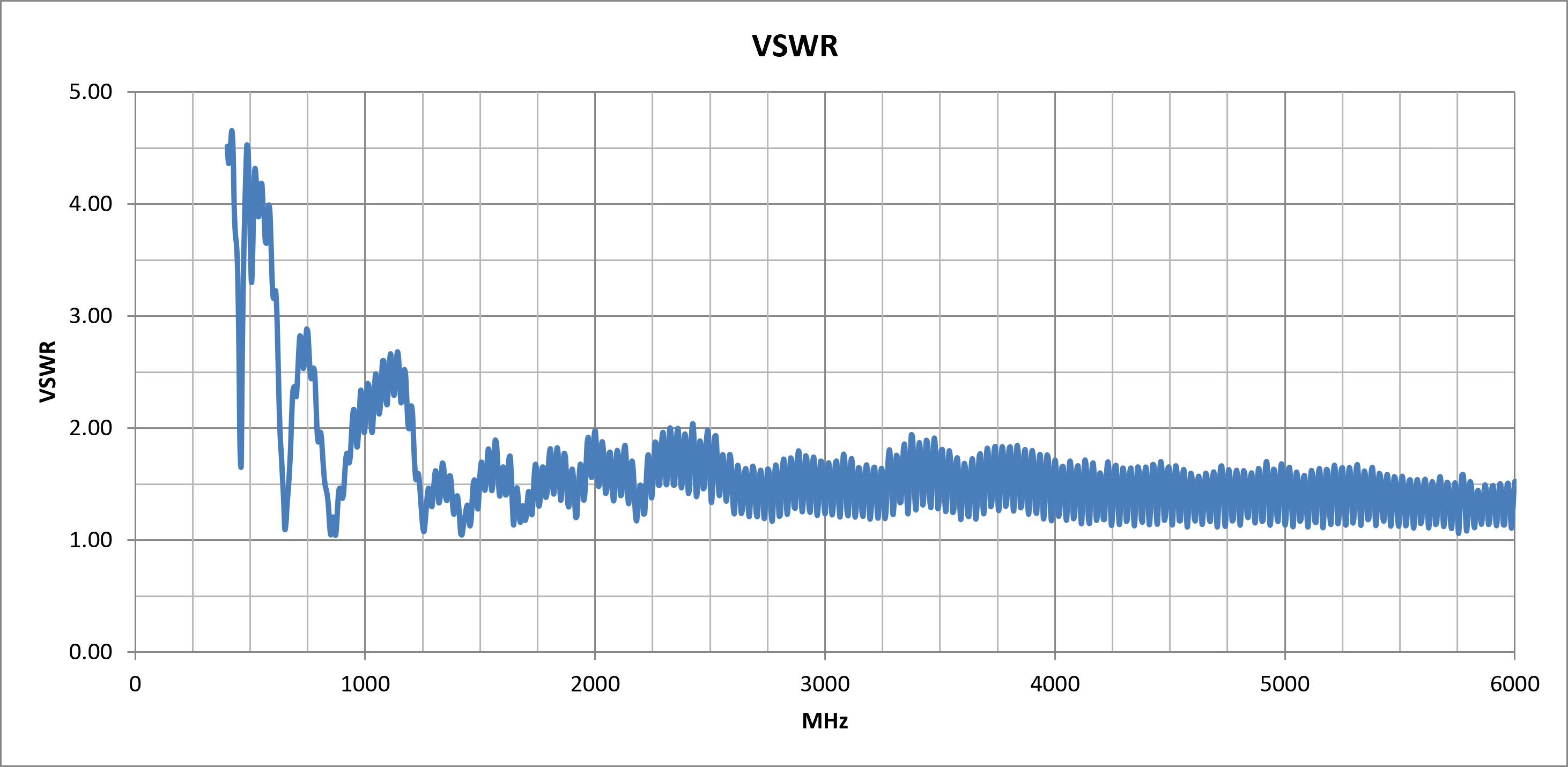

¶ VSWR

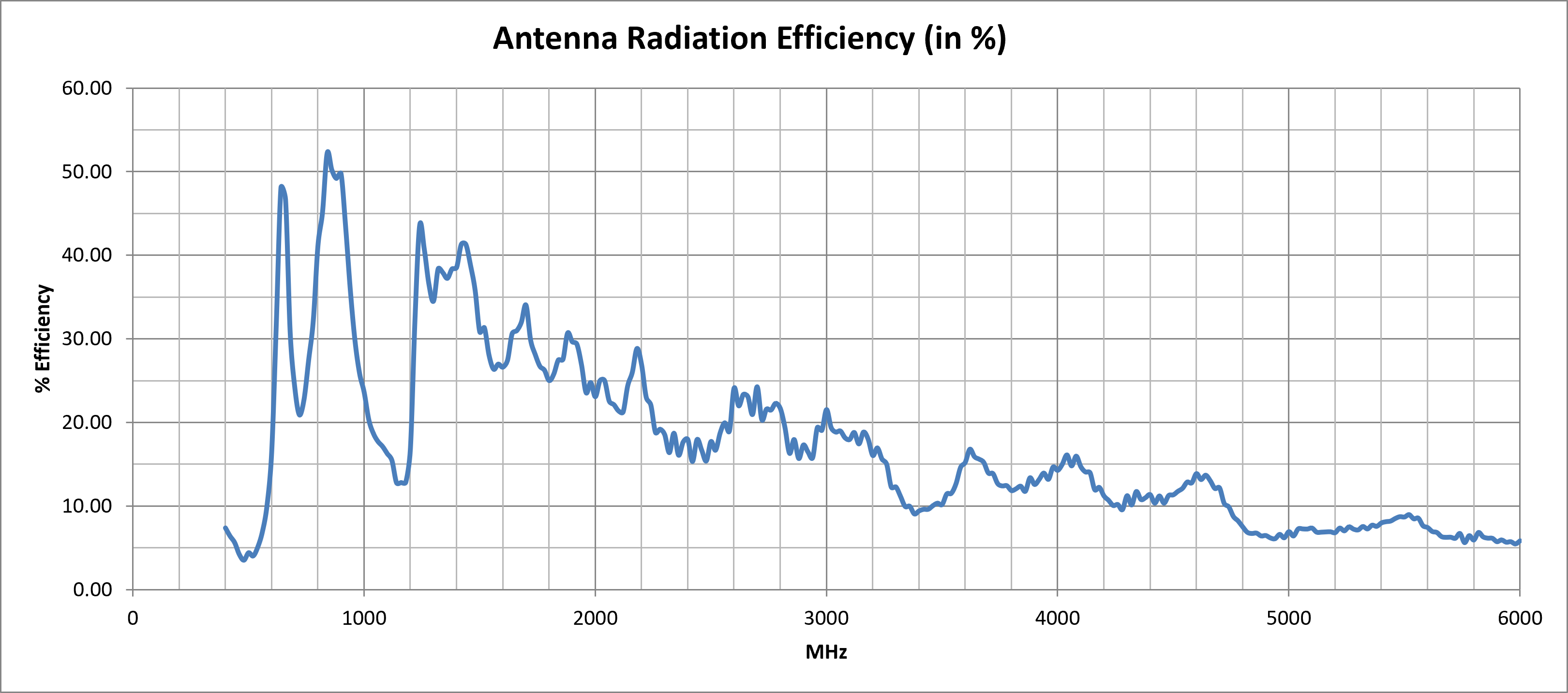

¶ Radiation Efficiency
¶ ISM Standards Frequency Support*
| Application | Frequency Range (MHz) | Average Efficiency (%) | Maximum VSWR | Peak Gain from highest direction (dBi) | Use Indicator |
|---|---|---|---|---|---|
| ISM 868 MHz | 863 - 870 | 49.90 | 1.18 | -0.02 | ↑ |
| ISM 915 MHz | 902 - 928 | 44.89 | 1.78 | 0.23 | ↑ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

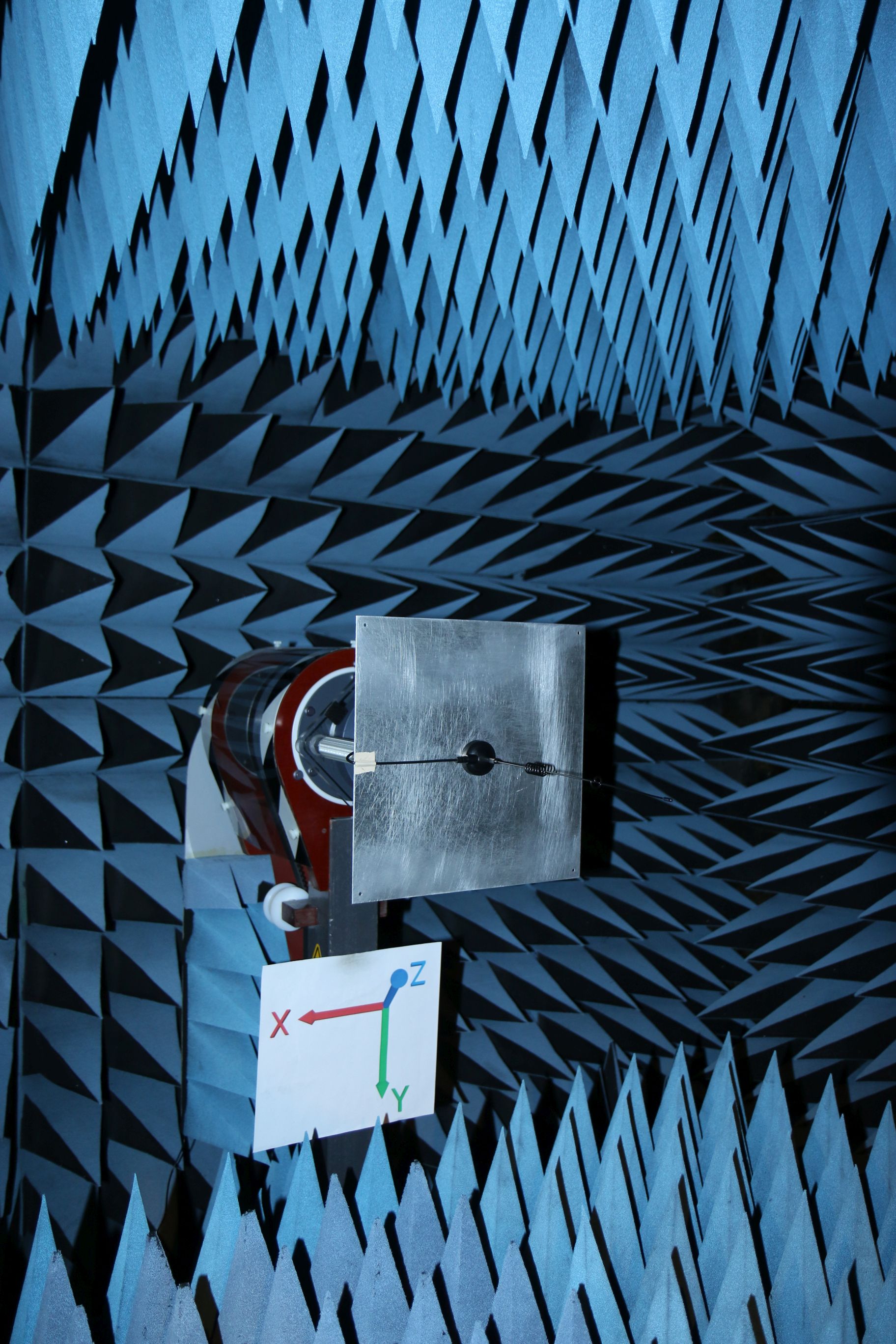

¶ Test Setup (in Free Space)

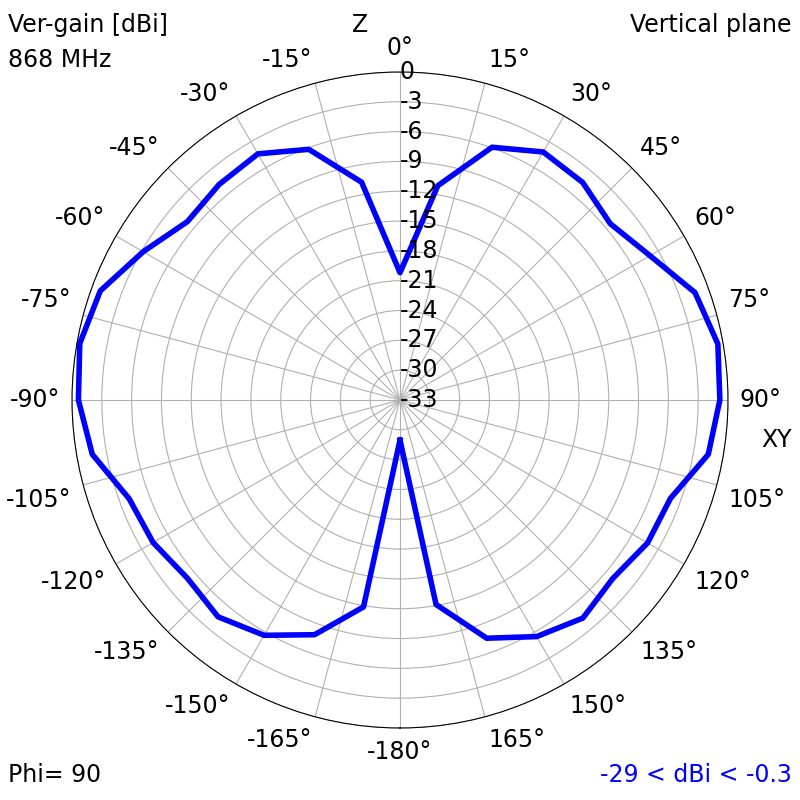

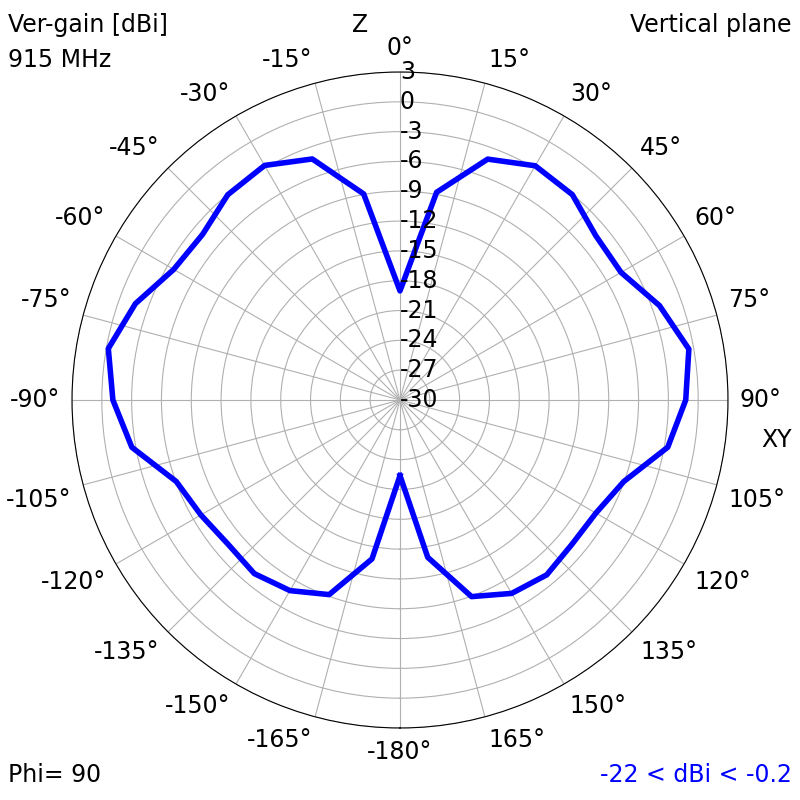

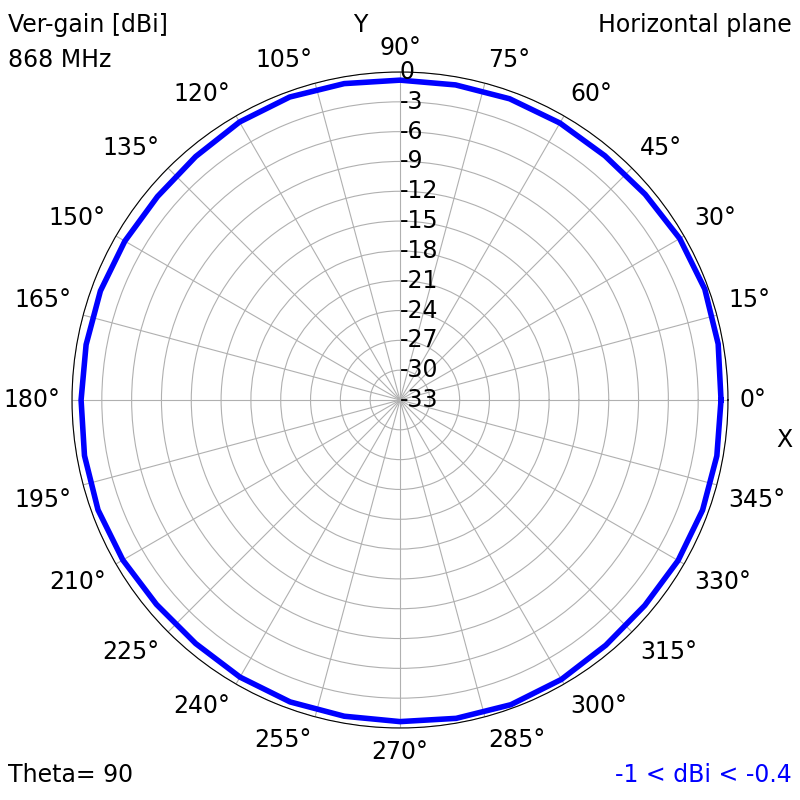

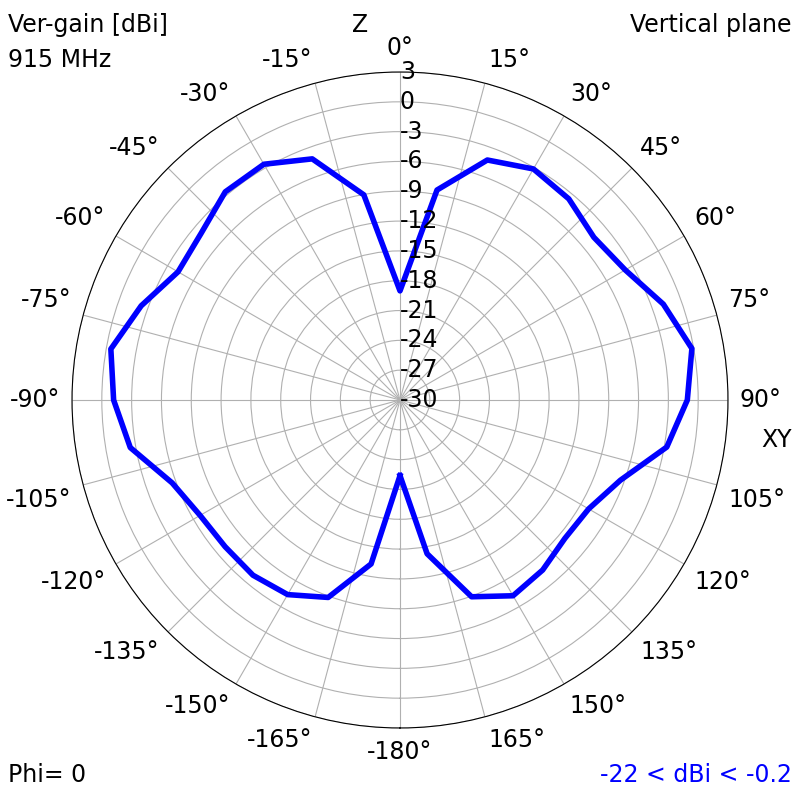

¶ 2D Radiation Plots
| 868 MHz | ||

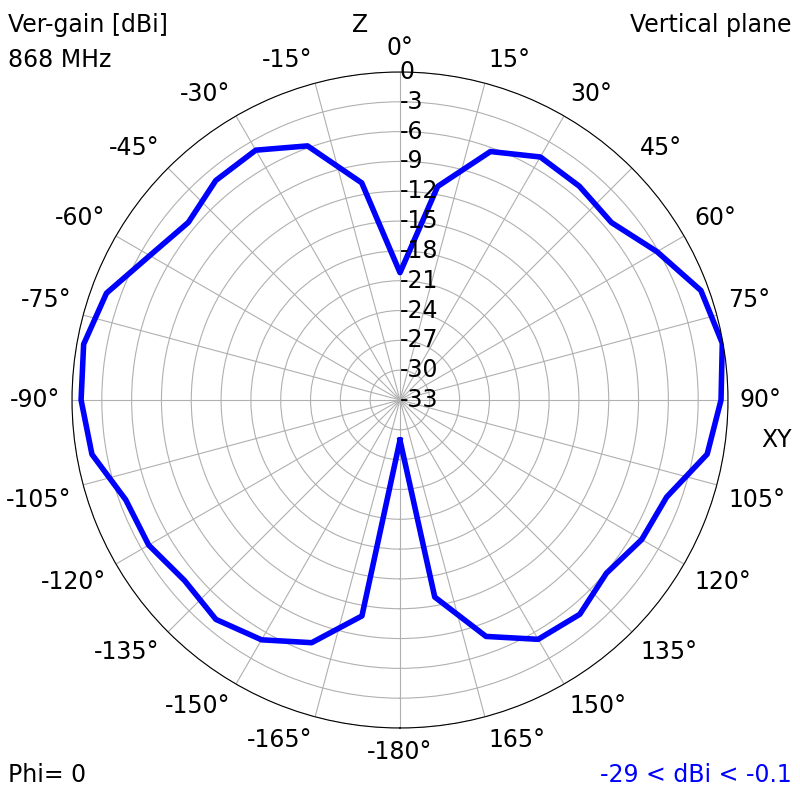

| XY | XZ | YZ |
|
|
|

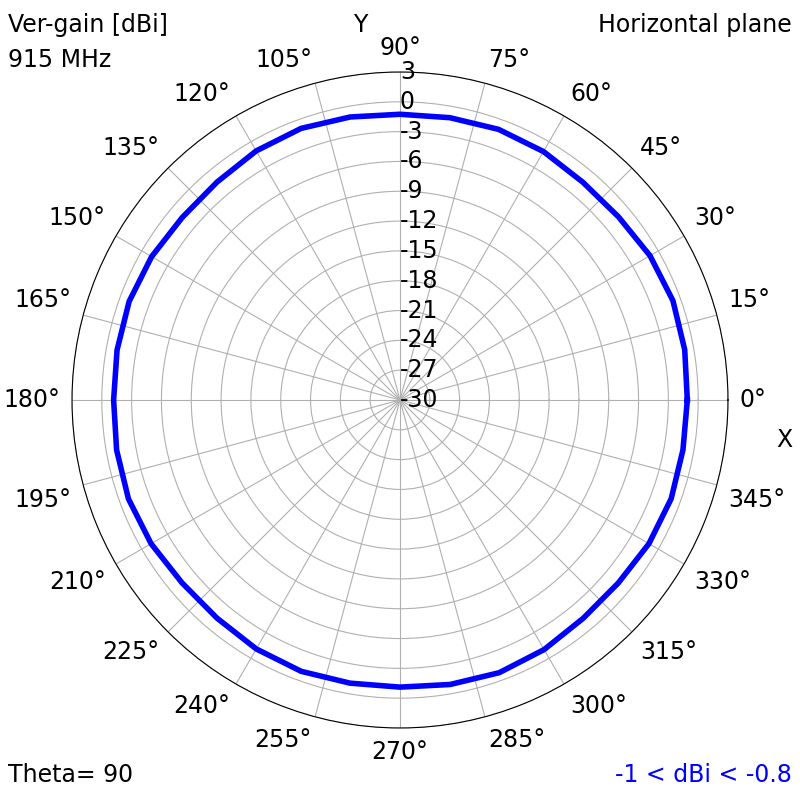

| 915 MHz | ||
| XY | XZ | YZ |
|
|
|

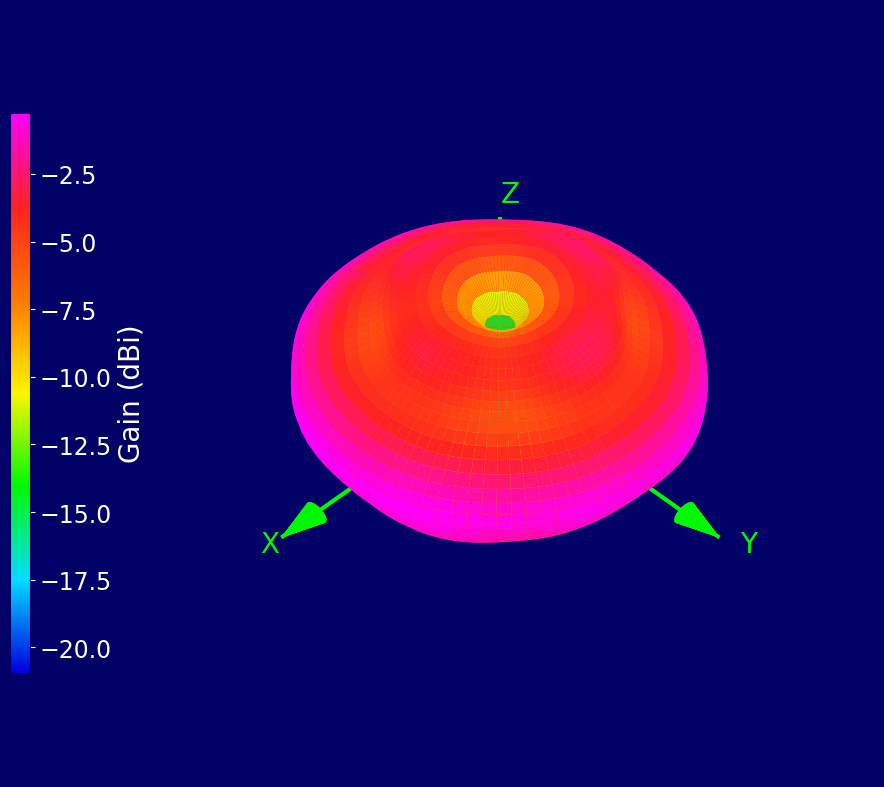

¶ 3D Radiation Plots

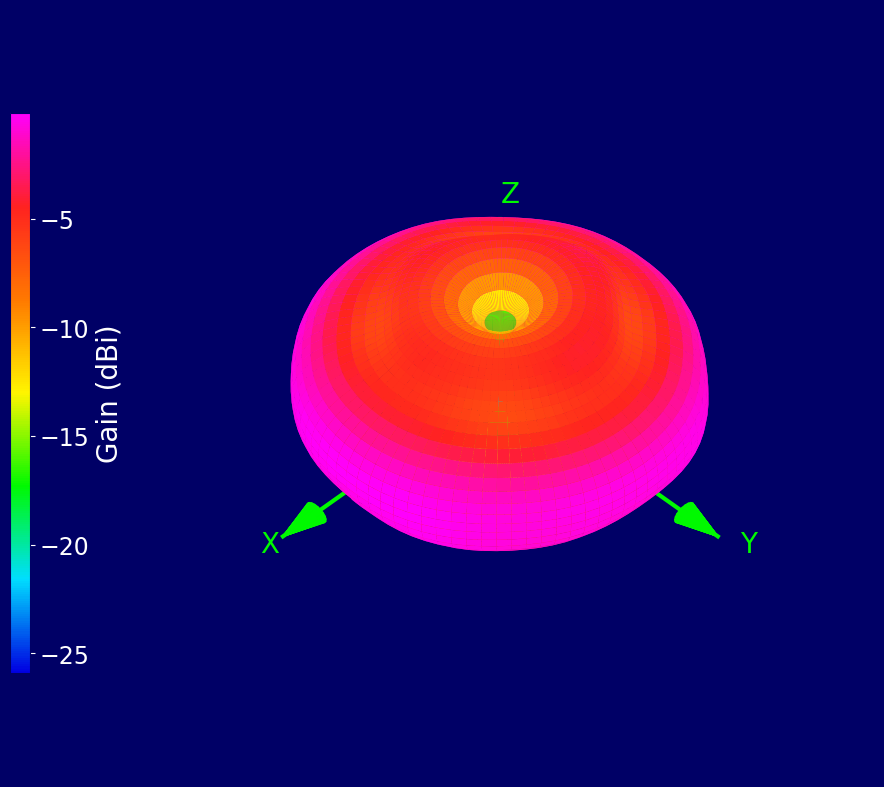

| 868 MHz | 915 MHz | |
|
|
¶ Ordering Details
| Part Number | Description |
|---|---|
| MIKE2A/3M/SMAM/S/S/26 |
311 mm ISM/LPWAN Half-Wave Whip Antenna SMA Male Connector 3 metre Cable |
| MIKE2A/5M/SMAM/S/S/26 |
311 mm ISM/LPWAN Half-Wave Whip Antenna SMA Male Connector 5 metre Cable |
| MIKE2A/3M/LL1/SMAM/S/S/26 |
311 mm ISM/LPWAN Half-Wave Whip Antenna SMA Male Connector 3 metre Low-Loss Cable |
| MIKE2A/5M/LL1/SMAM/S/S/26 |
311 mm ISM/LPWAN Half-Wave Whip Antenna SMA Male Connector 5 metre Low-Loss Cable |
| MIKE2A/3M/FMEF/S/S/26 |
311 mm ISM/LPWAN Half-Wave Whip Antenna FME Female Connector 3 metre Cable |
| MIKE2A/5M/FMEF/S/S/26 |
311 mm ISM/LPWAN Half-Wave Whip Antenna FME Female Connector 5 metre Cable |
