¶ General Description

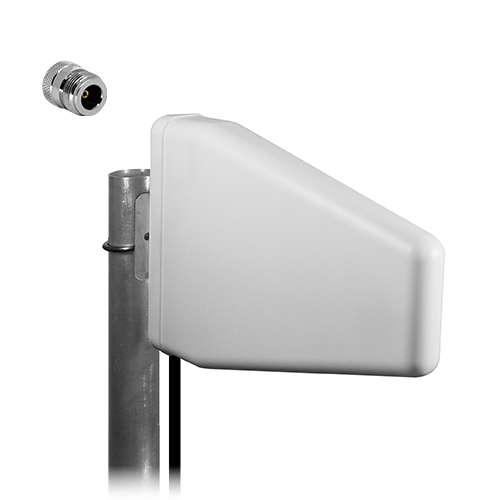

The Oscar 18 is a compact, plastic-enclosed directional Yagi antenna covering a wide range of commonly used cellular, Wi-Fi and LPWAN frequencies from 600–6000 MHz. Its UV and water-resistant radome, together with flexible wall or bracket mounting options, makes it well suited to fixed indoor and outdoor installations.The directional Yagi design focuses the signal towards the required coverage area, helping to improve transmission and reception where additional signal strength or a more focused wireless connection is required. The antenna provides an average gain of 7 dBi and 77% efficiency.
Typical applications include remote monitoring and telemetry, industrial and utility communications, transportation systems, IoT gateways, security and surveillance equipment, wireless networking, and other fixed installations requiring reliable wideband connectivity.
¶ Key Features
- Supports 5G NR, 4G LTE, 3G UMTS and 2G GSM
- Supports dual-band Wi-Fi, LPWAN and IoT technologies
- Directional Yagi design with 6 dBi gain
- UV and water-resistant radome for outdoor installation
- Supplied with a bracket for wall or pole mounting
¶ Typical Applications
- Rail infrastructure monitoring
- Precision agriculture
- Smart-grid systems
- Industrial monitoring and telemetry
- Public transport tracking systems
7 dBi
Directional Yagi Gain
|
UV & Water Resistant
Outdoor Radome
|
Cellular
2G—5G Support
|
Wi-Fi / ISM
2.4 GHz & 5 GHz
|
Wall / Pole Mount
Bracket & Clamp Supplied
|
Product Features
2G
GSM
3G
UMTS
4G
LTE
BLE
Bluetooth
IEEE
802.15.4
ISM
868
ISM
915
ISM
2.4 G
ISM
5.8G
LoRa
Wireless
LTE
CAT-M
LTE
NB-IoT
NR
NB-IoT
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
Yagi
Directional
Cellular Band Support
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B28A
B29
B30
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B65
B66
B67
B68
B69
B70
B74
B75
B76
B85
B103
B106
B111
5G NR Band Support
n1
n2
n3
n5
n7
n8
n12
n13
n14
n18
n20
n24
n25
n26
n28
n29
n30
n34
n38
n39
n40
n41
n46
n47
n48
n50
n51
n53
n54
n65
n66
n67
n68
n70
n74
n75
n76
n77
n78
n79
n80
n81
n82
n83
n84
n85
n86
n89
n90
n91
n92
n93
n94
n95
n97
n98
n99
n100
n101
n106
n109
n110
¶ Electrical Specifications
| Frequency Range: | 600–6000 MHz |
| Impedance: | 50 Ohm |
| Polarisation: | Vertical |
| Average Gain: | 6.6 dBi |
| Average Radiation Efficiency: | 77.3 % |
| Max Input Power: | 50 W |
| Required Ground Plane: | Free space |
¶ Environmental Specifications
| Operating Temperature Range: | -20°C to +60°C |
| Storage Temperature Range: | -20°C to +60°C |

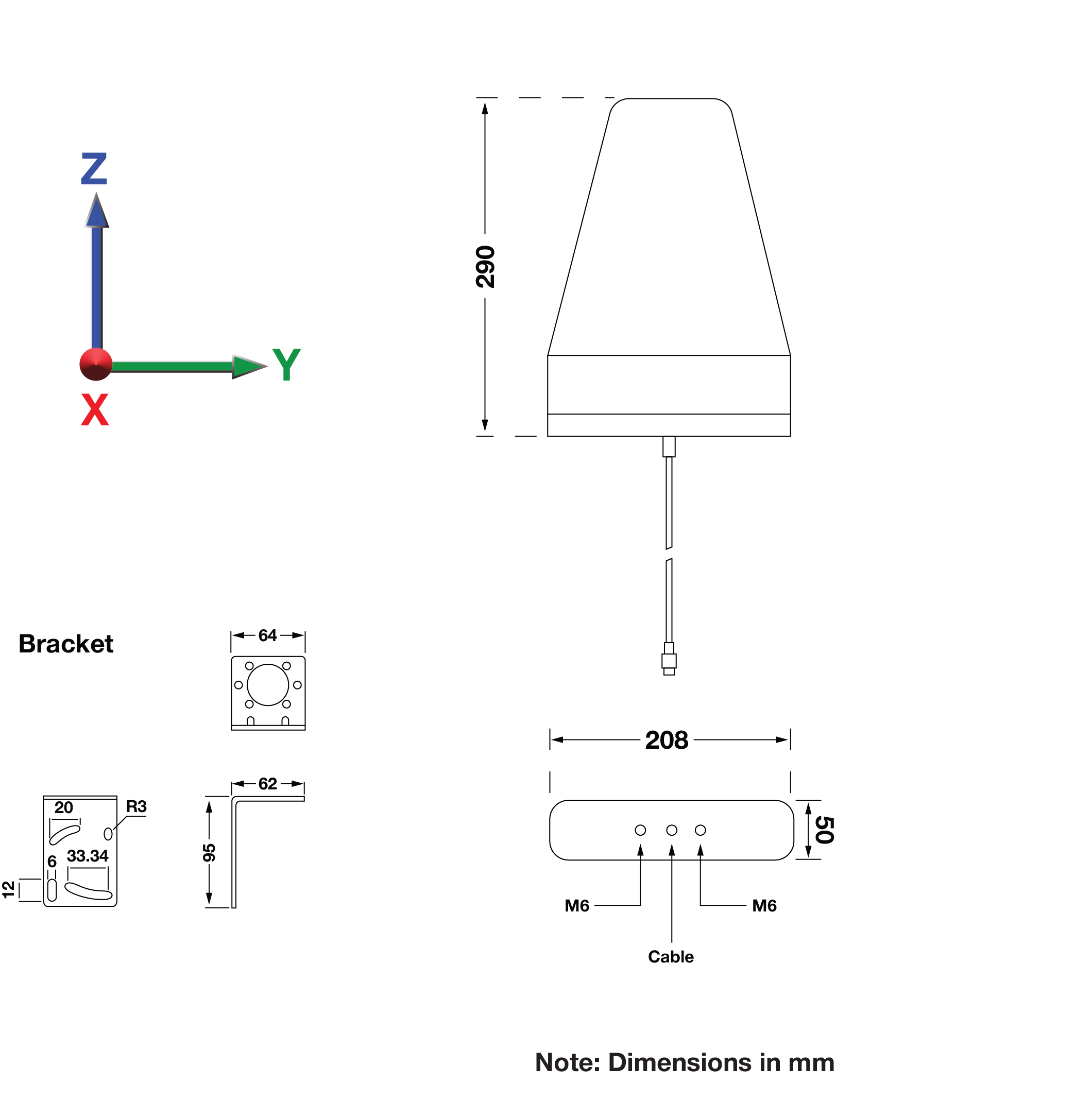

¶ Mechanical Specifications
| Dimensions: | 290 × 208 × 50 mm |
| Weight: | 0.9 kg |
| Connector: | N-Type Female or SMA Male |
| Cable: | RG58 |
| Materials: |
ABS Plastic Radome Aluminium Radiating Element A3 Steel Bracket |

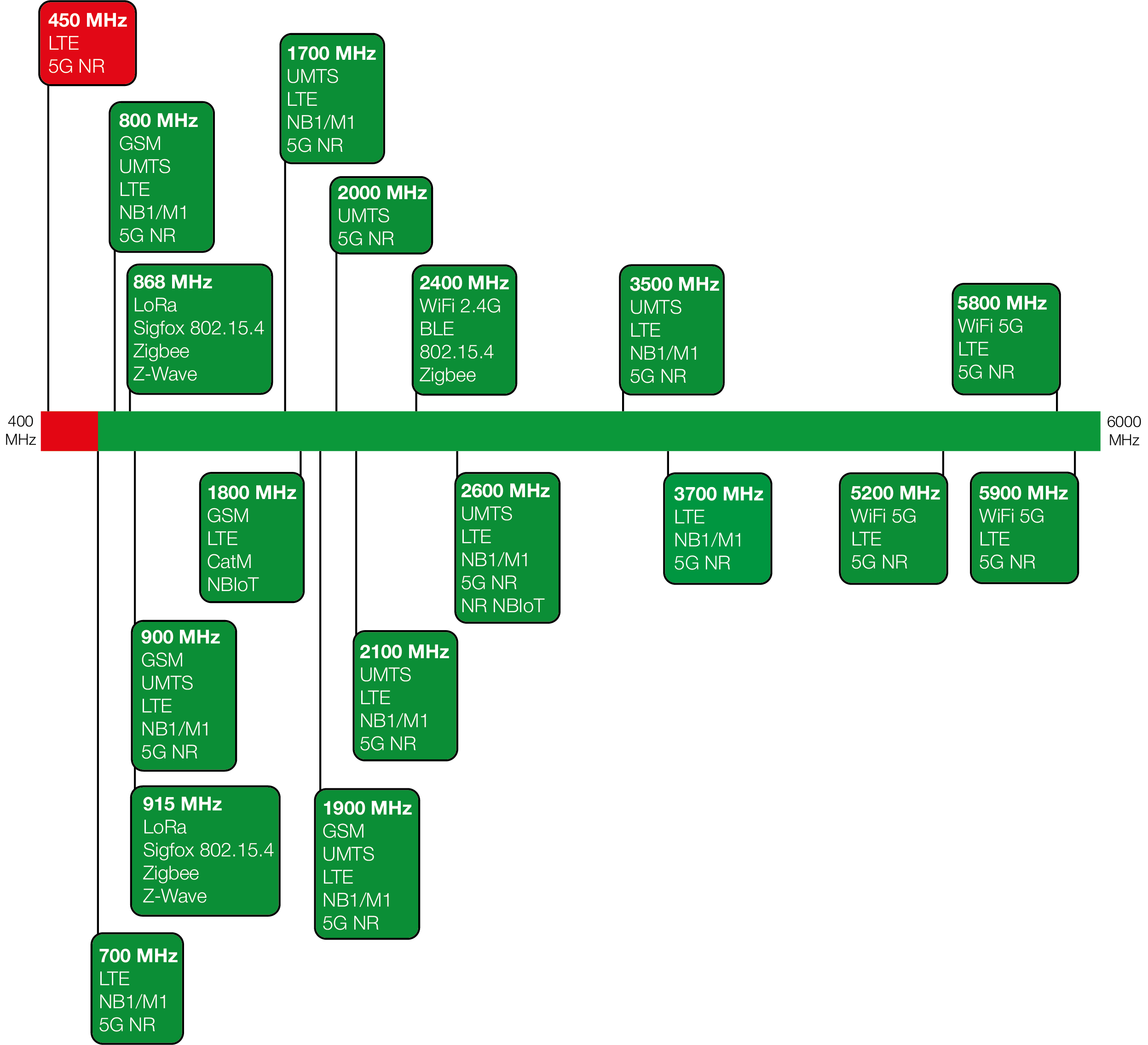

¶ Spectrum Coverage*
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency, taking into consideration the VSWR and radiated efficiency of the antenna.
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

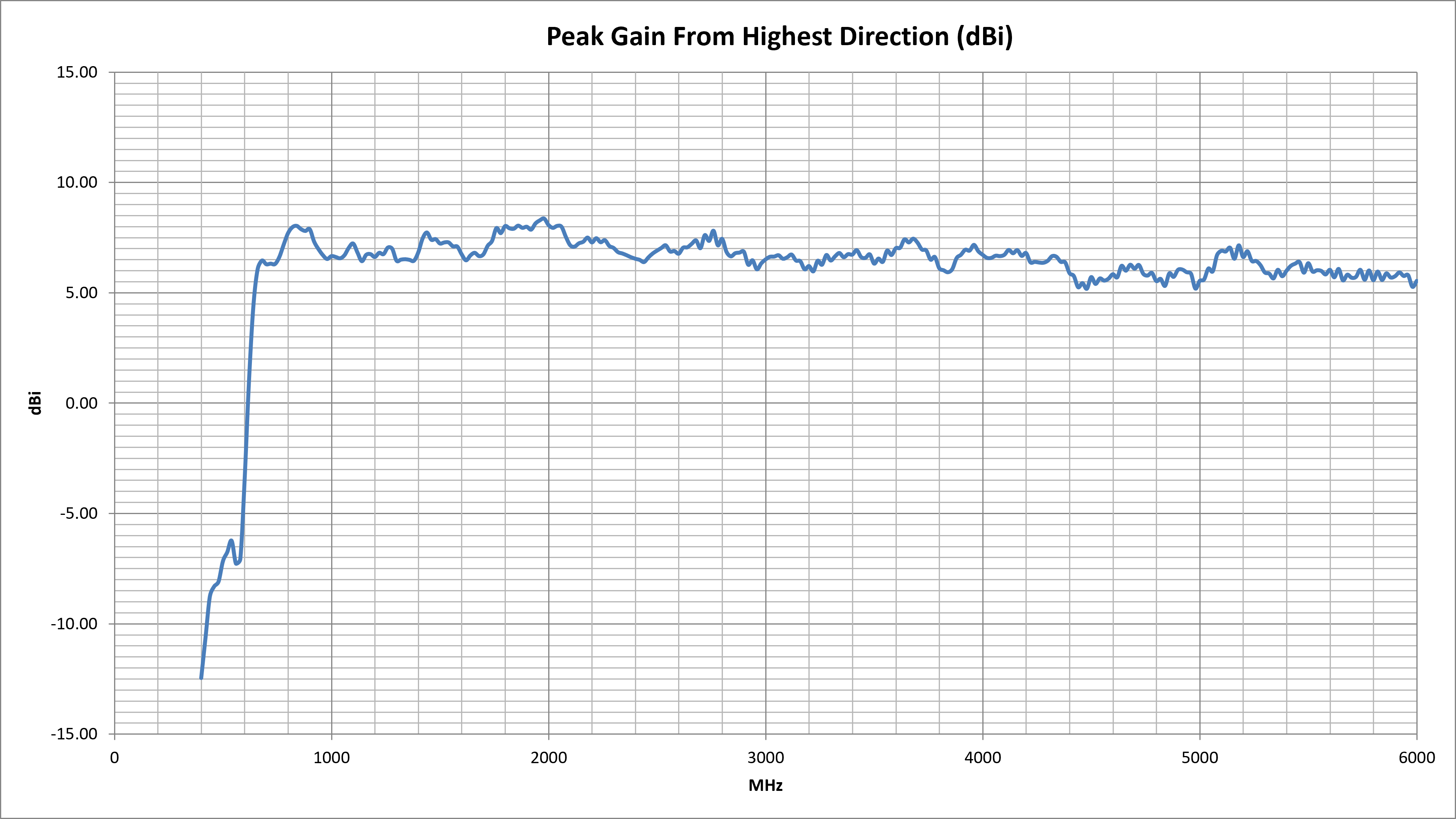

¶ Peak Gain vs. Frequency

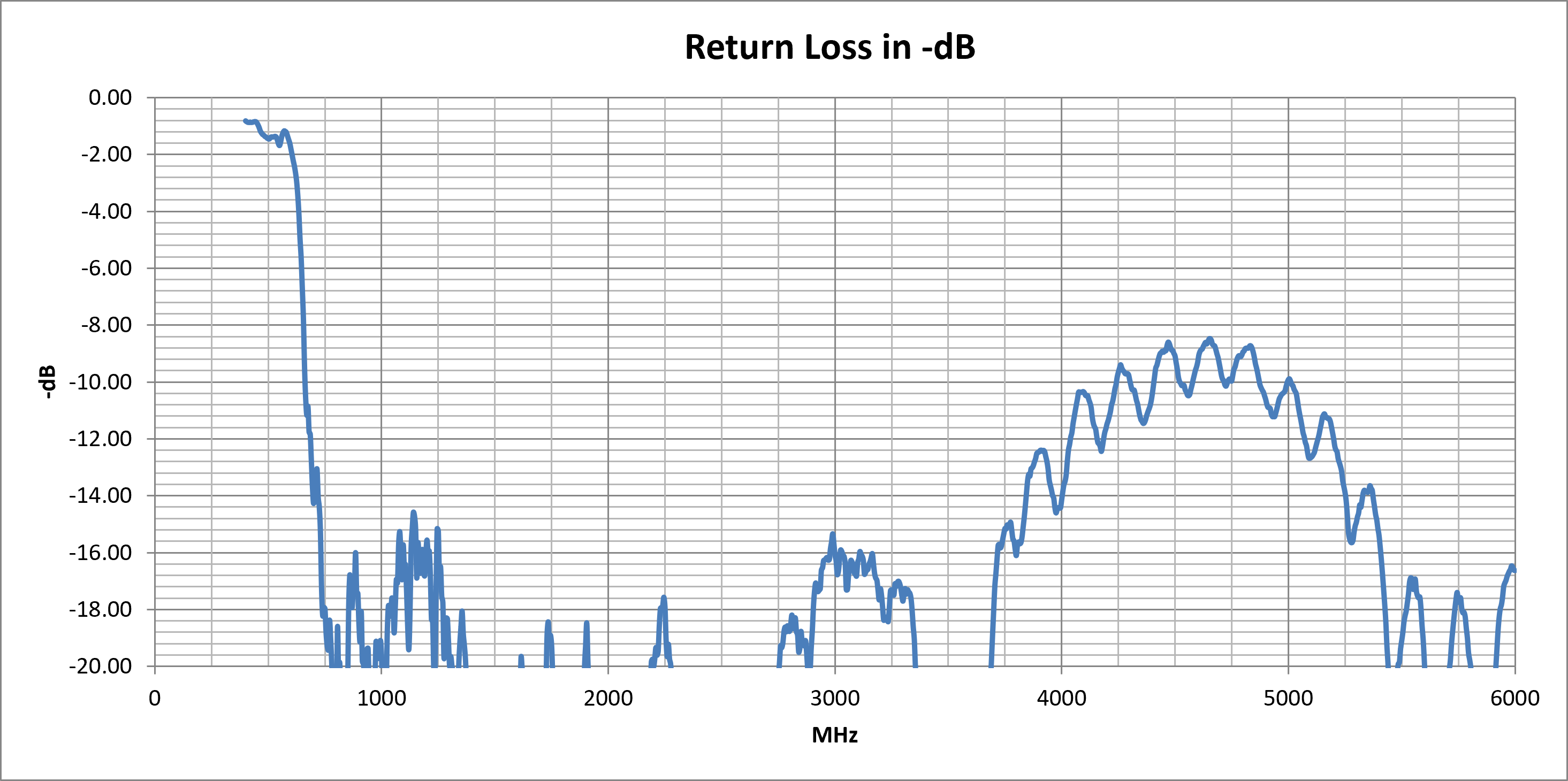

¶ Return Loss

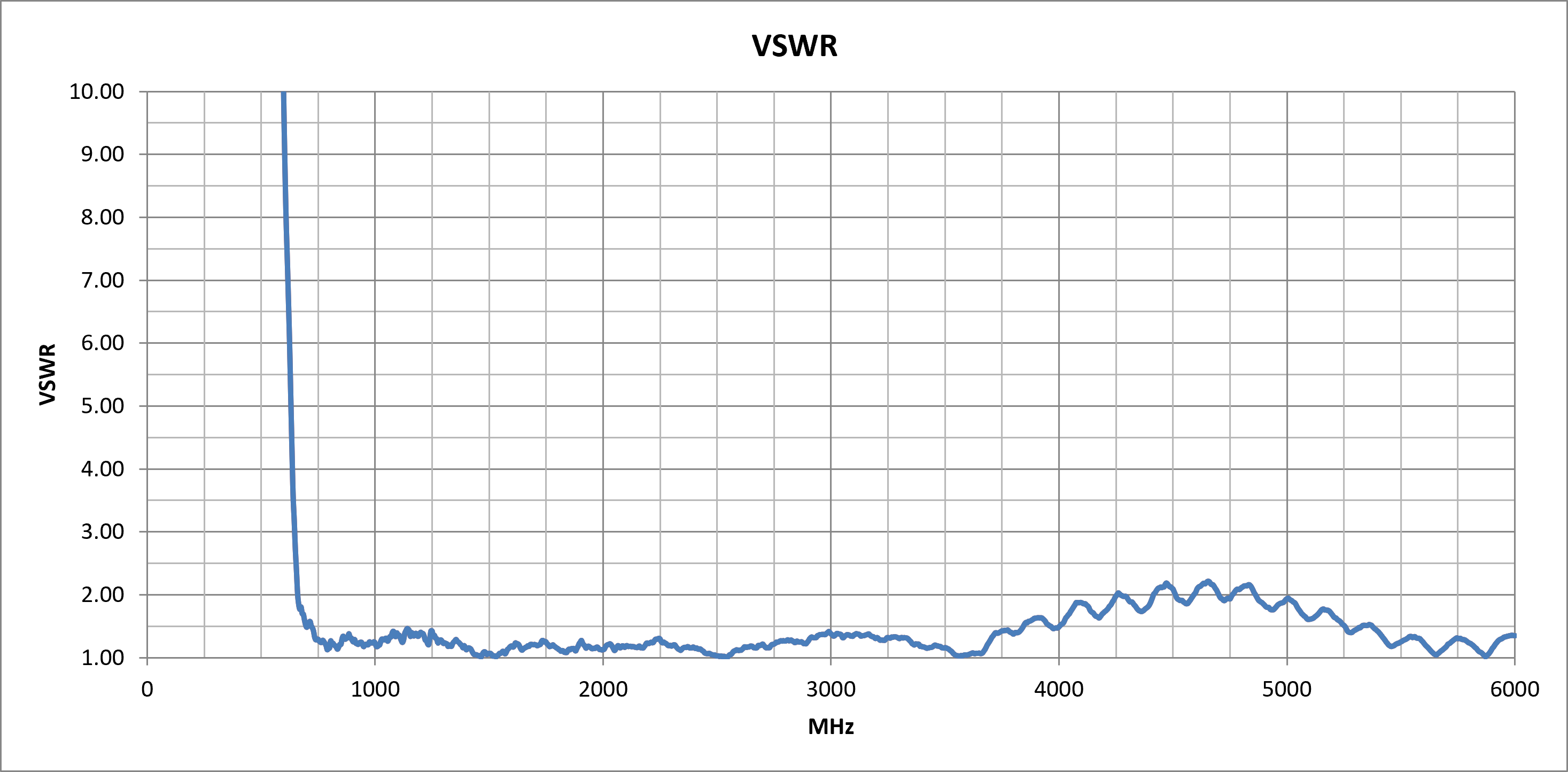

¶ VSWR

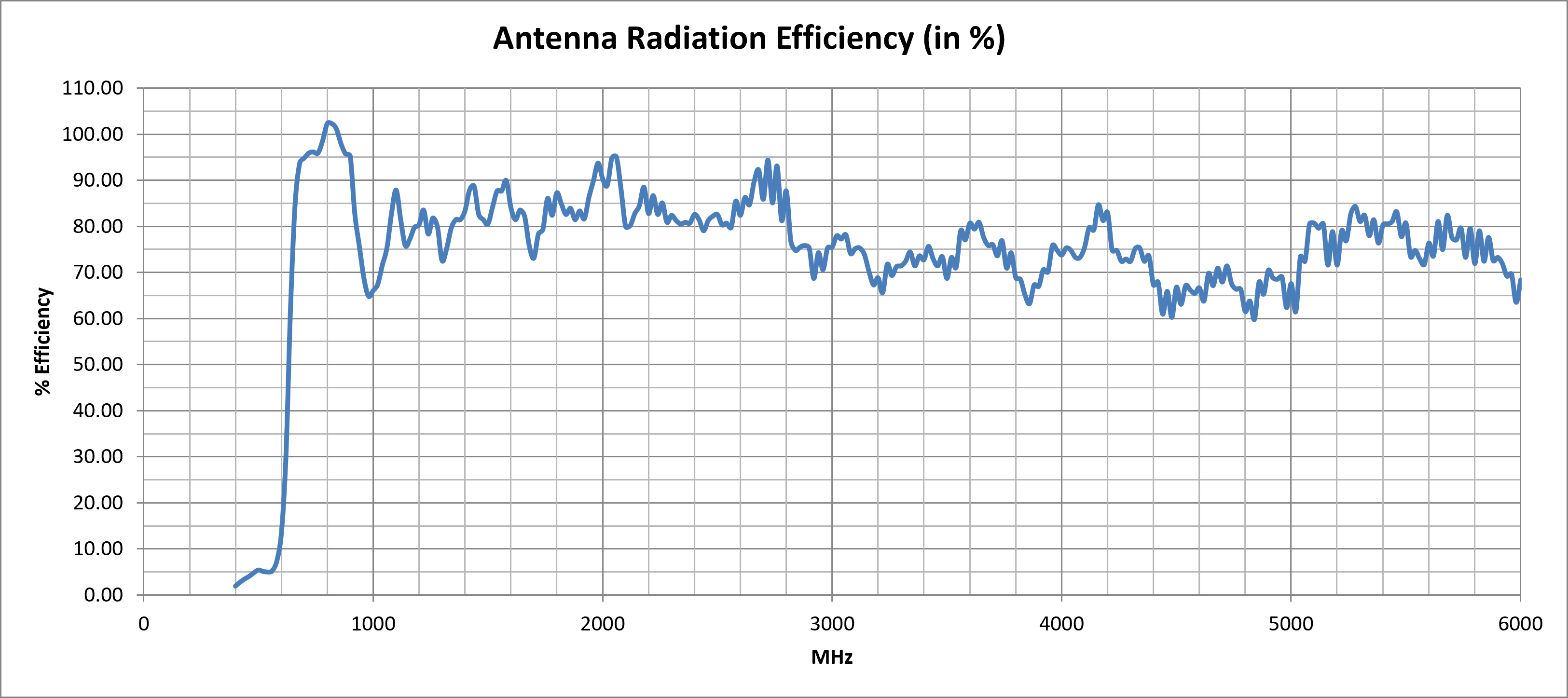

¶ Radiation Efficiency
¶ Cellular Bands*
| GSM (2G) Bands | UMTS (3G) Bands | E-UTRA (4G) Bands | NR (5G) Bands | Uplink (MHz) | Downlink (MHz) | Average Upload Efficiency (%) | Average Download Efficiency (%) | Maximum Upload VSWR | Maximum Download VSWR | Use Indicator |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | n1 | 1920 - 1980 | 2110 - 2170 | 87.98 | 82.66 | 1.18 | 1.18 | ↑ | |
| PCS-1900 | 2 | 2 | n2 | 1850 - 1910 | 1930 - 1990 | 82.80 | 89.66 | 1.27 | 1.18 | ↑ |
| DCS-1800 | 3 | 3 | n3 | 1710 - 1785 | 1805 - 1880 | 81.38 | 83.76 | 1.27 | 1.14 | ↑ |
| 4 | 4 | 1710 - 1755 | 2110 - 2155 | 79.49 | 81.83 | 1.27 | 1.18 | ↑ | ||
| GSM-850 | 5 | 5 | n5 | 824 - 849 | 869 - 894 | 101.20 | 95.90 | 1.21 | 1.38 | ↑ |
| 6 | 830 - 840 | 875 - 885 | 101.45 | 95.83 | 1.17 | 1.38 | ↑ | |||
| 7 | 7 | n7 | 2500 - 2570 | 2620 - 2690 | 80.83 | 88.31 | 1.09 | 1.19 | ↑ | |
| E-GSM-900 | 8 | 8 | n8 | 880 - 915 | 925 - 960 | 93.39 | 74.83 | 1.38 | 1.24 | ↑ |
| 9 | 9 | 1749.9 - 1784.9 | 1844.9 - 1879.9 | 84.13 | 83.02 | 1.24 | 1.14 | ↑ | ||
| 10 | 10 | 1710 - 1770 | 2110 - 2170 | 80.92 | 82.66 | 1.27 | 1.18 | ↑ | ||
| 11 | 11 | 1427.9 - 1447.9 | 1475.9 - 1495.9 | 88.09 | 81.20 | 1.08 | 1.09 | ↑ | ||
| 12 | 12 | n12 | 699 - 716 | 729 - 746 | 95.25 | 96.11 | 1.57 | 1.43 | ↑ | |
| 13 | 13 | n13 | 777 - 787 | 746 - 756 | 99.02 | 96.04 | 1.24 | 1.29 | ↑ | |
| 14 | 14 | n14 | 788 - 798 | 758 - 768 | 101.03 | 96.37 | 1.15 | 1.26 | ↑ | |
| 17 | 704 - 716 | 734 - 746 | 95.39 | 96.13 | 1.57 | 1.34 | ↑ | |||
| 18 | n18 | 815 - 830 | 860 - 875 | 102.13 | 97.11 | 1.23 | 1.34 | ↑ | ||
| 19 | 19 | 830 - 845 | 875 - 890 | 101.22 | 95.74 | 1.21 | 1.38 | ↑ | ||
| 20 | 20 | n20 | 832 - 862 | 791 - 821 | 99.93 | 102.08 | 1.34 | 1.26 | ↑ | |
| 21 | 21 | 1447.9 - 1462.9 | 1495.9 - 1510.9 | 84.08 | 81.28 | 1.04 | 1.07 | ↑ | ||
| 22 | 22 | 3410 - 3490 | 3510 - 3590 | 73.14 | 75.11 | 1.20 | 1.14 | ↑ | ||
| 24 | n24 | 1626.5 - 1660.5 | 1525 - 1559 | 82.86 | 87.11 | 1.21 | 1.09 | ↑ | ||
| 25 | 25 | n25 | 1850 - 1915 | 1930 - 1995 | 82.76 | 89.81 | 1.27 | 1.18 | ↑ | |
| 26 | 26 | n26 | 814 - 849 | 859 - 894 | 101.51 | 96.36 | 1.23 | 1.38 | ↑ | |
| 27 | 807 - 824 | 852 - 869 | 102.30 | 97.99 | 1.24 | 1.34 | ↑ | |||
| 28 | n28 | 703 - 748 | 758 - 803 | 95.84 | 98.98 | 1.57 | 1.27 | ↑ | ||
| 28A | 703 - 733 | 758 - 788 | 95.71 | 97.75 | 1.57 | 1.27 | ↑ | |||
| 29 | n29 | N/A | 717 - 728 | N/A | 95.95 | N/A | 1.54 | ↑ | ||
| 30 | n30 | 2305 - 2315 | 2350 - 2360 | 81.85 | 80.82 | 1.20 | 1.16 | ↑ | ||
| 31 | n31 | 452.5 - 457.5 | 462.5 - 467.5 | 3.93 | 4.26 | 18.85 | 15.66 | ↓ | ||
| 32 | 32 | N/A | 1452 - 1496 | N/A | 82.02 | N/A | 1.09 | ↑ | ||
| 33 | 1900 - 1920 | 1900 - 1920 | 82.51 | 82.51 | 1.27 | 1.27 | ↑ | |||
| 34 | n34 | 2010 - 2025 | 2010 - 2025 | 89.41 | 89.41 | 1.21 | 1.21 | ↑ | ||
| 35 | 1850 - 1910 | 1850 - 1910 | 82.80 | 82.80 | 1.27 | 1.27 | ↑ | |||
| 36 | 1930 - 1990 | 1930 - 1990 | 89.66 | 89.66 | 1.18 | 1.18 | ↑ | |||
| 37 | 1910 - 1930 | 1910 - 1930 | 82.46 | 82.46 | 1.23 | 1.23 | ↑ | |||
| 38 | n38 | 2570 - 2620 | 2570 - 2620 | 84.14 | 84.14 | 1.17 | 1.17 | ↑ | ||
| 39 | n39 | 1880 - 1920 | 1880 - 1920 | 82.46 | 82.46 | 1.27 | 1.27 | ↑ | ||
| 40 | n40 | 2300 - 2400 | 2300 - 2400 | 81.19 | 81.19 | 1.20 | 1.20 | ↑ | ||
| 41 | n41 | 2496 - 2690 | 2496 - 2690 | 84.42 | 84.42 | 1.19 | 1.19 | ↑ | ||
| 42 | 3400 - 3600 | 3400 - 3600 | 73.96 | 73.96 | 1.20 | 1.20 | ↑ | |||
| 43 | 3600 - 3800 | 3600 - 3800 | 76.04 | 76.04 | 1.44 | 1.44 | ↑ | |||
| 44 | 703 - 803 | 703 - 803 | 97.27 | 97.27 | 1.57 | 1.57 | ↑ | |||
| 45 | 1447 - 1467 | 1447 - 1467 | 83.83 | 83.83 | 1.04 | 1.04 | ↑ | |||
| 46 | n46 | 5150 - 5925 | 5150 - 5925 | 77.39 | 77.39 | 1.77 | 1.77 | ↑ | ||
| 47 | n47 | 5855 - 5925 | 5855 - 5925 | 73.66 | 73.66 | 1.26 | 1.26 | ↑ | ||
| 48 | n48 | 3550 - 3700 | 3550 - 3700 | 78.36 | 78.36 | 1.29 | 1.29 | ↑ | ||
| 49 | 3550 - 3700 | 3550 - 3700 | 78.36 | 78.36 | 1.29 | 1.29 | ↑ | |||
| 50 | n50 | 1432 - 1517 | 1432 - 1517 | 83.27 | 83.27 | 1.09 | 1.09 | ↑ | ||
| 51 | n51 | 1427 - 1432 | 1427 - 1432 | 88.29 | 88.29 | 1.08 | 1.08 | ↑ | ||
| 52 | 3300 - 3400 | 3300 - 3400 | 72.82 | 72.82 | 1.32 | 1.32 | ↑ | |||
| 53 | n53 | 2483.5 - 2495 | 2483.5 - 2495 | 82.40 | 82.40 | 1.04 | 1.04 | ↑ | ||
| 65 | n65 | 1920 - 2010 | 2110 - 2200 | 89.11 | 83.86 | 1.18 | 1.23 | ↑ | ||
| 66 | n66 | 1710 - 1780 | 2110 - 2200 | 81.26 | 83.86 | 1.27 | 1.23 | ↑ | ||
| 67 | n67 | N/A | 738 - 758 | N/A | 96.07 | N/A | 1.30 | ↑ | ||
| 68 | n68 | 698 - 728 | 753 - 783 | 95.51 | 97.14 | 1.57 | 1.27 | ↑ | ||
| 69 | N/A | 2570 - 2620 | N/A | 84.14 | N/A | 1.17 | ↑ | |||
| 70 | n70 | 1695 - 1710 | 1995 - 2020 | 74.10 | 89.87 | 1.21 | 1.20 | ↑ | ||
| 71 | n71 | 663 - 698 | 617 - 652 | 92.18 | 52.53 | 1.91 | 7.03 | ↓ | ||
| 72 | n72 | 451 - 456 | 461 - 466 | 3.89 | 4.21 | 19.32 | 16.15 | ↓ | ||
| 73 | 450 - 455 | 460 - 465 | 3.86 | 4.17 | 19.63 | 16.49 | ↓ | |||
| 74 | n74 | 1427 - 1470 | 1475 - 1518 | 85.73 | 81.56 | 1.08 | 1.09 | ↑ | ||
| 75 | n75 | N/A | 1432 - 1517 | N/A | 83.27 | N/A | 1.09 | ↑ | ||
| 76 | n76 | N/A | 1427 - 1432 | N/A | 88.29 | N/A | 1.08 | ↑ | ||
| n77 | 3300 - 4200 | 3300 - 4200 | 74.08 | 74.08 | 1.87 | 1.87 | ↑ | |||
| n78 | 3300 - 3800 | 3300 - 3800 | 74.56 | 74.56 | 1.44 | 1.44 | ↑ | |||
| n79 | 4400 - 5000 | 4400 - 5000 | 66.24 | 66.24 | 2.21 | 2.21 | ↑ | |||
| n80 | 1710 - 1785 | N/A | 81.38 | N/A | 1.27 | N/A | ↑ | |||
| n81 | 880 - 915 | N/A | 93.39 | N/A | 1.38 | N/A | ↑ | |||
| n82 | 832 - 862 | N/A | 99.93 | N/A | 1.34 | N/A | ↑ | |||
| n83 | 703 - 748 | N/A | 95.84 | N/A | 1.57 | N/A | ↑ | |||
| n84 | 1920 - 1980 | N/A | 87.98 | N/A | 1.18 | N/A | ↑ | |||
| 85 | n85 | 698 - 716 | 728 - 746 | 95.23 | 96.11 | 1.57 | 1.44 | ↑ | ||
| n86 | 1710 - 1780 | N/A | 81.26 | N/A | 1.27 | N/A | ↑ | |||
| 87 | n87 | 410 - 415 | 420 - 425 | 2.47 | 2.88 | 20.05 | 20.29 | ↓ | ||
| 88 | n88 | 412 - 417 | 422 - 427 | 2.56 | 2.95 | 20.09 | 20.17 | ↓ | ||
| n89 | 824 - 849 | N/A | 101.20 | N/A | 1.21 | N/A | ↑ | |||
| n90 | 2496 - 2690 | 2496 - 2690 | 84.42 | 84.42 | 1.19 | 1.19 | ↑ | |||
| n91 | 832 - 862 | 1427 - 1432 | 99.93 | 88.29 | 1.34 | 1.08 | ↑ | |||
| n92 | 832 - 862 | 1432 - 1517 | 99.93 | 83.27 | 1.34 | 1.09 | ↑ | |||
| n93 | 880 - 915 | 1427 - 1432 | 93.39 | 88.29 | 1.38 | 1.08 | ↑ | |||
| n94 | 880 - 915 | 1432 - 1517 | 93.39 | 83.27 | 1.38 | 1.09 | ↑ | |||
| n95 | 2010 - 2025 | N/A | 89.41 | N/A | 1.21 | N/A | ↑ | |||
| n97 | 2300 - 2400 | N/A | 81.19 | N/A | 1.20 | N/A | ↑ | |||
| n98 | 1880 - 1920 | N/A | 82.46 | N/A | 1.27 | N/A | ↑ | |||
| n99 | 1626.5 - 1660.5 | N/A | 82.86 | N/A | 1.21 | N/A | ↑ | |||
| n101 | 1900 - 1910 | 1900 - 1910 | 82.94 | 82.94 | 1.27 | 1.27 | ↑ | |||
| 103 | 787 - 788 | 757 - 758 | 100.02 | 95.97 | 1.16 | 1.25 | ↑ | |||
| n105 | 663 - 703 | 612 - 652 | 92.51 | 49.16 | 1.91 | 7.65 | ↓ | |||
| 106 | n106 | 896 - 901 | 935 - 940 | 95.25 | 76.57 | 1.30 | 1.24 | ↑ | ||
| 107 | N/A | 612 - 652 | N/A | 49.16 | N/A | 7.65 | ↓ | |||
| 108 | N/A | 470 - 698 | N/A | 31.16 | N/A | 14.94 | ↓ | |||
| n109 | 703 - 733 | 1432 - 1517 | 95.71 | 83.27 | 1.57 | 1.09 | ↑ | |||
| n110 | 1390 - 1395 | 1432 - 1435 | 82.66 | 88.45 | 1.19 | 1.06 | ↑ | |||
| 112 | N/A | 470 - 608 | N/A | 6.70 | N/A | 14.94 | ↓ | |||
| 113 | N/A | 606 - 698 | N/A | 67.57 | N/A | 8.53 | ↓ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |
¶ ISM Standards Frequency Support*
| Application | Frequency Range (MHz) | Efficiency (%) | Maximum VSWR | Peak Gain from highest direction (dBi) | Use Indicator |
|---|---|---|---|---|---|
| ISM 433 MHz | 433.05 - 434.79 | 3.29 | 20.49 | -9.23 | ↓ |
| ISM 868 MHz | 863 - 870 | 97.22 | 1.32 | 7.87 | ↑ |
| ISM 915 MHz | 902 - 928 | 86.25 | 1.29 | 7.82 | ↑ |
| ISM 2.4 GHz | 2400 - 2500 | 81.33 | 1.16 | 6.91 | ↑ |
| Wi-Fi 2.4G | 2401 - 2483 | 81.09 | 1.15 | 6.80 | ↑ |
| Wi-Fi 2.4G (USA) | 2401 - 2473 | 80.94 | 1.15 | 6.72 | ↑ |
| Wi-Fi 2.4G (Japan) | 2401 - 2495 | 81.25 | 1.15 | 6.88 | ↑ |
| Wi-Fi 5G (all channels) | 5150 - 5990 | 76.67 | 1.77 | 7.15 | ↑ |
| Wi-Fi 5G (Ch 32-48) | 5150 - 5250 | 75.99 | 1.77 | 7.15 | ↑ |
| Wi-Fi 5G (Ch 32-64) | 5150 - 5330 | 78.81 | 1.77 | 7.15 | ↑ |
| Wi-Fi 5G (Ch 32-161) | 5150 - 5815 | 77.90 | 1.77 | 7.15 | ↑ |
| Wi-Fi 5G (Ch 32-173) | 5150 - 5875 | 77.71 | 1.77 | 7.15 | ↑ |
| ISM 5.8 GHz | 5725 - 5875 | 76.10 | 1.31 | 6.04 | ↑ |
| UWB band group 1, BAND_ID 1 | 3168 - 3696 | 73.40 | 1.36 | 7.45 | ↑ |
| UWB band group 1, BAND_ID 2 | 3696 - 4224 | 73.75 | 1.87 | 7.31 | ↑ |
| UWB band group 1, BAND_ID 3 | 4224 - 4752 | 68.74 | 2.21 | 6.66 | ↑ |
| UWB band group 2, BAND_ID 4 | 4752 - 5280 | 71.34 | 2.16 | 7.15 | ↑ |
| UWB band group 2, BAND_ID 5 | 5280 - 5808 | 78.00 | 1.52 | 6.39 | ↑ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

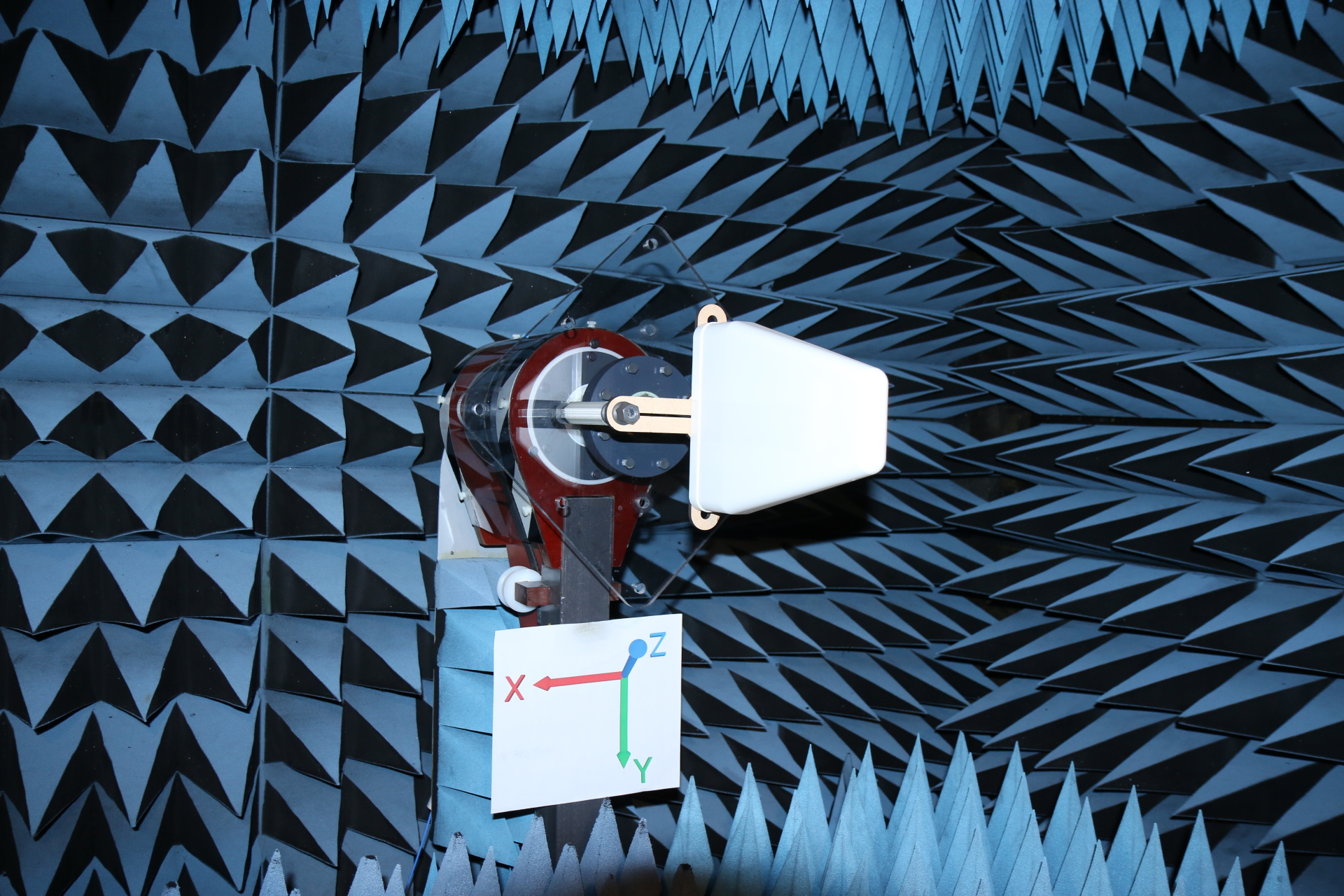

¶ Test Setup (in Free Space)

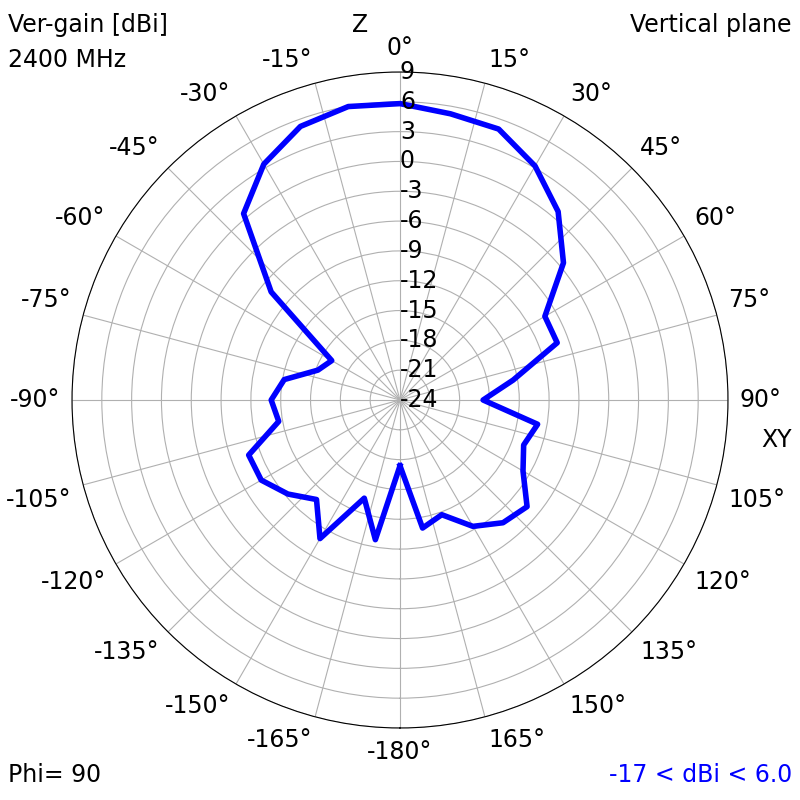

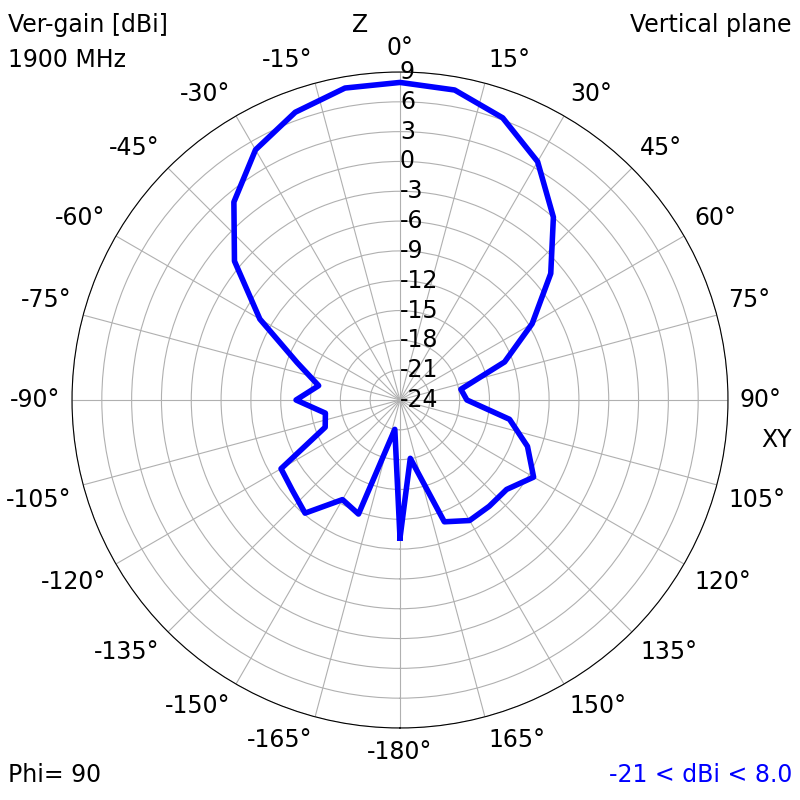

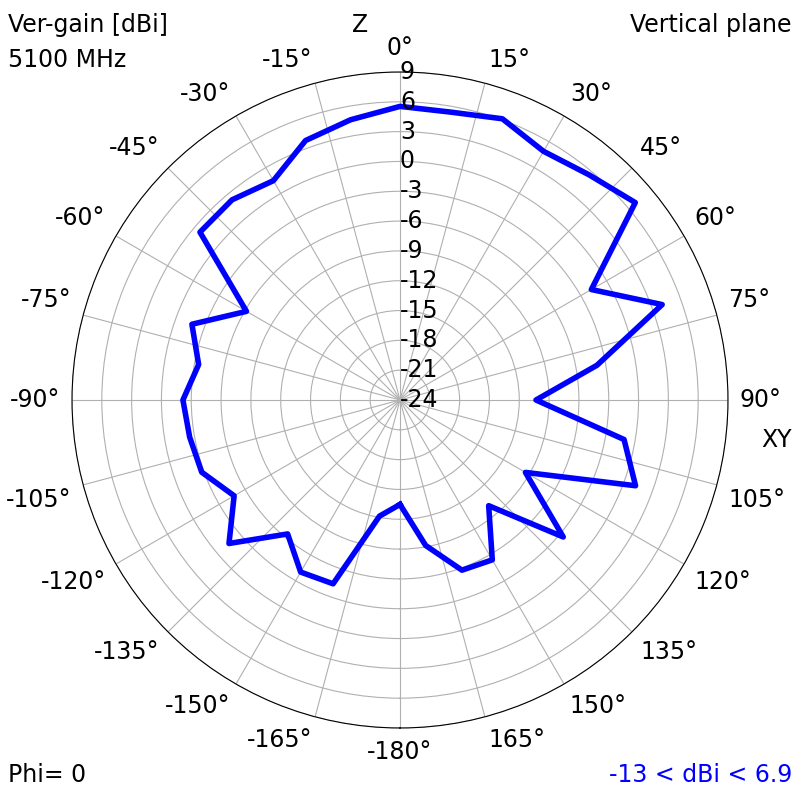

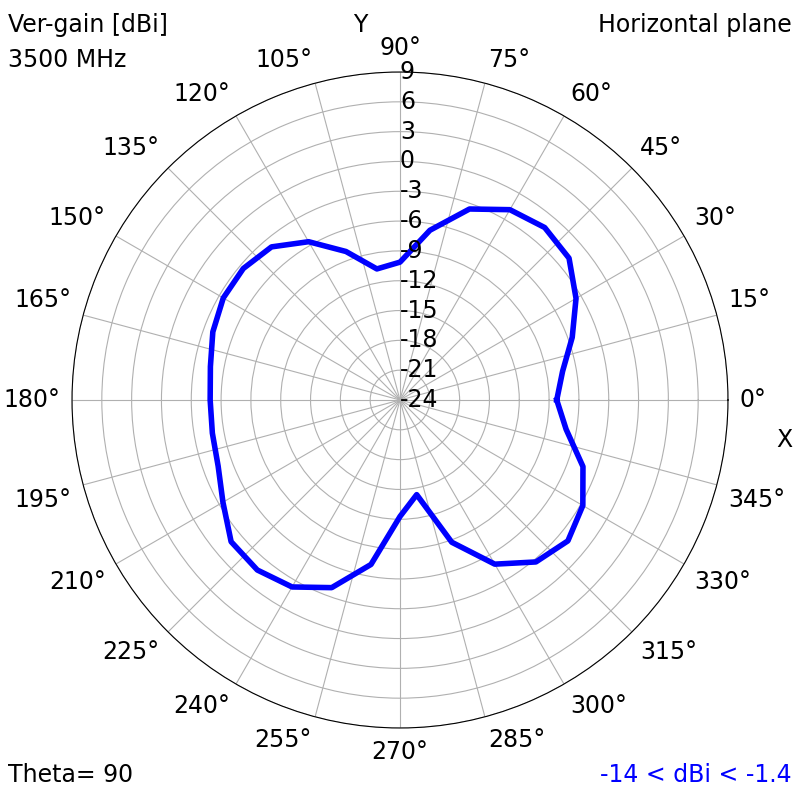

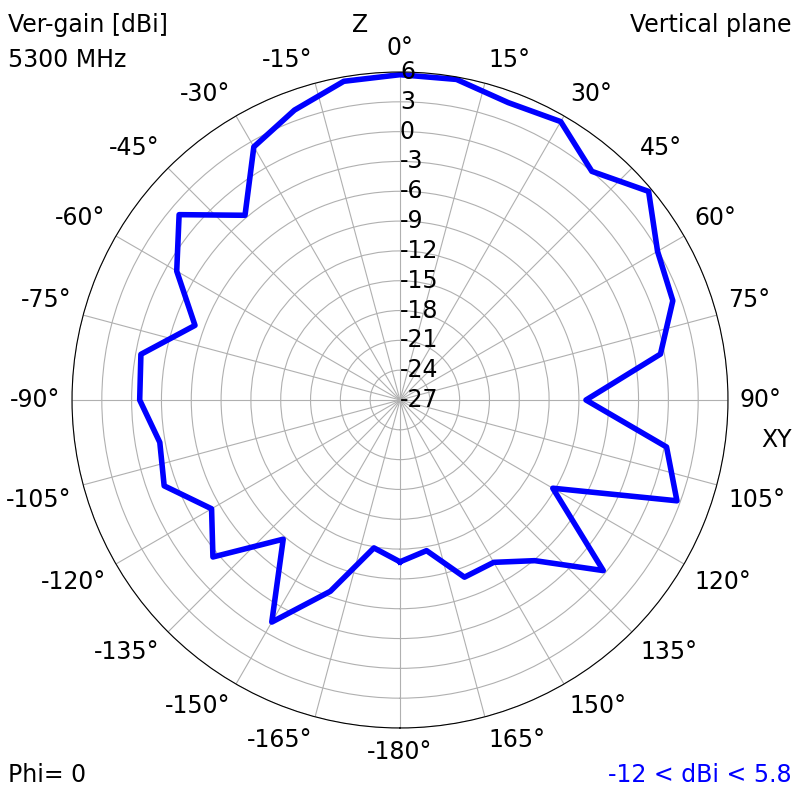

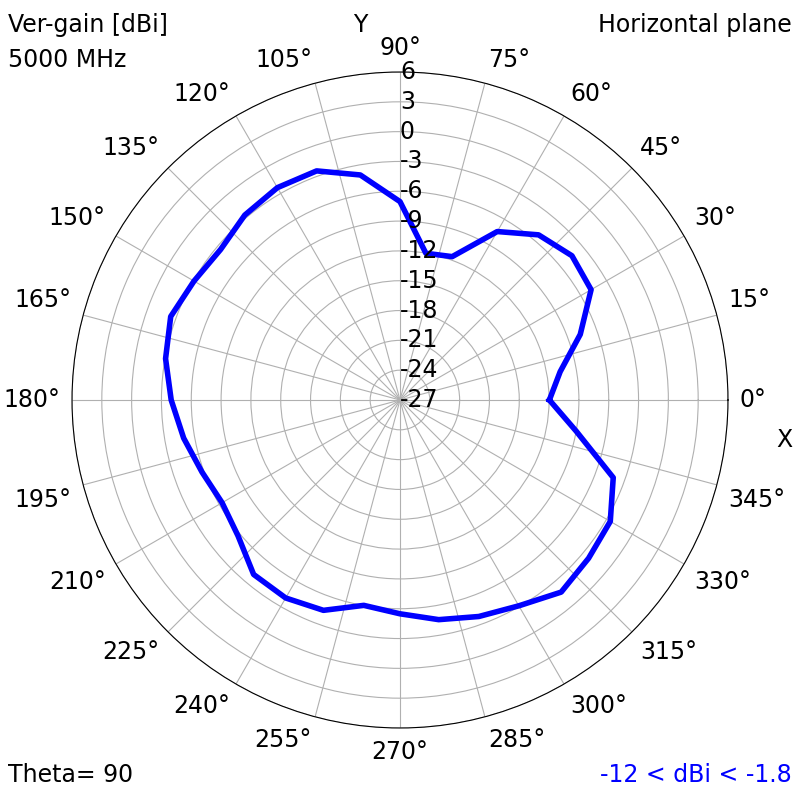

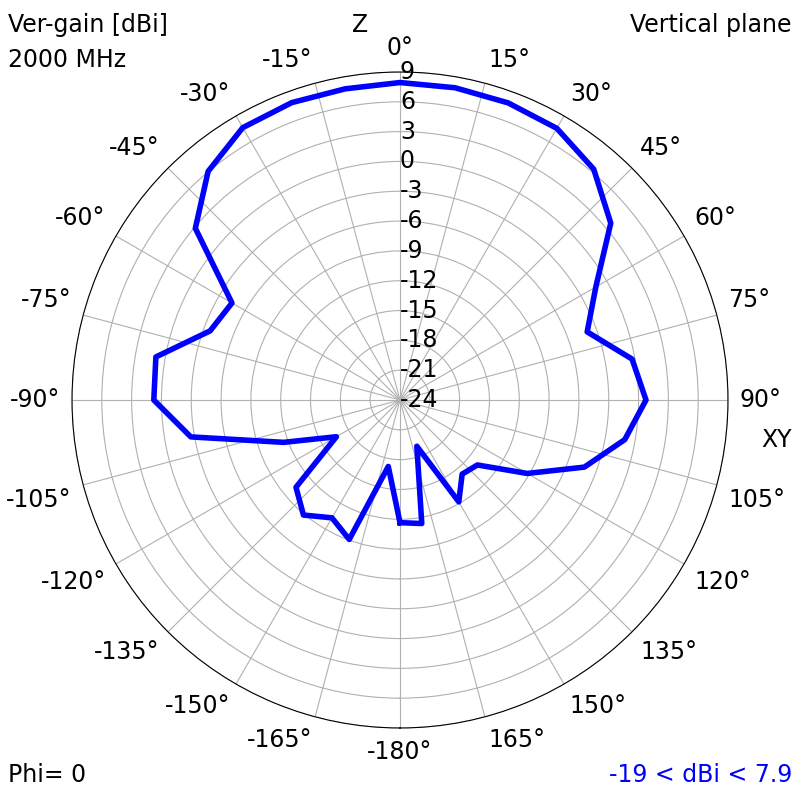

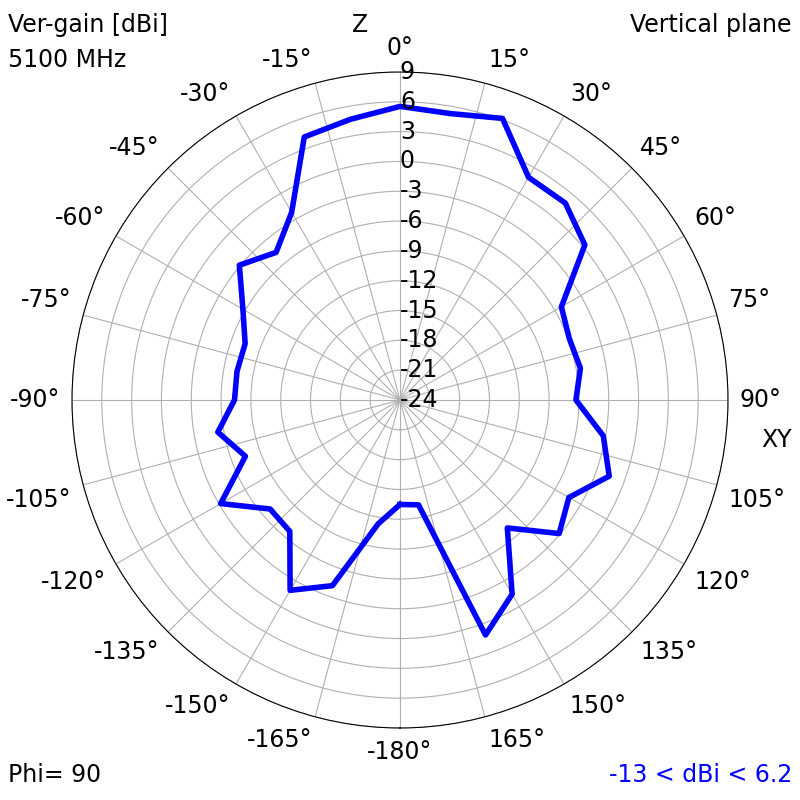

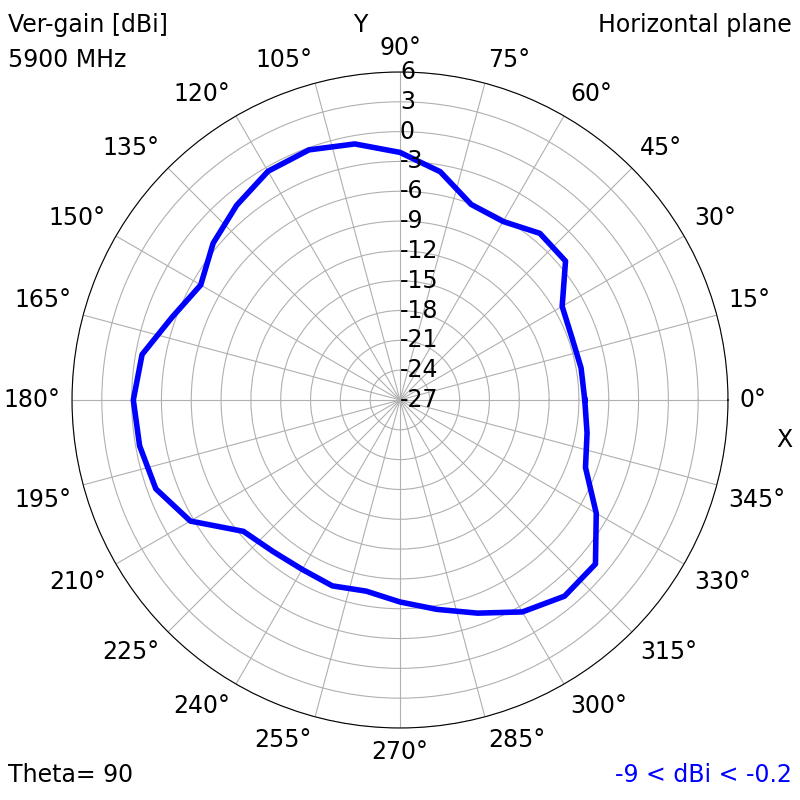

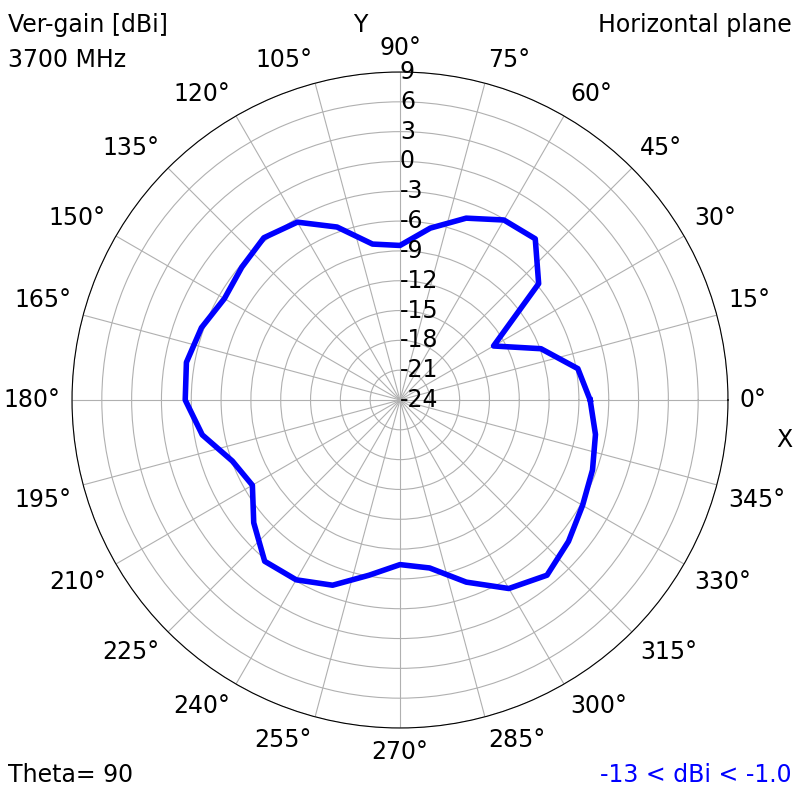

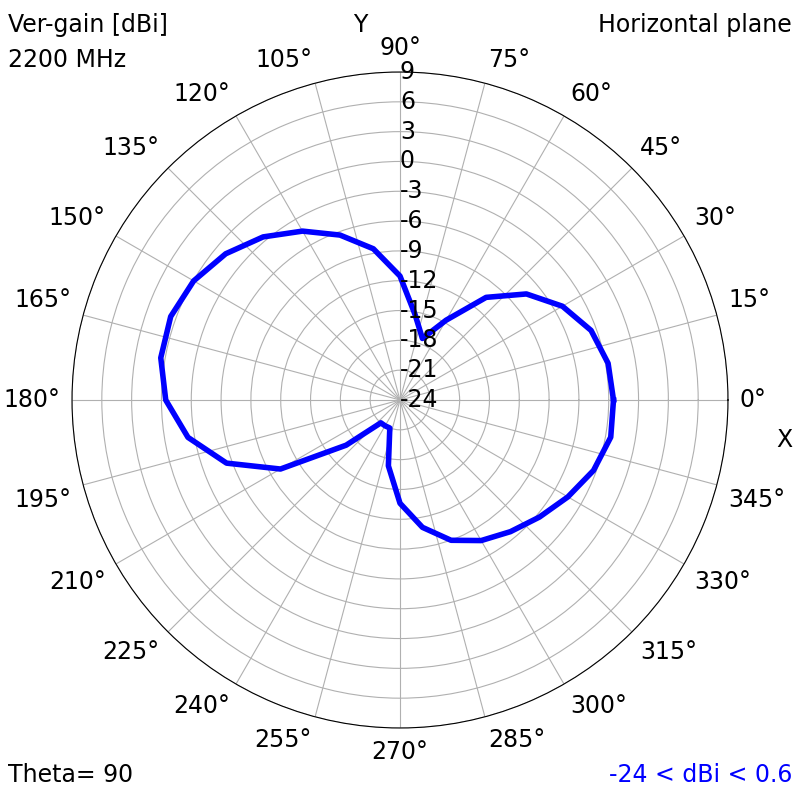

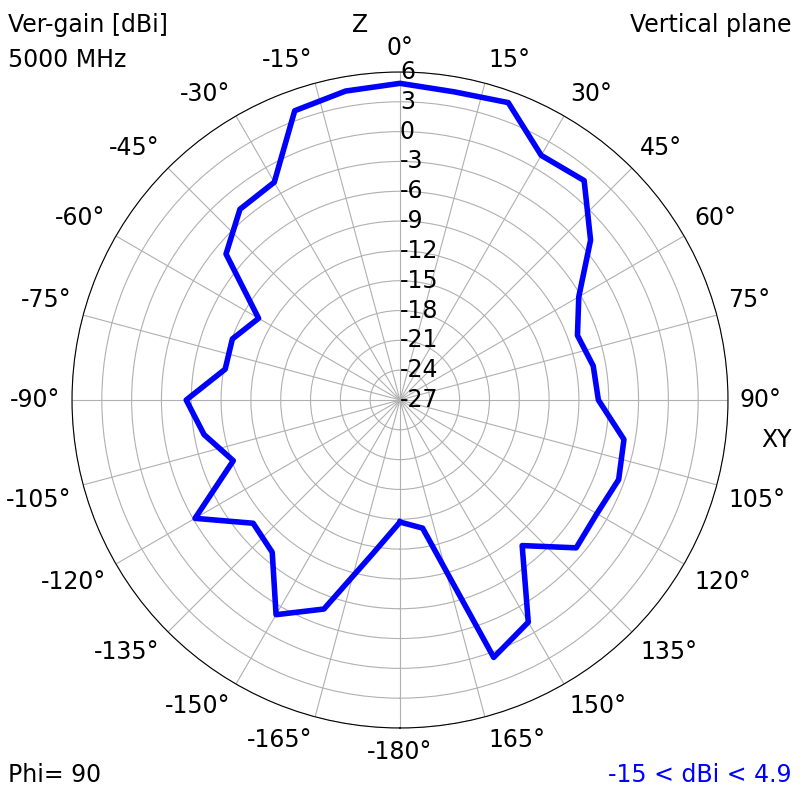

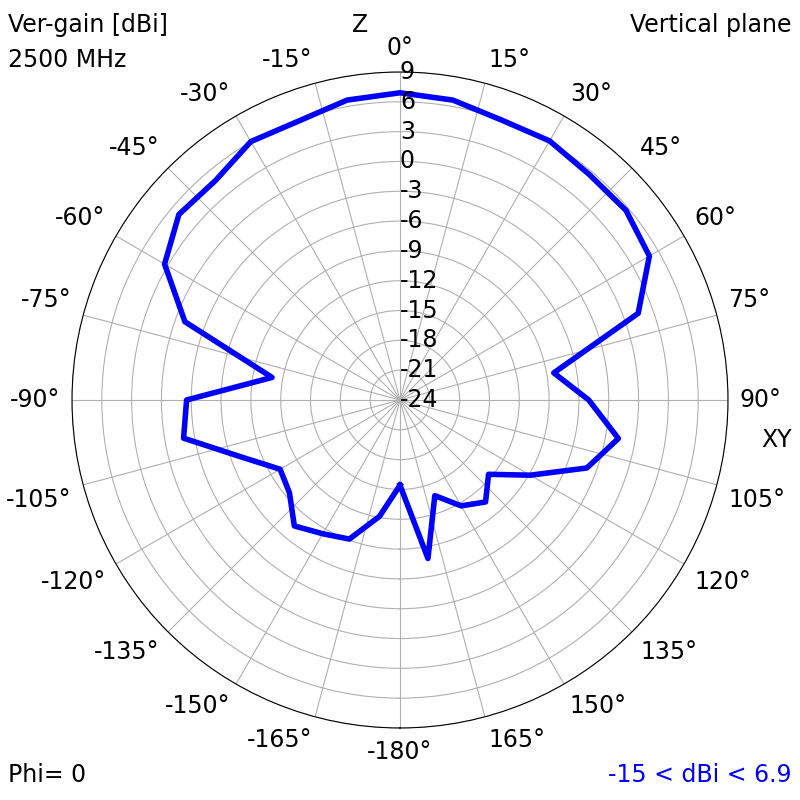

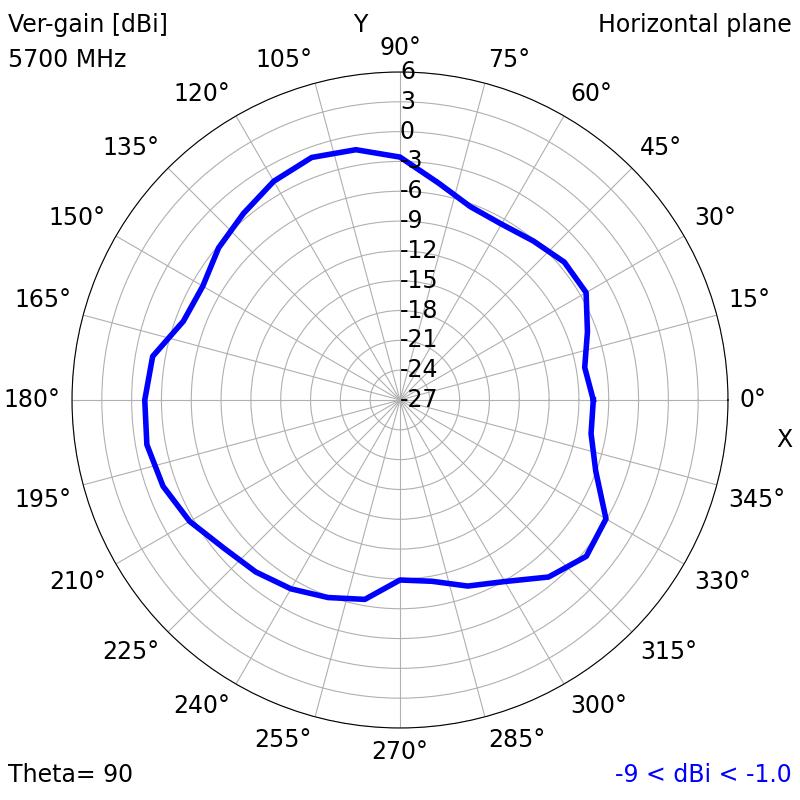

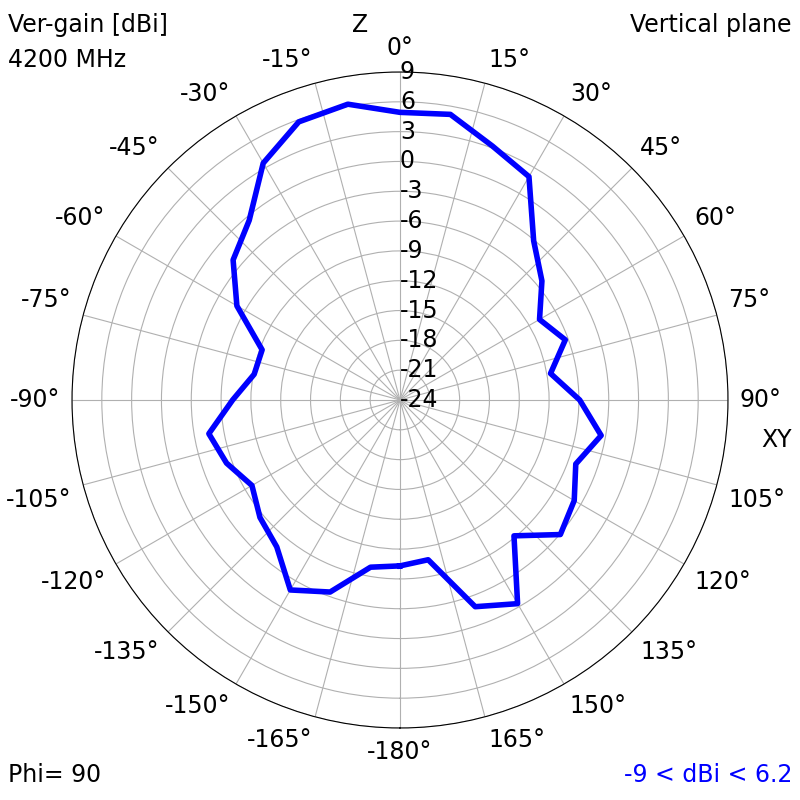

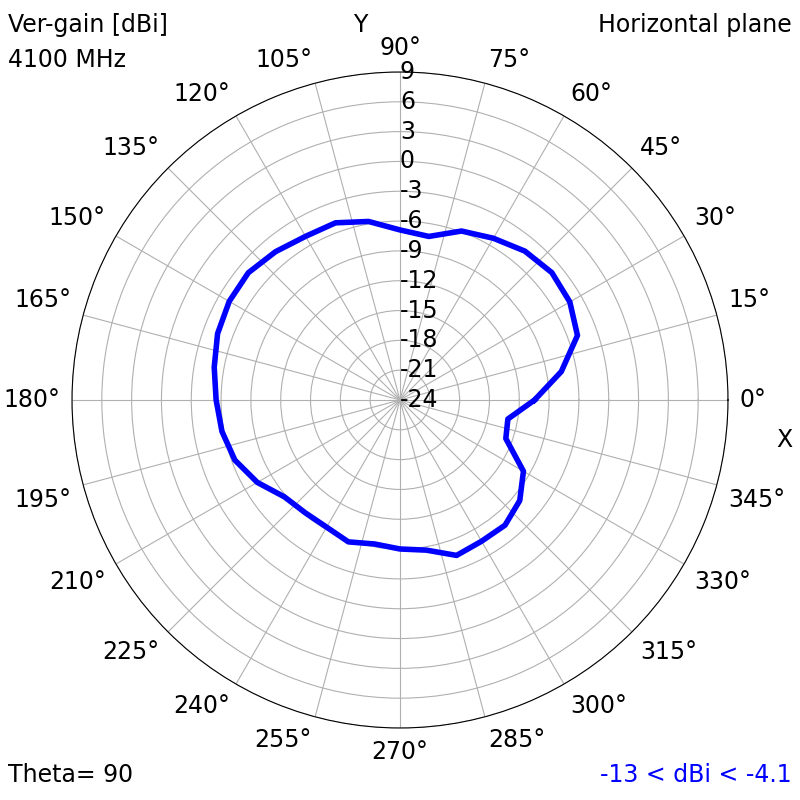

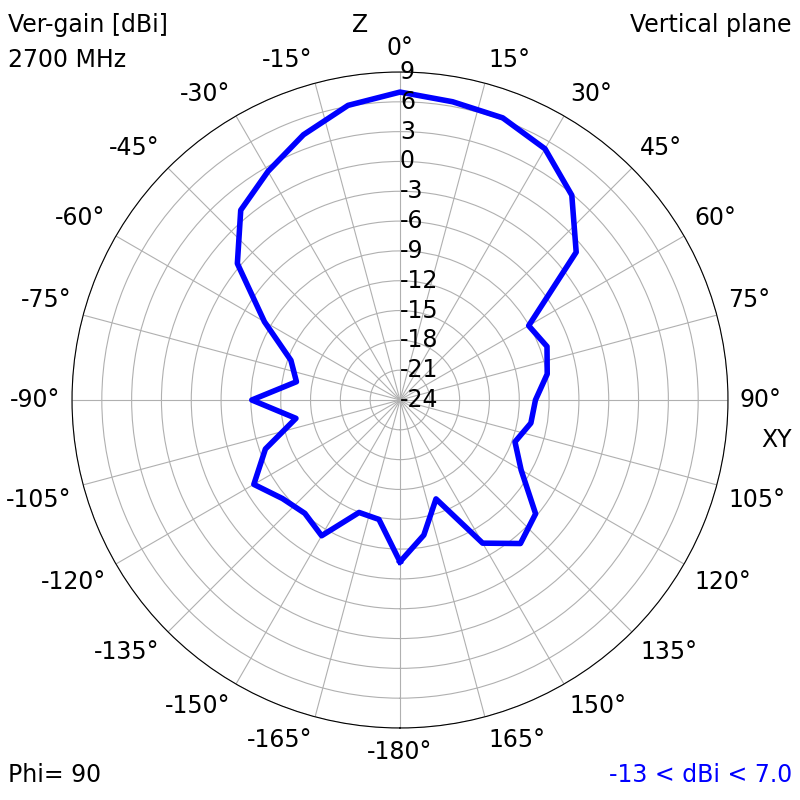

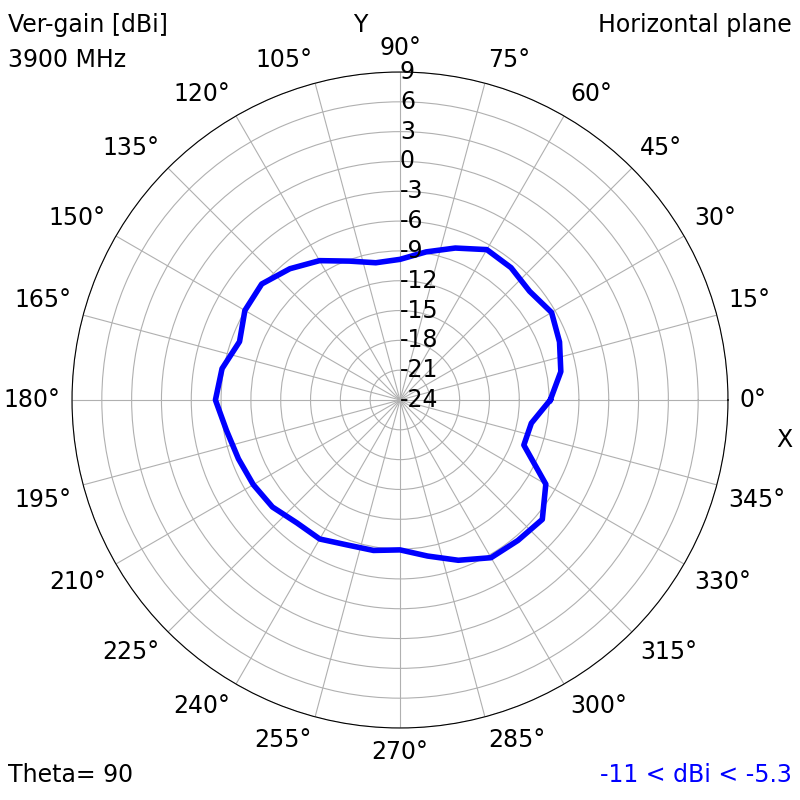

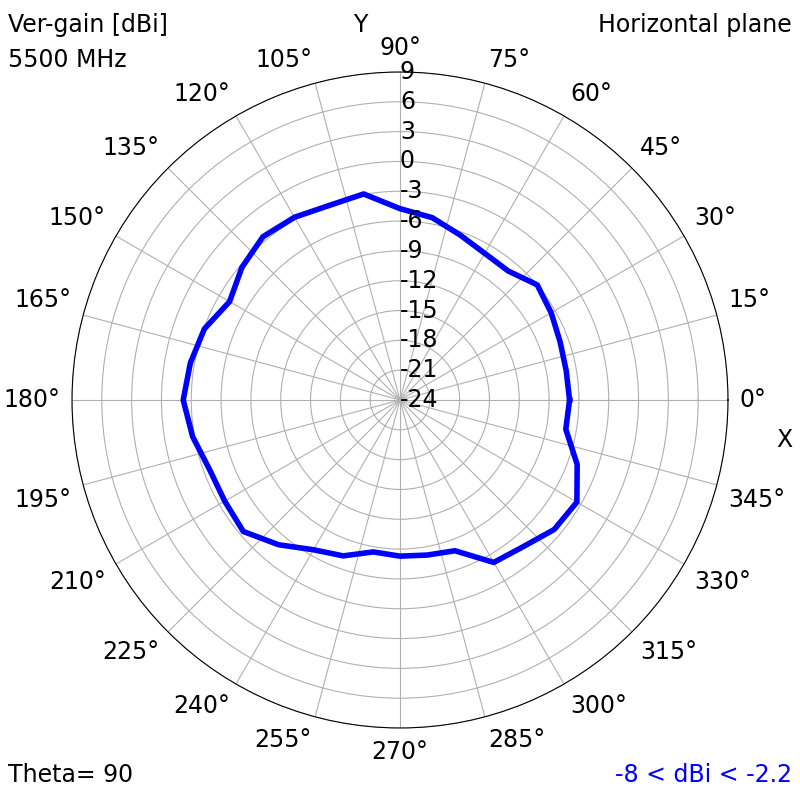

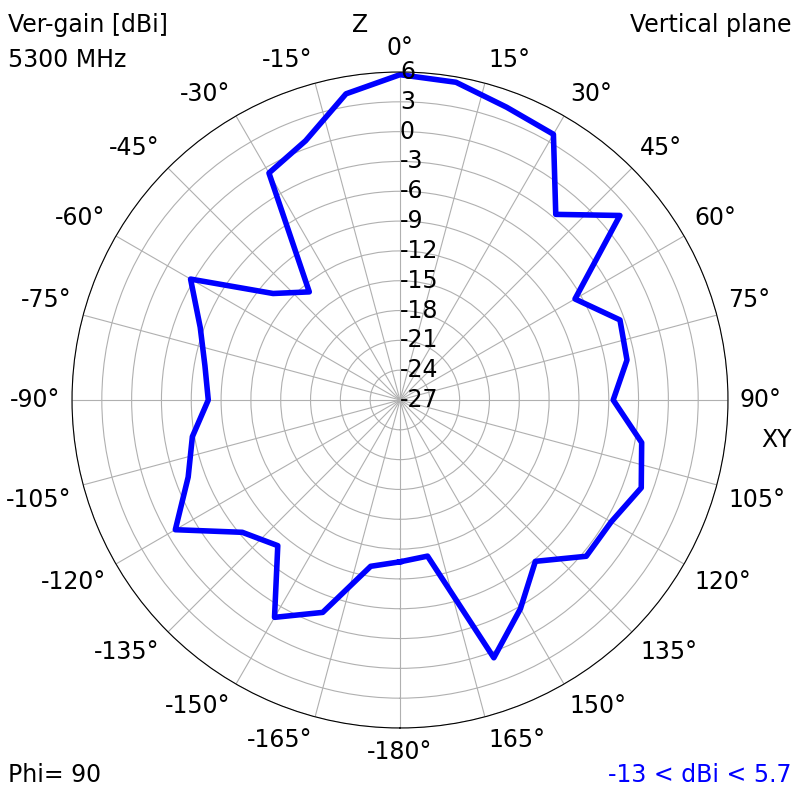

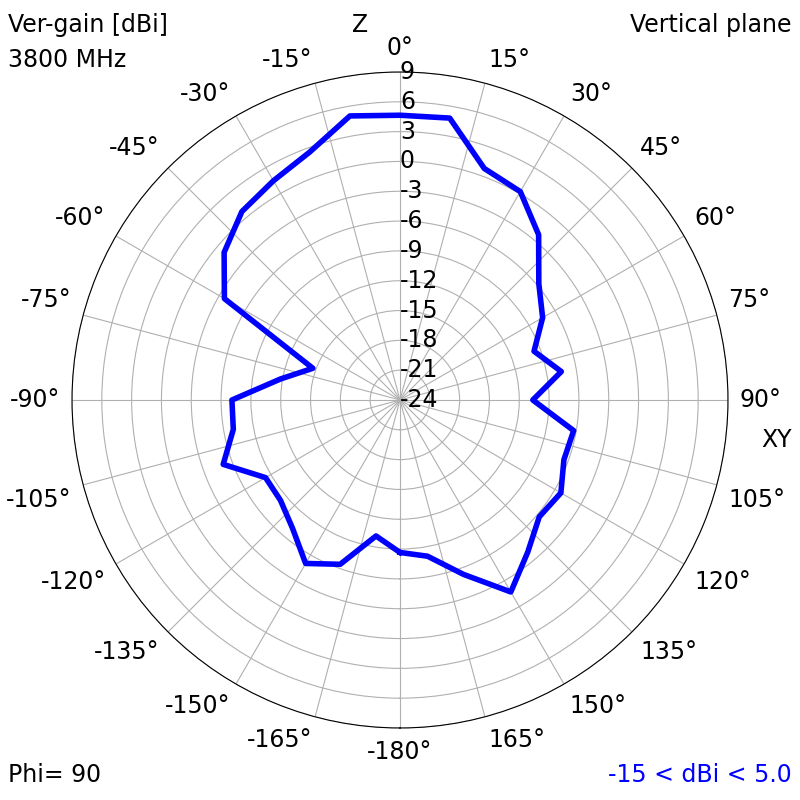

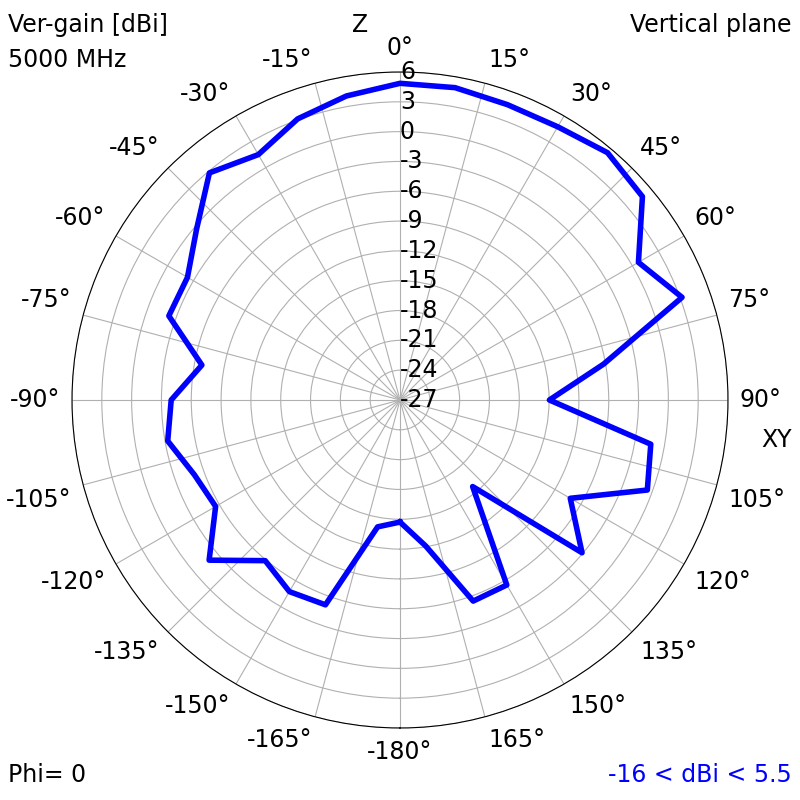

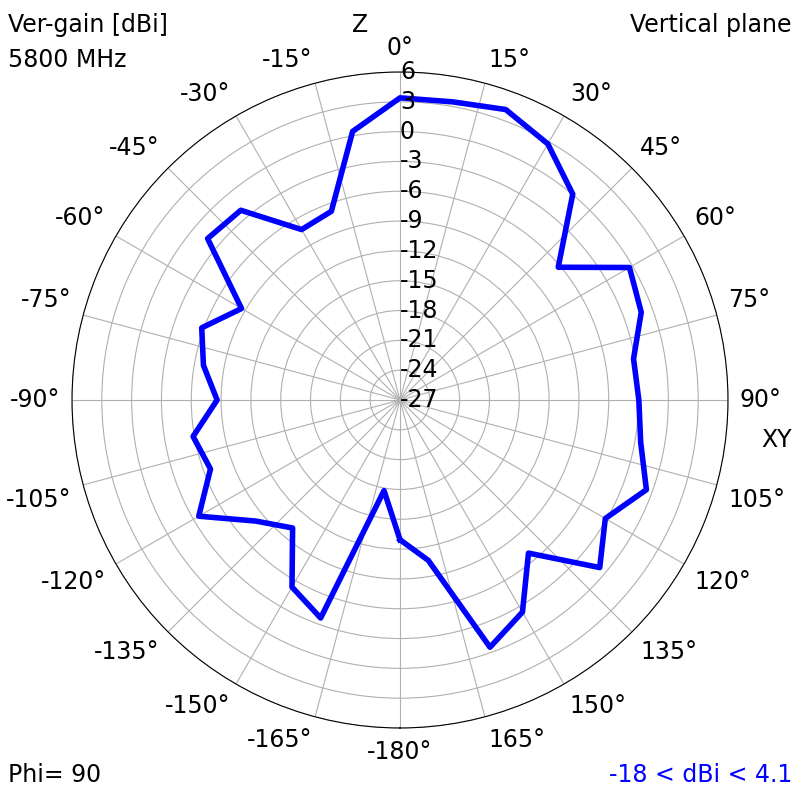

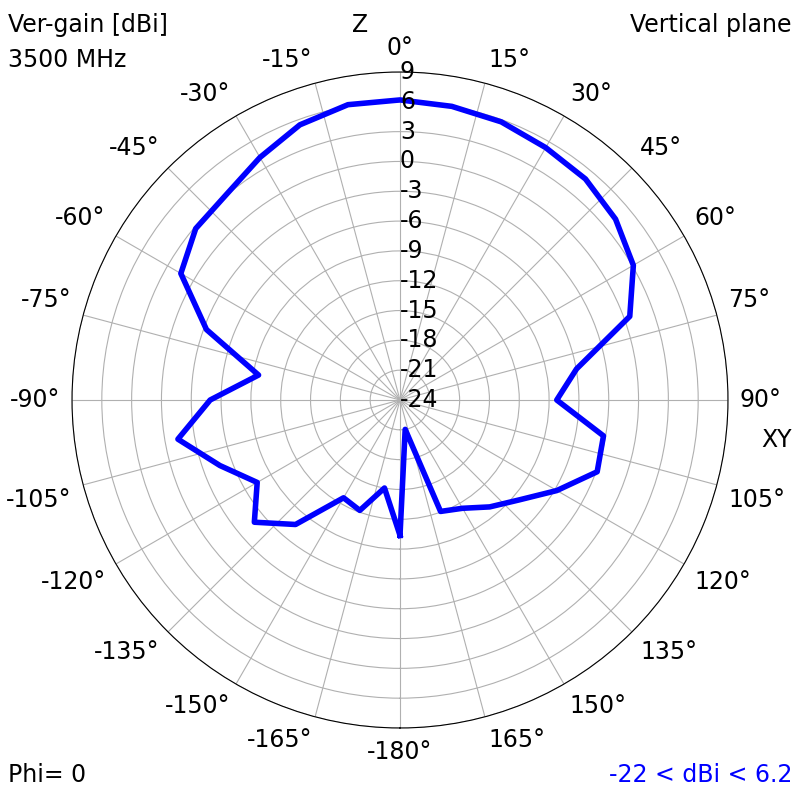

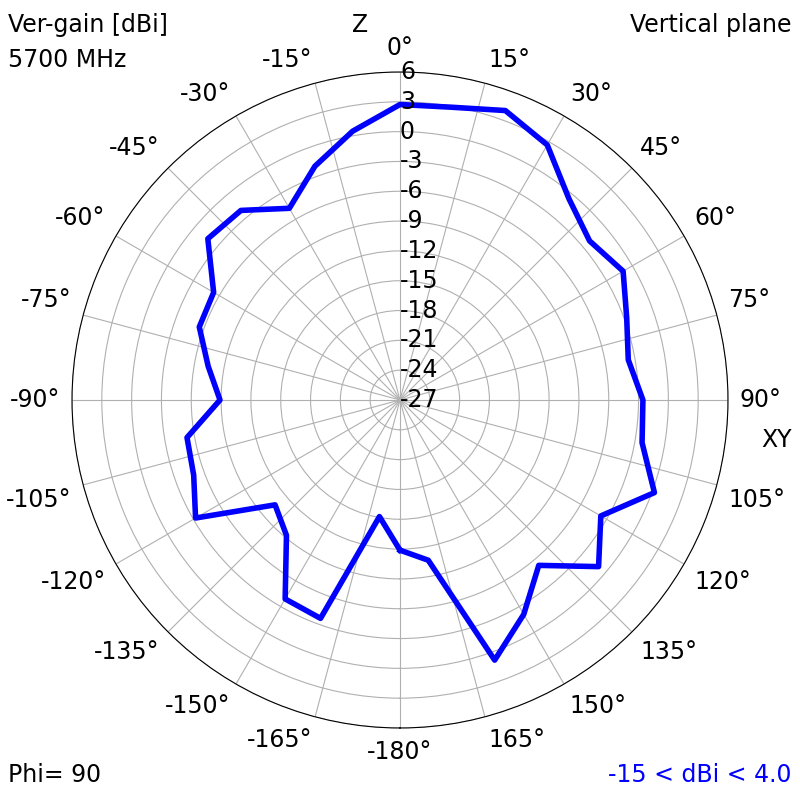

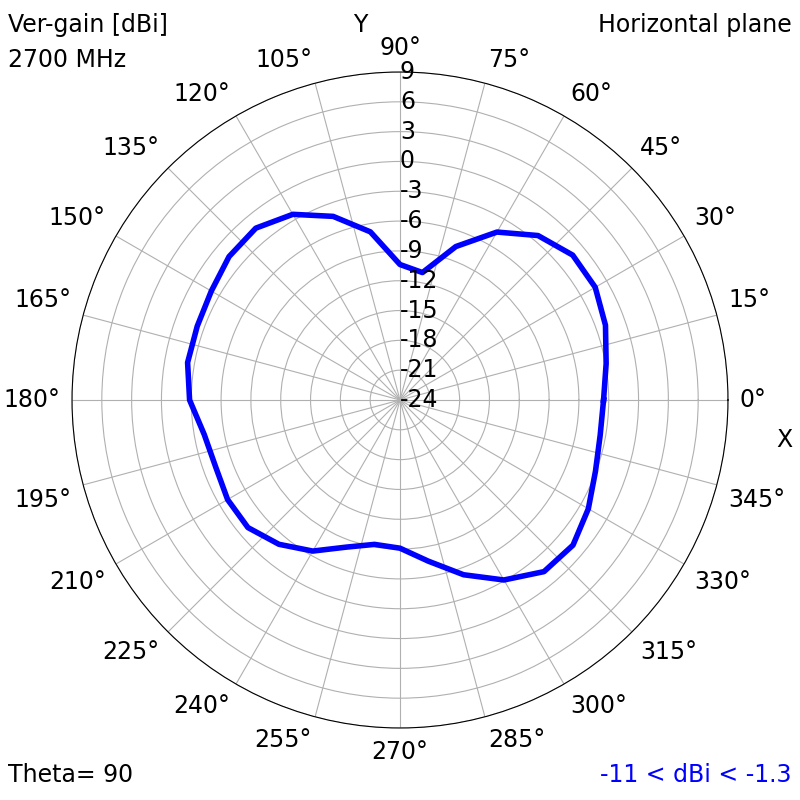

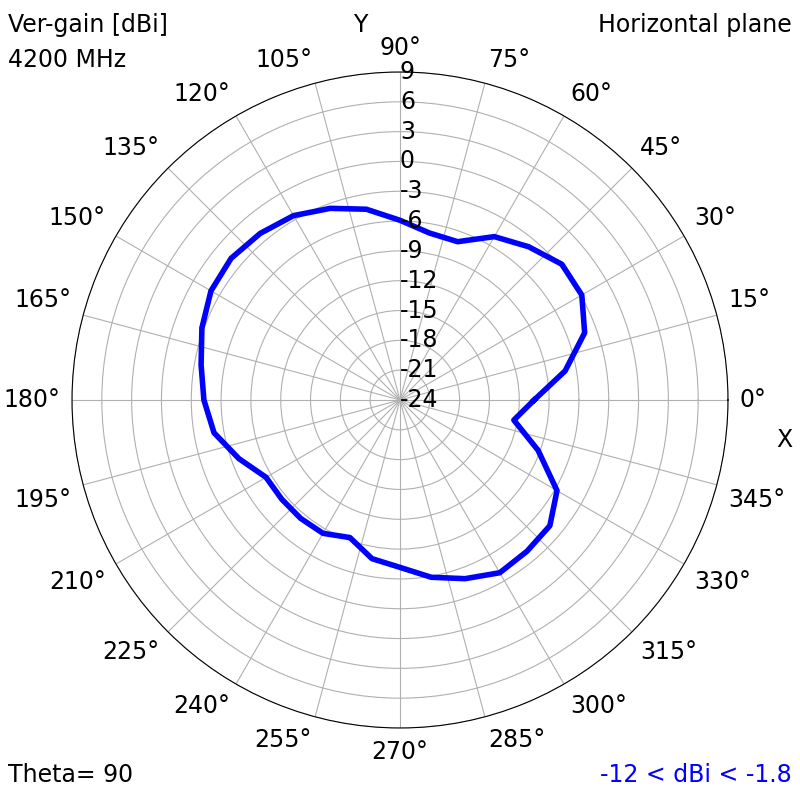

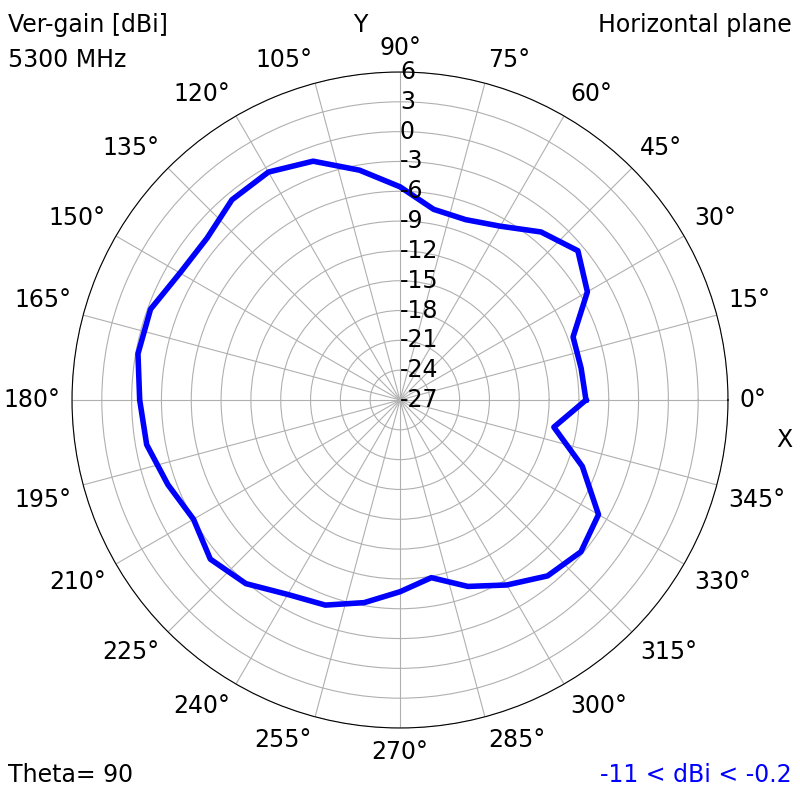

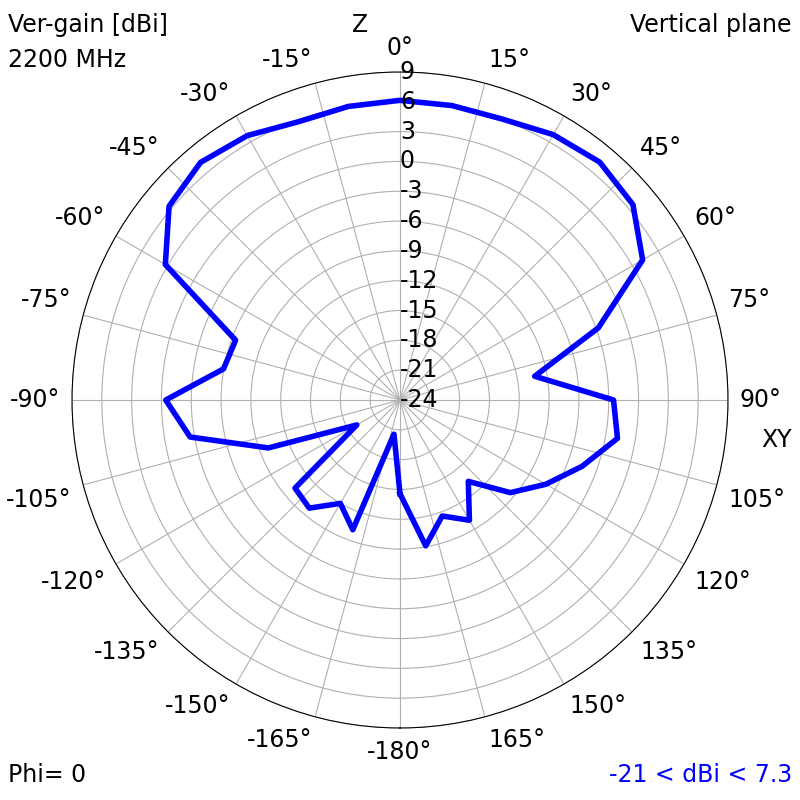

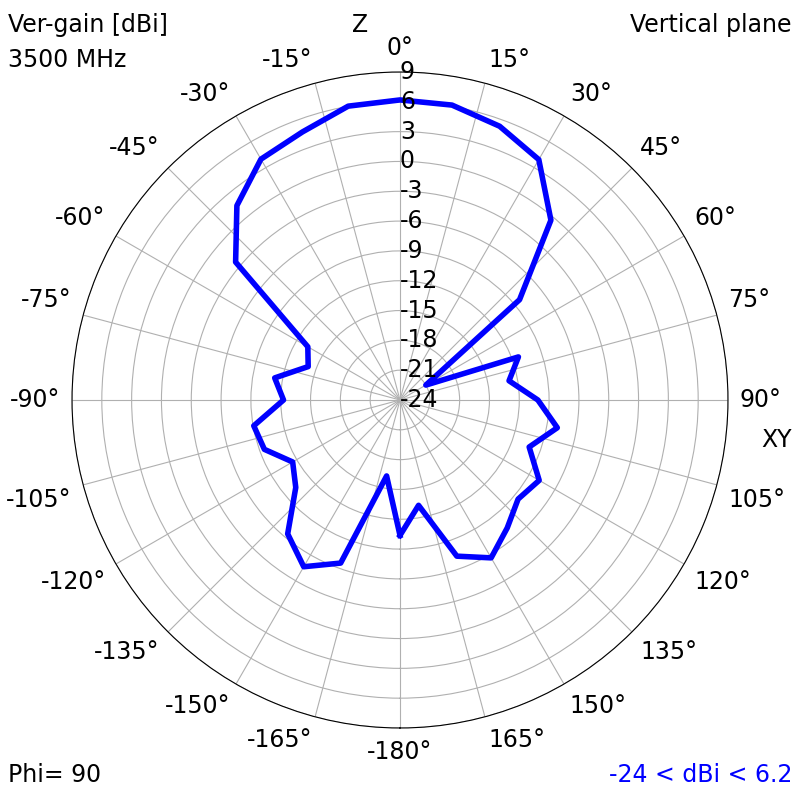

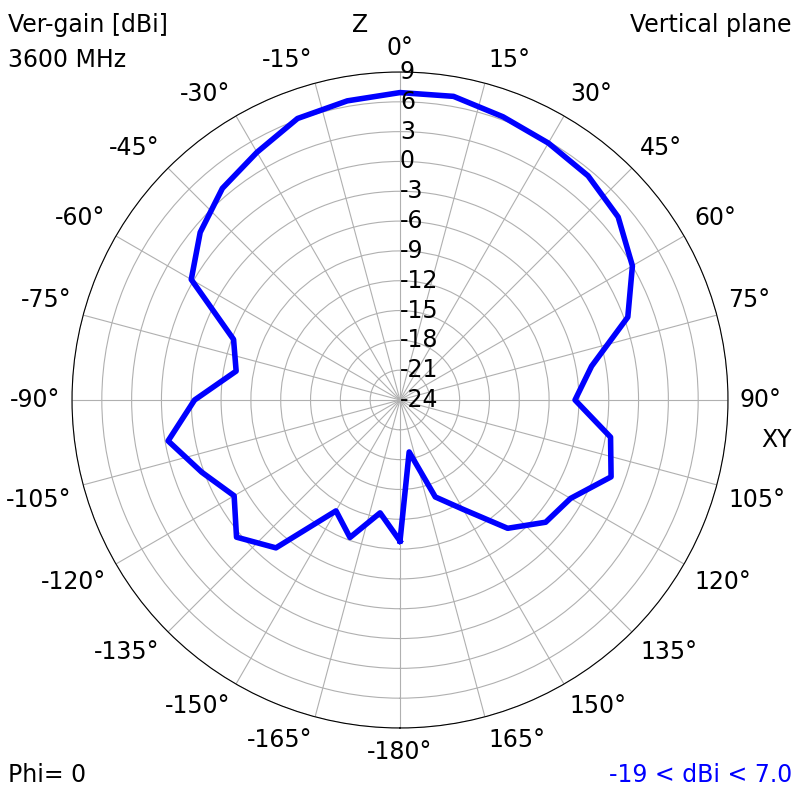

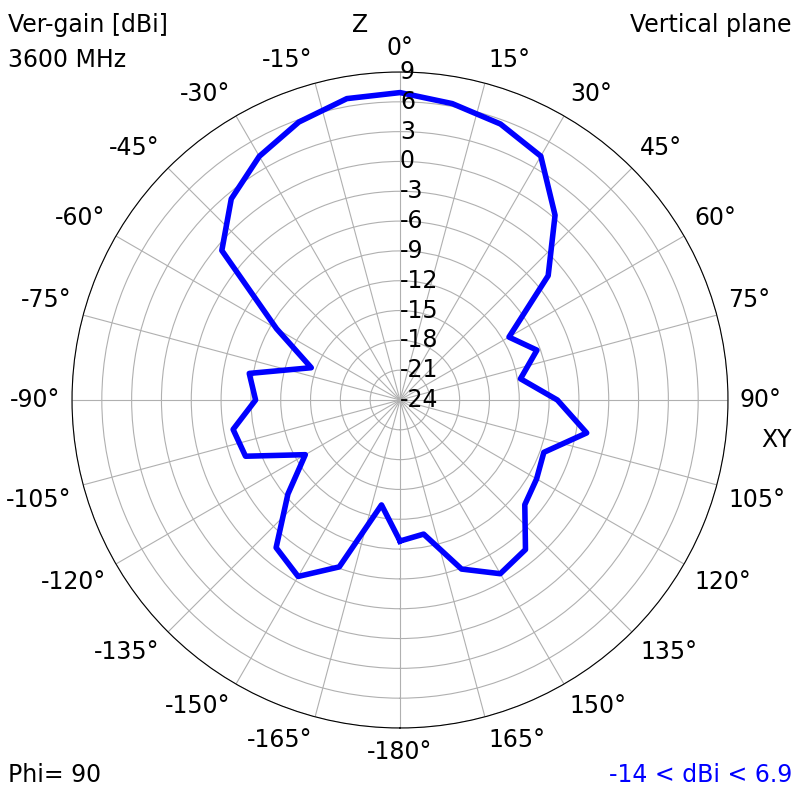

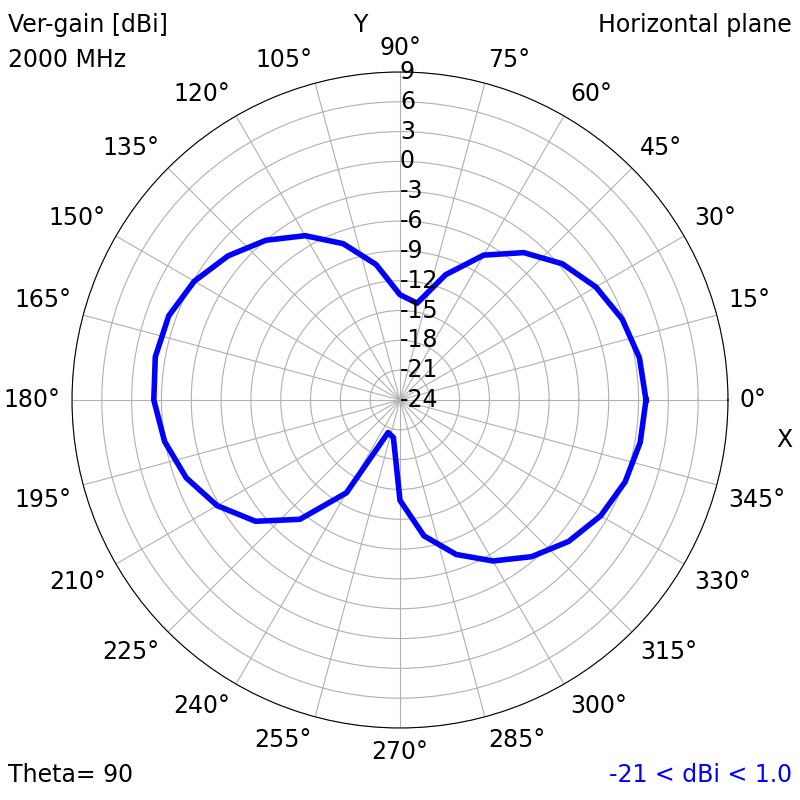

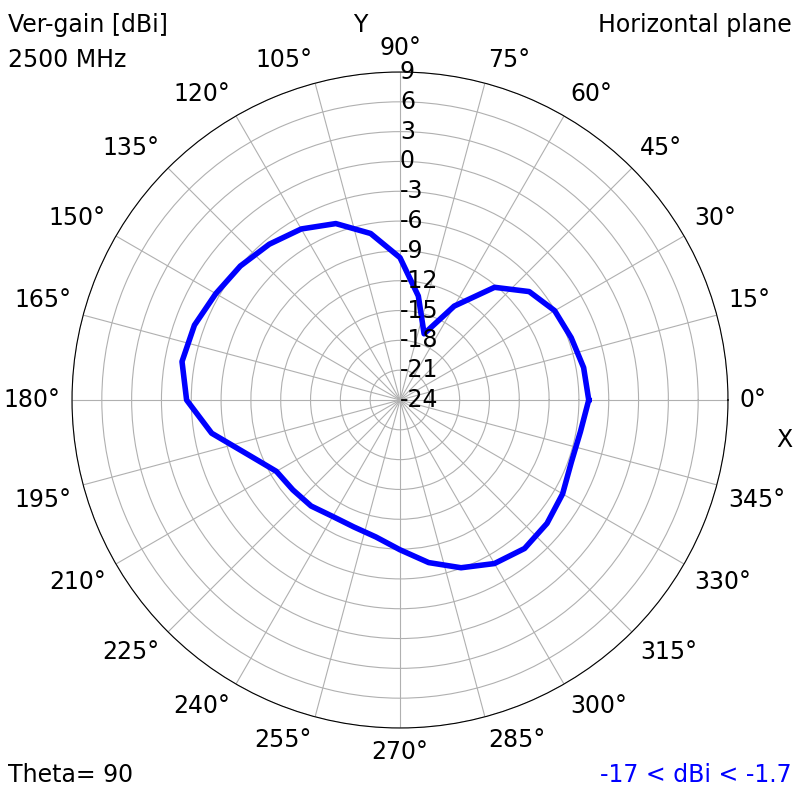

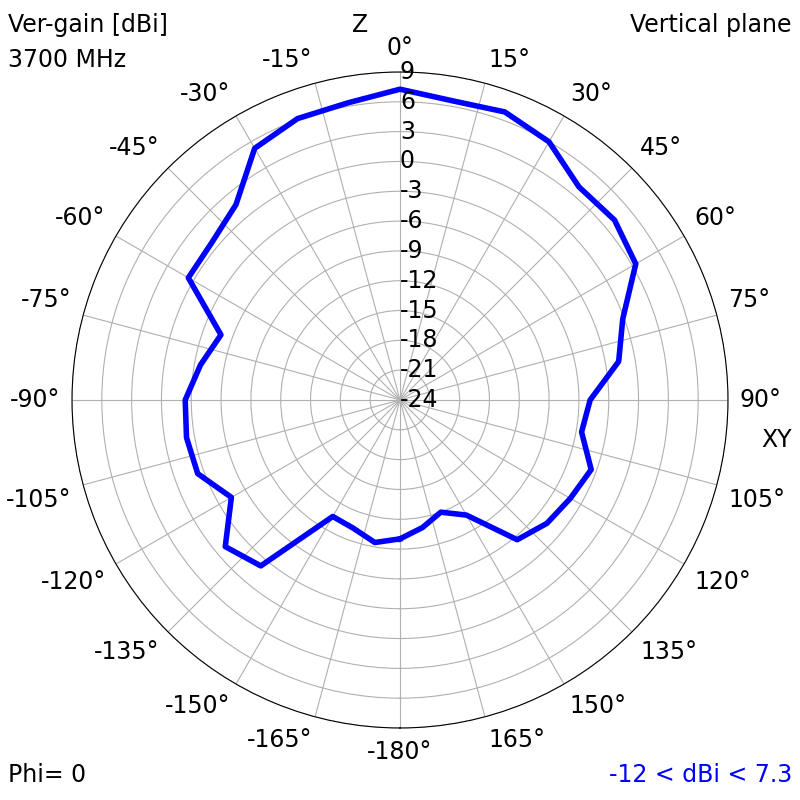

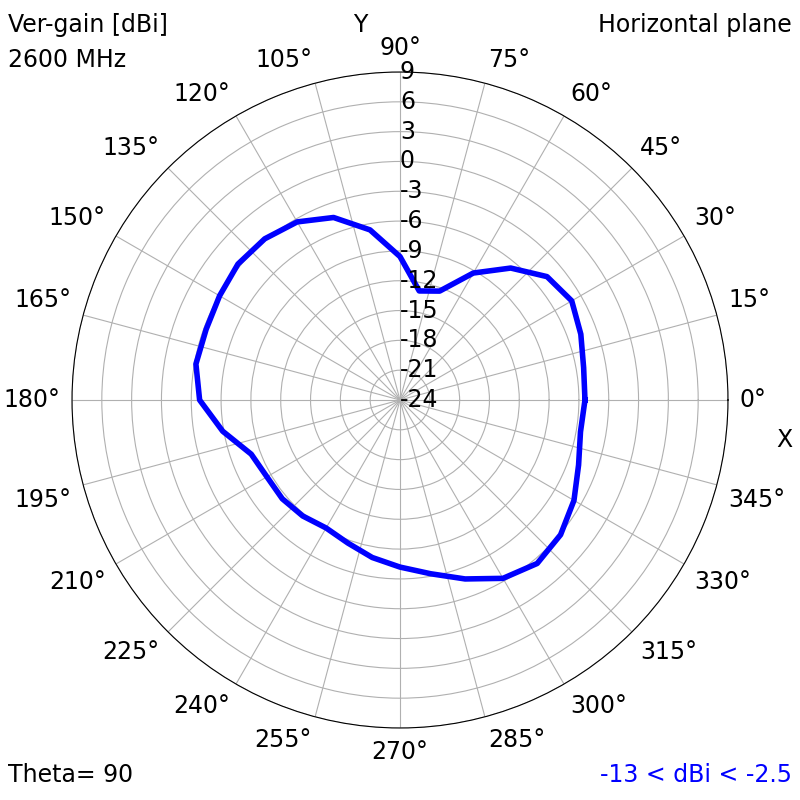

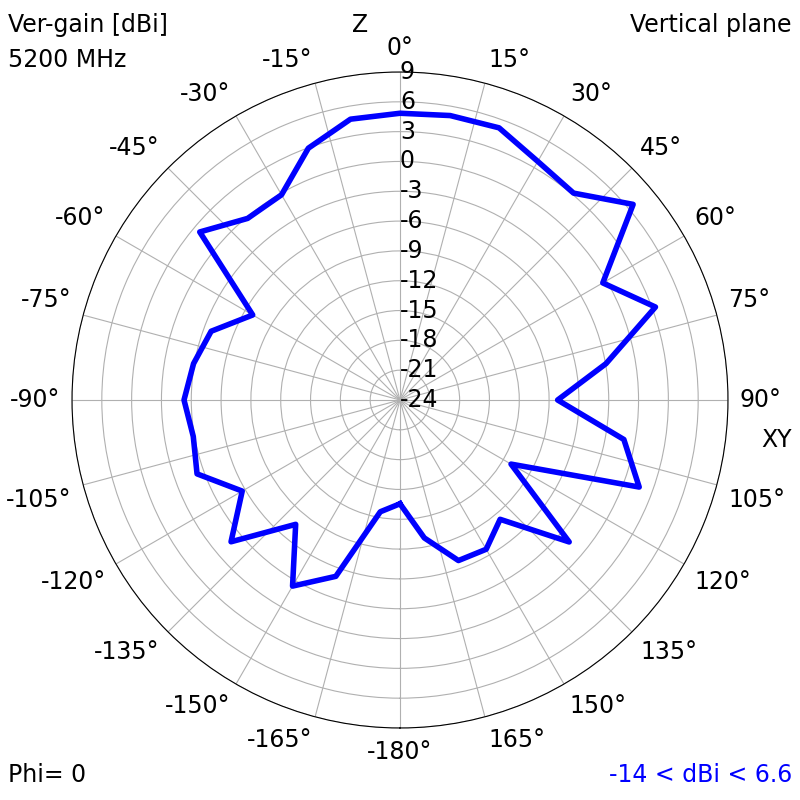

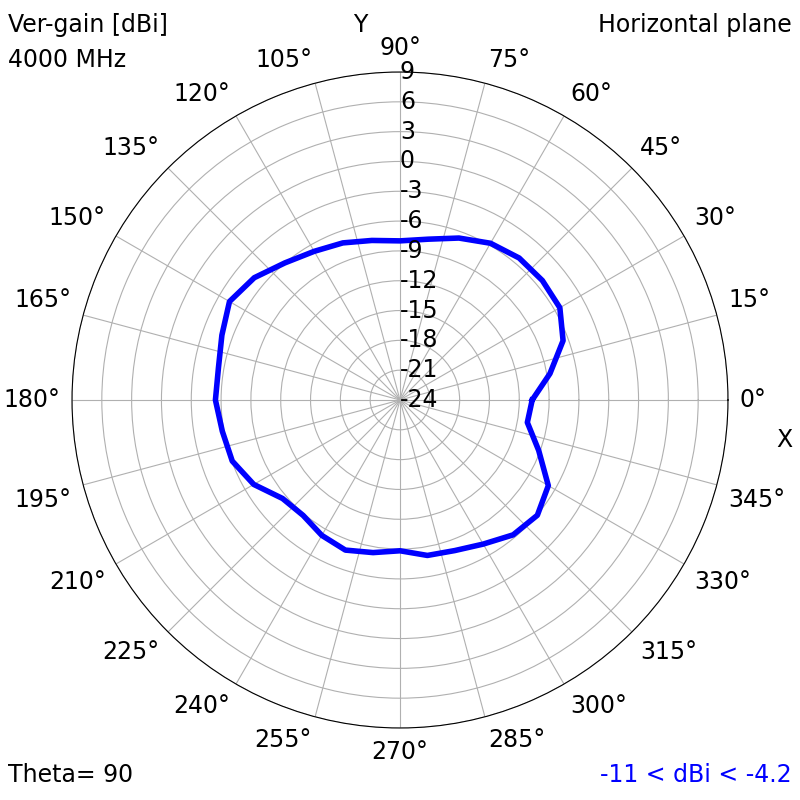

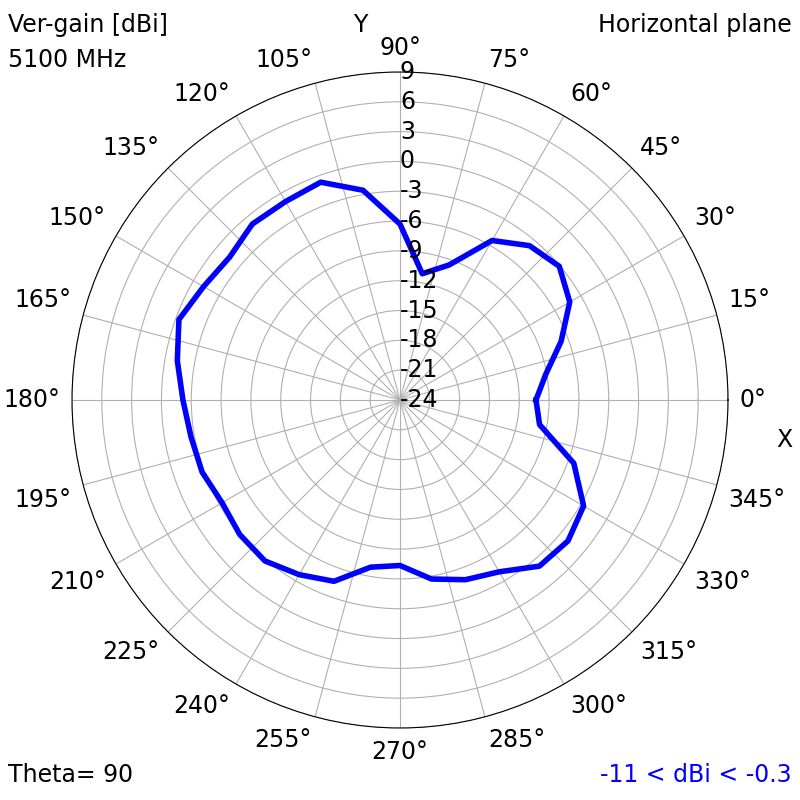

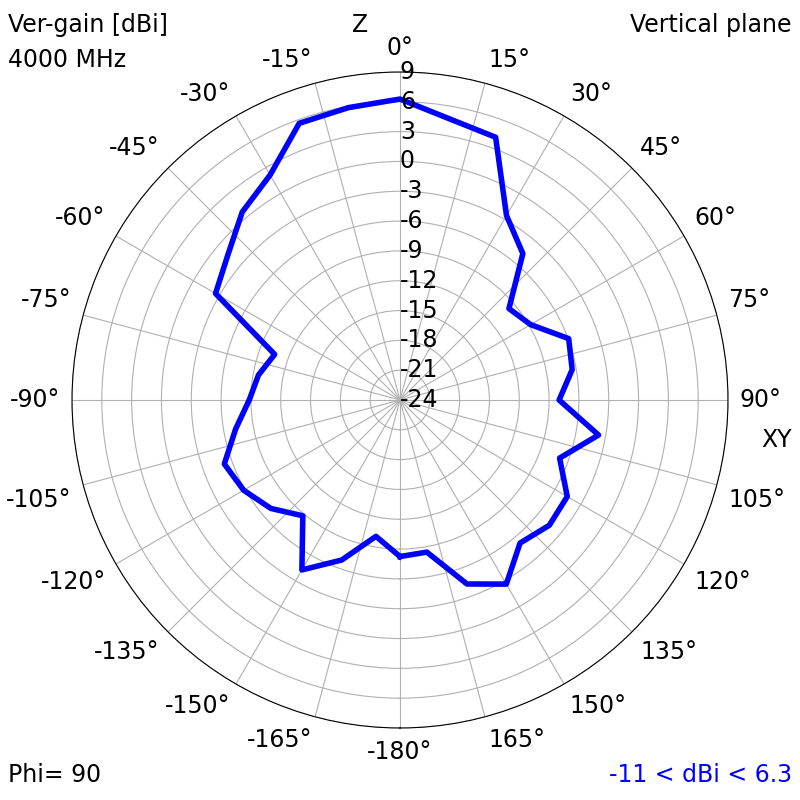

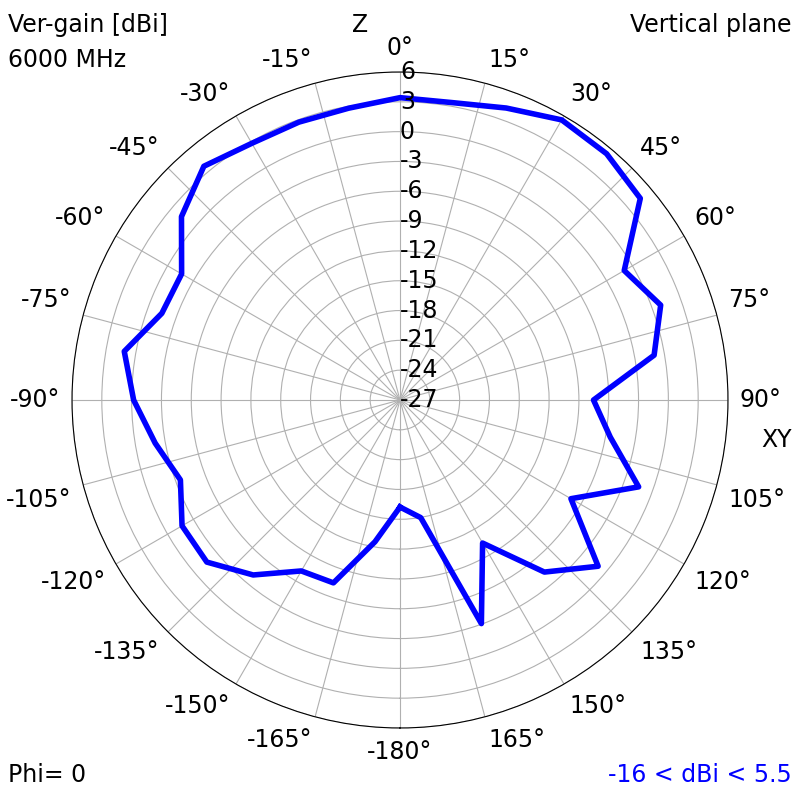

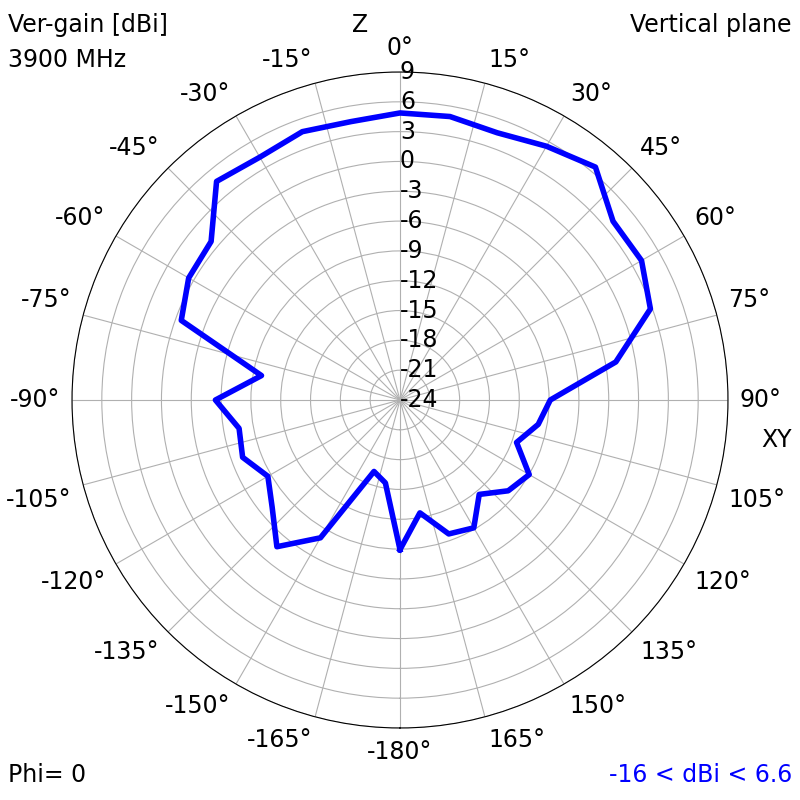

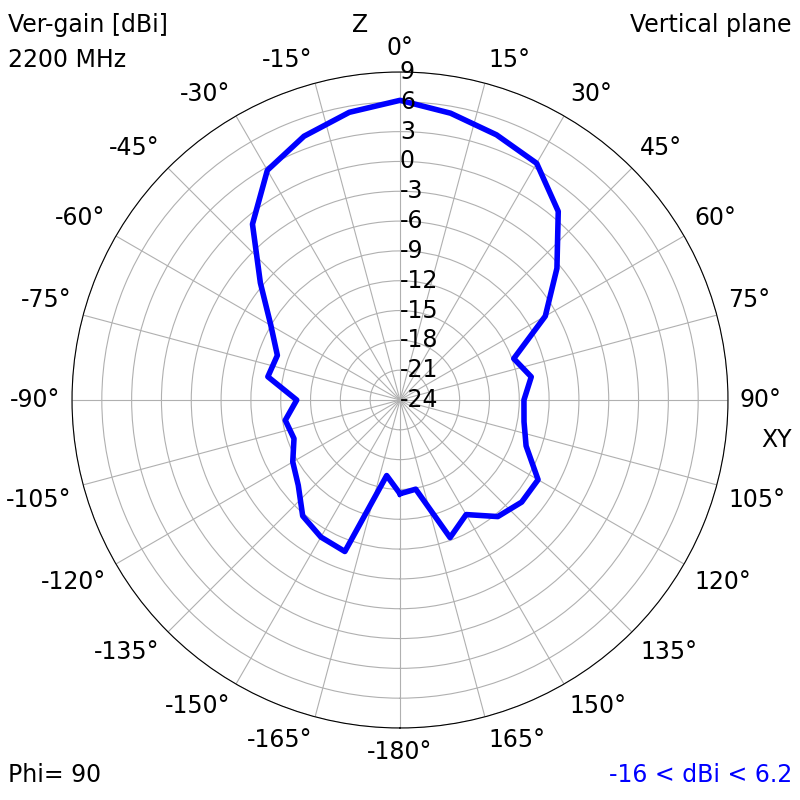

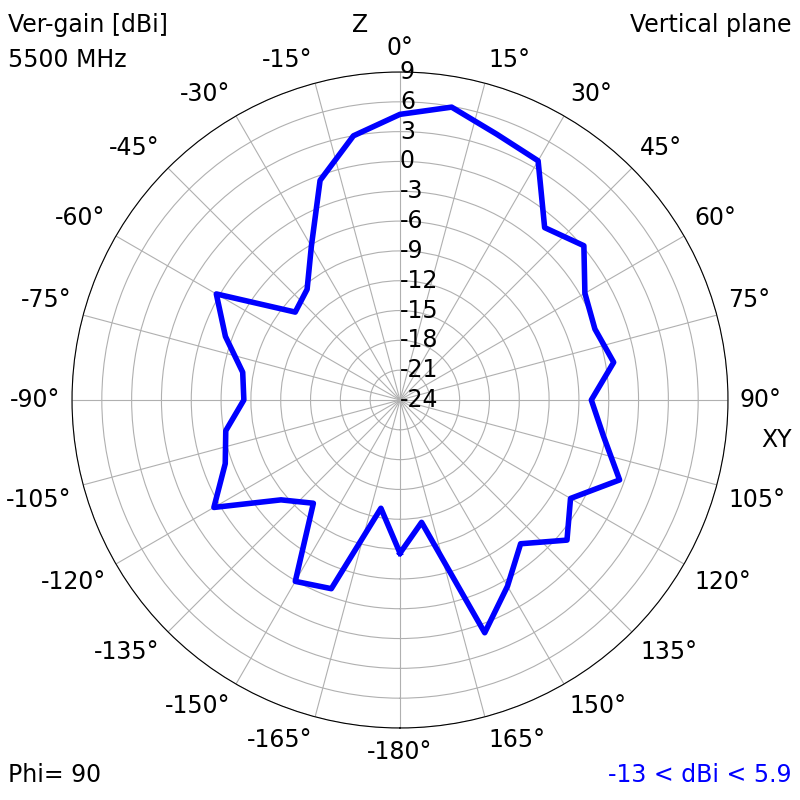

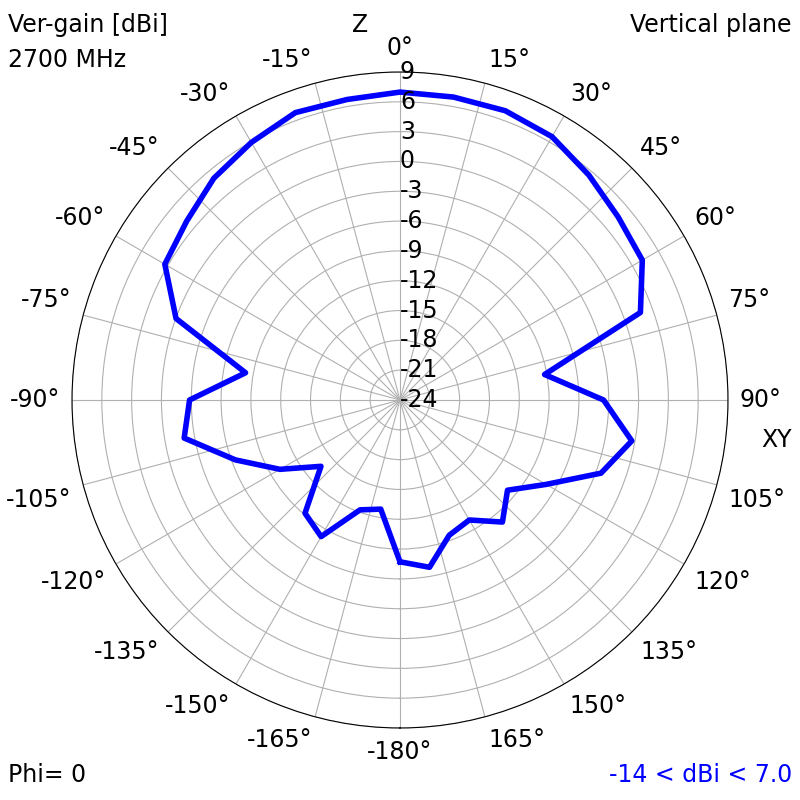

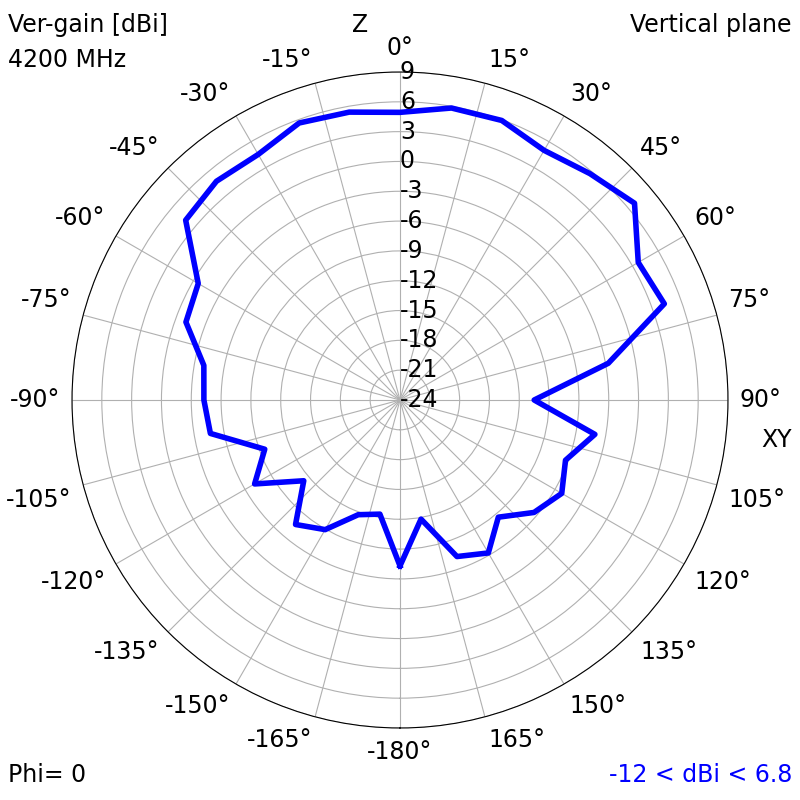

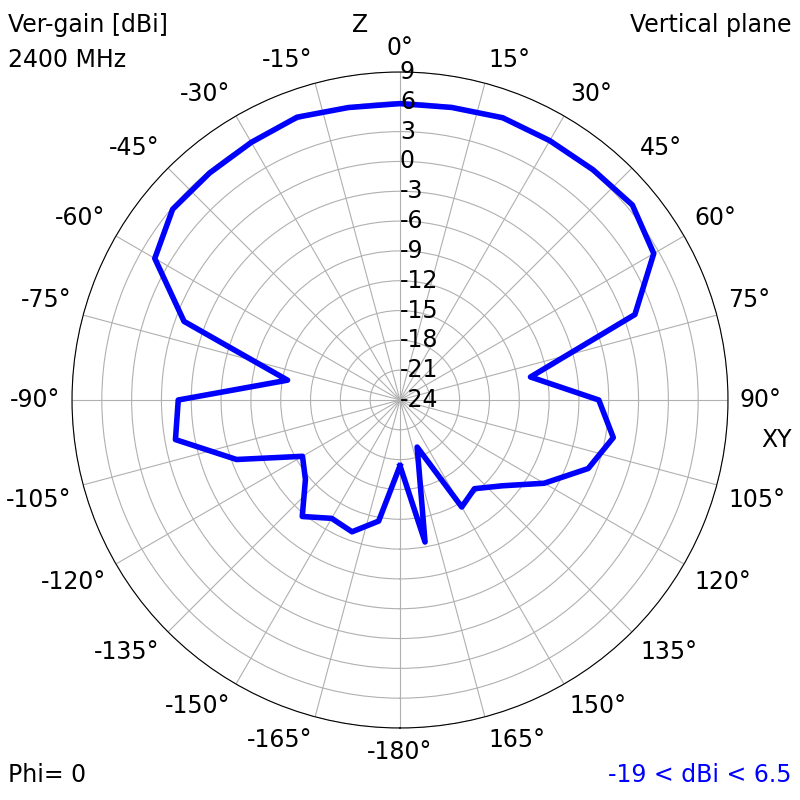

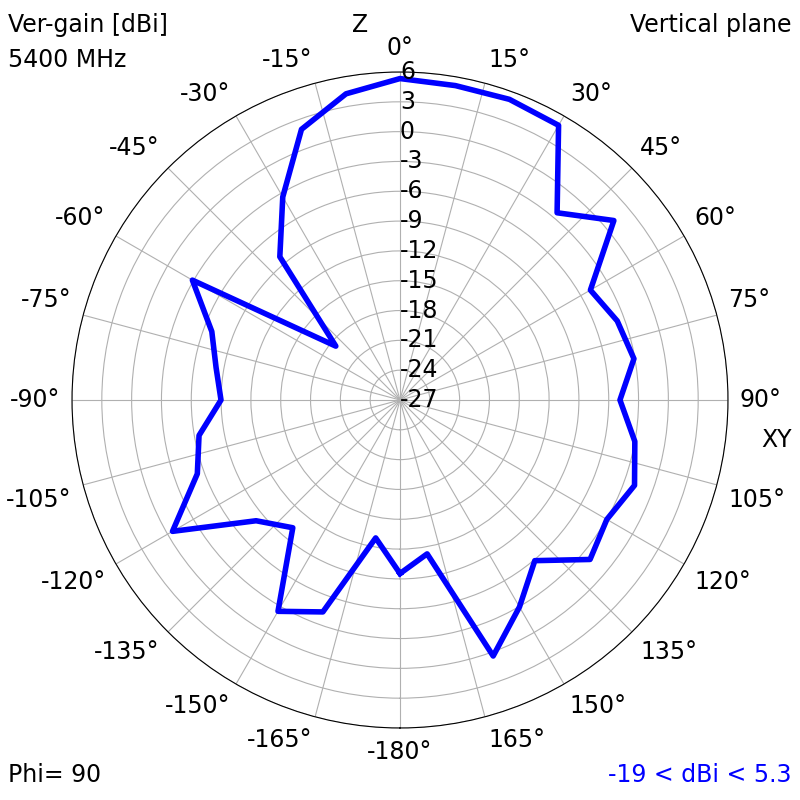

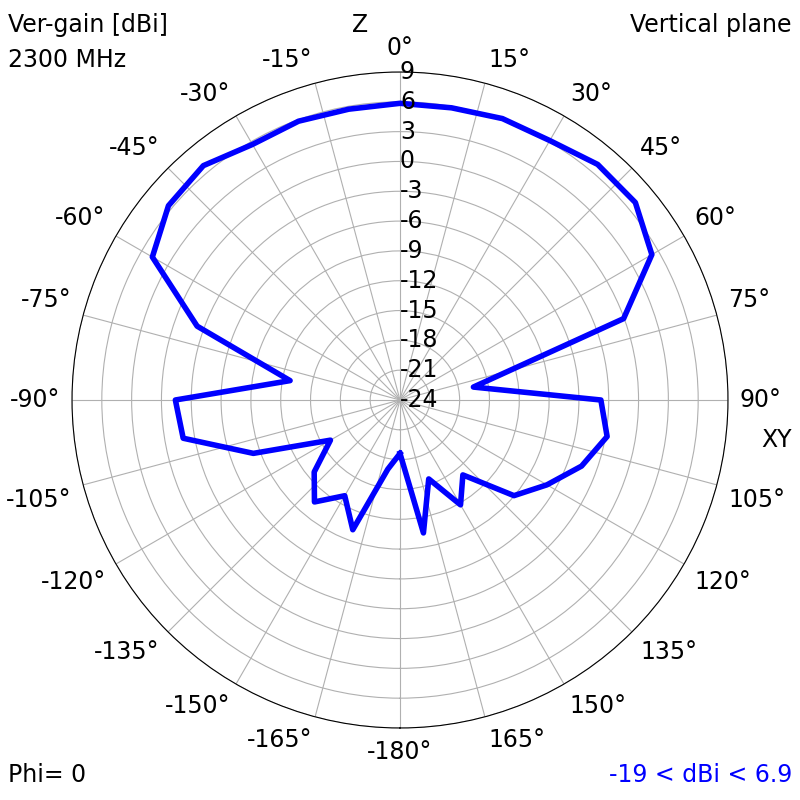

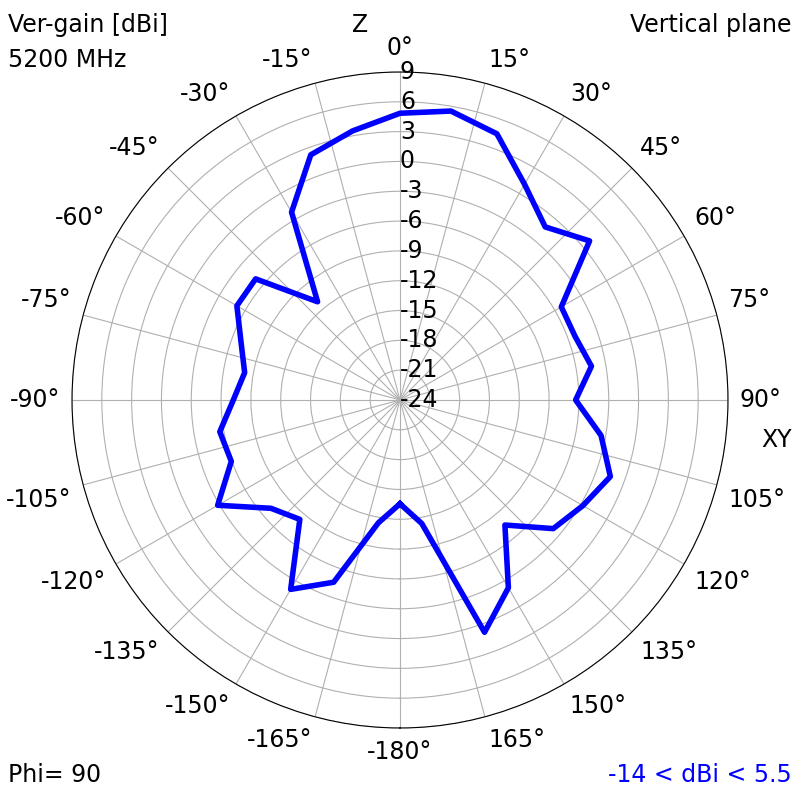

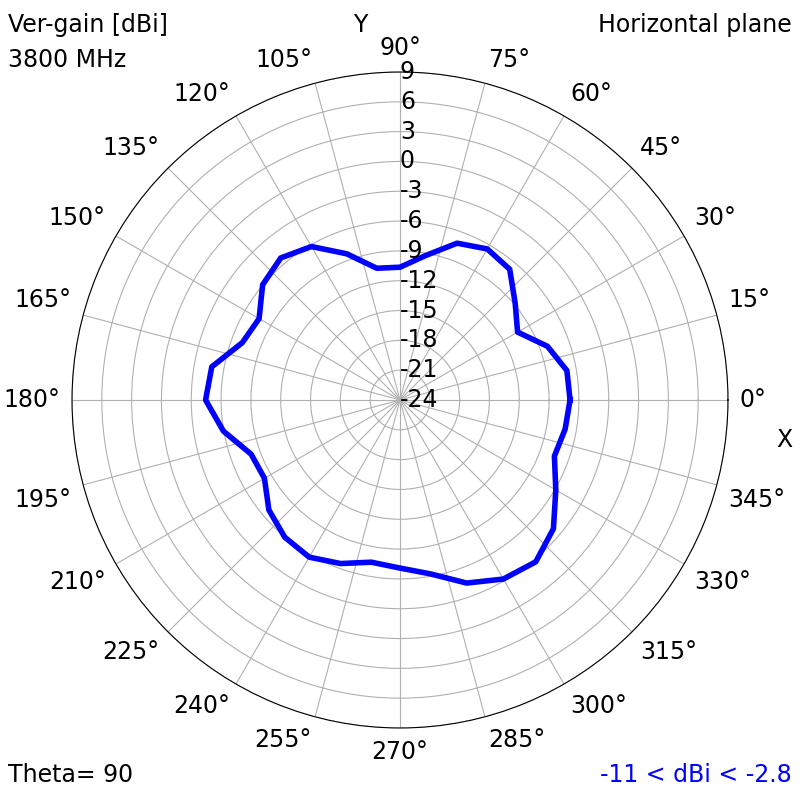

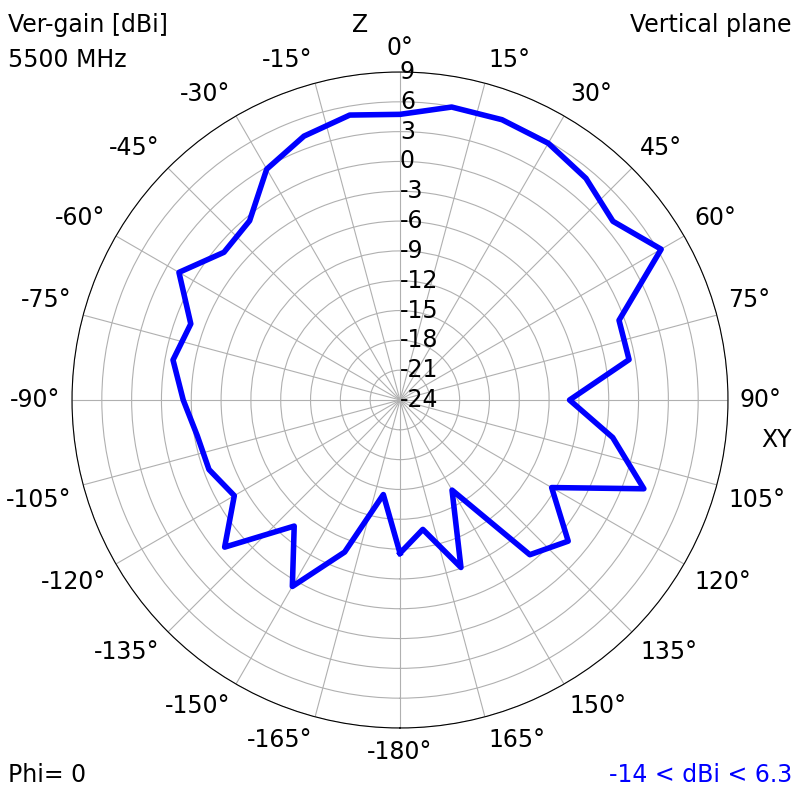

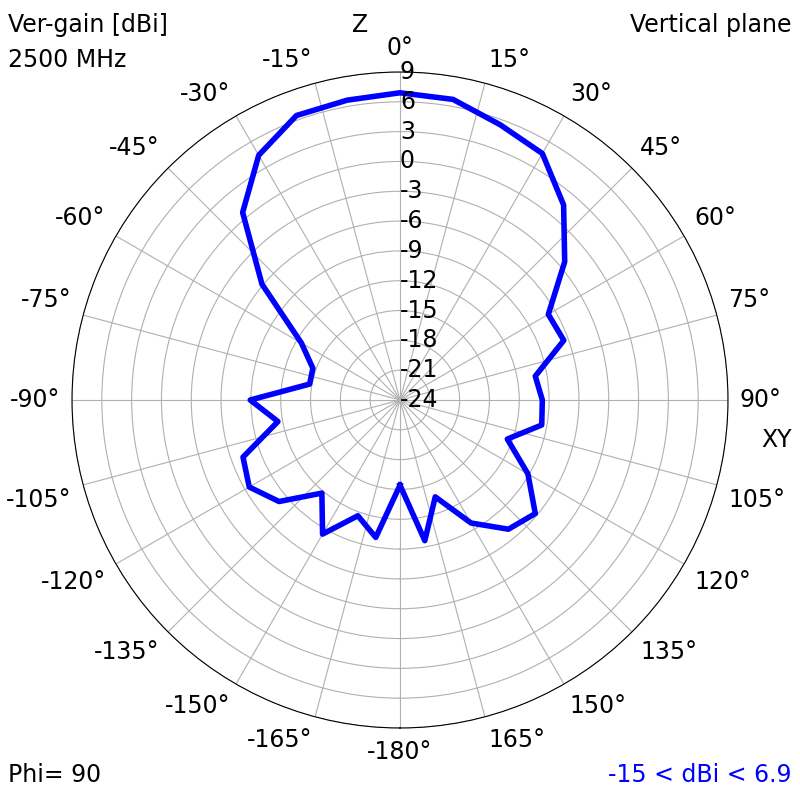

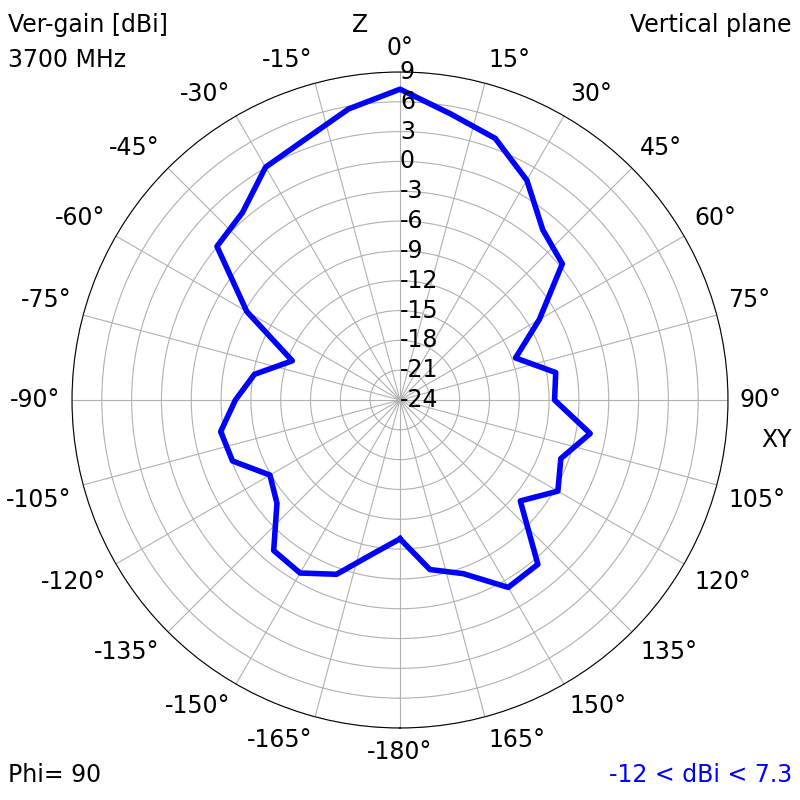

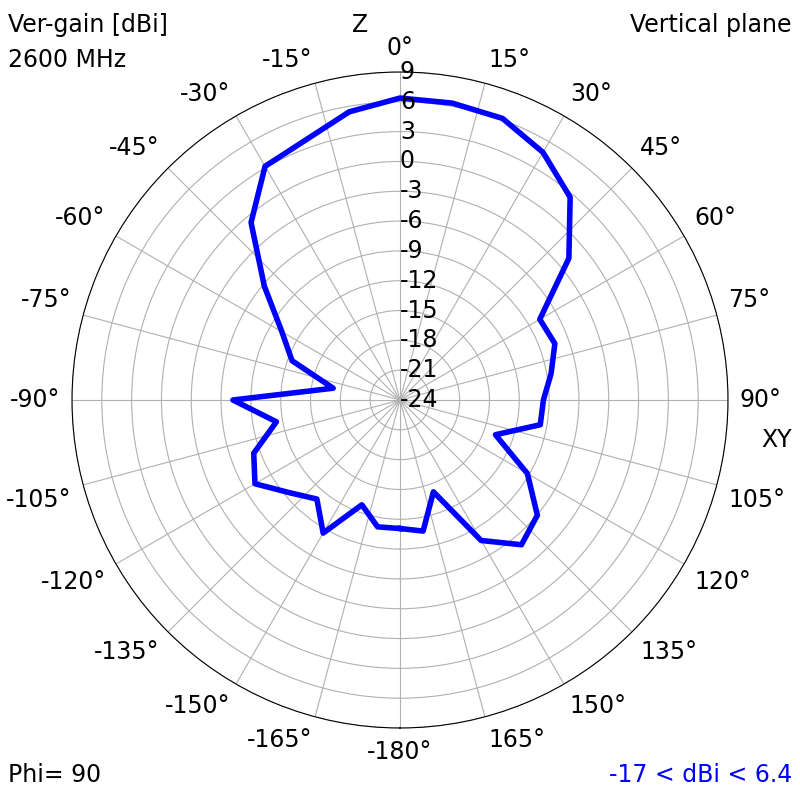

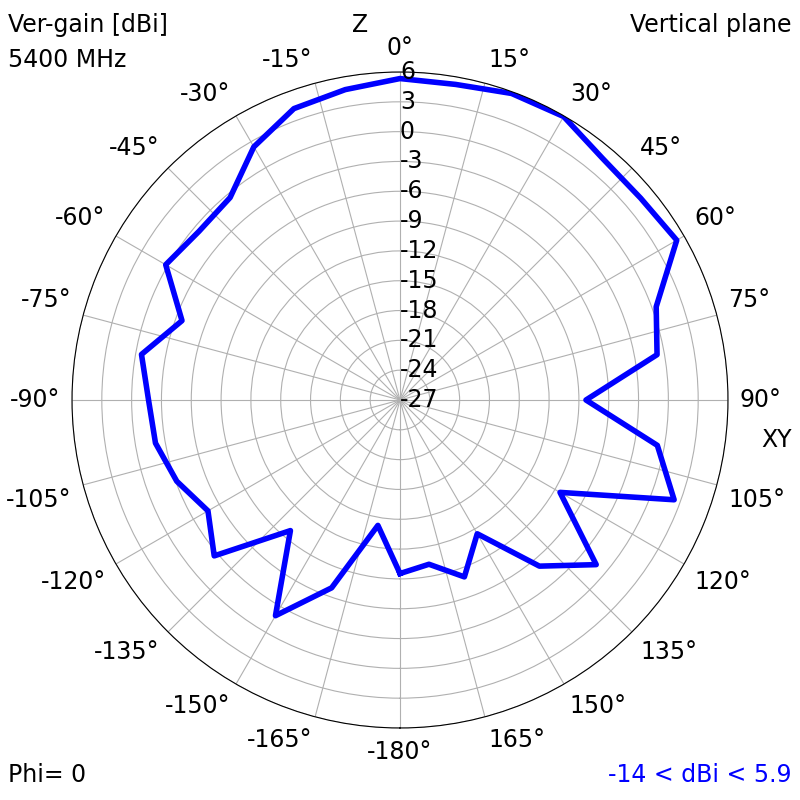

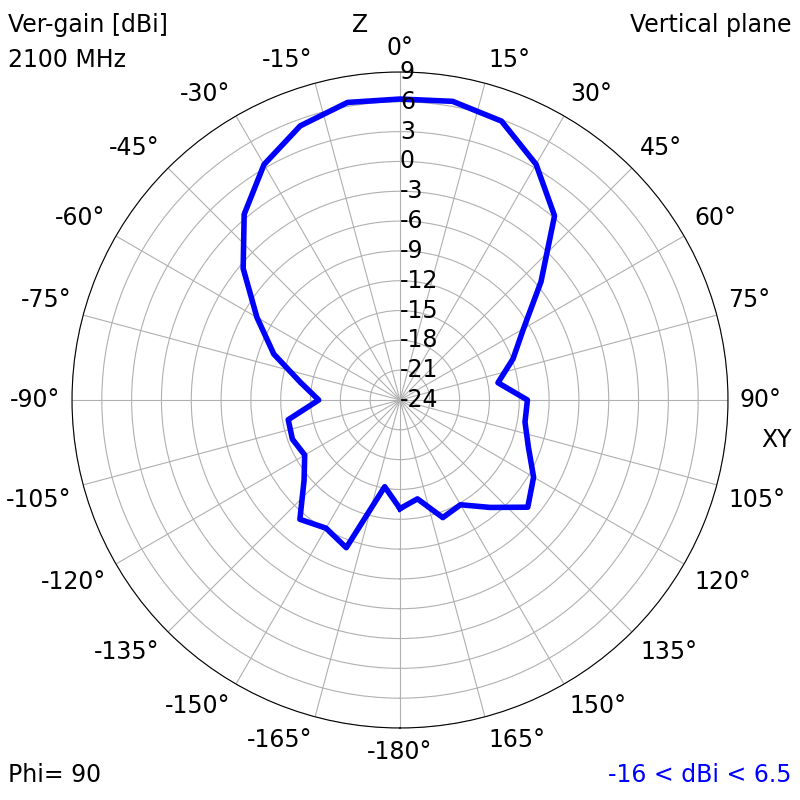

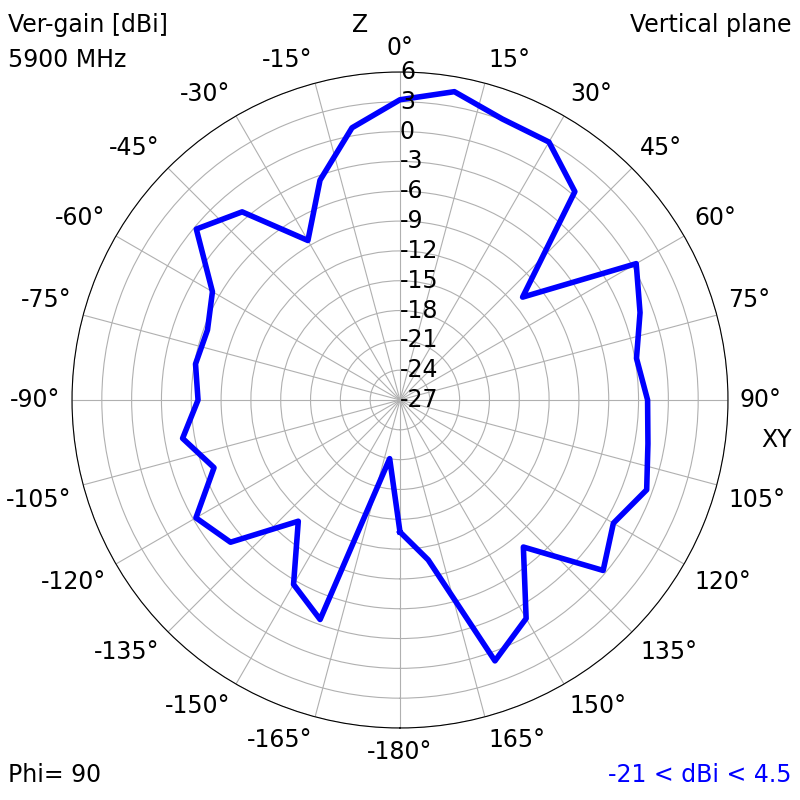

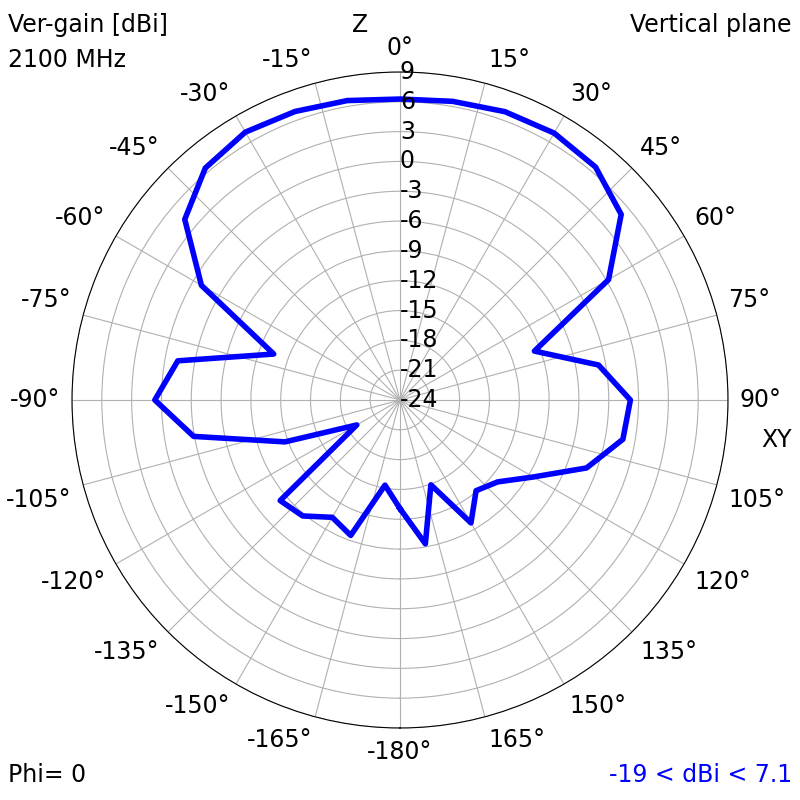

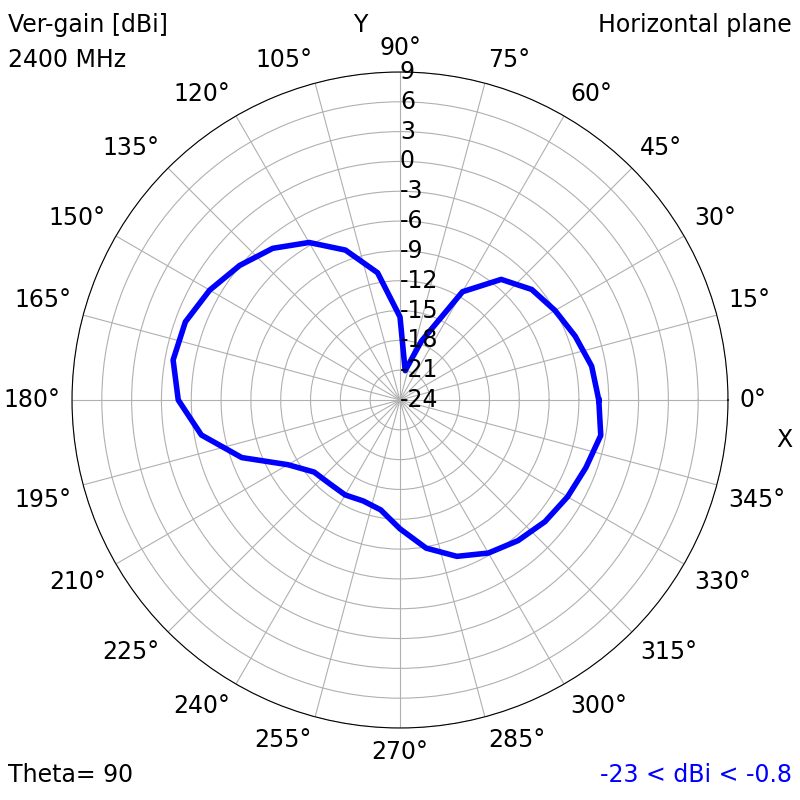

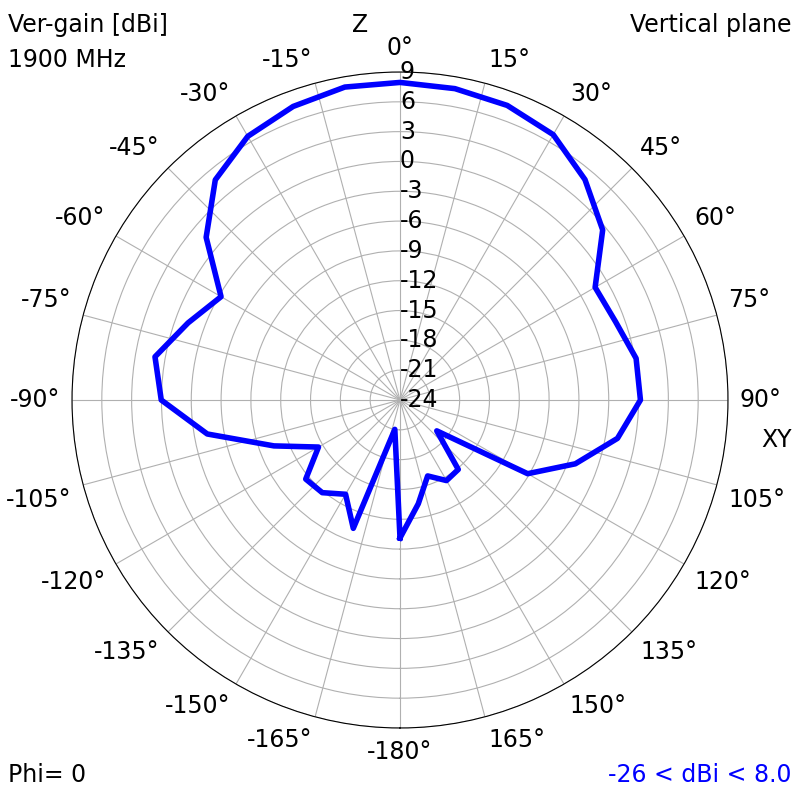

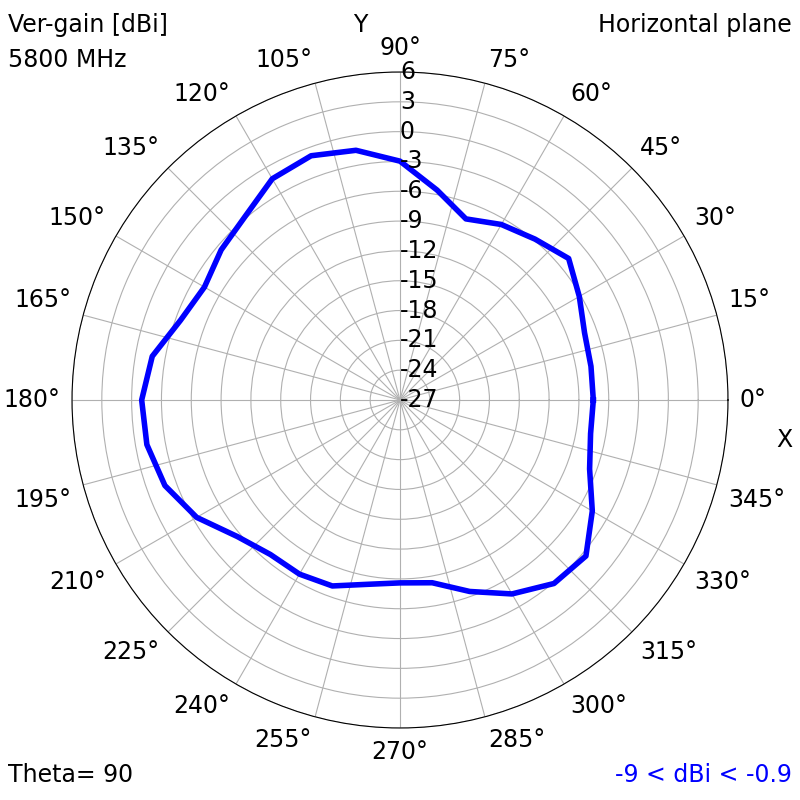

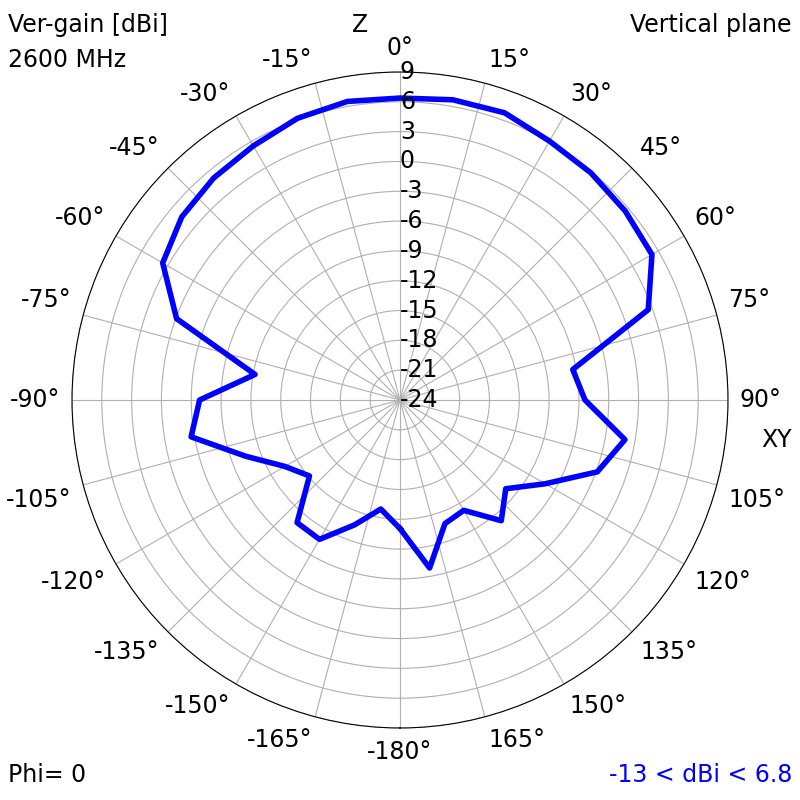

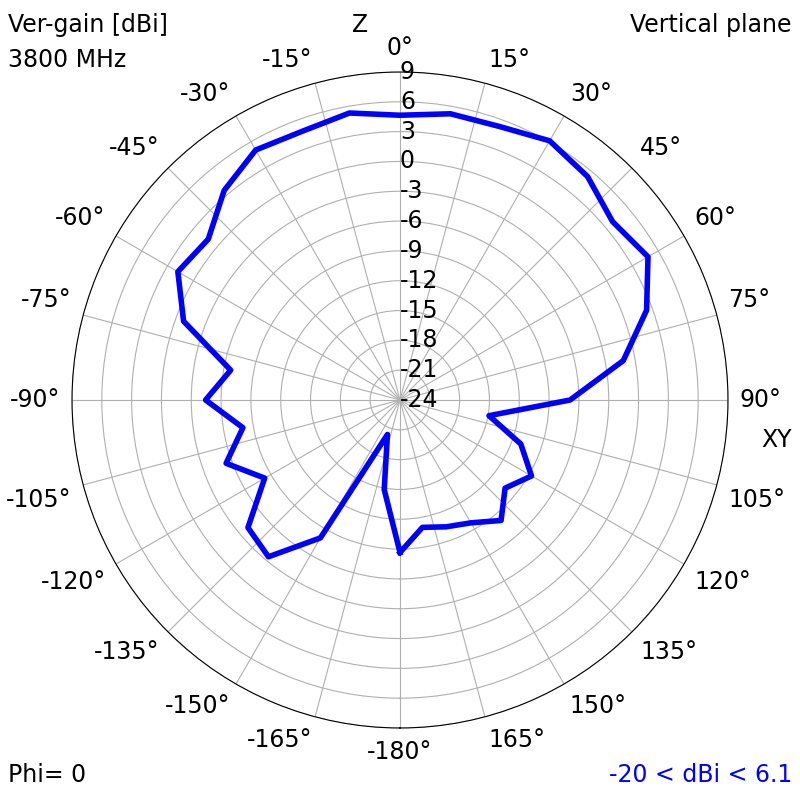

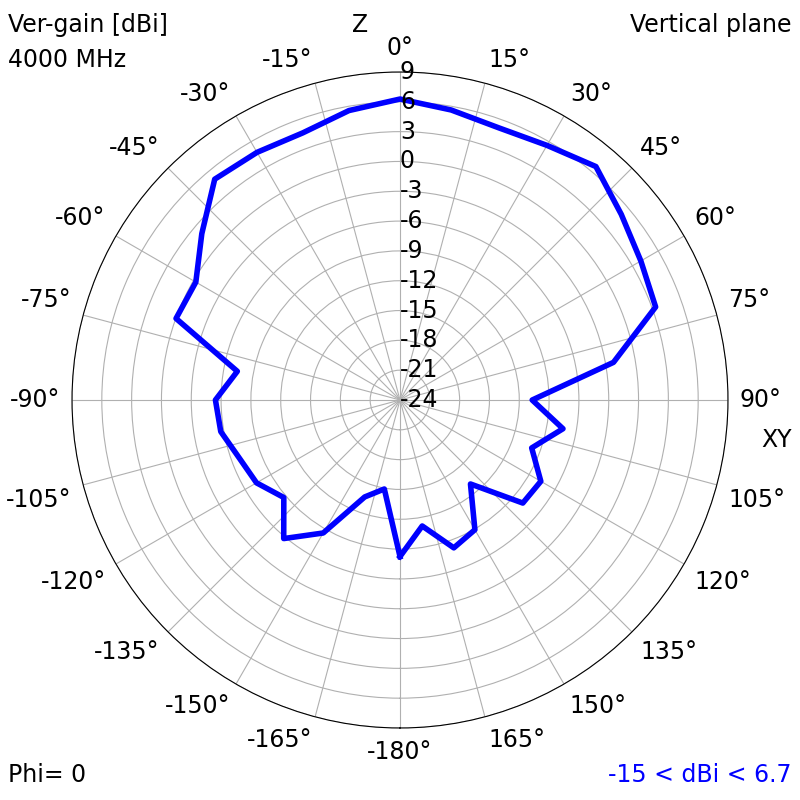

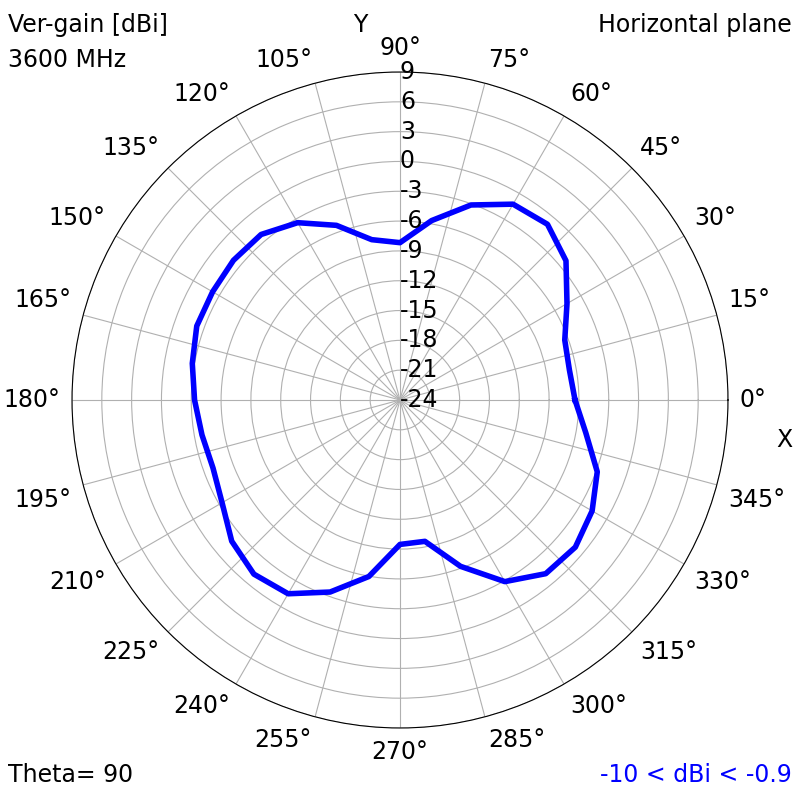

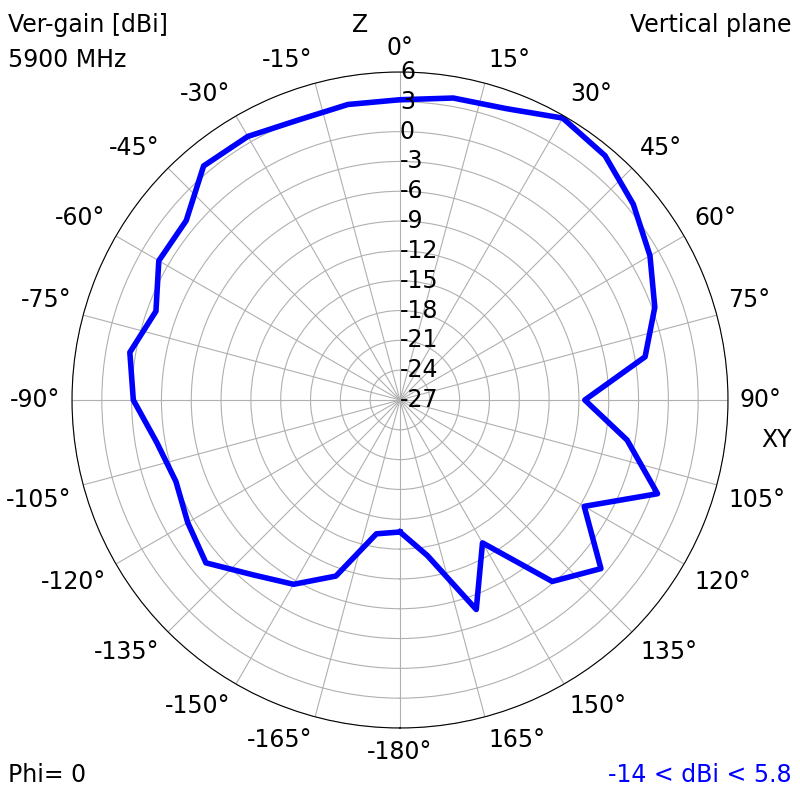

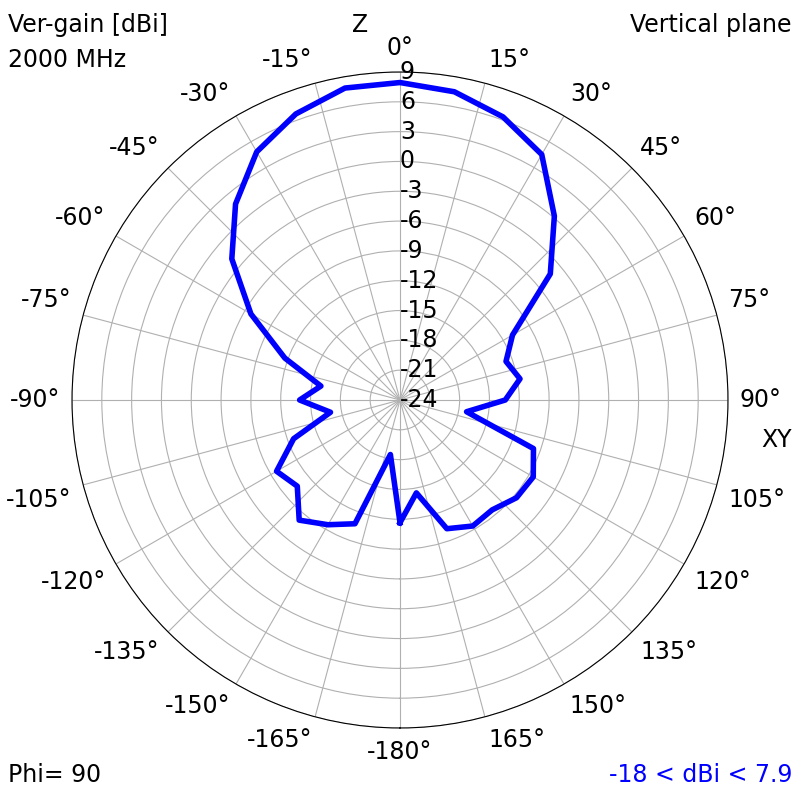

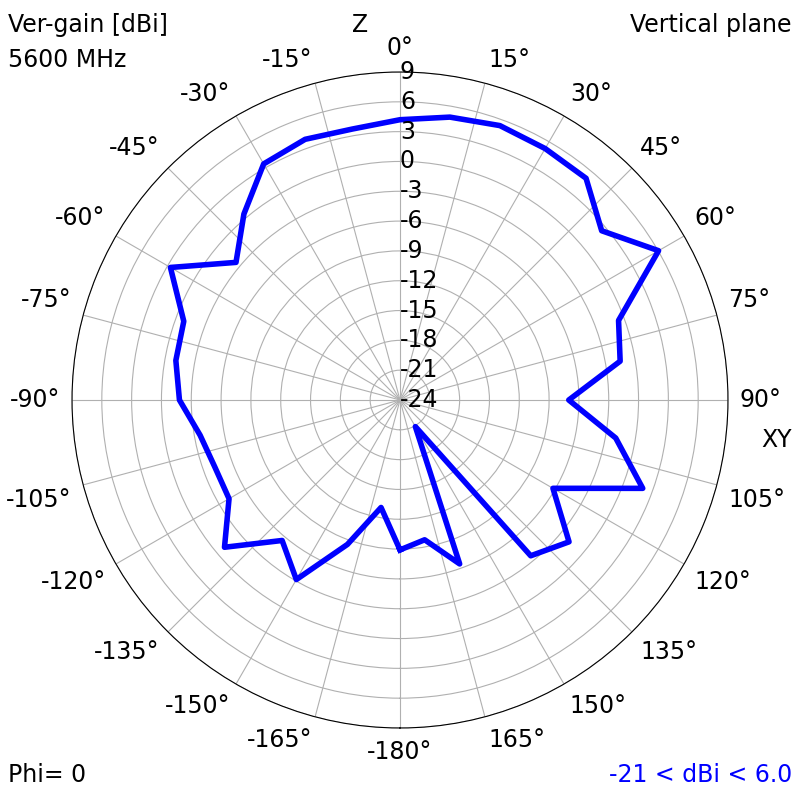

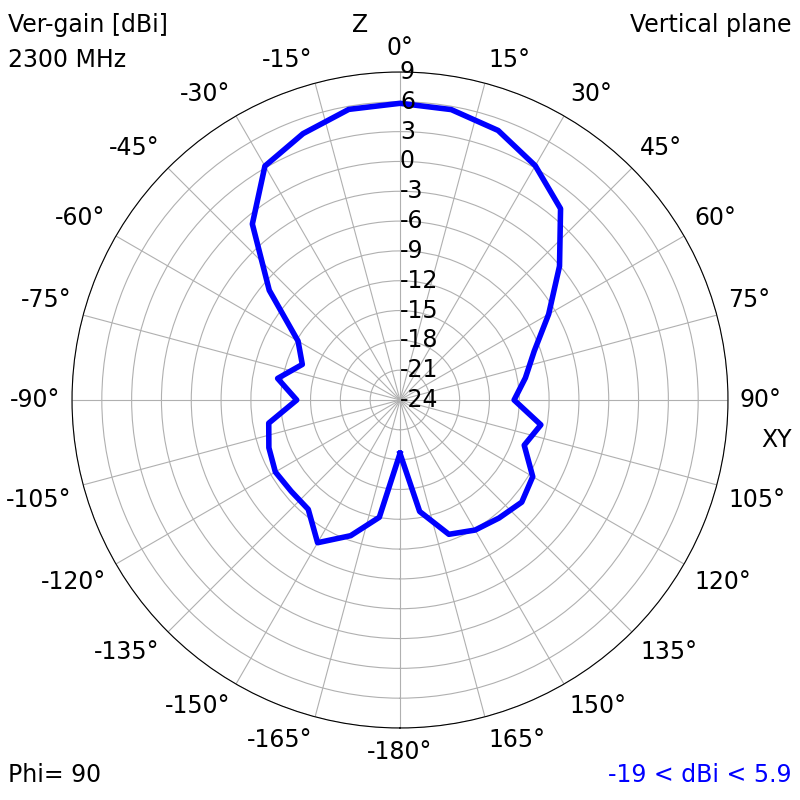

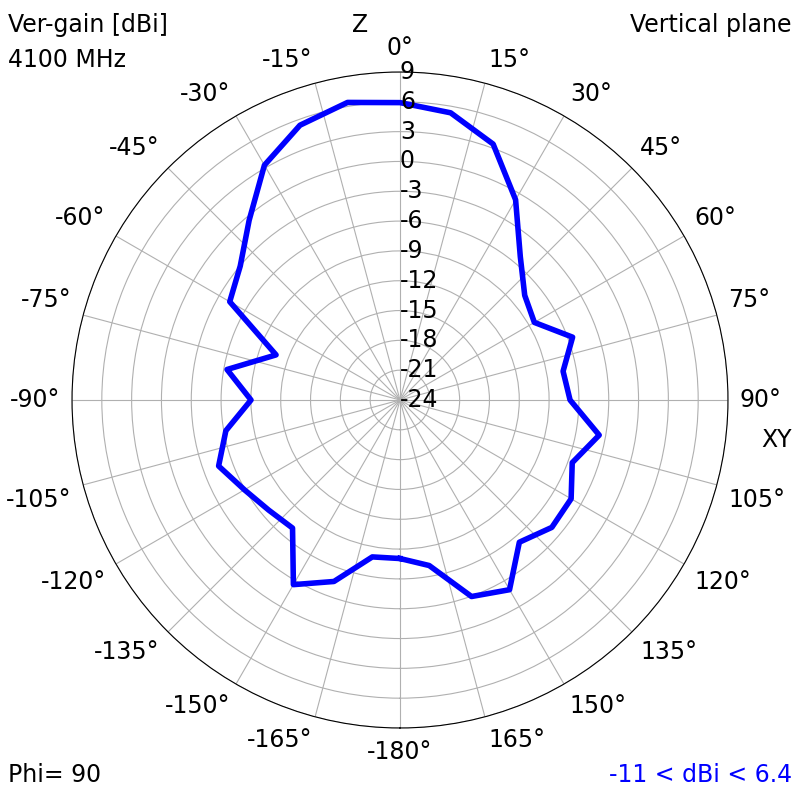

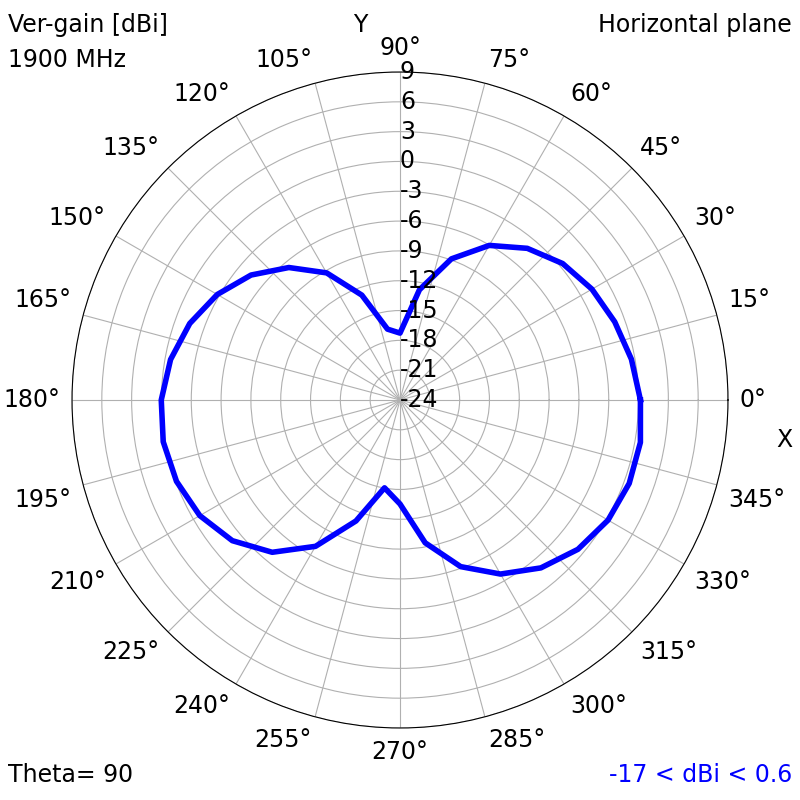

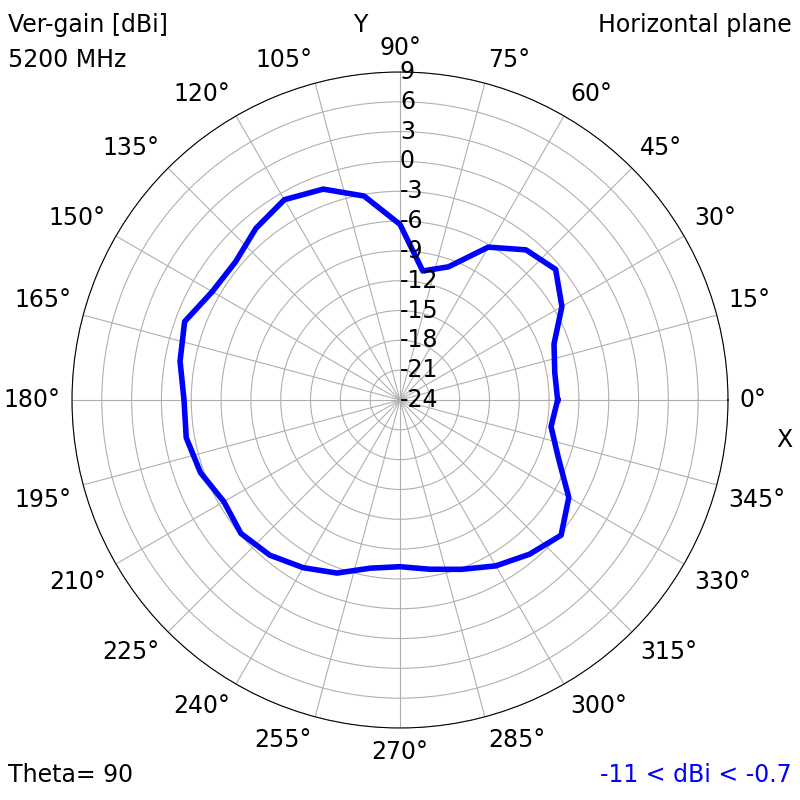

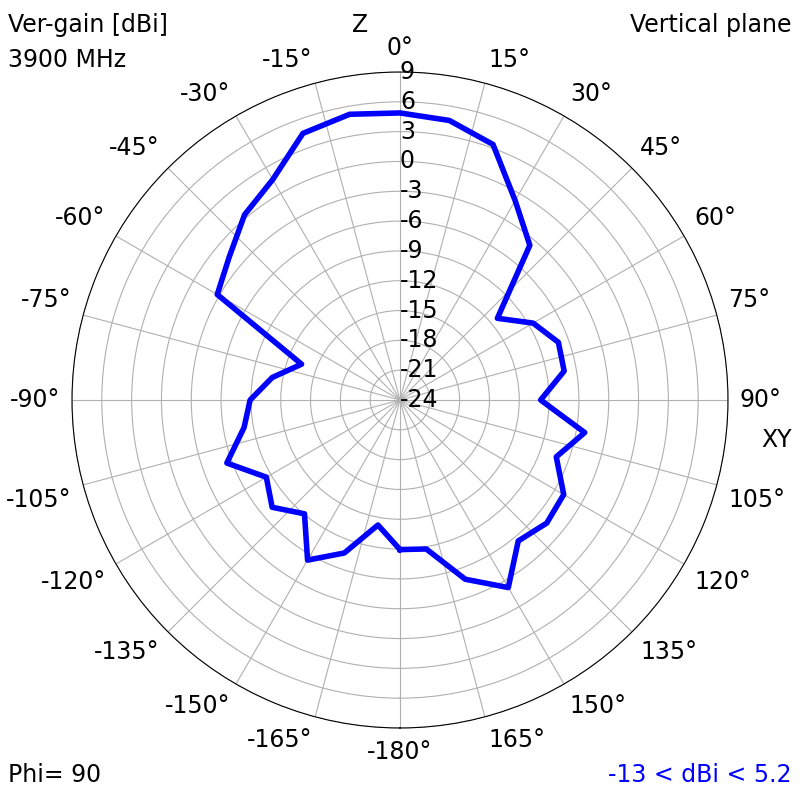

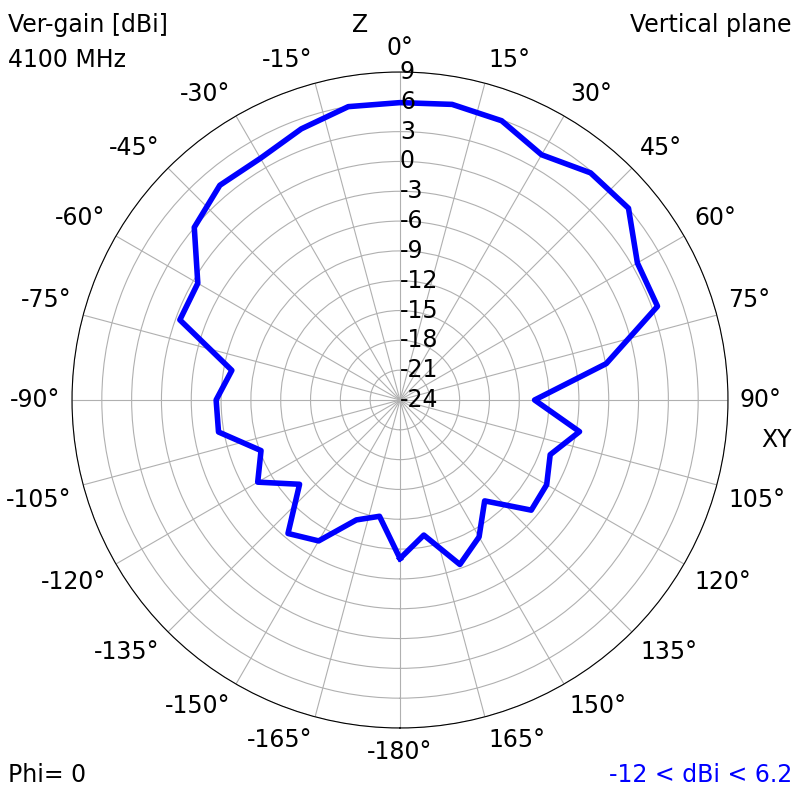

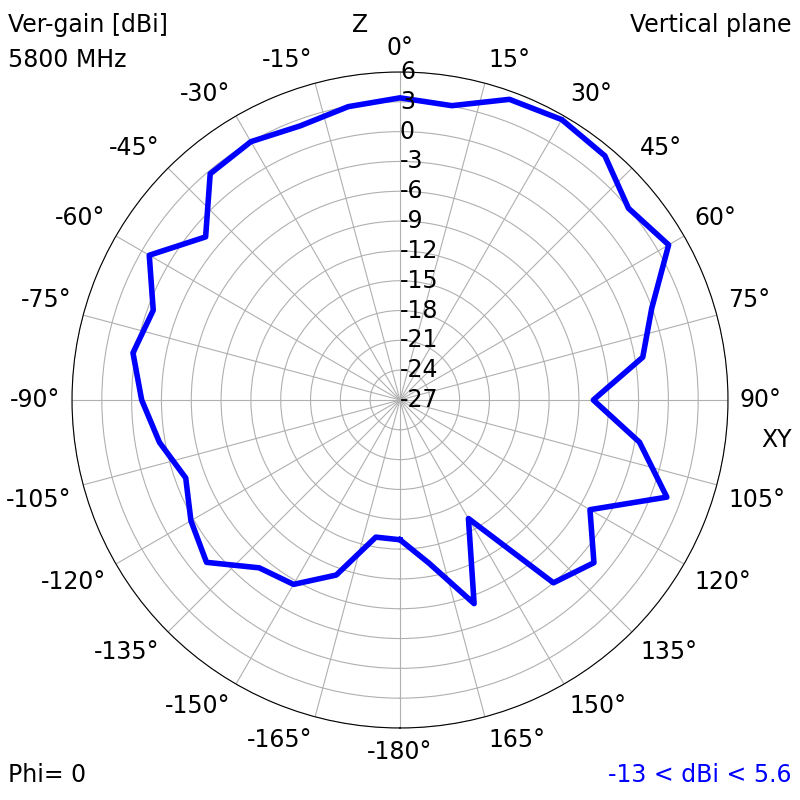

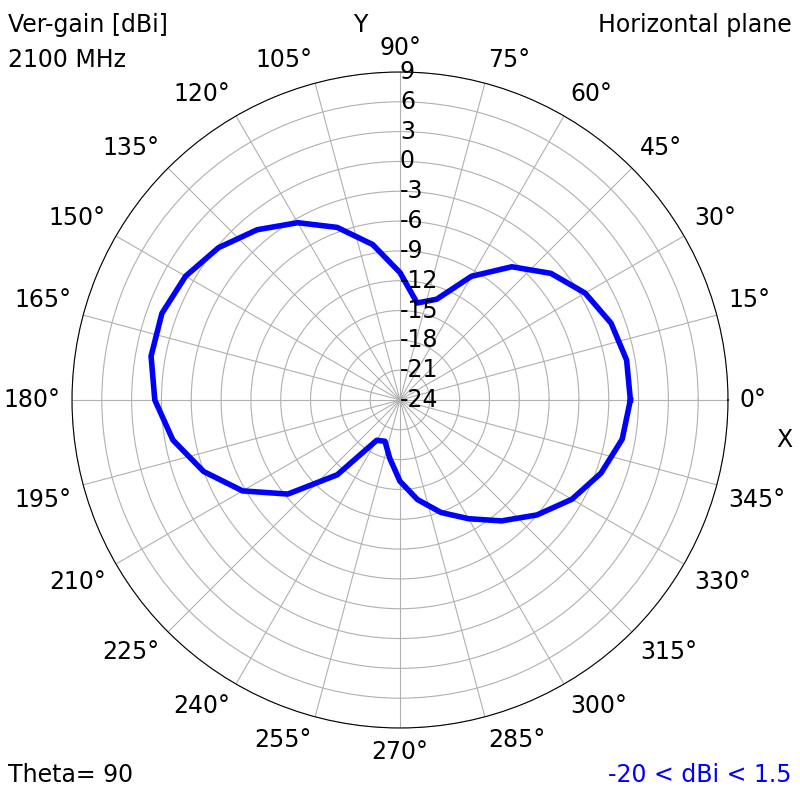

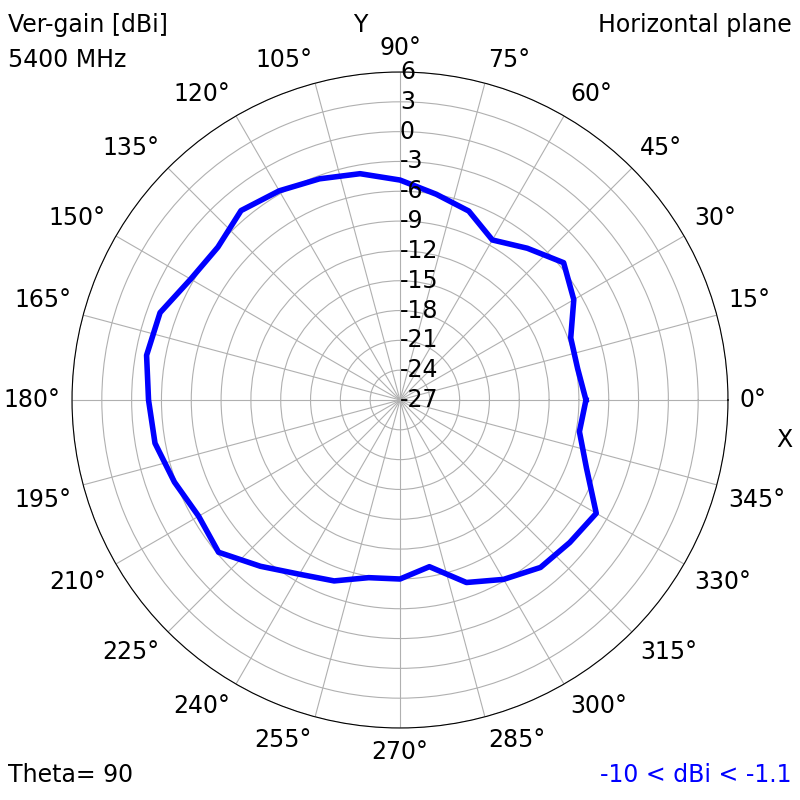

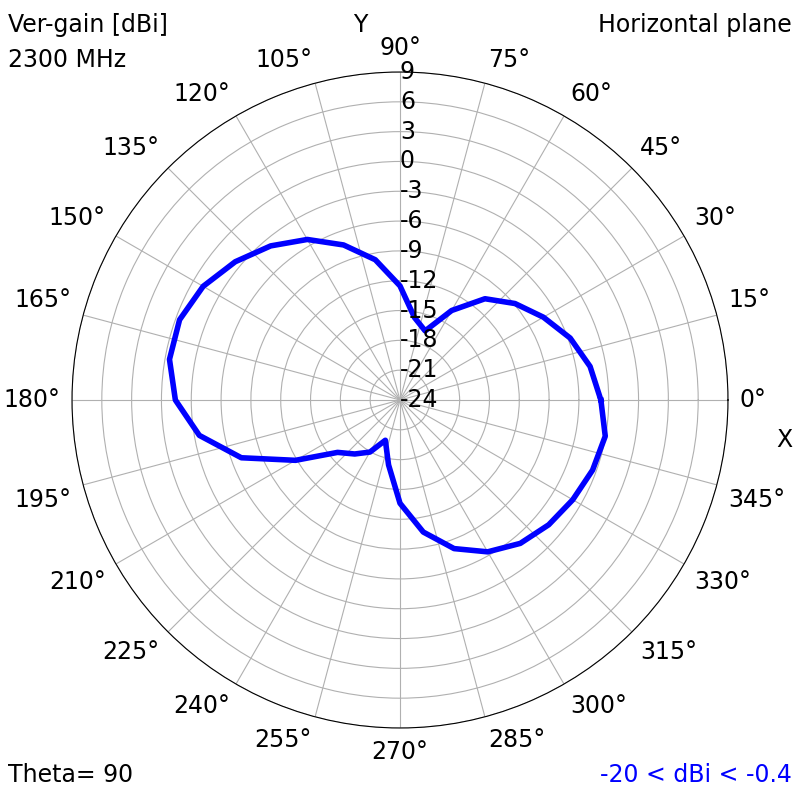

¶ 2D Radiation Plots

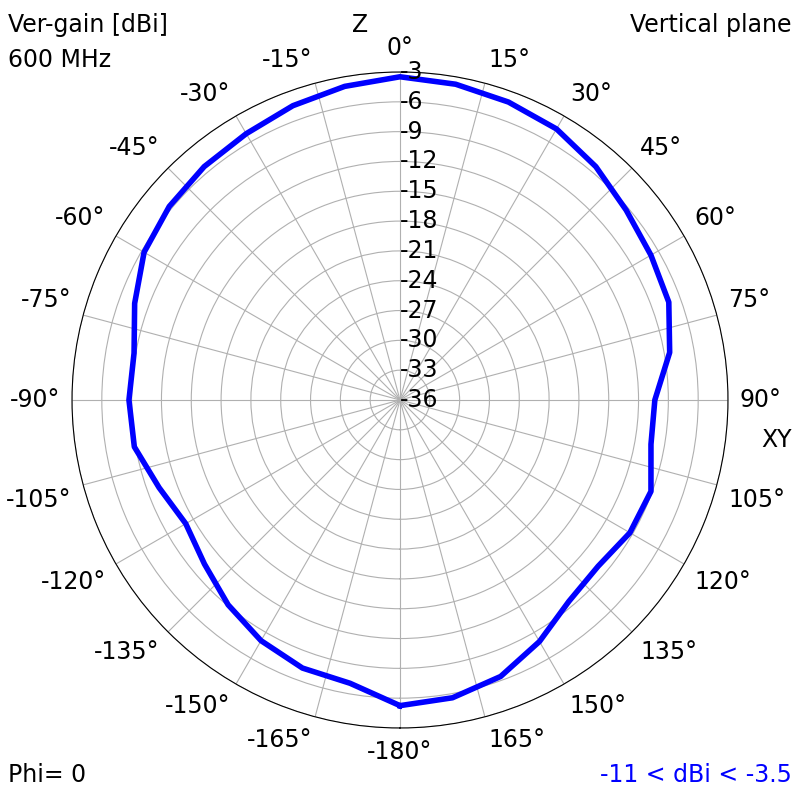

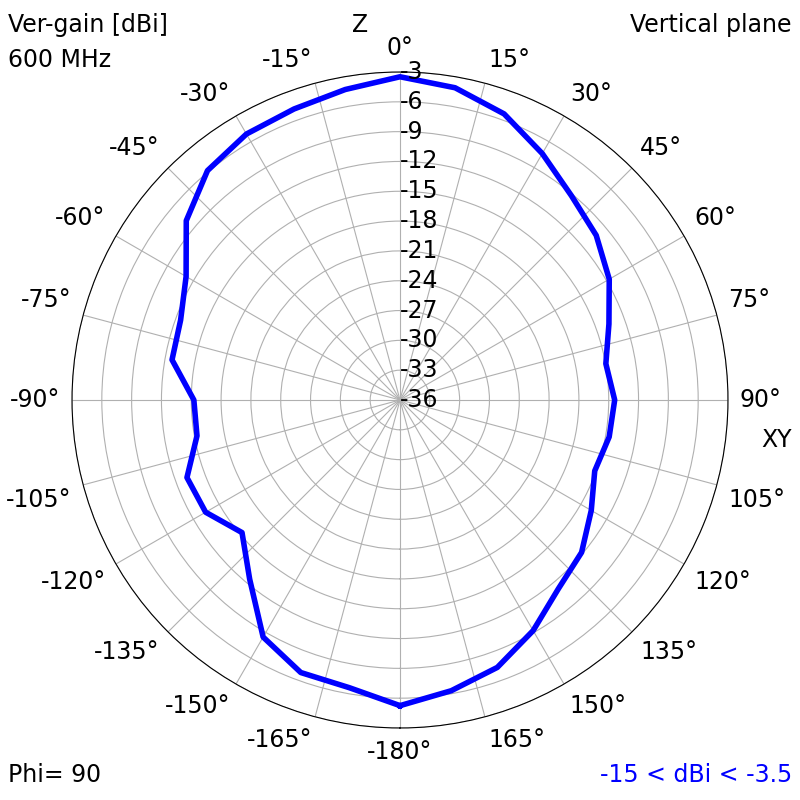

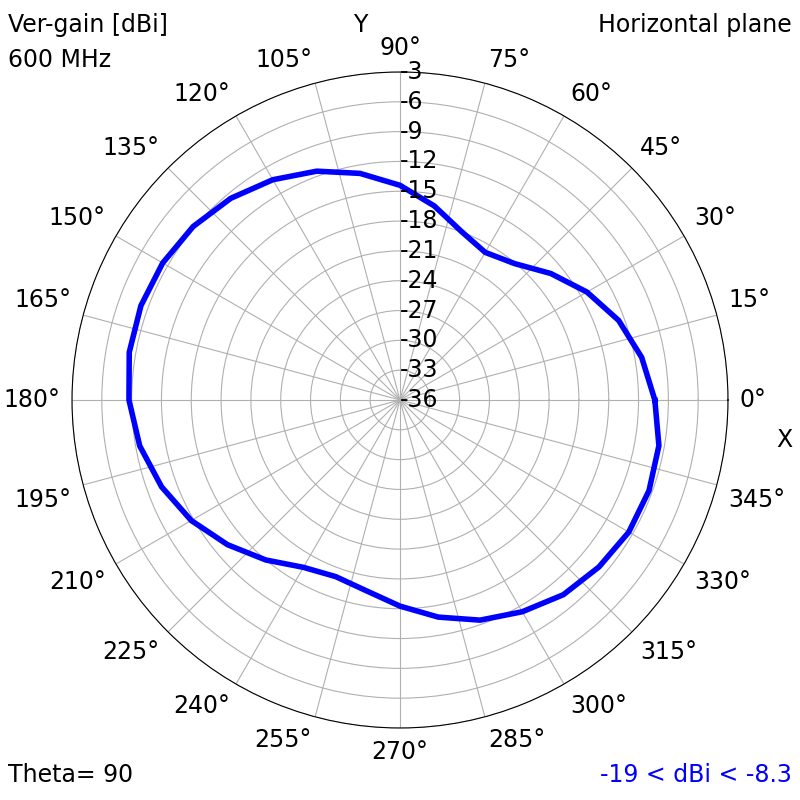

| 600 MHz | ||
| XY | XZ | YZ |
 |
 |
 |

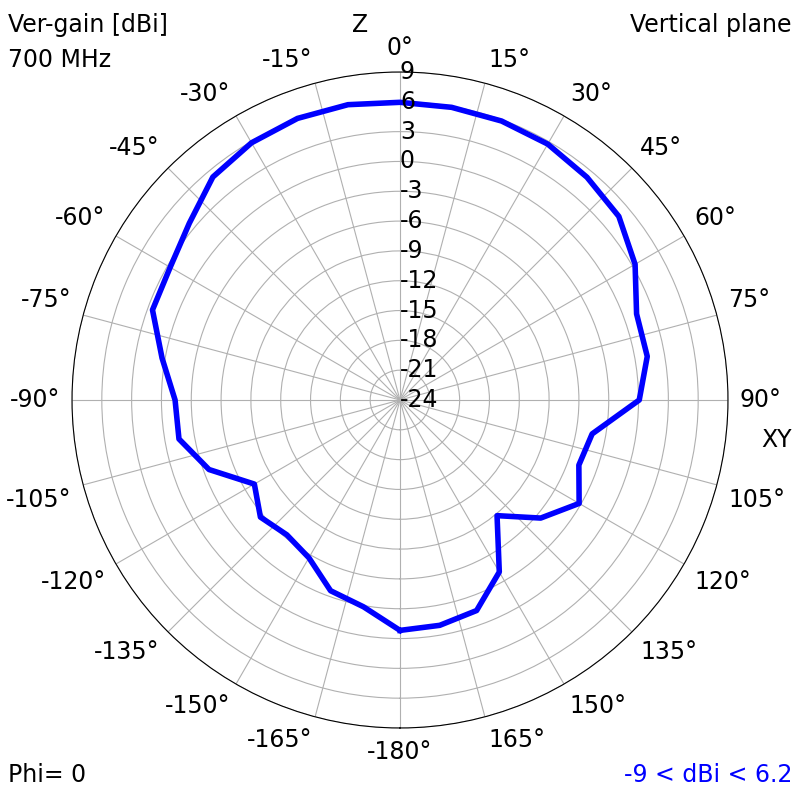

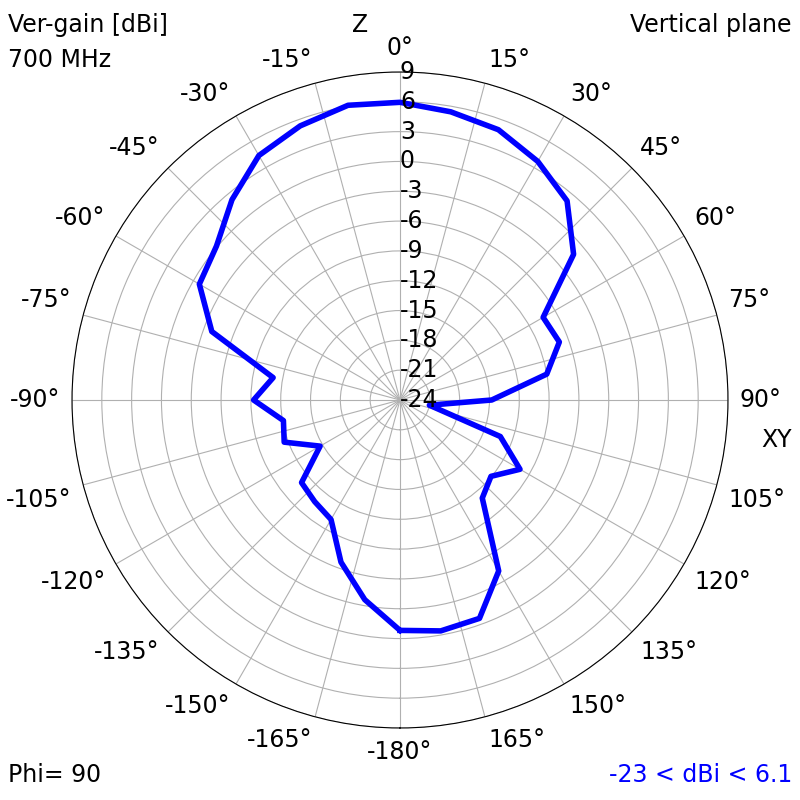

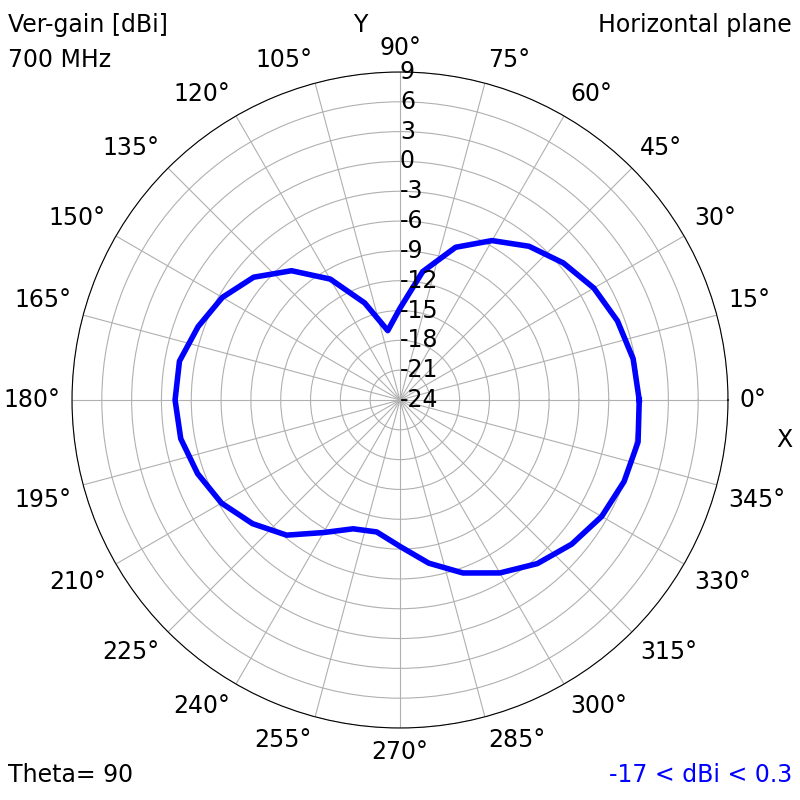

| 700 MHz | ||
| XY | XZ | YZ |
 |
 |
 |

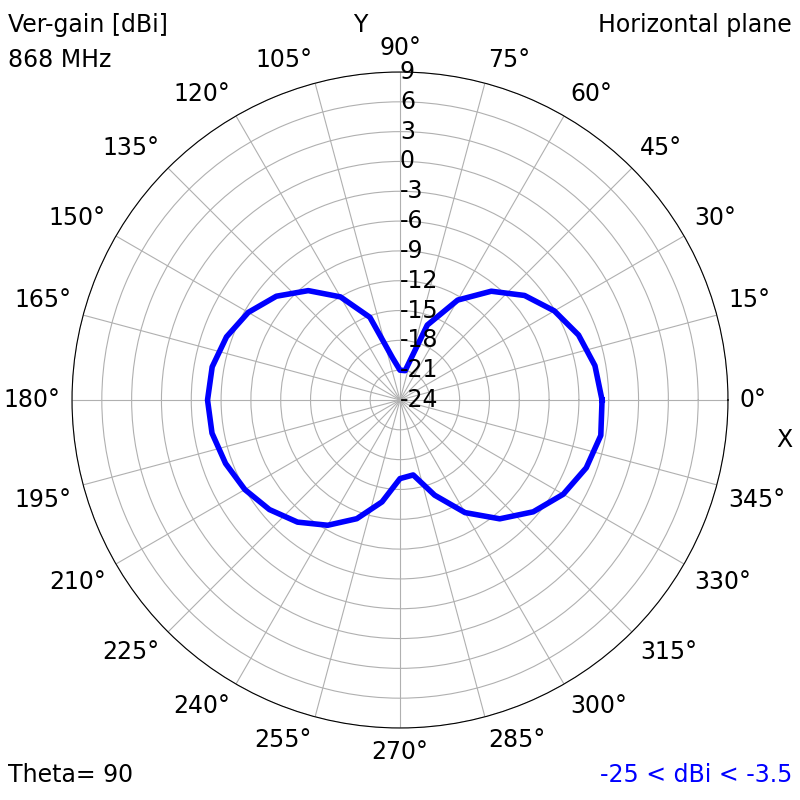

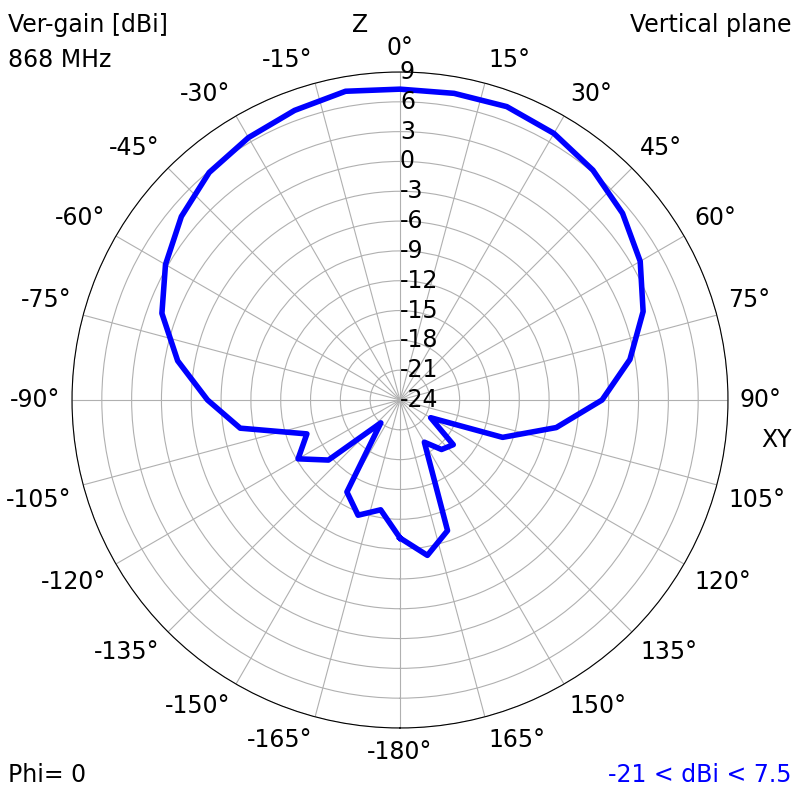

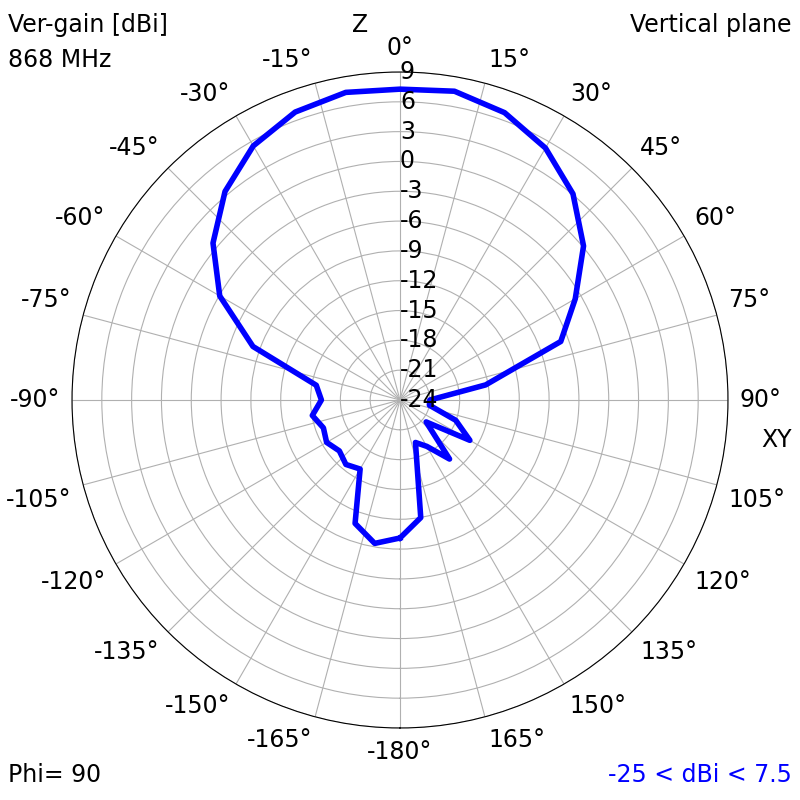

| 868 MHz | ||
| XY | XZ | YZ |
 |
 |
 |

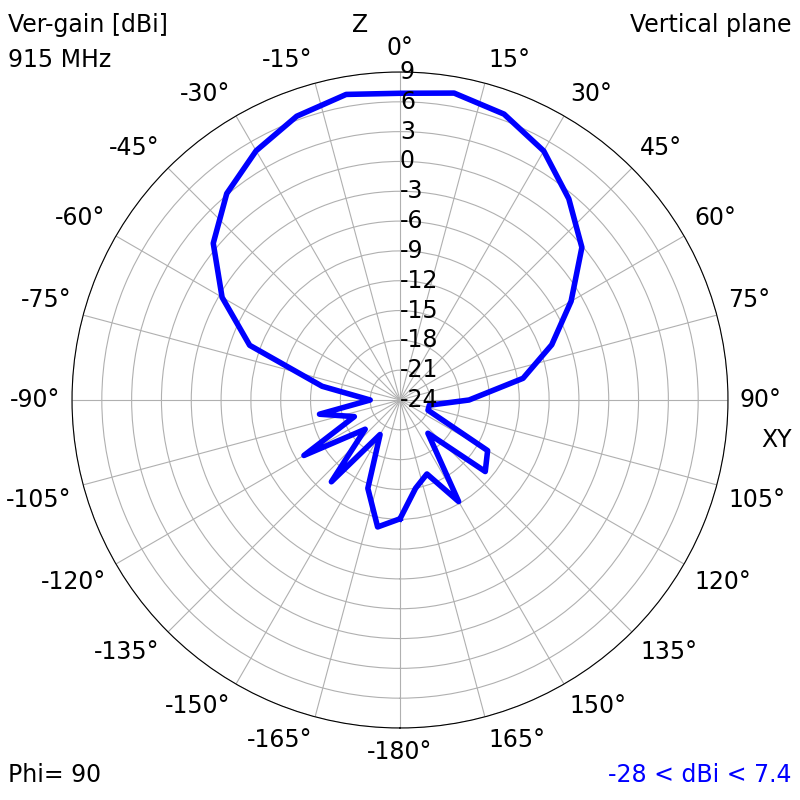

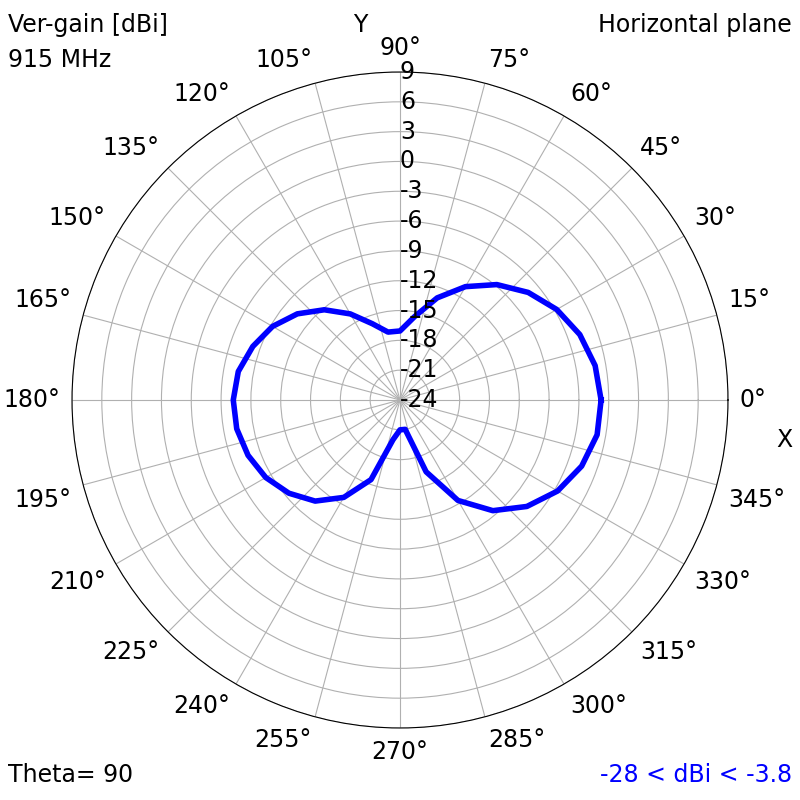

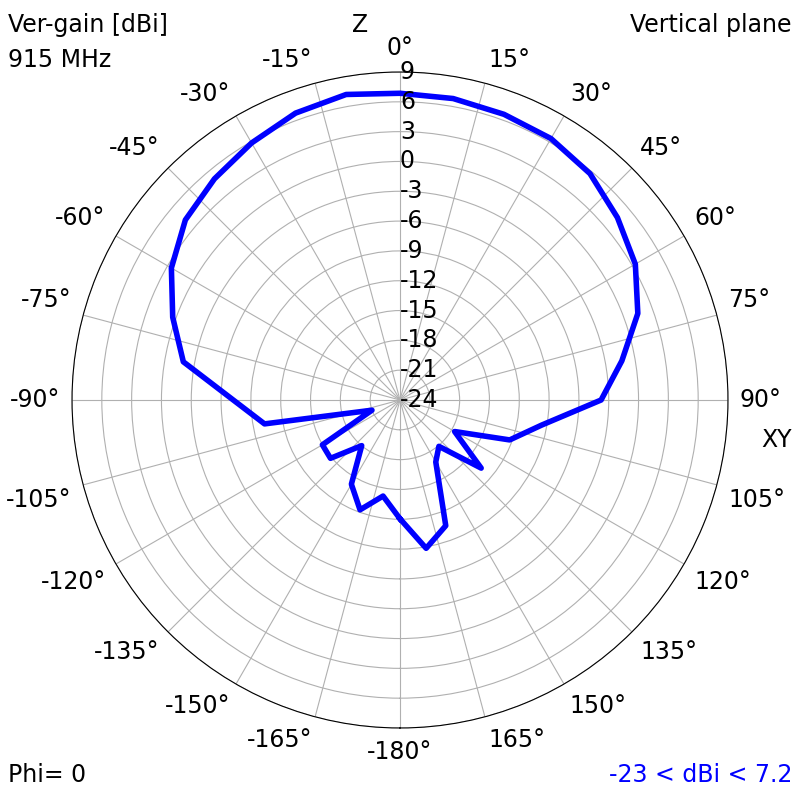

| 915 MHz | ||
| XY | XZ | YZ |
 |
 |
 |

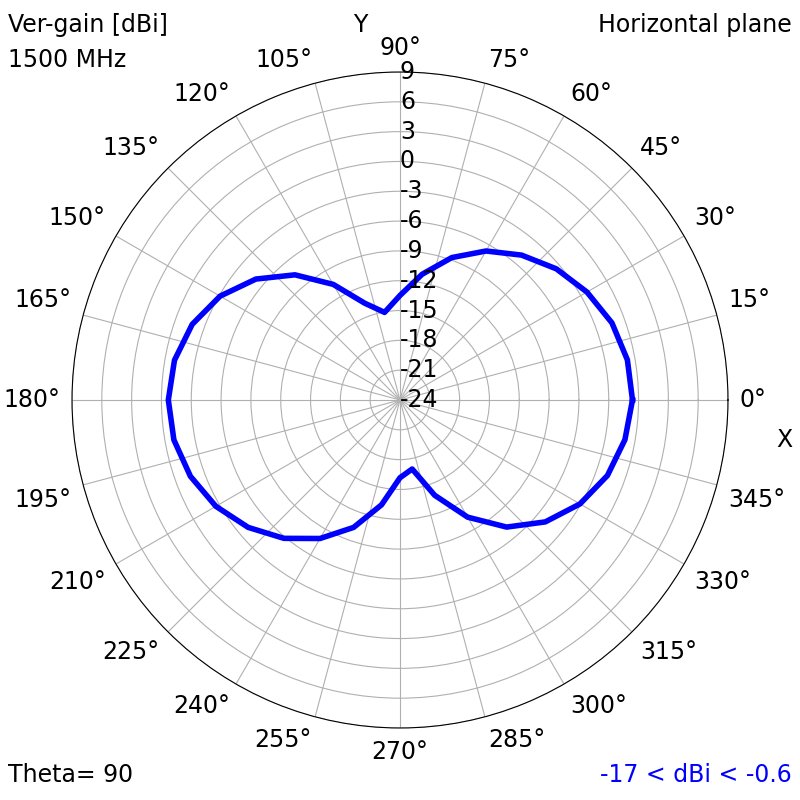

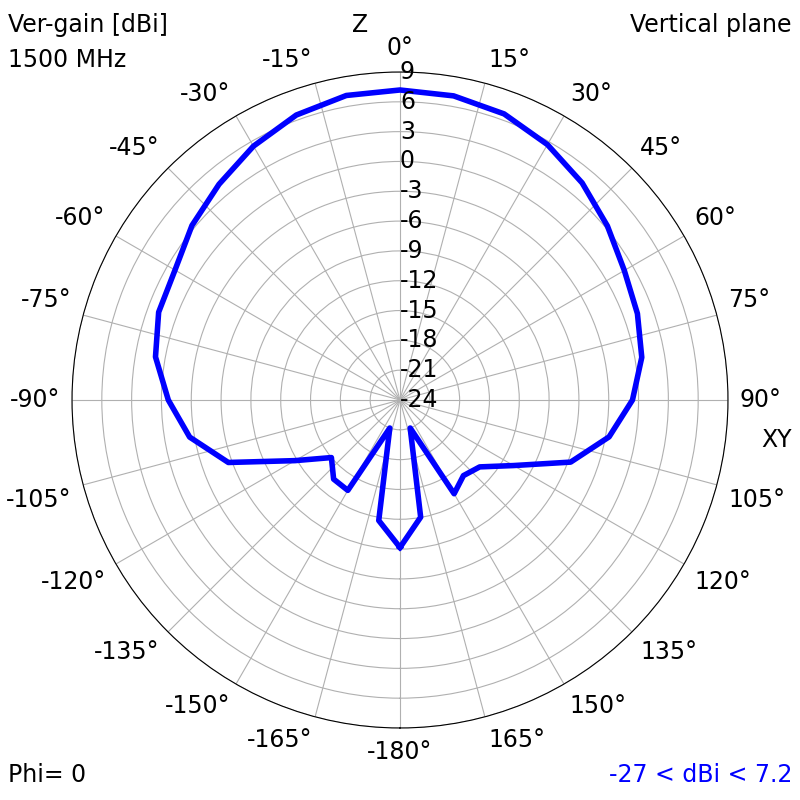

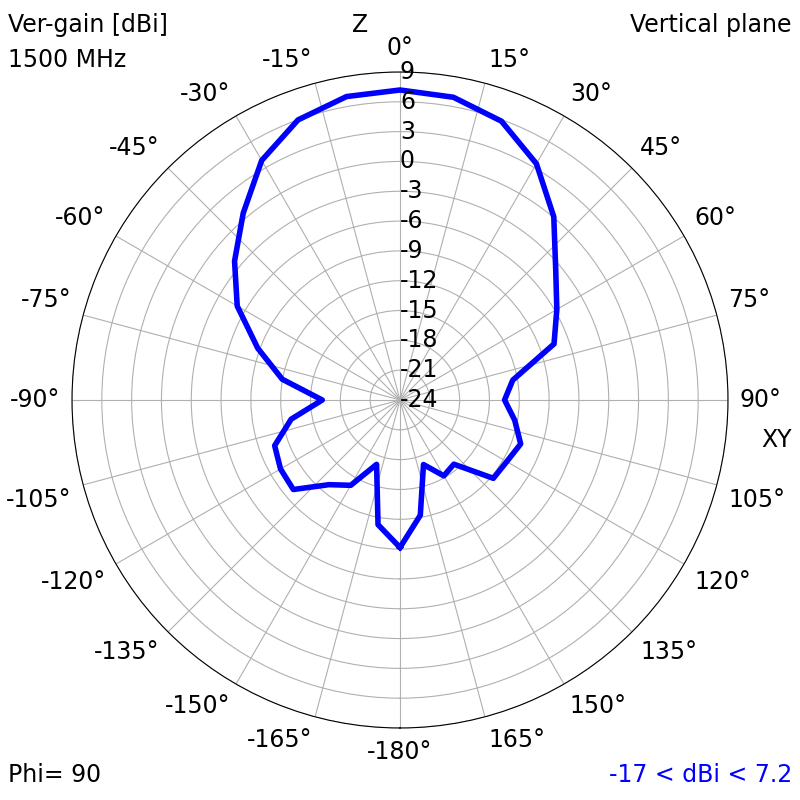

| 1500 MHz | ||
| XY | XZ | YZ |
 |
 |
 |

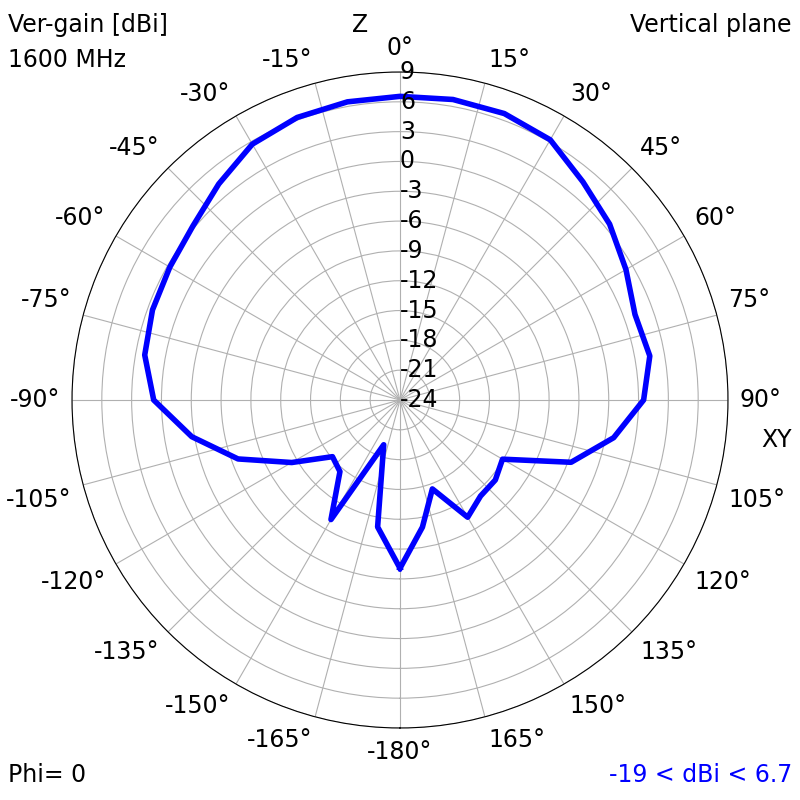

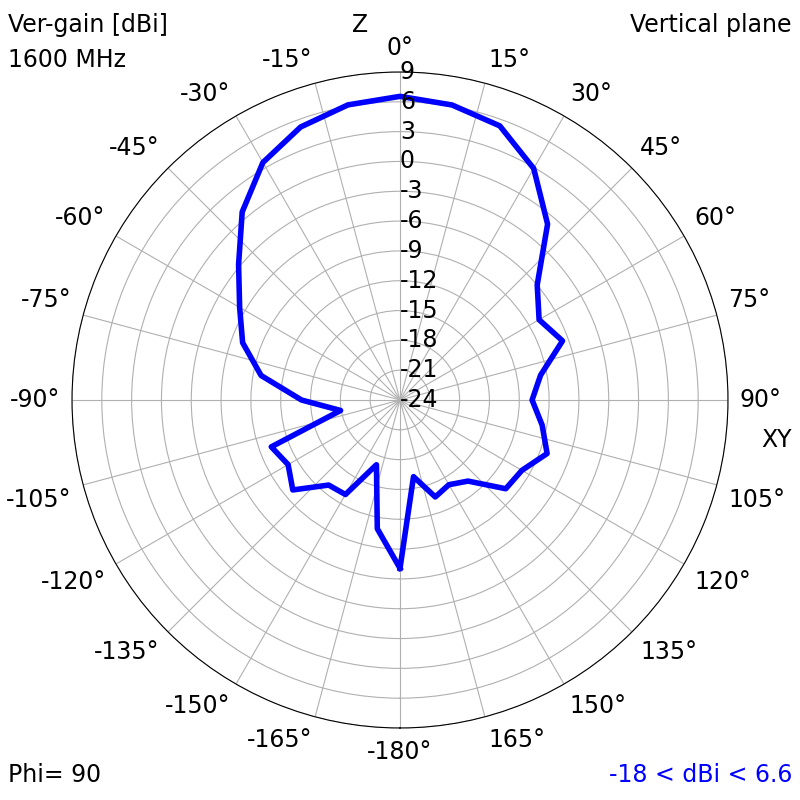

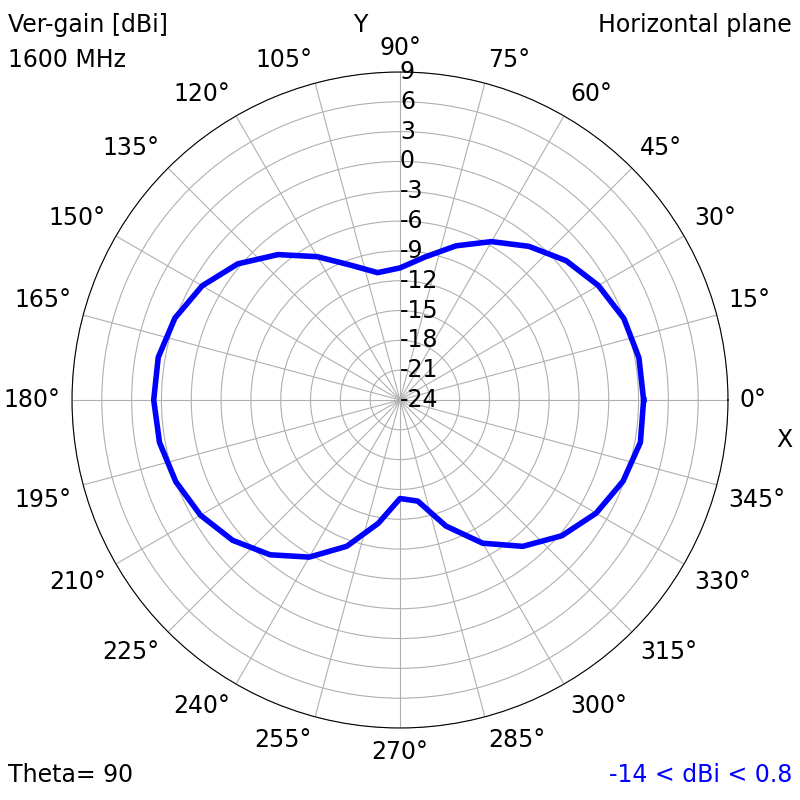

| 1600 MHz | ||
| XY | XZ | YZ |
 |
 |
 |

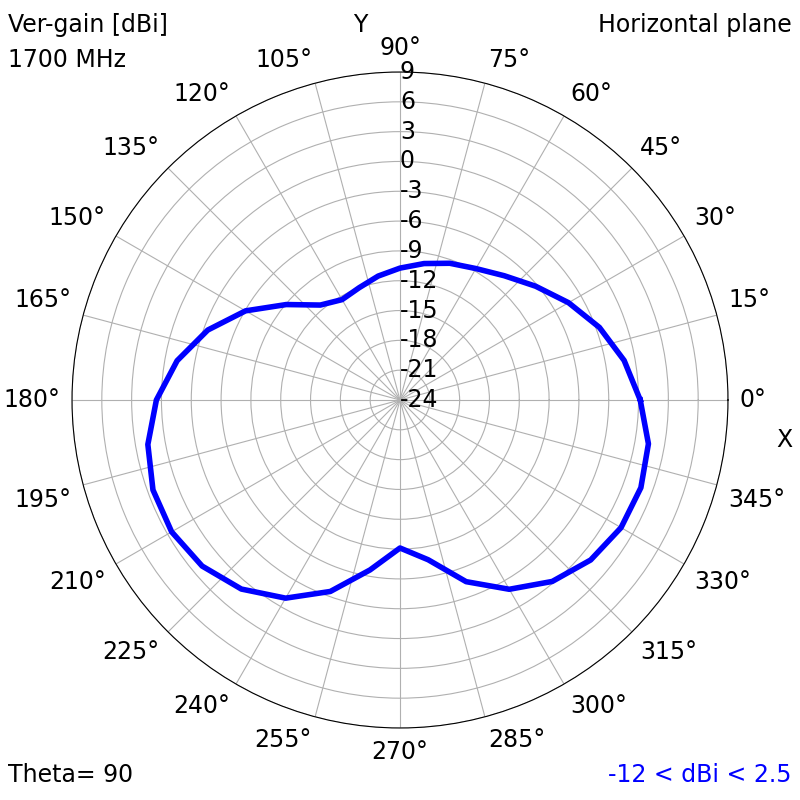

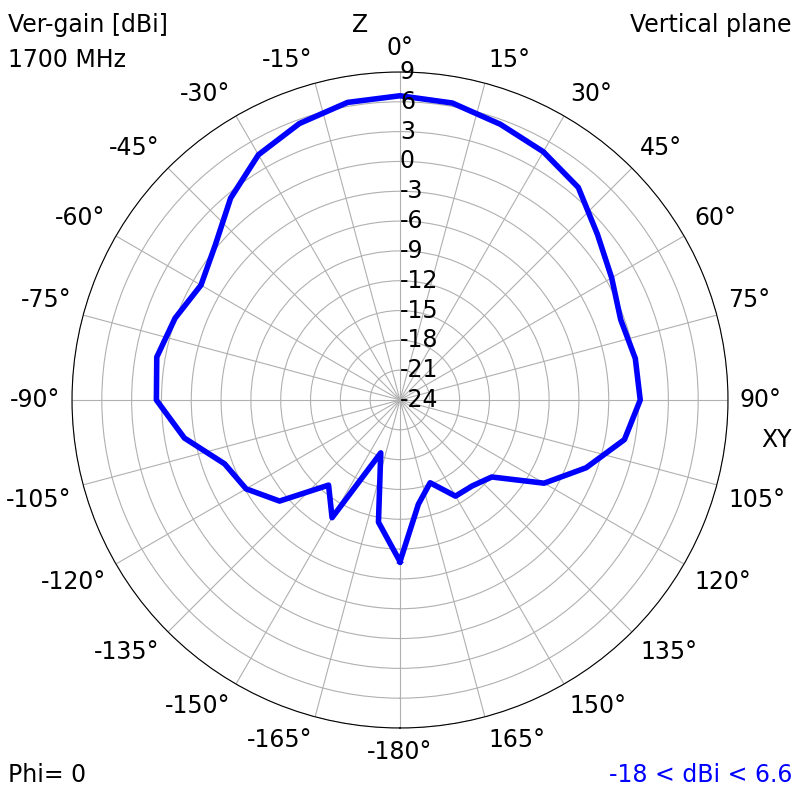

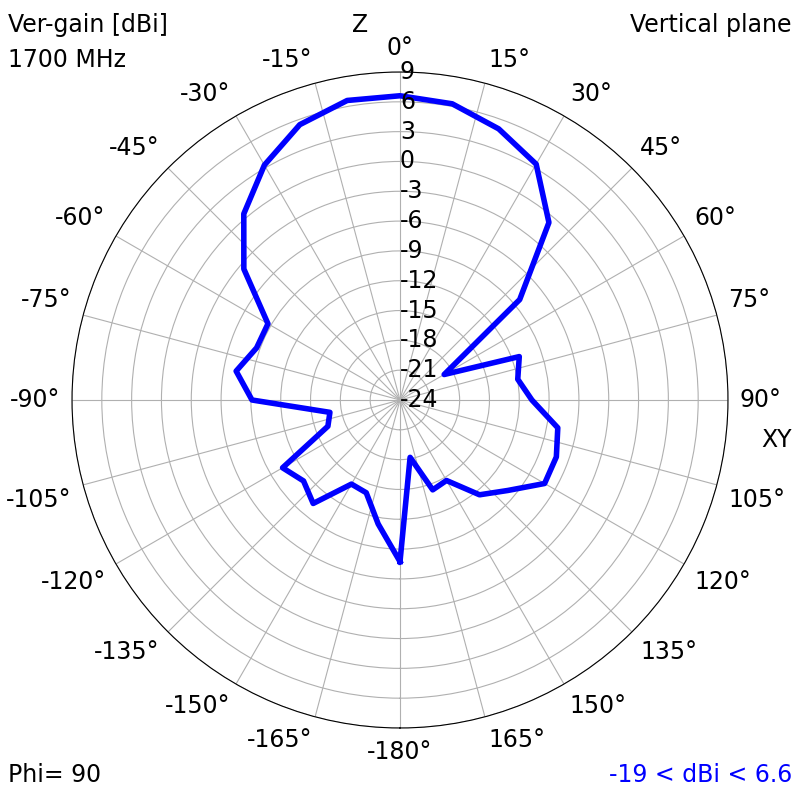

| 1700 MHz | ||
| XY | XZ | YZ |
 |
 |
 |

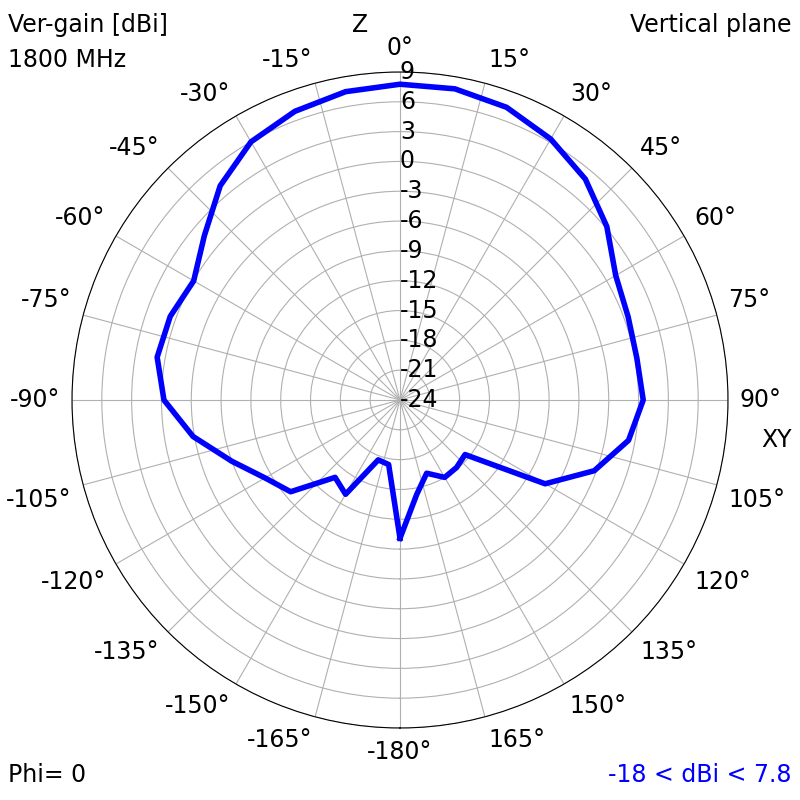

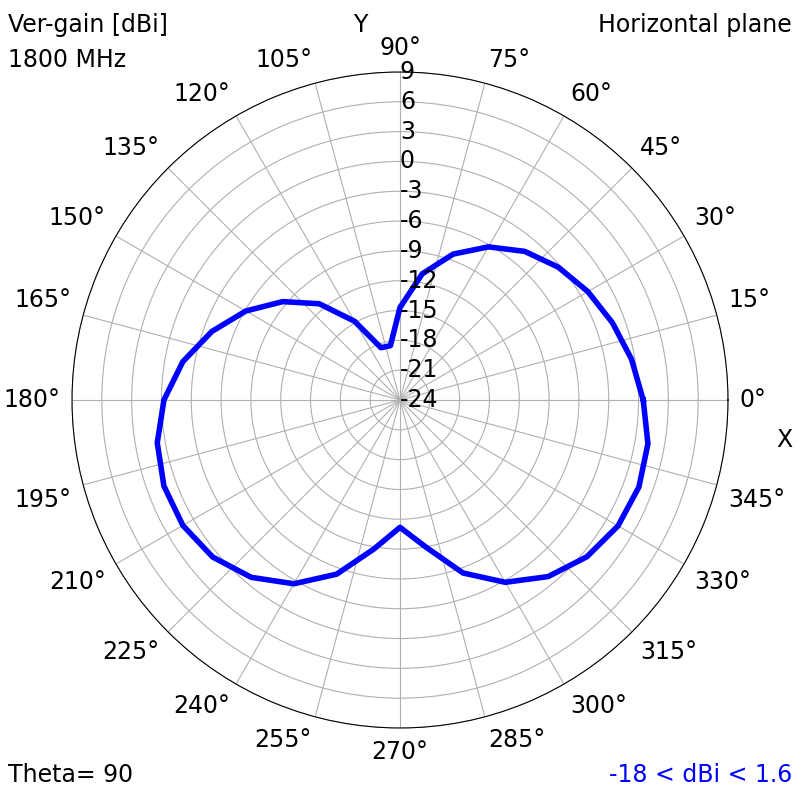

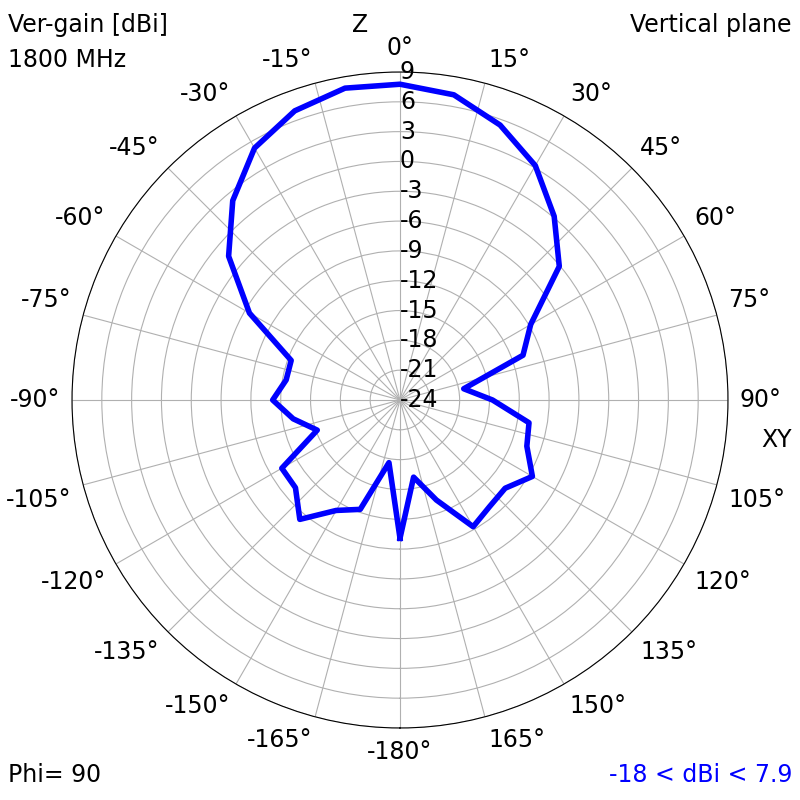

| 1800 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 1900 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 2000 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 2100 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 2200 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 2300 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 2400 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 2500 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 2600 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 2700 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 3500 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 3600 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 3700 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 3800 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 3900 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 4000 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 4100 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 4200 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 5000 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 5100 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 5200 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 5300 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 5400 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 5500 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 5600 MHz | ||
| XY | XZ | YZ |
 |
 |
 |

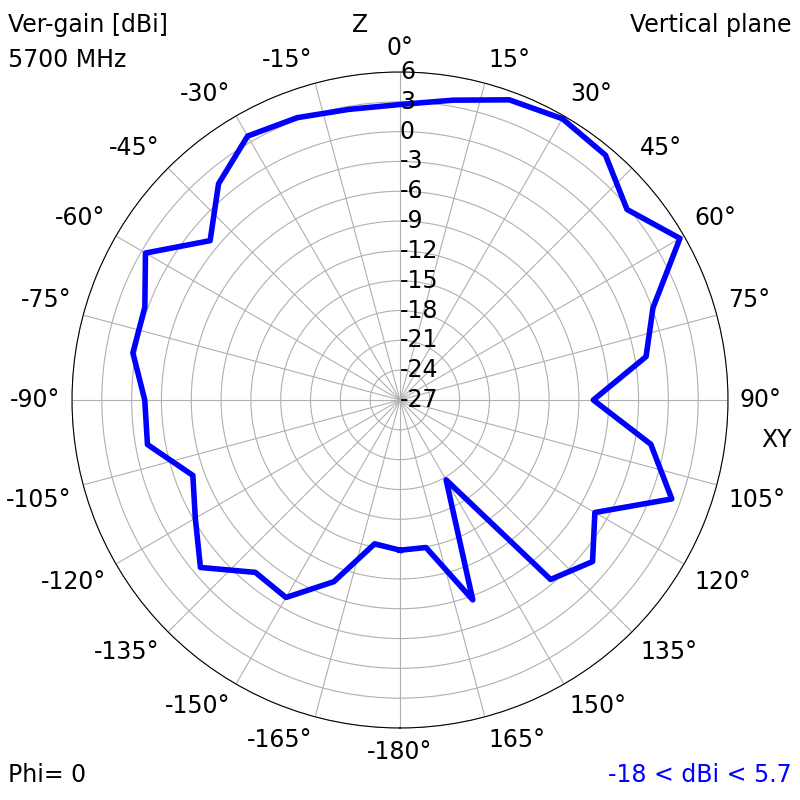

| 5700 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 5800 MHz | ||
| XY | XZ | YZ |
 |
 |
 |
| 5900 MHz | ||
| XY | XZ | YZ |
 |
 |
 |

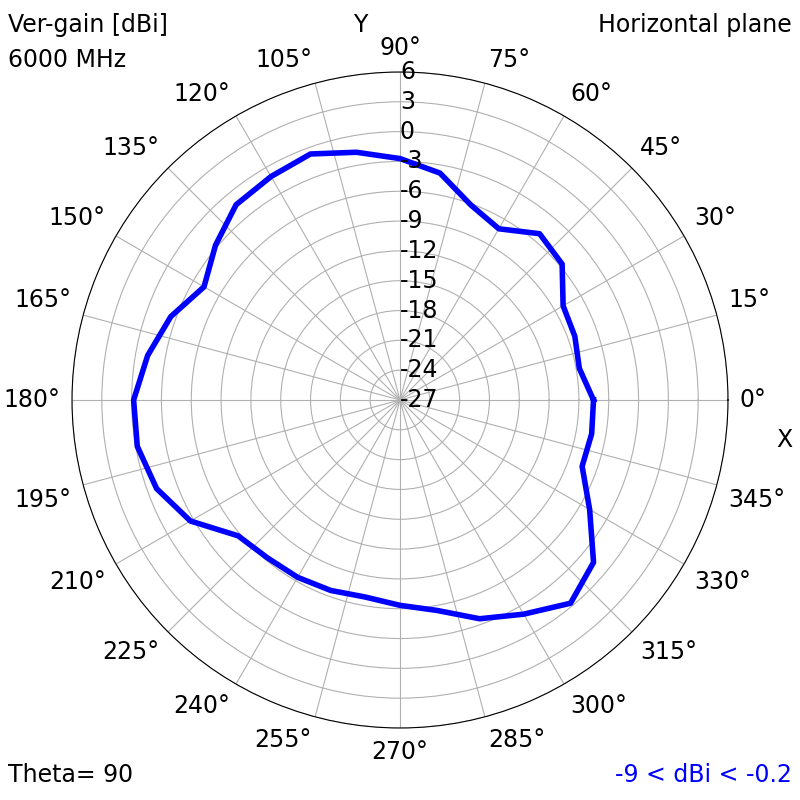

| 6000 MHz | ||
| XY | XZ | YZ |
 |
 |
 |

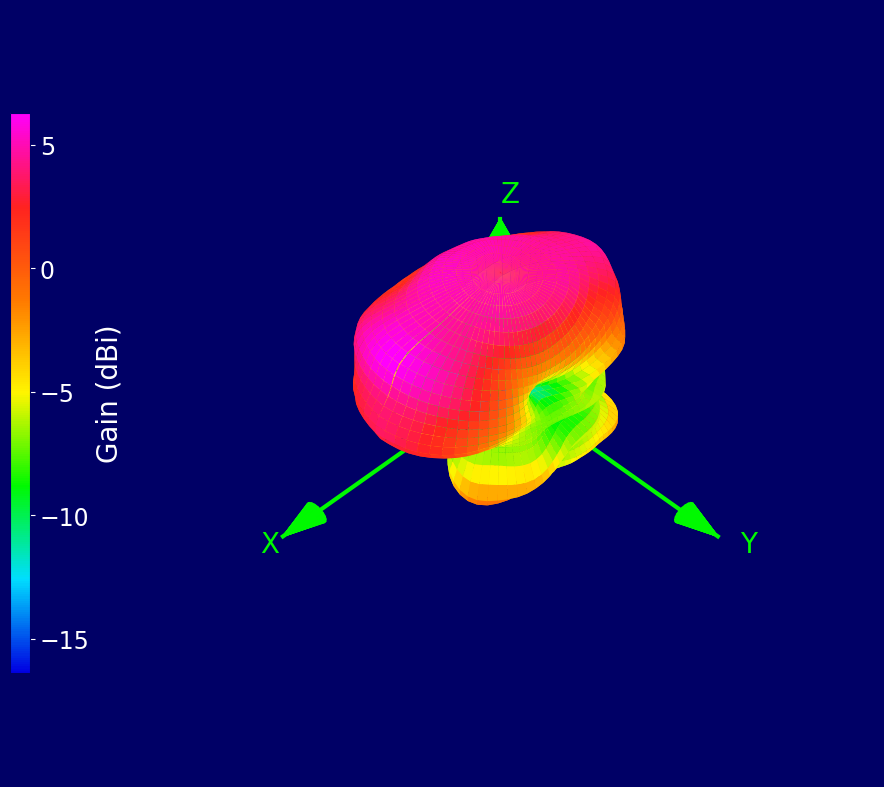

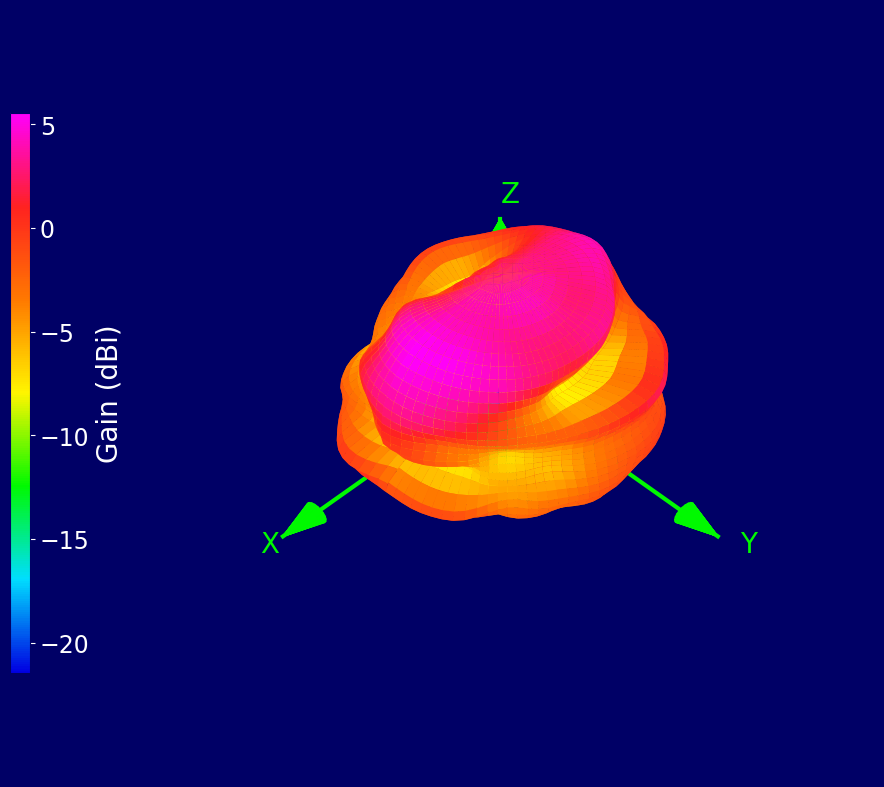

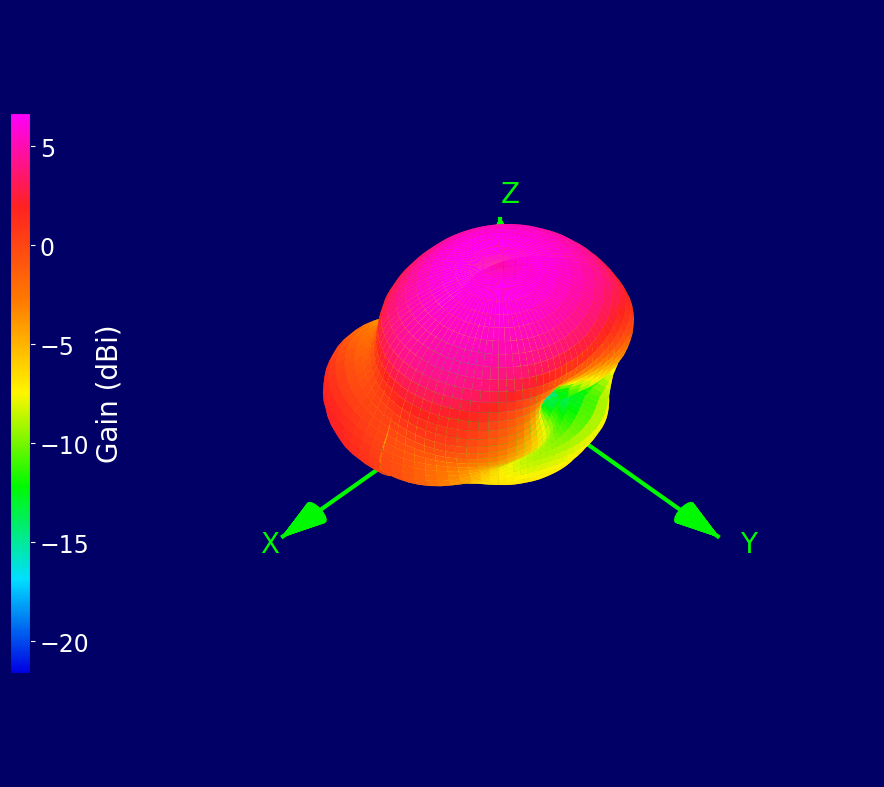

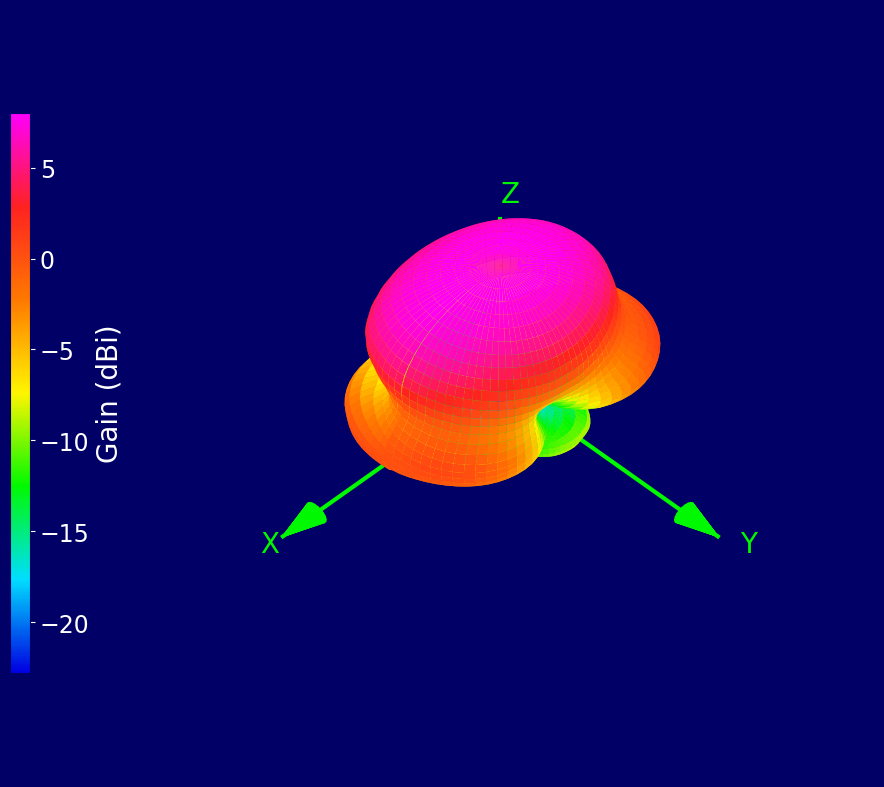

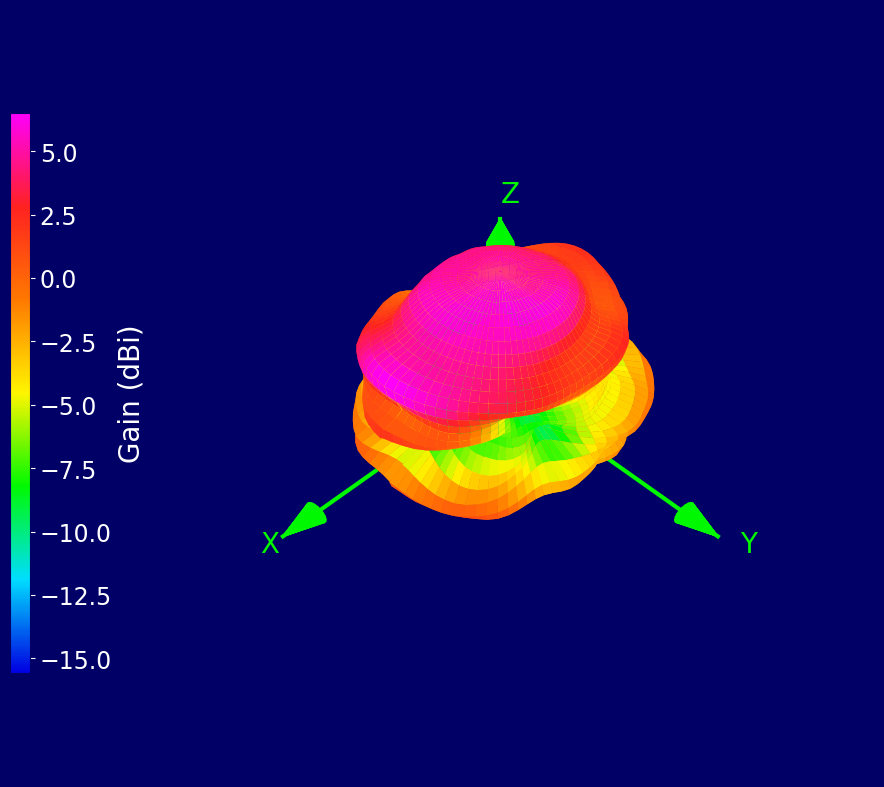

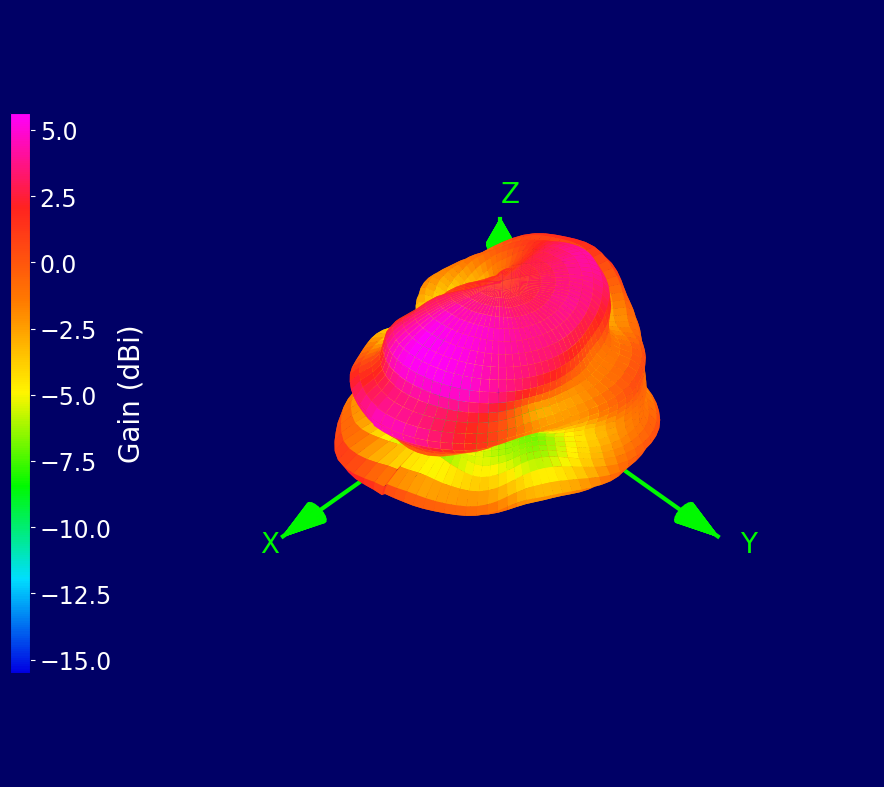

¶ 3D Radiation Plots

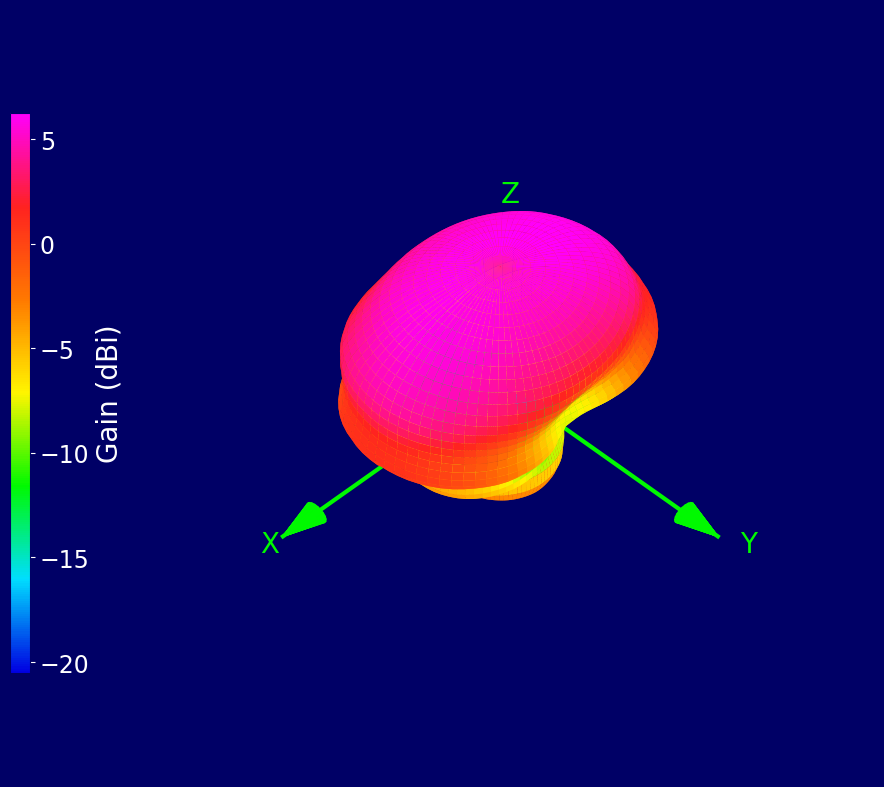

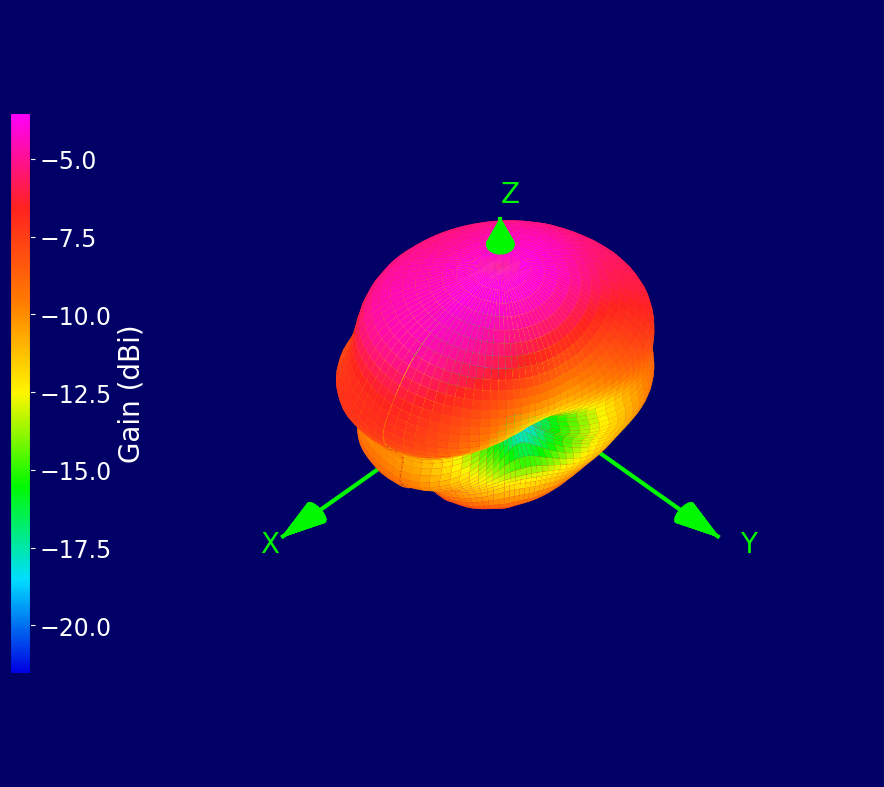

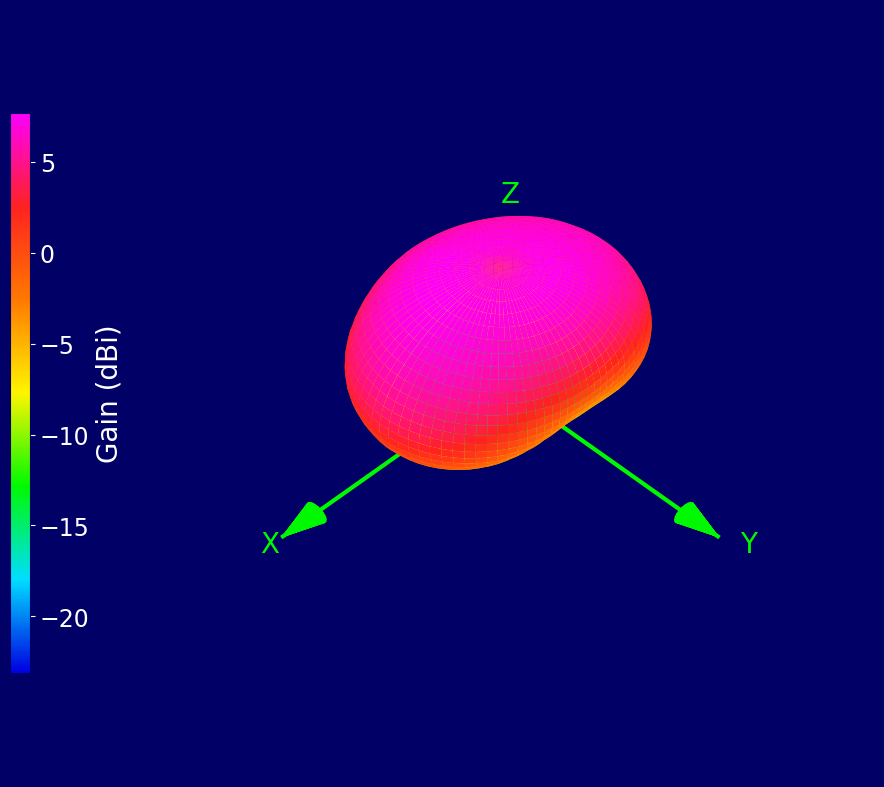

| 600 MHz | 700 MHz | 868 MHz |
 |
 |
 |

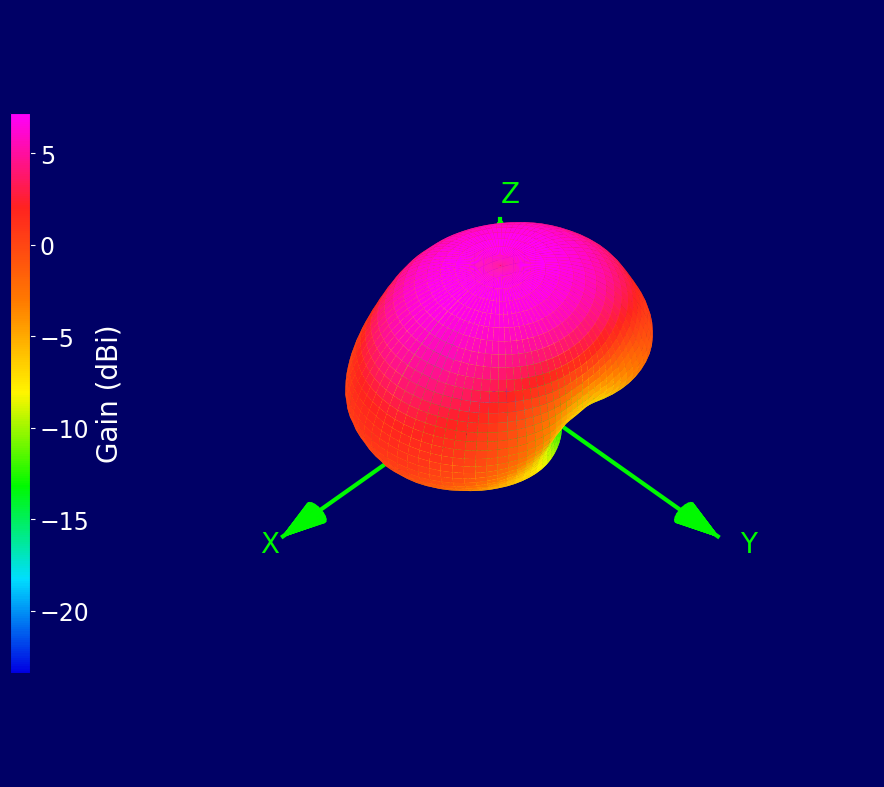

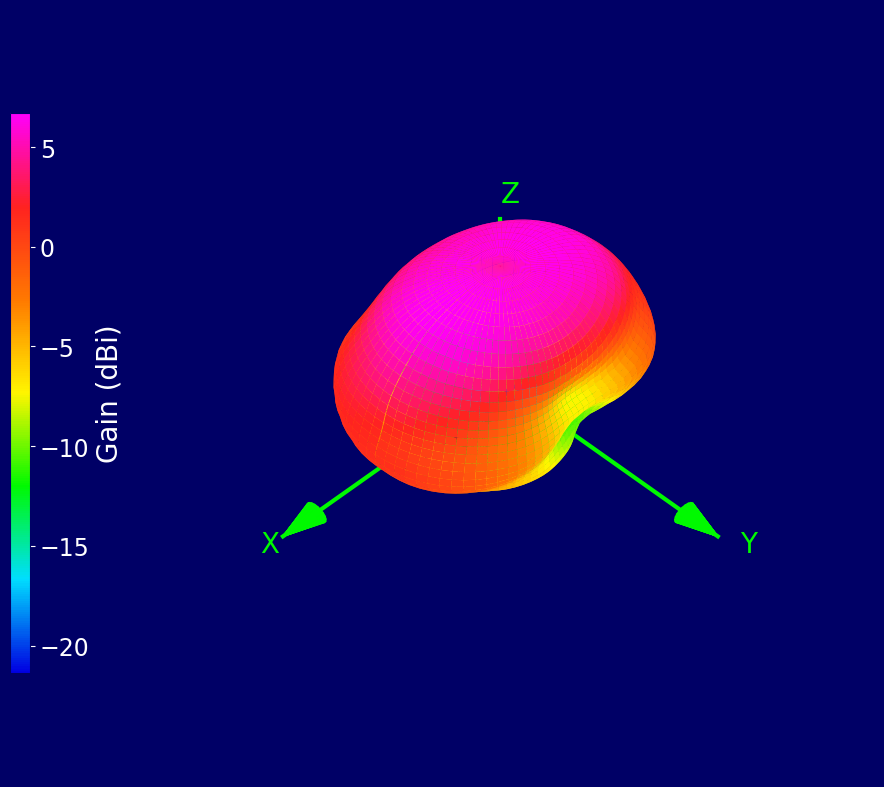

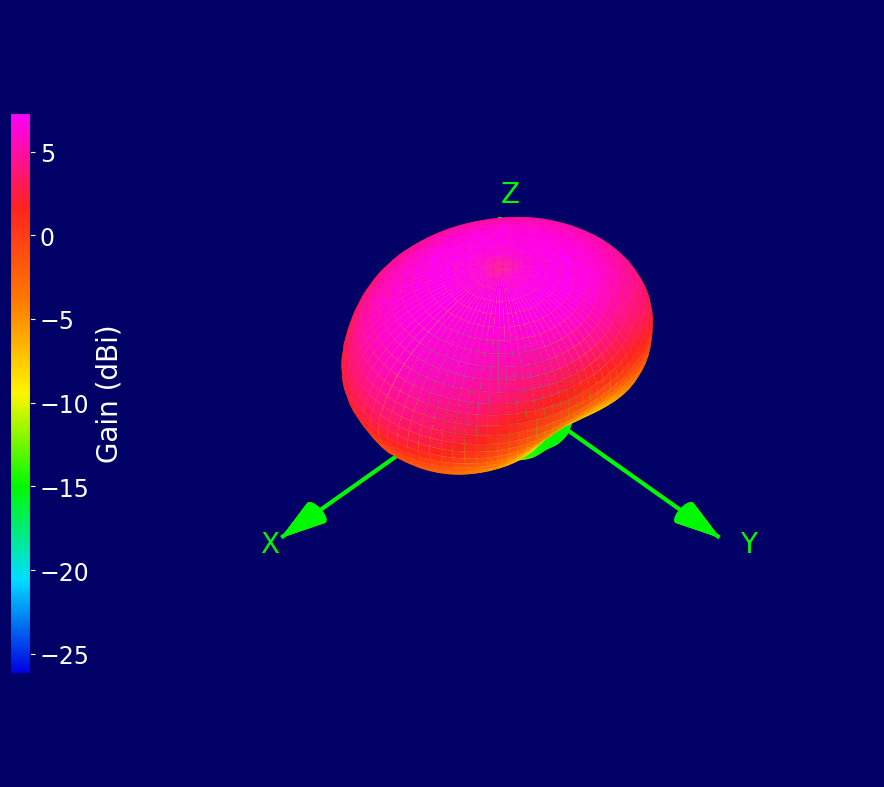

| 915 MHz | 1500 MHz | 1600 MHz |
 |
 |
 |

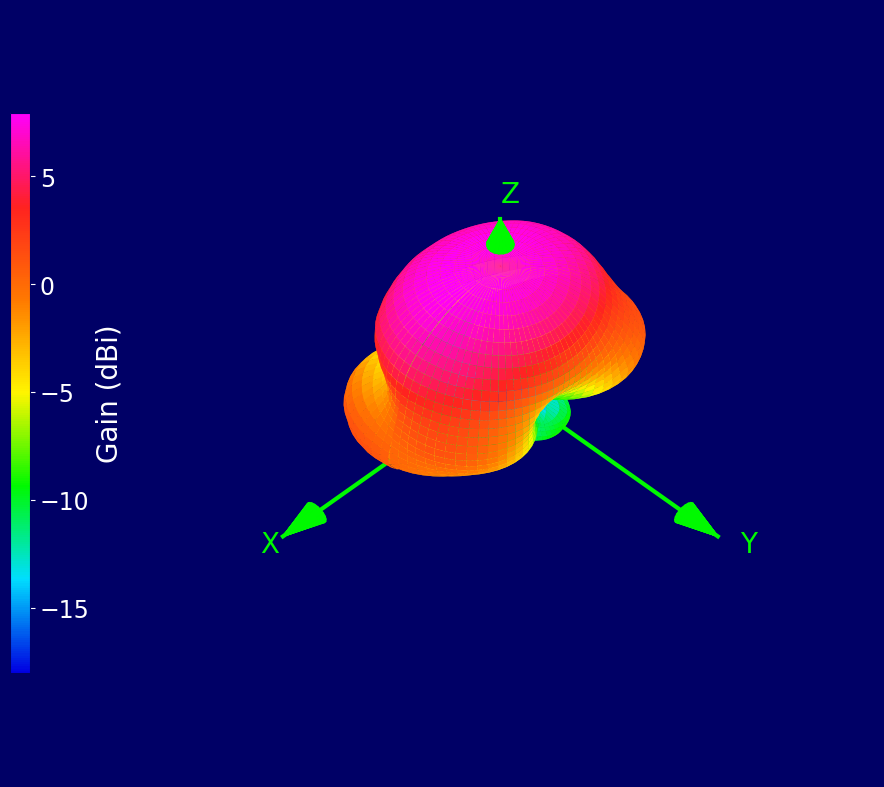

| 1700 MHz | 1800 MHz | 1900 MHz |
 |
 |
 |

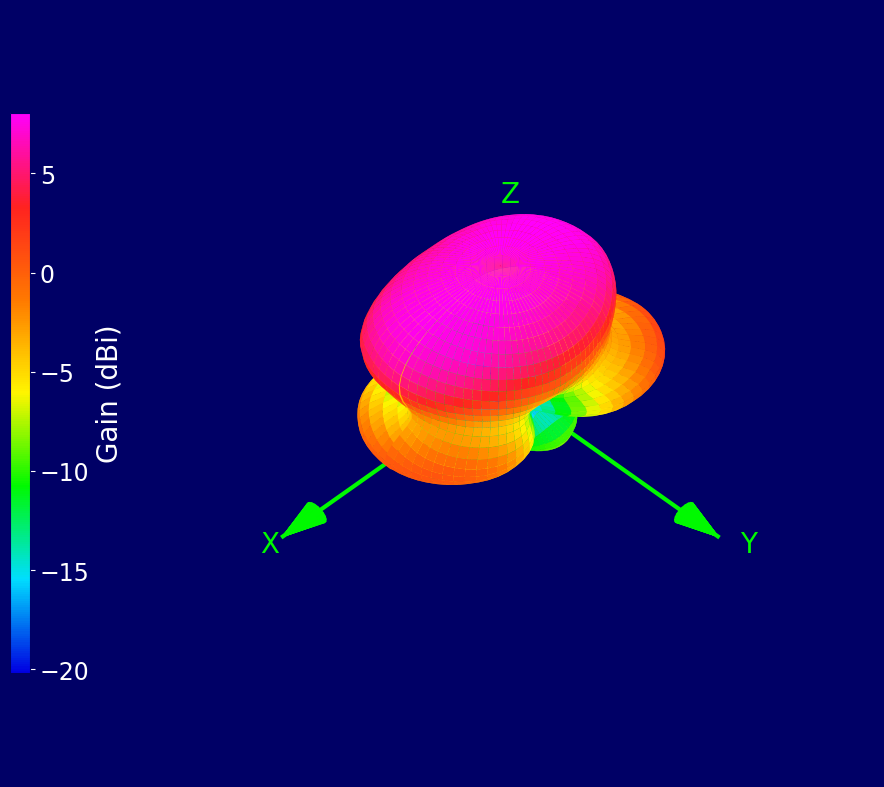

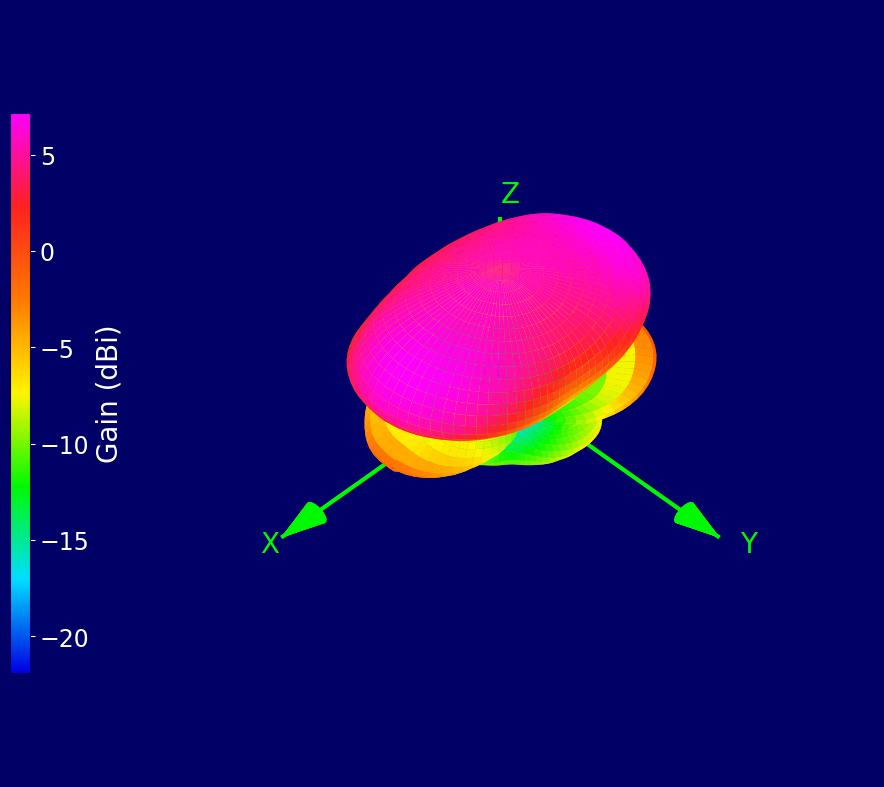

| 2000 MHz | 2100 MHz | 2200 MHz |
 |
 |
 |

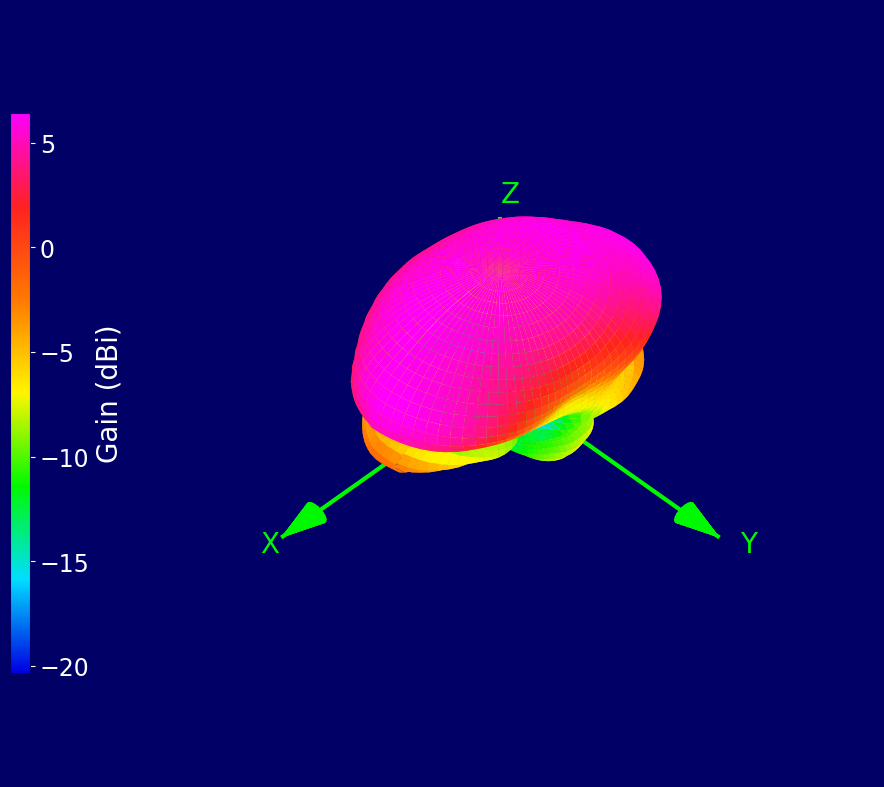

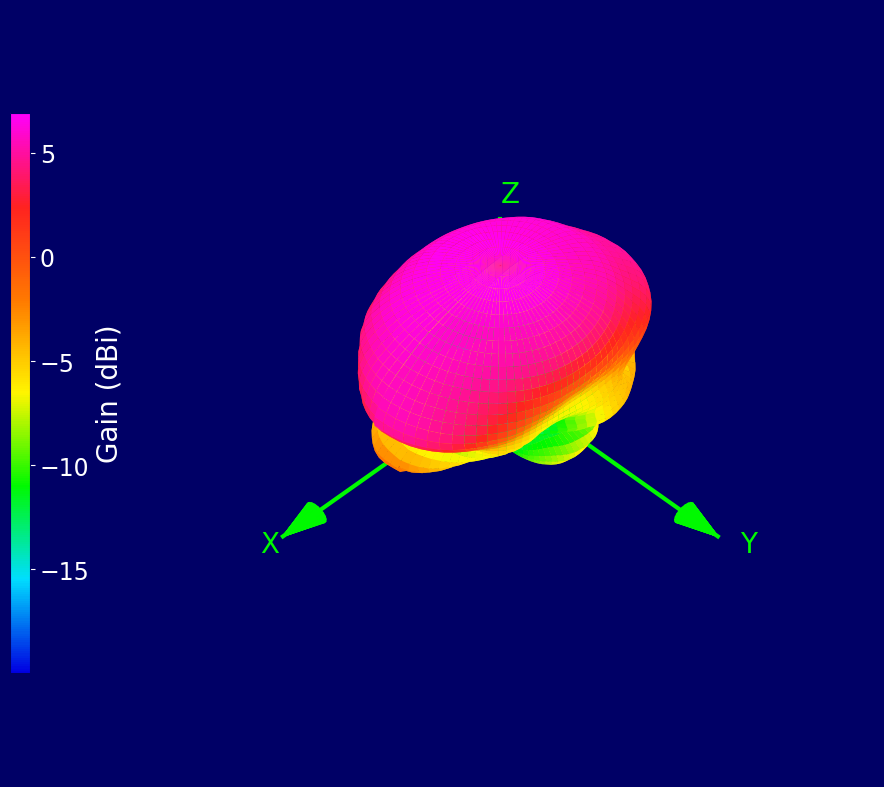

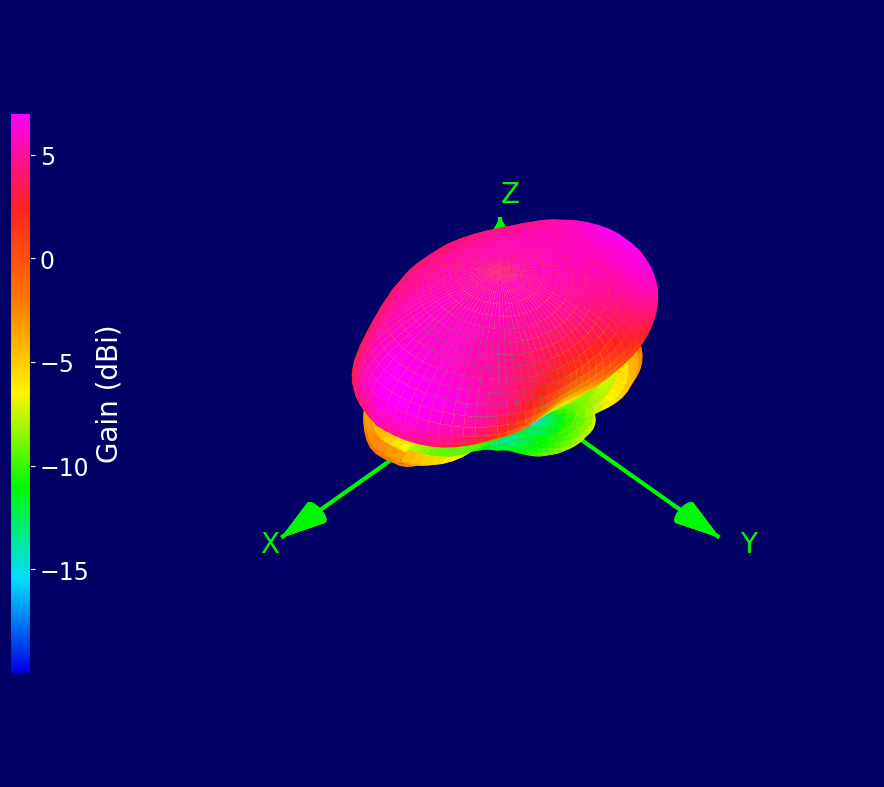

| 2300 MHz | 2400 MHz | 2500 MHz |
 |
 |
 |

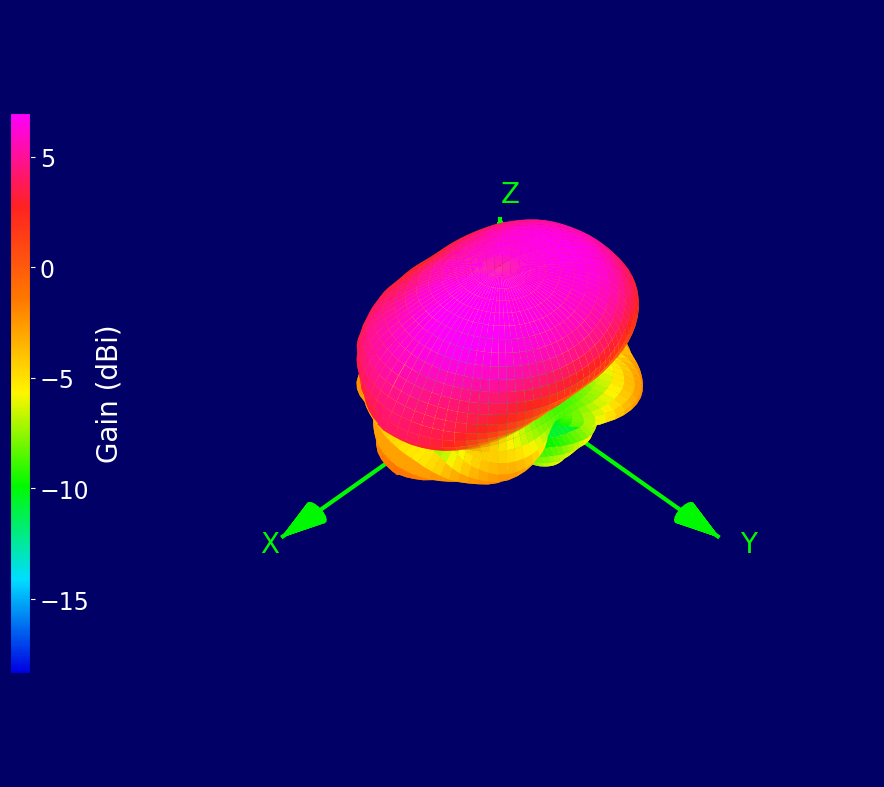

| 2600 MHz | 2700 MHz | 3500 MHz |
 |
 |
 |

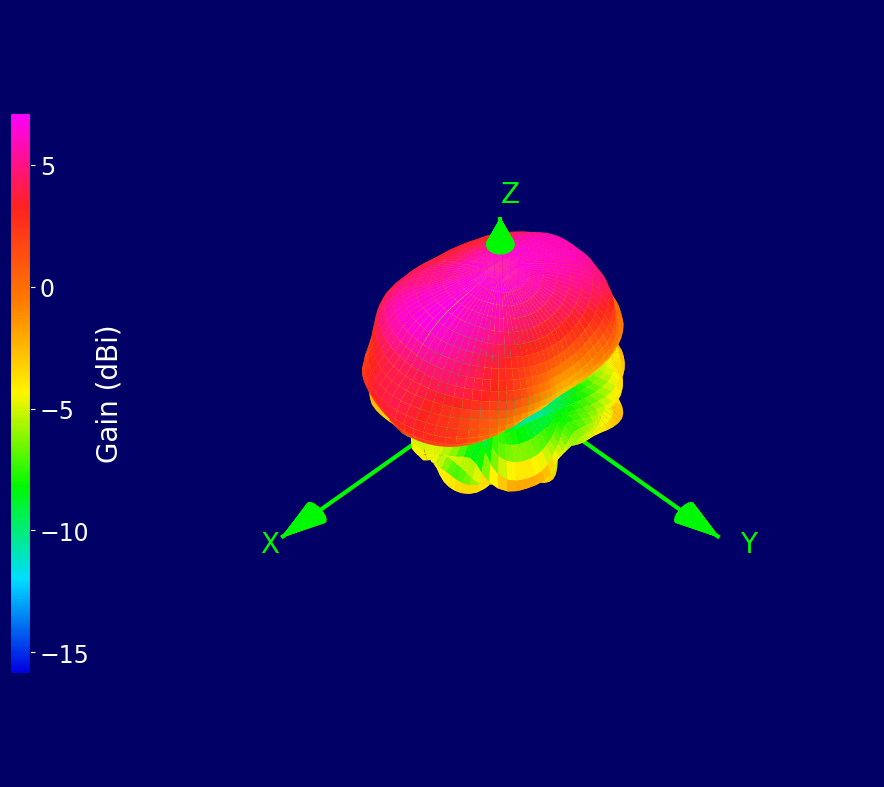

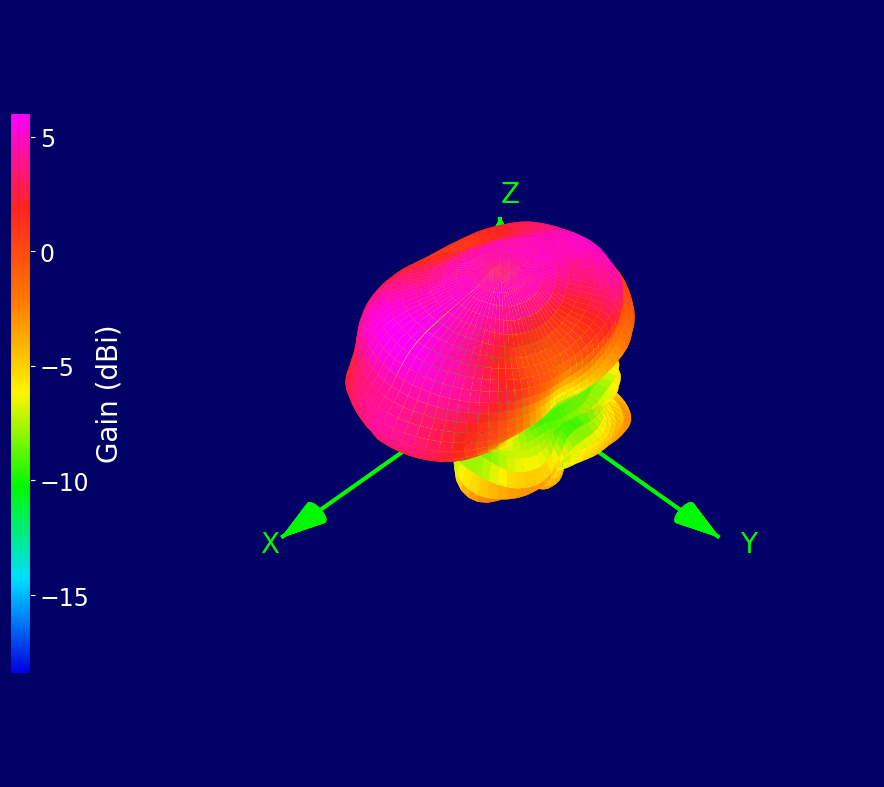

| 3600 MHz | 3700 MHz | 3800 MHz |
 |
 |
 |

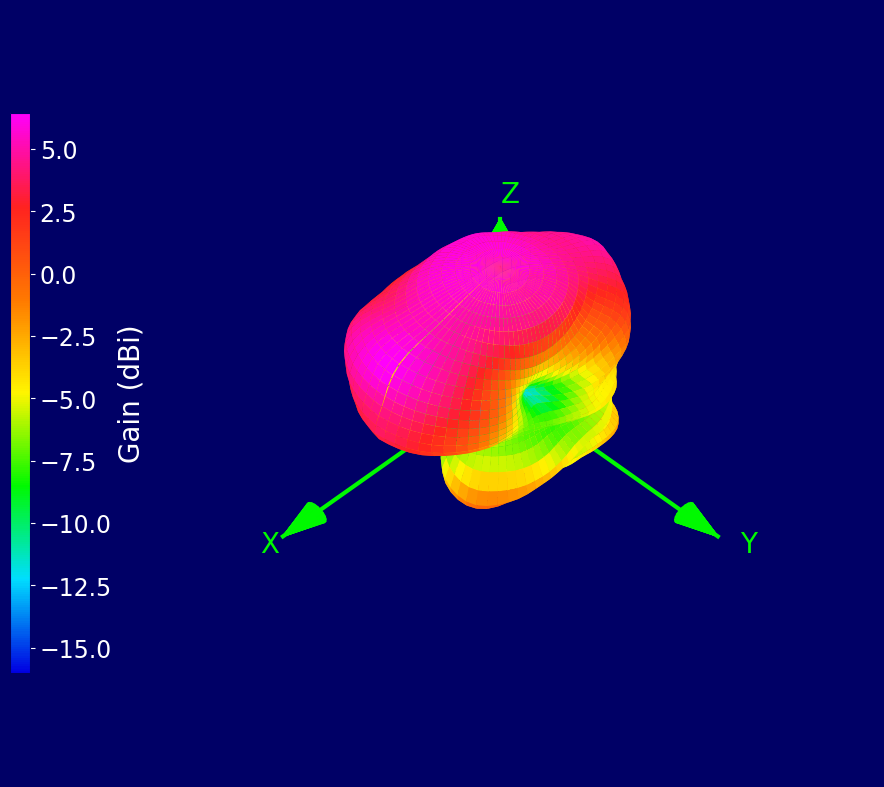

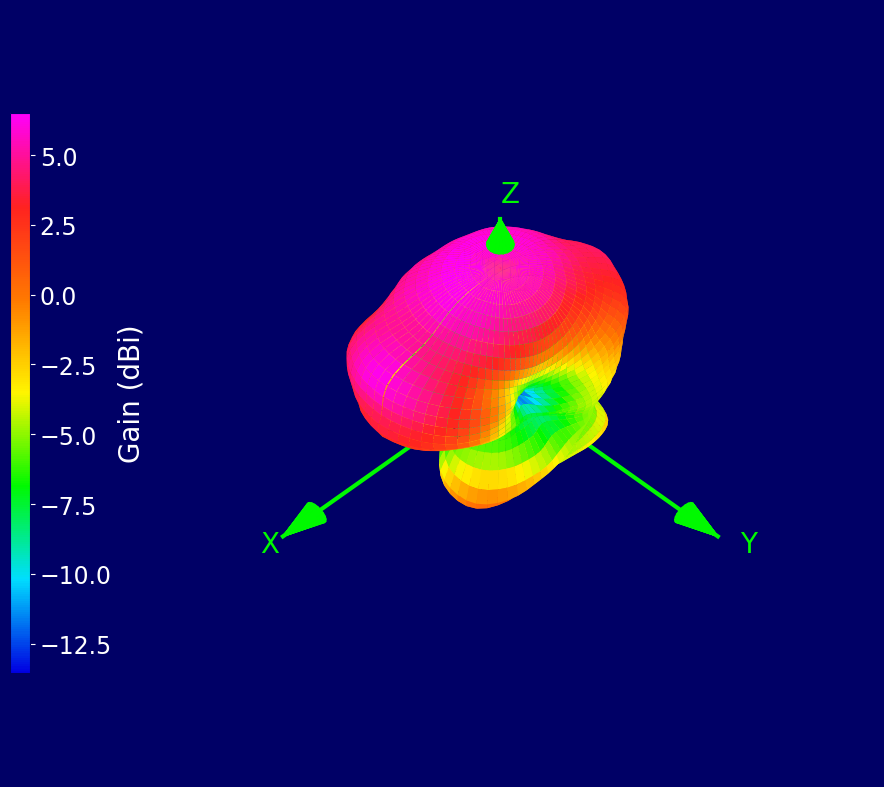

| 3900 MHz | 4000 MHz | 4100 MHz |
 |
 |
 |

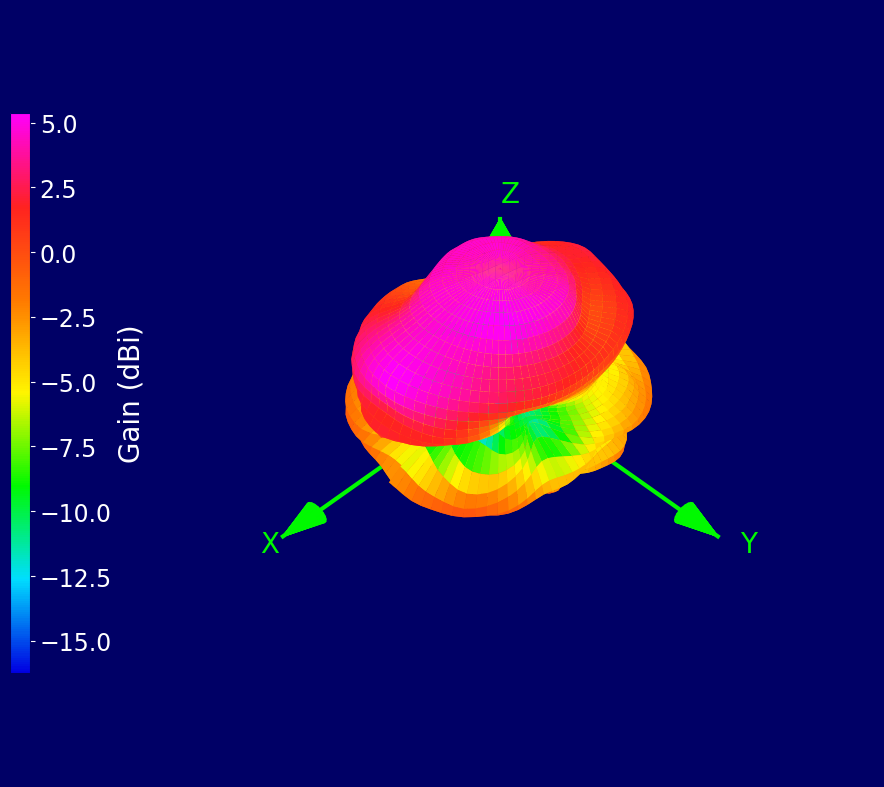

| 4200 MHz | 5000 MHz | 5100 MHz |
 |
 |
 |

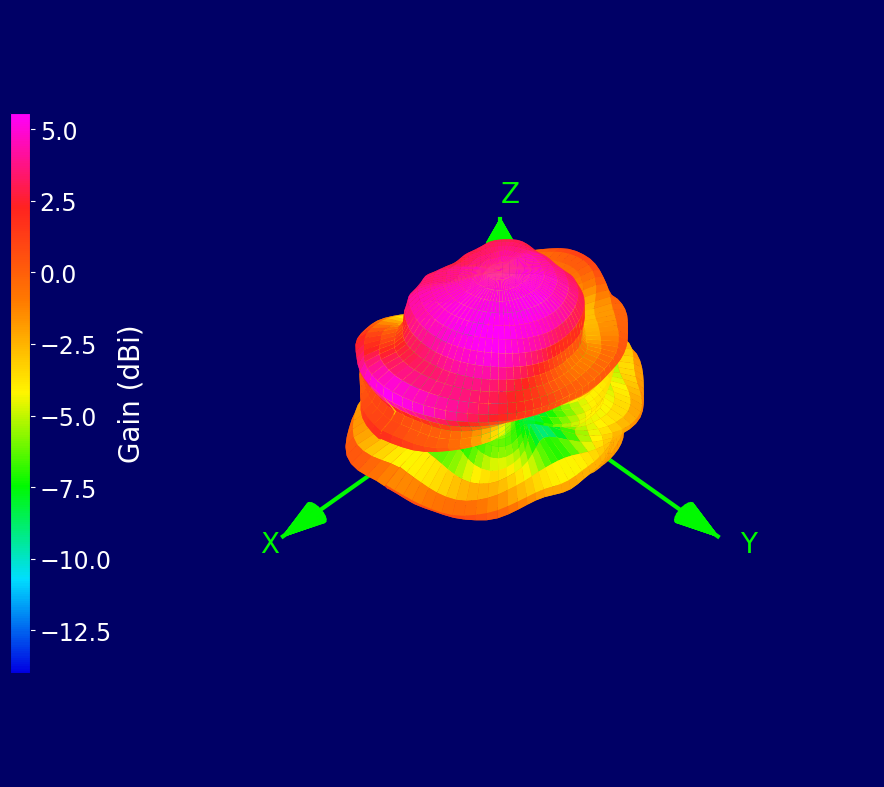

| 5200 MHz | 5300 MHz | 5400 MHz |
 |
 |
 |

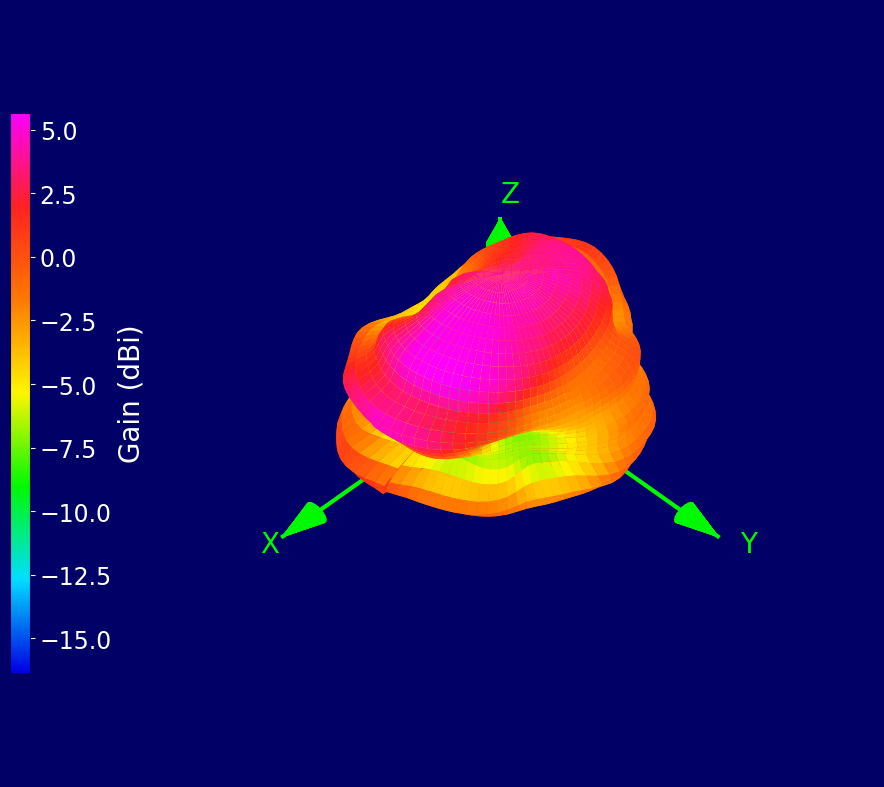

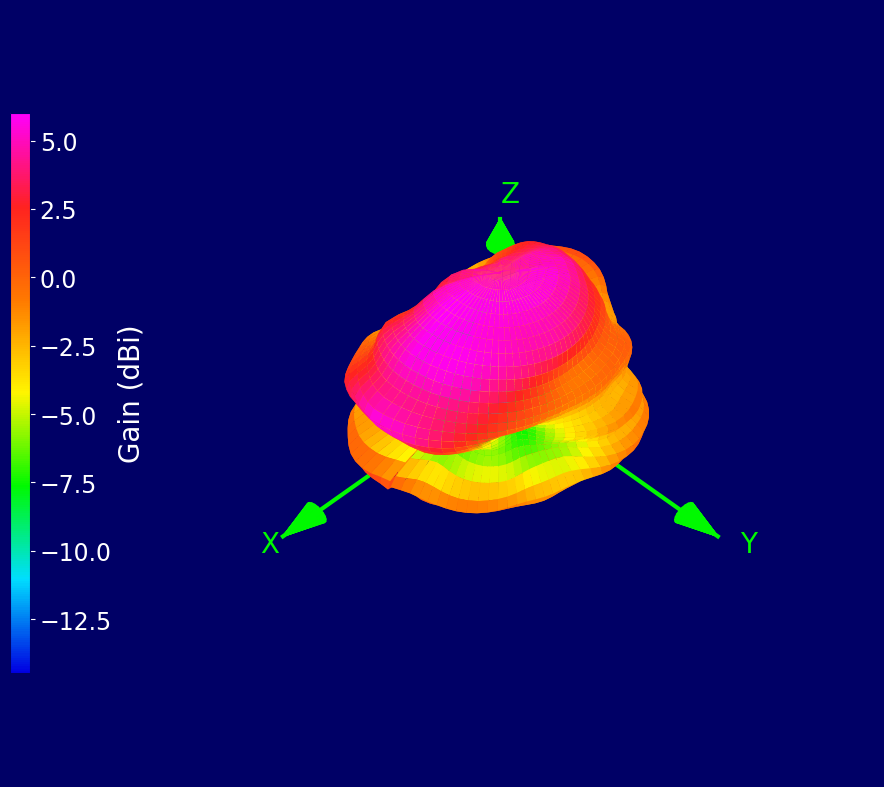

| 5500 MHz | 5600 MHz | 5700 MHz |
 |
 |
 |

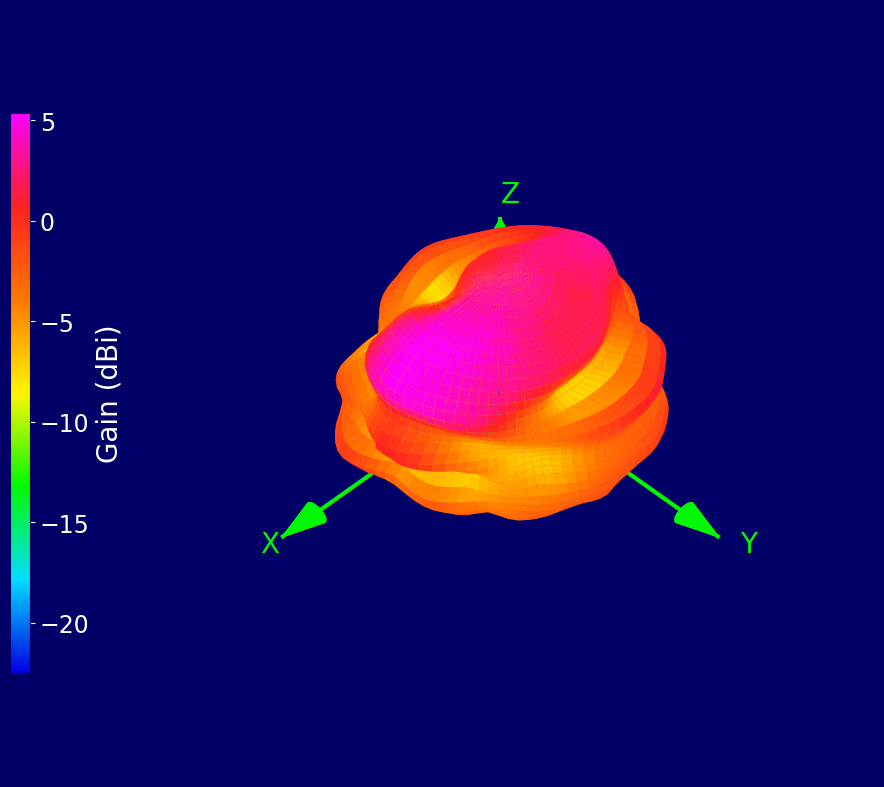

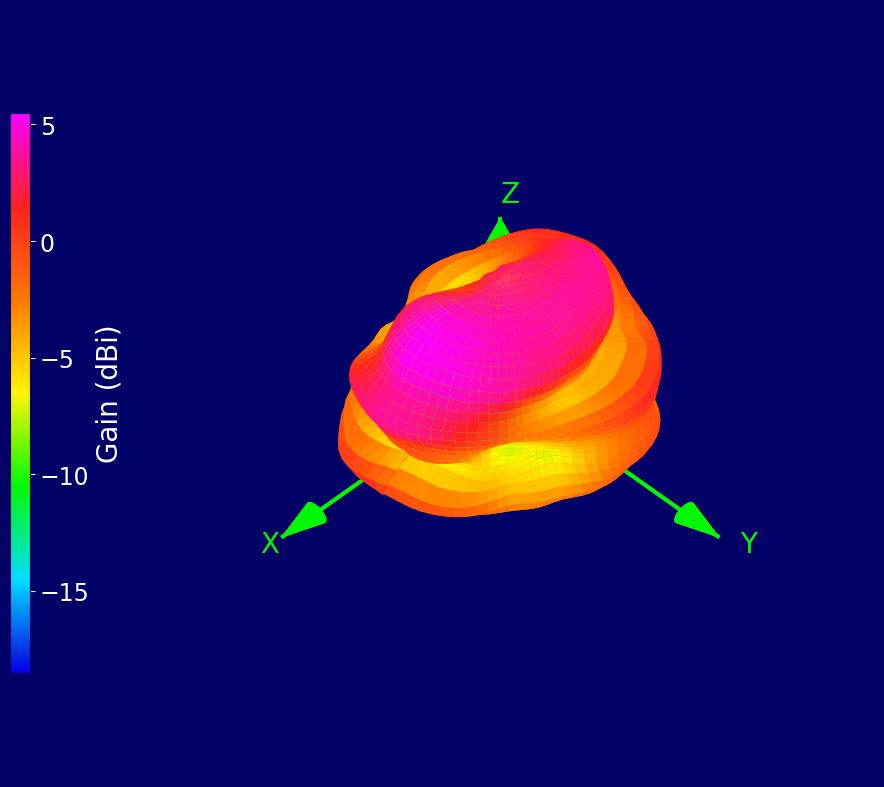

| 5800 MHz | 5900 MHz | 6000 MHz |
 |
 |
 |
¶ Ordering Details
| Part Number | Description |
|---|---|
| OSCAR18/x/NF/S/S/22 |
5G/4G, Dual Band Wi-Fi & LPWAN Directional Wall/Pole Mount Antenna N-TYPE Female Connector |
| OSCAR18/1M/SMAM/S/S/22 |
5G/4G, Dual Band Wi-Fi & LPWAN Directional Wall/Pole Mount Antenna 1M Cable SMA Male Connector |
| OSCAR18/2.5M/SMAM/S/S/22 |
5G/4G, Dual Band Wi-Fi & LPWAN Directional Wall/Pole Mount Antenna 2.5M Cable SMA Male Connector |
