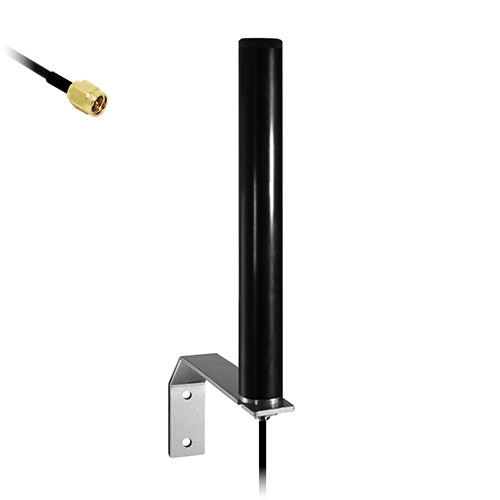

¶ General Description
The Oscar 1A is a high-performance wall-mount antenna designed for reliable wireless connectivity across the 868 MHz and 915 MHz ISM bands, making it an excellent choice for LPWAN and industrial IoT applications. It also supports selected 4G LTE, LTE-M and NB-IoT networks, providing flexible connectivity for fixed outdoor installations.
Its robust ABS housing and lightweight yet durable aluminium mounting bracket provide secure permanent installation on walls, cabinets and other fixed infrastructure. Designed for long-term outdoor deployment, the Oscar 1A is well suited to industrial IoT gateways, remote monitoring systems, smart metering infrastructure, security systems and agricultural monitoring, where reliable LPWAN and selected cellular connectivity are required.
Available with SMA Male or FME Female connector options and a choice of cable lengths, the Oscar 1A integrates easily with a wide range of industrial routers, gateways and wireless communication equipment.
¶ Key Features
- Excellent 868 MHz and 915 MHz ISM performance for LPWAN applications
- Supports selected 4G LTE, LTE-M and NB-IoT frequency bands
- Rugged outdoor wall-mount design with aluminium mounting bracket
- Omnidirectional coverage for reliable fixed wireless installations
- Available with SMA Male or FME Female connectors and multiple cable lengths
¶ Typical Applications
-
Industrial IoT gateways
-
Remote monitoring systems
-
Smart metering infrastructure
-
Security and surveillance systems
-
Agricultural monitoring and control
ISM / LPWAN
868 & 915 MHz
|
UV & Water Resistant
Outdoor Radome
|
LTE
LTE, LTE-M & NB-IoT
|
Industrial IoT
LPWAN Connectivity
|
Wall Mount
Permanent Installation
|
Product Features
2G
GSM
3G
UMTS
4G
LTE
5G
NR
BLE
Bluetooth
IEEE
802.15.4
ISM
868
ISM
915
ISM
2.4 GHz
LoRa
Wireless
LTE
CAT-M
LTE
NB-IoT
Cellular Band Support
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B13
B14
B17
B18
B19
B20
B21
B23
B25
B26
B27
B29
B30
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B43
B45
B50
B51
B53
B54
B65
B66
B67
B69
B70
B74
B75
B76
B103
B106
B111
5G NR Band Support
n1
n2
n3
n5
n7
n8
n13
n14
n18
n20
n25
n26
n29
n30
n34
n38
n39
n40
n41
n50
n51
n53
n54
n65
n66
n67
n70
n74
n75
n76
n80
n81
n82
n84
n86
n89
n90
n91
n92
n93
n94
n95
n97
n98
n100
n101
n106
n110
¶ Electrical Specifications
| Frequency Range: | 800–960 MHz 1700–2700 MHz |
| Impedance: | 50 Ohm |
| Polarisation: | Vertical |
| Gain | 0–1 dBi |
| Average Radiation Efficiency: | 35.5% |
| Max Input Power: | 50 W |
| Required Ground plane: | 160 mm circular |
¶ Environmental Specifications
| Operating Temperature range: | -20°C to 80°C |
| Storage Temperature range: | -20°C to 80°C |

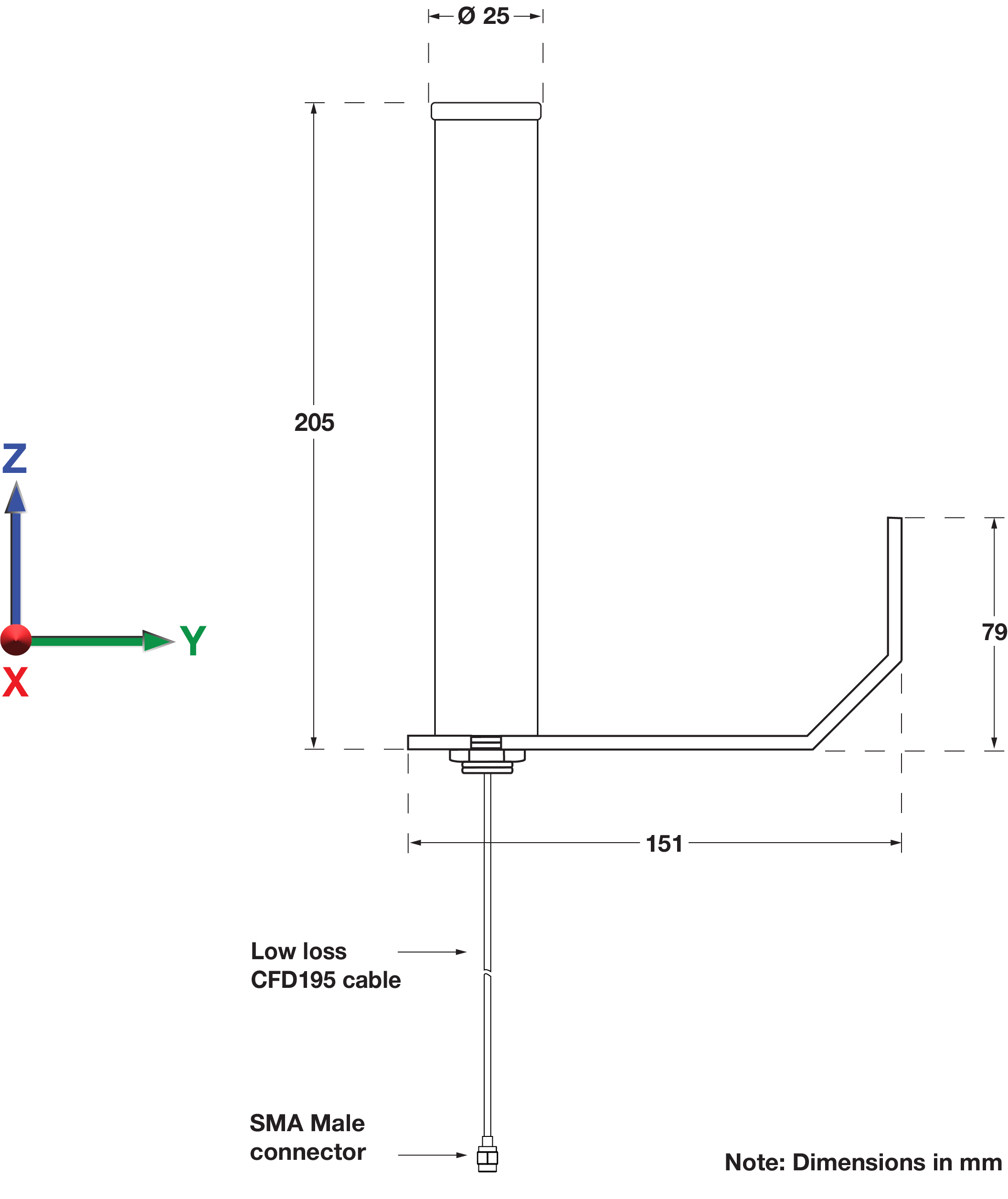

¶ Mechanical Specifications
| Dimensions: | Ø = 25 mm H = 205 mm |
| Weight: | 250 g |
| Cable: | Low Loss CFD195 (Ø = 4.95 mm) |
| Connector: | SMA Male (FME Female variants available) |
| Mounting method: | L-type wall/bracket mount |
| Housing materials: | ABS (casing) Aluminium (radiator) |

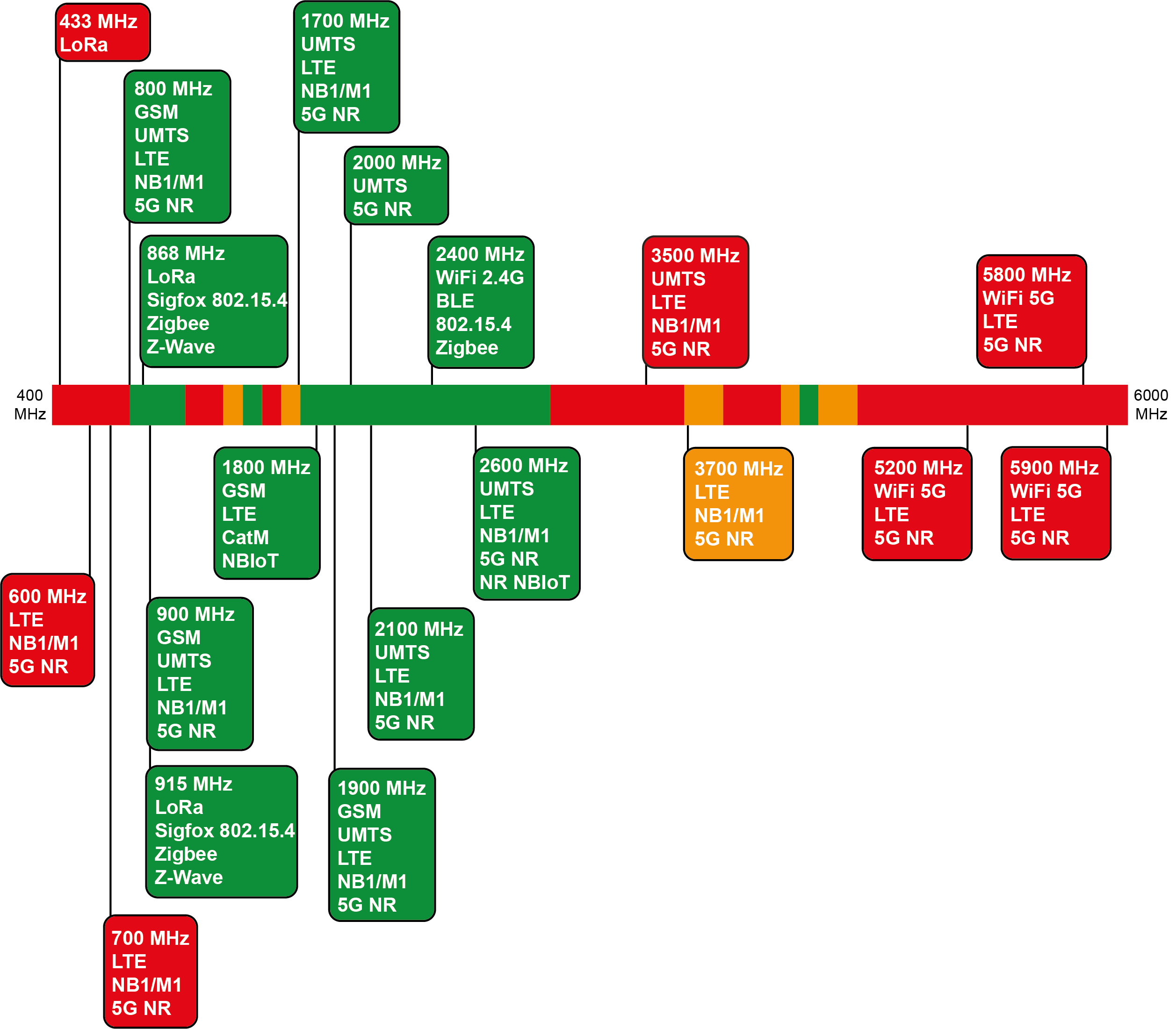

¶ Spectrum Coverage*
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency, taking into consideration the VSWR and radiated efficiency of the antenna.
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

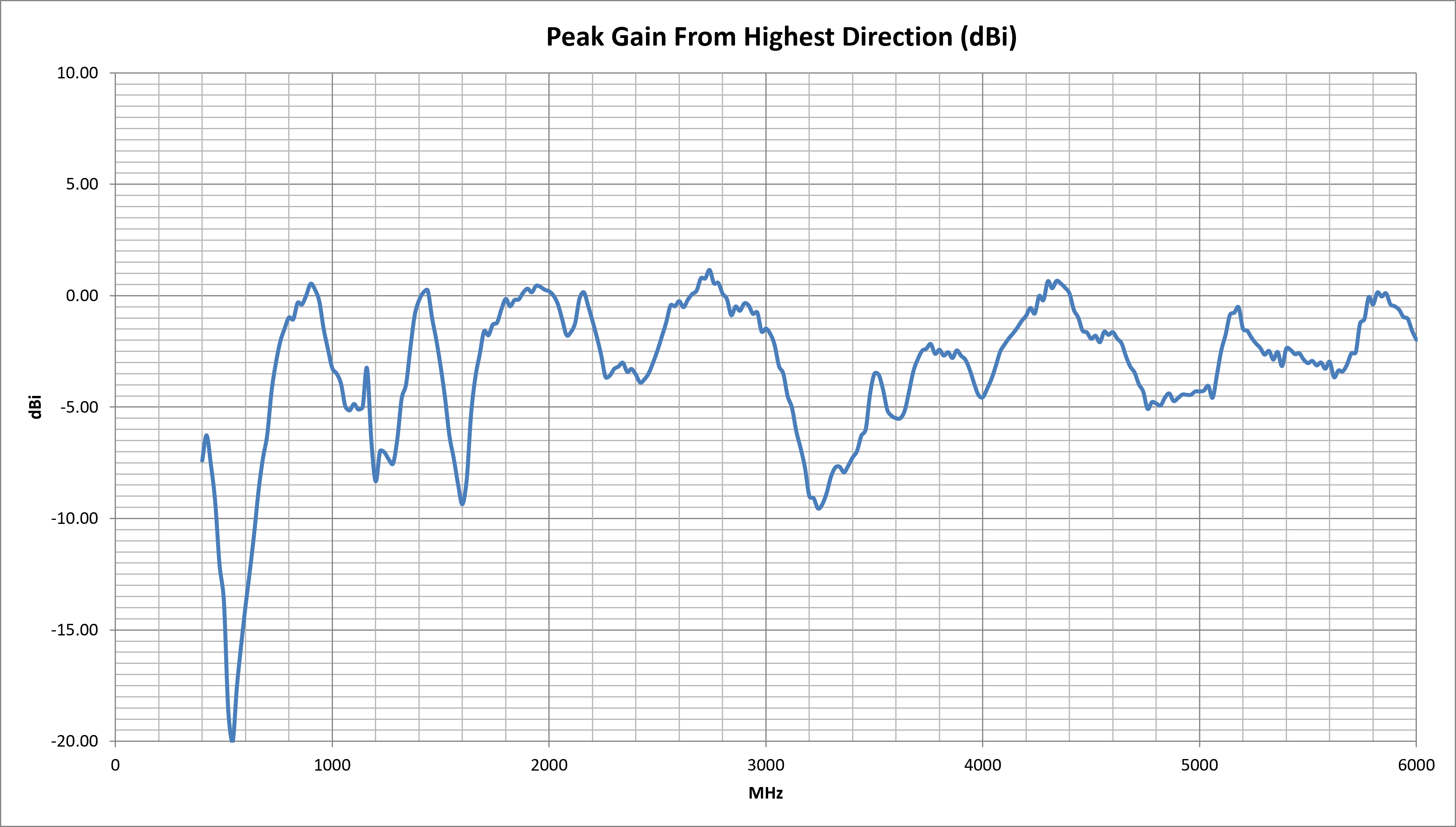

¶ Peak Gain vs. Frequency

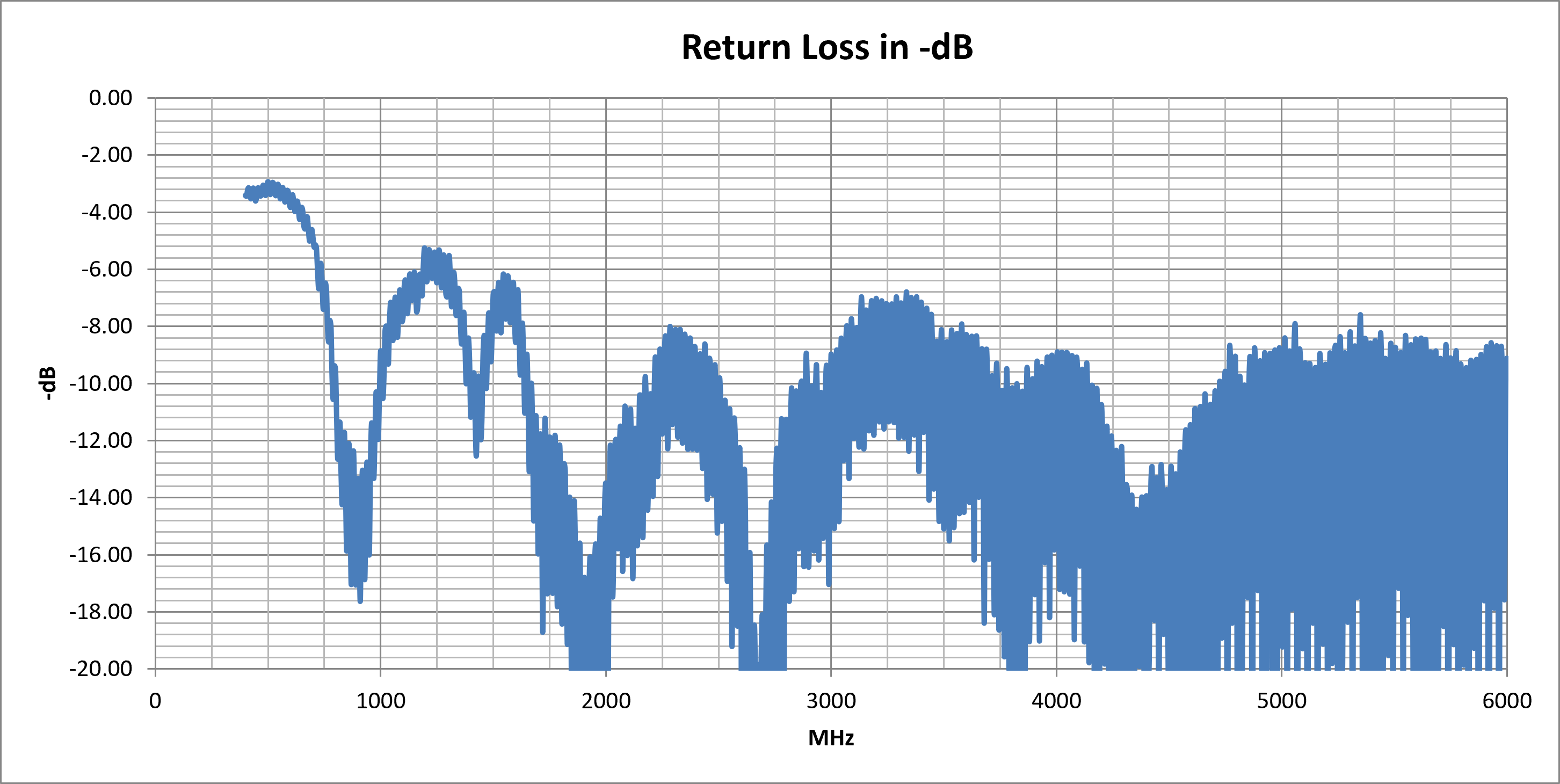

¶ Return Loss

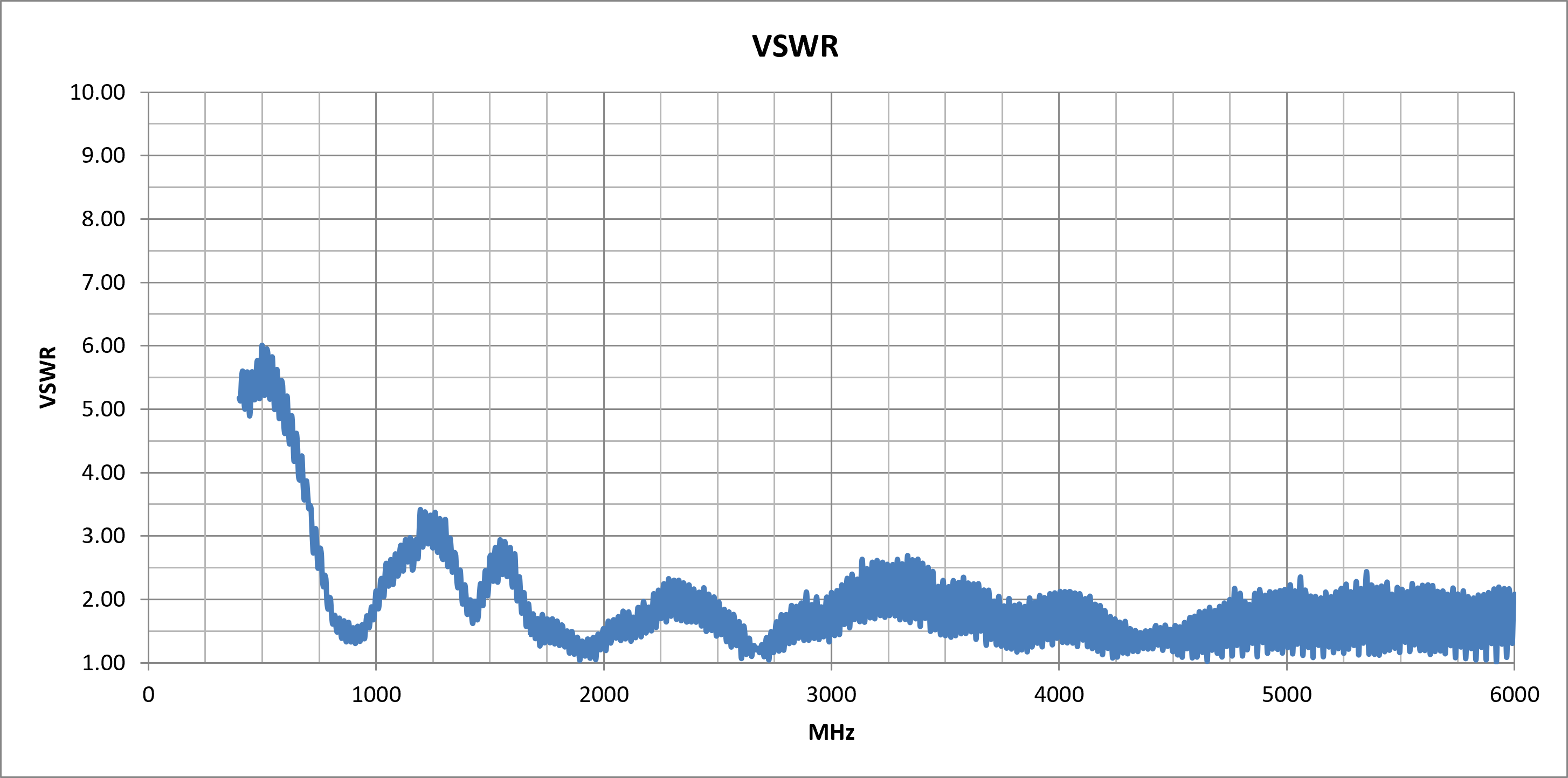

¶ VSWR

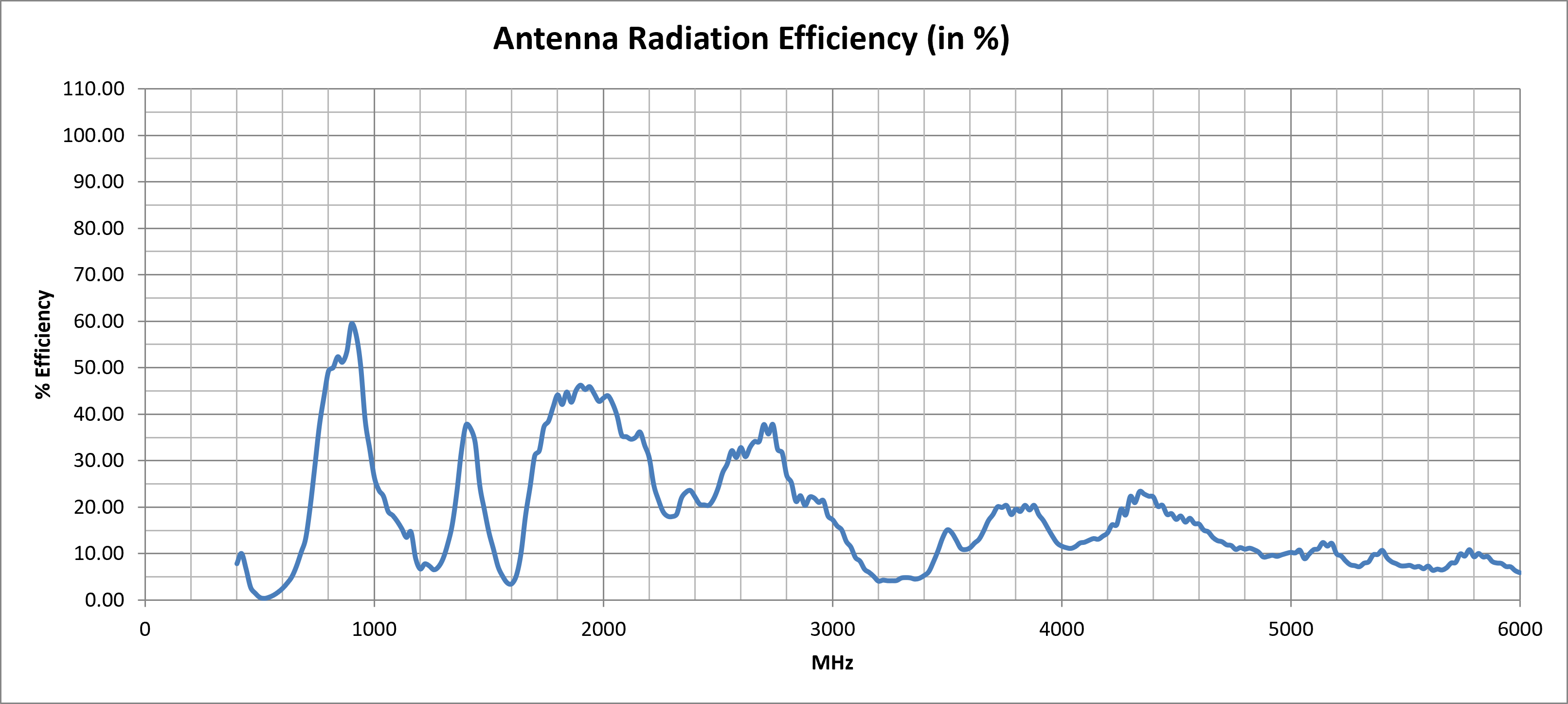

¶ Radiation Efficiency
¶ Cellular Bands*
| GSM (2G) Bands | UMTS (3G) Bands | E-UTRA (4G) Bands | NR (5G) Bands | Uplink (MHz) | Downlink (MHz) | Average Upload Efficiency (%) | Average Download Efficiency (%) | Maximum Upload VSWR | Maximum Download VSWR | Use Indicator |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | n1 | 1920 - 1980 | 2110 - 2170 | 44.77 | 35.15 | 1.45 | 1.86 | ↑ | |
| PCS-1900 | 2 | 2 | n2 | 1850 - 1910 | 1930 - 1990 | 44.68 | 44.35 | 1.49 | 1.45 | ↑ |
| DCS-1800 | 3 | 3 | n3 | 1710 - 1785 | 1805 - 1880 | 37.04 | 43.48 | 1.76 | 1.59 | ↑ |
| 4 | 4 | 1710 - 1755 | 2110 - 2155 | 35.06 | 34.99 | 1.76 | 1.86 | ↑ | ||
| GSM-850 | 5 | 5 | n5 | 824 - 849 | 869 - 894 | 51.66 | 54.35 | 1.70 | 1.63 | ↑ |
| 6 | 830 - 840 | 875 - 885 | 51.77 | 53.69 | 1.70 | 1.63 | ↑ | |||
| 7 | 7 | n7 | 2500 - 2570 | 2620 - 2690 | 28.73 | 33.43 | 1.96 | 1.44 | ↑ | |
| E-GSM-900 | 8 | 8 | n8 | 880 - 915 | 925 - 960 | 57.35 | 48.16 | 1.63 | 1.74 | ↑ |
| 9 | 9 | 1749.9 - 1784.9 | 1844.9 - 1879.9 | 39.71 | 43.64 | 1.69 | 1.49 | ↑ | ||
| 10 | 10 | 1710 - 1770 | 2110 - 2170 | 36.03 | 35.15 | 1.76 | 1.86 | ↑ | ||
| 11 | 11 | 1427.9 - 1447.9 | 1475.9 - 1495.9 | 33.71 | 18.01 | 1.97 | 2.45 | ↑ | ||
| 12 | 12 | n12 | 699 - 716 | 729 - 746 | 15.80 | 27.64 | 3.69 | 3.11 | ↓ | |
| 13 | 13 | n13 | 777 - 787 | 746 - 756 | 44.29 | 33.54 | 2.36 | 2.81 | ↑ | |
| 14 | 14 | n14 | 788 - 798 | 758 - 768 | 47.37 | 38.41 | 2.03 | 2.75 | ↑ | |
| 17 | 704 - 716 | 734 - 746 | 16.65 | 28.72 | 3.48 | 3.11 | □ | |||
| 18 | n18 | 815 - 830 | 860 - 875 | 50.37 | 52.03 | 1.74 | 1.66 | ↑ | ||
| 19 | 19 | 830 - 845 | 875 - 890 | 51.92 | 54.36 | 1.70 | 1.63 | ↑ | ||
| 20 | 20 | n20 | 832 - 862 | 791 - 821 | 51.76 | 49.19 | 1.70 | 2.03 | ↑ | |
| 21 | 21 | 1447.9 - 1462.9 | 1495.9 - 1510.9 | 26.84 | 13.97 | 2.25 | 2.69 | ↑ | ||
| 22 | 22 | 3410 - 3490 | 3510 - 3590 | 9.55 | 12.35 | 2.49 | 2.35 | ↓ | ||
| 23 | 2000 - 2020 | 2180 - 2200 | 43.70 | 31.91 | 1.65 | 1.87 | ↑ | |||
| 24 | n24 | 1626.5 - 1660.5 | 1525 - 1559 | 11.91 | 7.22 | 2.35 | 2.94 | ↓ | ||
| 25 | 25 | n25 | 1850 - 1915 | 1930 - 1995 | 44.75 | 44.26 | 1.49 | 1.48 | ↑ | |
| 26 | 26 | n26 | 814 - 849 | 859 - 894 | 51.20 | 53.58 | 1.74 | 1.66 | ↑ | |
| 27 | 807 - 824 | 852 - 869 | 49.89 | 51.56 | 1.74 | 1.66 | ↑ | |||
| 28 | n28 | 703 - 748 | 758 - 803 | 22.75 | 43.67 | 3.52 | 2.75 | ↓ | ||
| 28A | 703 - 733 | 758 - 788 | 19.65 | 41.52 | 3.52 | 2.75 | ↓ | |||
| 29 | n29 | - | 717 - 728 | - | 21.20 | - | 3.27 | □ | ||
| 30 | n30 | 2305 - 2315 | 2350 - 2360 | 18.22 | 22.85 | 2.29 | 2.25 | ↑ | ||
| 31 | n31 | 452.5 - 457.5 | 462.5 - 467.5 | 3.67 | 2.37 | 5.58 | 5.36 | ↓ | ||
| 32 | 32 | - | 1452 - 1496 | - | 21.21 | - | 2.45 | ↑ | ||
| 33 | 1900 - 1920 | 1900 - 1920 | 45.76 | 45.76 | 1.34 | 1.34 | ↑ | |||
| 34 | n34 | 2010 - 2025 | 2010 - 2025 | 43.80 | 43.80 | 1.65 | 1.65 | ↑ | ||
| 35 | 1850 - 1910 | 1850 - 1910 | 44.68 | 44.68 | 1.49 | 1.49 | ↑ | |||
| 36 | 1930 - 1990 | 1930 - 1990 | 44.35 | 44.35 | 1.45 | 1.45 | ↑ | |||
| 37 | 1910 - 1930 | 1910 - 1930 | 45.49 | 45.49 | 1.37 | 1.37 | ↑ | |||
| 38 | n38 | 2570 - 2620 | 2570 - 2620 | 31.64 | 31.64 | 1.76 | 1.76 | ↑ | ||
| 39 | n39 | 1880 - 1920 | 1880 - 1920 | 45.71 | 45.71 | 1.40 | 1.40 | ↑ | ||
| 40 | n40 | 2300 - 2400 | 2300 - 2400 | 21.43 | 21.43 | 2.30 | 2.30 | ↑ | ||
| 41 | n41 | 2496 - 2690 | 2496 - 2690 | 31.07 | 31.07 | 1.96 | 1.96 | ↑ | ||
| 42 | 3400 - 3600 | 3400 - 3600 | 11.06 | 11.06 | 2.56 | 2.56 | ↓ | |||
| 43 | 3600 - 3800 | 3600 - 3800 | 16.97 | 16.97 | 2.25 | 2.25 | □ | |||
| 44 | 703 - 803 | 703 - 803 | 33.33 | 33.33 | 3.52 | 3.52 | ↓ | |||
| 45 | 1447 - 1467 | 1447 - 1467 | 26.29 | 26.29 | 2.25 | 2.25 | ↑ | |||
| 46 | n46 | 5150 - 5925 | 5150 - 5925 | 8.46 | 8.46 | 2.43 | 2.43 | ↓ | ||
| 47 | n47 | 5855 - 5925 | 5855 - 5925 | 8.31 | 8.31 | 2.16 | 2.16 | ↓ | ||
| 48 | n48 | 3550 - 3700 | 3550 - 3700 | 13.31 | 13.31 | 2.35 | 2.35 | ↓ | ||
| 49 | 3550 - 3700 | 3550 - 3700 | 13.31 | 13.31 | 2.35 | 2.35 | ↓ | |||
| 50 | n50 | 1432 - 1517 | 1432 - 1517 | 21.93 | 21.93 | 2.69 | 2.69 | ↑ | ||
| 51 | n51 | 1427 - 1432 | 1427 - 1432 | 35.47 | 35.47 | 1.86 | 1.86 | ↑ | ||
| 52 | 3300 - 3400 | 3300 - 3400 | 4.74 | 4.74 | 2.69 | 2.69 | ↓ | |||
| 53 | n53 | 2483.5 - 2495 | 2483.5 - 2495 | 22.77 | 22.77 | 2.03 | 2.03 | ↑ | ||
| 54 | n54 | 1670 - 1675 | 1670 - 1675 | 22.10 | 22.10 | 1.93 | 1.93 | ↑ | ||
| 65 | n65 | 1920 - 2010 | 2110 - 2200 | 44.27 | 34.30 | 1.54 | 1.96 | ↑ | ||
| 66 | n66 | 1710 - 1780 | 2110 - 2200 | 36.70 | 34.30 | 1.76 | 1.96 | ↑ | ||
| 67 | n67 | - | 738 - 758 | - | 32.22 | - | 2.96 | ↑ | ||
| 68 | n68 | 698 - 728 | 753 - 783 | 17.79 | 39.89 | 3.74 | 2.81 | ↓ | ||
| 69 | - | 2570 - 2620 | - | 31.64 | - | 1.76 | ↑ | |||
| 70 | n70 | 1695 - 1710 | 1995 - 2020 | 30.95 | 43.63 | 1.70 | 1.65 | ↑ | ||
| 71 | n71 | 663 - 698 | 617 - 652 | 10.30 | 4.72 | 4.26 | 4.90 | ↓ | ||
| 72 | n72 | 451 - 456 | 461 - 466 | 3.97 | 2.46 | 5.58 | 5.48 | ↓ | ||
| 73 | 450 - 455 | 460 - 465 | 4.17 | 2.52 | 5.58 | 5.56 | ↓ | |||
| 74 | n74 | 1427 - 1470 | 1475 - 1518 | 29.59 | 15.65 | 2.25 | 2.69 | ↑ | ||
| 75 | n75 | - | 1432 - 1517 | - | 21.93 | - | 2.69 | ↑ | ||
| 76 | n76 | - | 1427 - 1432 | - | 35.47 | - | 1.86 | ↑ | ||
| n77 | 3300 - 4200 | 3300 - 4200 | 13.33 | 13.33 | 2.69 | 2.69 | ↓ | |||
| n78 | 3300 - 3800 | 3300 - 3800 | 12.16 | 12.16 | 2.69 | 2.69 | ↓ | |||
| n79 | 4400 - 5000 | 4400 - 5000 | 13.70 | 13.70 | 2.17 | 2.17 | ↓ | |||
| n80 | 1710 - 1785 | - | 37.04 | - | 1.76 | - | ↑ | |||
| n81 | 880 - 915 | - | 57.35 | - | 1.63 | - | ↑ | |||
| n82 | 832 - 862 | - | 51.76 | - | 1.70 | - | ↑ | |||
| n83 | 703 - 748 | - | 22.75 | - | 3.52 | - | ↓ | |||
| n84 | 1920 - 1980 | - | 44.77 | - | 1.45 | - | ↑ | |||
| 85 | n85 | 698 - 716 | 728 - 746 | 15.64 | 27.42 | 3.74 | 3.11 | ↓ | ||
| n86 | 1710 - 1780 | - | 36.70 | - | 1.76 | - | ↑ | |||
| 87 | n87 | 410 - 415 | 420 - 425 | 9.17 | 9.58 | 5.59 | 5.15 | ↓ | ||
| 88 | n88 | 412 - 417 | 422 - 427 | 9.39 | 9.25 | 5.59 | 5.13 | ↓ | ||
| n89 | 824 - 849 | - | 51.66 | - | 1.70 | - | ↑ | |||
| n90 | 2496 - 2690 | 2496 - 2690 | 31.07 | 31.07 | 1.96 | 1.96 | ↑ | |||
| n91 | 832 - 862 | 1427 - 1432 | 51.76 | 35.47 | 1.70 | 1.86 | ↑ | |||
| n92 | 832 - 862 | 1432 - 1517 | 51.76 | 21.93 | 1.70 | 2.69 | ↑ | |||
| n93 | 880 - 915 | 1427 - 1432 | 57.35 | 35.47 | 1.63 | 1.86 | ↑ | |||
| n94 | 880 - 915 | 1432 - 1517 | 57.35 | 21.93 | 1.63 | 2.69 | ↑ | |||
| n95 | 2010 - 2025 | - | 43.80 | - | 1.65 | - | ↑ | |||
| n97 | 2300 - 2400 | - | 21.43 | - | 2.30 | - | ↑ | |||
| n98 | 1880 - 1920 | - | 45.71 | - | 1.40 | - | ↑ | |||
| n99 | 1626.5 - 1660.5 | - | 11.91 | - | 2.35 | - | ↓ | |||
| n100 | 874.4 - 880 | 919.4 - 925 | 53.14 | 56.40 | 1.63 | 1.57 | ↑ | |||
| n101 | 1900 - 1910 | 1900 - 1910 | 46.00 | 46.00 | 1.34 | 1.34 | ↑ | |||
| 103 | 787 - 788 | 757 - 758 | 45.84 | 36.40 | 1.91 | 2.77 | ↑ | |||
| n105 | 663 - 703 | 612 - 652 | 10.69 | 4.55 | 4.26 | 5.03 | ↓ | |||
| 106 | n106 | 896 - 901 | 935 - 940 | 58.94 | 51.30 | 1.55 | 1.60 | ↑ | ||
| 107 | - | 612 - 652 | - | 4.55 | - | 5.03 | ↓ | |||
| 108 | - | 470 - 698 | - | 3.48 | - | 6.01 | ↓ | |||
| n109 | 703 - 733 | 1432 - 1517 | 19.65 | 21.93 | 3.52 | 2.69 | ↓ | |||
| n110 | 1390 - 1395 | 1432 - 1435 | 35.54 | 34.86 | 2.23 | 1.97 | ↑ | |||
| 111 | 1800 - 1810 | 1820 - 1830 | 43.64 | 42.75 | 1.53 | 1.57 | ↑ | |||
| 112 | - | 470 - 608 | - | 1.17 | - | 6.01 | ↓ | |||
| 113 | - | 606 - 698 | - | 6.93 | - | 5.20 | ↓ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |
¶ ISM Standards Frequency Support*
| Application | Frequency Range | Average Efficiency (%) | Maximum VSWR | Peak Gain from highest direction (dBi) | Use Indicator (Overall Evaluation) |
|---|---|---|---|---|---|
| ISM 433 MHz | 433.05 - 434.79 MHz | 7.67 | 5.57 | -7.12 | ↓ |
| ISM 868 MHz | 863 - 870 MHz | 51.91 | 1.55 | -0.19 | ↑ |
| ISM 915 MHz | 902 - 928 MHz | 57.45 | 1.57 | 0.50 | ↑ |
| ISM 2.4 GHz | 2400 - 2500 MHz | 21.24 | 2.18 | -2.45 | ↑ |
| WiFi 2.4G channels 1-11 (DSSS) | 2401 - 2473 MHz | 20.76 | 2.18 | -3.16 | ↑ |
| WiFi 2.4G channels 1-13 (DSSS) | 2401 - 2483 MHz | 20.86 | 2.18 | -2.91 | ↑ |
| WiFi 2.4G channels 1-14 (DSSS) | 2401 - 2495 MHz | 21.10 | 2.18 | -2.59 | ↑ |
| Citizens Broadband Radio Service | 3550 - 3700 MHz | 13.31 | 2.35 | -2.86 | ↓ |
| WiFi CBRS channels 131-138 | 3655 - 3695 MHz | 16.40 | 2.14 | -2.99 | □ |
| WiFi 5G (Ch 32-48) | 5150 - 5250 MHz | 10.31 | 2.17 | -0.53 | ↓ |
| WiFi 5G (Ch 32-68) | 5150 - 5350 MHz | 9.00 | 2.43 | -0.53 | ↓ |
| WiFi 5G (Ch 32-165) | 5150 - 5835 MHz | 8.46 | 2.43 | 0.14 | ↓ |
| WiFi 5G (Ch 32-173) | 5150 - 5875 MHz | 8.50 | 2.43 | 0.14 | ↓ |
| WiFi 5G (Ch 32-177) | 5150 - 5895 MHz | 8.49 | 2.43 | 0.14 | ↓ |
| WiFi 5.9G (Ch 172-180) | 5855 - 5905 MHz | 8.48 | 2.10 | 0.10 | ↓ |
| WiFi 5.9G (Ch 182-196) | 5905 - 5990 MHz | 7.15 | 2.19 | -0.52 | ↓ |
| ISM 5.8 GHz | 5725 - 5875 MHz | 9.60 | 2.17 | 0.14 | ↓ |
| UWB band group 1, BAND_ID 1 | 3168 - 3696 MHz | 8.77 | 2.69 | -2.97 | ↓ |
| UWB band group 1, BAND_ID 2 | 3696 - 4224 MHz | 15.74 | 2.12 | -0.55 | □ |
| UWB band group 1, BAND_ID 3 | 4224 - 4752 MHz | 17.64 | 1.99 | 0.66 | □ |
| UWB band group 2, BAND_ID 4 | 4752 - 5280 MHz | 10.17 | 2.35 | -0.53 | ↓ |
| UWB band group 2, BAND_ID 5 | 5280 - 5808 MHz | 8.09 | 2.43 | -0.07 | ↓ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

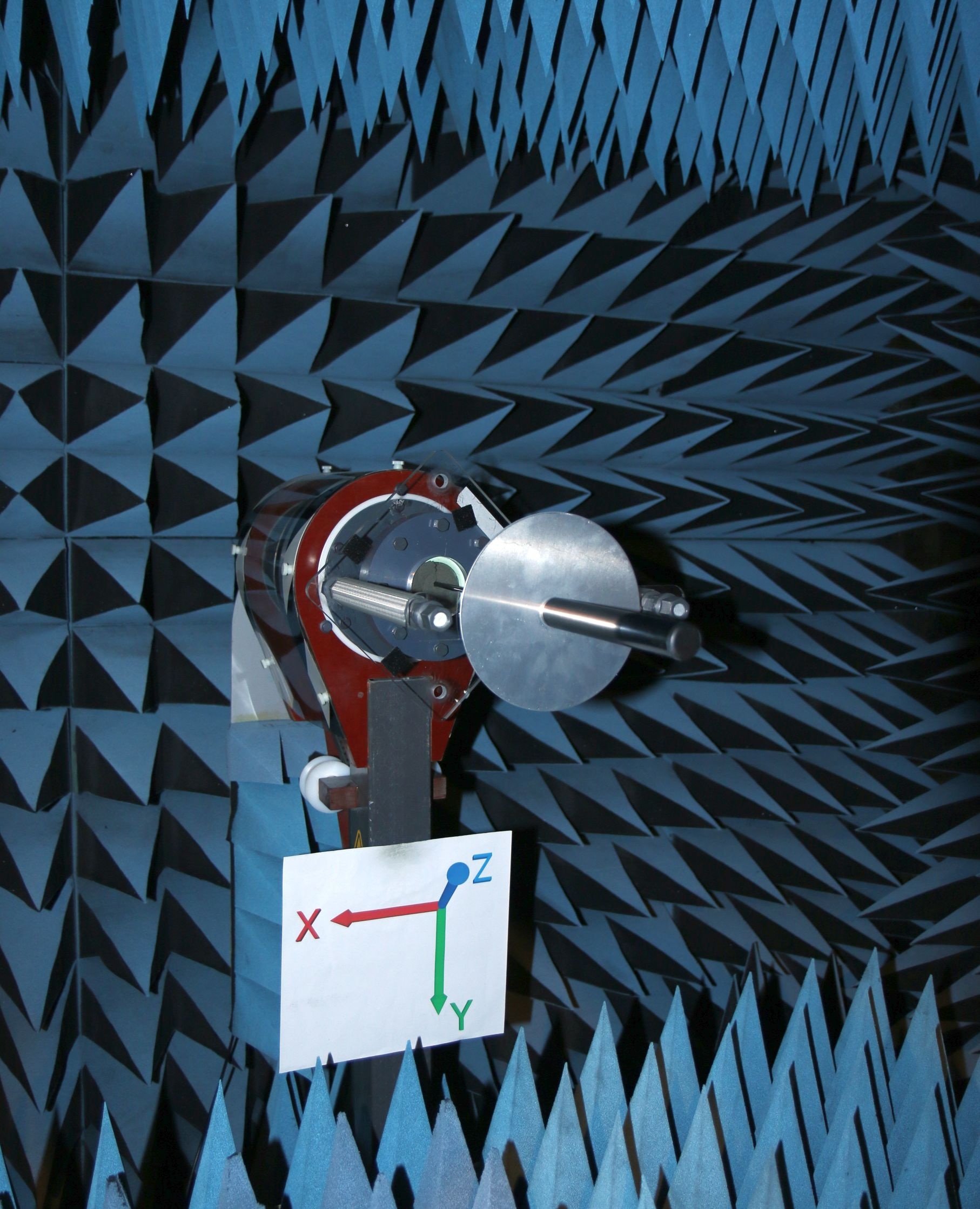

¶ Test Setup (on 160 mm Circular Ground Plane)
¶ 2D Radiation Plots

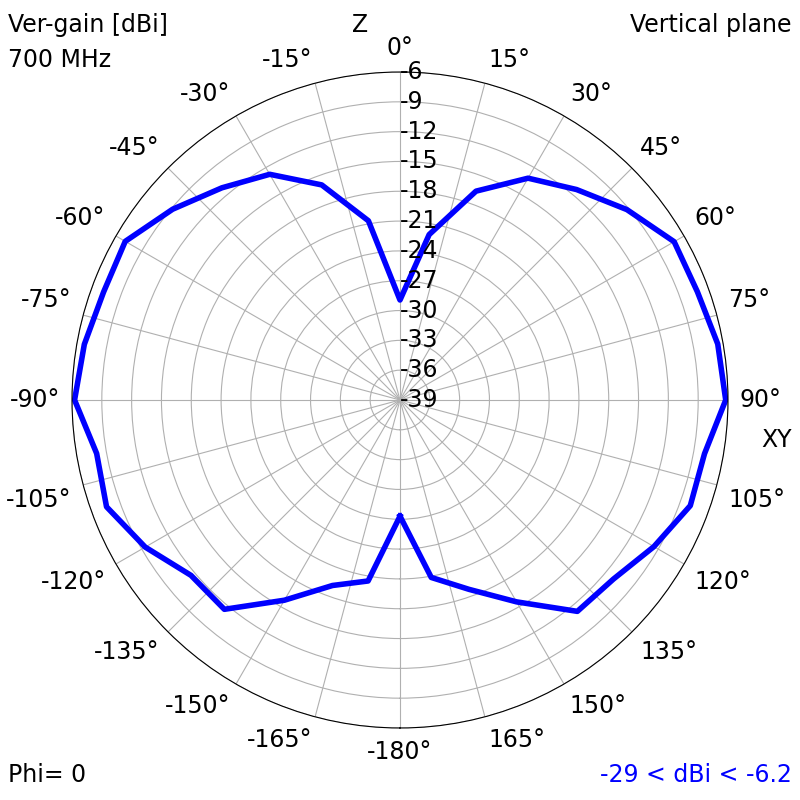

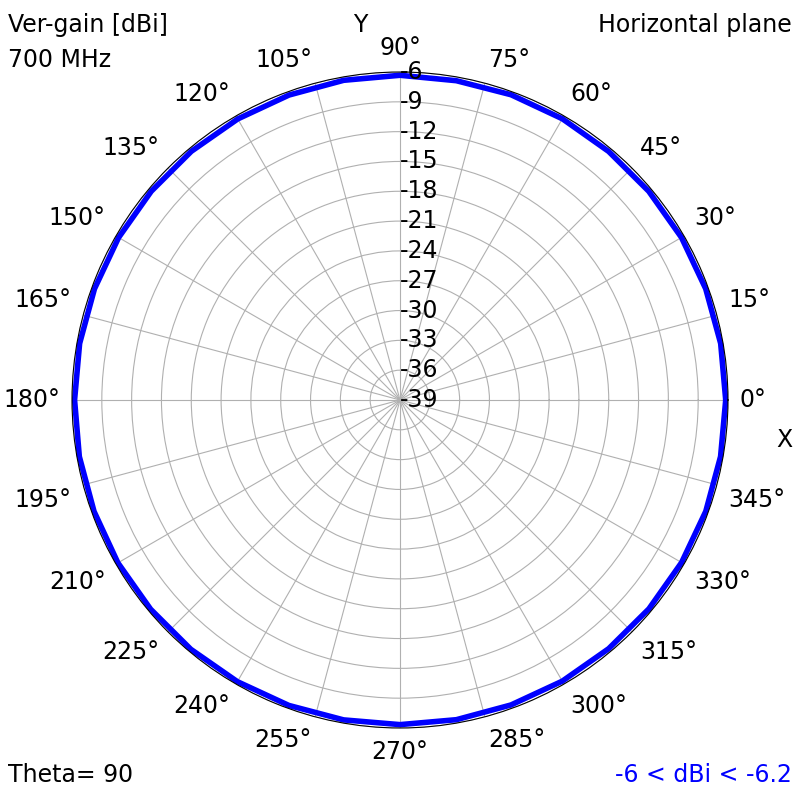

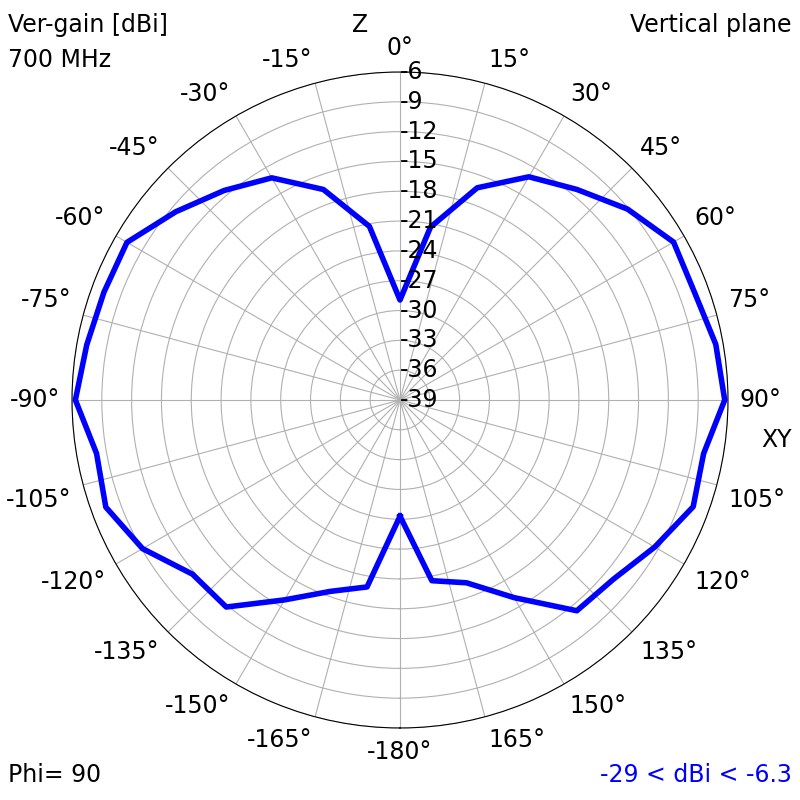

| 700 MHz | ||
|
|
|

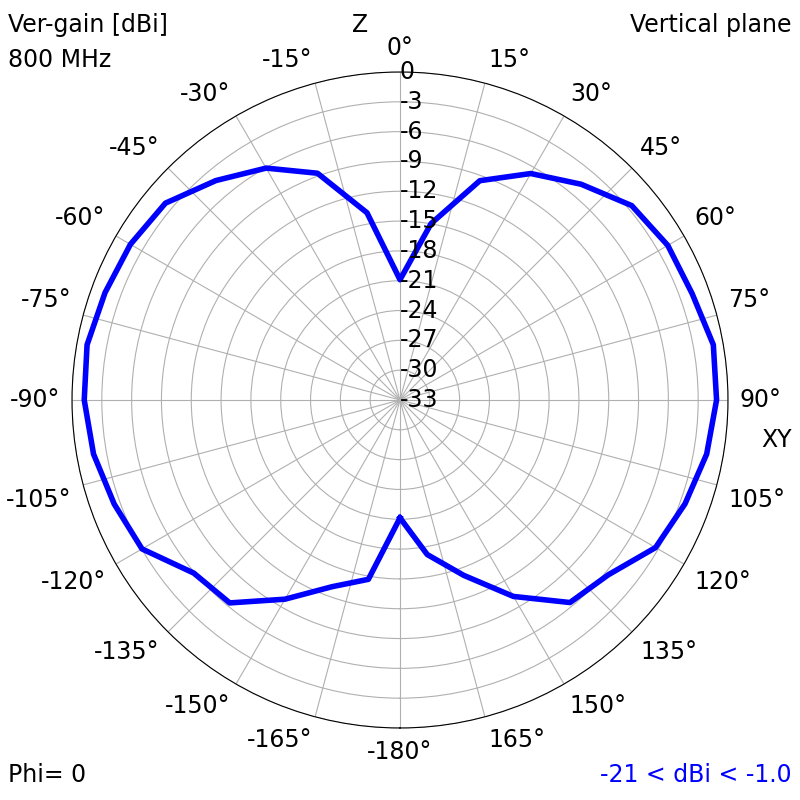

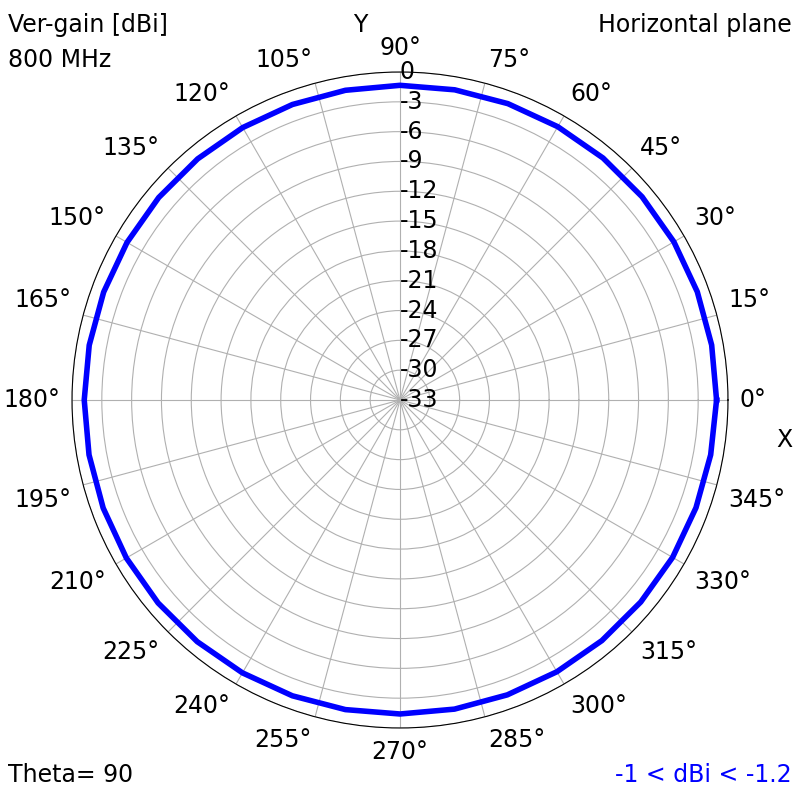

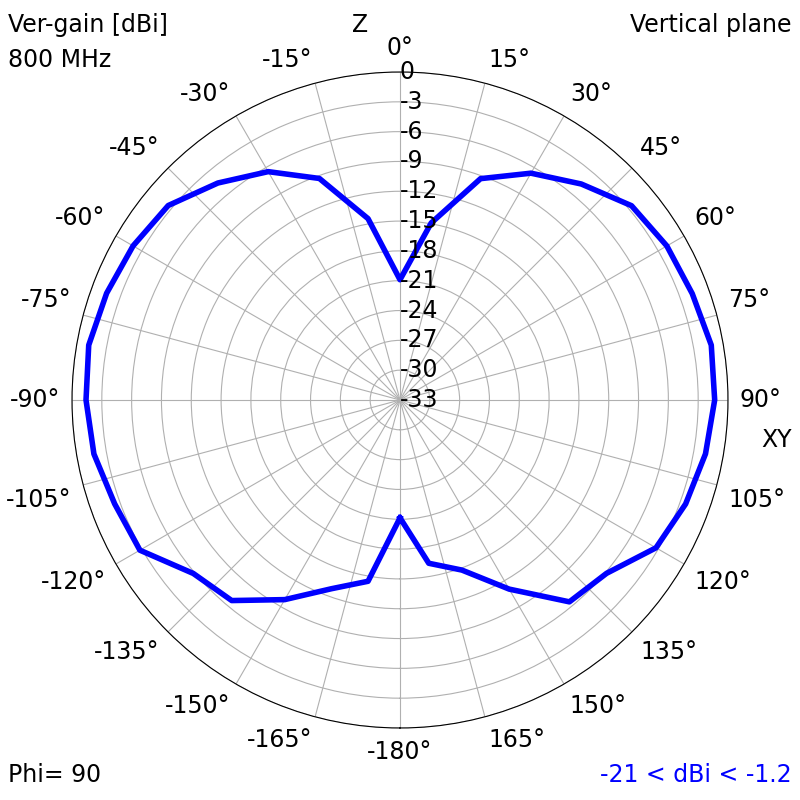

| 800 MHz | ||
|
|
|

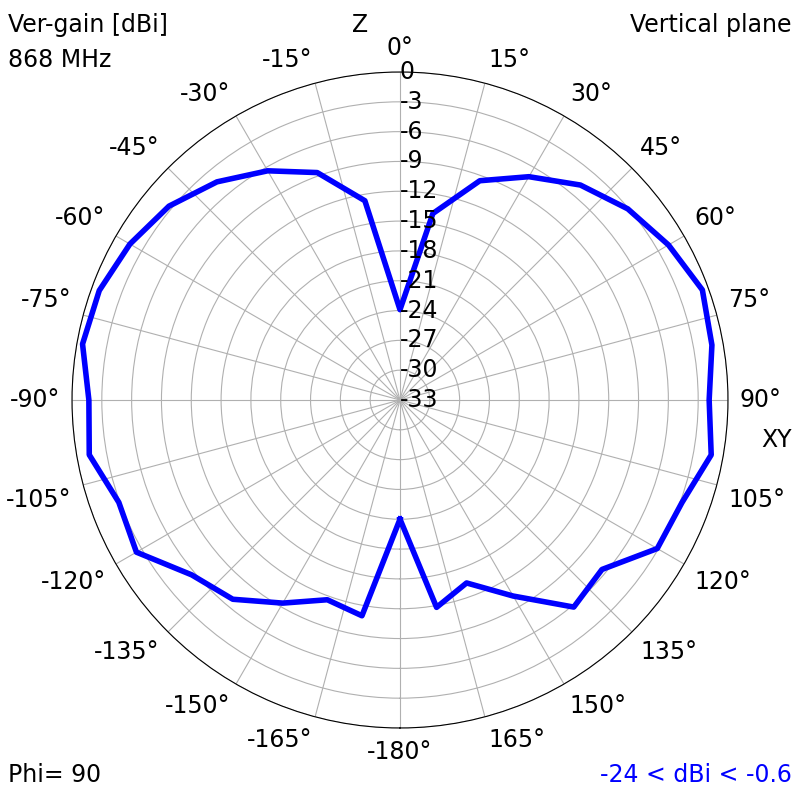

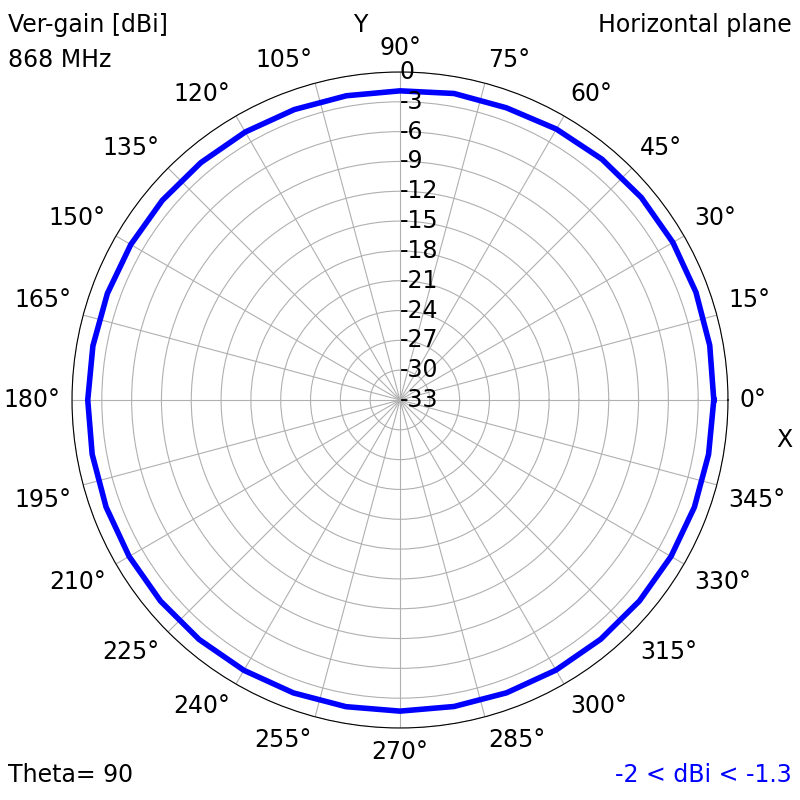

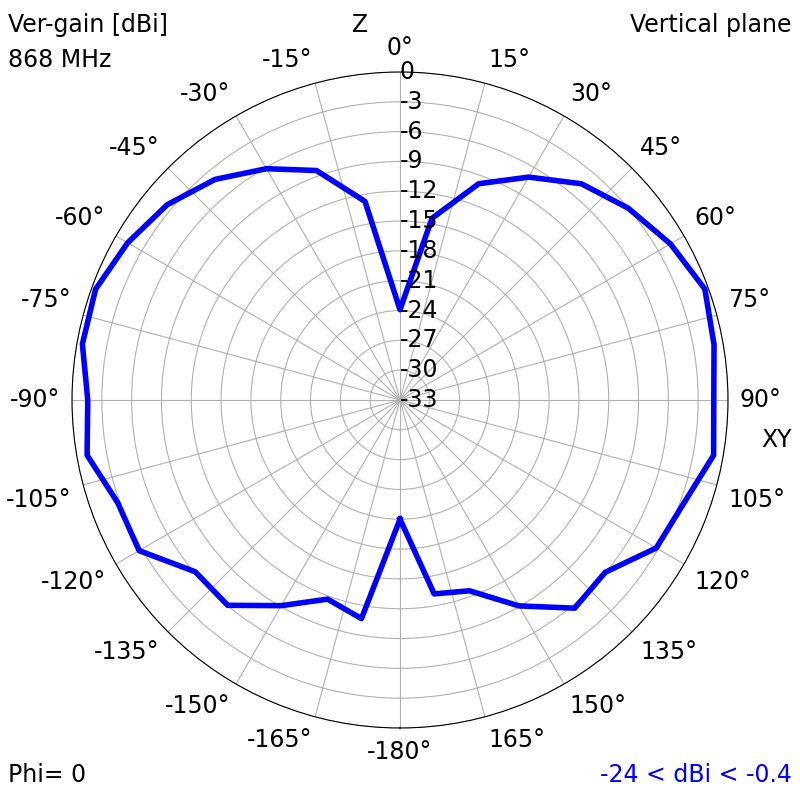

| 868 MHz | ||
|
|
|

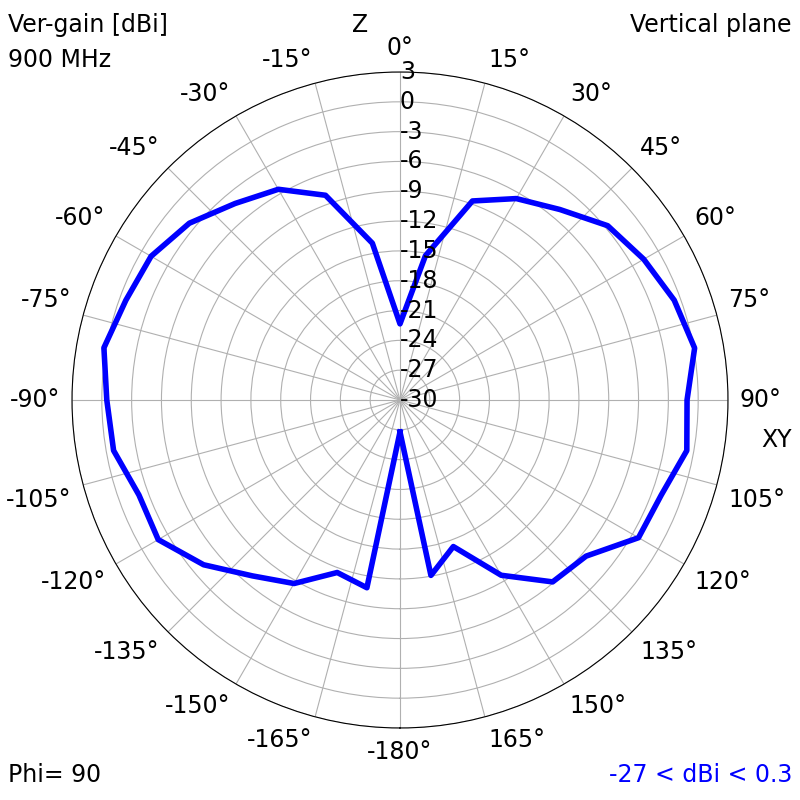

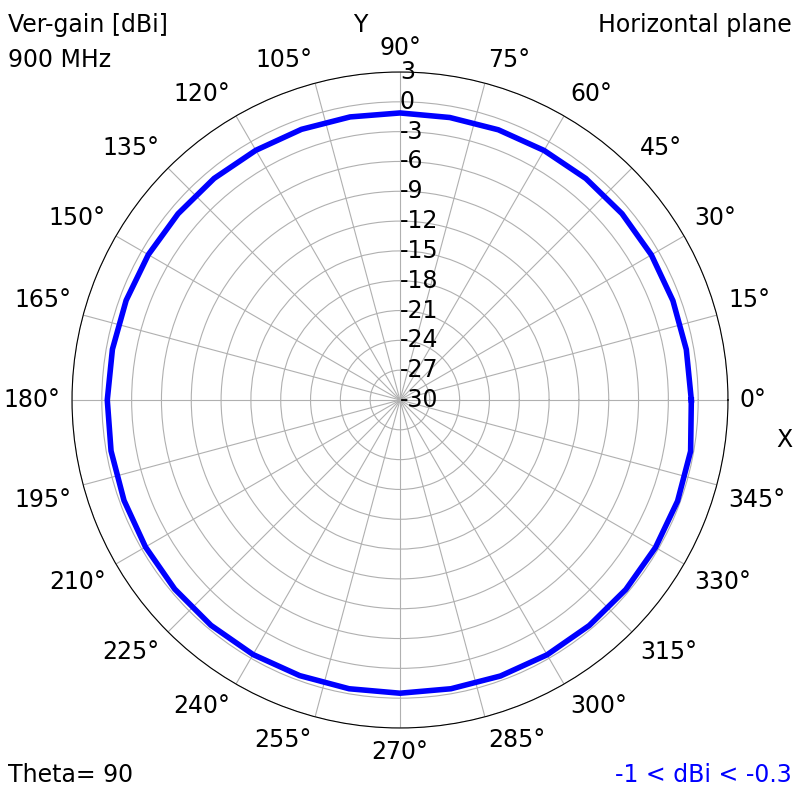

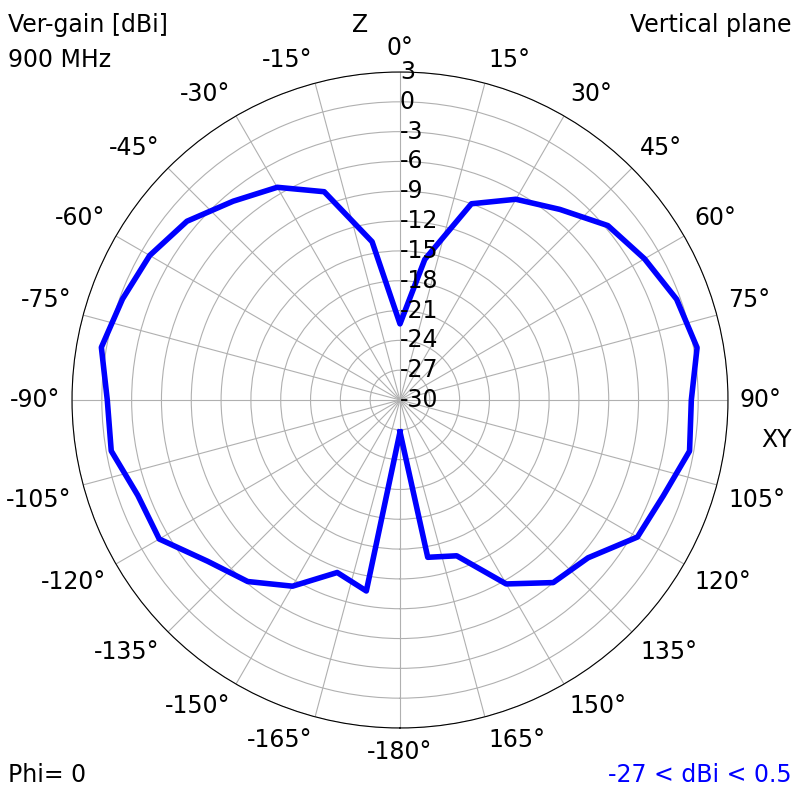

| 900 MHz | ||
|
|
|

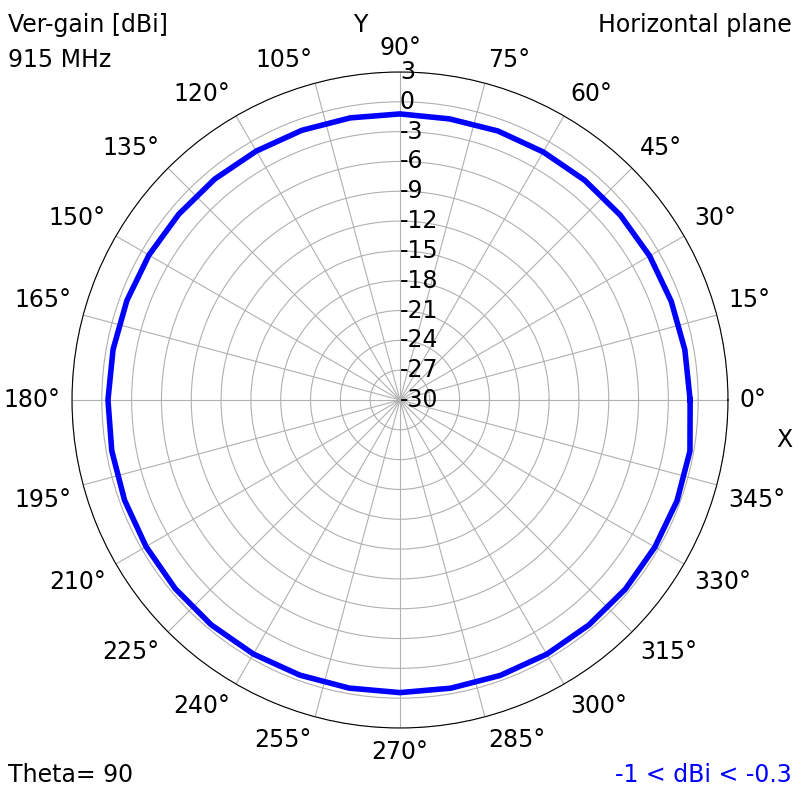

| 915 MHz | ||
|
|
|
| 1400 MHz | ||
|
|
|

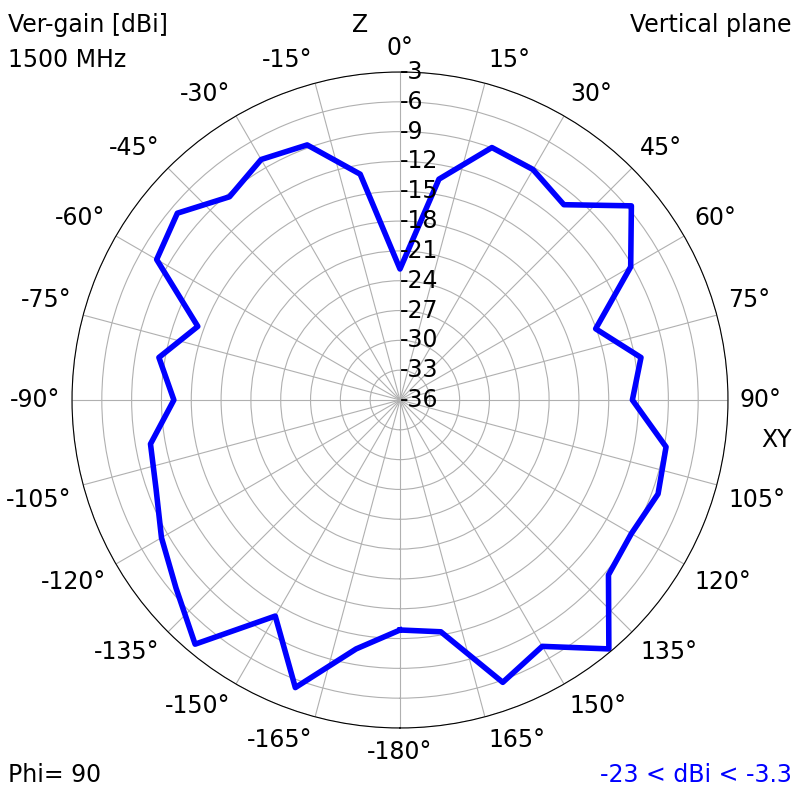

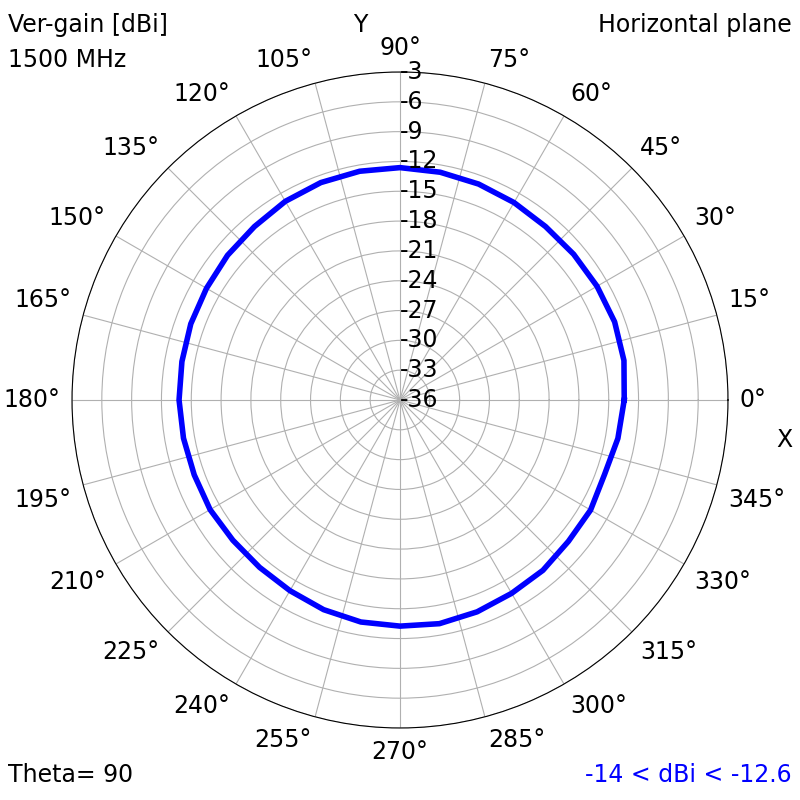

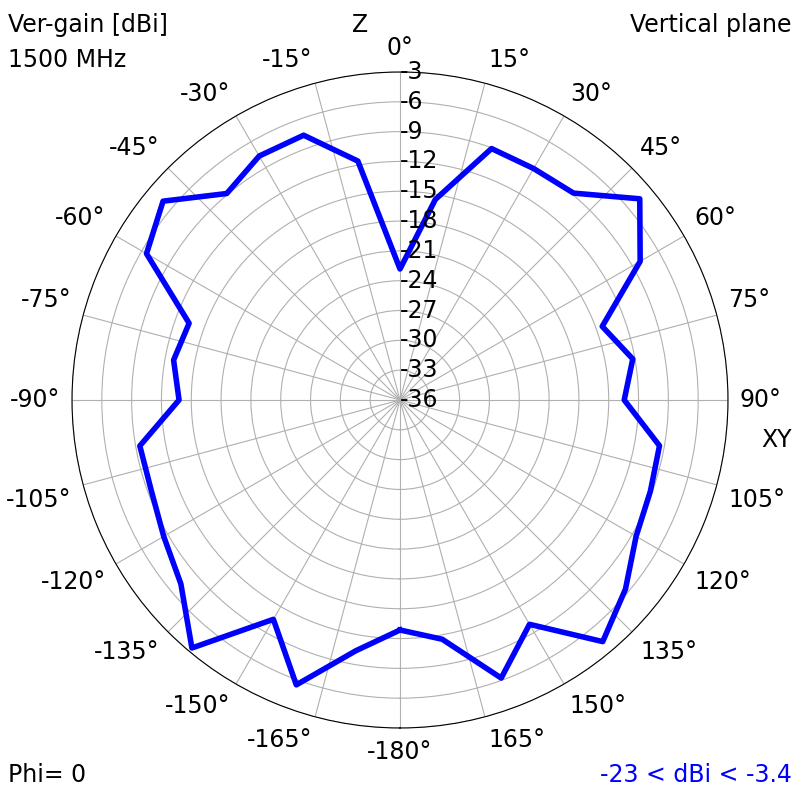

| 1500 MHz | ||
|
|
|
|

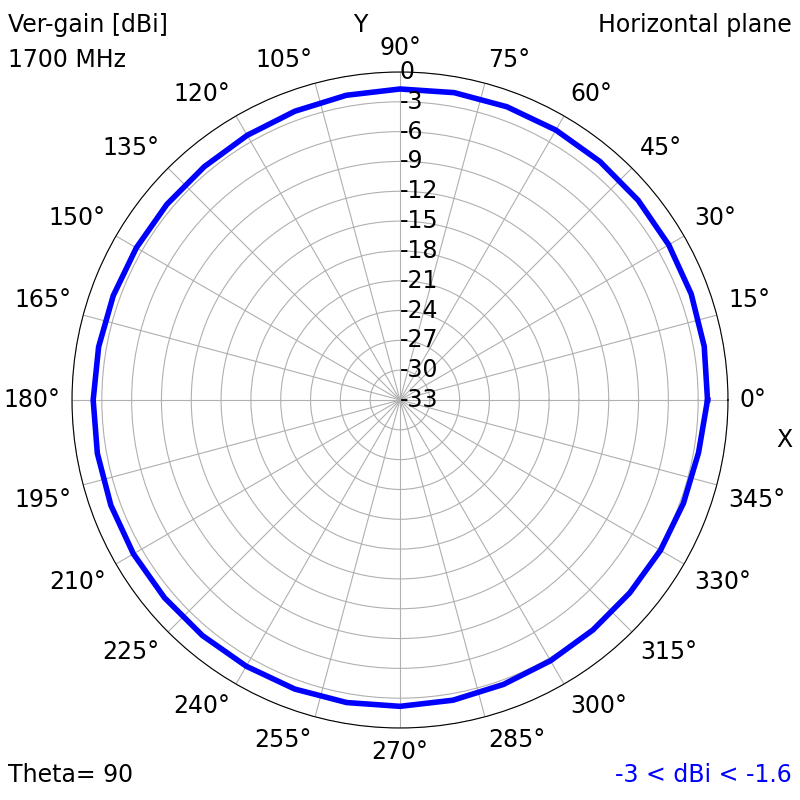

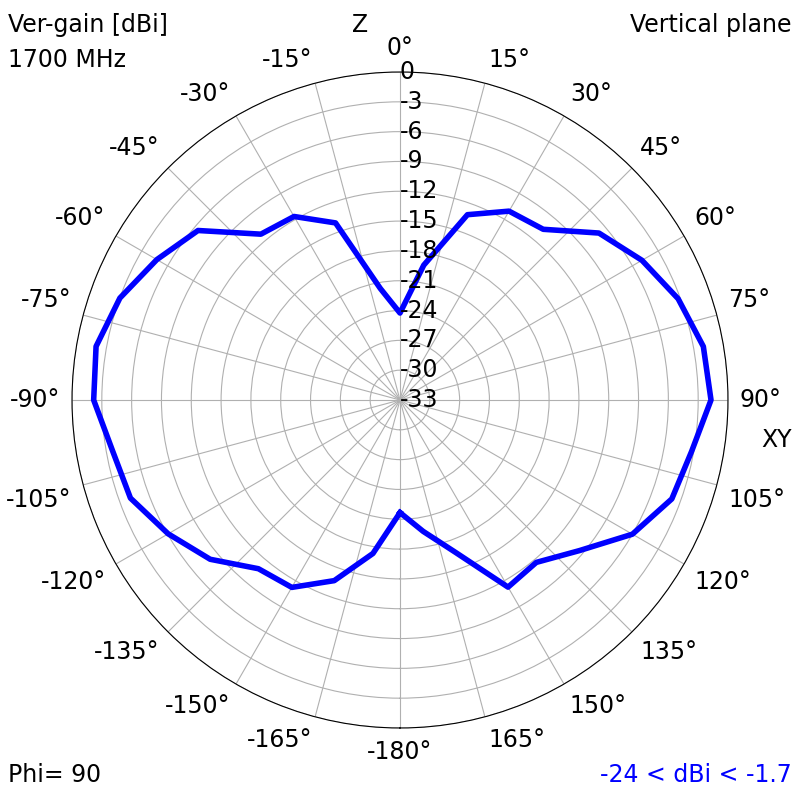

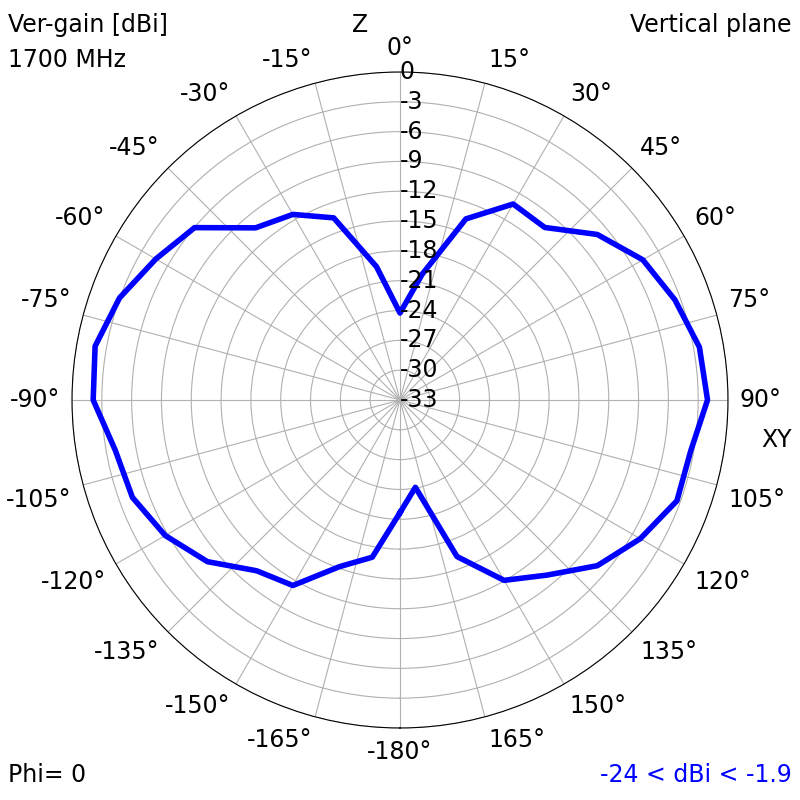

| 1700 MHz | ||
|
|
|

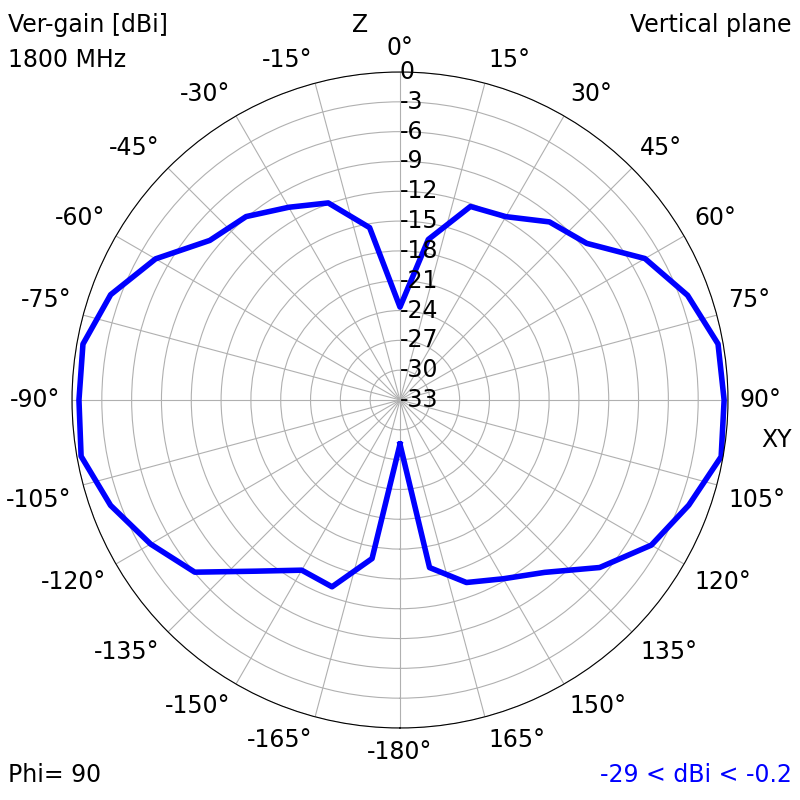

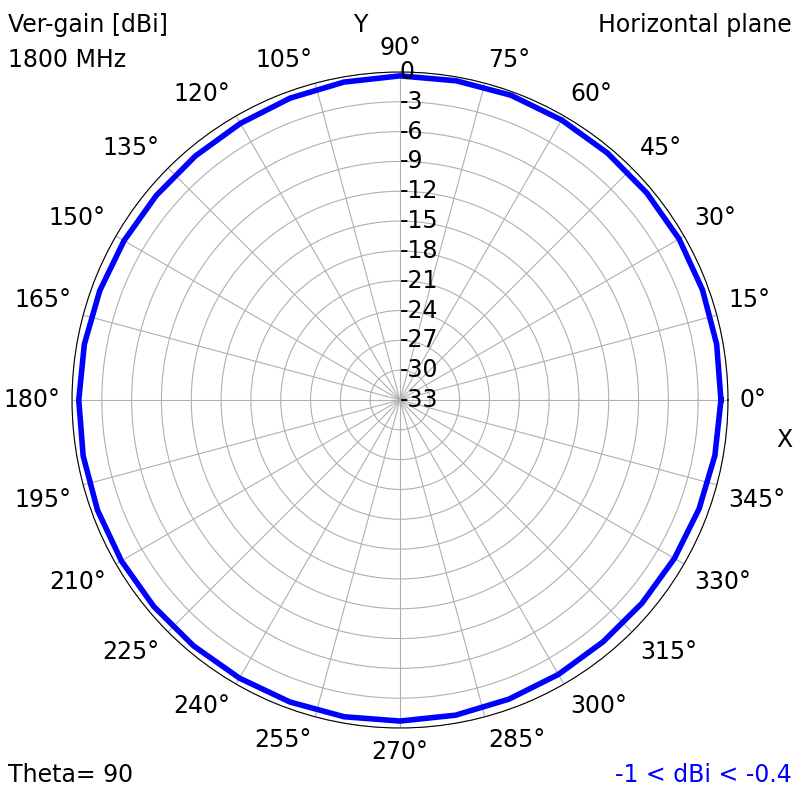

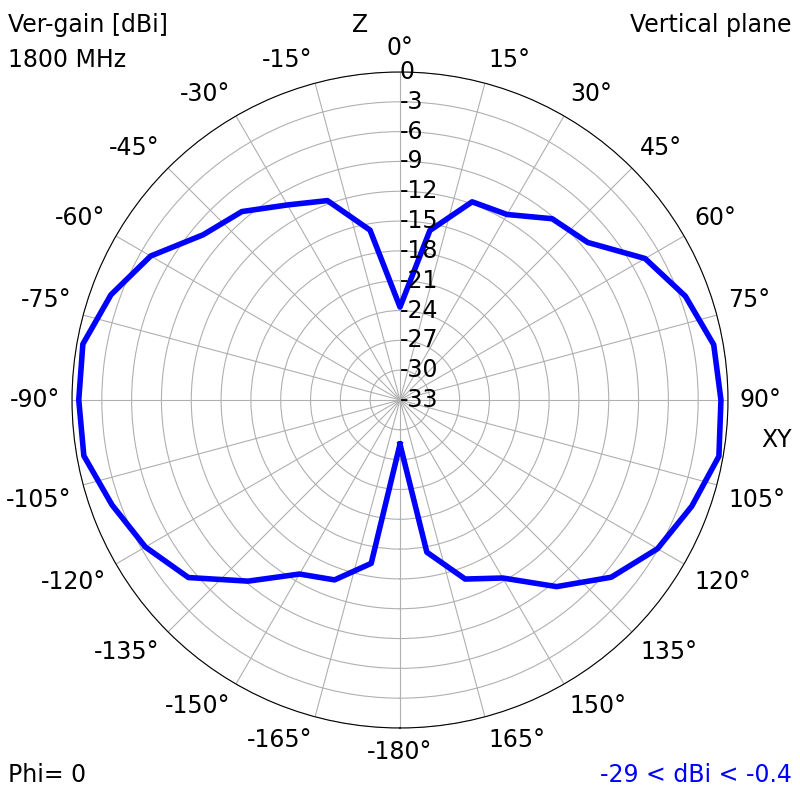

| 1800 MHz | ||
|
|
|

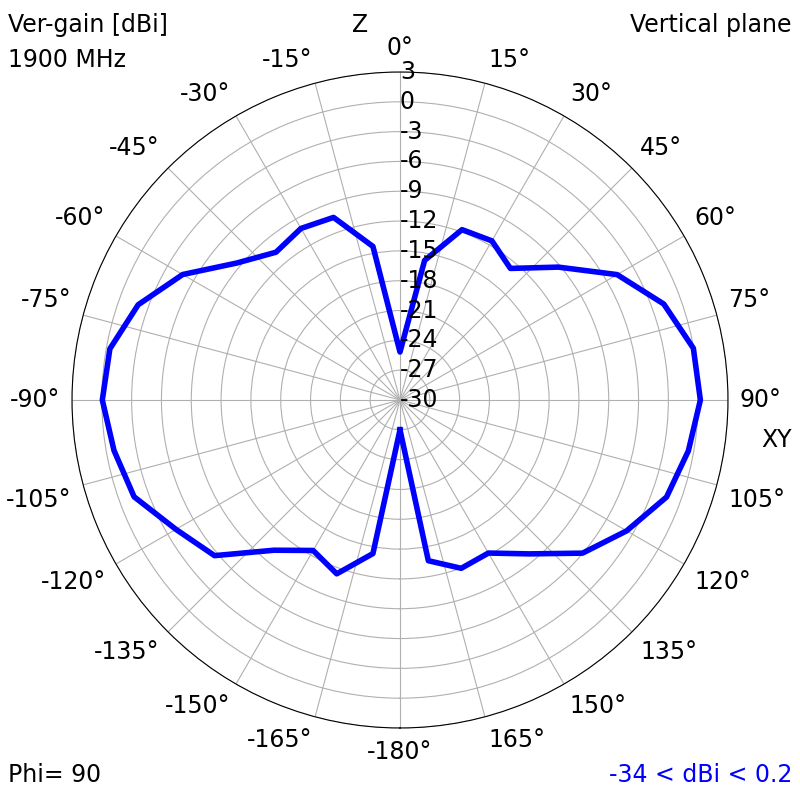

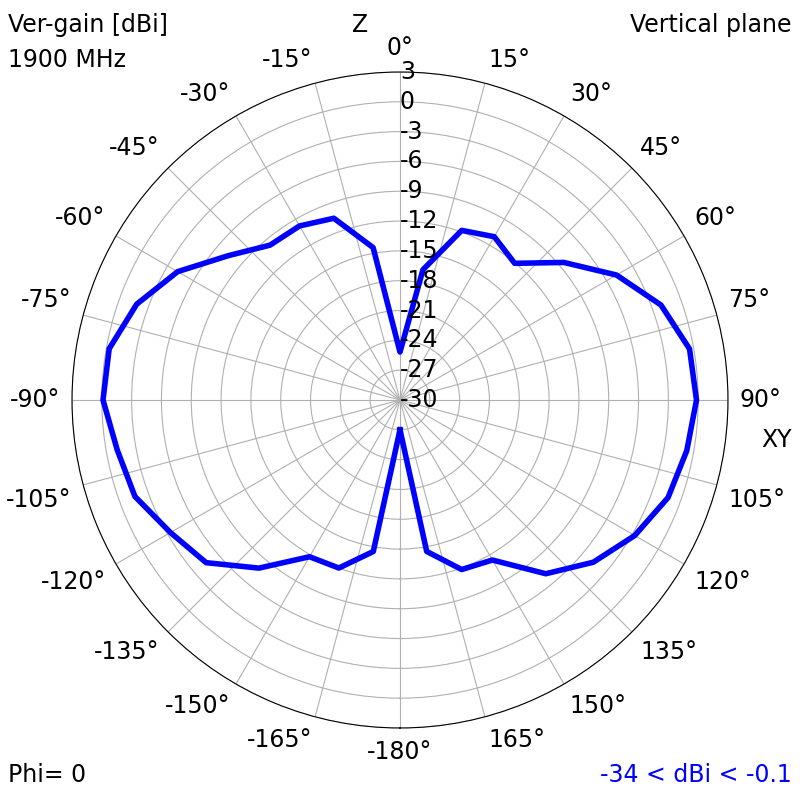

| 1900 MHz | ||
|
|
|

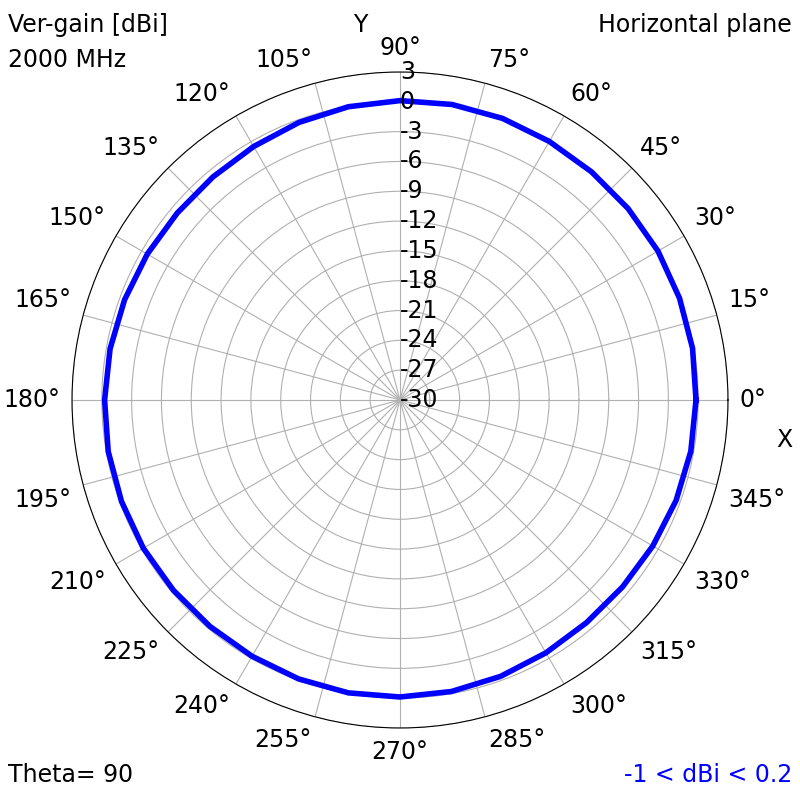

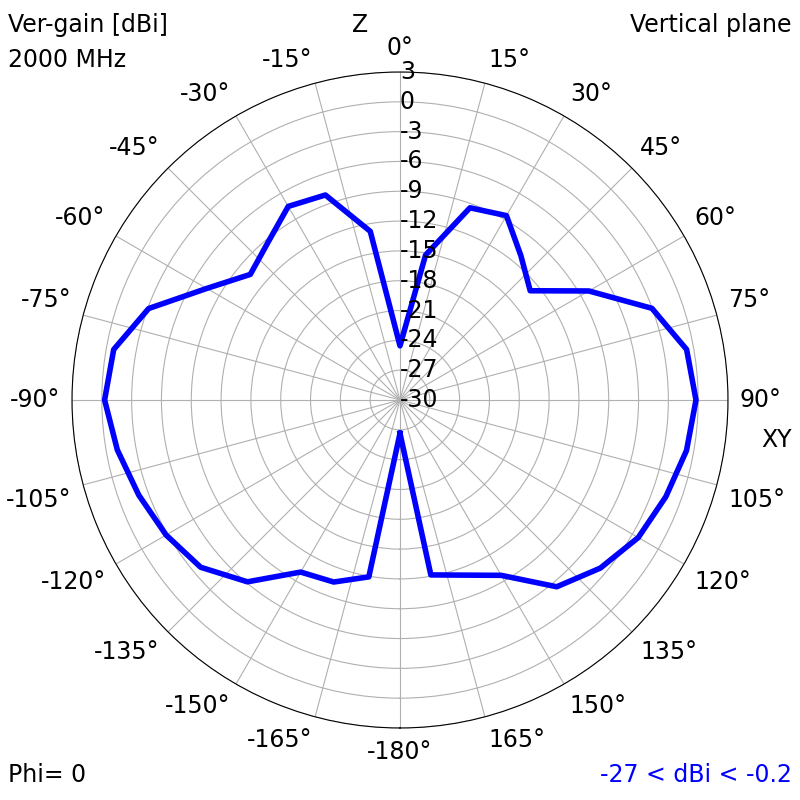

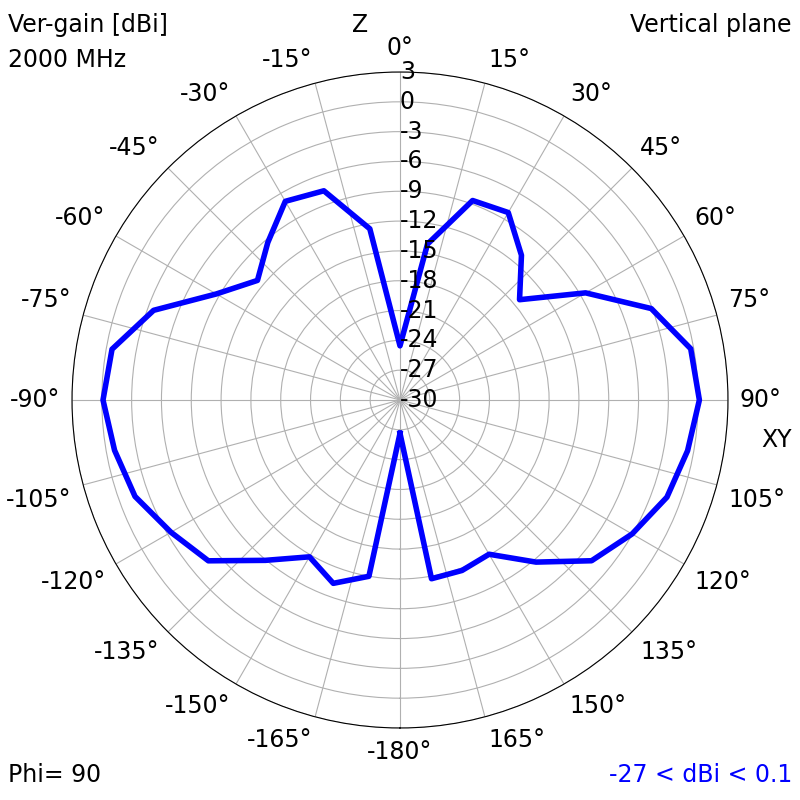

| 2000 MHz | ||
|
|
|

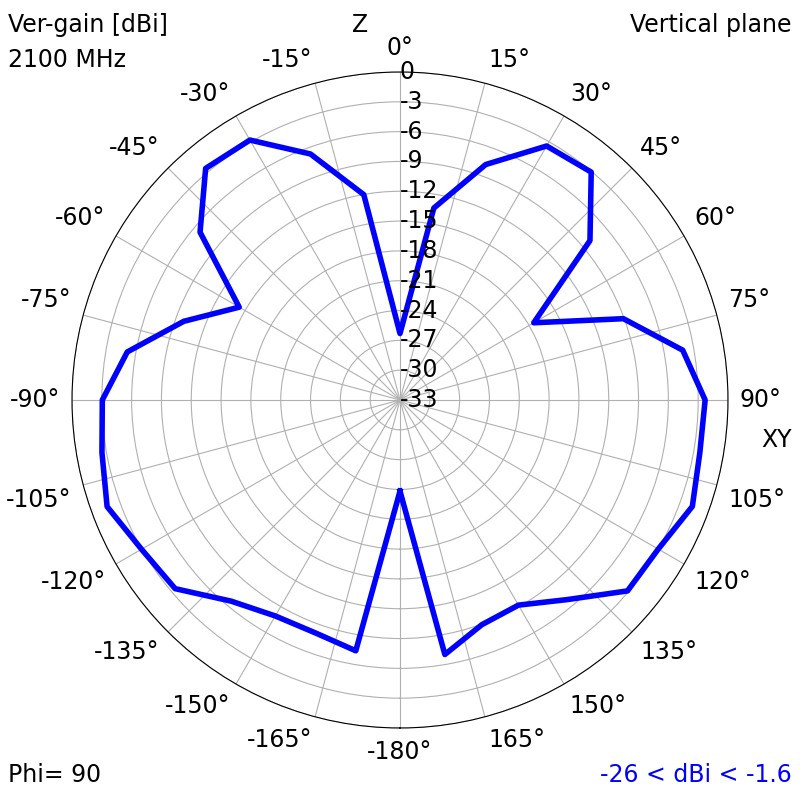

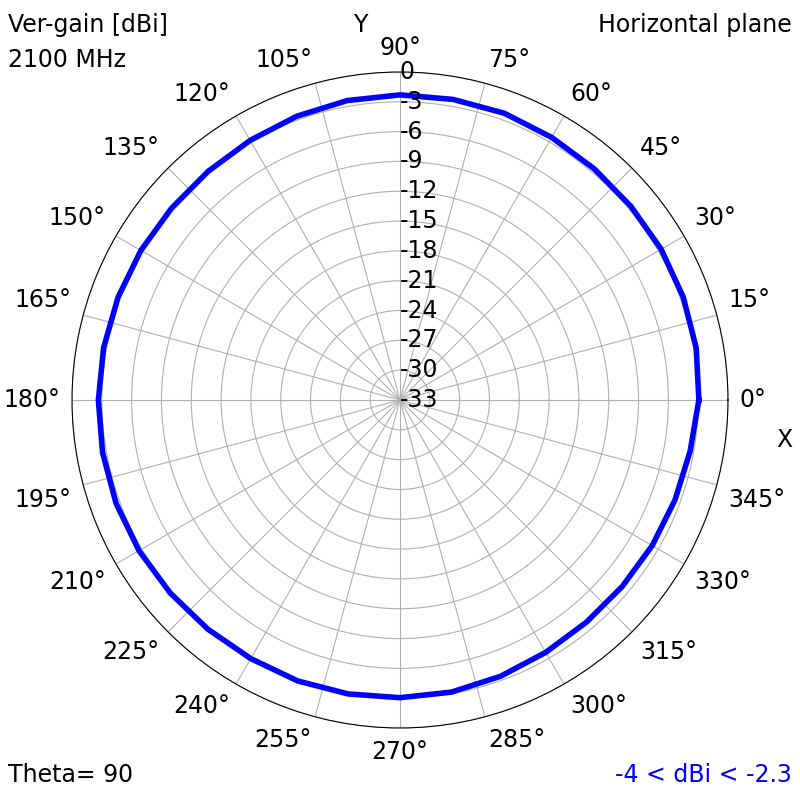

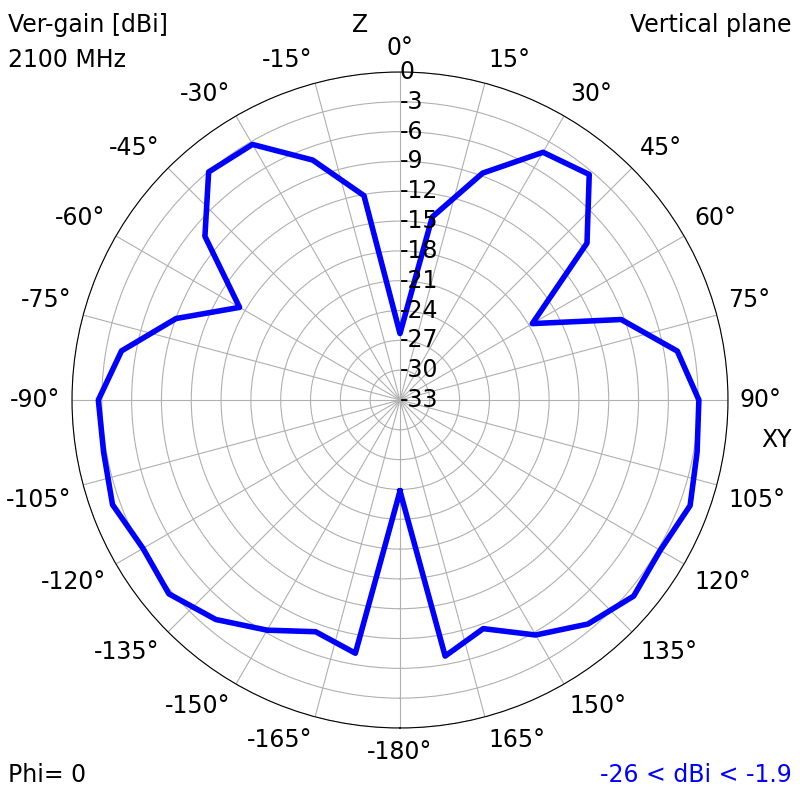

| 2100 MHz | ||
|
|
|

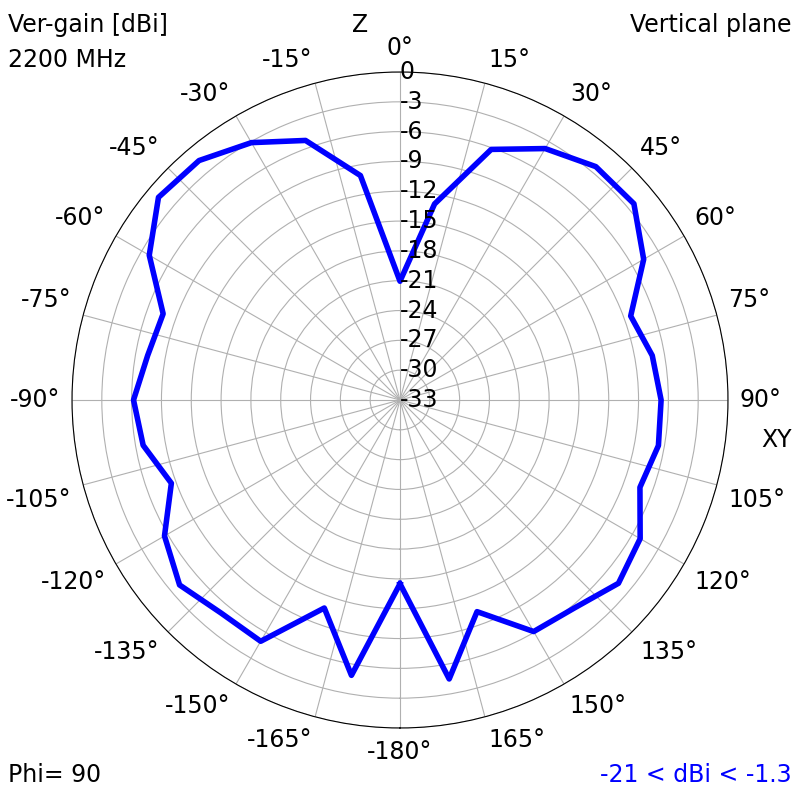

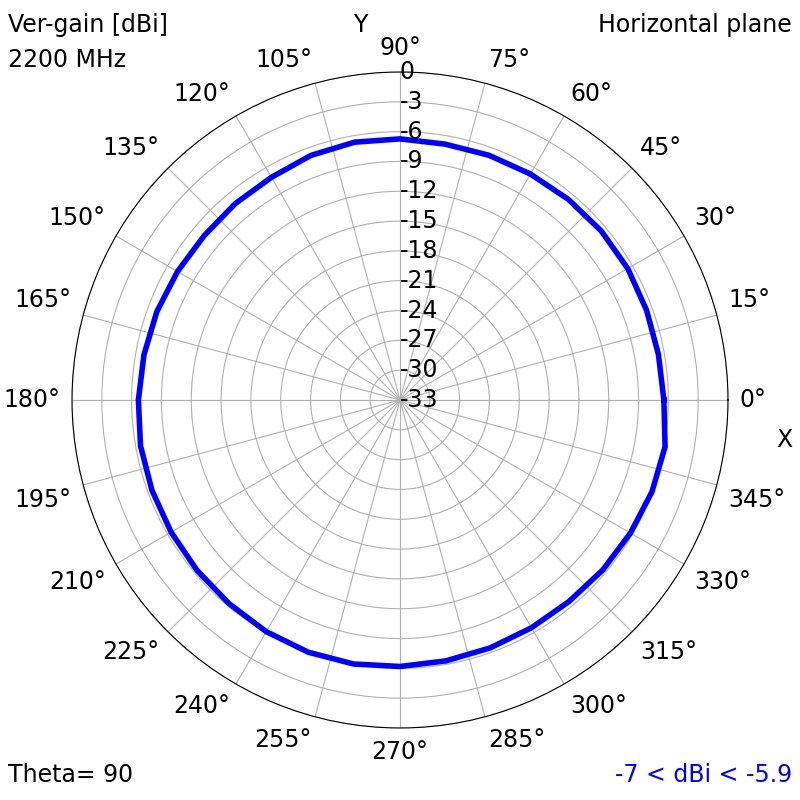

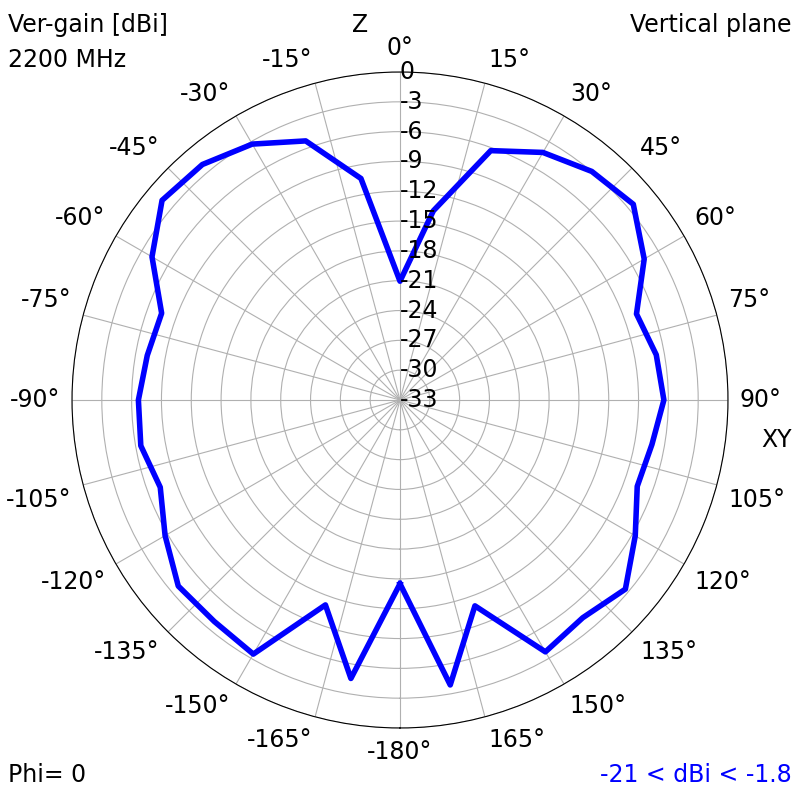

| 2200 MHz | ||
|
|
|

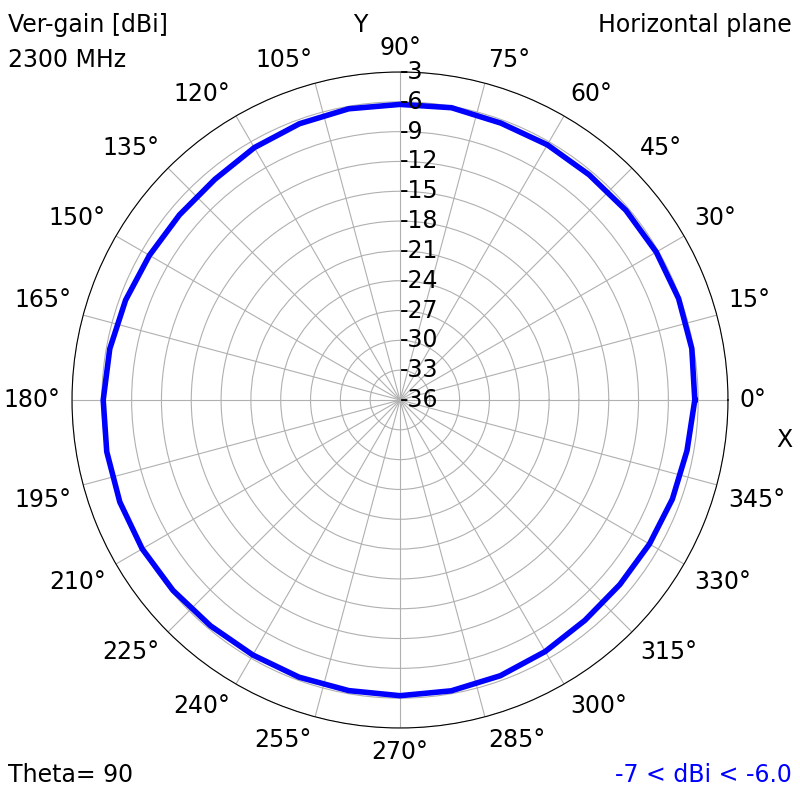

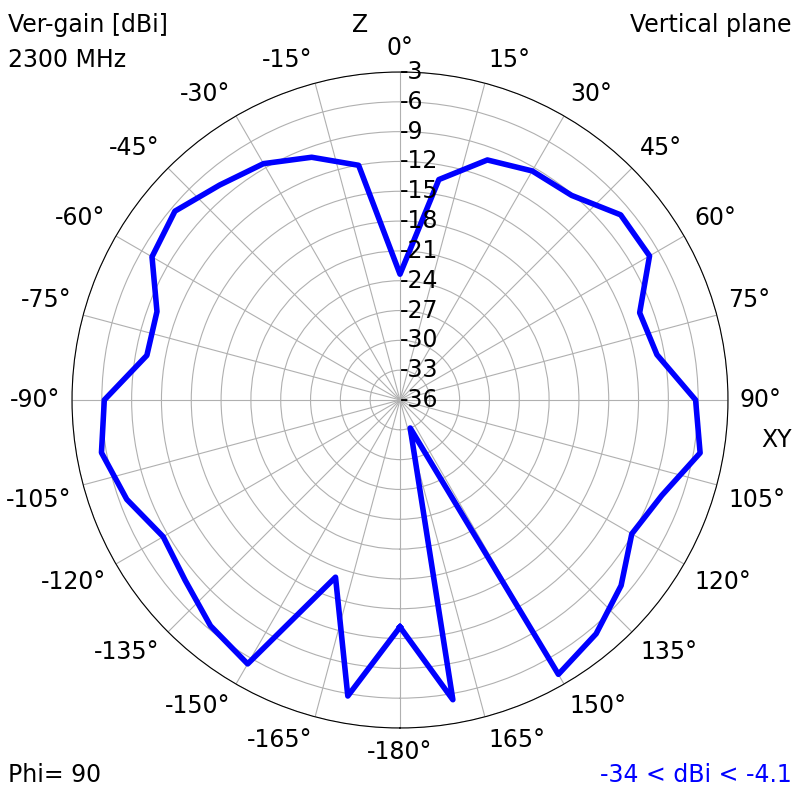

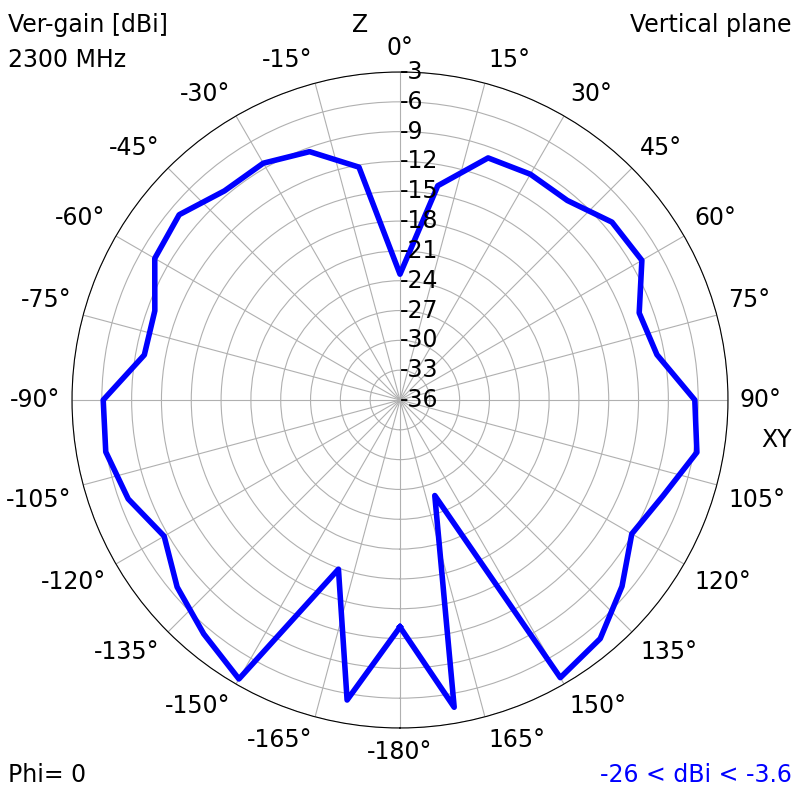

| 2300 MHz | ||
|
|
|

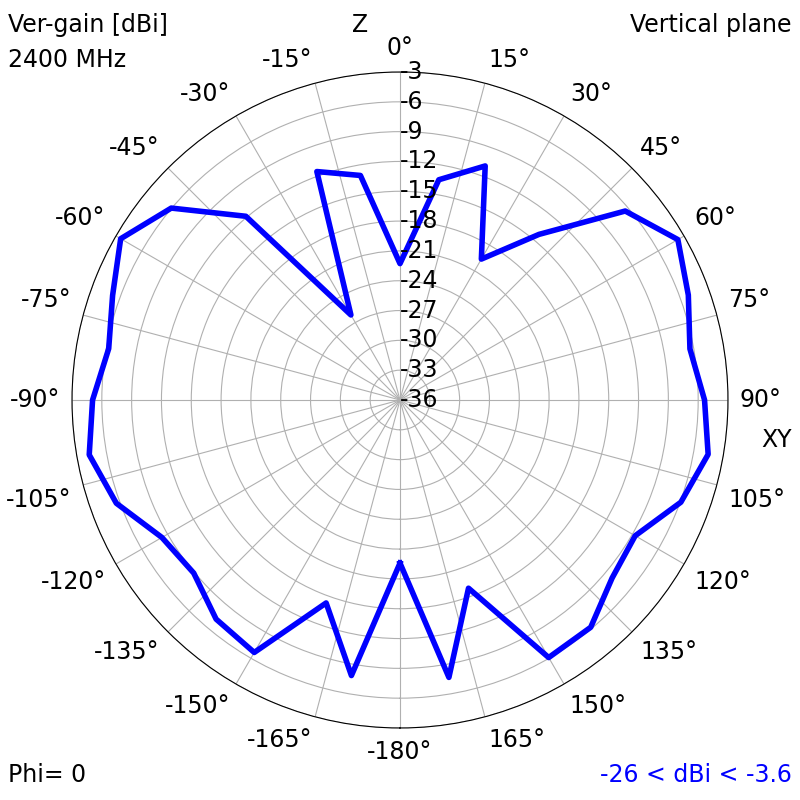

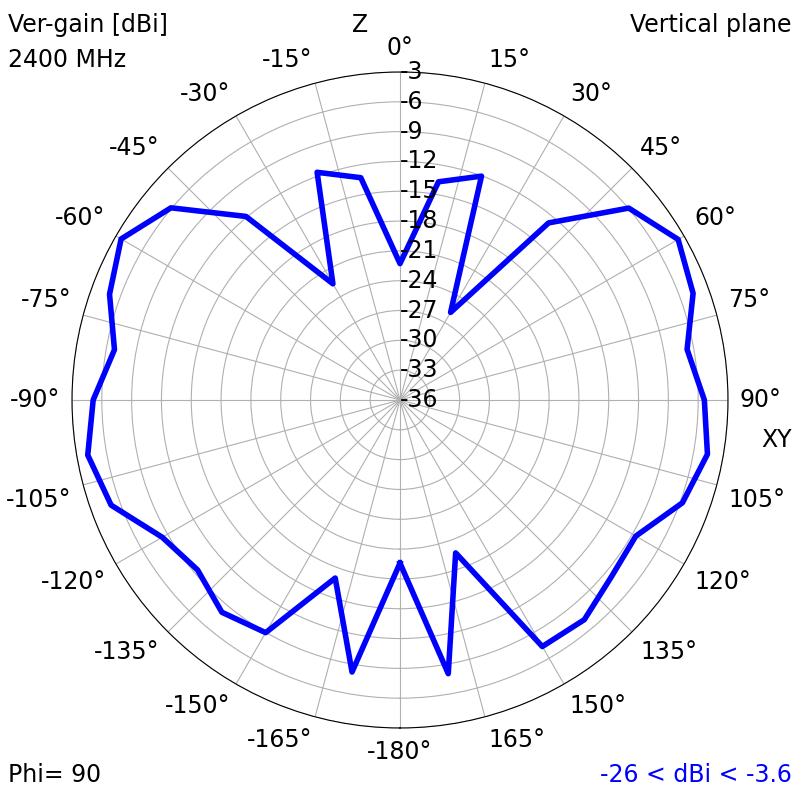

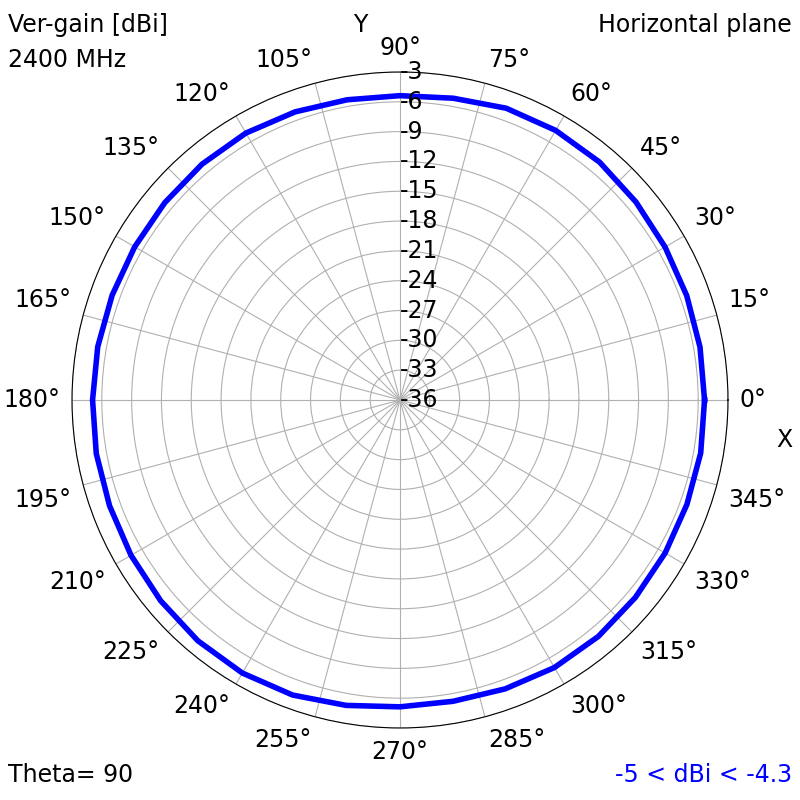

| 2400 MHz | ||
|
|
|

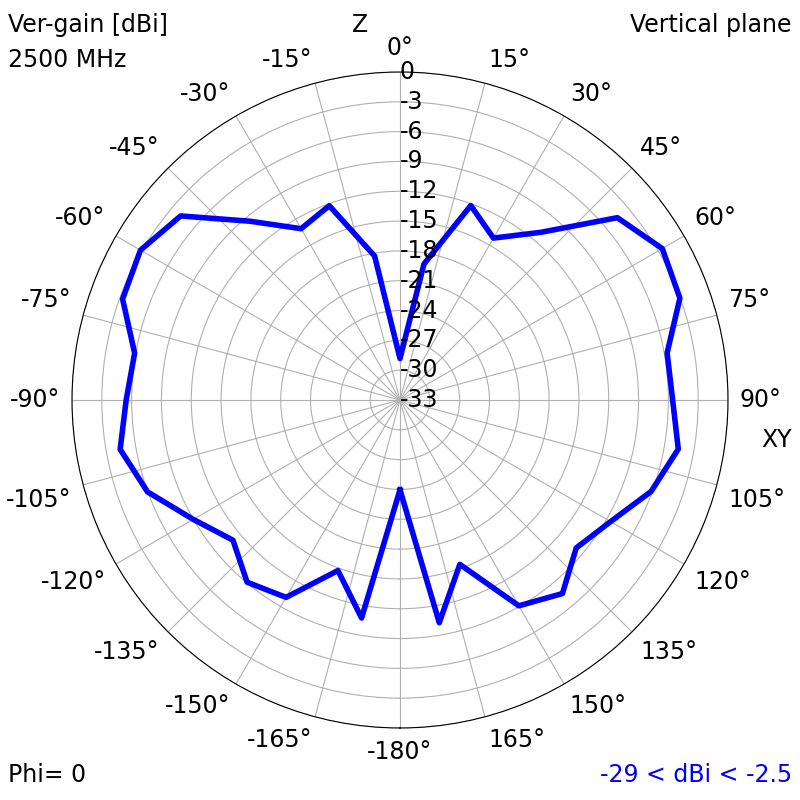

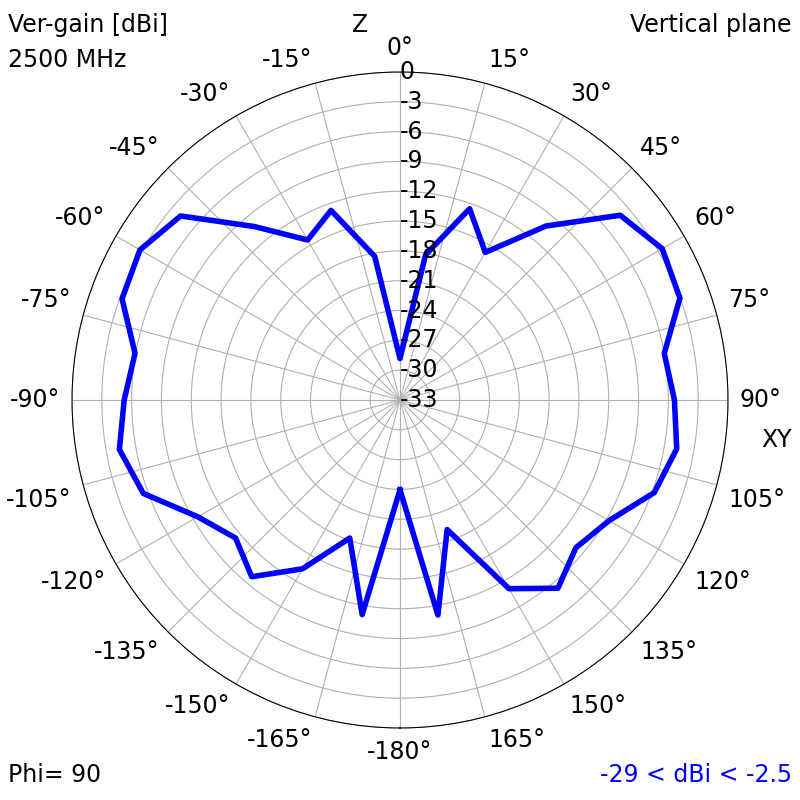

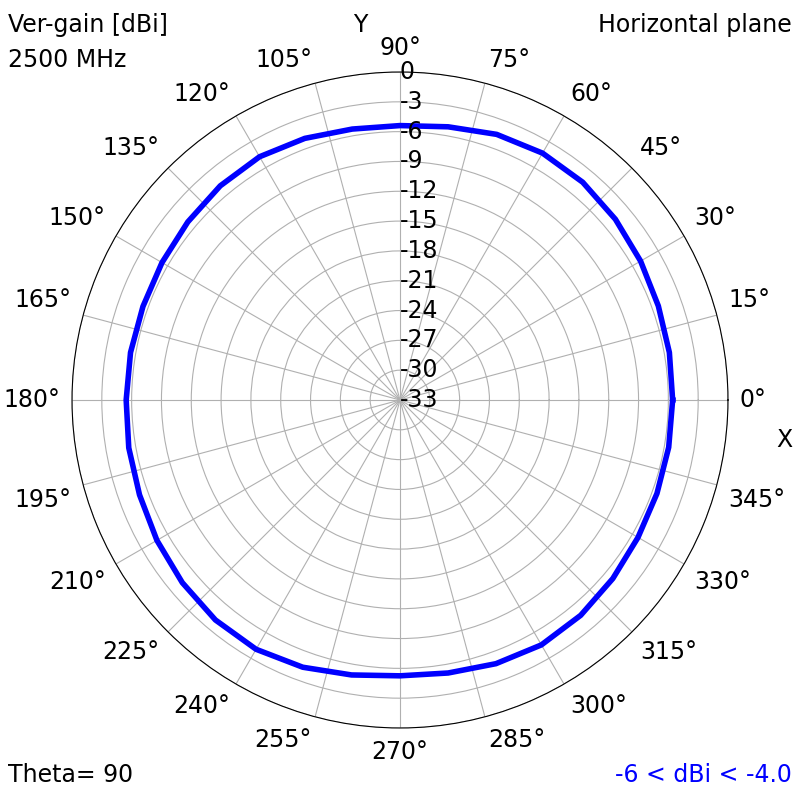

| 2500 MHz | ||
|
|
|

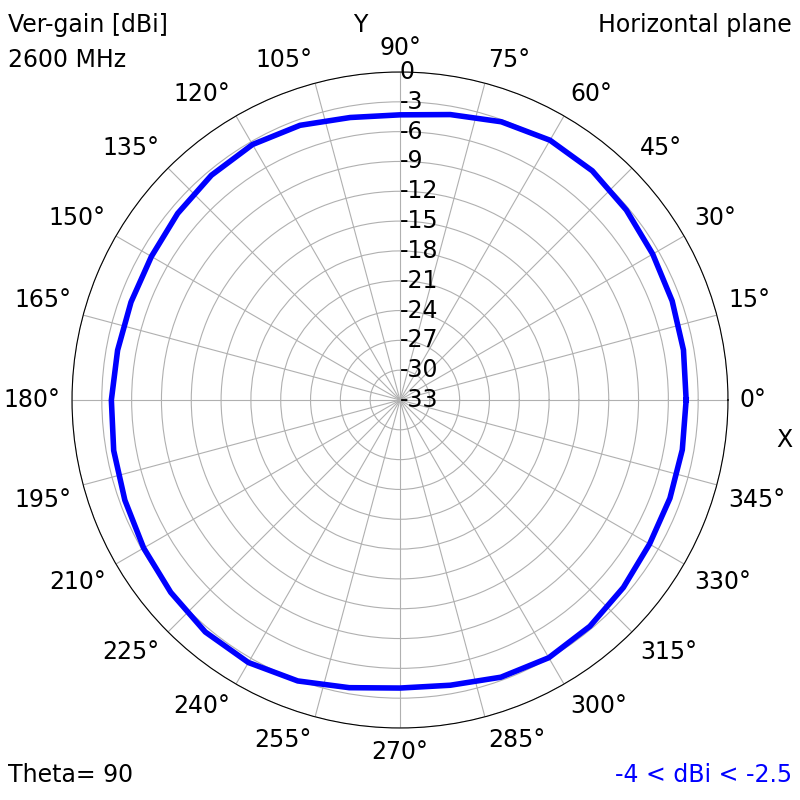

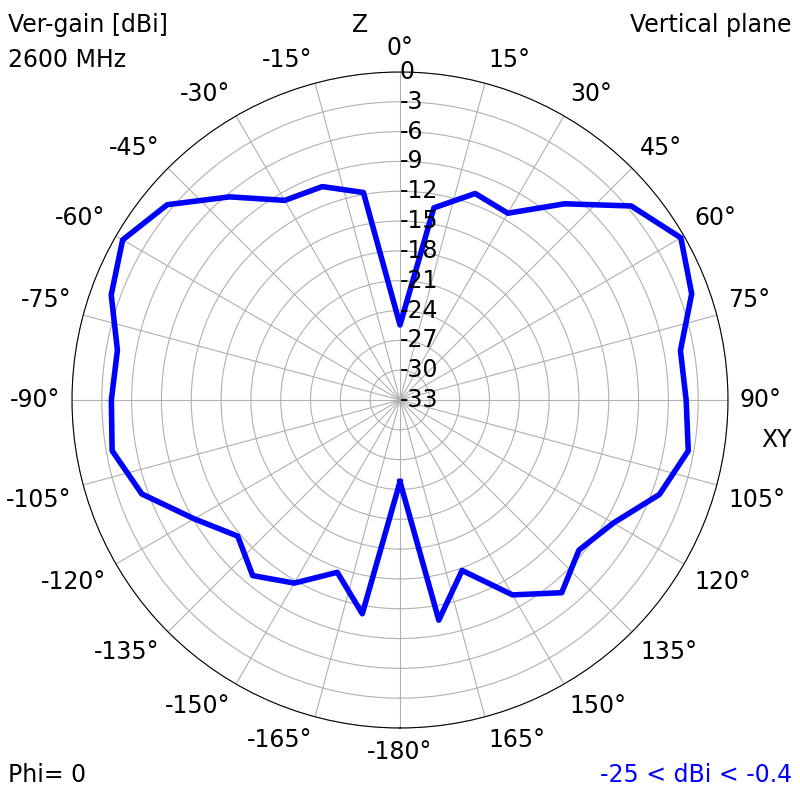

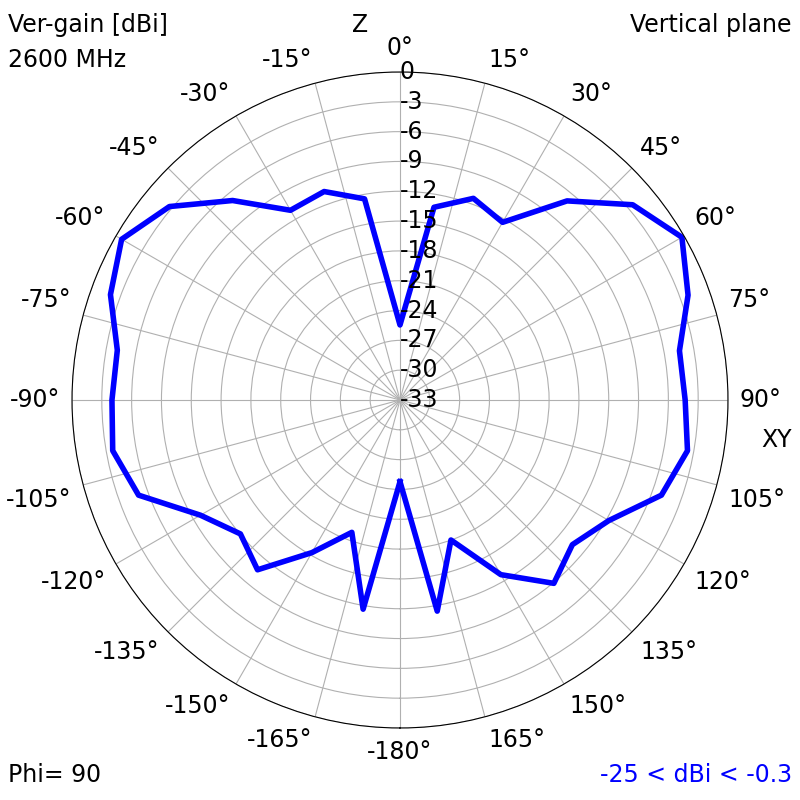

| 2600 MHz | ||
|
|
|

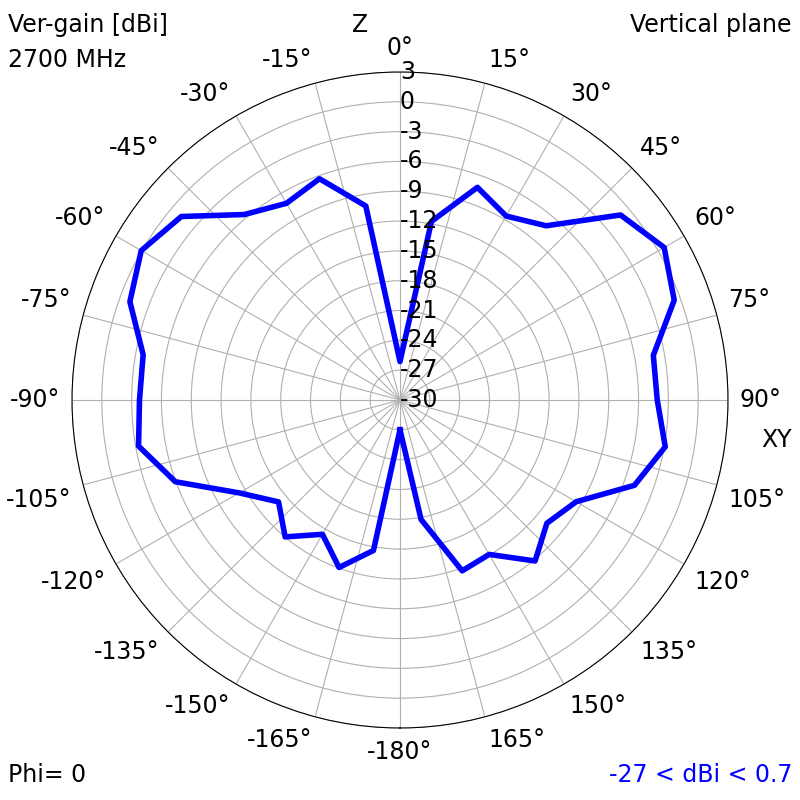

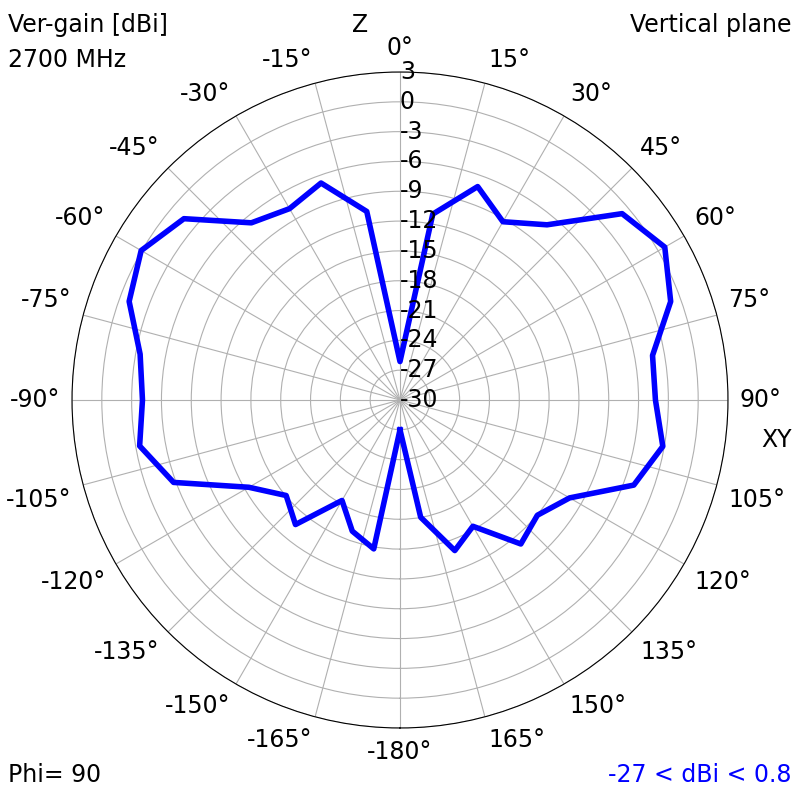

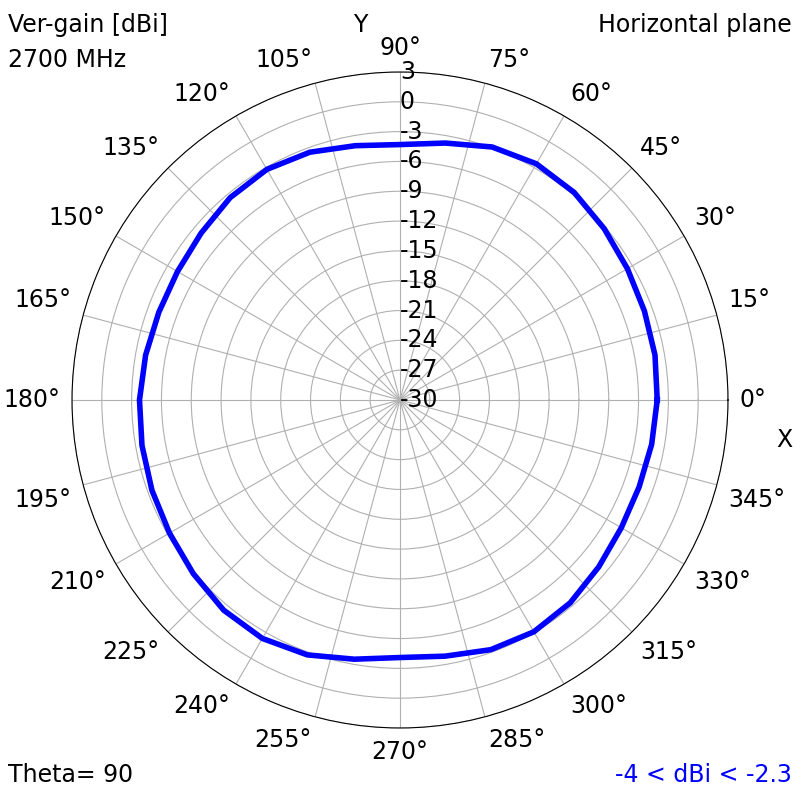

| 2700 MHz | ||
|
|
|
¶ 3D Radiation Plots

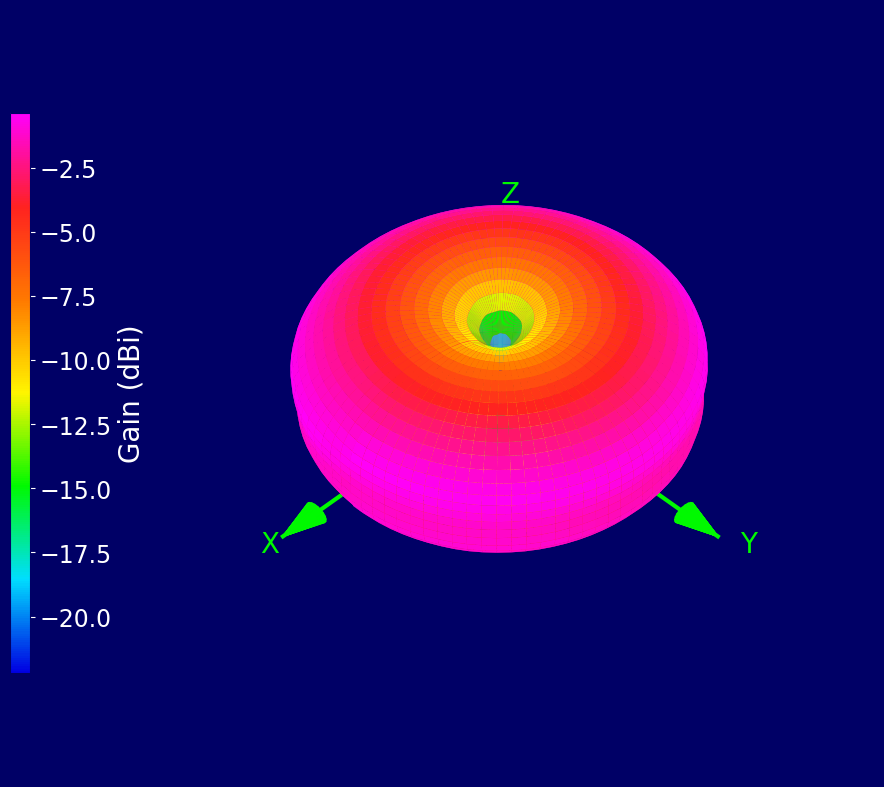

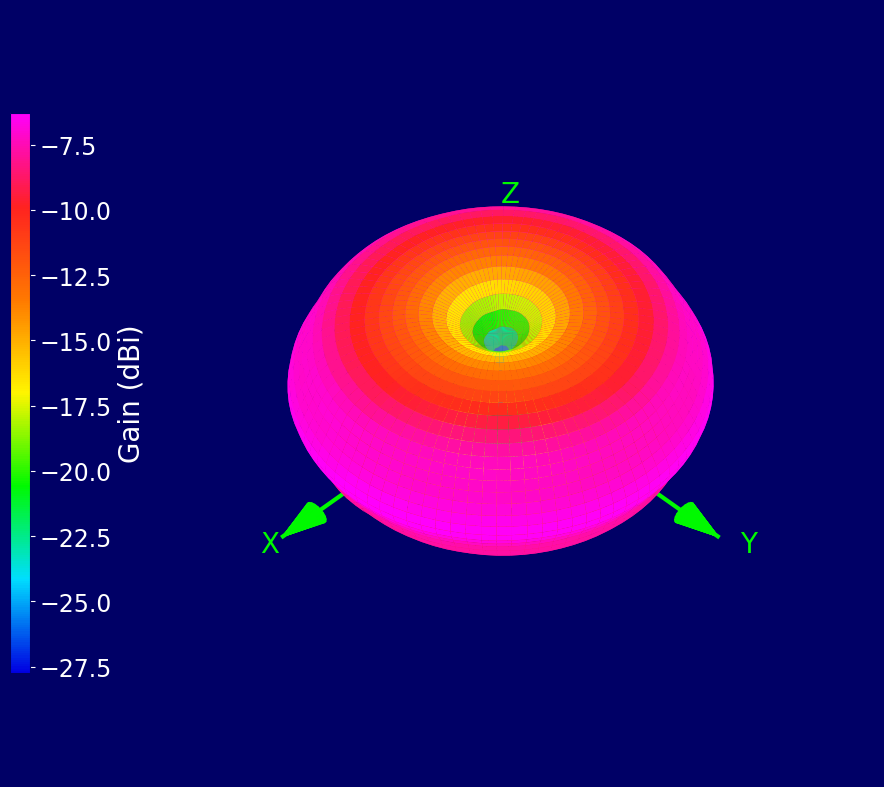

| 700 MHz | 800 MHz | 868 MHz |
|
|
|

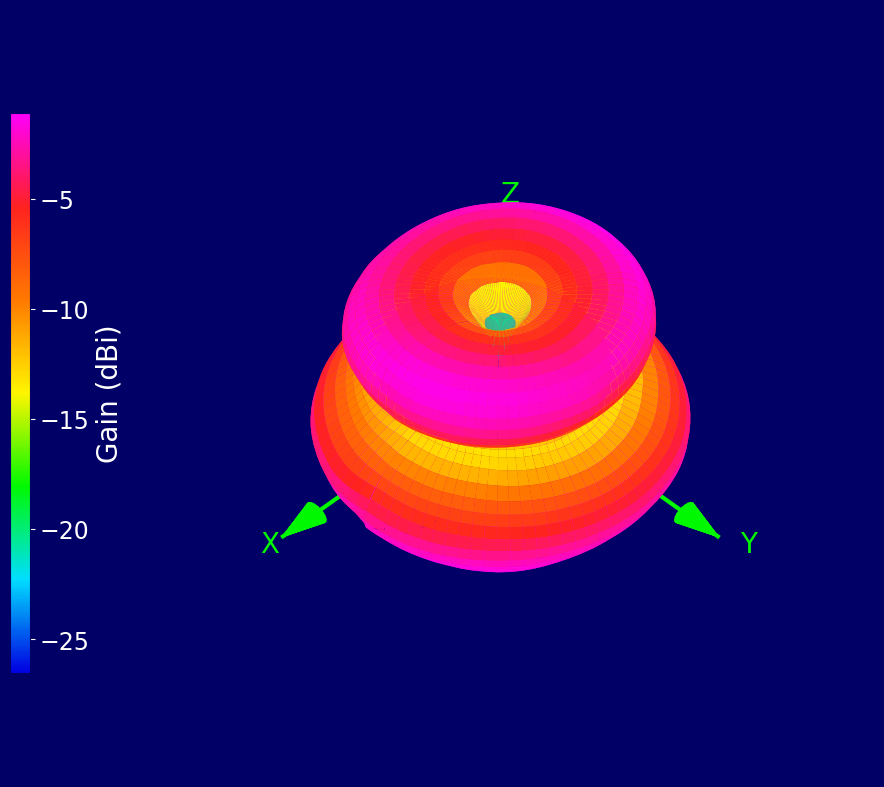

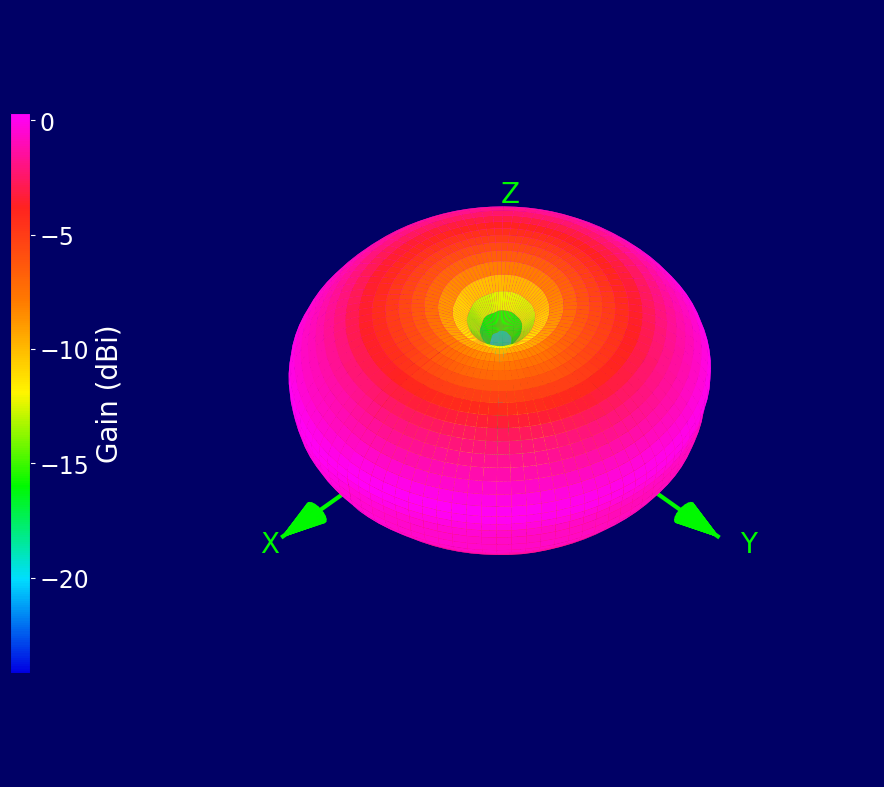

| 900 MHz | 915 MHz | 1400 MHz |
|
|
|

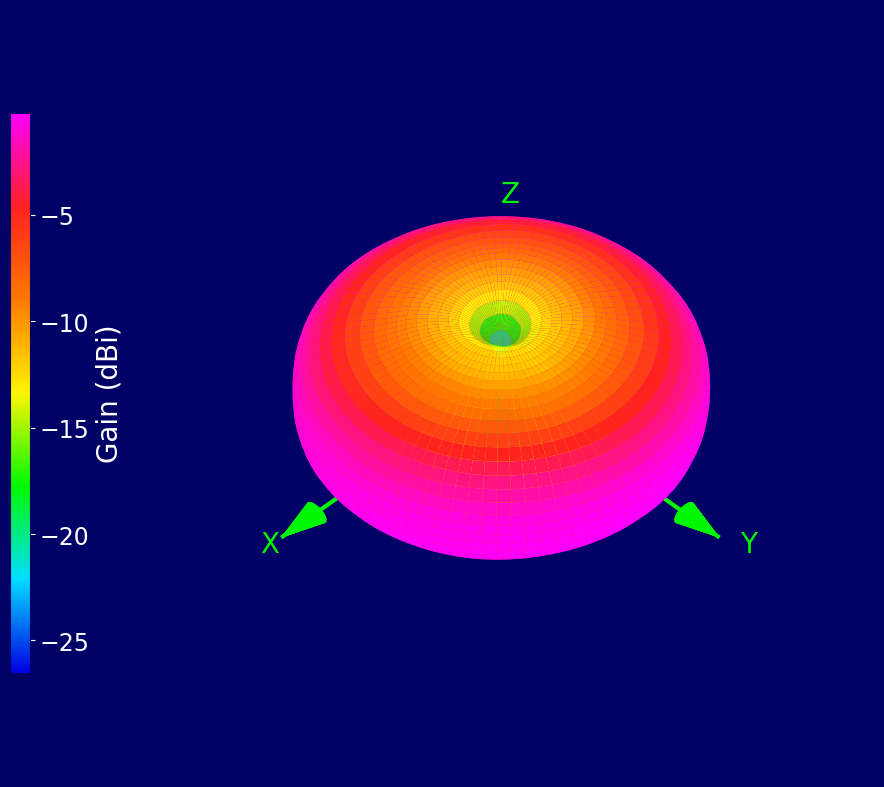

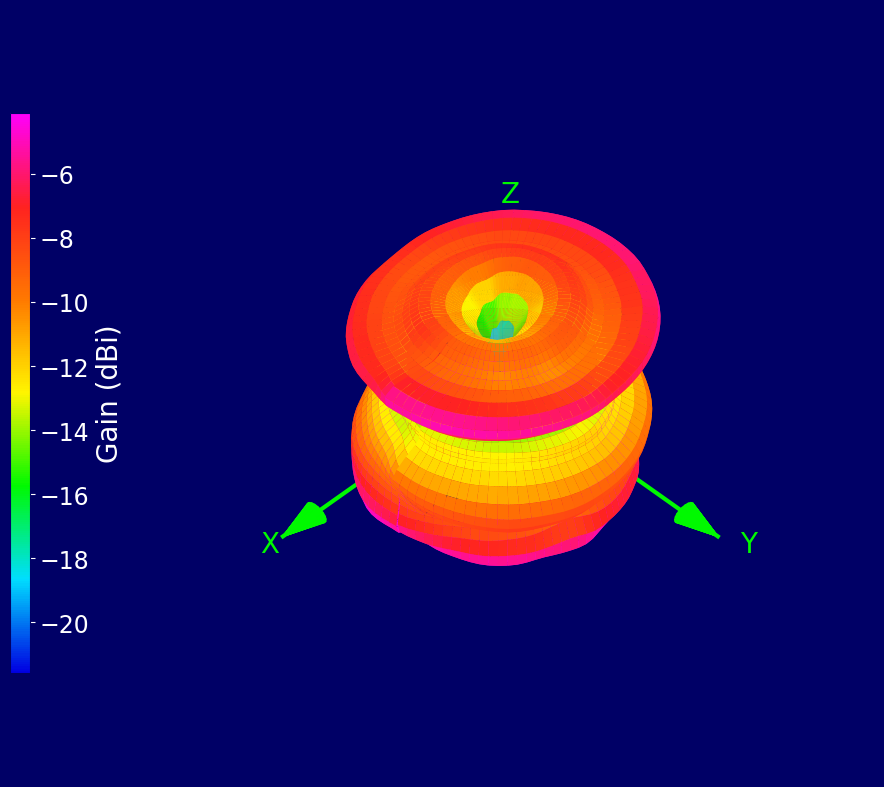

| 1500 MHz | 1700 MHz | 1800 MHz |
|
|
|

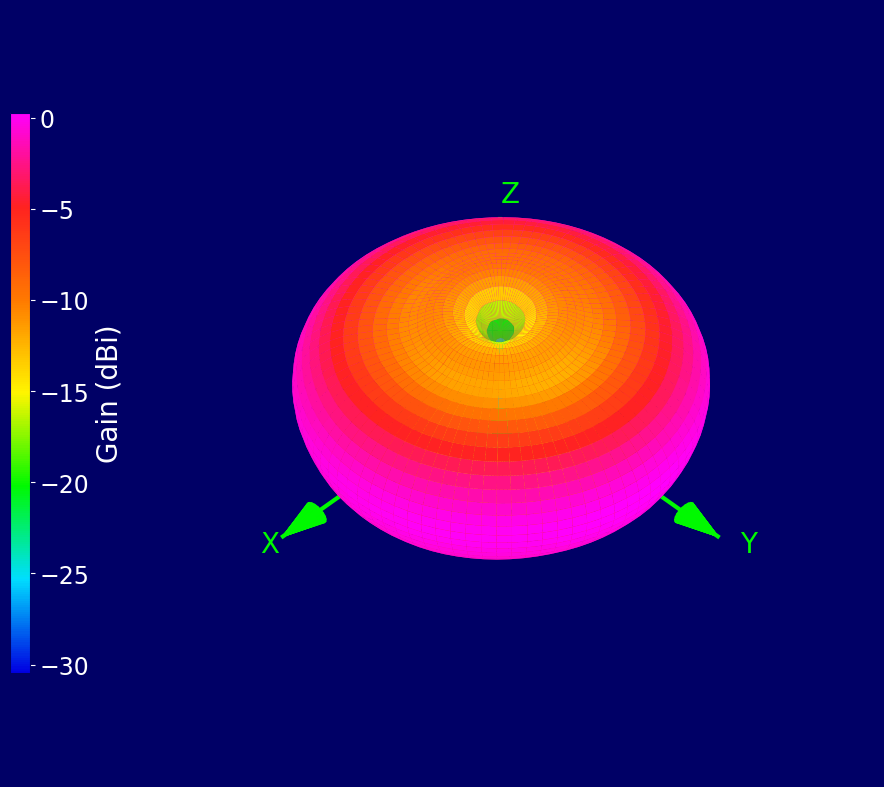

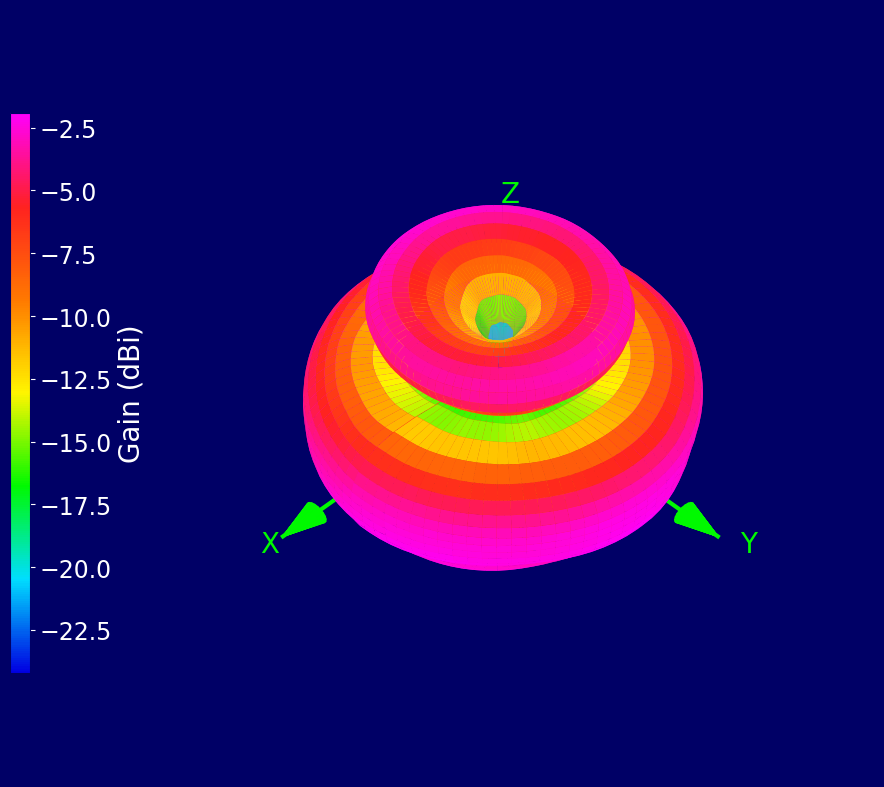

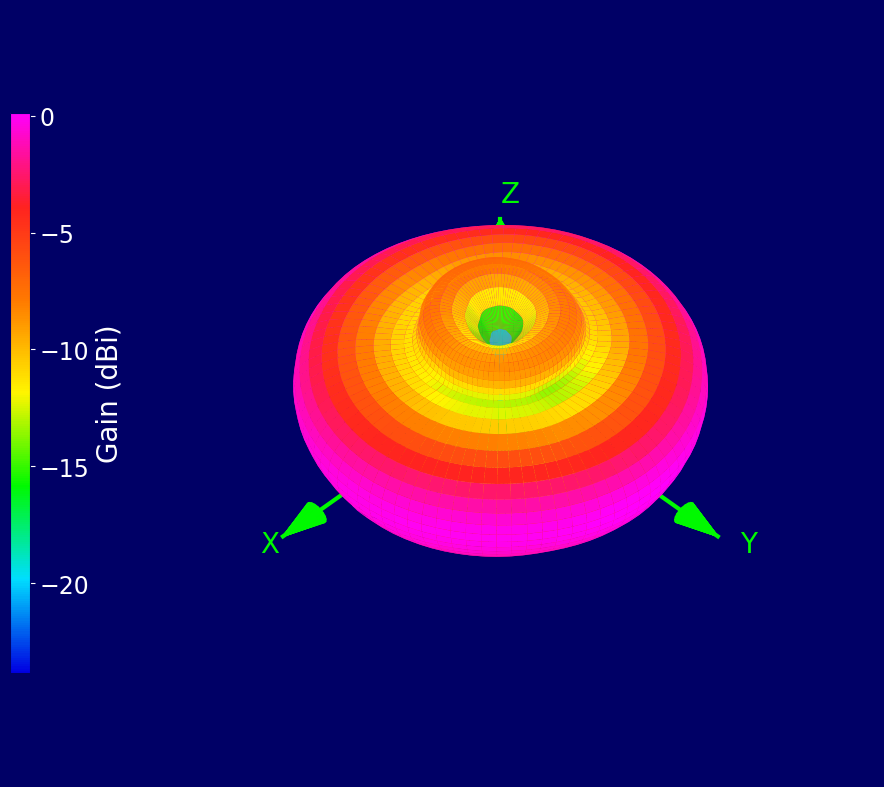

| 1900 MHz | 2000 MHz | 2100 MHz |
|
|
|

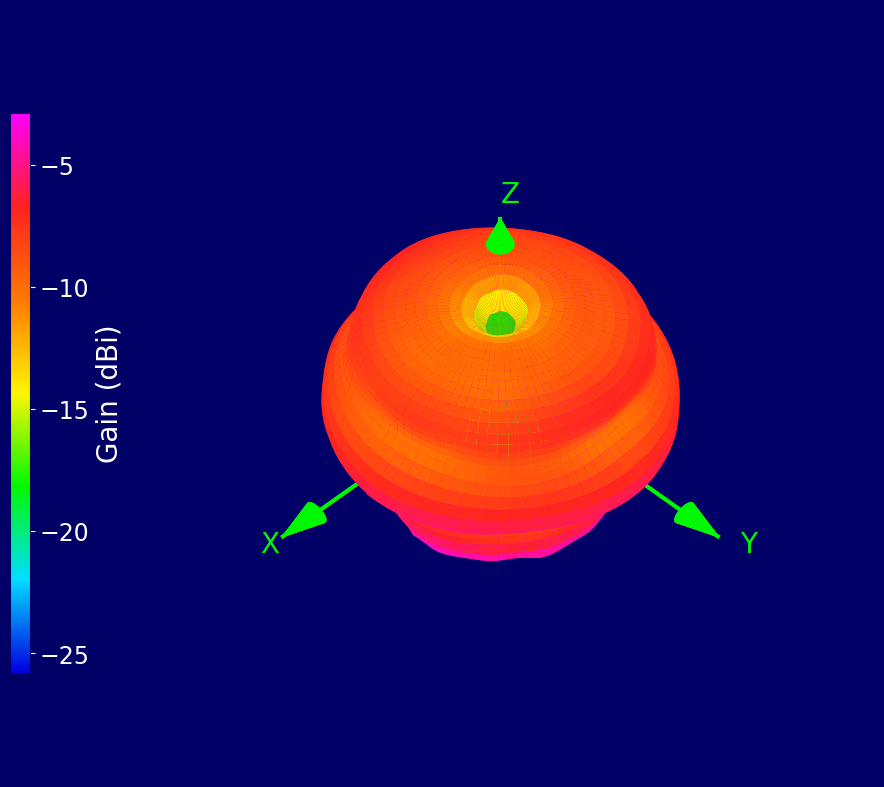

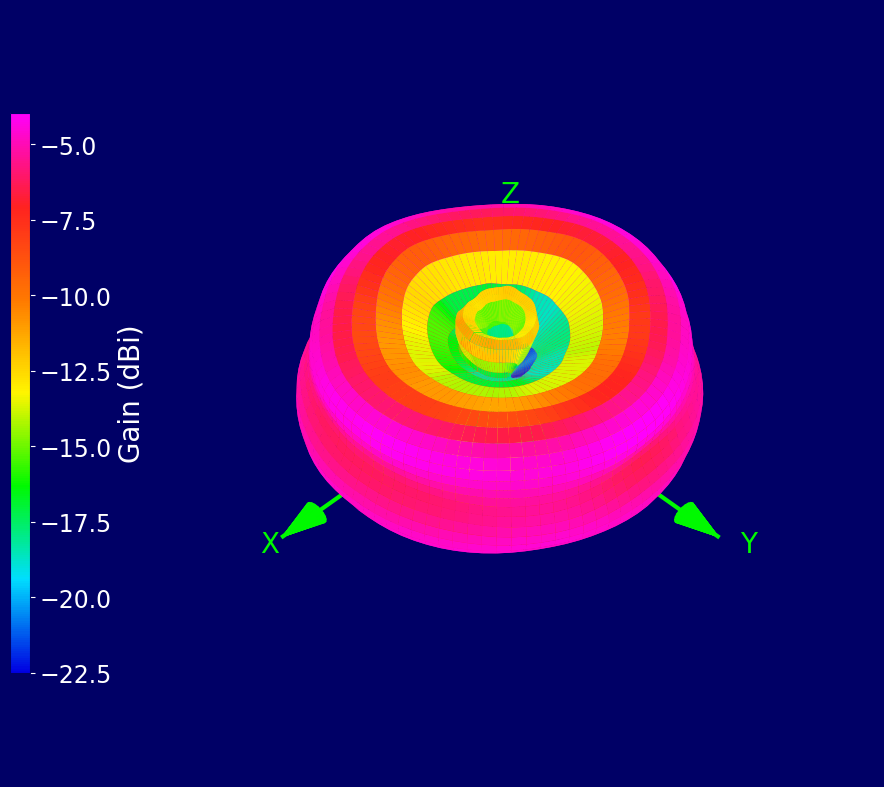

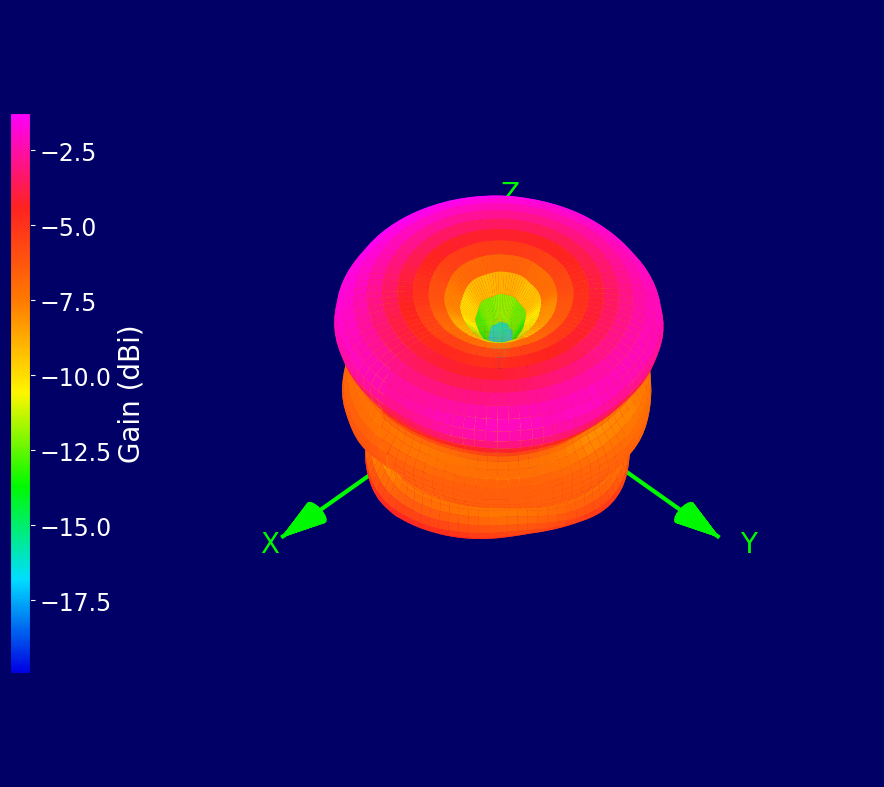

| 2200 MHz | 2300 MHz | 2400 MHz |
|
|
|

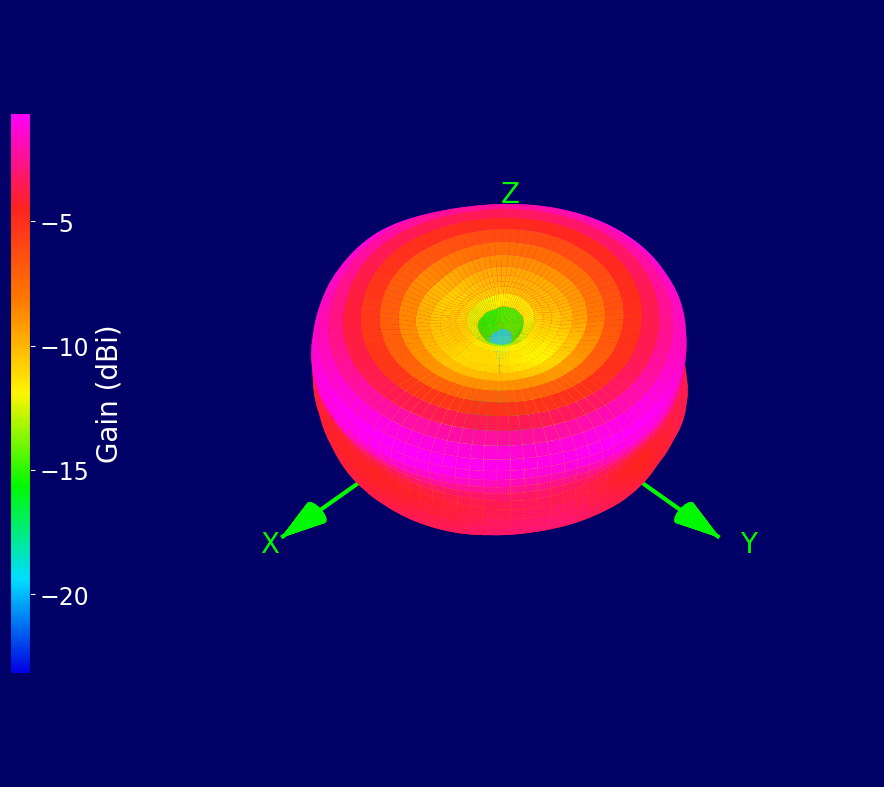

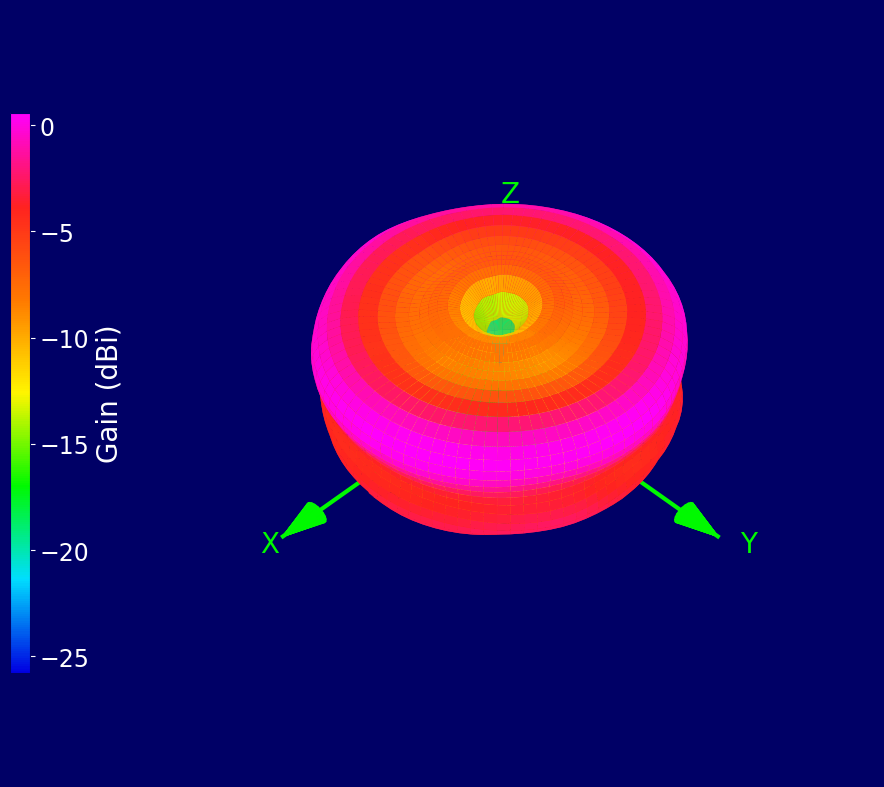

| 2500 MHz | 2600 MHz | 2700 MHz |
|
|
|
¶ Ordering Details
| Part Number | Description |
|---|---|
| OSCAR1A/0.2M/FMEF/S/S/31 |
LPWAN / ISM / 4G LTE Wall-Mount Antenna 0.2m Cable and FME Female Connector |
| OSCAR1A/5M/FMEF/S/S/31 |
LPWAN / ISM / 4G LTE Wall-Mount Antenna 5m Cable and FME Female Connector |
| OSCAR1A/10M/FMEF/S/S/31 |
LPWAN / ISM / 4G LTE Wall-Mount Antenna 10m Cable and FME Female Connector |
| OSCAR1A/5M/SMAM/S/S/31 |
LPWAN / ISM / 4G LTE Wall-Mount Antenna 5m Cable and SMA Male Connector |
| OSCAR1A/10M/SMAM/S/S/31 |
LPWAN / ISM / 4G LTE Wall-Mount Antenna 10m Cable and SMA Male Connector |
| OSCAR1A/20M/SMAM/S/S/31 |
LPWAN / ISM / 4G LTE Wall-Mount Antenna 20m Cable and SMA Male Connector |
