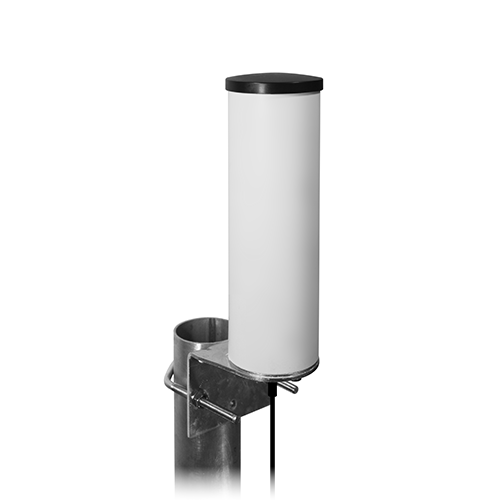

¶ General Description
The Oscar 40 is a great antenna solution covering many popular frequencies in use today. Its radome is UV and water resistant making it an ideal outdoor antenna.
Suitable for discreet omni-antenna applications, where a longer one is undesirable, the antenna out-performs many of the larger variants. It is fitted with an aluminium bracket for wall mounting and supplied with a clamp for fitting to a standard mast.
Supplied as standard with an SMA Male or FME Female connector and a choice of 5 m or 10 m cable. Alternative connector types and cable lengths are available for small-volume orders.
¶ Key Features
- Supports 5G NR / 4G LTE / 3G UMTS / 2G Quad-band GSM
- Supports dual-band Wi-Fi 2.4 GHz and 5 GHz
- Supports Bluetooth / Zigbee / IEEE 802.15.4 / ISM 2.4 GHz / ISM 5.8 GHz
- Supports LoRa / Sigfox / ISM 868 MHz / ISM 915 MHz
- Wall or pole mount
¶ Typical Applications
- Vehicle telematics, fleet management, and transportation systems
- Smart city infrastructure, kiosks, EV charging stations, and connected public assets
- Industrial IoT gateways, routers, remote monitoring, and asset tracking equipment
- Utility monitoring, environmental sensing, and security applications
600–6000 MHz
Wideband Coverage
|
UV & Water Resistant
Outdoor Radome
|
Cellular
2G–5G Support
|
Wi-Fi / ISM
2.4 GHz & 5 GHz
|
Wall / Pole Mount
Bracket & Clamp
|
Product Features
2G
GSM
3G
UMTS
4G
LTE
5G
NR
BLE
Bluetooth
IEEE
802.15.4
ISM
868
ISM
915
ISM
2.4G
ISM
5.8G
LoRa
Wireless
LTE
CAT-M
LTE
NB-IoT
NR
NB-IoT
Omni
Directional
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
Cellular Band Support
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B28A
B29
B30
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B85
B103
B111
5G NR Band Support
n1
n2
n3
n5
n7
n8
n12
n13
n14
n18
n20
n24
n25
n26
n28
n29
n30
n34
n38
n39
n40
n41
n46
n47
n48
n50
n51
n53
n54
n65
n66
n67
n68
n70
n74
n75
n76
n77
n78
n79
n80
n81
n82
n83
n84
n85
n86
n89
n90
n91
n92
n93
n94
n95
n97
n98
n99
n100
n101
n106
n109
n110
¶ Electrical Specifications
| Frequency Range: | 600–6000 MHz |
| Impedance: | 50 Ohm |
| Polarisation: | Vertical |
| Average Gain: | 3.6 dBi |
| Average Radiation Efficiency: | 42.3% |
| Max Input Power: | 50 W |
| Required Ground Plane Independent: | Free space |
¶ Environmental Specifications
| Operating Temperature Range: | -40°C to 70°C |
| Storage Temperature Range: | -50°C to 75°C |

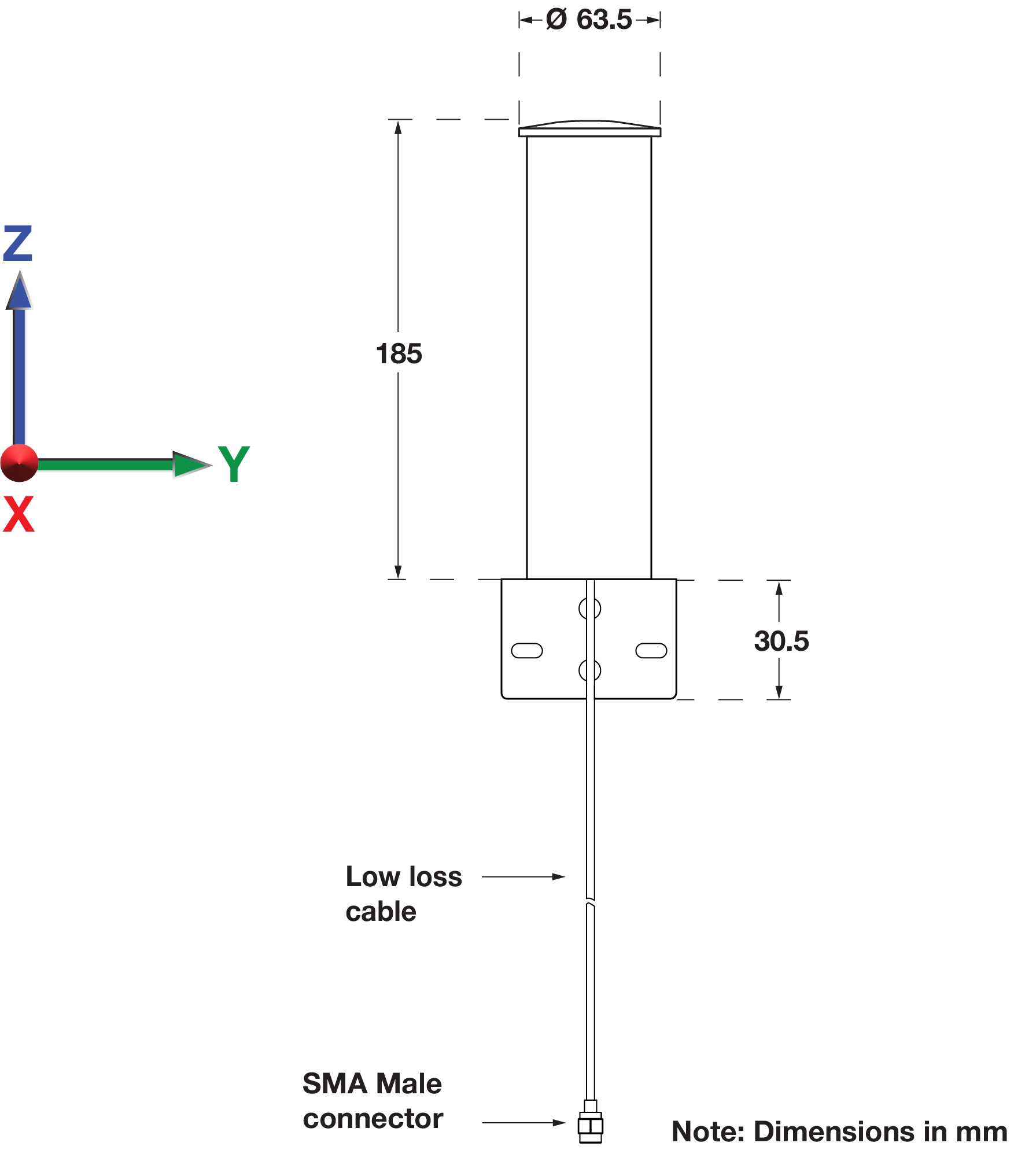

¶ Mechanical Specifications
| Dimensions: | Ø 63.5 × 185 mm |
| Weight: | 400 g |
| Connector: | SMA Male |
| Mounting Method: | Low Loss Cable |
| Housing Materials: |
Aluminium radiator PVC radome with UV protection |

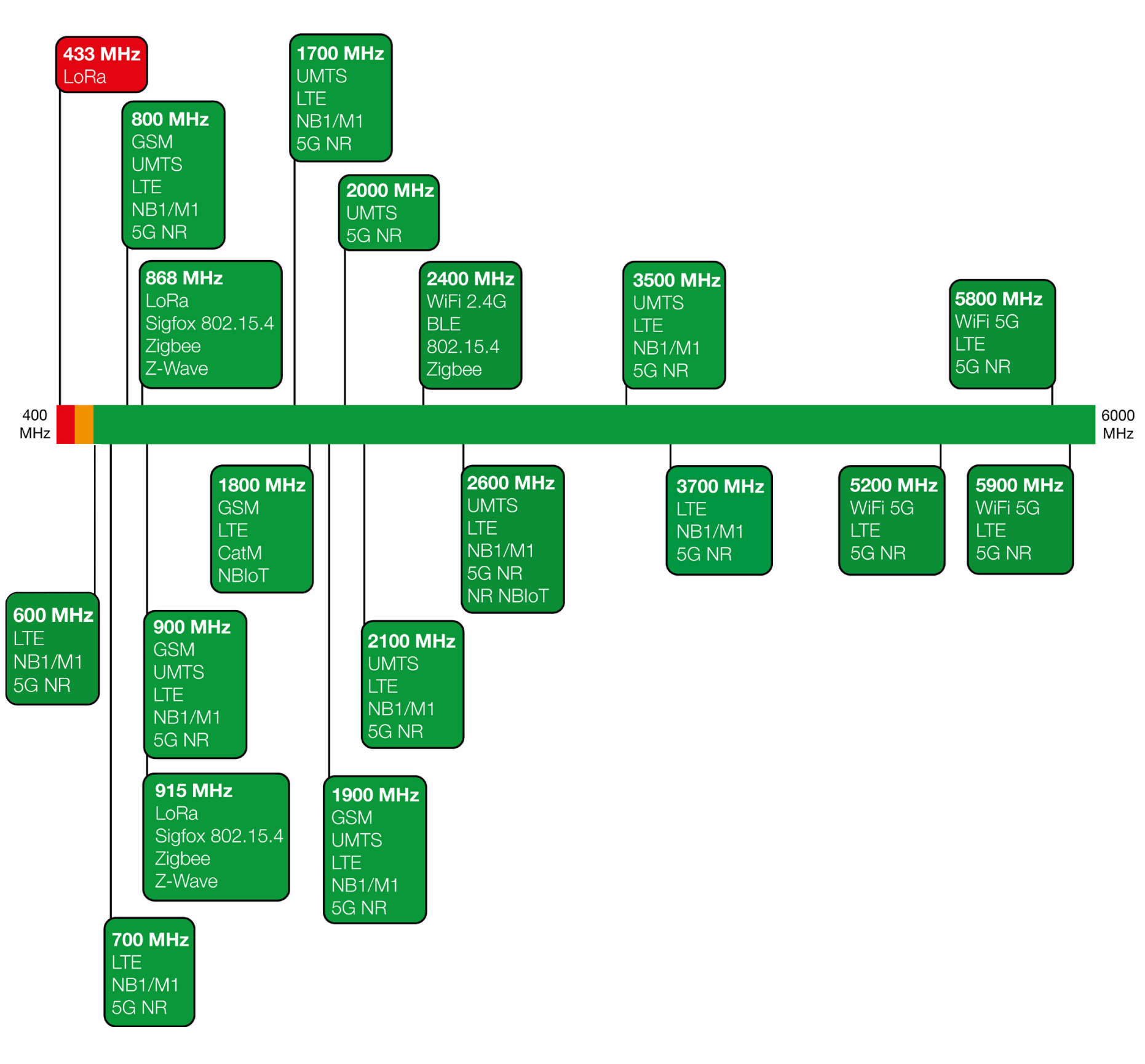

¶ Spectrum Coverage*
The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency, taking into consideration the VSWR and radiated efficiency of the antenna.
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

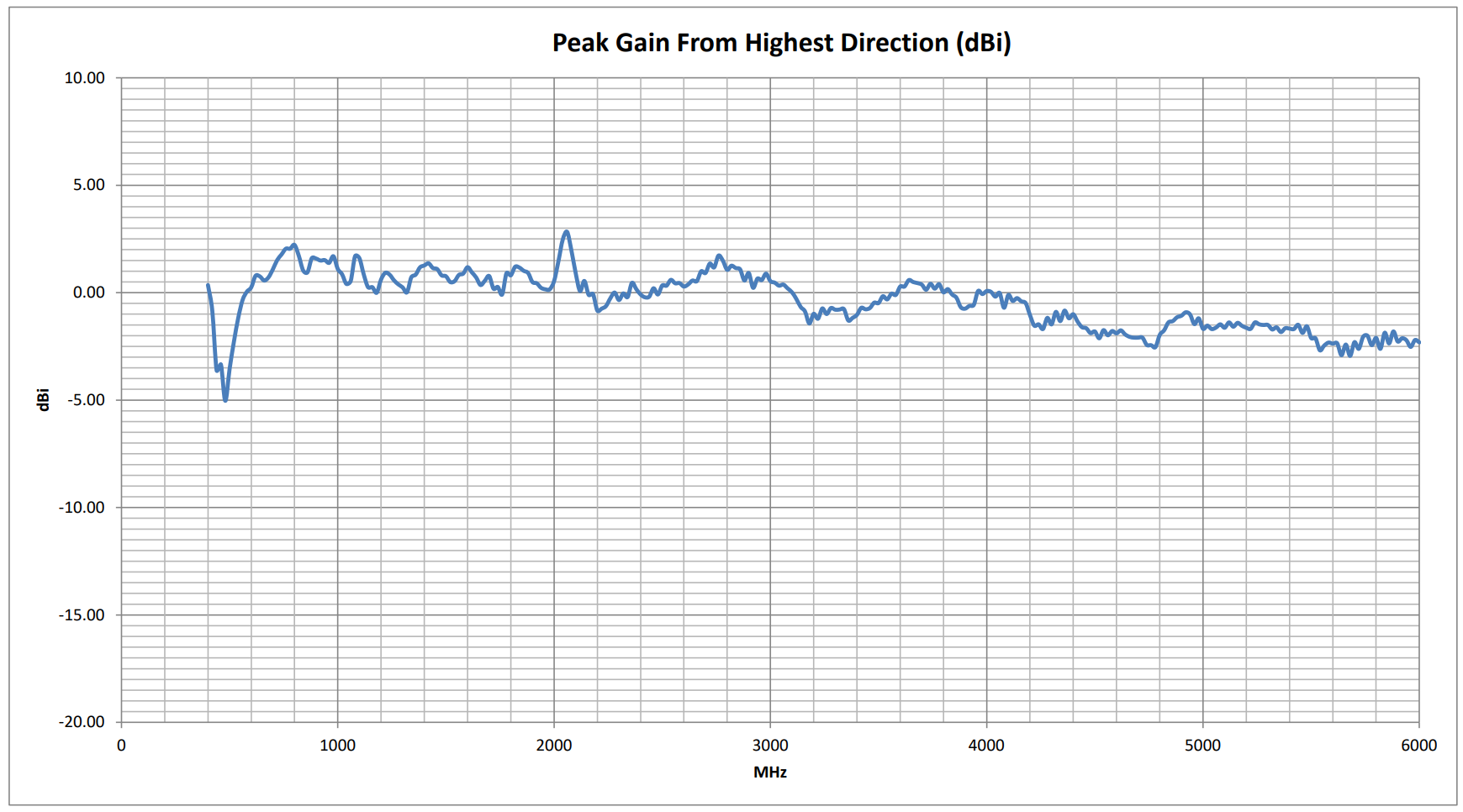

¶ Peak Gain vs. Frequency

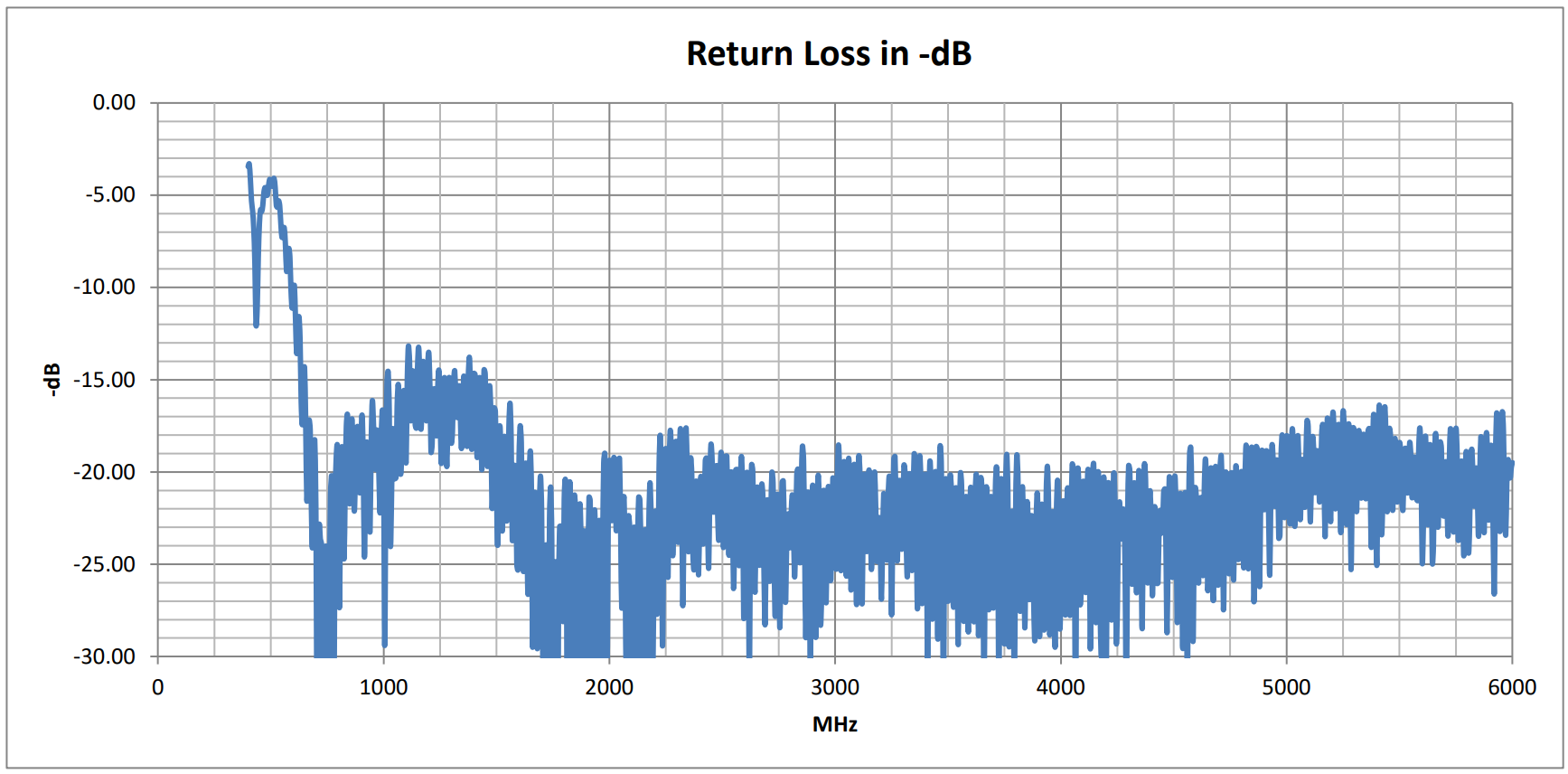

¶ Return Loss

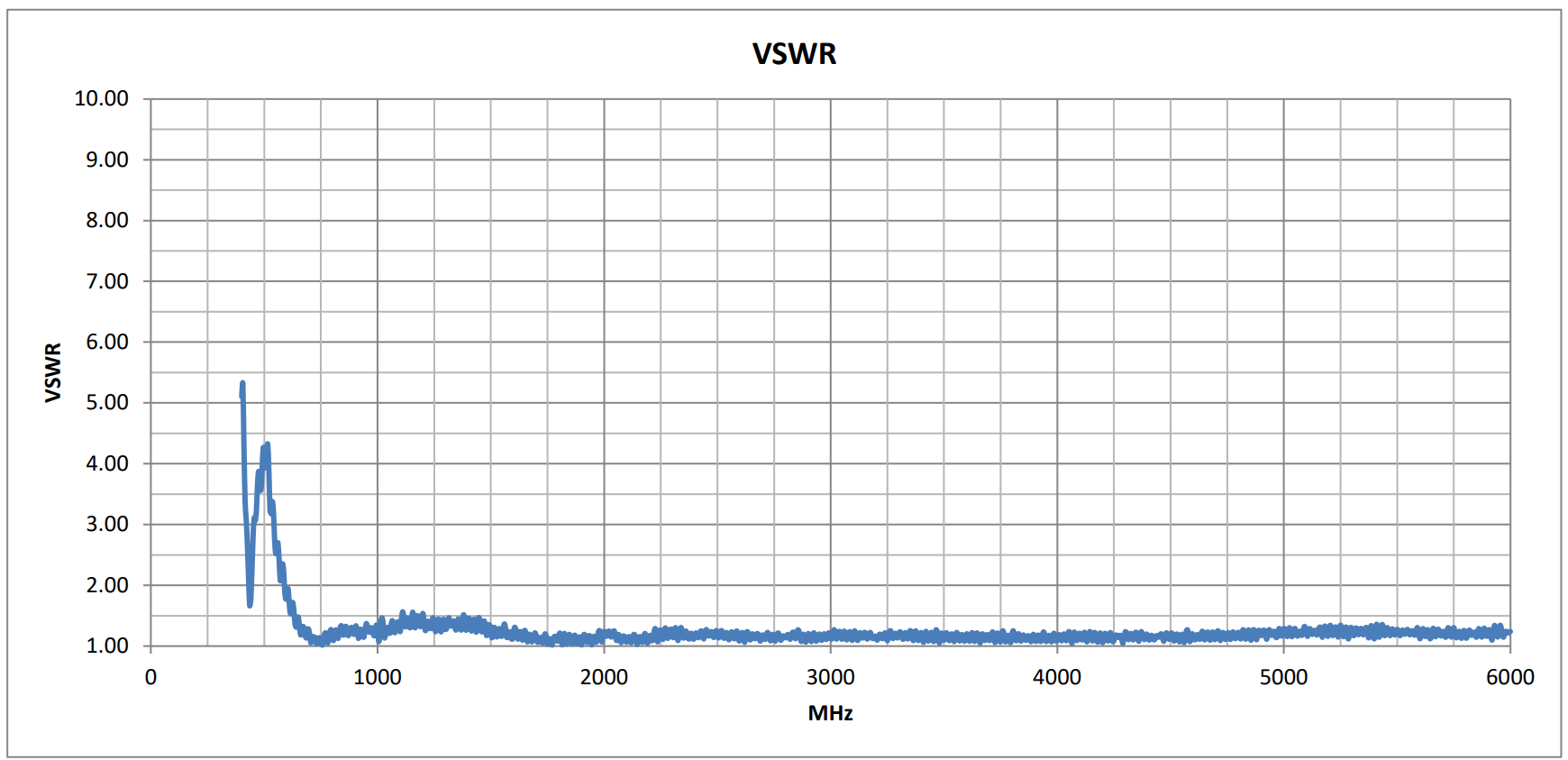

¶ VSWR

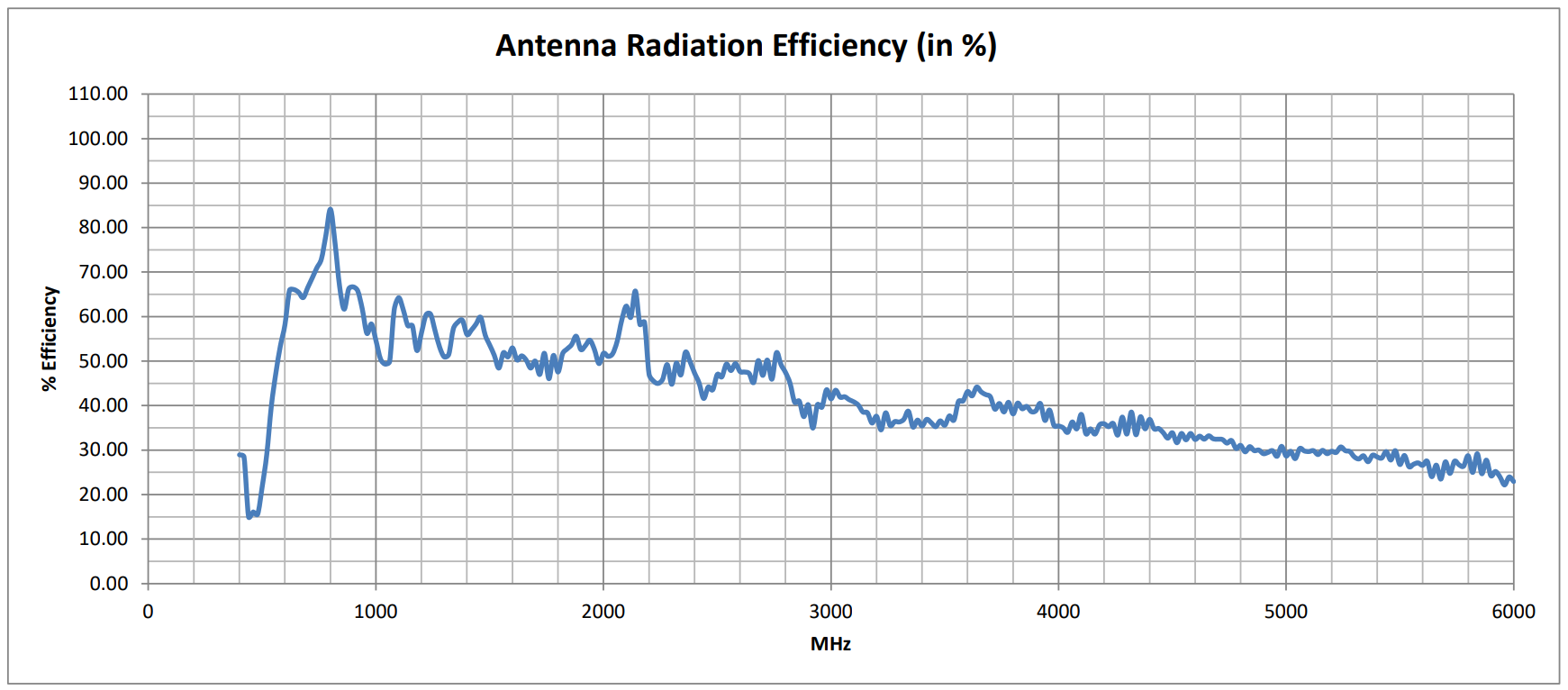

¶ Radiation Efficiency
¶ Cellular Bands*
| GSM (2G) Bands | UMTS (3G) Bands | E-UTRA (4G) Bands | NR (5G) Bands | Uplink (MHz) | Downlink (MHz) | Average Upload Efficiency (%) | Average Download Efficiency (%) | Maximum Upload VSWR | Maximum Download VSWR | Use Indicator |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | n1 | 1920 - 1980 | 2110 - 2170 | 52.91 | 61.40 | 1.25 | 1.19 | ↑ | |
| PCS-1900 | 2 | 2 | n2 | 1850 - 1910 | 1930 - 1990 | 53.96 | 52.29 | 1.19 | 1.25 | ↑ |
| DCS-1800 | 3 | 3 | n3 | 1710 - 1785 | 1805 - 1880 | 48.93 | 52.70 | 1.20 | 1.21 | ↑ |
| 4 | 4 | 1710 - 1755 | 2110 - 2155 | 49.09 | 62.33 | 1.20 | 1.19 | ↑ | ||
| GSM-850 | 5 | 5 | n5 | 824 - 849 | 869 - 894 | 68.91 | 65.76 | 1.33 | 1.30 | ↑ |
| 6 | 830 - 840 | 875 - 885 | 69.27 | 65.96 | 1.33 | 1.30 | ↑ | |||
| 7 | 7 | n7 | 2500 - 2570 | 2620 - 2690 | 47.81 | 47.39 | 1.25 | 1.23 | ↑ | |
| E-GSM-900 | 8 | 8 | n8 | 880 - 915 | 925 - 960 | 66.40 | 60.77 | 1.33 | 1.37 | ↑ |
| 9 | 9 | 1749.9 - 1784.9 | 1844.9 - 1879.9 | 48.62 | 54.08 | 1.15 | 1.19 | ↑ | ||
| 10 | 10 | 1710 - 1770 | 2110 - 2170 | 48.60 | 61.40 | 1.20 | 1.19 | ↑ | ||
| 11 | 11 | 1427.9 - 1447.9 | 1475.9 - 1495.9 | 58.22 | 55.22 | 1.47 | 1.35 | ↑ | ||
| 12 | 12 | n12 | 699 - 716 | 729 - 746 | 67.34 | 70.66 | 1.20 | 1.13 | ↑ | |
| 13 | 13 | n13 | 777 - 787 | 746 - 756 | 78.93 | 72.05 | 1.20 | 1.13 | ↑ | |
| 14 | 14 | n14 | 788 - 798 | 758 - 768 | 82.11 | 73.79 | 1.27 | 1.21 | ↑ | |
| 17 | 704 - 716 | 734 - 746 | 67.62 | 70.94 | 1.16 | 1.13 | ↑ | |||
| 18 | n18 | 815 - 830 | 860 - 875 | 75.25 | 63.37 | 1.27 | 1.32 | ↑ | ||
| 19 | 19 | 830 - 845 | 875 - 890 | 68.24 | 66.11 | 1.33 | 1.30 | ↑ | ||
| 20 | n20 | 832 - 862 | 791 - 821 | 65.30 | 80.95 | 1.33 | 1.27 | ↑ | ||
| 21 | 1447.9 - 1462.9 | 1495.9 - 1510.9 | 59.42 | 53.19 | 1.46 | 1.32 | ↑ | |||
| 22 | 3410 - 3490 | 3510 - 3590 | 36.13 | 39.09 | 1.27 | 1.22 | ↑ | |||
| 24 | n24 | 1626.5 - 1660.5 | 1525 - 1559 | 50.75 | 49.81 | 1.26 | 1.35 | ↑ | ||
| 25 | n25 | 1850 - 1915 | 1930 - 1995 | 53.90 | 52.18 | 1.19 | 1.25 | ↑ | ||
| 26 | n26 | 814 - 849 | 859 - 894 | 71.18 | 64.85 | 1.33 | 1.32 | ↑ | ||
| 27 | 807 - 824 | 852 - 869 | 78.21 | 62.70 | 1.27 | 1.32 | ↑ | |||
| 28 | n28 | 703 - 748 | 758 - 803 | 69.33 | 78.53 | 1.16 | 1.27 | ↑ | ||
| 28A | 703 - 733 | 758 - 788 | 68.50 | 76.49 | 1.16 | 1.22 | ↑ | |||
| 29 | n29 | N/A | 717 - 728 | N/A | 68.99 | N/A | 1.15 | ↑ | ||
| 30 | n30 | 2305 - 2315 | 2350 - 2360 | 47.16 | 50.72 | 1.30 | 1.25 | ↑ | ||
| 31 | 452.5 - 457.5 | 462.5 - 467.5 | 15.79 | 15.94 | 3.11 | 3.46 | ↓ | |||
| 32 | 32 | N/A | 1452 - 1496 | N/A | 57.10 | N/A | 1.41 | ↑ | ||
| 33 | 1900 - 1920 | 1900 - 1920 | 53.03 | 53.03 | 1.19 | 1.19 | ↑ | |||
| 34 | n34 | 2010 - 2025 | 2010 - 2025 | 51.19 | 51.19 | 1.25 | 1.25 | ↑ | ||
| 35 | 1850 - 1910 | 1850 - 1910 | 53.96 | 53.96 | 1.19 | 1.19 | ↑ | |||
| 36 | 1930 - 1990 | 1930 - 1990 | 52.29 | 52.29 | 1.25 | 1.25 | ↑ | |||
| 37 | 1910 - 1930 | 1910 - 1930 | 53.51 | 53.51 | 1.19 | 1.19 | ↑ | |||
| 38 | n38 | 2570 - 2620 | 2570 - 2620 | 48.26 | 48.26 | 1.25 | 1.25 | ↑ | ||
| 39 | n39 | 1880 - 1920 | 1880 - 1920 | 53.56 | 53.56 | 1.19 | 1.19 | ↑ | ||
| 40 | n40 | 2300 - 2400 | 2300 - 2400 | 48.87 | 48.87 | 1.30 | 1.30 | ↑ | ||
| 41 | n41 | 2496 - 2690 | 2496 - 2690 | 47.75 | 47.75 | 1.25 | 1.25 | ↑ | ||
| 42 | 3400 - 3600 | 3400 - 3600 | 37.60 | 37.60 | 1.27 | 1.27 | ↑ | |||
| 43 | 3600 - 3800 | 3600 - 3800 | 41.34 | 41.34 | 1.25 | 1.25 | ↑ | |||
| 44 | 703 - 803 | 703 - 803 | 73.76 | 73.76 | 1.27 | 1.27 | ↑ | |||
| 45 | 1447 - 1467 | 1447 - 1467 | 59.28 | 59.28 | 1.46 | 1.46 | ↑ | |||
| 46 | n46 | 5150 - 5925 | 5150 - 5925 | 27.56 | 27.56 | 1.36 | 1.36 | ↑ | ||
| 47 | n47 | 5855 - 5925 | 5855 - 5925 | 25.55 | 25.55 | 1.29 | 1.29 | ↑ | ||
| 48 | n48 | 3550 - 3700 | 3550 - 3700 | 42.32 | 42.32 | 1.22 | 1.22 | ↑ | ||
| 49 | 3550 - 3700 | 3550 - 3700 | 42.32 | 42.32 | 1.22 | 1.22 | ↑ | |||
| 50 | n50 | 1432 - 1517 | 1432 - 1517 | 56.37 | 56.37 | 1.47 | 1.47 | ↑ | ||
| 51 | n51 | 1427 - 1432 | 1427 - 1432 | 57.65 | 57.65 | 1.40 | 1.40 | ↑ | ||
| 52 | 3300 - 3400 | 3300 - 3400 | 36.67 | 36.67 | 1.25 | 1.25 | ↑ | |||
| 53 | n53 | 2483.5 - 2495 | 2483.5 - 2495 | 45.14 | 45.14 | 1.26 | 1.26 | ↑ | ||
| 65 | n65 | 1920 - 2010 | 2110 - 2200 | 52.25 | 59.20 | 1.25 | 1.21 | ↑ | ||
| 66 | n66 | 1710 - 1780 | 2110 - 2200 | 48.80 | 59.20 | 1.20 | 1.21 | ↑ | ||
| 67 | n67 | N/A | 738 - 758 | N/A | 71.75 | N/A | 1.13 | ↑ | ||
| 68 | 698 - 728 | 753 - 783 | 67.95 | 75.25 | 1.22 | 1.22 | ↑ | |||
| 69 | N/A | 2570 - 2620 | N/A | 48.26 | N/A | 1.25 | ↑ | |||
| 70 | n70 | 1695 - 1710 | 1995 - 2020 | 49.43 | 51.42 | 1.22 | 1.25 | ↑ | ||
| 71 | n71 | 663 - 698 | 617 - 652 | 65.04 | 65.90 | 1.32 | 1.72 | ↑ | ||
| 72 | 451 - 456 | 461 - 466 | 15.71 | 15.98 | 3.11 | 3.33 | ↑ | |||
| 73 | 450 - 455 | 460 - 465 | 15.65 | 16.01 | 3.11 | 3.24 | ↑ | |||
| 74 | n74 | 1427 - 1470 | 1475 - 1518 | 58.68 | 54.00 | 1.47 | 1.35 | ↑ | ||
| 75 | n75 | N/A | 1432 - 1517 | N/A | 56.37 | N/A | 1.47 | ↑ | ||
| 76 | n76 | N/A | 1427 - 1432 | N/A | 57.65 | N/A | 1.40 | ↑ | ||
| n77 | 3300 - 4200 | 3300 - 4200 | 37.99 | 37.99 | 1.27 | 1.27 | ↑ | |||
| n78 | 3300 - 3800 | 3300 - 3800 | 38.91 | 38.91 | 1.27 | 1.27 | ↑ | |||
| n79 | 4400 - 5000 | 4400 - 5000 | 31.86 | 31.86 | 1.29 | 1.29 | ↑ | |||
| n80 | 1710 - 1785 | N/A | 48.93 | N/A | 1.20 | N/A | ↑ | |||
| n81 | 880 - 915 | N/A | 66.40 | N/A | 1.33 | N/A | ↑ | |||
| n82 | 832 - 862 | N/A | 65.30 | N/A | 1.33 | N/A | ↑ | |||
| n83 | 703 - 748 | N/A | 69.33 | N/A | 1.16 | N/A | ↑ | |||
| n84 | 1920 - 1980 | N/A | 52.91 | N/A | 1.25 | N/A | ↑ | |||
| 85 | n85 | 698 - 716 | 728 - 746 | 67.29 | 70.61 | 1.22 | 1.13 | ↑ | ||
| n86 | 1710 - 1780 | N/A | 48.80 | N/A | 1.20 | N/A | ↑ | |||
| 87 | 410 - 415 | 420 - 425 | 28.62 | 26.76 | 4.27 | 3.07 | ↓ | |||
| 88 | 412 - 417 | 422 - 427 | 28.57 | 25.41 | 3.91 | 2.91 | ↓ | |||
| n89 | 824 - 849 | N/A | 68.91 | N/A | 1.33 | N/A | ↑ | |||
| n90 | 2496 - 2690 | 2496 - 2690 | 47.75 | 47.75 | 1.25 | 1.25 | ↑ | |||
| n91 | 832 - 862 | 1427 - 1432 | 65.30 | 57.65 | 1.33 | 1.40 | ↑ | |||
| n92 | 832 - 862 | 1432 - 1517 | 65.30 | 56.37 | 1.33 | 1.47 | ↑ | |||
| n93 | 880 - 915 | 1427 - 1432 | 66.40 | 57.65 | 1.33 | 1.40 | ↑ | |||
| n94 | 880 - 915 | 1432 - 1517 | 66.40 | 56.37 | 1.33 | 1.47 | ↑ | |||
| n95 | 2010 - 2025 | N/A | 51.19 | N/A | 1.25 | N/A | ↑ | |||
| n97 | 2300 - 2400 | N/A | 48.87 | N/A | 1.30 | N/A | ↑ | |||
| n98 | 1880 - 1920 | N/A | 53.56 | N/A | 1.19 | N/A | ↑ | |||
| n99 | 1626.5 - 1660.5 | N/A | 50.75 | N/A | 1.26 | N/A | ↑ | |||
| n101 | 1900 - 1910 | 1900 - 1910 | 52.82 | 52.82 | 1.19 | 1.19 | ↑ | |||
| 103 | 787 - 788 | 757 - 758 | 80.52 | 72.70 | 1.21 | 1.05 | ↑ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |
¶ ISM Standards Frequency Support*
| Application | Frequency Range (MHz) | Efficiency (%) | Maximum VSWR | Peak Gain from highest direction (dBi) | Use Indicator |
|---|---|---|---|---|---|
| ISM 433 MHz | 433.05 - 434.79 | 19.07 | 1.86 | -2.637 | ↓ |
| ISM 868 MHz | 863 - 870 | 63.14 | 1.28 | 1.28 | ↑ |
| ISM 915 MHz | 902 - 928 | 65.80 | 1.33 | 1.581 | ↑ |
| ISM 2.4 GHz | 2400 - 2500 | 44.31 | 1.27 | 0.34 | ↑ |
| Wi-Fi 2.4G | 2401 - 2483 | 44.02 | 1.27 | 0.21 | ↑ |
| Wi-Fi 2.4G (USA) | 2401 - 2473 | 44.06 | 1.27 | 0.21 | ↑ |
| Wi-Fi 2.4G (Japan) | 2401 - 2495 | 44.16 | 1.27 | 0.235 | ↑ |
| Wi-Fi 5G (all channels) | 5150 - 5990 | 27.24 | 1.36 | -1.38 | ↑ |
| Wi-Fi 5G (Ch 32-48) | 5150 - 5250 | 29.75 | 1.34 | -1.38 | ↑ |
| Wi-Fi 5G (Ch 32-64) | 5150 - 5330 | 29.43 | 1.34 | -1.38 | ↑ |
| Wi-Fi 5G (Ch 32-161) | 5150 - 5815 | 27.81 | 1.36 | -1.38 | ↑ |
| Wi-Fi 5G (Ch 32-173) | 5150 - 5875 | 27.71 | 1.36 | -1.38 | ↑ |
| ISM 5.8 GHz | 5725 - 5875 | 26.82 | 1.34 | -1.38 | ↑ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

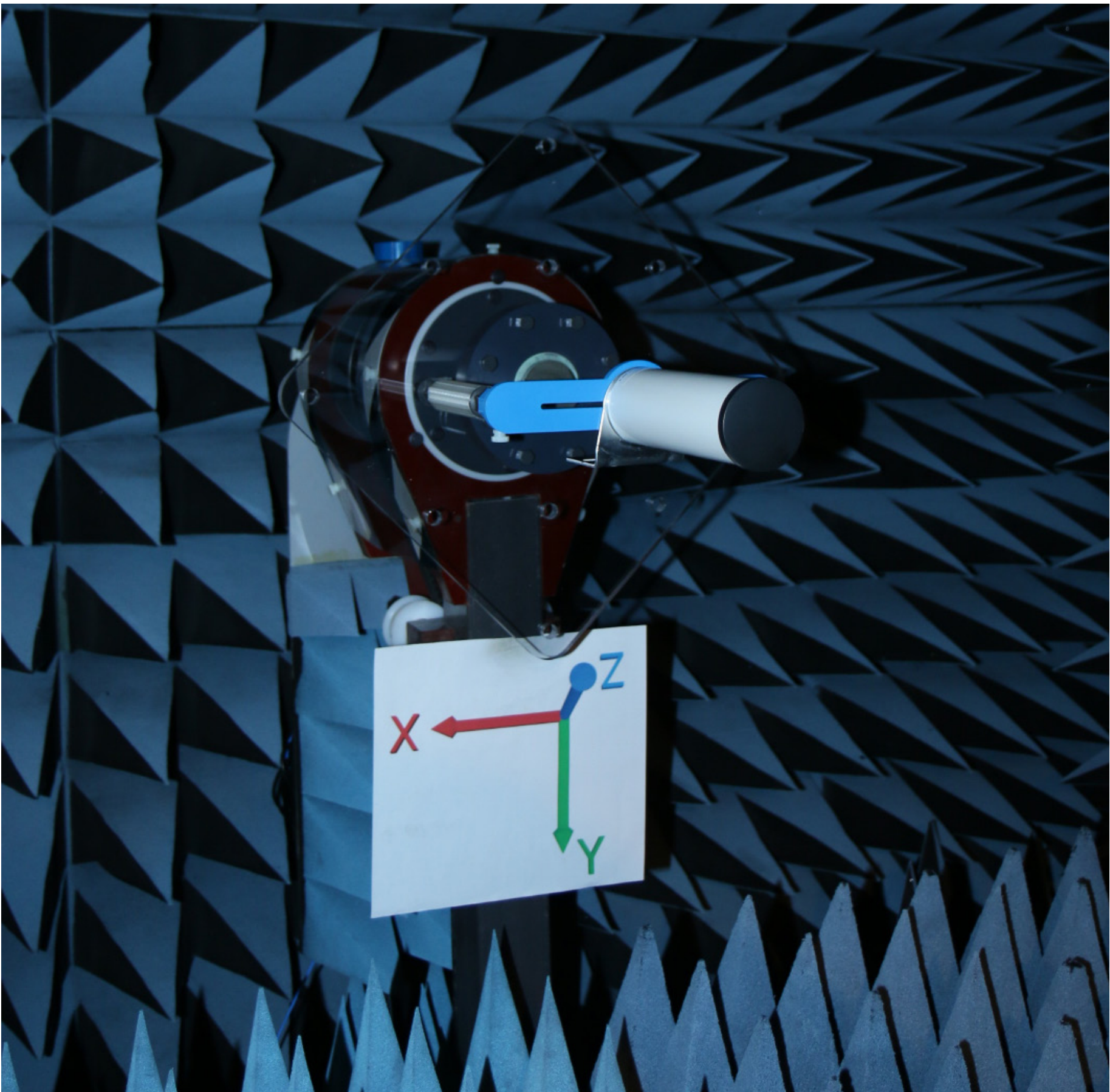

¶ Test Setup (in Free Space)

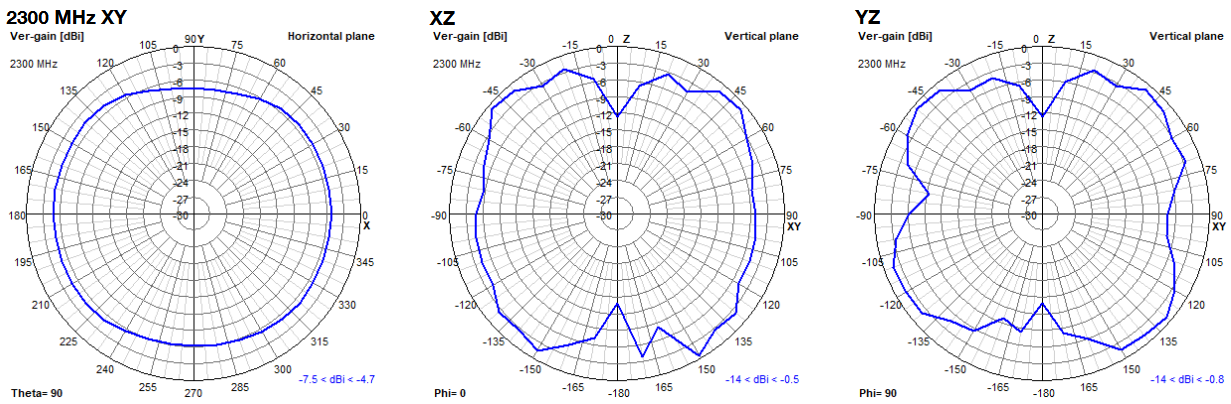

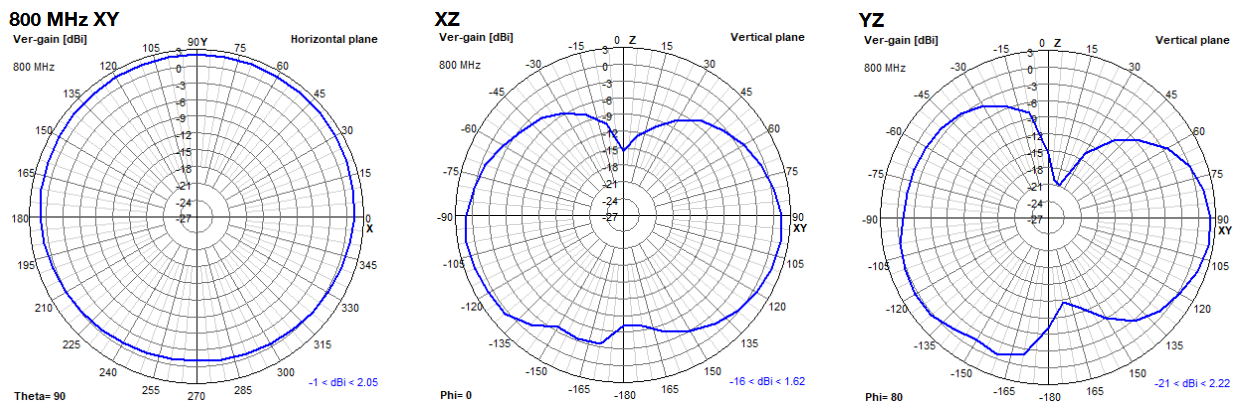

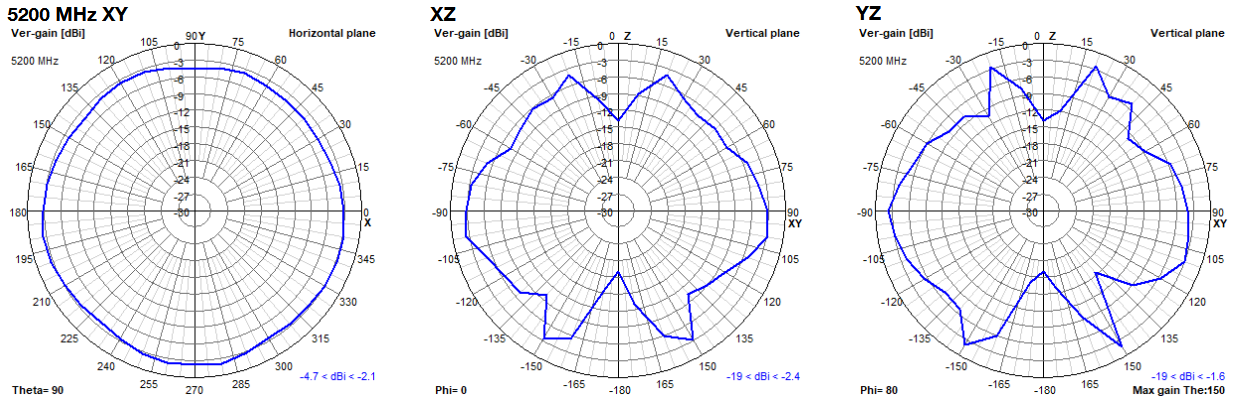

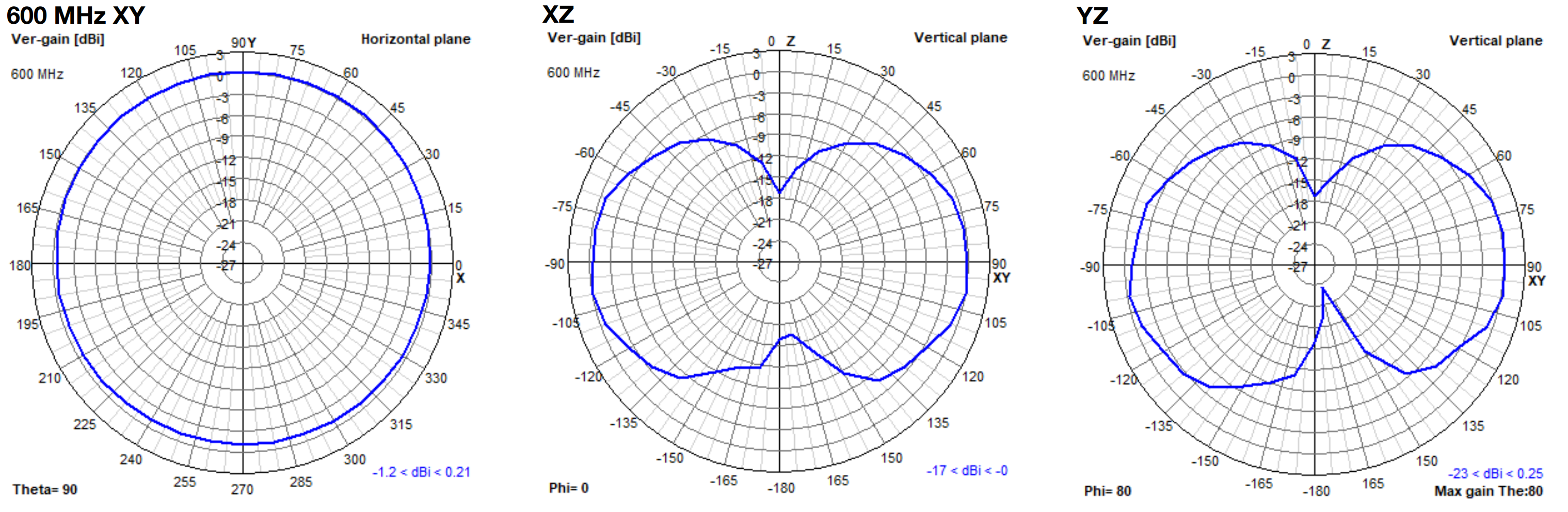

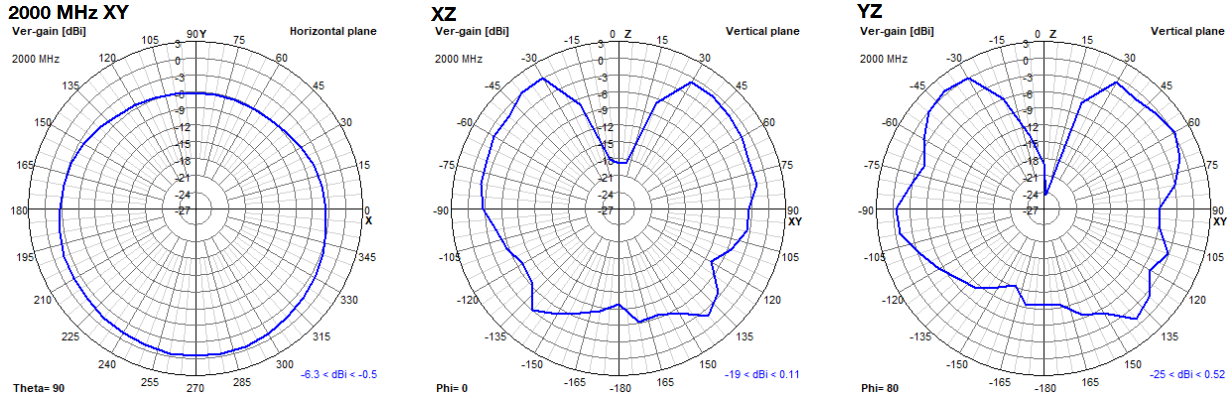

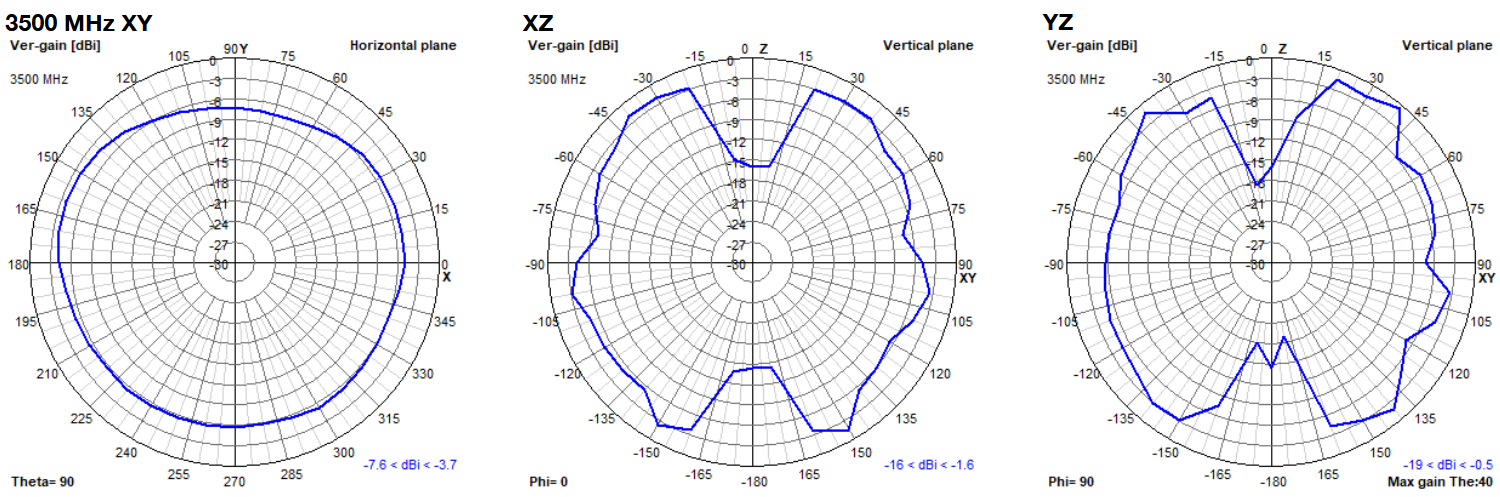

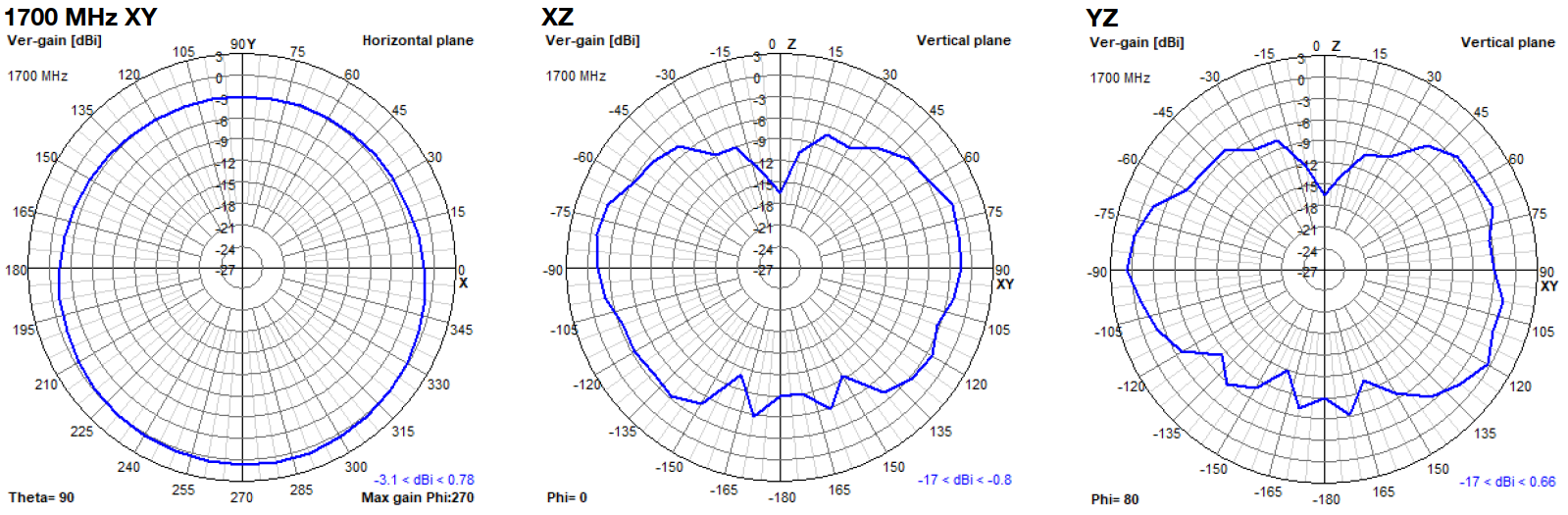

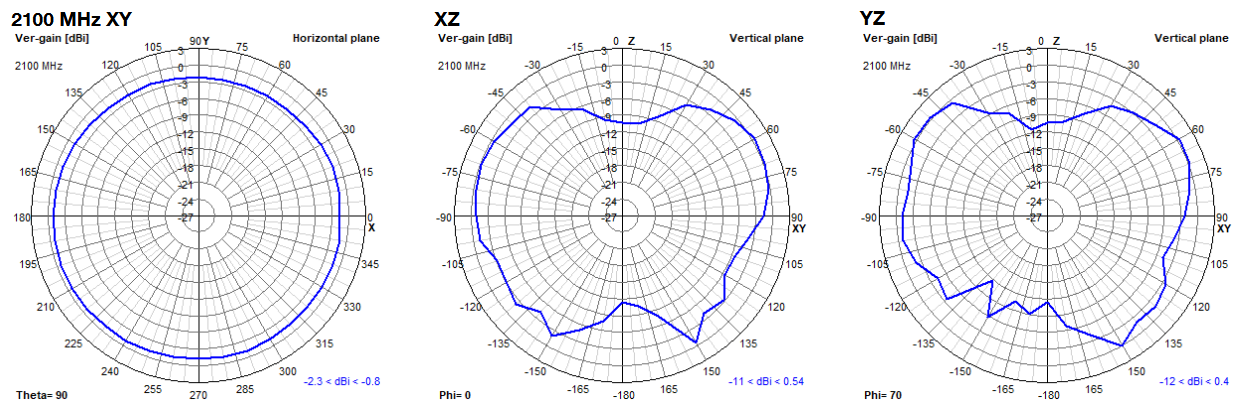

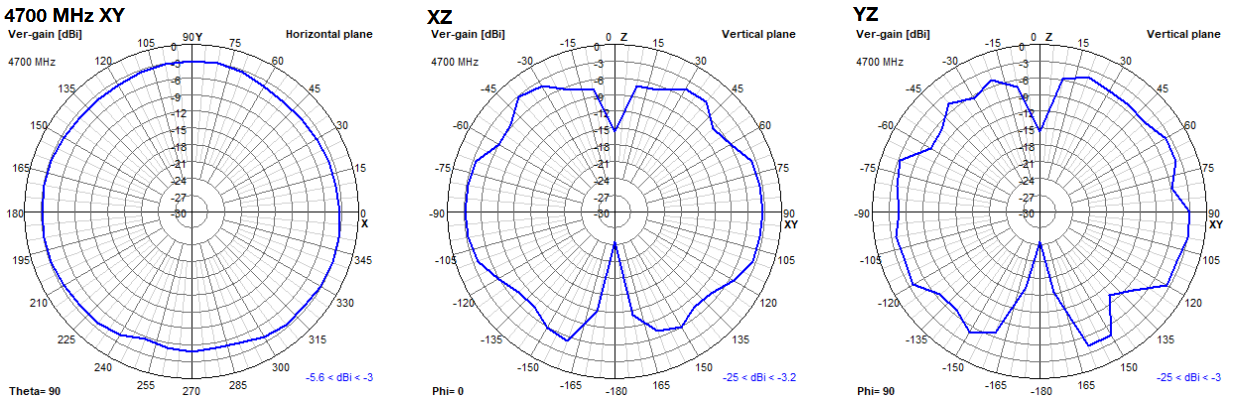

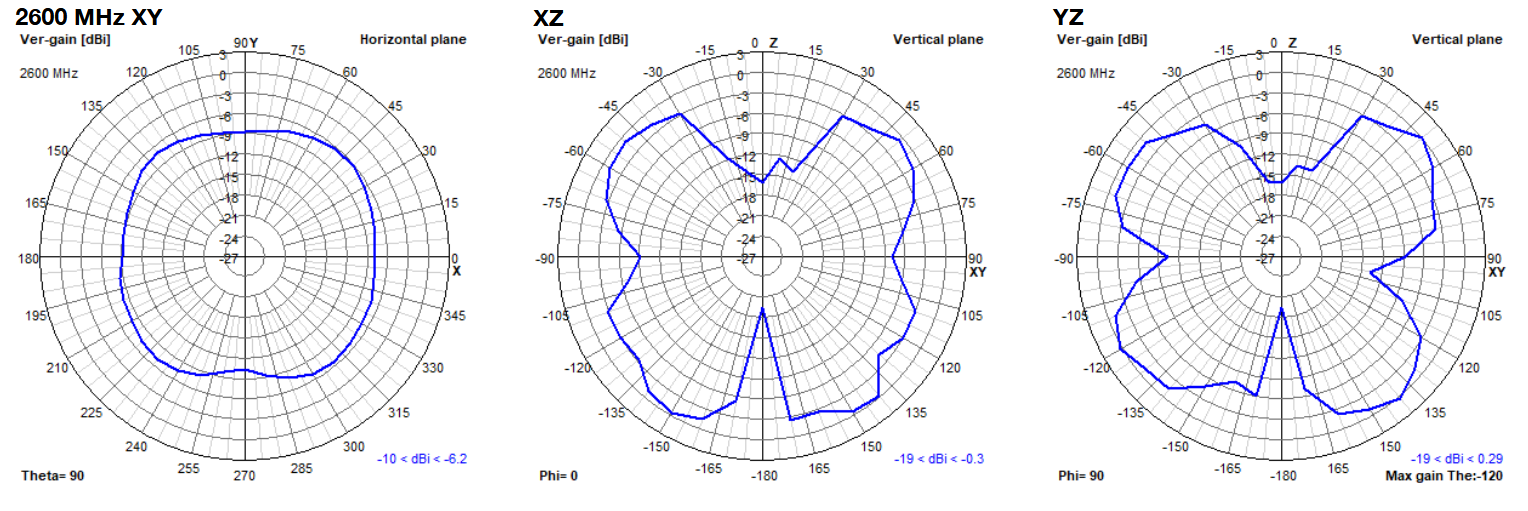

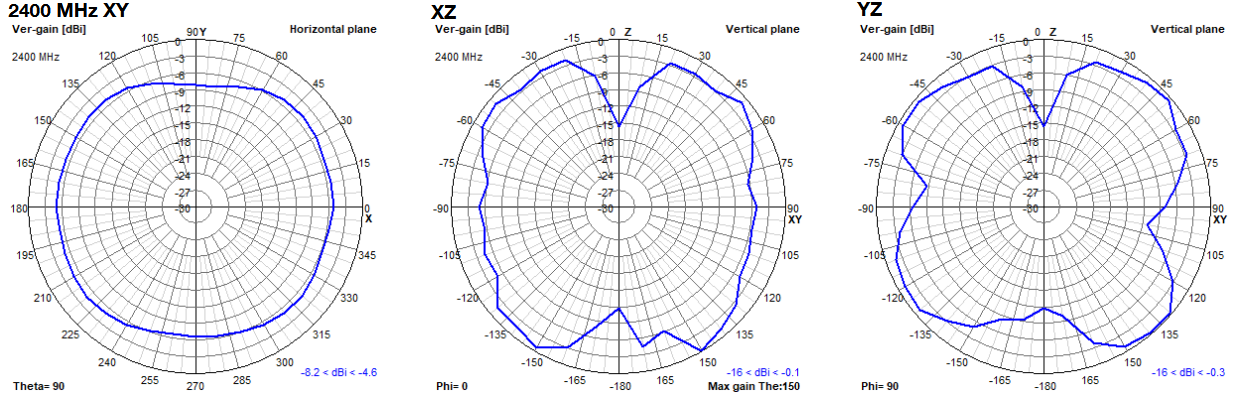

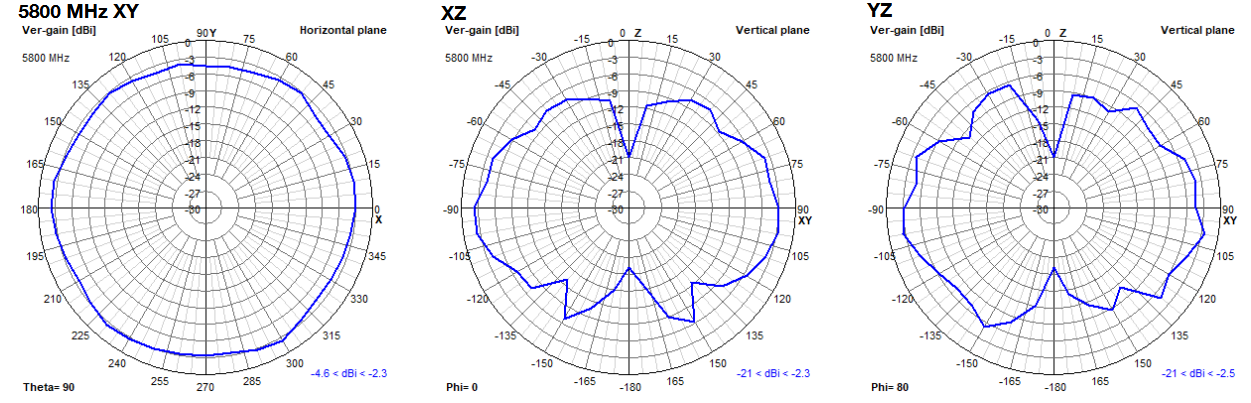

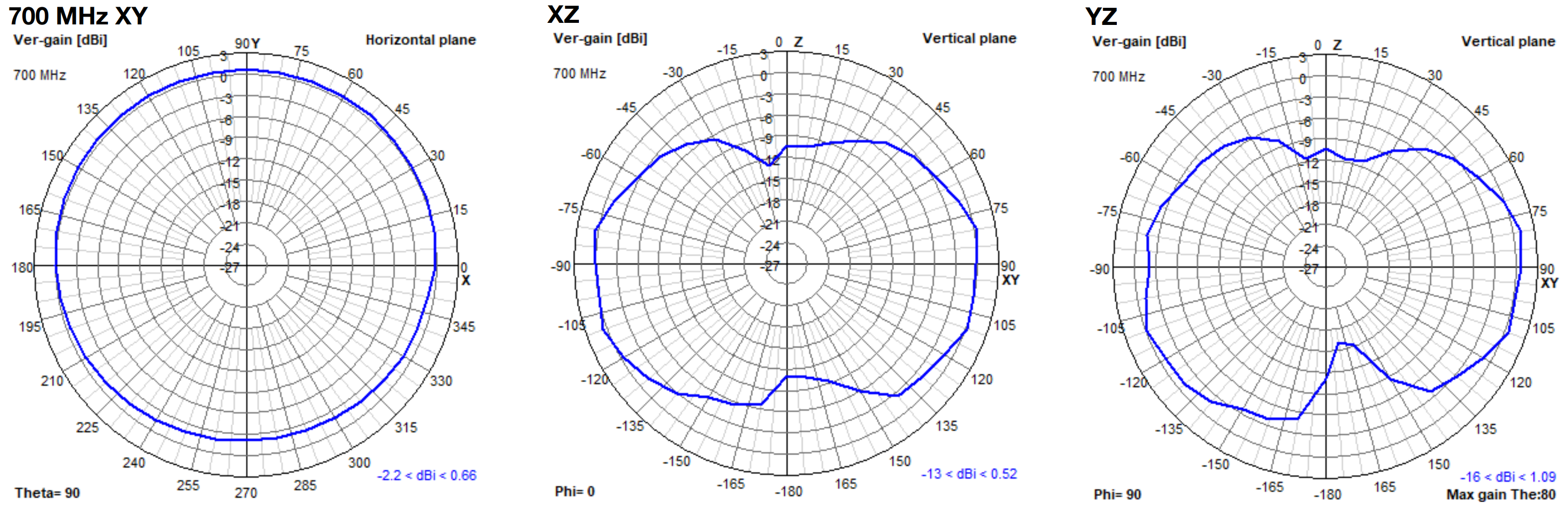

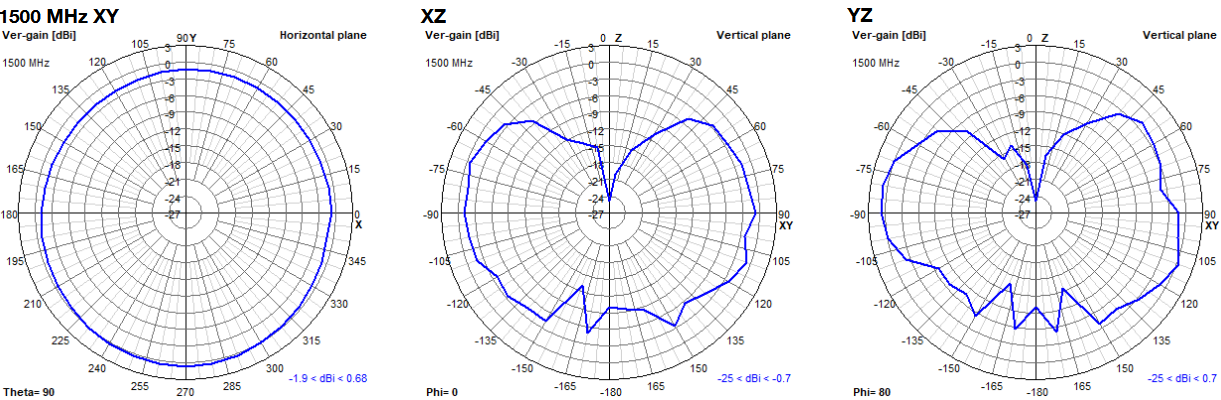

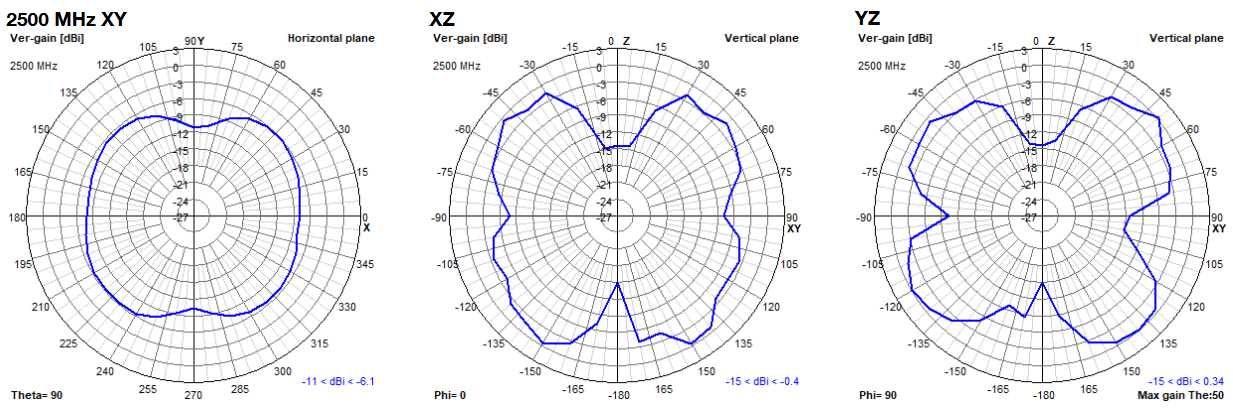

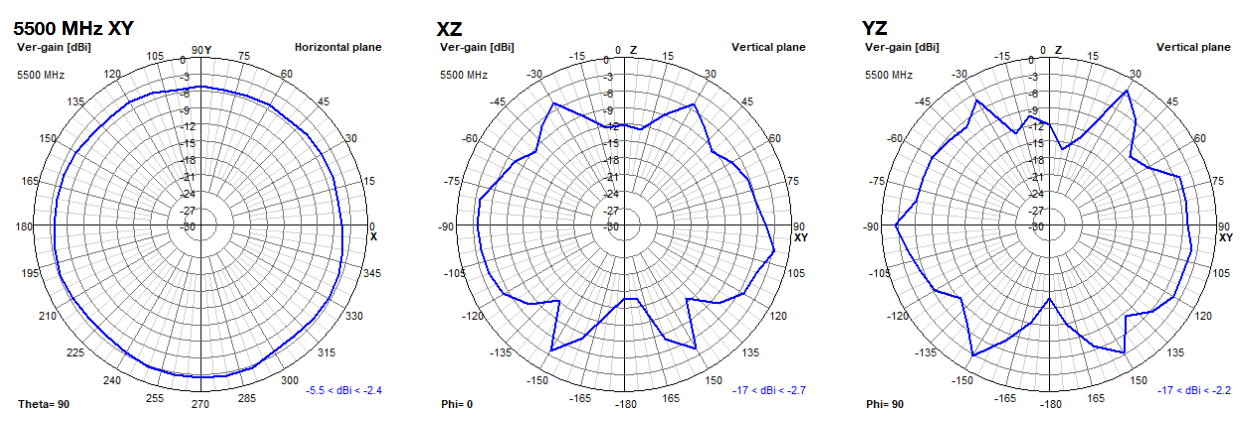

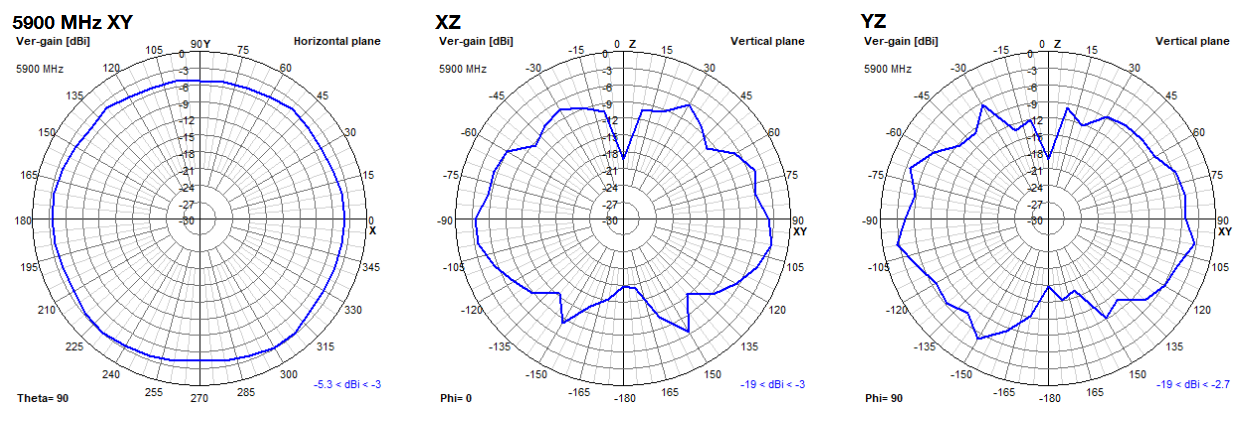

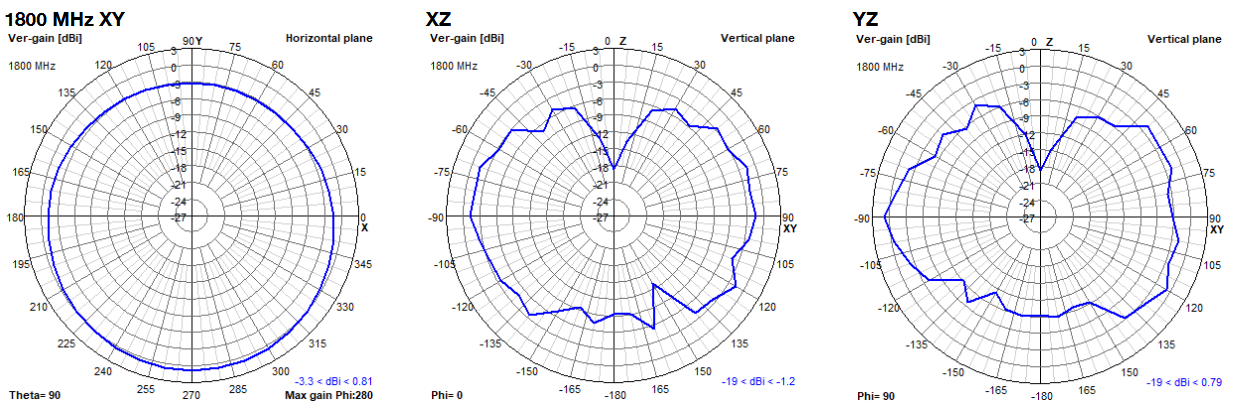

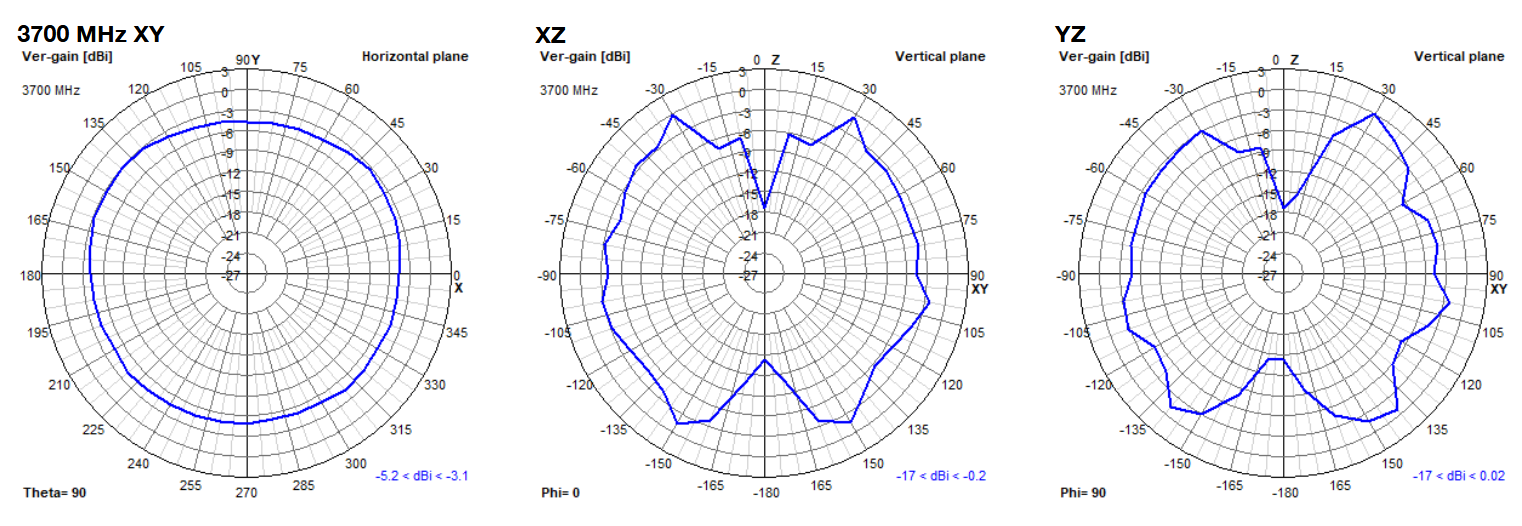

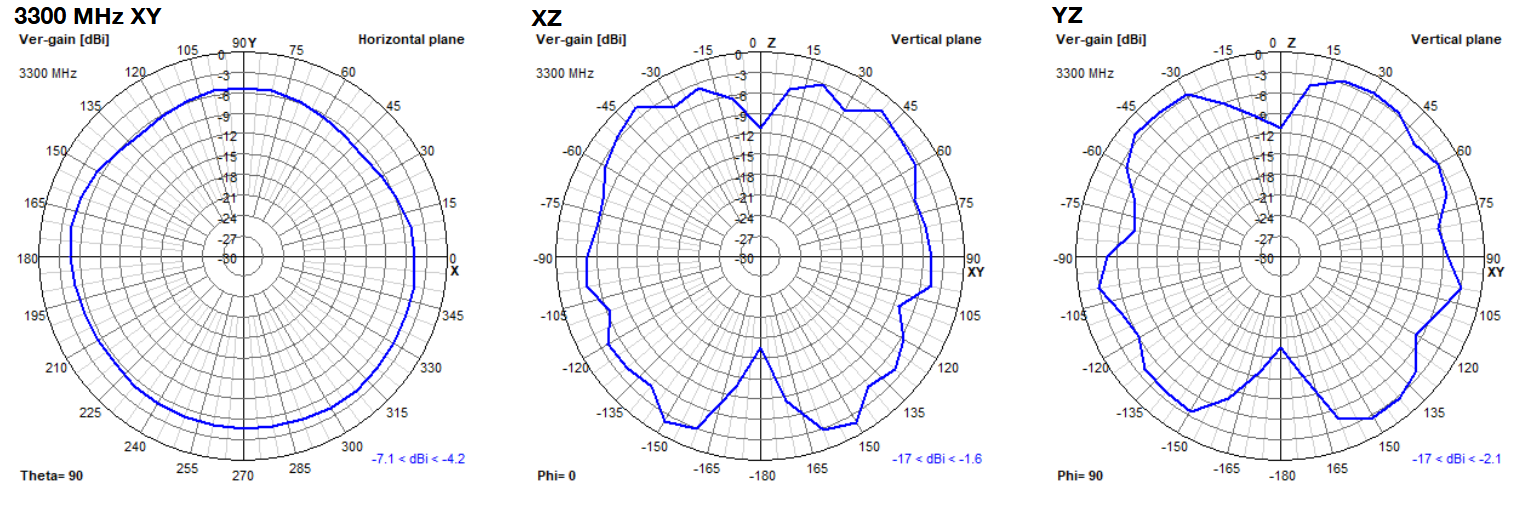

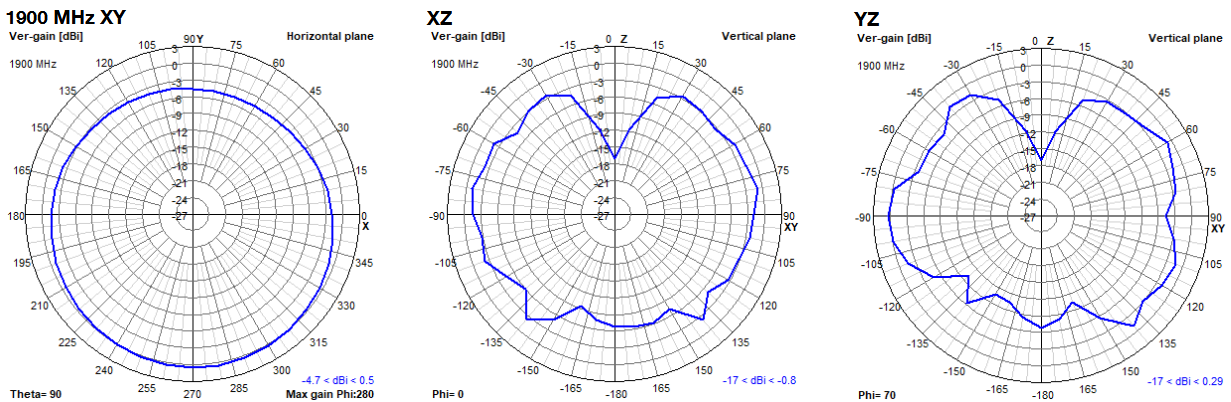

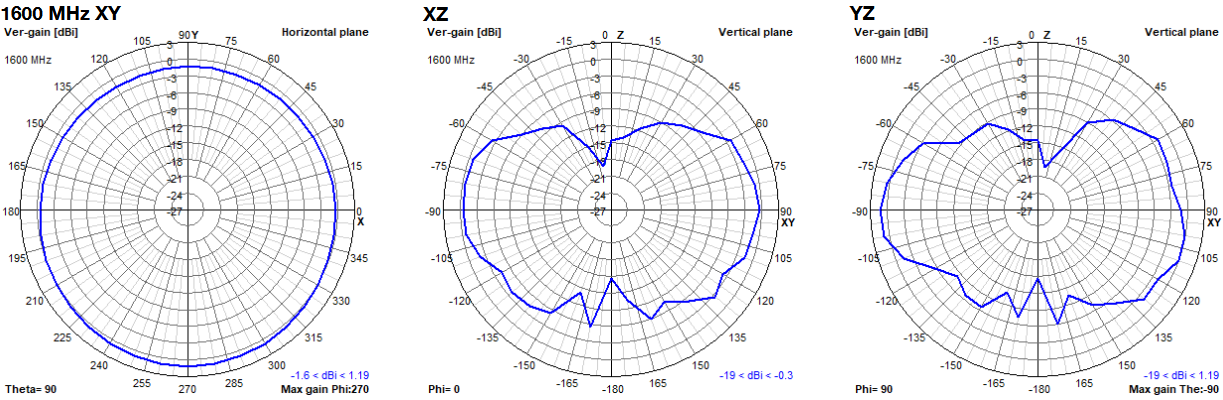

¶ 2D Radiation Plots

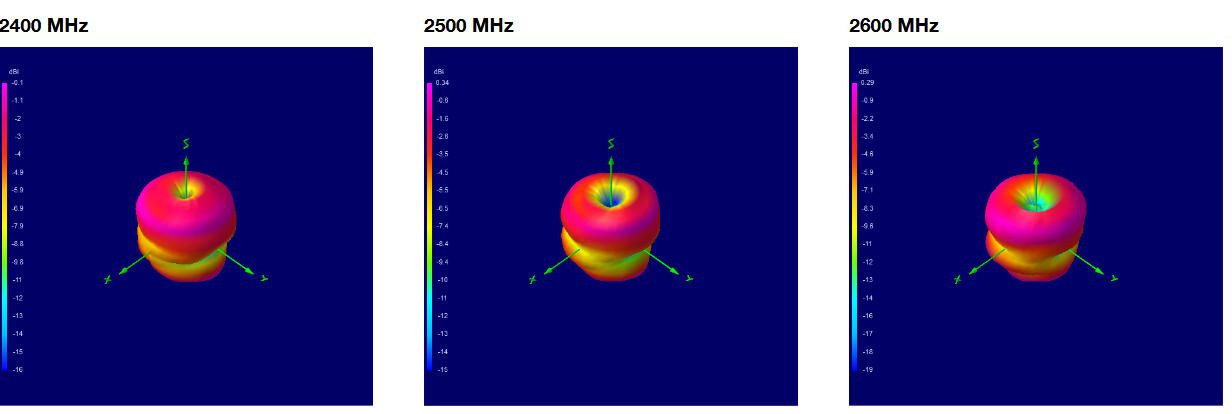

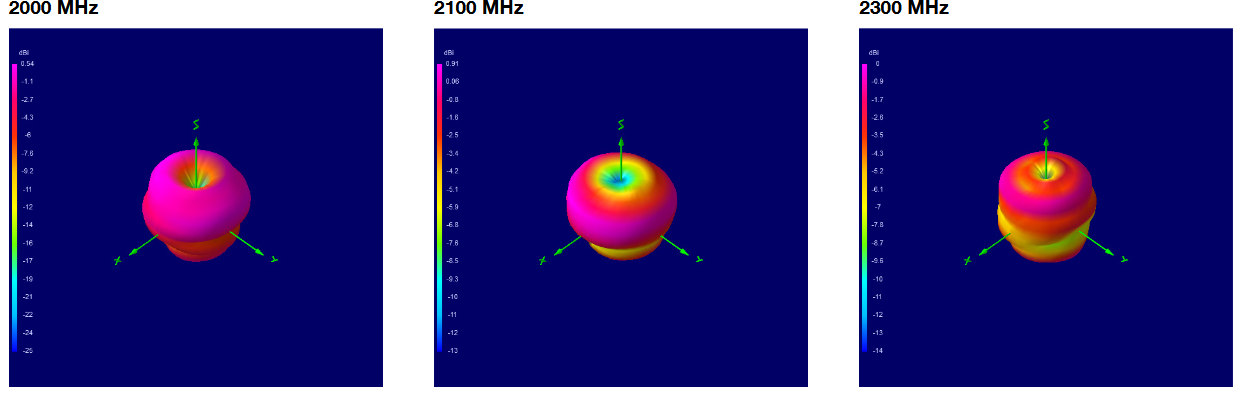

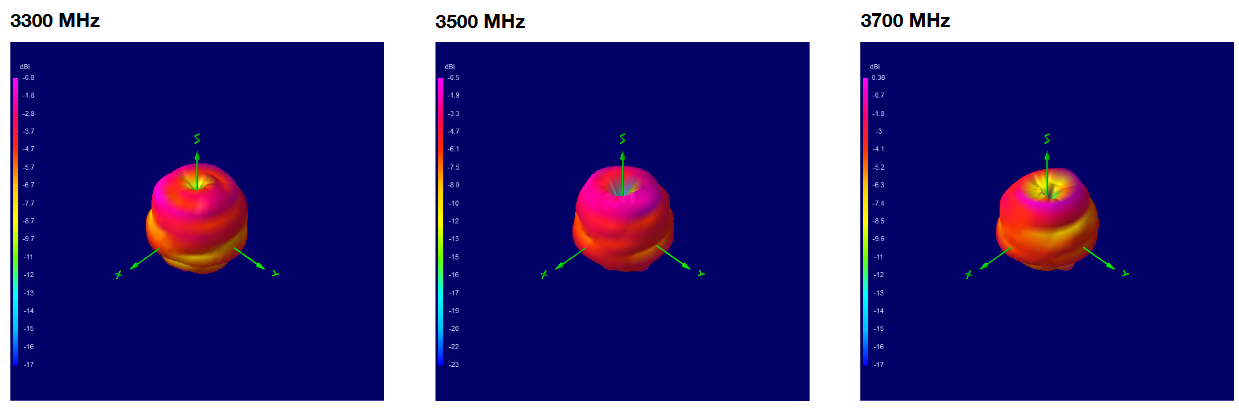

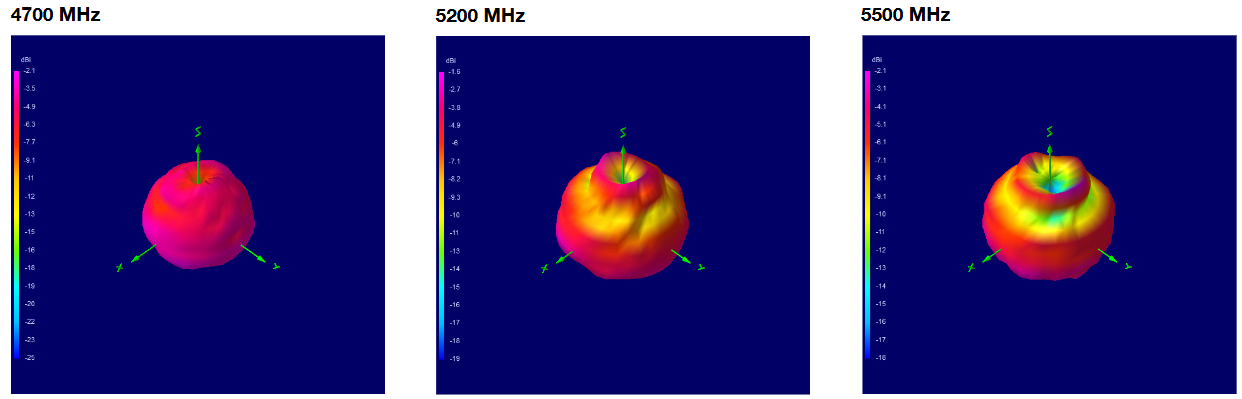

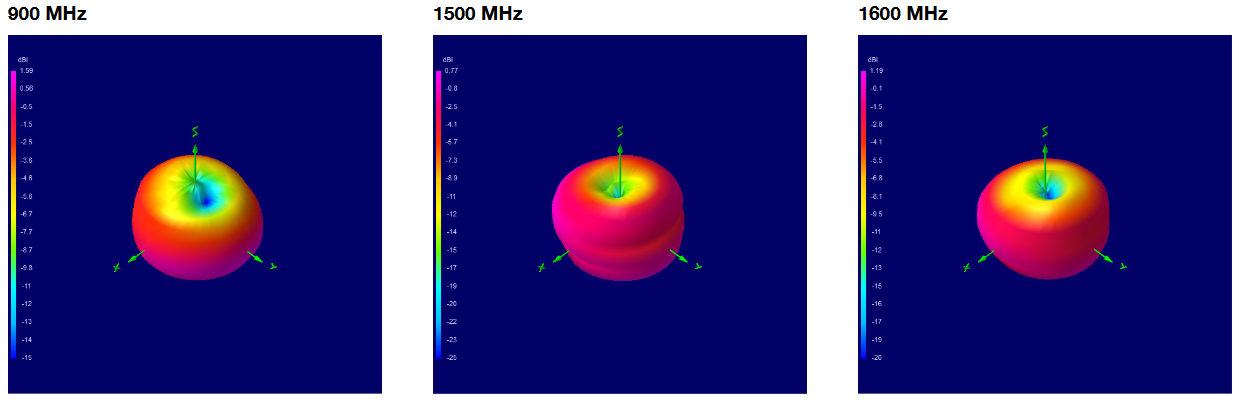

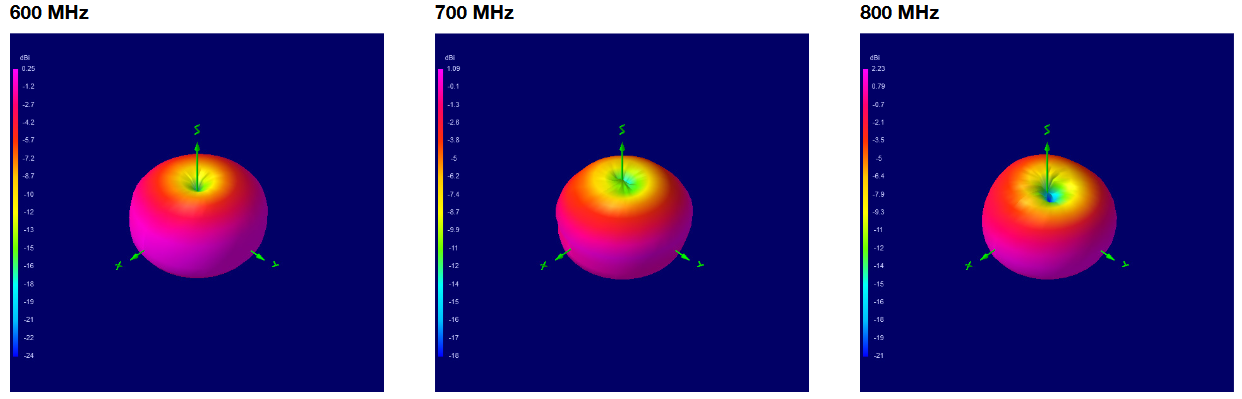

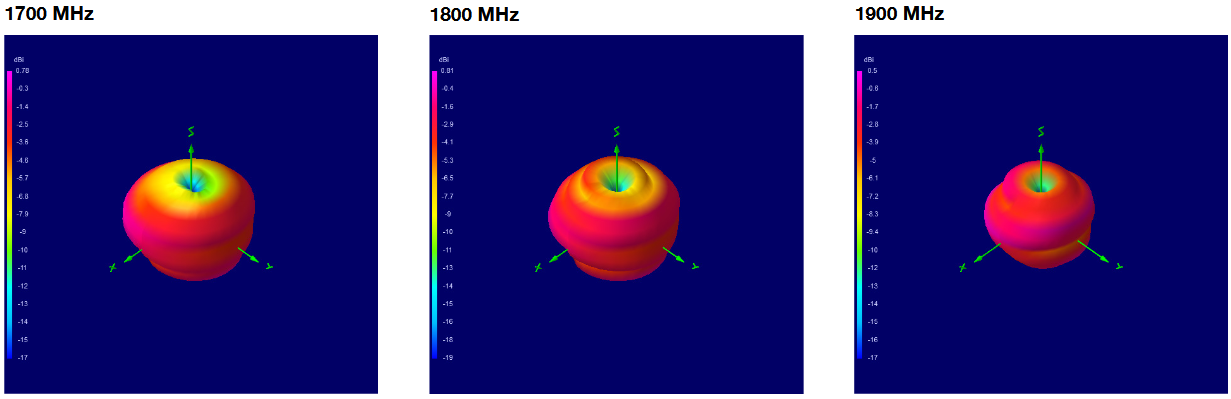

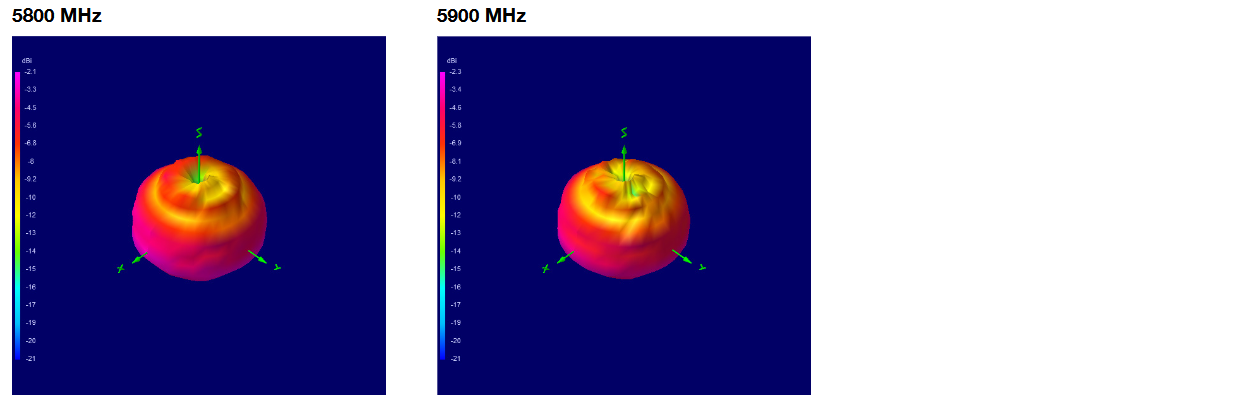

¶ 3D Radiation Plots
¶ Ordering Details
| Part Number | Description |
|---|---|
| OSCAR40/5M/LL/SMAM/S/S/33 |
5G/4G, Dual Band Wi-Fi and ISM Omnidirectional Wall/Pole Mount Antenna SMA Male Connector and 5M Cable |
| OSCAR40/10M/LL/SMAM/S/S/33 |
5G/4G, Dual Band Wi-Fi and ISM Omnidirectional Wall/Pole Mount Antenna SMA Male Connector and 10M Cable |
| OSCAR40/5M/LL/FMEF/S/S/33 |
5G/4G, Dual Band Wi-Fi and ISM Omnidirectional Wall/Pole Mount Antenna FME Female Connector and 5M Cable |
