¶ General Description

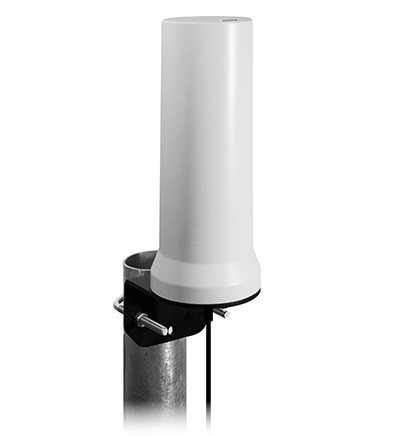

The Oscar 40 Pro antenna is a versatile outdoor antenna solution designed for both 5G and LTE applications across a broad frequency range from 600 MHz to 8000 MHz. With an IP67 rating, it is robustly engineered to withstand harsh environments, making it ideal for both indoor and outdoor installations.
The omnidirectional radiation pattern and peak gain of up to 5 dBi provide reliable coverage and signal strength, supporting cellular, IoT, and other wireless communication applications.
Flexible mounting options (pole or wall) allow optimal placement, and the antenna is available in white or black finishes to fit various installations. This antenna is compatible with multiple cellular and IoT applications, offering connectors including SMA Male or N-type Female.
¶ Key Features
- IP67-rated for outdoor durability
- Supports 5G NR, 4G LTE, 3G UMTS, 2G GSM
- Covers LTE Cat M, NB-IoT, and LoRa bands
- Wide frequency range (600-8000 MHz) with high efficiency (~80-90% avg)
- Omnidirectional with high peak gains of 3-5 dBi
- Suitable for pole or wall mounting, with optional colour finishes (white/black)
- Clamp-mounted option available for poles up to 65 mm
¶ Typical Applications
-
Fixed Wireless Access (FWA) for 4G/5G rural and remote internet
-
IoT and LPWAN for asset tracking, agriculture, and monitoring
-
Industrial automation and M2M in manufacturing, logistics and utilities
-
Smart city infrastructure, lighting, and waste management
-
Building and perimeter security for LTE/5G-connected cameras
600–8000 MHz
Wideband Coverage
|
UV & Water Resistant
Outdoor Radome
|
Cellular
2G–5G Support
|
Wi-Fi / ISM
2.4 GHz & 5 GHz
|
Wall / Pole Mount
Bracket & Clamp
|
Product Features
2G
GSM
3G
UMTS
4G
LTE
5G
NR
BLE
Bluetooth
IEEE
802.15.4
IP
67
ISM
868
ISM
915
ISM
2.4 GHz
LoRa
Wireless
LTE
CAT-M
LTE
NB-IoT
NR
NB-IoT
Omni
directional
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WIFI 6e
802.11ax
WIFI 7
802.11be
Cellular Band Support
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B28A
B29
B30
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B65
B66
B67
B68
B69
B70
B71
B74
B75
B76
B85
B87
B88
B103
5G NR Band Support
n1
n2
n3
n5
n7
n8
n12
n13
n14
n18
n20
n24
n25
n26
n28
n29
n30
n34
n38
n39
n40
n41
n46
n47
n48
n50
n51
n53
n54
n65
n66
n67
n68
n70
n71
n74
n75
n76
n77
n78
n79
n80
n81
n82
n83
n84
n85
n86
n89
n90
n91
n92
n93
n94
n95
n97
n98
n99
n100
n101
n102
n103
n104
n105
n106
n109
n110
¶ Electrical Specifications
| Frequency Range: | 600–8000 MHz |
| Impedance: | 50 Ω |
| Polarisation: | Vertical |
| Gain: | 2–5 dBi |
| Radiation Efficiency: | 80–90% |
| Max Input Power: | 50 W |
| Number of Ports: | 1 |
| Directionality: | Omnidirectional |
| Required Ground Plane: | Free space |
¶ Environmental Specifications
| IP Rating: | IP67 |
| Operating Temperature Range: | -45°C to 75°C |
| Storage Temperature Range: | -50°C to 75°C |

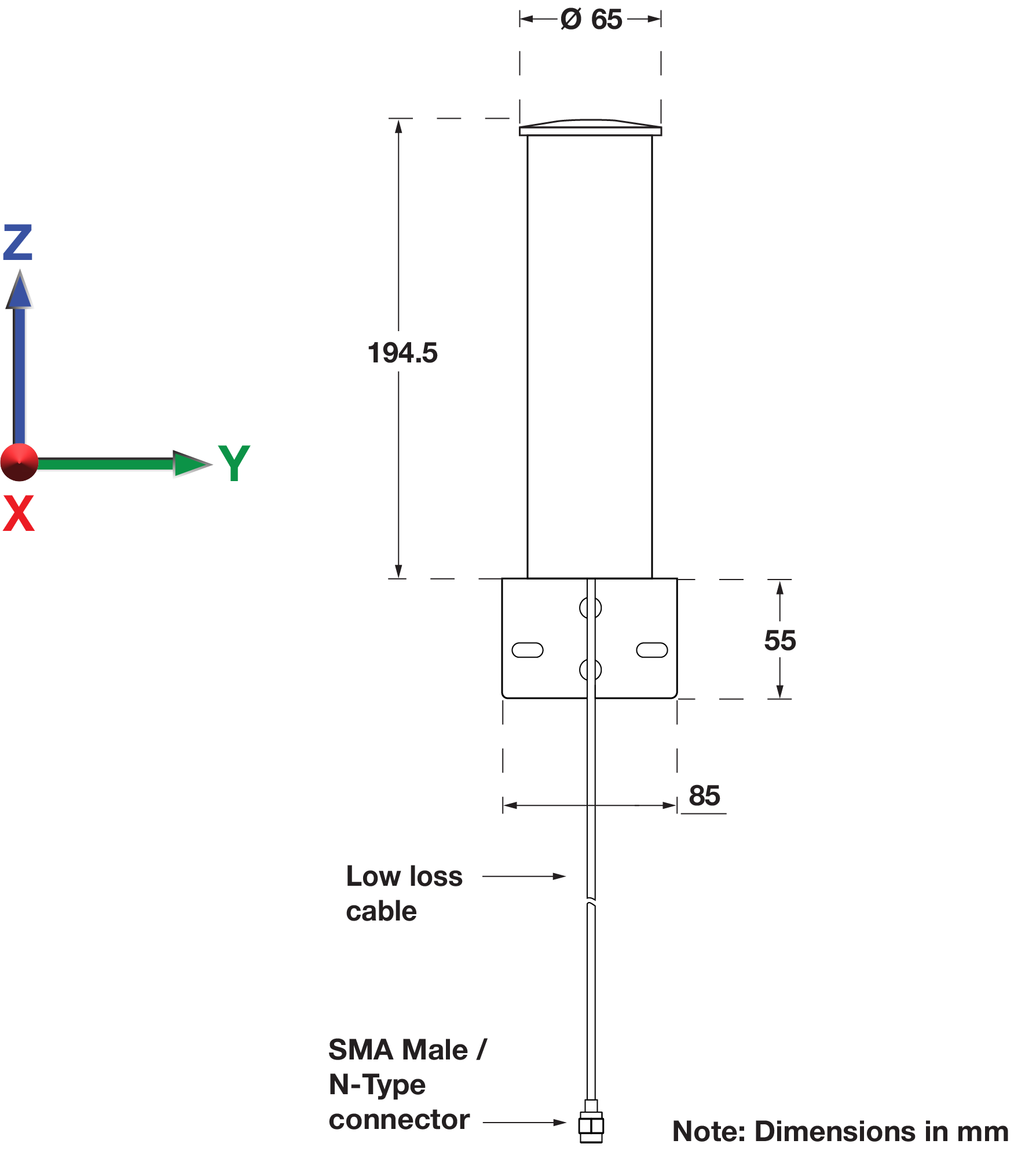

¶ Mechanical Specifications
| Dimensions: | Ø 65 × 194.55 mm |
| Weight: | 0.6 kg |
| Connector: | N-Type Female (without cable) or SMA Male |
| Mounting Method: | Pole or wall mount |
| Cable Length: | 5 m or separate cable options |
| Housing Material: | UV-stabilised ASA |
| Colour Options: | White or black |

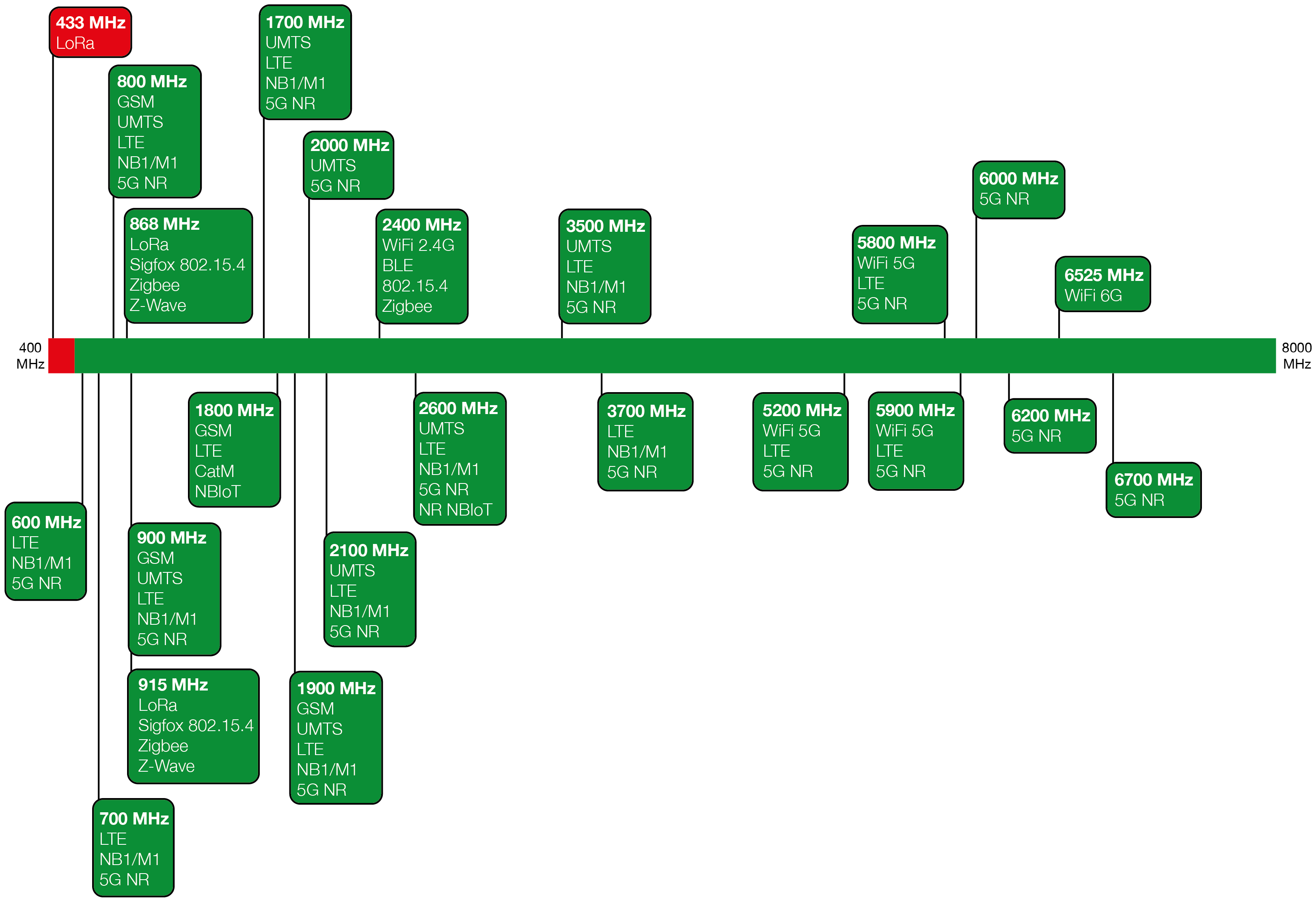

¶ Spectrum Coverage*

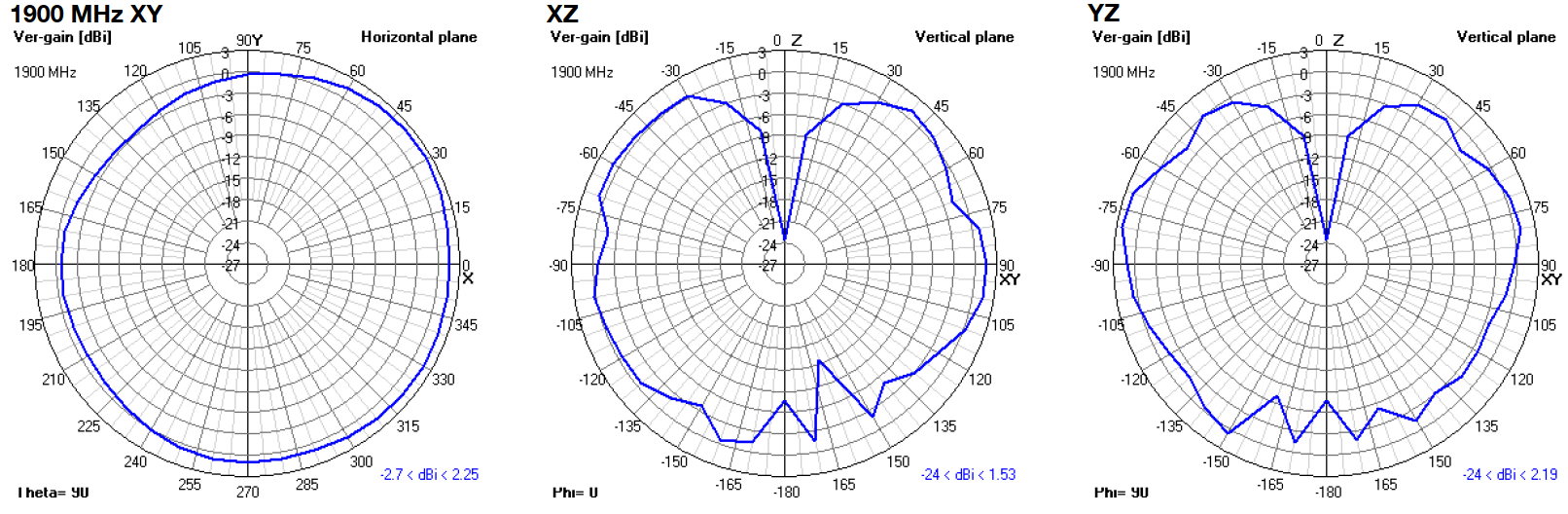

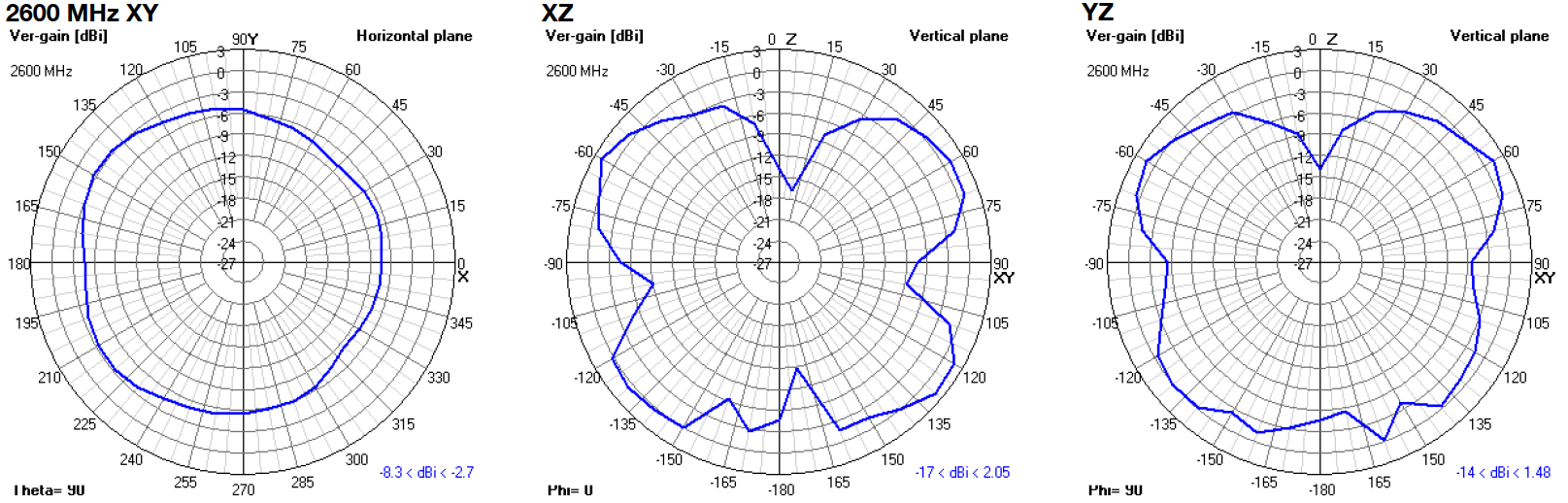

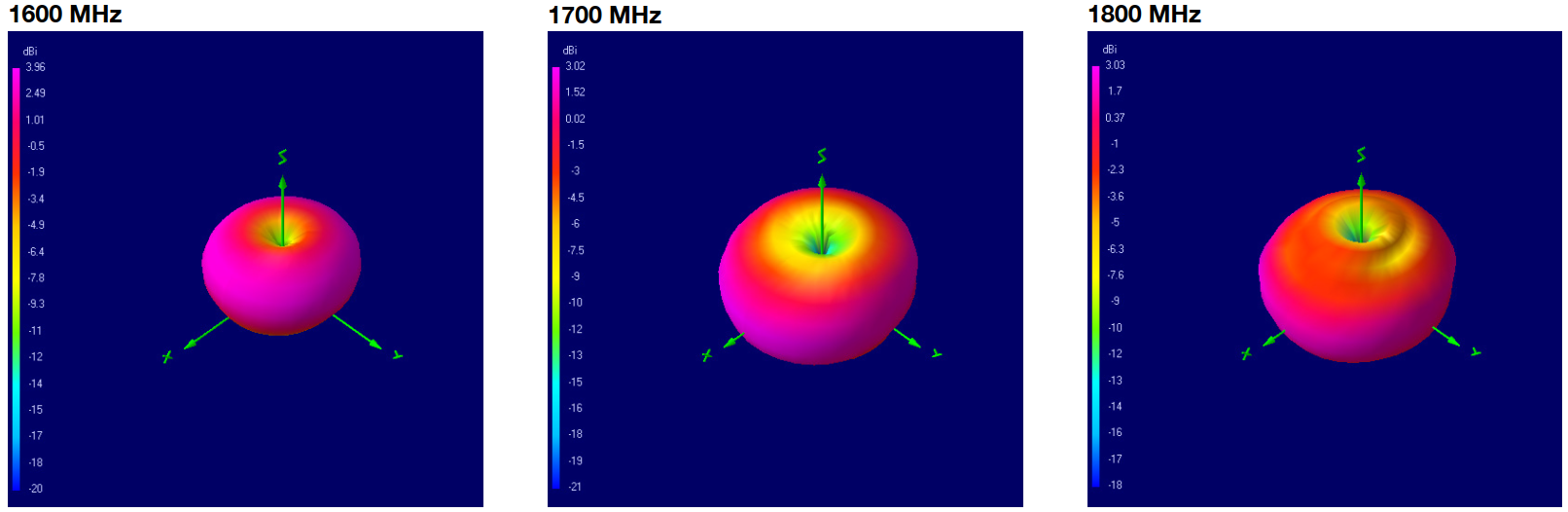

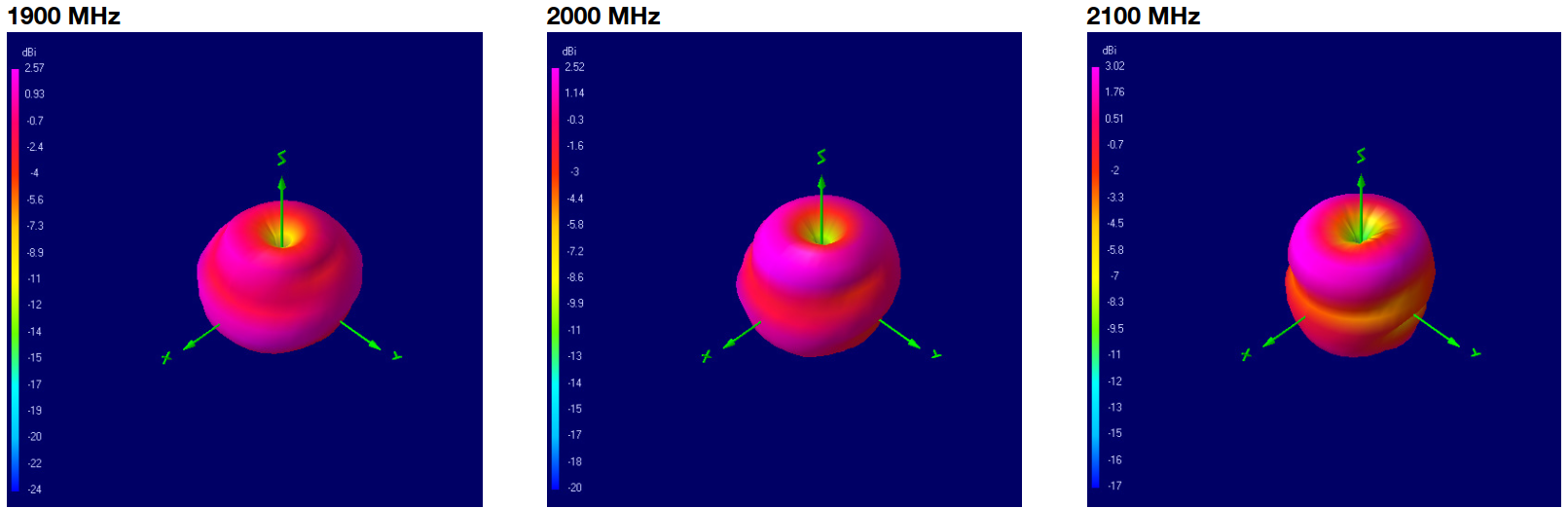

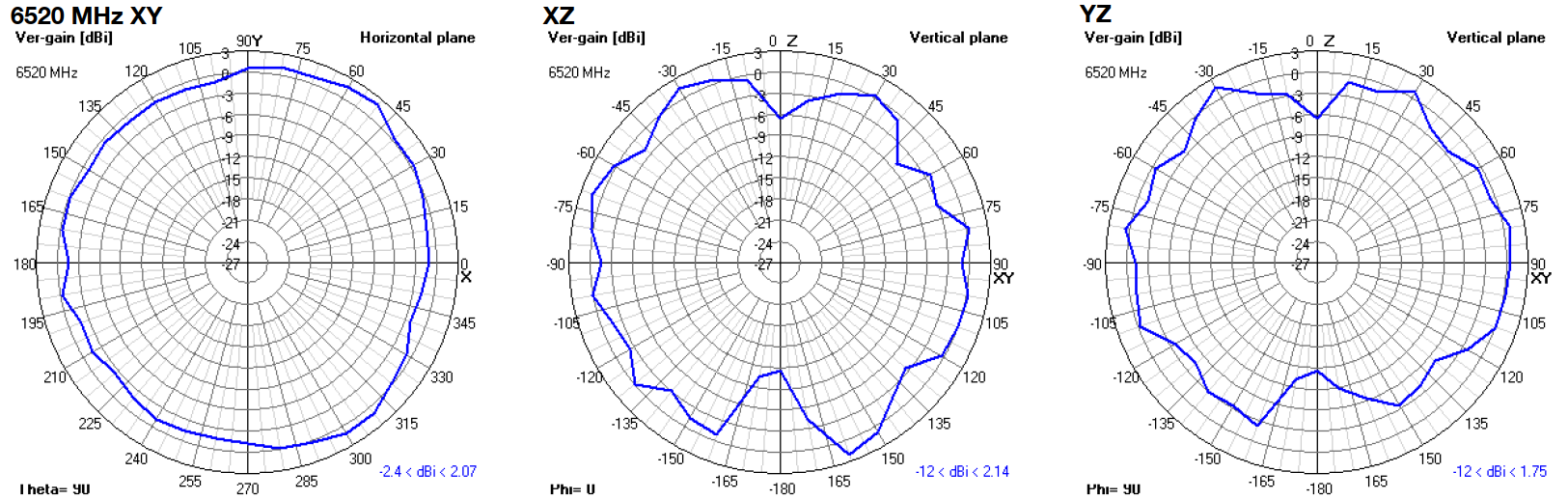

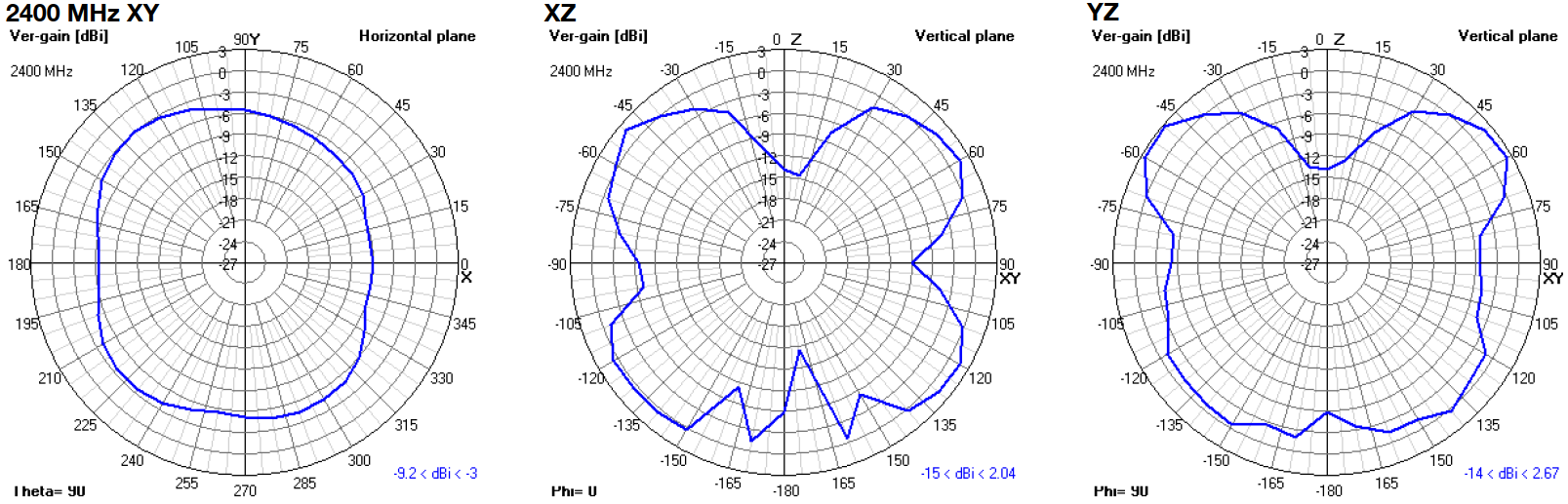

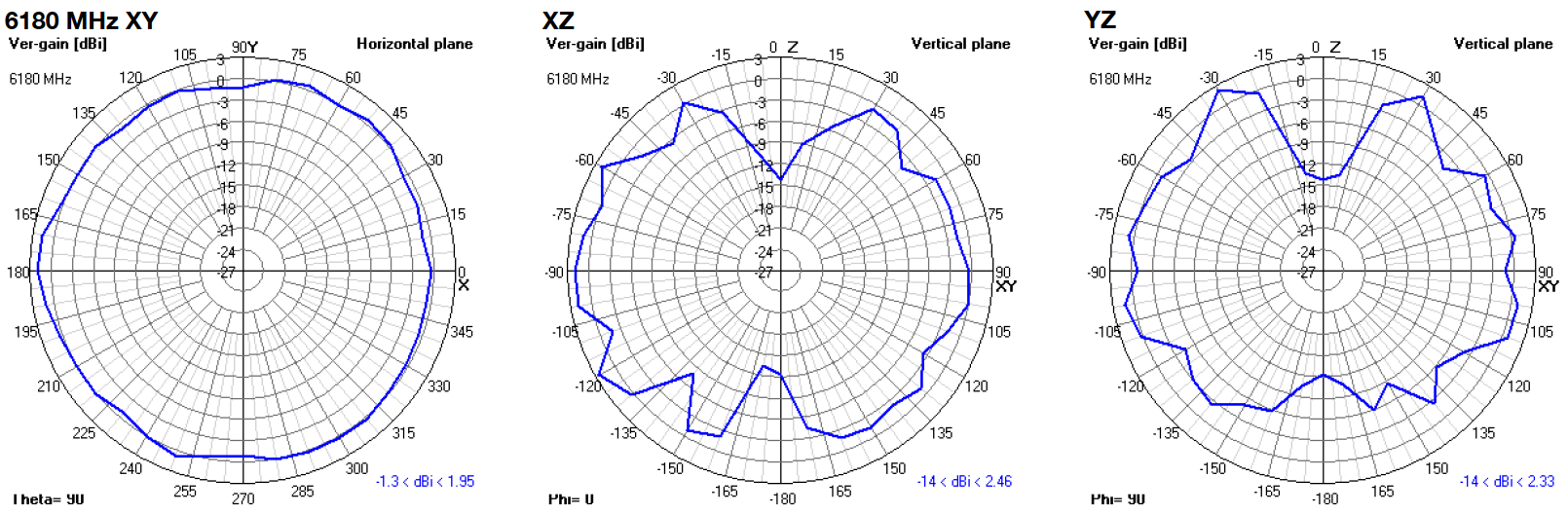

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 8000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency, taking into consideration the VSWR and radiated efficiency of the antenna.
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

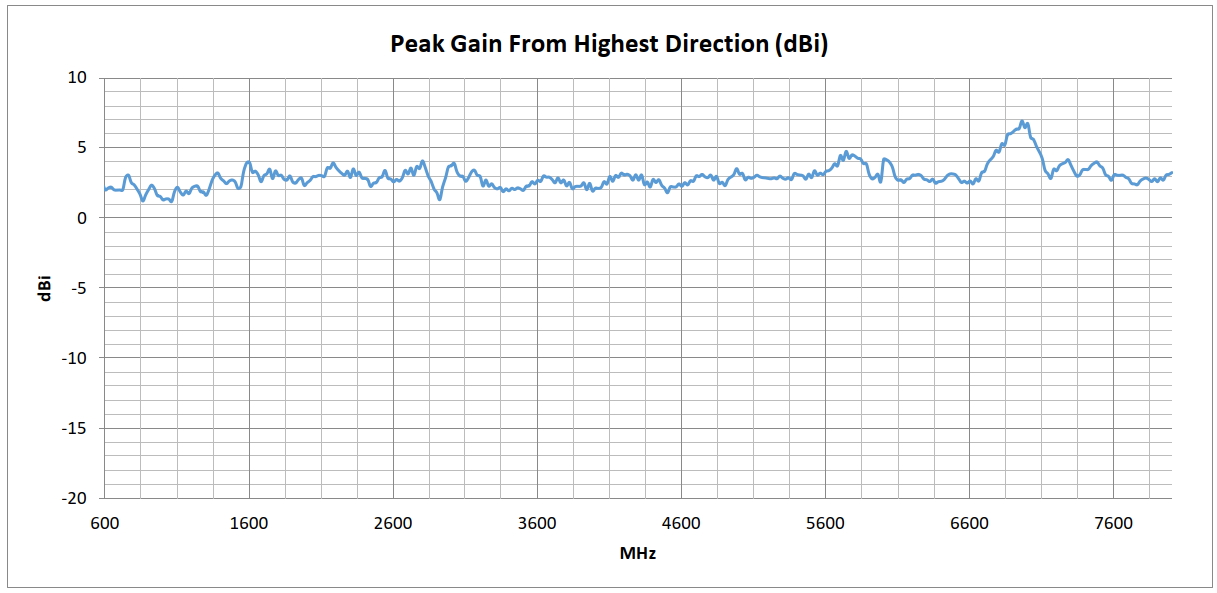

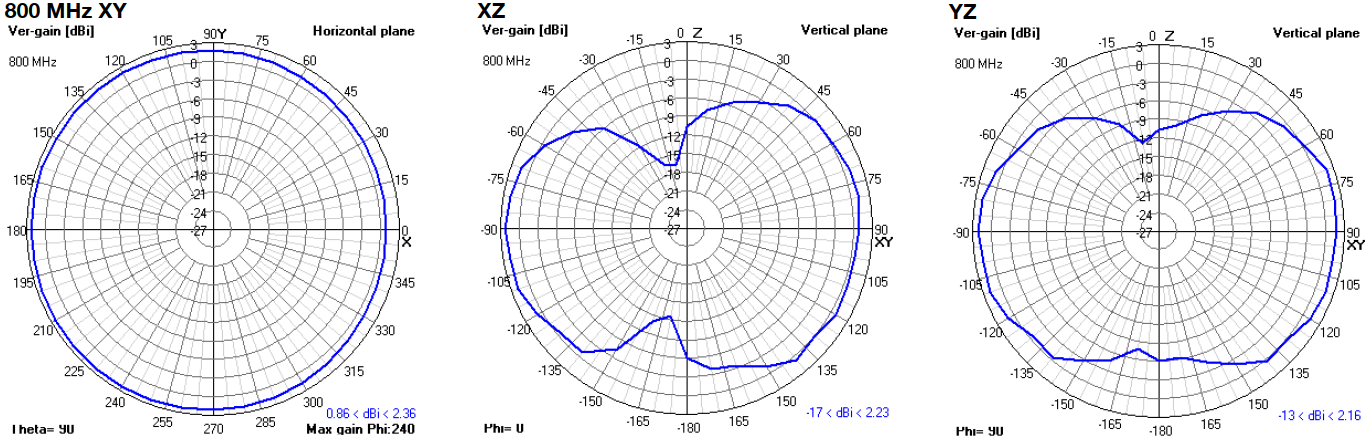

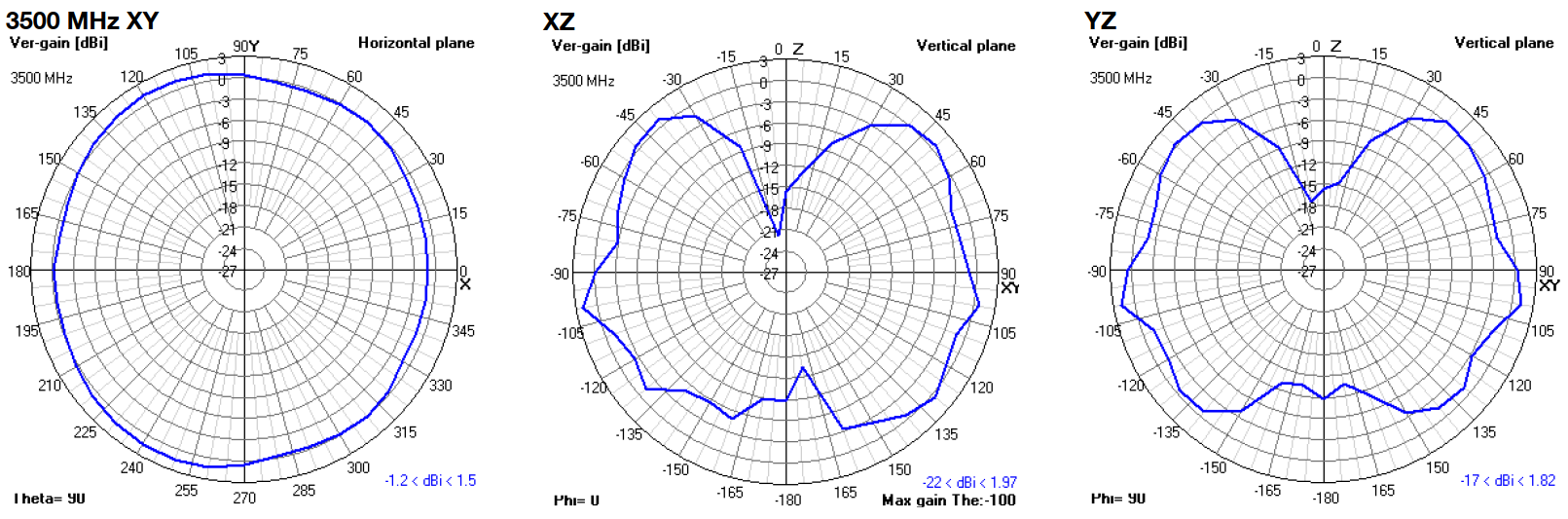

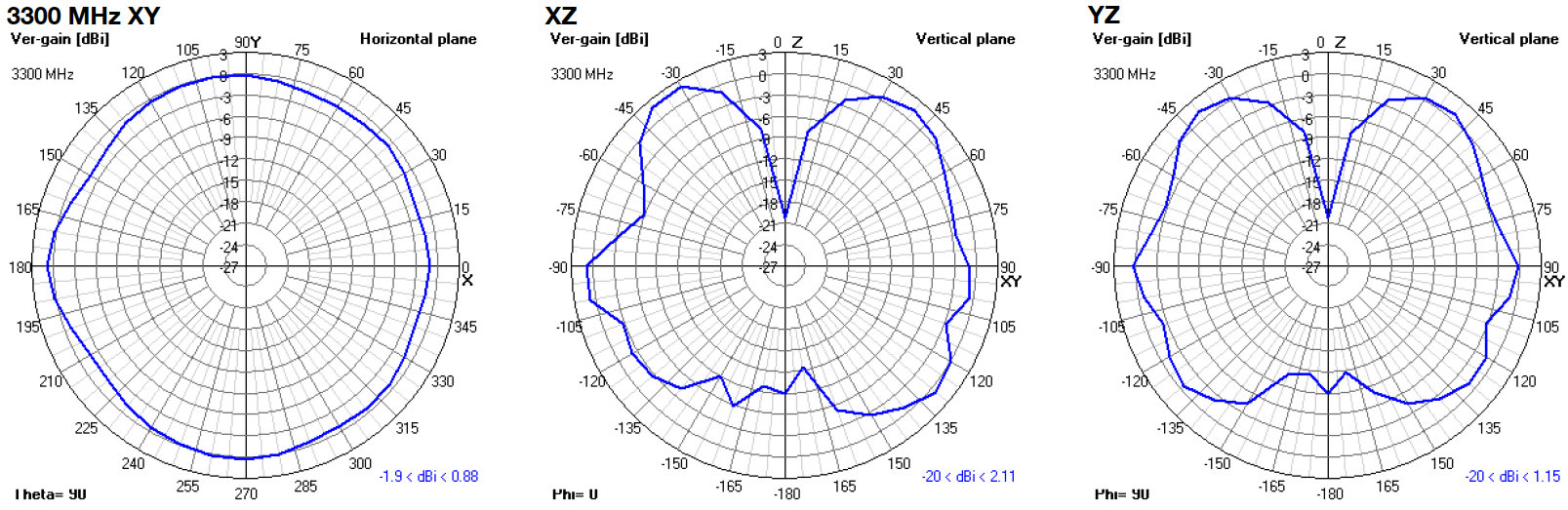

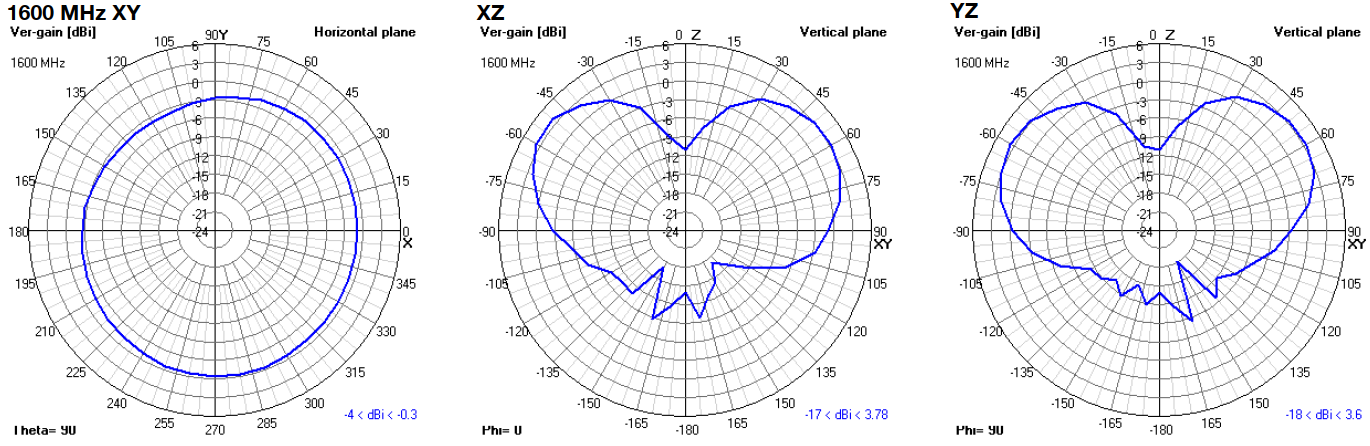

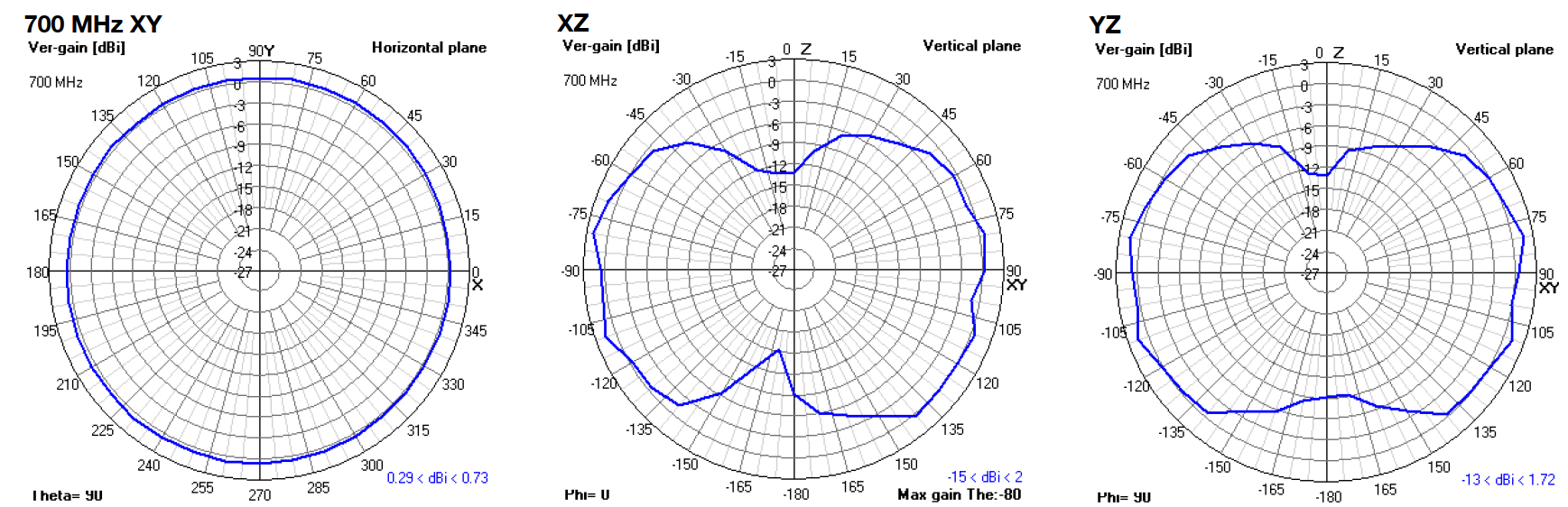

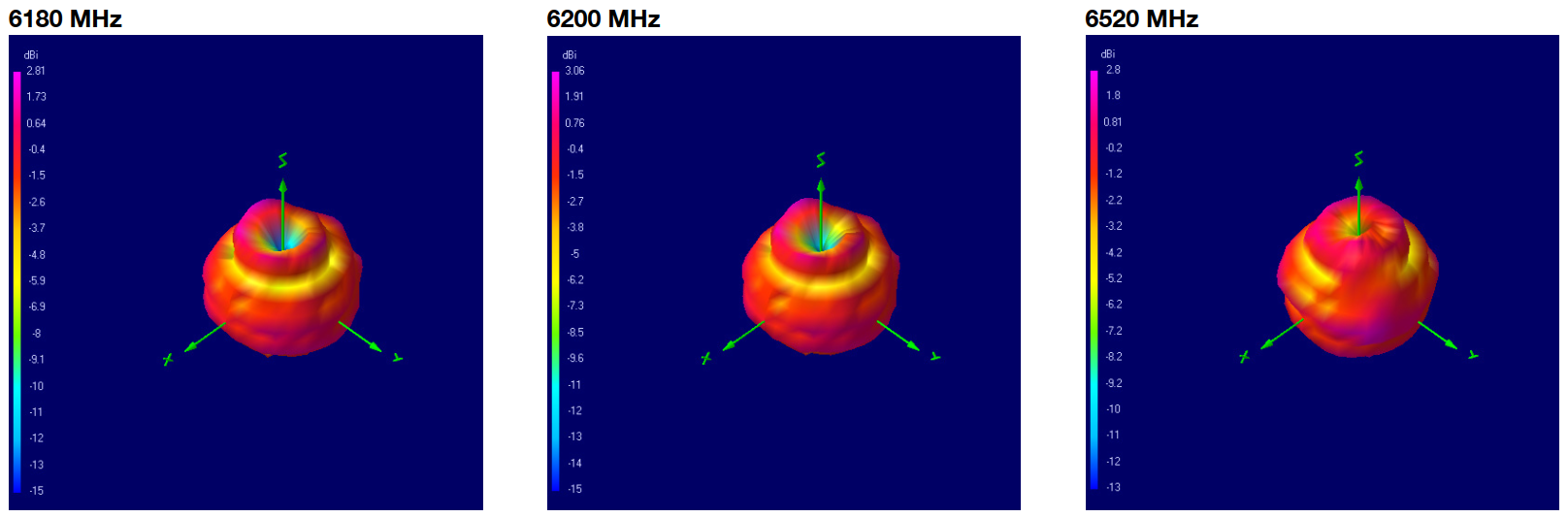

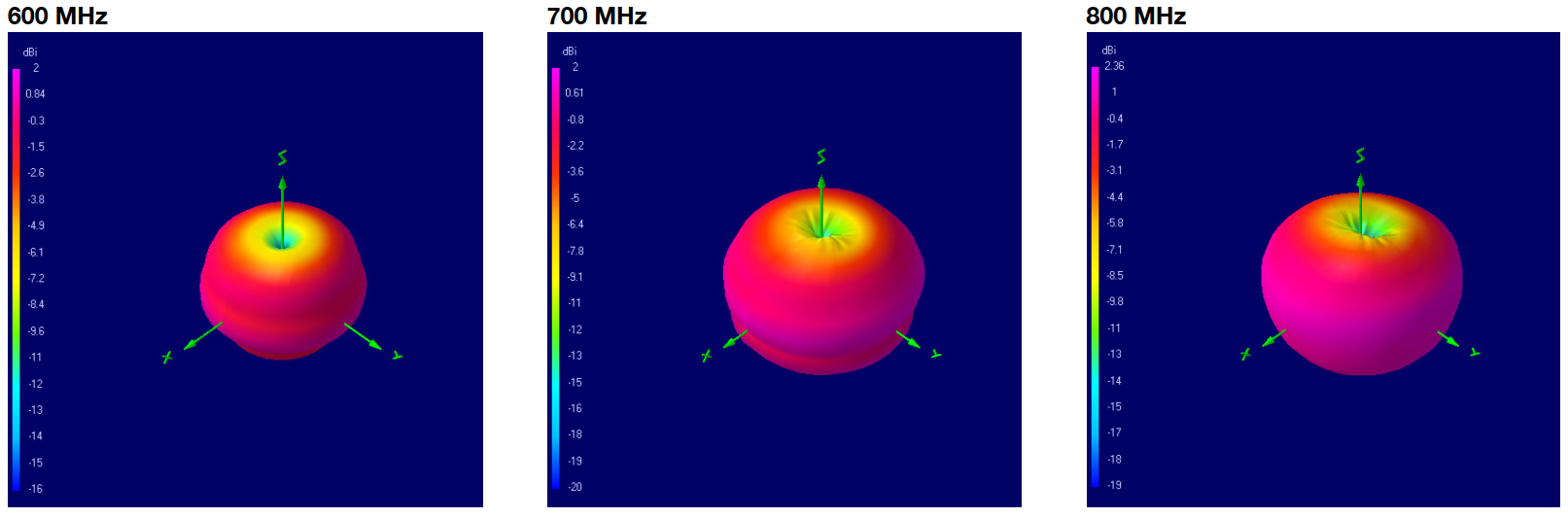

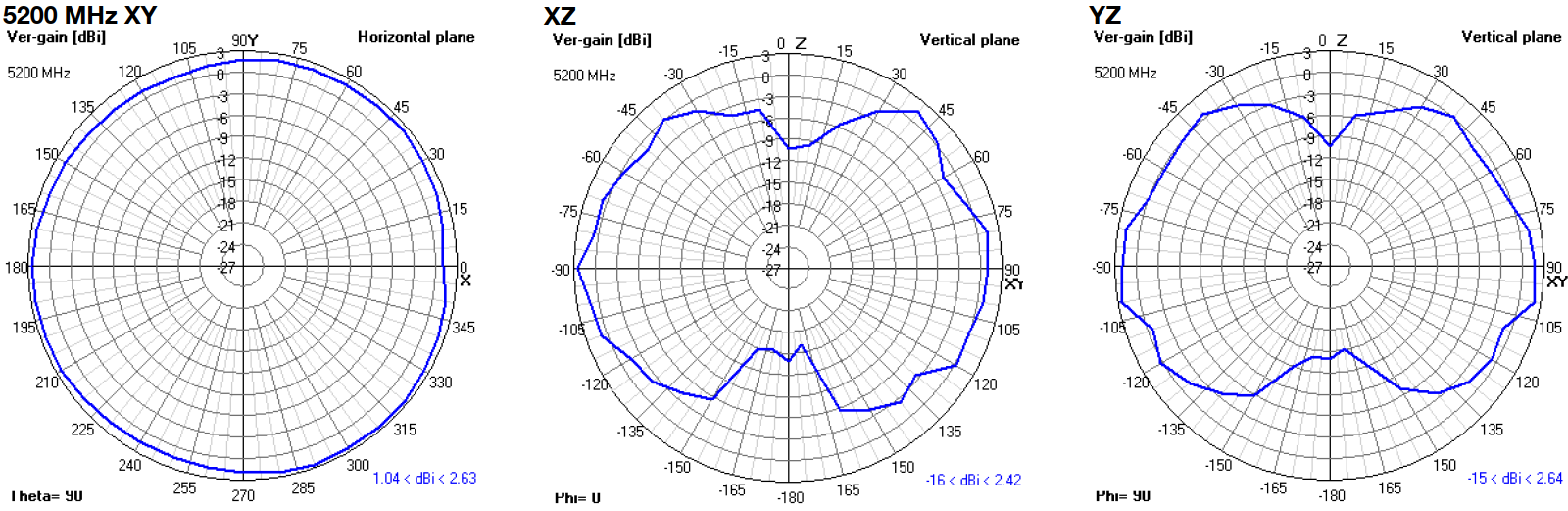

¶ Peak Gain vs. Frequency

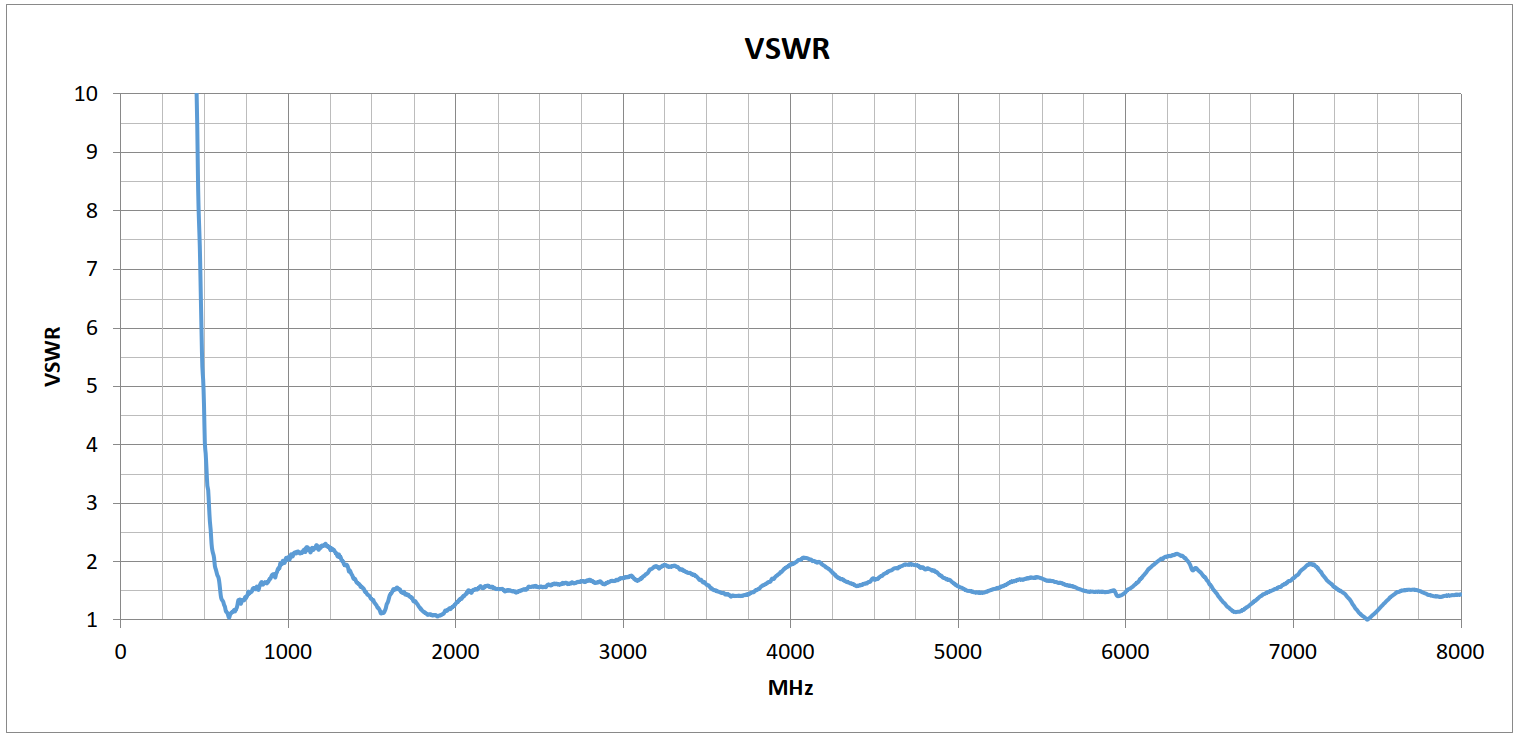

¶ VSWR

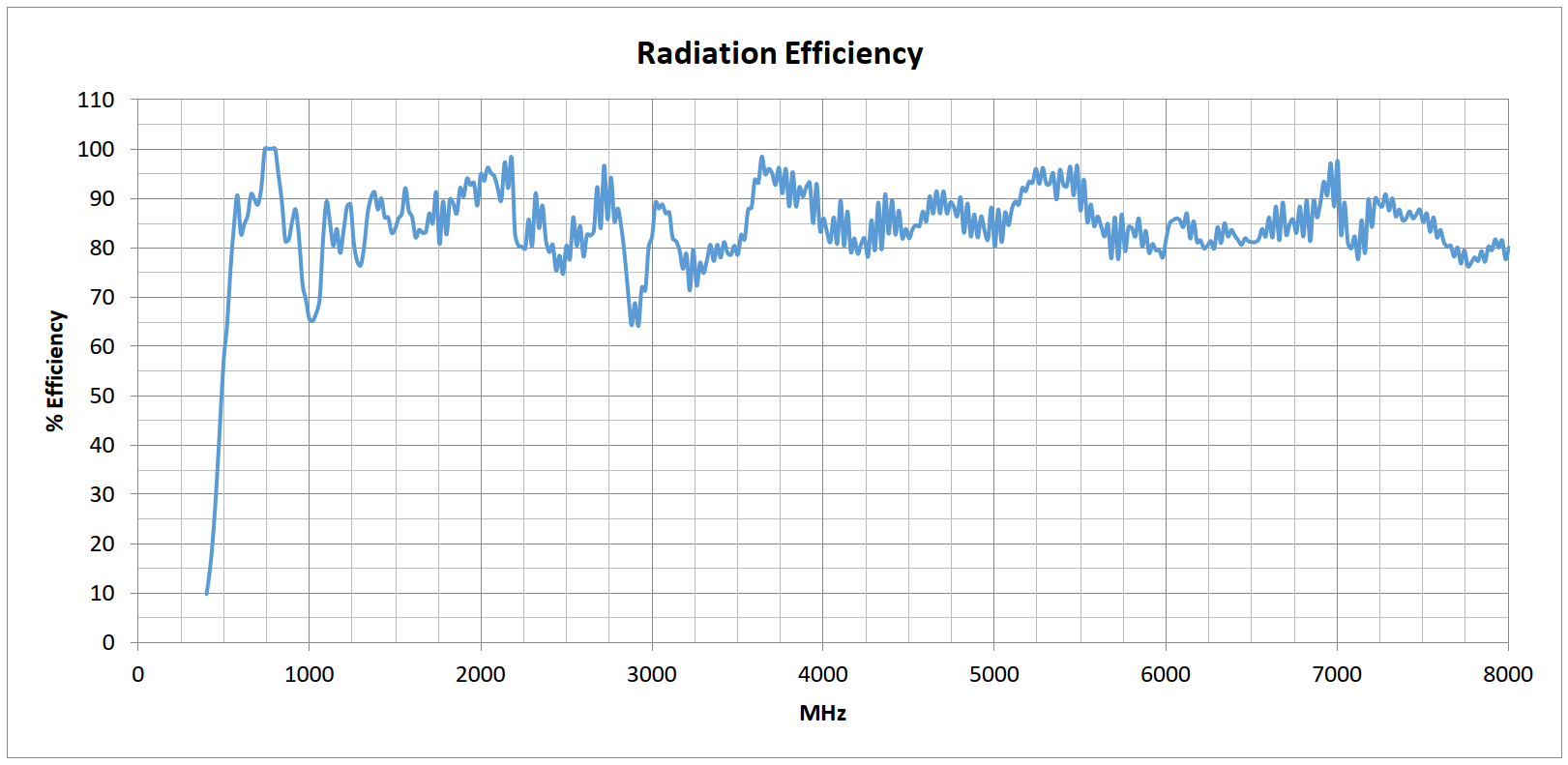

¶ Radiation Efficiency
¶ Cellular Bands*
| GSM (2G) Bands | UMTS (3G) Bands | E-UTRA (4G) Bands | NR (5G) Bands | Uplink (MHz) | Downlink (MHz) | Average Upload Efficiency (%) | Average Download Efficiency (%) | Maximum Upload VSWR | Maximum Download VSWR | Use Indicator |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | n1 | 1920 - 1980 | 2110 - 2170 | 92.34 | 93.30 | 1.22 | 1.58 | ↑ | |
| PCS-1900 | 2 | 2 | n2 | 1850 - 1910 | 1930 - 1990 | 90.00 | 91.75 | 1.10 | 1.24 | ↑ |
| DCS-1800 | 3 | 3 | n3 | 1710 - 1785 | 1805 - 1880 | 86.37 | 88.54 | 1.44 | 1.15 | ↑ |
| 4 | 4 | 1710 - 1755 | 2110 - 2155 | 87.20 | 93.31 | 1.44 | 1.58 | ↑ | ||
| GSM-850 | 5 | 5 | n5 | 824 - 849 | 869 - 894 | 89.90 | 82.33 | 1.65 | 1.70 | ↑ |
| 6 | 830 - 840 | 875 - 885 | 90.50 | 81.87 | 1.63 | 1.66 | ↑ | |||
| 7 | 7 | n7 | 2500 - 2570 | 2620 - 2690 | 81.36 | 85.23 | 1.60 | 1.64 | ↑ | |
| E-GSM-900 | 8 | 8 | n8 | 880 - 915 | 925 - 960 | 84.65 | 80.15 | 1.78 | 1.97 | ↑ |
| 9 | 9 | 1749.9 - 1784.9 | 1844.9 - 1879.9 | 85.04 | 88.69 | 1.32 | 1.10 | ↑ | ||
| 10 | 10 | 1710 - 1770 | 2110 - 2170 | 86.05 | 93.30 | 1.44 | 1.58 | ↑ | ||
| 12 | 12 | n12 | 699 - 716 | 729 - 746 | 90.05 | 98.62 | 1.35 | 1.39 | ↑ | |
| 13 | 13 | n13 | 777 - 787 | 746 - 756 | 100.00 | 100.00 | 1.50 | 1.41 | ↑ | |
| 14 | 14 | n14 | 788 - 798 | 758 - 768 | 100.00 | 100.00 | 1.54 | 1.48 | ↑ | |
| 17 | 704 - 716 | 734 - 746 | 90.49 | 99.41 | 1.35 | 1.39 | ↑ | |||
| 18 | n18 | 815 - 830 | 860 - 875 | 93.93 | 81.42 | 1.57 | 1.64 | ↑ | ||
| 19 | 19 | 830 - 845 | 875 - 890 | 89.71 | 82.25 | 1.65 | 1.69 | ↑ | ||
| 20 | 20 | n20 | 832 - 862 | 791 - 821 | 86.28 | 98.02 | 1.65 | 1.57 | ↑ | |
| 21 | 21 | 1447.9 - 1462.9 | 1495.9 - 1510.9 | 86.05 | 84.16 | 1.54 | 1.36 | ↑ | ||
| 22 | 22 | 3410 - 3490 | 3510 - 3590 | 79.56 | 85.07 | 1.78 | 1.59 | ↑ | ||
| 24 | n24 | 1626.5 - 1660.5 | 1525 - 1559 | 83.18 | 88.10 | 1.55 | 1.26 | ↑ | ||
| 25 | 25 | n25 | 1850 - 1915 | 1930 - 1995 | 90.20 | 91.81 | 1.10 | 1.25 | ↑ | |
| 26 | 26 | n26 | 814 - 849 | 859 - 894 | 91.32 | 82.06 | 1.65 | 1.70 | ↑ | |
| 27 | 807 - 824 | 852 - 869 | 95.83 | 82.07 | 1.57 | 1.64 | ↑ | |||
| 28 | n28 | 703 - 748 | 758 - 803 | 94.79 | 99.97 | 1.39 | 1.54 | ↑ | ||
| 28A | 703 - 733 | 758 - 788 | 92.50 | 100.00 | 1.35 | 1.51 | ↑ | |||
| 29 | n29 | N/A | 717 - 728 | N/A | 93.31 | N/A | 1.33 | ↑ | ||
| 30 | n30 | 2305 - 2315 | 2350 - 2360 | 85.67 | 87.37 | 1.51 | 1.49 | ↑ | ||
| 31 | n31 | 452.5 - 457.5 | 462.5 - 467.5 | 30.26 | 35.96 | 10.56 | 8.90 | ↑ | ||
| 32 | 32 | N/A | 1452 - 1496 | N/A | 84.37 | N/A | 1.53 | ↑ | ||
| 33 | 1900 - 1920 | 1900 - 1920 | 92.17 | 92.17 | 1.09 | 1.09 | ↑ | |||
| 34 | n34 | 2010 - 2025 | 2010 - 2025 | 93.87 | 93.87 | 1.35 | 1.35 | ↑ | ||
| 35 | 1850 - 1910 | 1850 - 1910 | 90.00 | 90.00 | 1.10 | 1.10 | ↑ | |||
| 36 | 1930 - 1990 | 1930 - 1990 | 91.75 | 91.75 | 1.24 | 1.24 | ↑ | |||
| 37 | 1910 - 1930 | 1910 - 1930 | 93.36 | 93.36 | 1.11 | 1.11 | ↑ | |||
| 38 | n38 | 2570 - 2620 | 2570 - 2620 | 81.32 | 81.32 | 1.62 | 1.62 | ↑ | ||
| 39 | n39 | 1880 - 1920 | 1880 - 1920 | 91.69 | 91.69 | 1.09 | 1.09 | ↑ | ||
| 40 | n40 | 2300 - 2400 | 2300 - 2400 | 84.92 | 84.92 | 1.51 | 1.51 | ↑ | ||
| 41 | n41 | 2496 - 2690 | 2496 - 2690 | 82.71 | 82.71 | 1.64 | 1.64 | ↑ | ||
| 42 | 3400 - 3600 | 3400 - 3600 | 82.33 | 82.33 | 1.81 | 1.81 | ↑ | |||
| 43 | 3600 - 3800 | 3600 - 3800 | 94.41 | 94.41 | 1.51 | 1.51 | ↑ | |||
| 44 | 703 - 803 | 703 - 803 | 97.64 | 97.64 | 1.54 | 1.54 | ↑ | |||
| 45 | 1447 - 1467 | 1447 - 1467 | 85.91 | 85.91 | 1.55 | 1.55 | ↑ | |||
| 46 | n46 | 5150 - 5925 | 5150 - 5925 | 88.08 | 88.08 | 1.73 | 1.73 | ↑ | ||
| 47 | n47 | 5855 - 5925 | 5855 - 5925 | 80.87 | 80.87 | 1.51 | 1.51 | ↑ | ||
| 48 | n48 | 3550 - 3700 | 3550 - 3700 | 93.15 | 93.15 | 1.51 | 1.51 | ↑ | ||
| 49 | 3550 - 3700 | 3550 - 3700 | 93.15 | 93.15 | 1.51 | 1.51 | ↑ | |||
| 50 | n50 | 1432 - 1517 | 1432 - 1517 | 84.88 | 84.88 | 1.58 | 1.58 | ↑ | ||
| 51 | n51 | 1427 - 1432 | 1427 - 1432 | 88.12 | 88.12 | 1.61 | 1.61 | ↑ | ||
| 52 | 3300 - 3400 | 3300 - 3400 | 78.44 | 78.44 | 1.93 | 1.93 | ↑ | |||
| 53 | n53 | 2483.5 - 2495 | 2483.5 - 2495 | 77.28 | 77.28 | 1.57 | 1.57 | ↑ | ||
| 54 | n54 | 1670 - 1675 | 1670 - 1675 | 83.10 | 83.10 | 1.52 | 1.52 | ↑ | ||
| 65 | n65 | 1920 - 2010 | 2110 - 2200 | 92.44 | 93.04 | 1.30 | 1.59 | ↑ | ||
| 66 | n66 | 1710 - 1780 | 2110 - 2200 | 86.22 | 93.04 | 1.44 | 1.59 | ↑ | ||
| 67 | n67 | N/A | 738 - 758 | N/A | 99.96 | N/A | 1.42 | ↑ | ||
| 68 | 698 - 728 | 753 - 783 | 91.26 | 100.00 | 1.35 | 1.48 | ↑ | |||
| 69 | N/A | 2570 - 2620 | N/A | 81.32 | N/A | 1.62 | ↑ | |||
| 70 | n70 | 1695 - 1710 | 1995 - 2020 | 86.41 | 94.16 | 1.47 | 1.34 | ↑ | ||
| 71 | n71 | 663 - 698 | 617 - 652 | 89.72 | 86.27 | 1.24 | 1.29 | ↑ | ||
| 72 | n72 | 451 - 456 | 461 - 466 | 29.47 | 35.04 | 10.82 | 9.20 | ↓ | ||
| 73 | 450 - 455 | 460 - 465 | 28.95 | 34.42 | 10.98 | 9.41 | ↓ | |||
| 74 | n74 | 1427 - 1470 | 1475 - 1518 | 86.30 | 83.94 | 1.61 | 1.43 | ↑ | ||
| 75 | n75 | N/A | 1432 - 1517 | N/A | 84.88 | N/A | 1.58 | ↑ | ||
| 76 | n76 | N/A | 1427 - 1432 | N/A | 88.12 | N/A | 1.61 | ↑ | ||
| n77 | 3300 - 4200 | 3300 - 4200 | 86.47 | 86.47 | 2.07 | 2.07 | ↑ | |||
| n78 | 3300 - 3800 | 3300 - 3800 | 86.39 | 86.39 | 1.93 | 1.93 | ↑ | |||
| n79 | 4400 - 5000 | 4400 - 5000 | 85.92 | 85.92 | 1.95 | 1.95 | ↑ | |||
| n80 | 1710 - 1785 | N/A | 86.37 | N/A | 1.44 | N/A | ↑ | |||
| n81 | 880 - 915 | N/A | 84.65 | N/A | 1.78 | N/A | ↑ | |||
| n82 | 832 - 862 | N/A | 86.28 | N/A | 1.65 | N/A | ↑ | |||
| n83 | 703 - 748 | N/A | 94.79 | N/A | 1.39 | N/A | ↑ | |||
| n84 | 1920 - 1980 | N/A | 92.34 | N/A | 1.22 | N/A | ↑ | |||
| 85 | n85 | 698 - 716 | 728 - 746 | 89.98 | 98.45 | 1.35 | 1.39 | ↑ | ||
| n86 | 1710 - 1780 | N/A | 86.22 | N/A | 1.44 | N/A | ↑ | |||
| 87 | 410 - 415 | 420 - 425 | 12.90 | 15.74 | 21.00 | 17.21 | ↓ | |||
| 88 | 412 - 417 | 422 - 427 | 13.40 | 16.50 | 20.06 | 16.56 | ↓ | |||
| n89 | 824 - 849 | N/A | 89.90 | N/A | 1.65 | N/A | ↑ | |||
| n90 | 2496 - 2690 | 2496 - 2690 | 82.71 | 82.71 | 1.64 | 1.64 | ↑ | |||
| n91 | 832 - 862 | 1427 - 1432 | 86.28 | 88.12 | 1.65 | 1.61 | ↑ | |||
| n92 | 832 - 862 | 1432 - 1517 | 86.28 | 84.88 | 1.65 | 1.58 | ↑ | |||
| n93 | 880 - 915 | 1427 - 1432 | 84.65 | 88.12 | 1.78 | 1.61 | ↑ | |||
| n94 | 880 - 915 | 1432 - 1517 | 84.65 | 84.88 | 1.78 | 1.58 | ↑ | |||
| n95 | 2010 - 2025 | N/A | 93.87 | N/A | 1.35 | N/A | ↑ | |||
| n96 | 5925 - 7125 | 5925 - 7125 | 84.44 | 84.44 | 2.13 | 2.13 | ↑ | |||
| n97 | 2300 - 2400 | N/A | 84.92 | N/A | 1.51 | N/A | ↑ | |||
| n98 | 1880 - 1920 | N/A | 91.69 | N/A | 1.09 | N/A | ↑ | |||
| n99 | 1626.5 - 1660.5 | N/A | 83.18 | N/A | 1.55 | N/A | ↑ | |||
| n101 | 1900 - 1910 | 1900 - 1910 | 91.27 | 91.27 | 1.08 | 1.08 | ↑ | |||
| n102 | 5925 - 6425 | 5925 - 6425 | 83.33 | 83.33 | 2.13 | 2.13 | ↑ | |||
| 103 | 787 - 788 | 757 - 758 | 100.00 | 100.00 | 1.51 | 1.42 | ↑ | |||
| n104 | 6425 - 7125 | 6425 - 7125 | 85.23 | 85.23 | 1.96 | 1.96 | ↑ | |||
| n105 | 663 - 703 | 612 - 652 | 89.62 | 86.01 | 1.31 | 1.32 | ↑ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |
¶ ISM Standards Frequency Support*
| Application | Frequency Range (MHz) | Efficiency (%) | Maximum VSWR | Peak Gain from highest direction (dBi) | Use Indicator |
|---|---|---|---|---|---|
| ISM 2.4 GHz | 2400 - 2500 | 84.37 | 1.58 | 4.68 | ↑ |
| Wi-Fi 2.4G | 2401 - 2483 | 84.64 | 1.56 | 4.68 | ↑ |
| Wi-Fi 2.4G (USA) | 2401 - 2473 | 85.14 | 1.54 | 4.68 | ↑ |
| Wi-Fi 2.4G (Japan) | 2401 - 2495 | 84.36 | 1.58 | 4.68 | ↑ |
| Wi-Fi 5G (all channels) | 5150 - 5990 | 90.42 | 1.68 | 4.97 | ↑ |
| Wi-Fi 5G (Ch 32-48) | 5150 - 5250 | 96.43 | 1.64 | 3.26 | ↑ |
| Wi-Fi 5G (Ch 32-64) | 5150 - 5330 | 97.00 | 1.64 | 3.26 | ↑ |
| Wi-Fi 5G (Ch 32-161) | 5150 - 5815 | 91.34 | 1.68 | 4.97 | ↑ |
| Wi-Fi 5G (Ch 32-173) | 5150 - 5875 | 91.12 | 1.68 | 4.97 | ↑ |
| Wi-Fi 6E (Ch 1-93) | 5925 - 6425 | 83.33 | 2.13 | 4.59 | ↑ |
| Wi-Fi 6E (all channels) | 5925 - 7125 | 84.44 | 2.13 | 6.92 | ↑ |
| ISM 5.8 GHz | 5725 - 5875 | 87.64 | 1.66 | 4.76 | ↑ |
| UWB band 1 | 3168 - 3696 | 85.75 | 2.03 | 3.35 | ↑ |
| UWB band 2 | 3696 - 4224 | 88.70 | 2.01 | 3.38 | ↑ |
| UWB band 3 | 4224 - 4752 | 90.48 | 1.92 | 3.64 | ↑ |
| UWB band 4 | 4752 - 5280 | 89.79 | 1.81 | 3.61 | ↑ |
| UWB band 5 | 5280 - 5808 | 90.02 | 1.68 | 4.97 | ↑ |
| UWB band 6 | 5808 - 6336 | 84.41 | 2.13 | 4.74 | ↑ |
| UWB band 7 | 6336 - 6864 | 83.70 | 2.10 | 5.96 | ↑ |
| UWB band 8 | 6864 - 7392 | 87.24 | 1.96 | 6.92 | ↑ |
| UWB band 9 | 7392 - 7920 | 81.55 | 1.52 | 4.00 | ↑ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

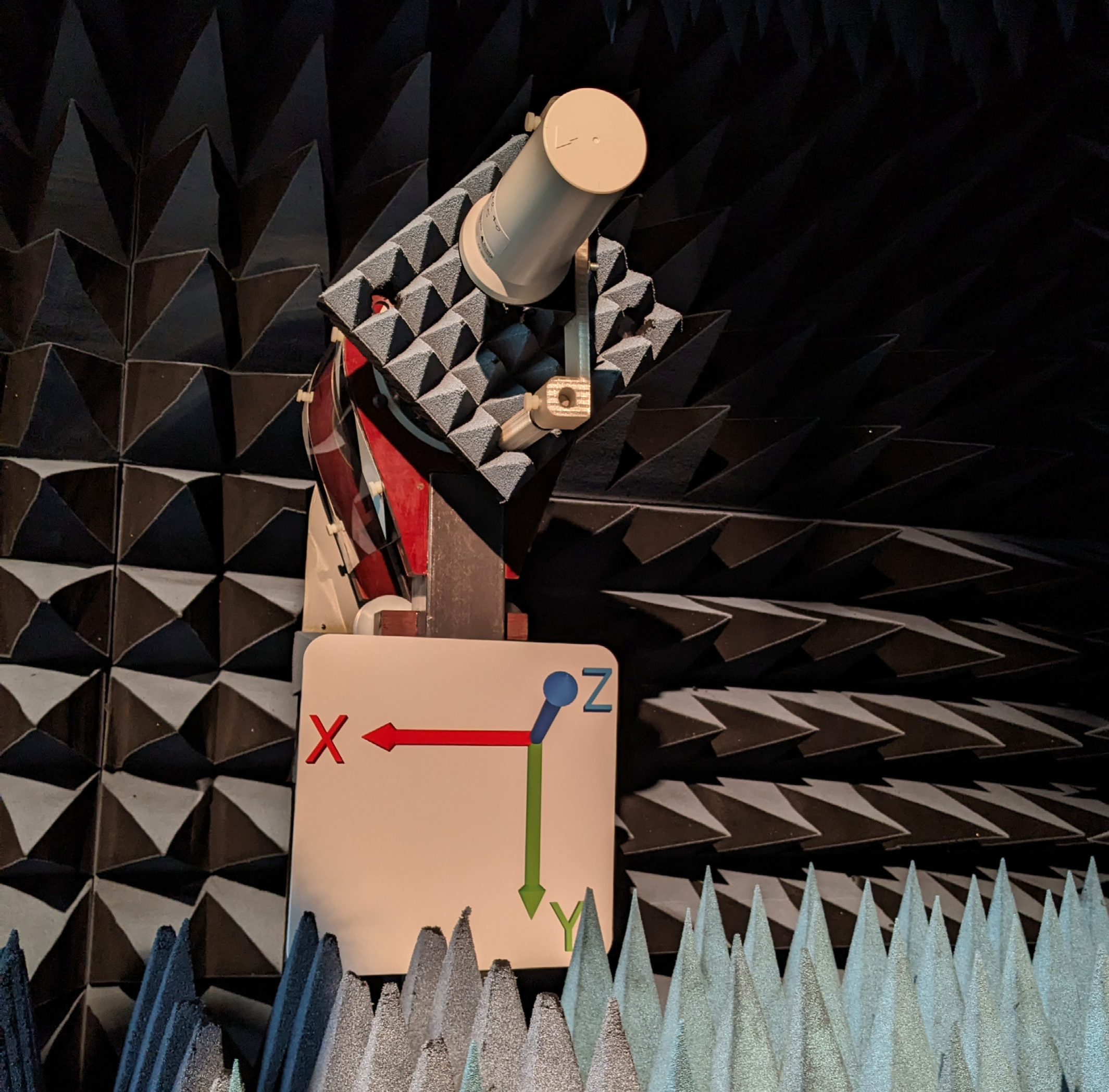

¶ Test Setup (in Free Space)

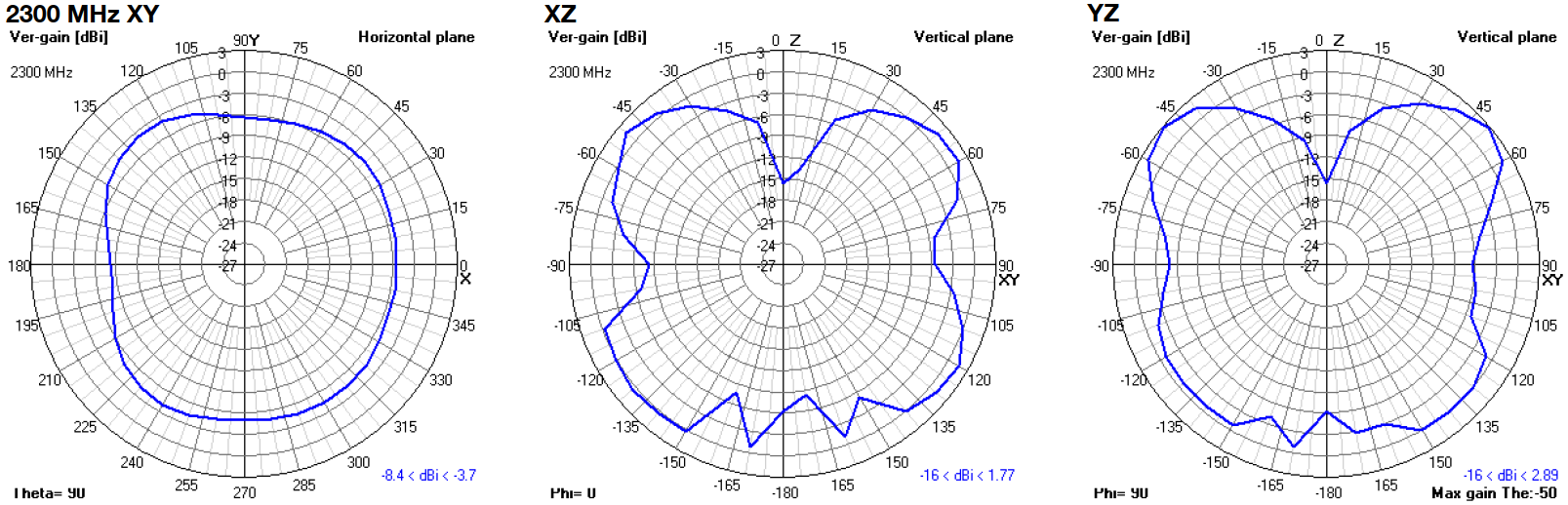

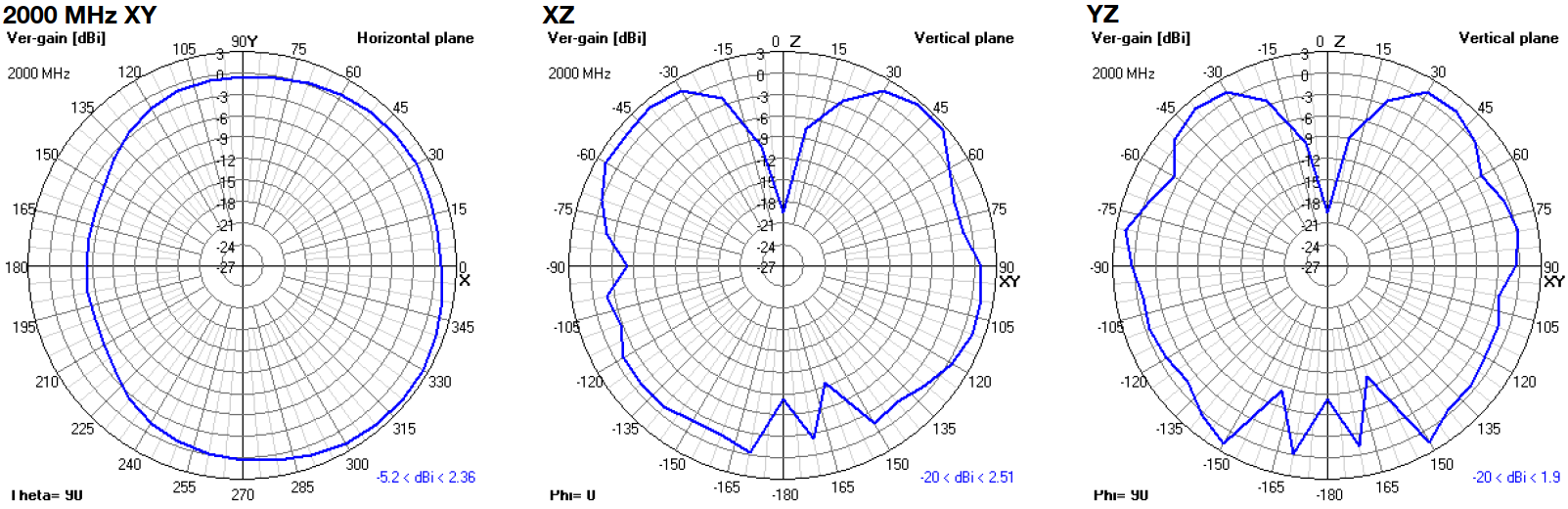

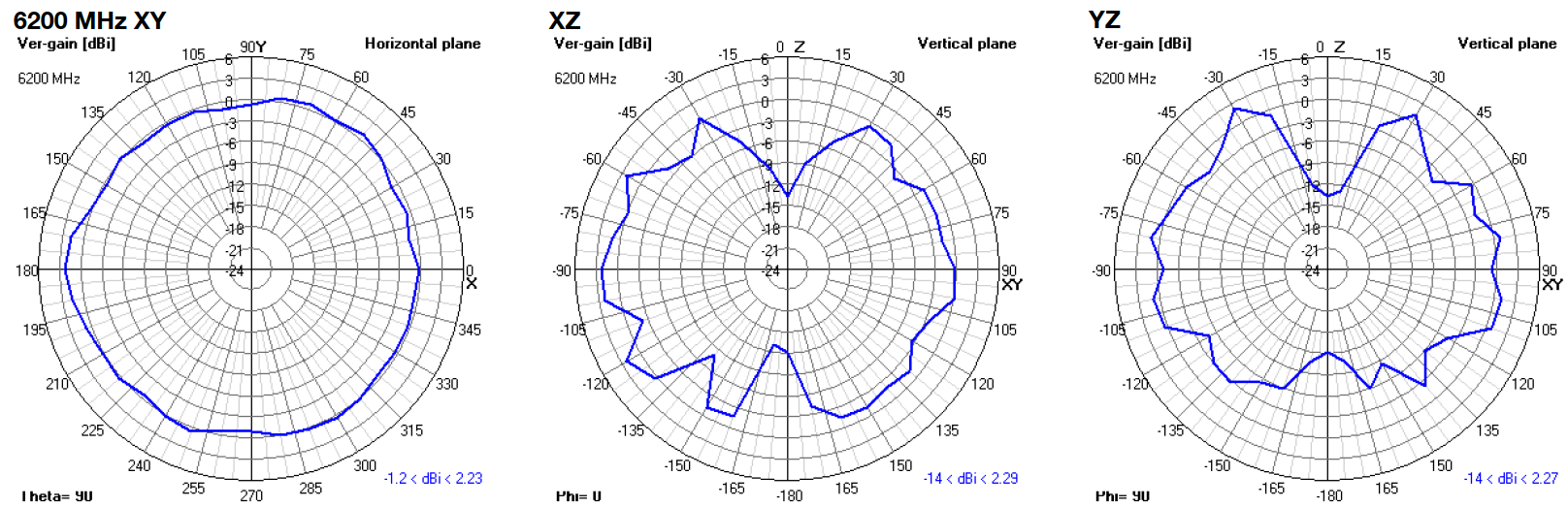

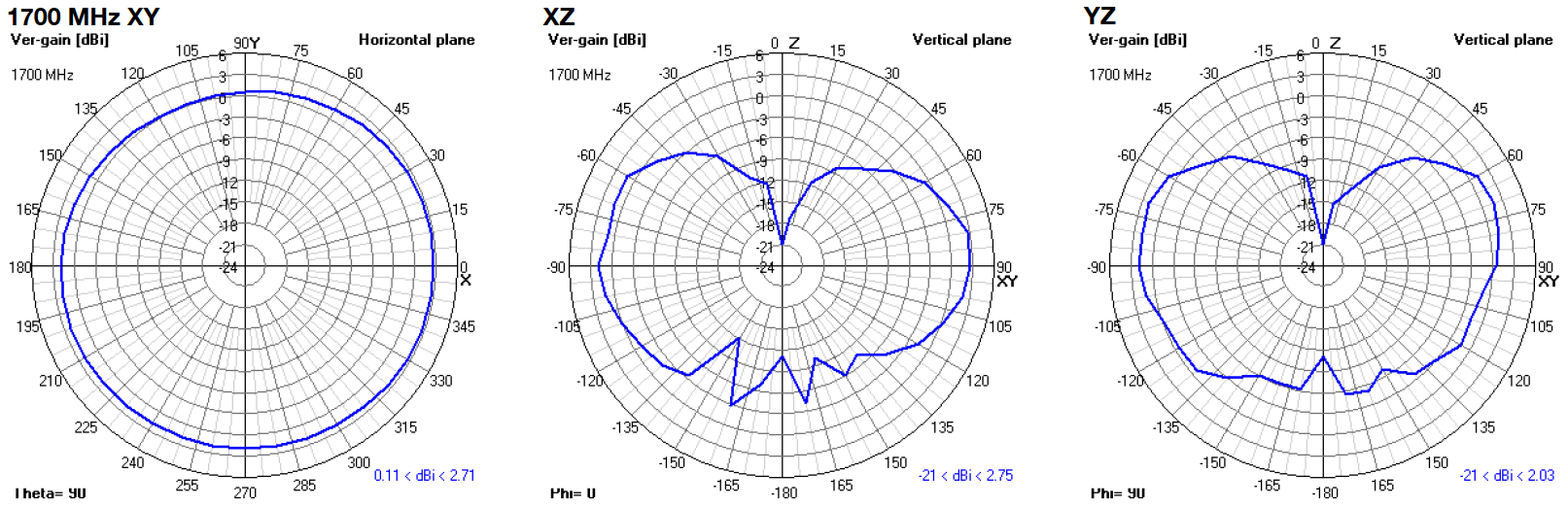

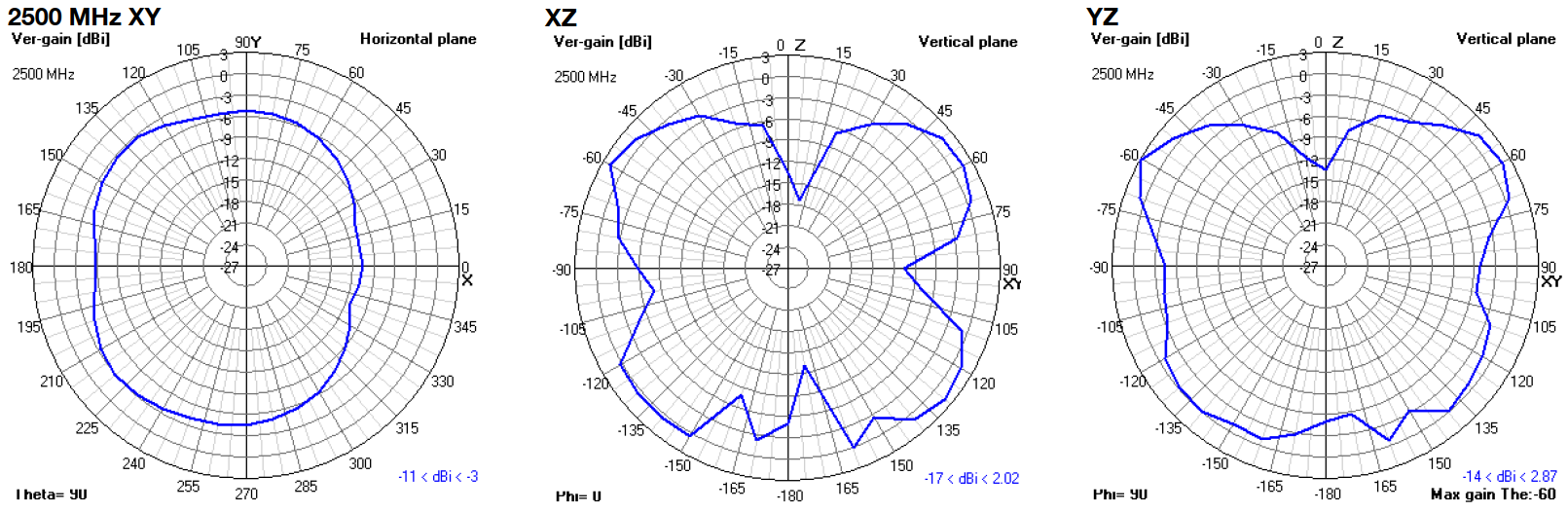

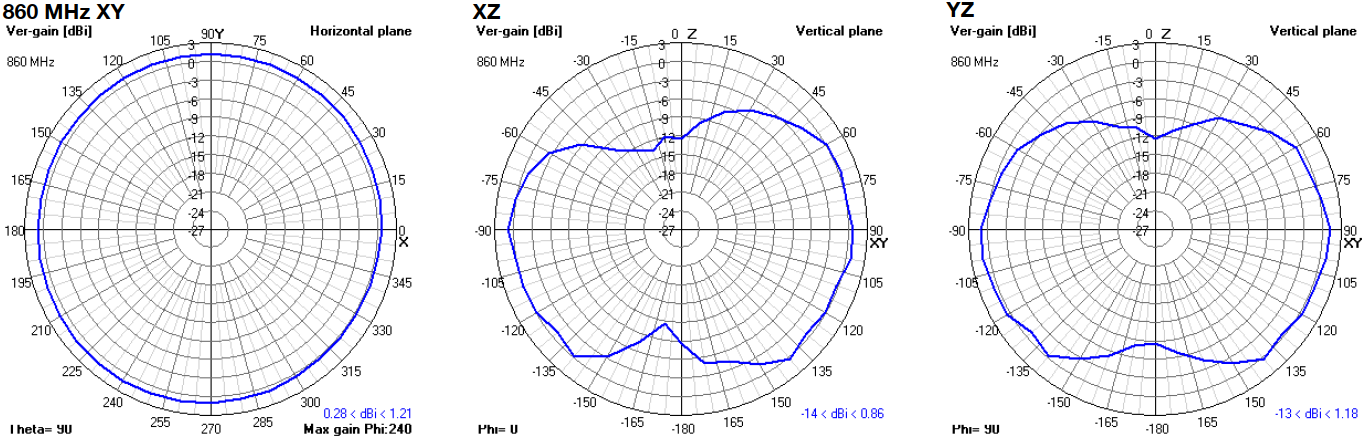

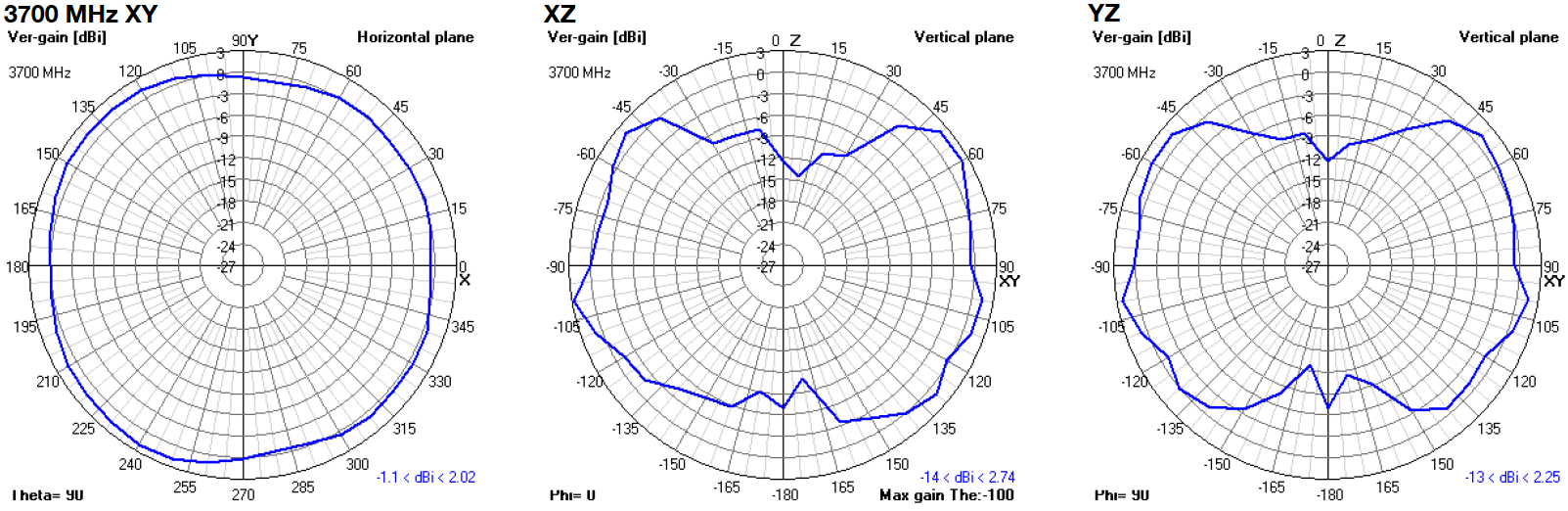

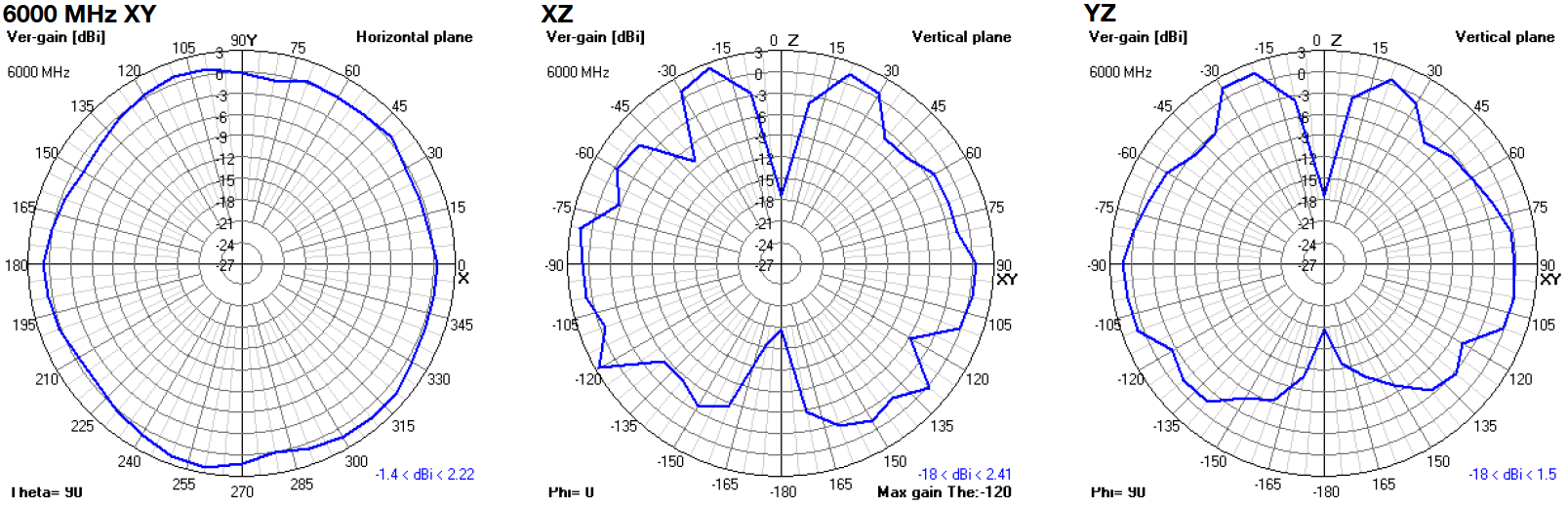

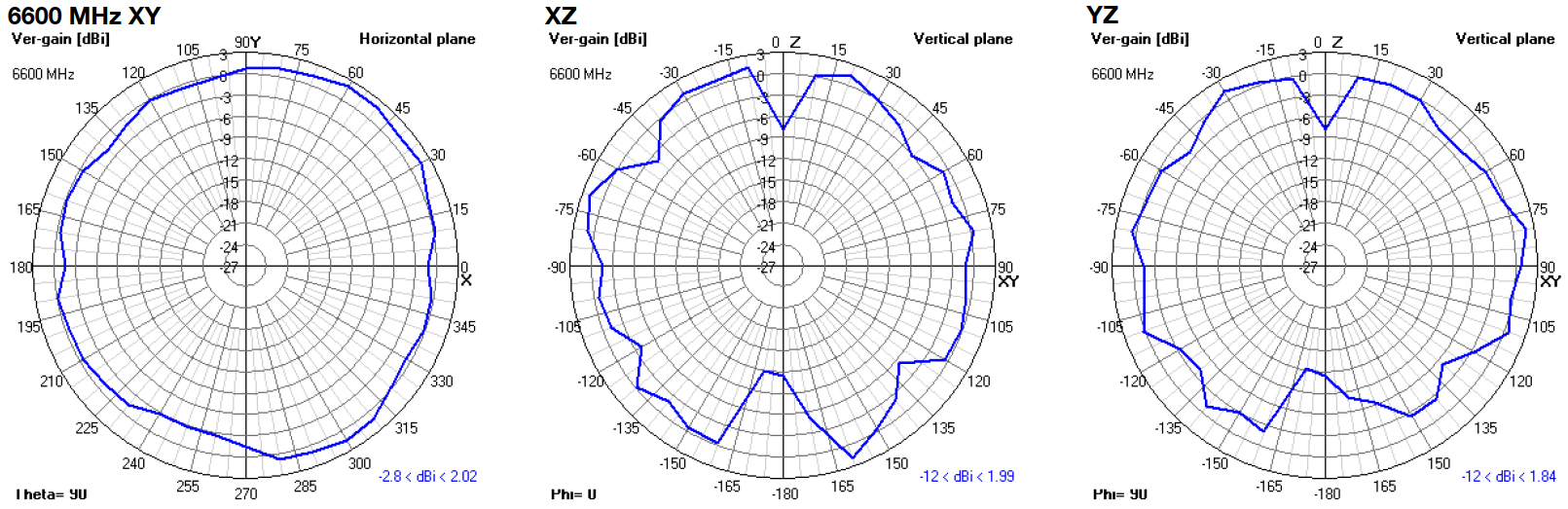

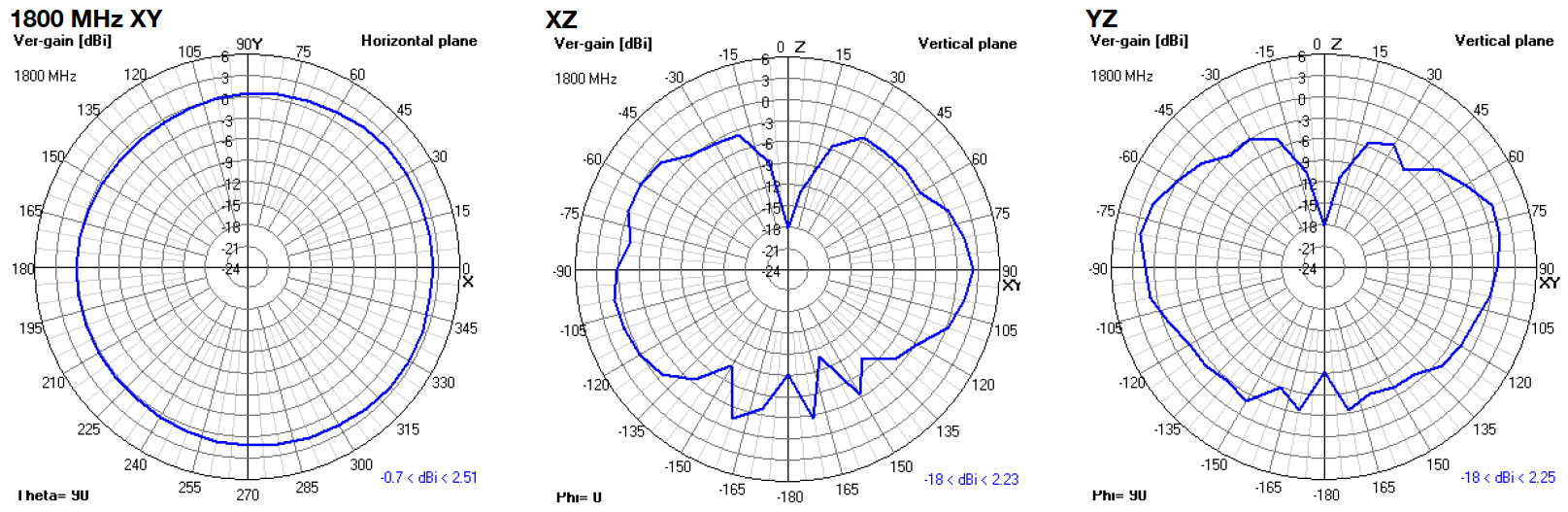

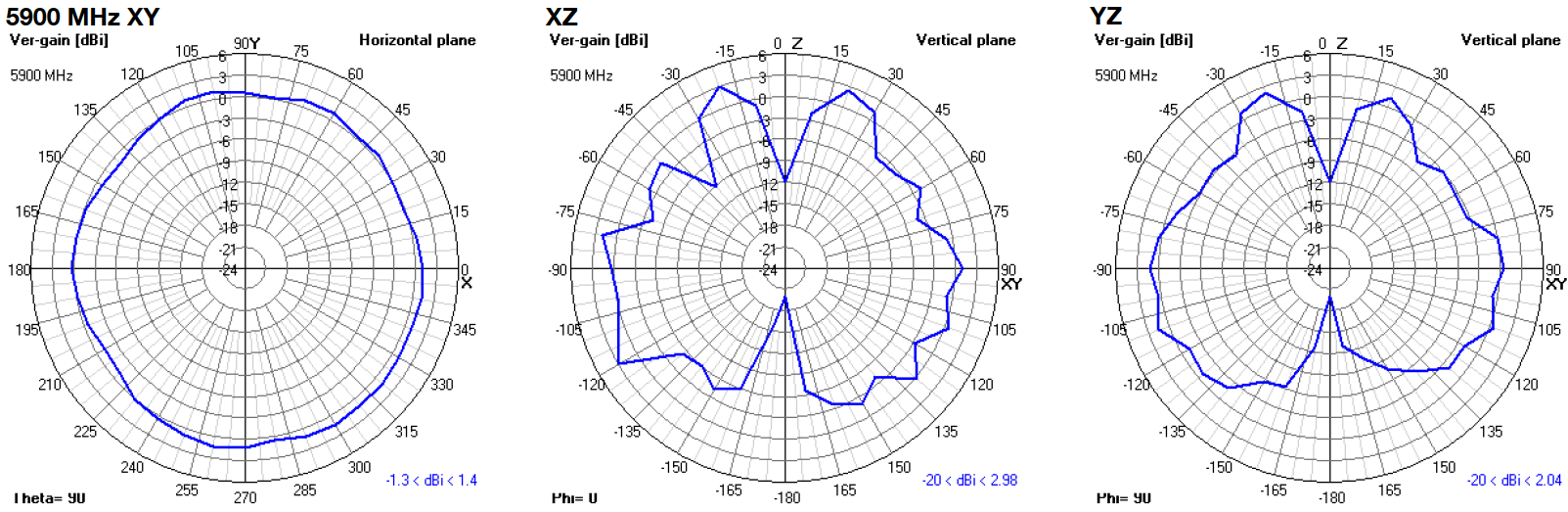

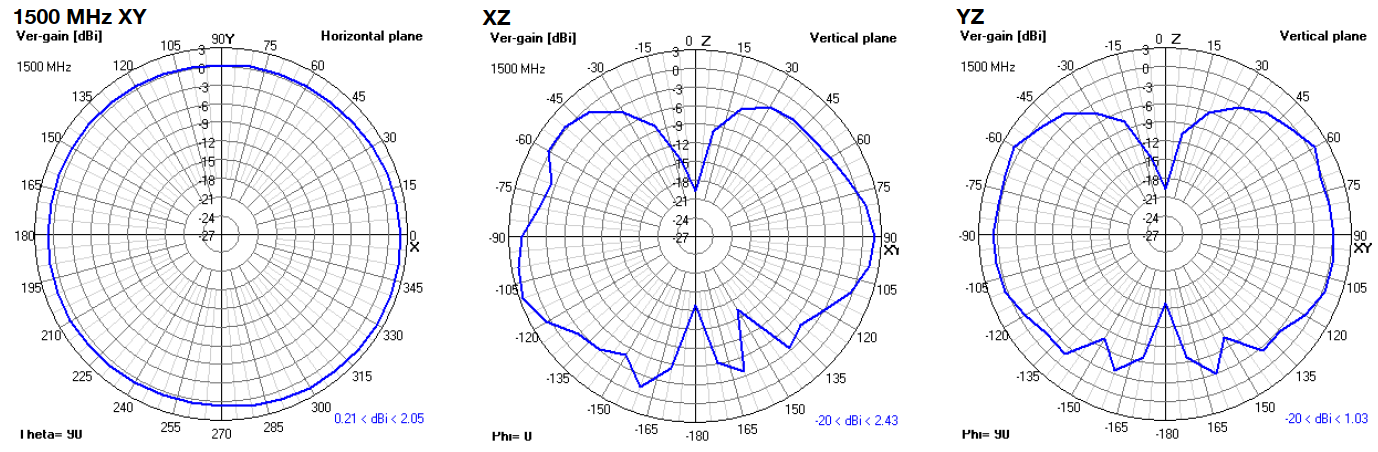

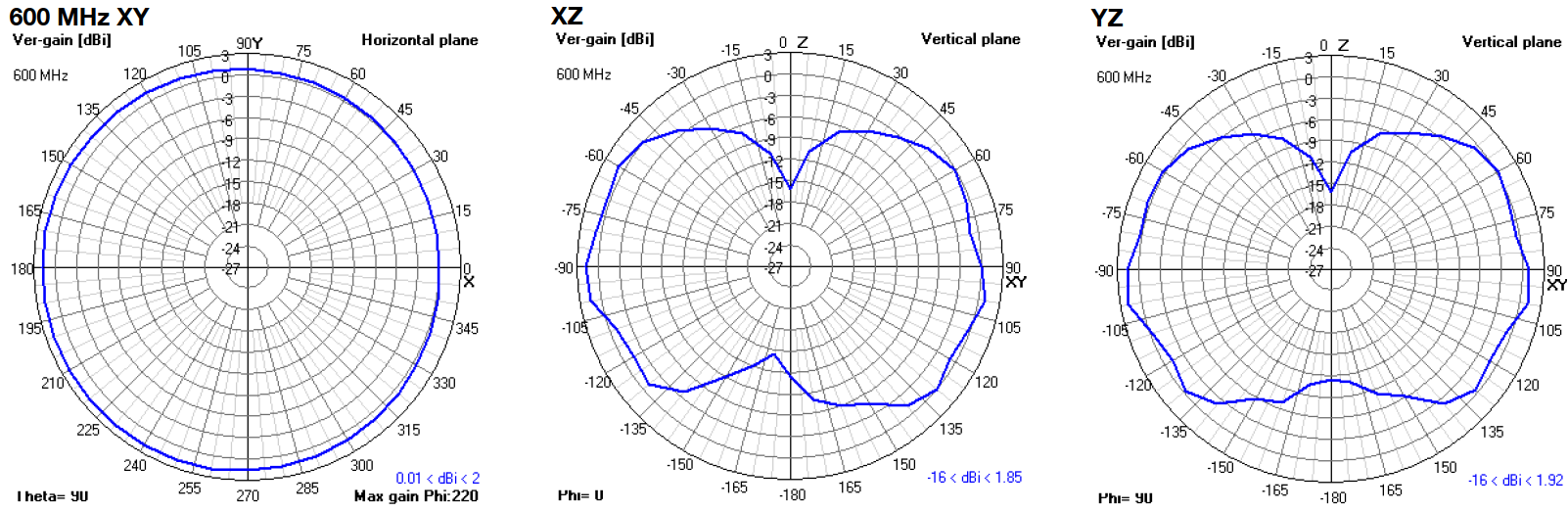

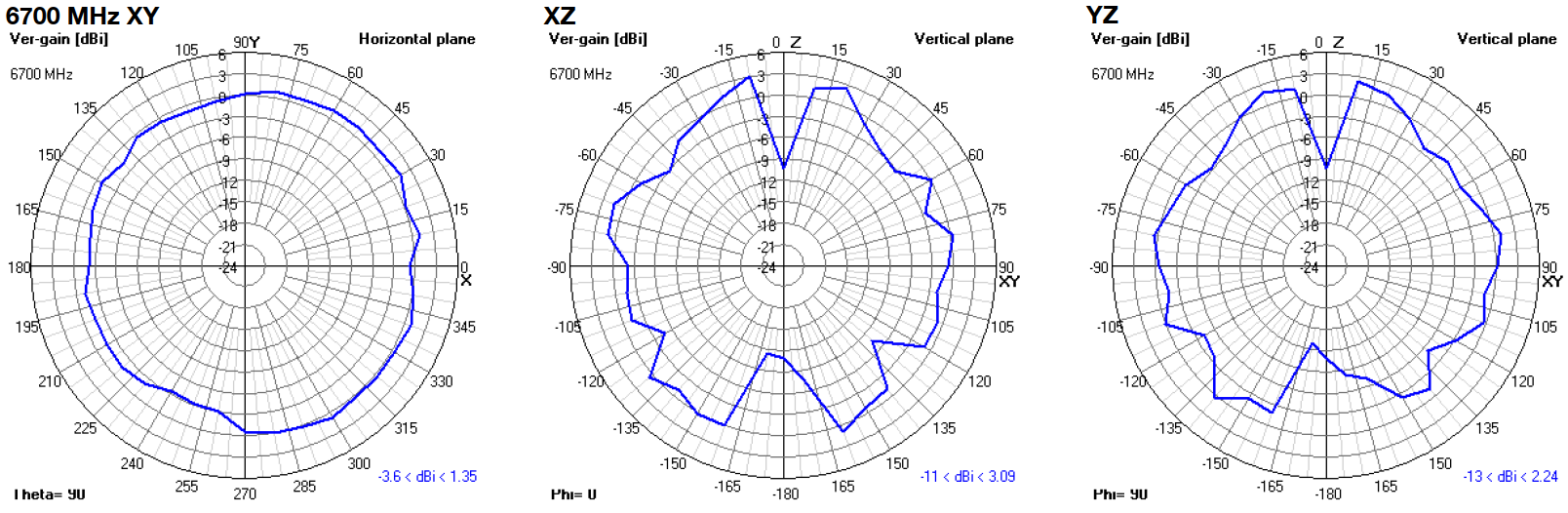

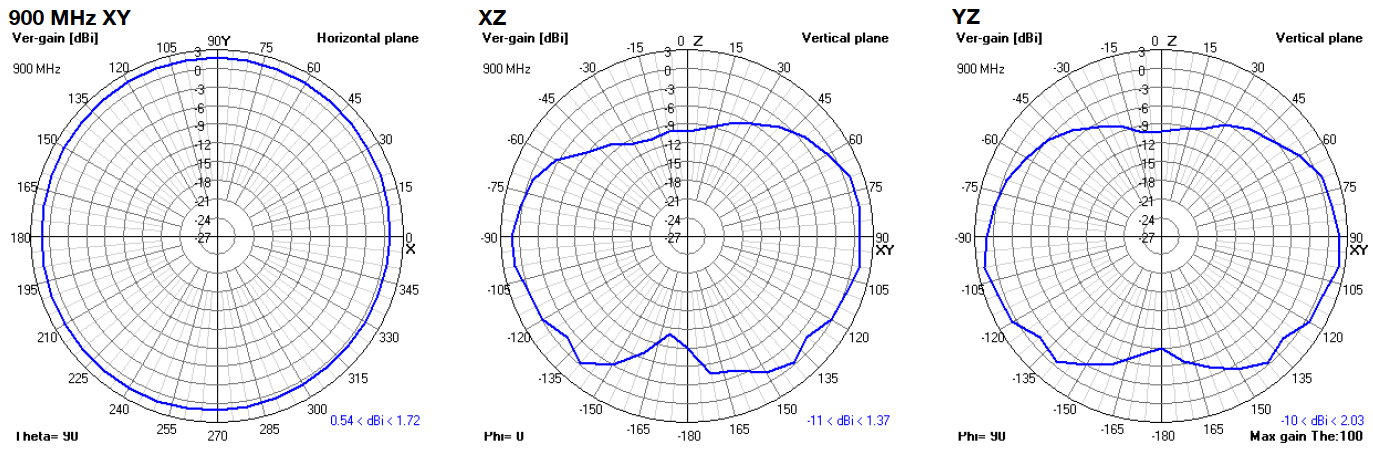

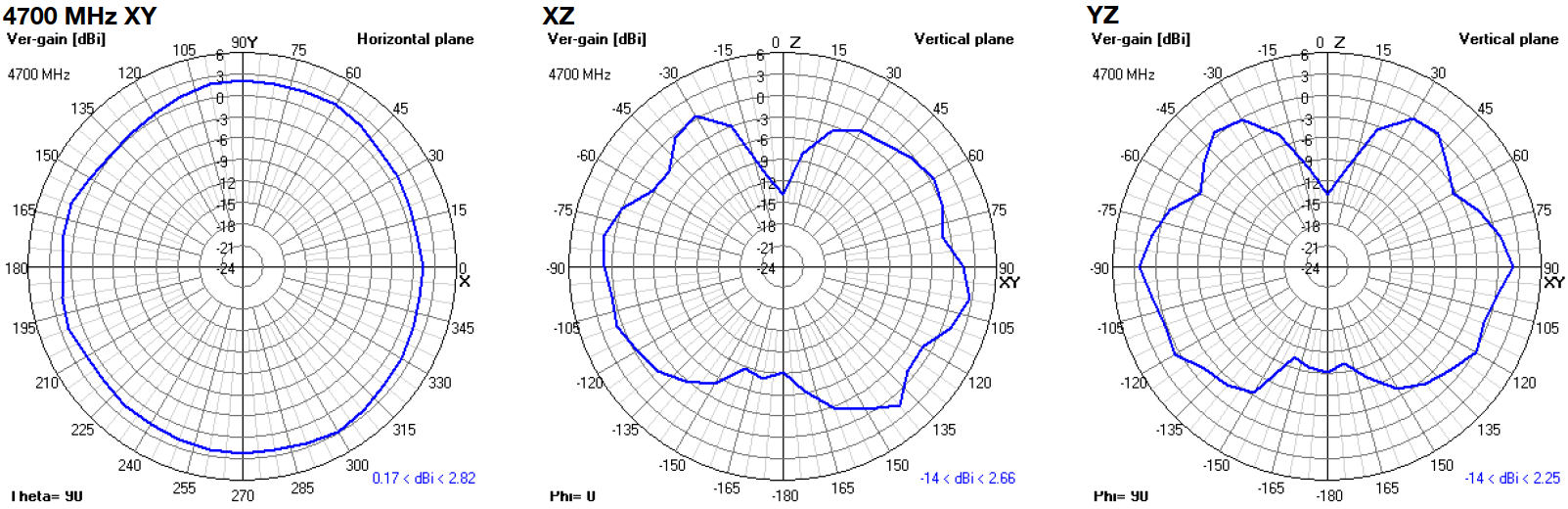

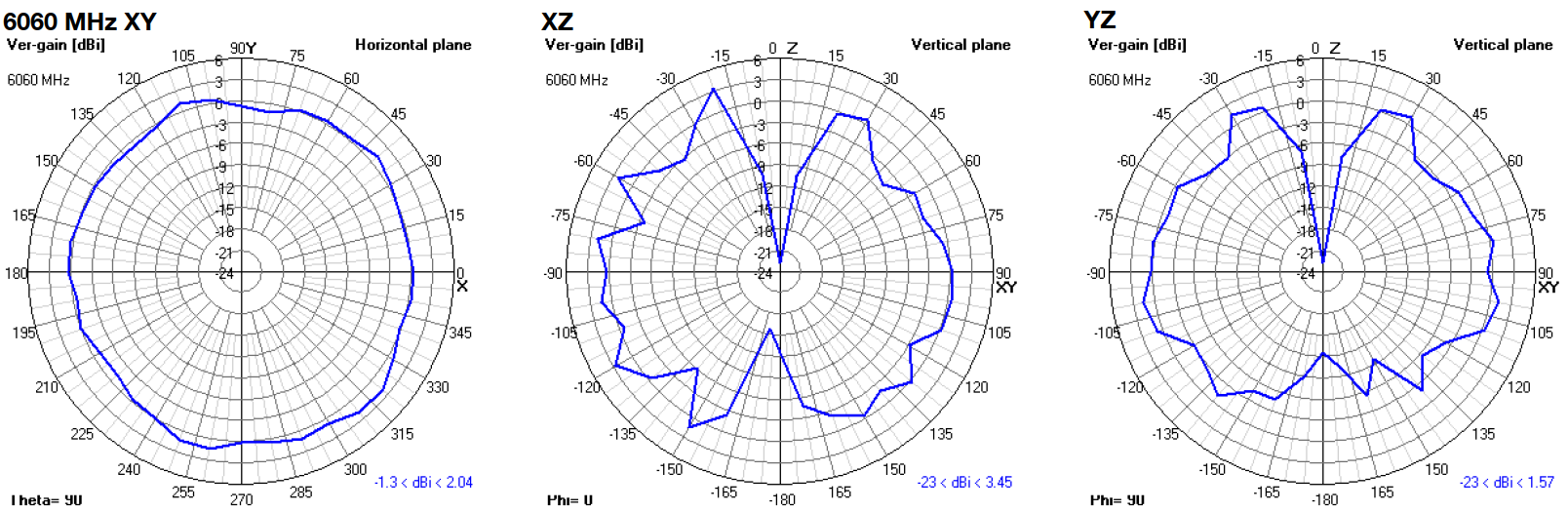

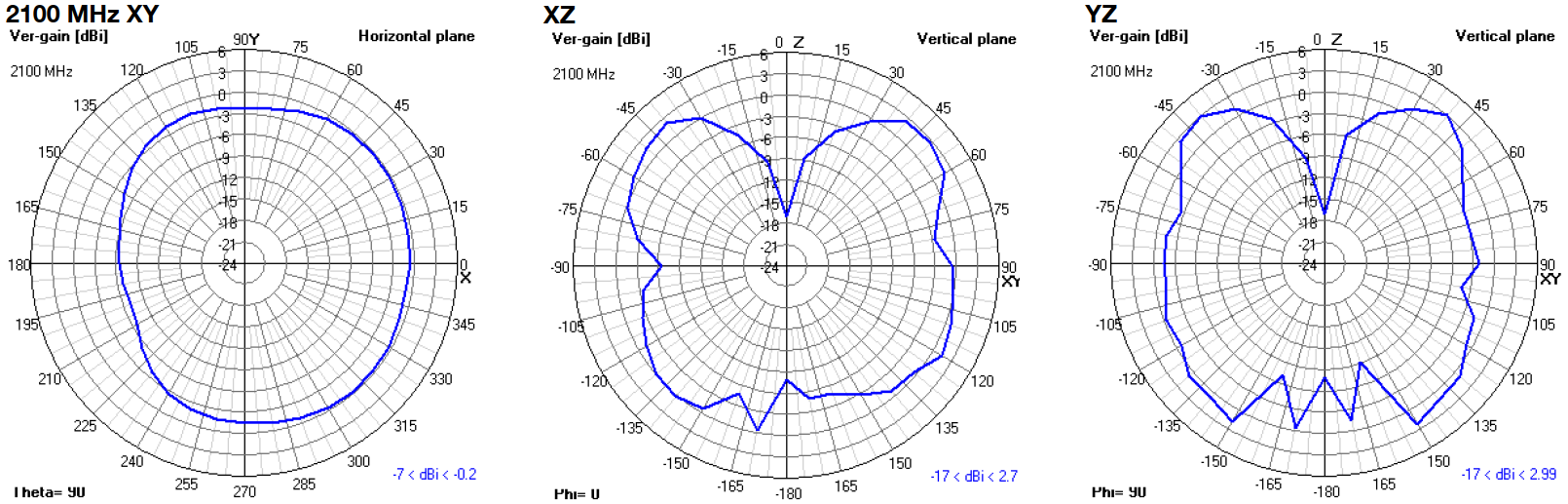

¶ 2D Radiation Plots

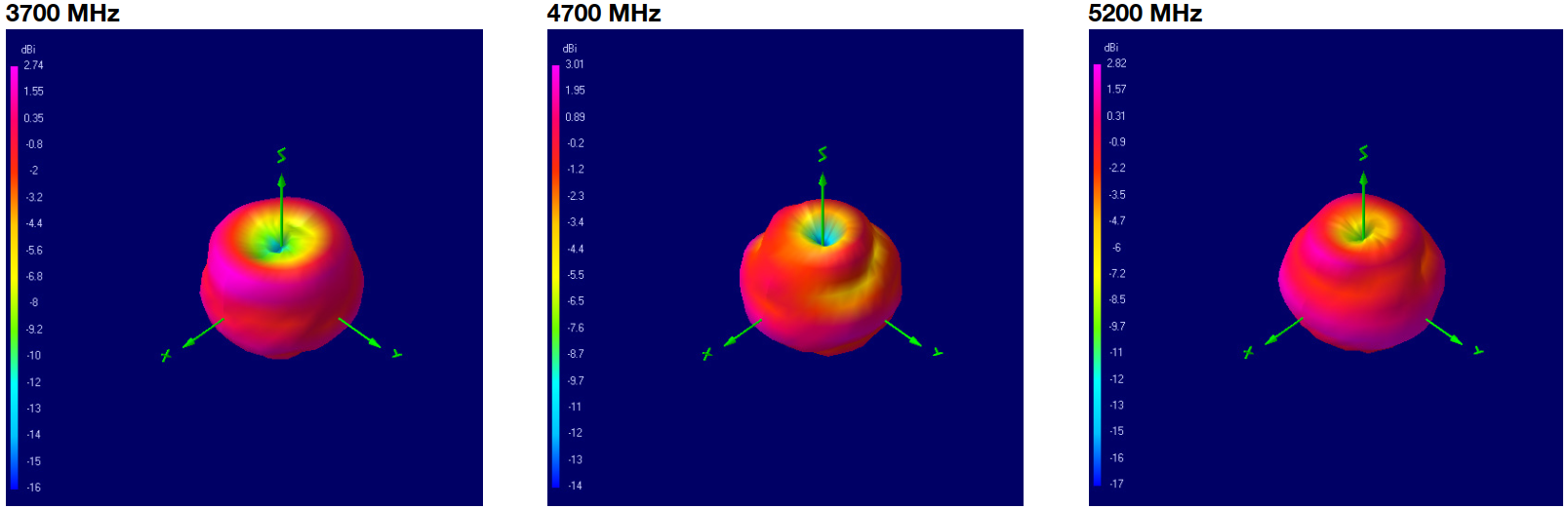

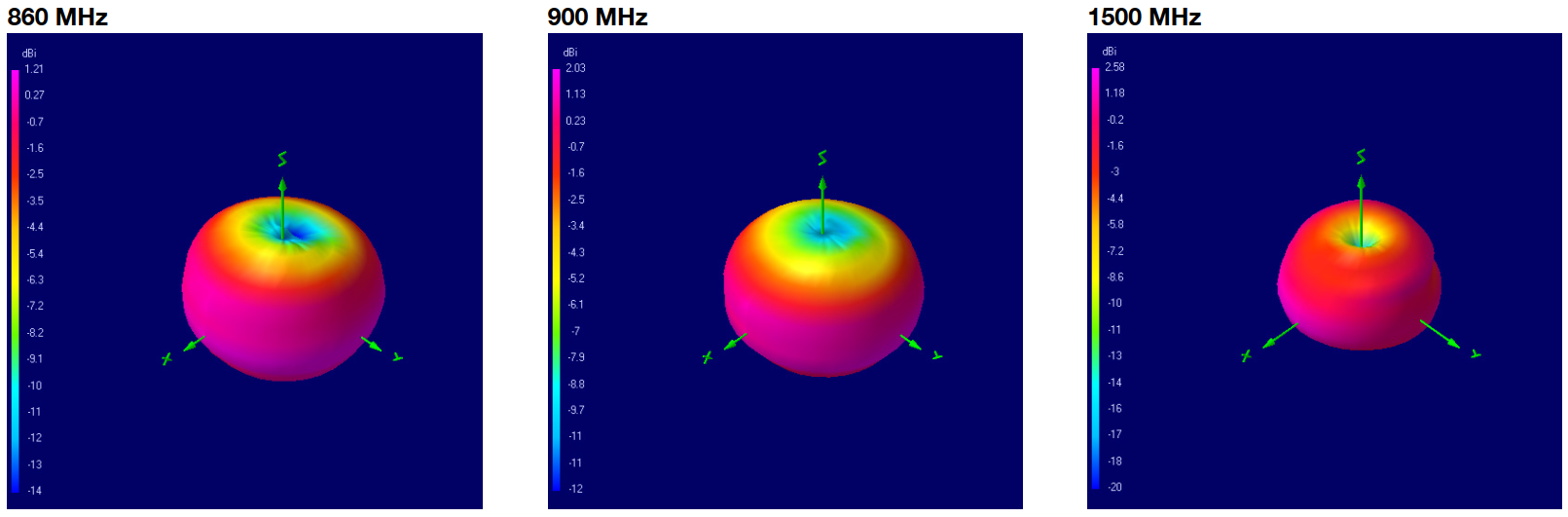

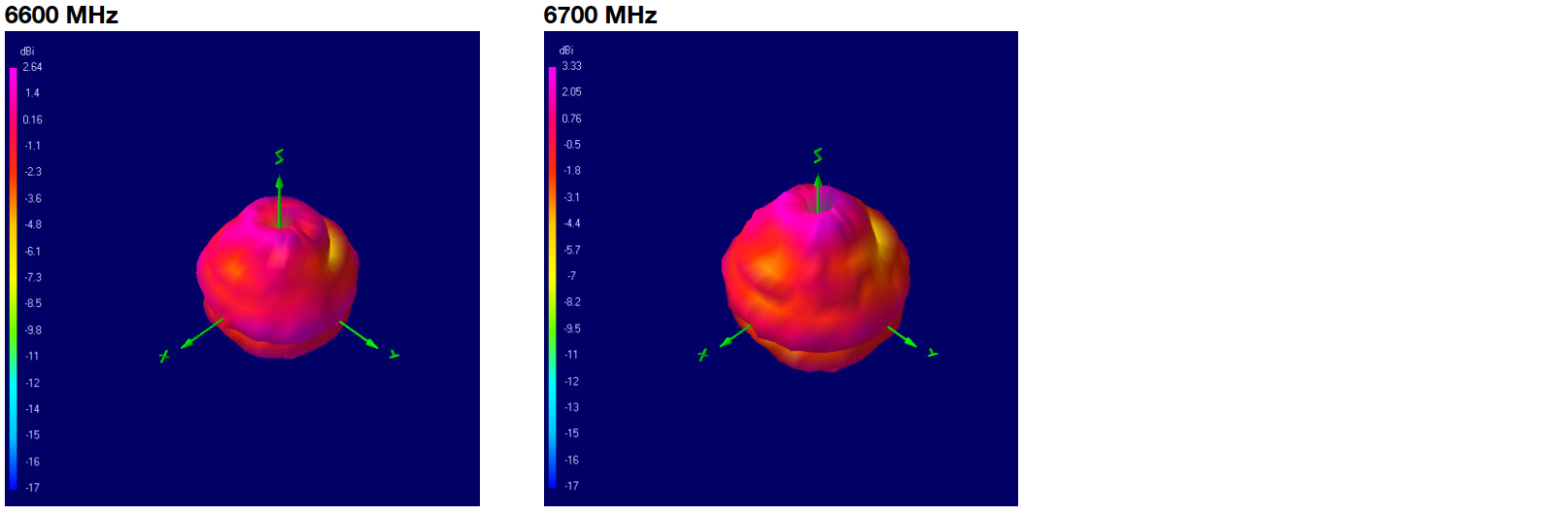

¶ 3D Radiation Plots
¶ Ordering Details
| Part Number | Description |
|---|---|
| OSCAR40-PRO/X/NTYPE-F/S/S/33-WHITE |
5G/LTE Wideband IP67 Outdoor Antenna 600-8000 MHz N-Type Female Direct Connector (White Radome) |
| OSCAR40-PRO/5M/SMAM/S/LL/33-WHITE |
5G/LTE Wideband IP67 Outdoor Antenna 600-8000 MHz 5M Low Loss Cable and SMA Male Connector (White Radome) |
| OSCAR40-PRO/X/NTYPE-F/S/S/33-BLACK |
5G/LTE Wideband IP67 Outdoor Antenna 600-8000 MHz N-Type Female Direct Connector (Black Radome) |
| OSCAR40-PRO/5M/SMAM/S/LL/33-BLACK |
5G/LTE Wideband IP67 Outdoor Antenna 600-8000 MHz 5M Low Loss Cable and SMA Male Connector (Black Radome) |
¶ Associated Cables
For the OSCAR40-PRO/X/NTYPE-F/S/S/33 (Black or White version) the following can be used to extend installation reach and maintain good signal quality.
| Part Number | Description | Length (M) | Connector 1 | Connector 2 |
|---|---|---|---|---|
| ASMR600A058L13 | N-Type(M) To SMA(M) 6M Low Loss (SLL200) Cable Assembly | 6 | N-type male | SMA male |
| ASMR1000A058L13 | N-type(M) to SMA(M) 10M Low Loss (SLL200) Cable Assembly | 10 | N-type male | SMA male |
| ASMR1500A058L13 | N-type(M) to SMA(M) 15M Low Loss (SLL200) Cable Assembly | 15 | N-type male | SMA male |
| ASMR2000A058L13 | N-type(M) to SMA(M) 20M Low Loss (SLL200) Cable Assembly | 20 | N-type male | SMA male |
