Tango 11A

GSM (2G) Bands	UMTS (3G) Bands	E-UTRA (4G) Bands	NR (5G) Bands	Uplink (MHz)	Downlink (MHz)	Average Uplink Efficiency (%)	Average Downlink Efficiency (%)	Maximum Uplink VSWR	Maximum Downlink VSWR	Use Indicator
	1	1	n1	1920 - 1980 MHz	2110 - 2170 MHz	63.56	58.30	2.02	2.05	↑
PCS-1900	2	2	n2	1850 - 1910 MHz	1930 - 1990 MHz	60.04	63.95	1.99	2.01	↑
DCS-1800	3	3	n3	1710 - 1785 MHz	1805 - 1880 MHz	54.55	58.77	2.04	1.99	↑
	4	4		1710 - 1755 MHz	2110 - 2155 MHz	54.37	57.12	2.04	2.05	↑
GSM-850	5	5	n5	824 - 849 MHz	869 - 894 MHz	50.76	38.57	1.98	2.48	↑
	6			830 - 840 MHz	875 - 885 MHz	51.23	39.44	1.92	2.40	↑
	7	7	n7	2500 - 2570 MHz	2620 - 2690 MHz	44.16	42.86	2.49	2.58	↑
E-GSM-900	8	8	n8	880 - 915 MHz	925 - 960 MHz	31.30	13.21	2.91	4.54	↓
	9	9		1749.9 - 1784.9 MHz	1844.9 - 1879.9 MHz	55.05	58.72	2.01	1.99	↑
	10	10		1710 - 1770 MHz	2110 - 2170 MHz	54.58	58.30	2.04	2.05	↑
	11	11		1427.9 - 1447.9 MHz	1475.9 - 1495.9 MHz	36.62	40.81	2.84	2.06	↑
	12	12	n12	699 - 716 MHz	729 - 746 MHz	48.79	49.29	2.35	1.33	↑
	13	13	n13	777 - 787 MHz	746 - 756 MHz	52.69	51.75	1.10	1.24	↑
	14	14	n14	788 - 798 MHz	758 - 768 MHz	51.91	53.62	1.22	1.15	↑
		17		704 - 716 MHz	734 - 746 MHz	48.70	49.49	2.18	1.27	↑
		18	n18	815 - 830 MHz	860 - 875 MHz	50.59	43.49	1.83	2.30	↑
	19	19		830 - 845 MHz	875 - 890 MHz	51.09	38.35	1.94	2.45	↑
	20	20	n20	832 - 862 MHz	791 - 821 MHz	49.15	51.12	2.14	1.67	↑
	21	21		1447.9 - 1462.9 MHz	1495.9 - 1510.9 MHz	37.33	42.42	2.75	2.07	↑
	22	22		3410 - 3490 MHz	3510 - 3590 MHz	40.25	39.18	2.49	2.64	↑
		23	n23	2000 - 2020 MHz	2180 - 2200 MHz	61.17	60.68	2.01	1.97	↑
		24	n24	1626.5 - 1660.5 MHz	1525 - 1559 MHz	48.40	45.04	1.87	2.07	↑
	25	25	n25	1850 - 1915 MHz	1930 - 1995 MHz	60.13	63.80	1.99	2.01	↑
	26	26	n26	814 - 849 MHz	859 - 894 MHz	50.68	40.28	1.98	2.48	↑
		27		807 - 824 MHz	852 - 869 MHz	50.64	45.61	1.71	2.24	↑
		28	n28	703 - 748 MHz	758 - 803 MHz	48.96	52.67	2.22	1.30	↑
		28A		703 - 733 MHz	758 - 788 MHz	48.62	53.14	2.22	1.15	↑
		29	n29	-	717 - 728 MHz	-	48.45	-	1.69	↑
		30	n30	2305 - 2315 MHz	2350 - 2360 MHz	59.23	55.10	1.77	1.95	↑
		31	n31	452.5 - 457.5 MHz	462.5 - 467.5 MHz	16.20	14.90	5.90	4.94	↓
	32	32		-	1452 - 1496 MHz	-	39.36	-	2.65	↑
		33		1900 - 1920 MHz	1900 - 1920 MHz	61.38	61.38	1.98	1.98	↑
		34	n34	2010 - 2025 MHz	2010 - 2025 MHz	61.72	61.72	2.01	2.01	↑
		35		1850 - 1910 MHz	1850 - 1910 MHz	60.04	60.04	1.99	1.99	↑
		36		1930 - 1990 MHz	1930 - 1990 MHz	63.95	63.95	2.01	2.01	↑
		37		1910 - 1930 MHz	1910 - 1930 MHz	61.06	61.06	2.02	2.02	↑
		38	n38	2570 - 2620 MHz	2570 - 2620 MHz	42.33	42.33	2.54	2.54	↑
		39	n39	1880 - 1920 MHz	1880 - 1920 MHz	61.38	61.38	1.98	1.98	↑
		40	n40	2300 - 2400 MHz	2300 - 2400 MHz	56.15	56.15	1.99	1.99	↑
		41	n41	2496 - 2690 MHz	2496 - 2690 MHz	43.27	43.27	2.58	2.58	↑
		42		3400 - 3600 MHz	3400 - 3600 MHz	39.90	39.90	2.64	2.64	↑
		43		3600 - 3800 MHz	3600 - 3800 MHz	44.28	44.28	2.42	2.42	↑
		44		703 - 803 MHz	703 - 803 MHz	50.95	50.95	2.22	2.22	↑
		45		1447 - 1467 MHz	1447 - 1467 MHz	37.48	37.48	2.77	2.77	↑
		46	n46	5150 - 5925 MHz	5150 - 5925 MHz	42.93	42.93	1.72	1.72	↑
		47	n47	5855 - 5925 MHz	5855 - 5925 MHz	44.97	44.97	1.27	1.27	↑
		48	n48	3550 - 3700 MHz	3550 - 3700 MHz	43.74	43.74	2.59	2.59	↑
		49		3550 - 3700 MHz	3550 - 3700 MHz	43.74	43.74	2.59	2.59	↑
		50	n50	1432 - 1517 MHz	1432 - 1517 MHz	39.68	39.68	2.84	2.84	↑
		51	n51	1427 - 1432 MHz	1427 - 1432 MHz	35.60	35.60	2.84	2.84	↑
		52		3300 - 3400 MHz	3300 - 3400 MHz	38.38	38.38	2.58	2.58	↑
		53	n53	2483.5 - 2495 MHz	2483.5 - 2495 MHz	47.52	47.52	1.91	1.91	↑
		54	n54	1670 - 1675 MHz	1670 - 1675 MHz	48.80	48.80	1.95	1.95	↑
		65	n65	1920 - 2010 MHz	2110 - 2200 MHz	63.02	59.18	2.02	2.05	↑
		66	n66	1710 - 1780 MHz	2110 - 2200 MHz	54.56	59.18	2.04	2.05	↑
		67	n67	-	738 - 758 MHz	-	51.07	-	1.25	↑
		68	n68	698 - 728 MHz	753 - 783 MHz	48.66	53.20	2.38	1.18	↑
		69		-	2570 - 2620 MHz	-	42.33	-	2.54	↑
		70	n70	1695 - 1710 MHz	1995 - 2020 MHz	50.81	61.14	2.17	2.01	↑
		71	n71	663 - 698 MHz	617 - 652 MHz	46.53	30.24	2.75	2.85	↑
		72	n72	451 - 456 MHz	461 - 466 MHz	16.43	15.05	6.04	5.02	↓
		73		450 - 455 MHz	460 - 465 MHz	16.59	15.16	6.13	5.08	↓
		74	n74	1427 - 1470 MHz	1475 - 1518 MHz	37.12	41.92	2.84	2.09	↑
		75	n75	-	1432 - 1517 MHz	-	39.68	-	2.84	↑
		76	n76	-	1427 - 1432 MHz	-	35.60	-	2.84	↑
			n77	3300 - 4200 MHz	3300 - 4200 MHz	40.17	40.17	2.64	2.64	↑
			n78	3300 - 3800 MHz	3300 - 3800 MHz	41.35	41.35	2.64	2.64	↑
			n79	4400 - 5000 MHz	4400 - 5000 MHz	44.44	44.44	2.31	2.31	↑
			n80	1710 - 1785 MHz	-	54.55	-	2.04	-	↑
			n81	880 - 915 MHz	-	31.30	-	2.91	-	↑
			n82	832 - 862 MHz	-	49.15	-	2.14	-	↑
			n83	703 - 748 MHz	-	48.96	-	2.22	-	↑
			n84	1920 - 1980 MHz	-	63.56	-	2.02	-	↑
		85	n85	698 - 716 MHz	728 - 746 MHz	48.80	49.26	2.38	1.35	↑
			n86	1710 - 1780 MHz	-	54.56	-	2.04	-	↑
		87	n87	410 - 415 MHz	420 - 425 MHz	17.95	20.26	8.65	8.06	↓
		88	n88	412 - 417 MHz	422 - 427 MHz	18.63	20.07	8.49	8.06	↓
			n89	824 - 849 MHz	-	50.76	-	1.98	-	↑
			n90	2496 - 2690 MHz	2496 - 2690 MHz	43.27	43.27	2.58	2.58	↑
			n91	832 - 862 MHz	1427 - 1432 MHz	49.15	35.60	2.14	2.84	↑
			n92	832 - 862 MHz	1432 - 1517 MHz	49.15	39.68	2.14	2.84	↑
			n93	880 - 915 MHz	1427 - 1432 MHz	31.30	35.60	2.91	2.84	↑
			n94	880 - 915 MHz	1432 - 1517 MHz	31.30	39.68	2.91	2.84	↑
			n95	2010 - 2025 MHz	-	61.72	-	2.01	-	↑
			n97	2300 - 2400 MHz	-	56.15	-	1.99	-	↑
			n98	1880 - 1920 MHz	-	61.38	-	1.98	-	↑
			n99	1626.5 - 1660.5 MHz	-	48.40	-	1.87	-	↑
			n100	874.4 - 880 MHz	919.4 - 925 MHz	40.49	18.83	2.32	3.22	□
			n101	1900 - 1910 MHz	1900 - 1910 MHz	61.73	61.73	1.88	1.88	↑
		103		787 - 788 MHz	757 - 758 MHz	52.30	53.25	1.10	1.15	↑
			n105	663 - 703 MHz	612 - 652 MHz	46.84	29.77	2.75	3.12	□
		106	n106	896 - 901 MHz	935 - 940 MHz	31.09	13.79	2.57	3.72	↓
		107		-	612 - 652 MHz	-	29.77	-	3.12	□
		108		-	470 - 698 MHz	-	25.56	-	6.26	↓
			n109	703 - 733 MHz	1432 - 1517 MHz	48.62	39.68	2.22	2.84	↑
			n110	1390 - 1395 MHz	1432 - 1435 MHz	28.02	36.19	2.54	2.83	↑
		111		1800 - 1810 MHz	1820 - 1830 MHz	57.54	58.43	1.90	1.77	↑
		112		-	470 - 608 MHz	-	17.92	-	6.26	↓
		113		-	606 - 698 MHz	-	37.03	-	3.35	□

Application	Frequency Range (MHz)	Average Efficiency (%)	Maximum VSWR	Peak Gain from Highest Direction (dBi)	Use Indicator
ISM 433 MHz	433.05 - 434.79 MHz	19.14	7.81	-2.17	↓
ISM 868 MHz	863 - 870 MHz	43.80	2.25	3.49	↑
ISM 915 MHz	902 - 928 MHz	22.53	3.32	2.83	□
ISM 2.4 GHz	2400 - 2500 MHz	48.02	2.14	4.47	↑
WiFi 2.4G channels 1-11 (DSSS)	2401 - 2473 MHz	48.10	2.14	4.44	↑
WiFi 2.4G channels 1-13 (DSSS)	2401 - 2483 MHz	48.13	2.14	4.44	↑
WiFi 2.4G channels 1-14 (DSSS)	2401 - 2495 MHz	48.06	2.14	4.44	↑
Citizens Broadband Radio Service	3550 - 3700 MHz	43.74	2.59	2.94	↑
WiFi CBRS channels 131-138	3655 - 3695 MHz	46.28	2.30	2.94	↑
WiFi 5G (Ch 32-48)	5150 - 5250 MHz	43.72	1.72	5.65	↑
WiFi 5G (Ch 32-68)	5150 - 5350 MHz	42.37	1.72	5.65	↑
WiFi 5G (Ch 32-165)	5150 - 5835 MHz	42.70	1.72	5.65	↑
WiFi 5G (Ch 32-173)	5150 - 5875 MHz	42.80	1.72	5.65	↑
WiFi 5G (Ch 32-177)	5150 - 5895 MHz	42.88	1.72	5.65	↑
WiFi 5.9G (Ch 172-180)	5855 - 5905 MHz	45.11	1.27	4.62	↑
WiFi 5.9G (Ch 182-196)	5905 - 5990 MHz	44.08	1.27	4.83	↑
ISM 5.8 GHz	5725 - 5875 MHz	43.57	1.39	4.87	↑
UWB band group 1, BAND_ID 1	3168 - 3696 MHz	39.19	2.98	2.94	↑
UWB band group 1, BAND_ID 2	3696 - 4224 MHz	39.53	2.54	3.30	↑
UWB band group 1, BAND_ID 3	4224 - 4752 MHz	40.69	2.40	5.16	↑
UWB band group 2, BAND_ID 4	4752 - 5280 MHz	46.54	1.91	5.69	↑
UWB band group 2, BAND_ID 5	5280 - 5808 MHz	42.58	1.69	4.87	↑

Part Number	Description

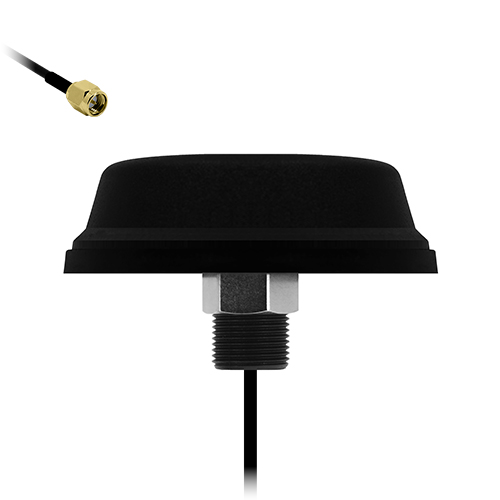

TANGO11A/1.5M/SMAM/S/S/19	5G/4G & Dual-Band Wi-Fi Puck Antenna 1.5 m cable and SMA male connector
TANGO11A/2.5M/SMAM/S/S/19	5G/4G & Dual-Band Wi-Fi Puck Antenna 2.5 m cable and SMA male connector
TANGO11A/5M/SMAM/S/S/19	5G/4G & Dual-Band Wi-Fi Puck Antenna 5 m cable and SMA male connector

Frequency Range:	600–900 MHz 1700–2700 MHz 3500–6000 MHz
Impedance:	50 Ohm
Polarisation:	Vertical
Average Gain	4.3 dBi
Average Radiation Efficiency:	46%
Required Ground plane:	160 mm circular

Operating Temperature range:	-40°C to 85 °C
Storage Temperature range:	-40°C to 85 °C

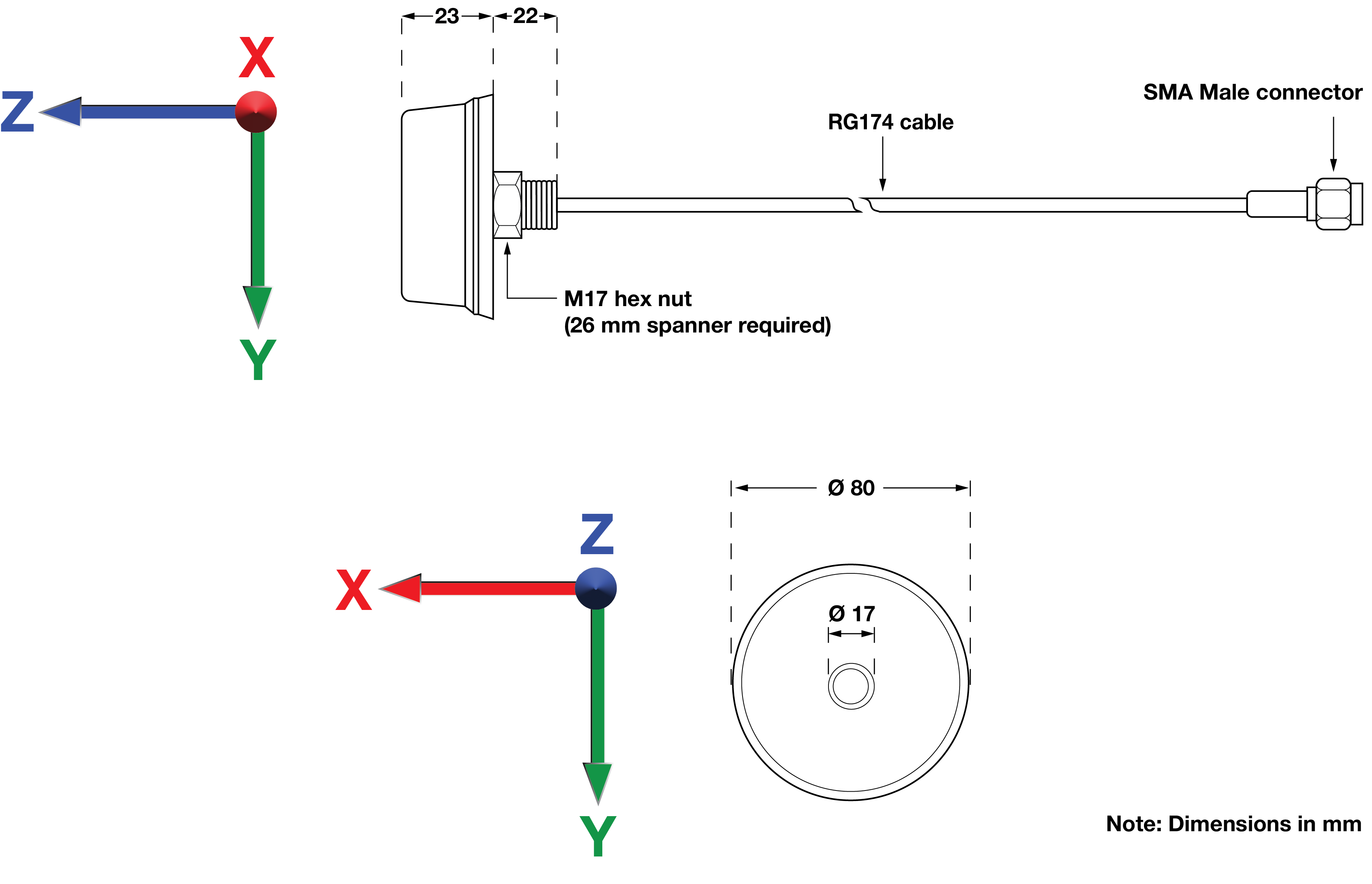

Dimensions:	Ø 80 × 23 mm
Cable:	RG174
Connector:	SMA Male
Mounting method:	M17 screw mount
Mounting screw length:	22 mm
Maximum panel thickness:	13 mm
Radome material:	Nylon PA6

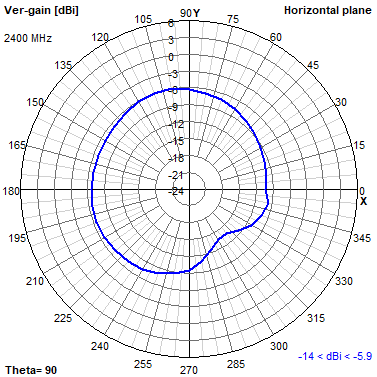

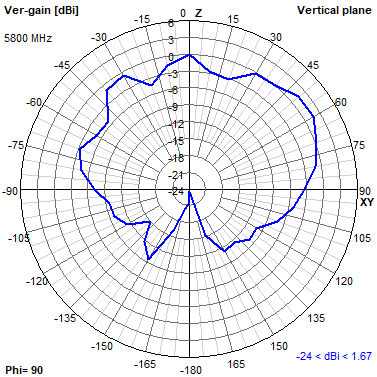

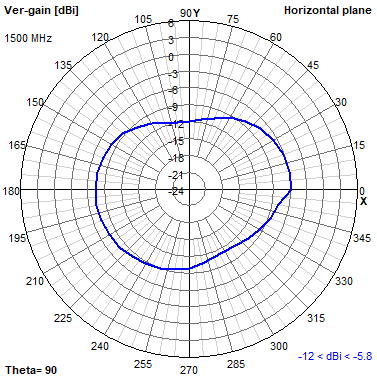

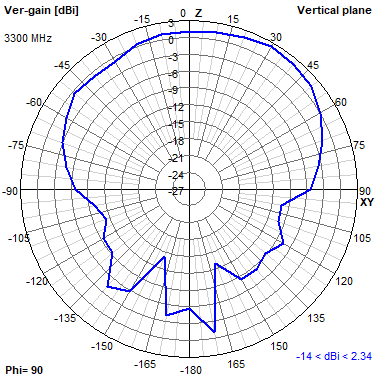

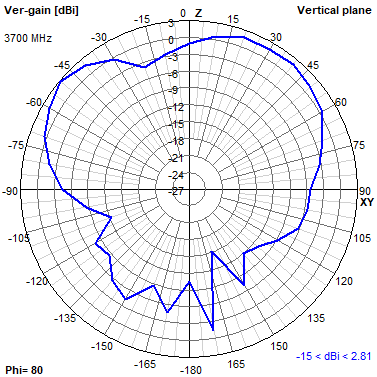

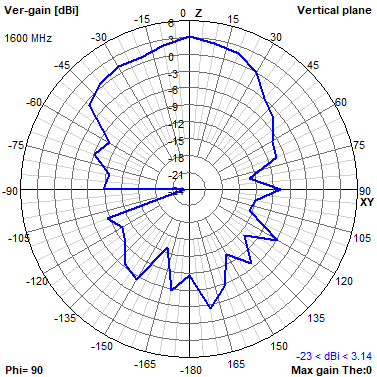

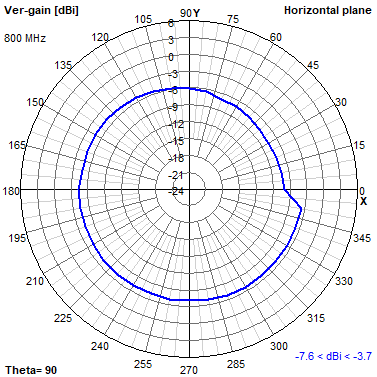

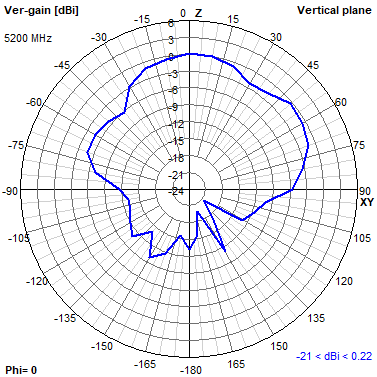

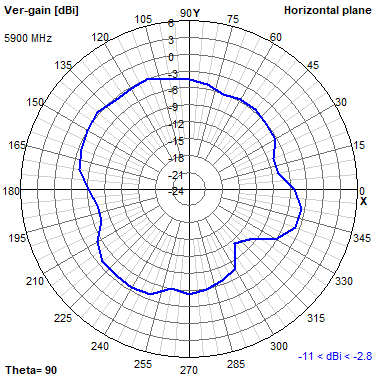

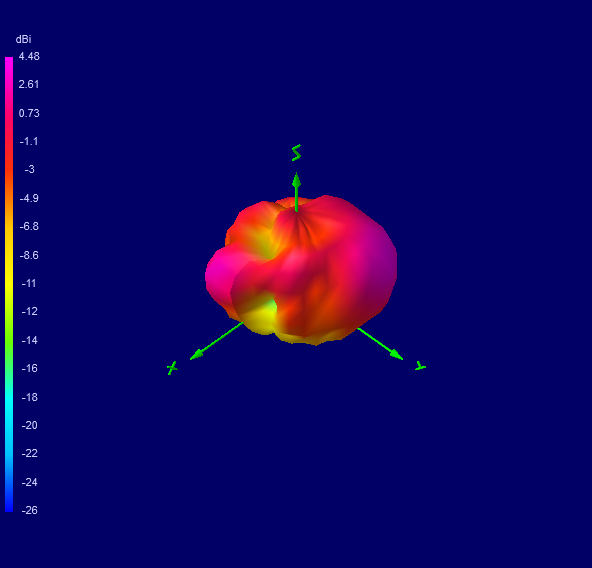

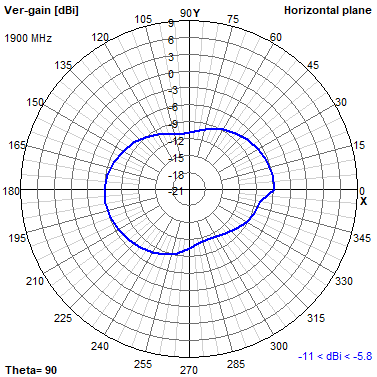

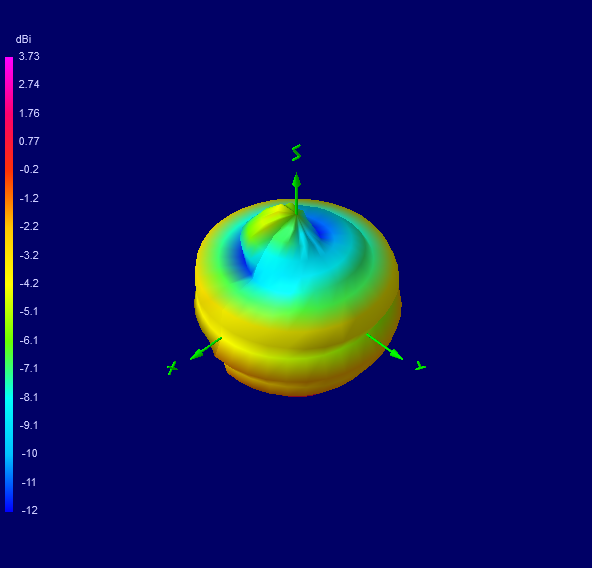

600 MHz

700 MHz

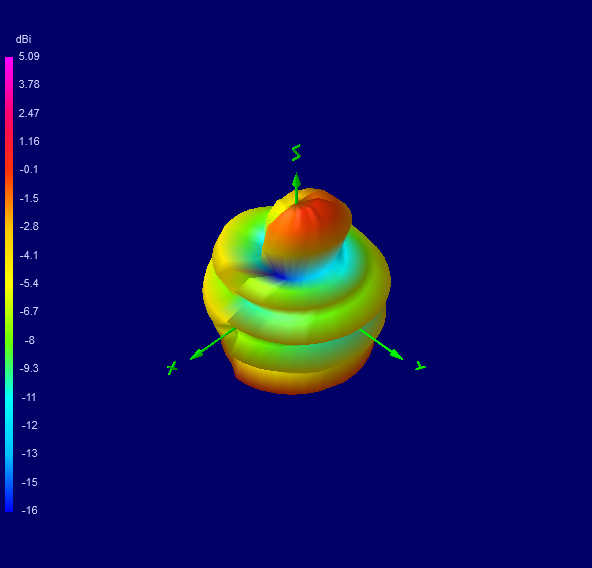

800 MHz

1500 MHz

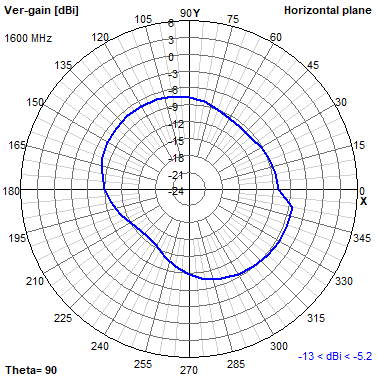

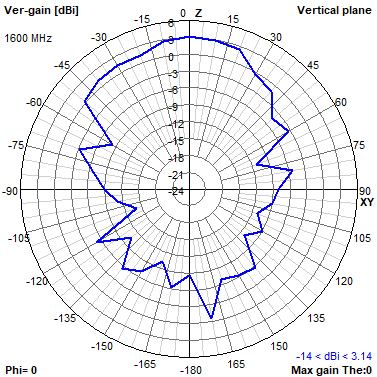

1600 MHz

1700 MHz

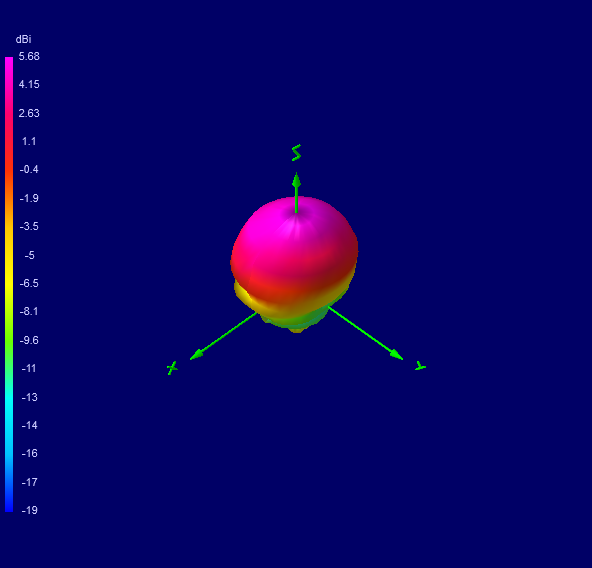

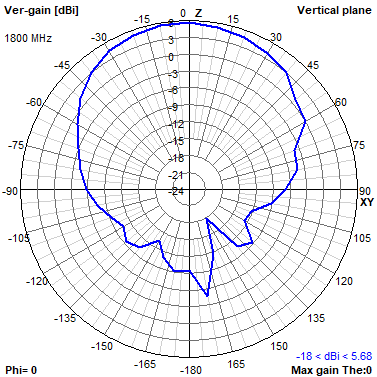

1800 MHz

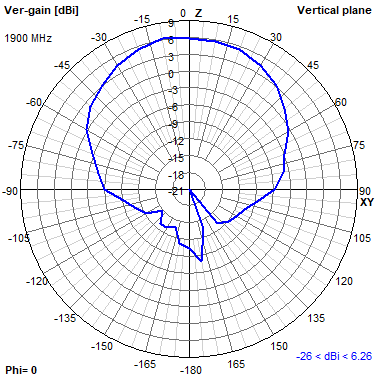

1900 MHz

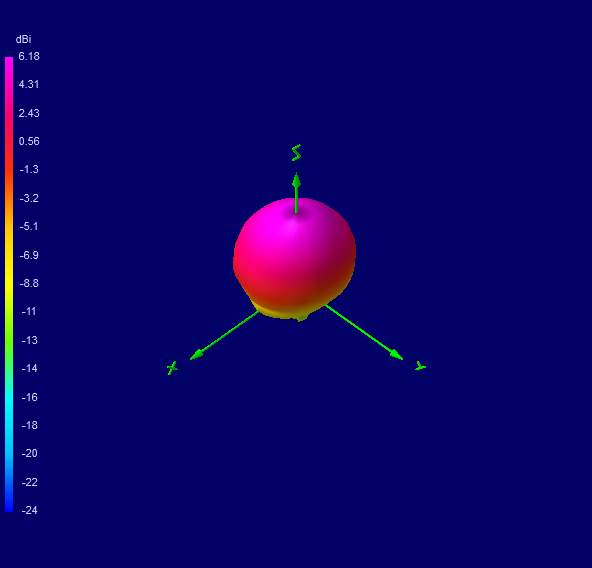

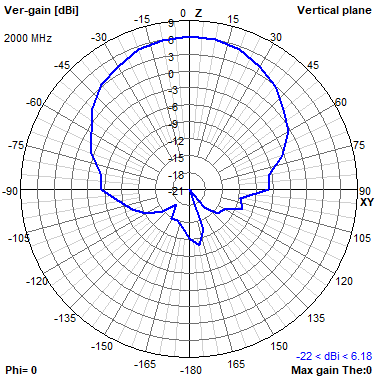

2000 MHz

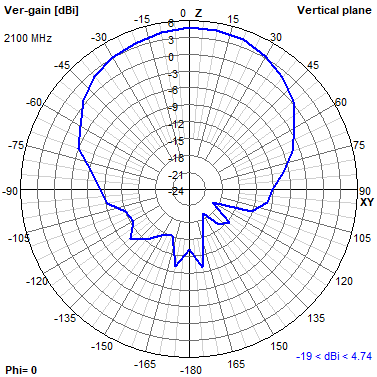

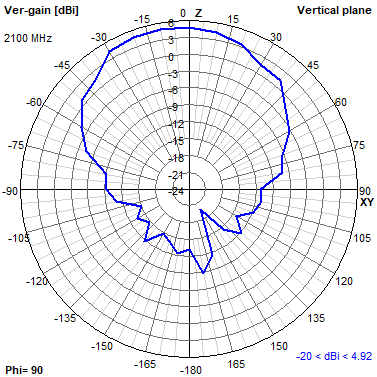

2100 MHz

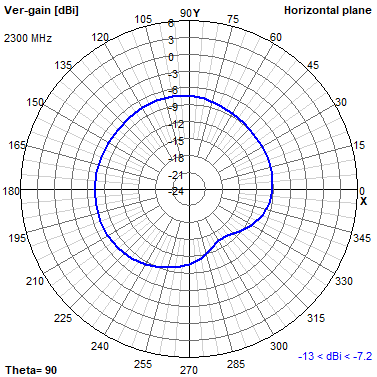

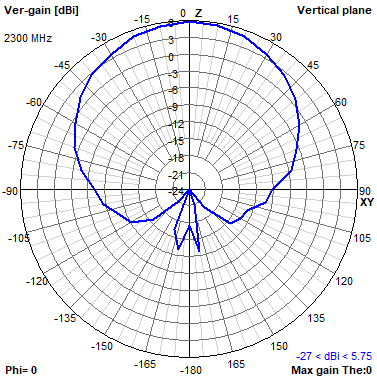

2300 MHz

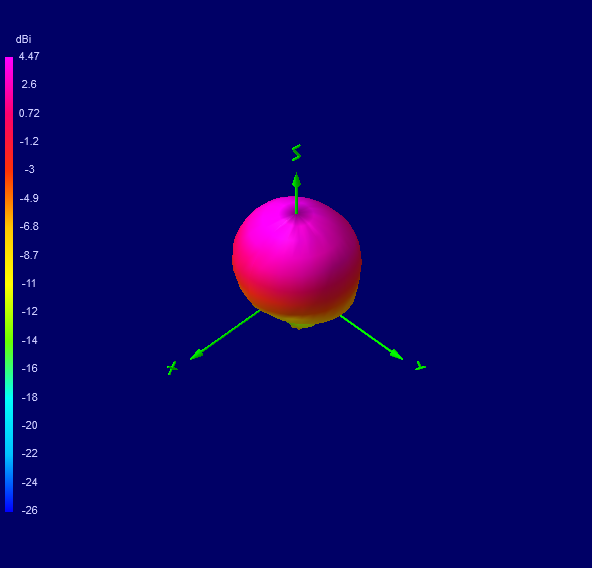

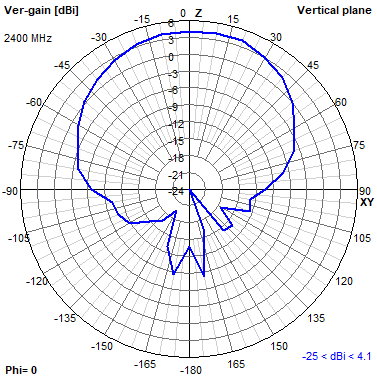

2400 MHz

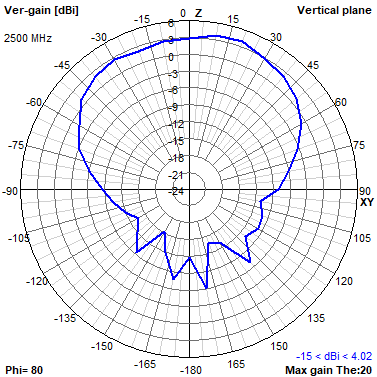

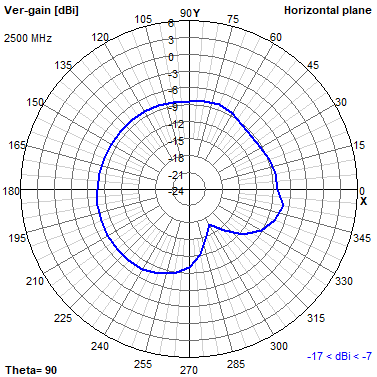

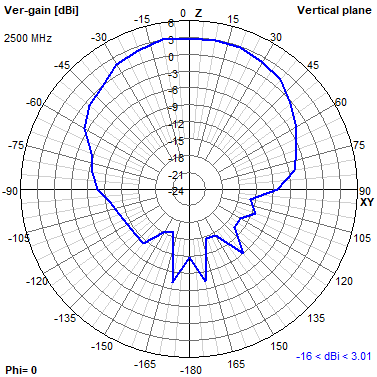

2500 MHz

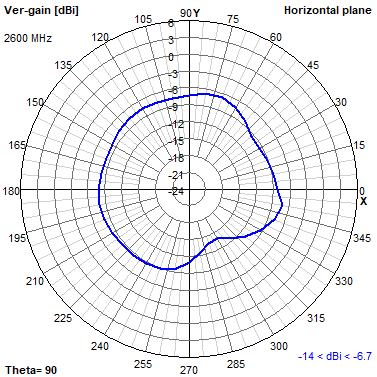

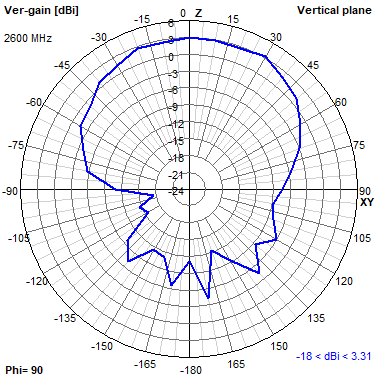

2600 MHz

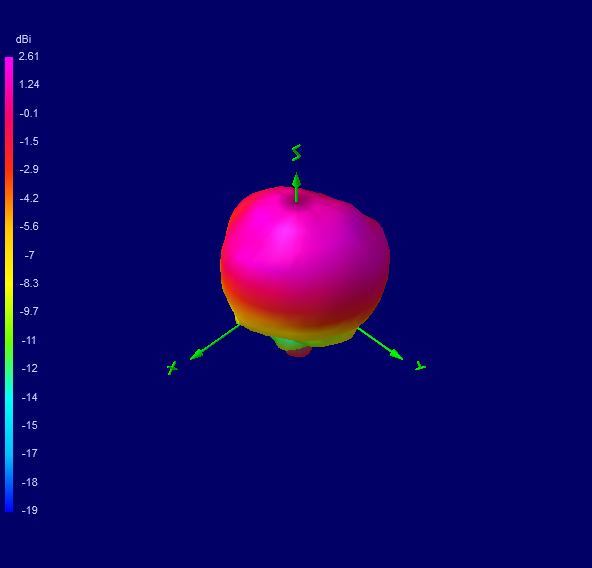

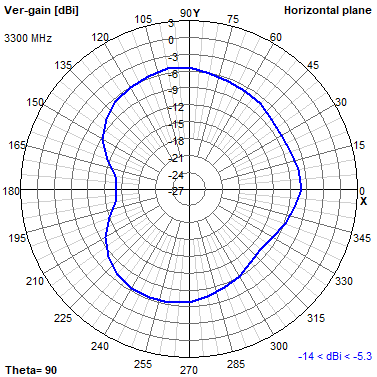

3300 MHz

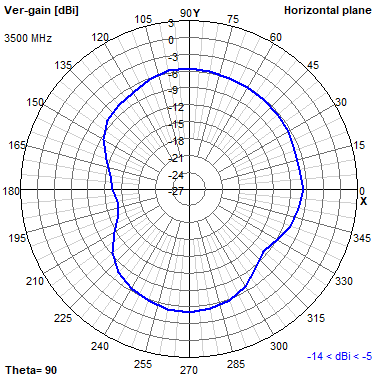

3500 MHz

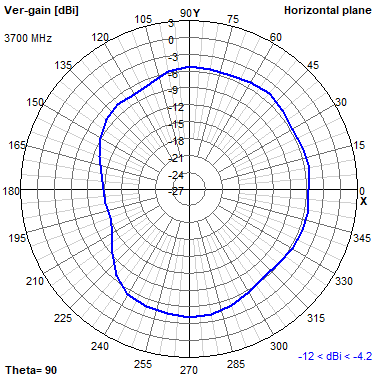

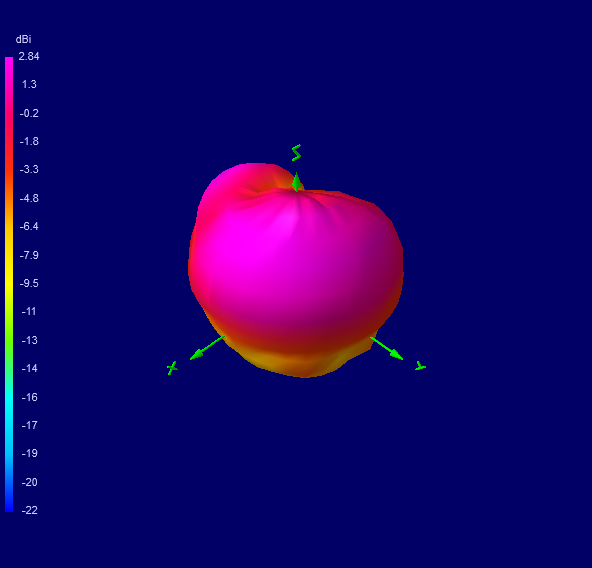

3700 MHz

4700 MHz

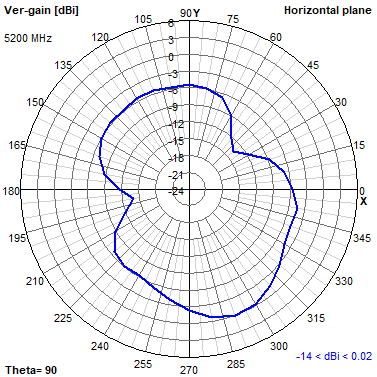

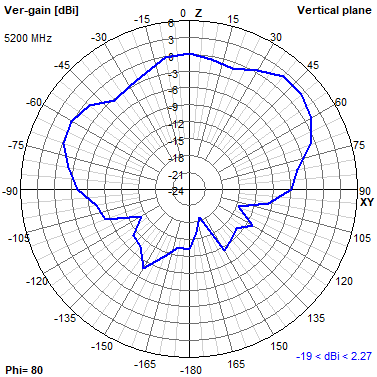

5200 MHz

5500 MHz

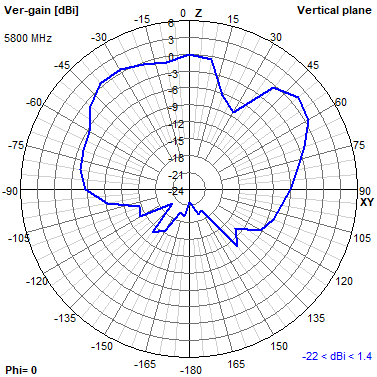

5800 MHz

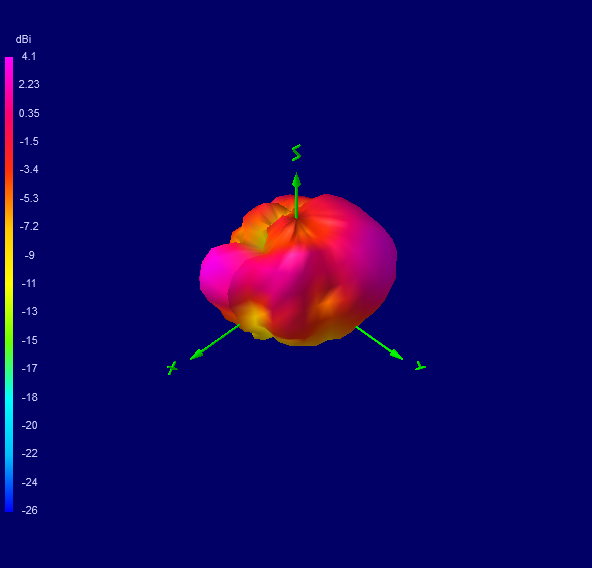

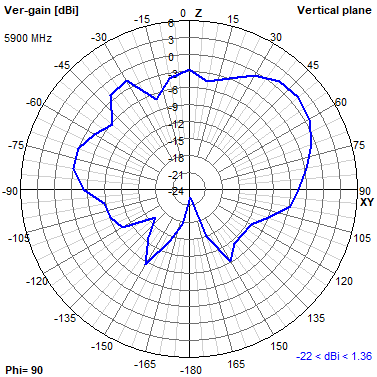

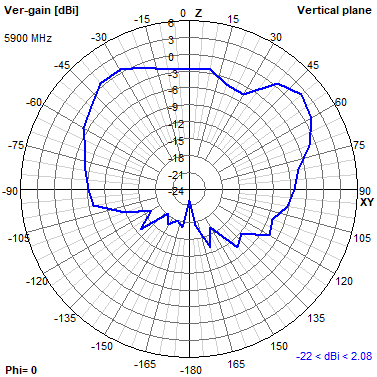

5900 MHz

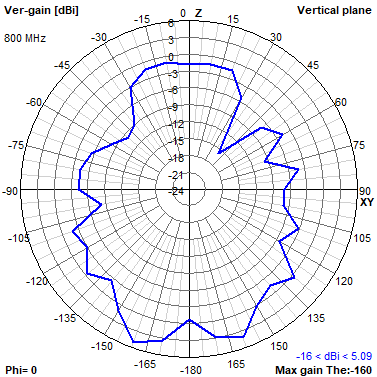

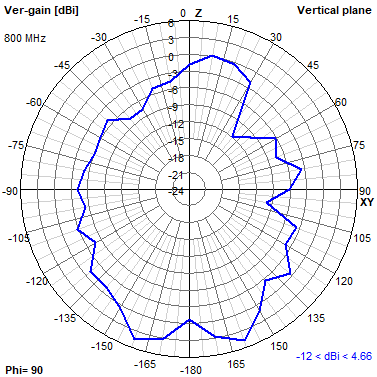

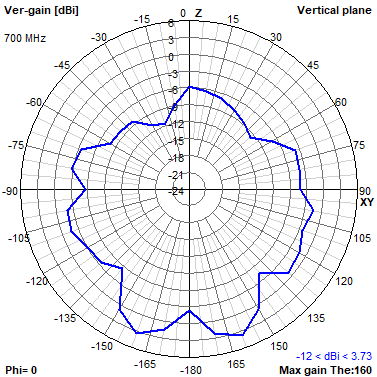

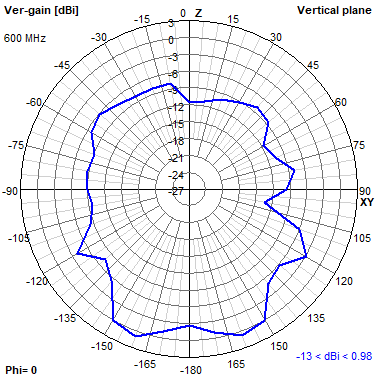

600 MHz	700 MHz	800 MHz

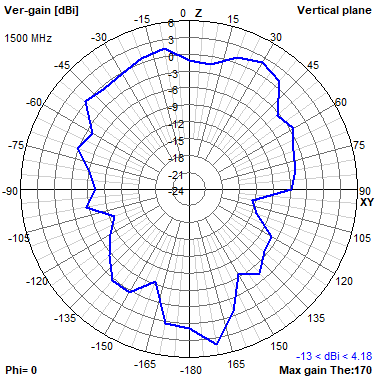

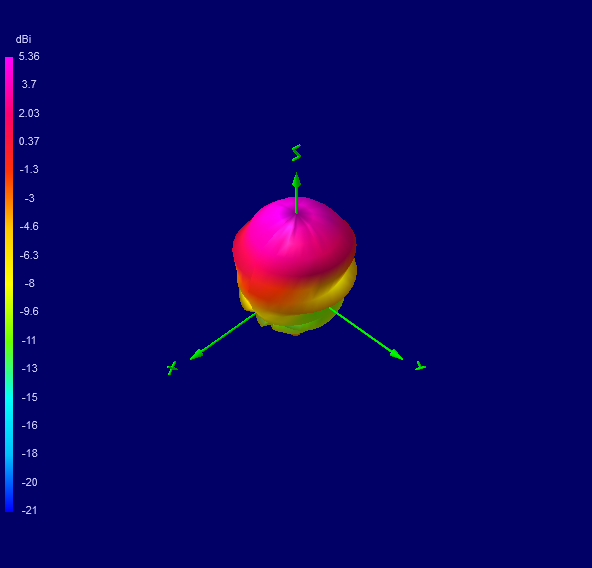

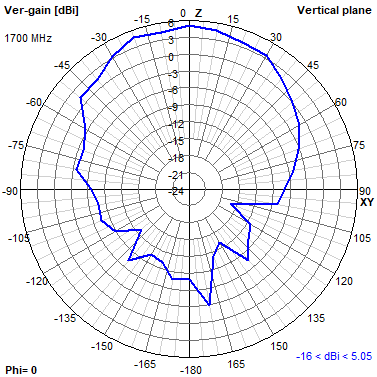

1500 MHz	1600 MHz	1700 MHz

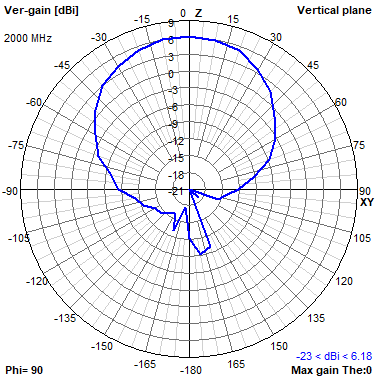

1800 MHz	1900 MHz	2000 MHz

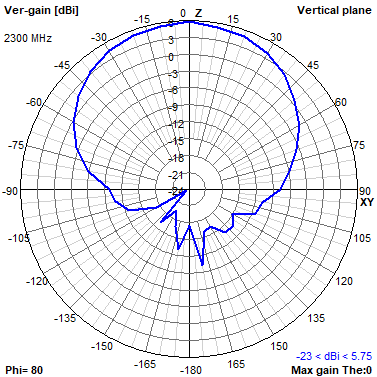

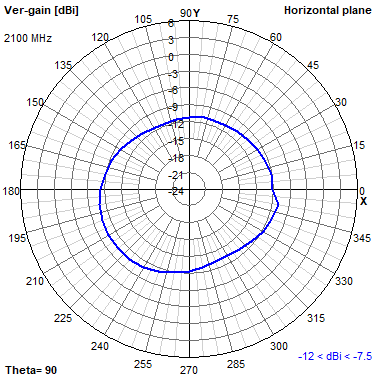

2100 MHz	2300 MHz	2400 MHz

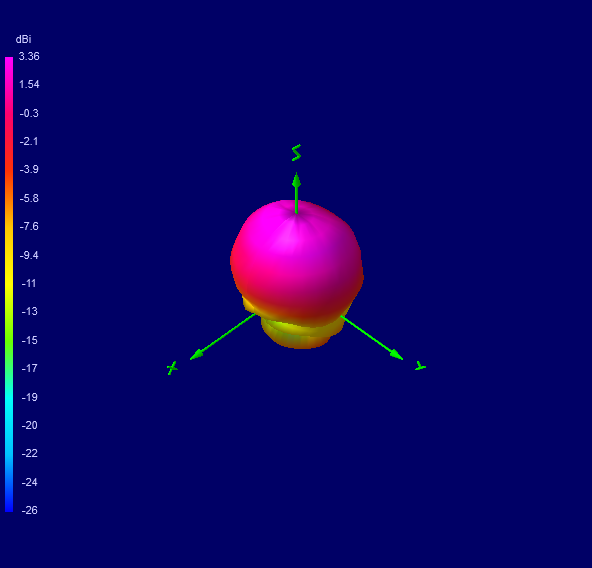

2500 MHz	2600 MHz	3300 MHz

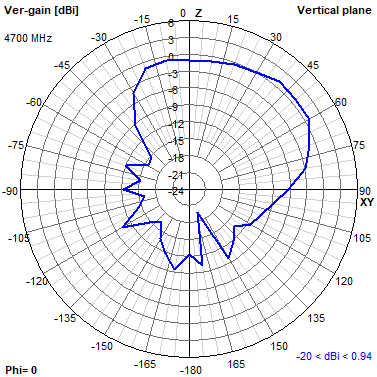

3500 MHz	3700 MHz	4700 MHz

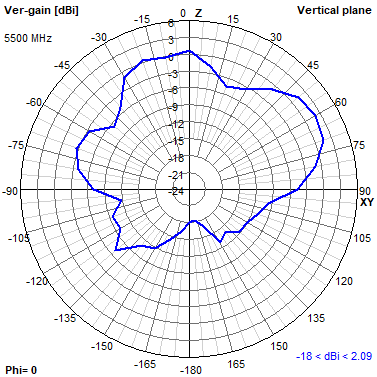

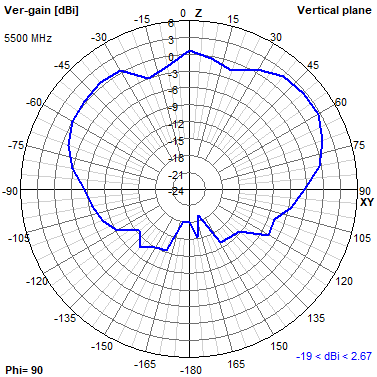

5200 MHz	5500 MHz	5800 MHz

5900 MHz

¶ General Description

¶ Key Features

¶ Typical Applications

¶ Electrical Specifications

¶ Environmental Specifications

¶ Mechanical Specifications

¶ Spectrum Coverage^*

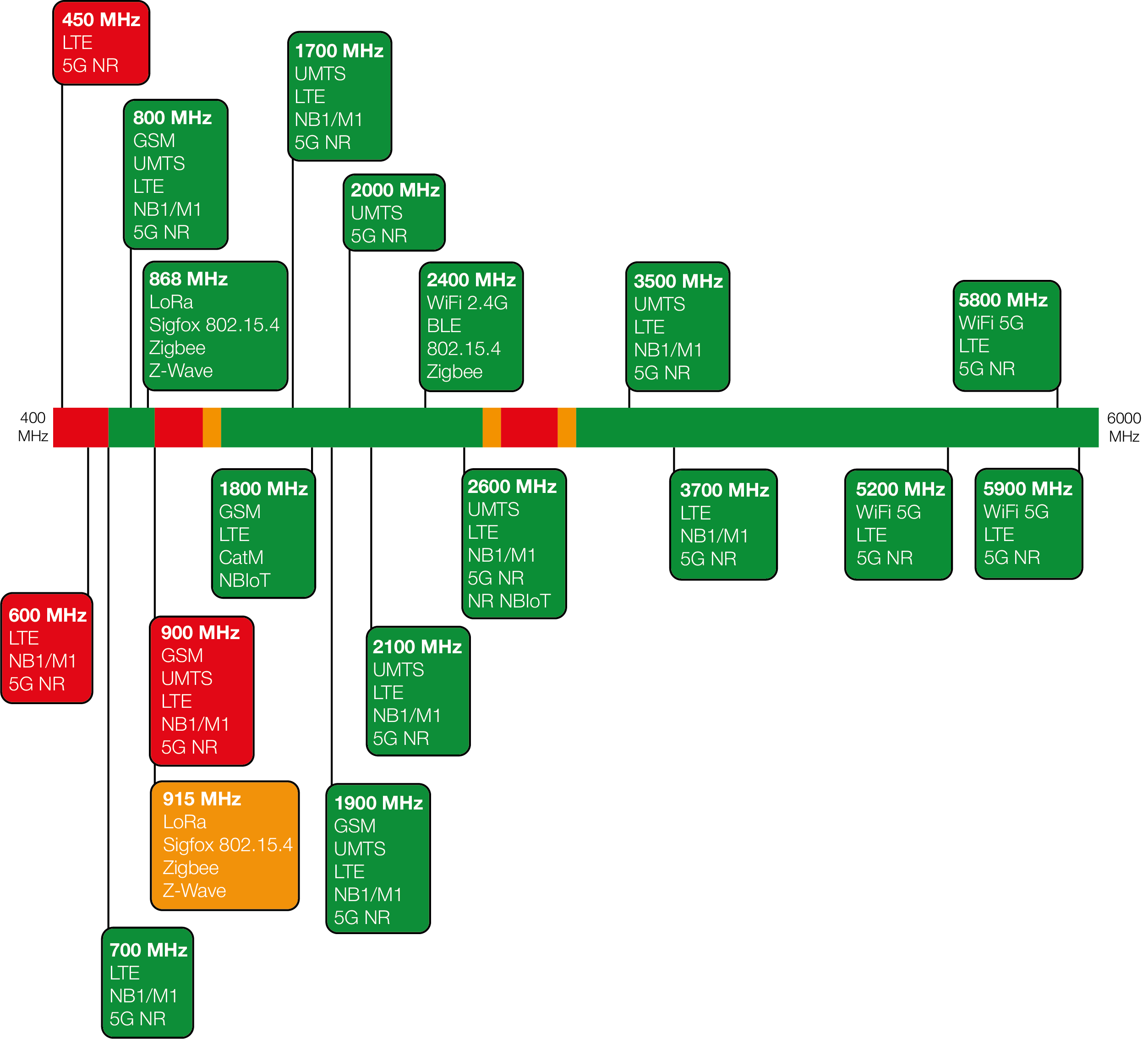

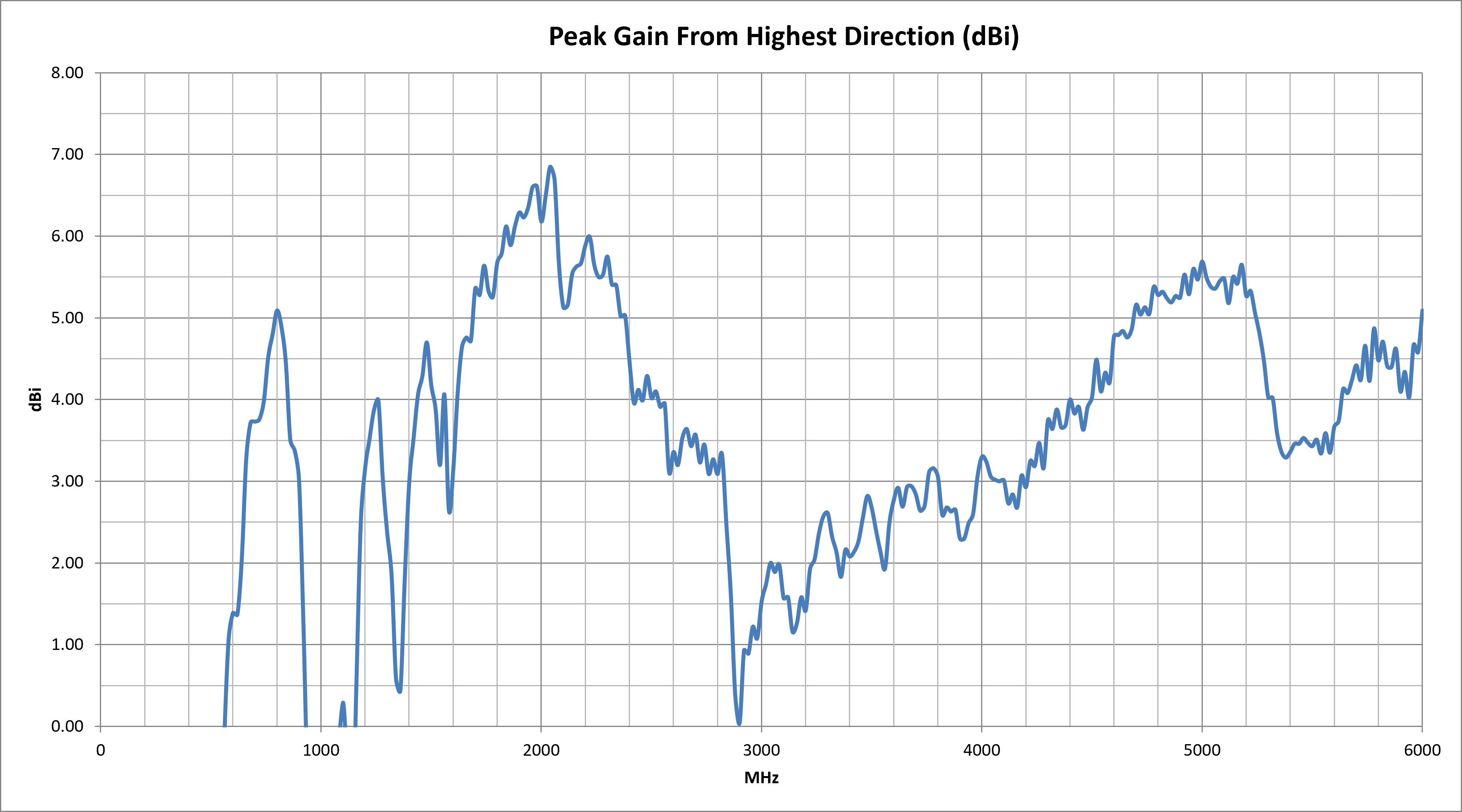

¶ Peak Gain vs. Frequency

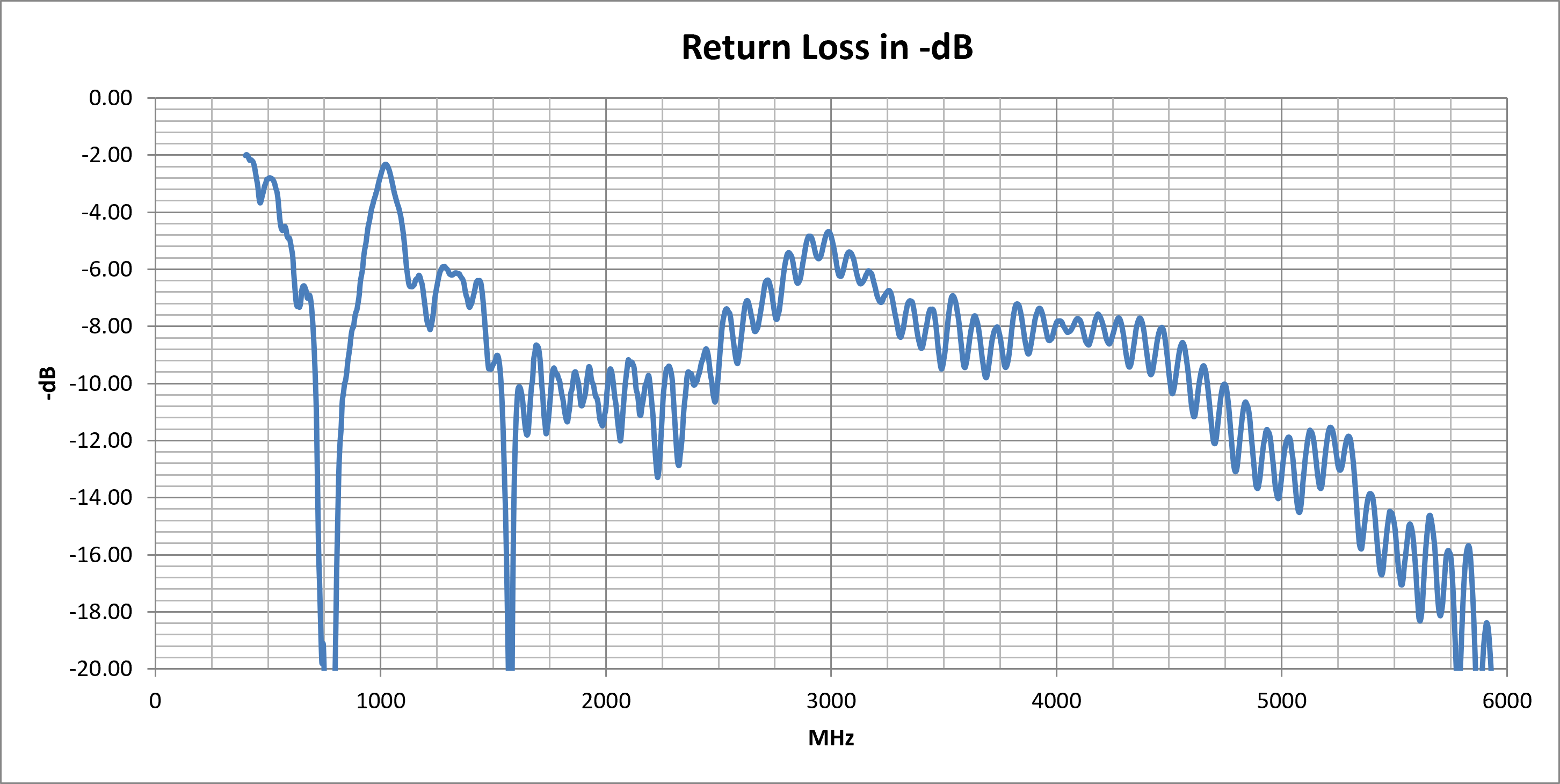

¶ Return Loss

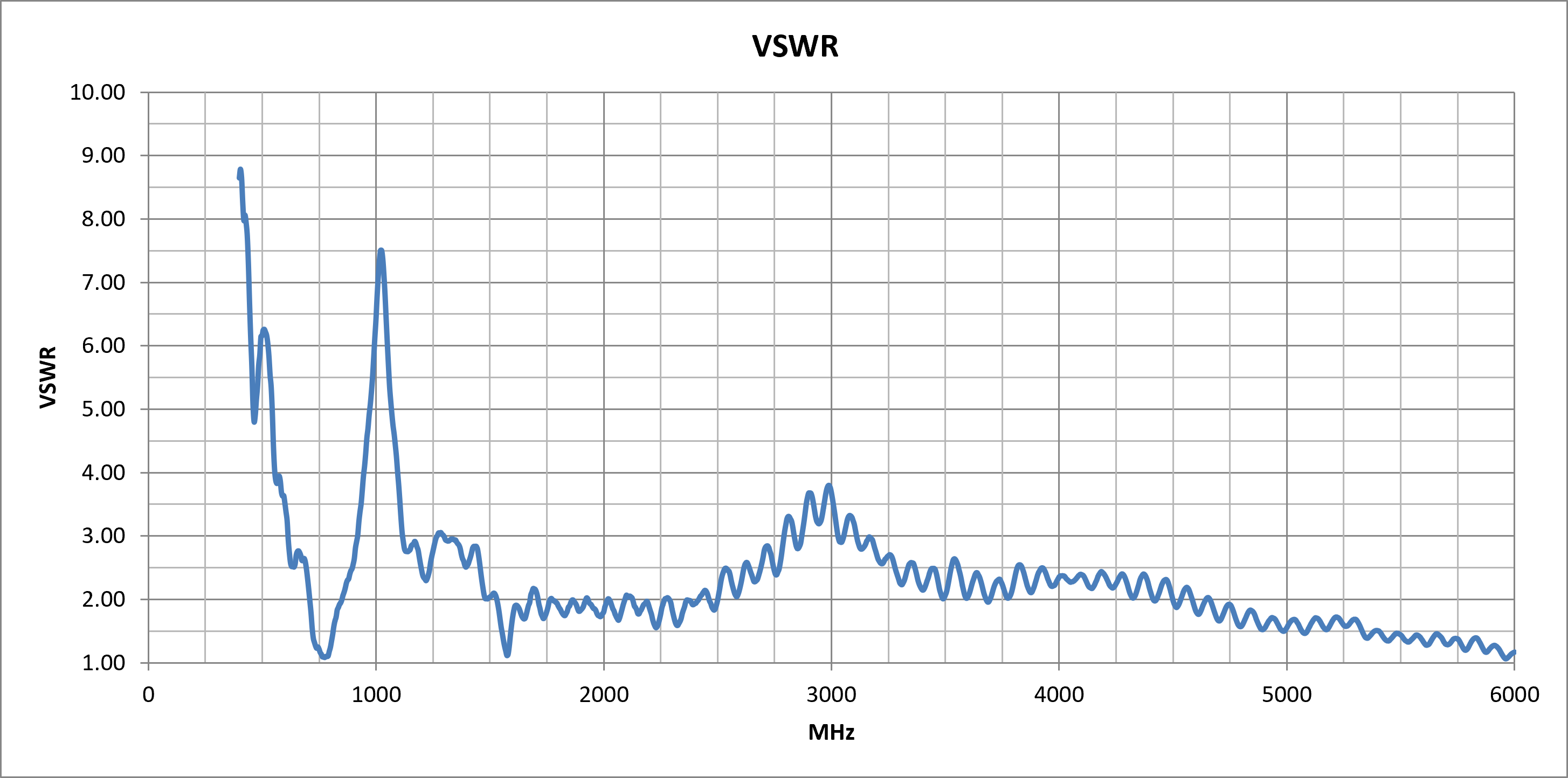

¶ VSWR

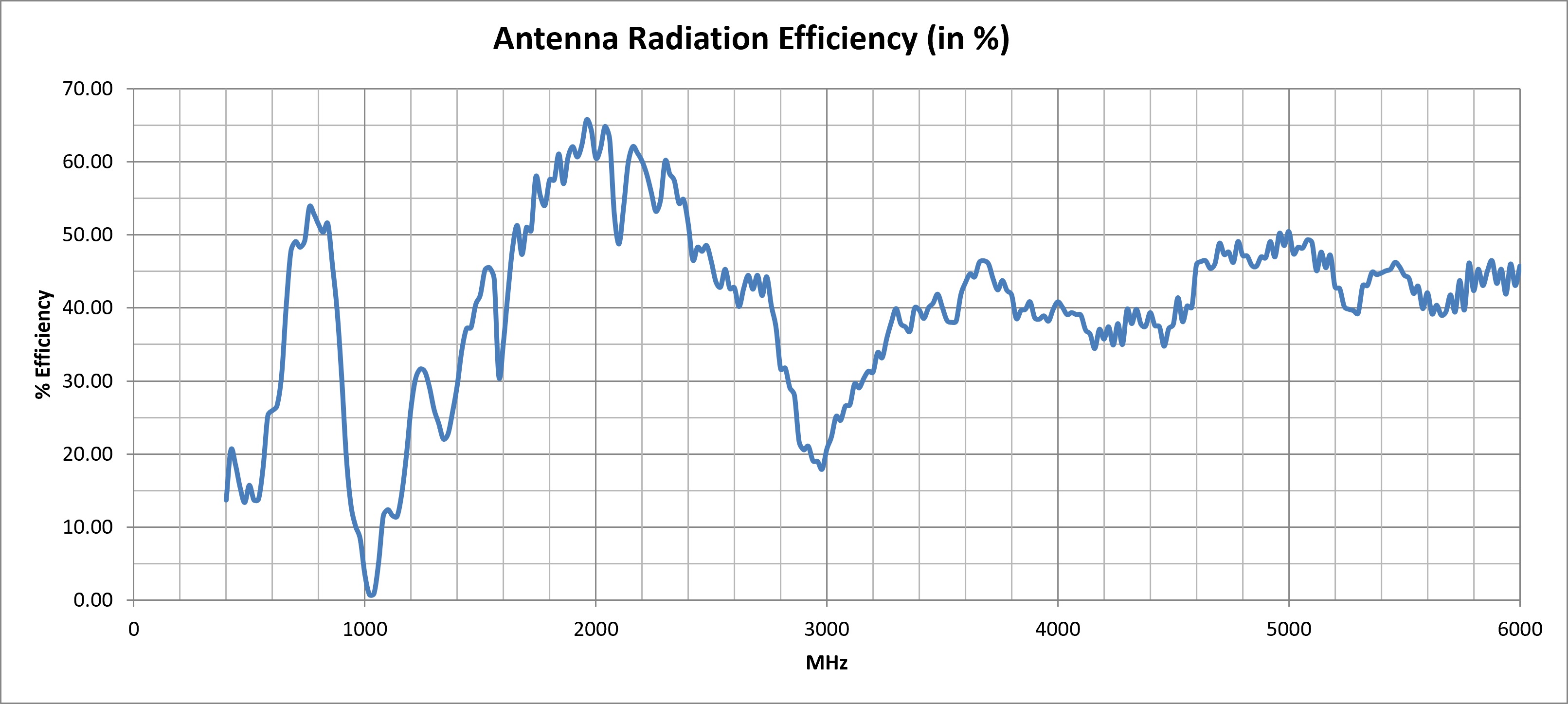

¶ Radiation Efficiency

¶ Cellular Bands^*

¶ ISM Standards Frequency Support^*

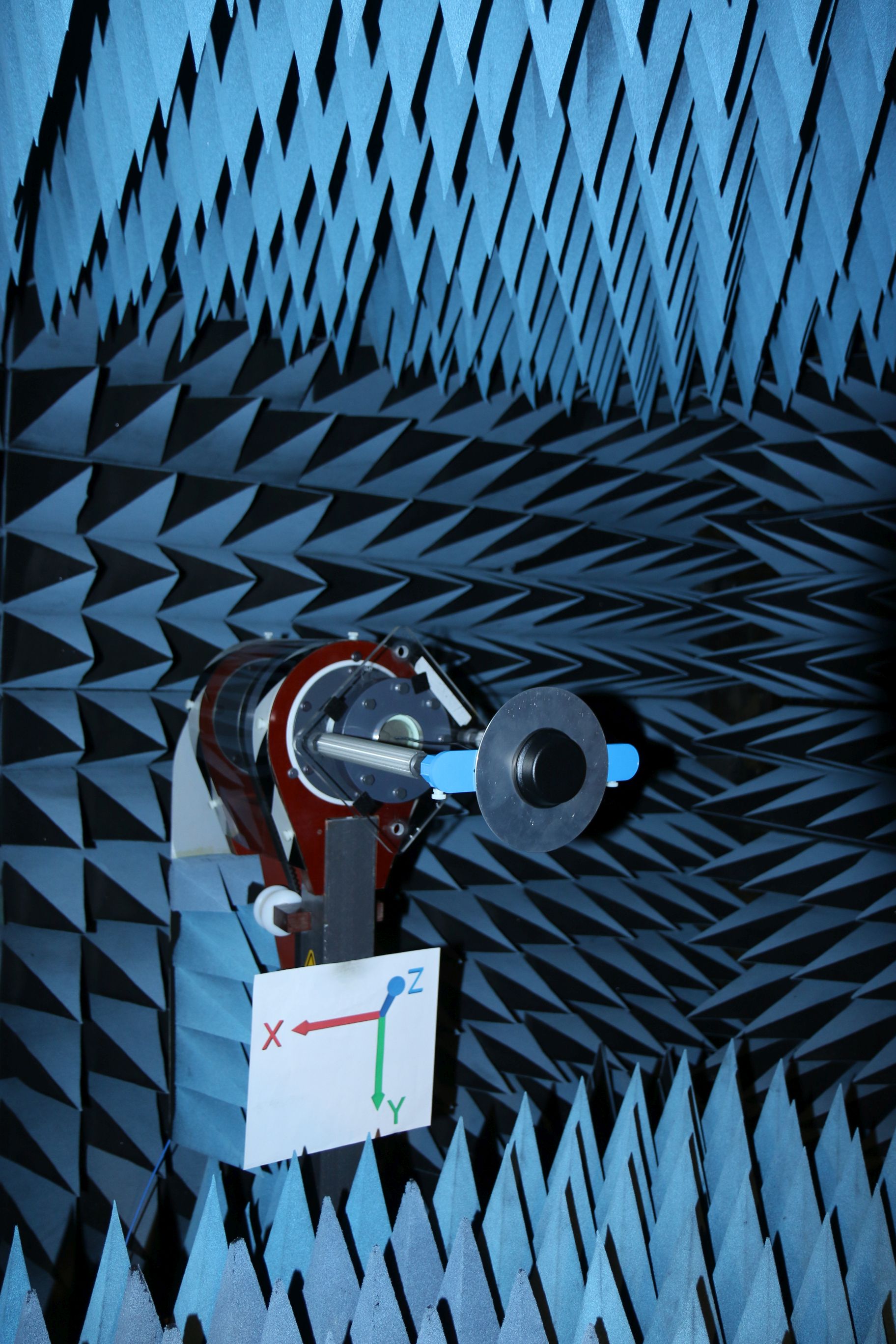

¶ Test Setup (on 160 mm Circular Ground Plane)

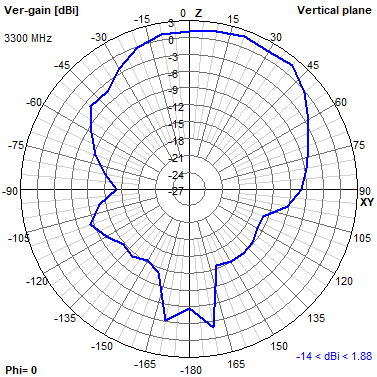

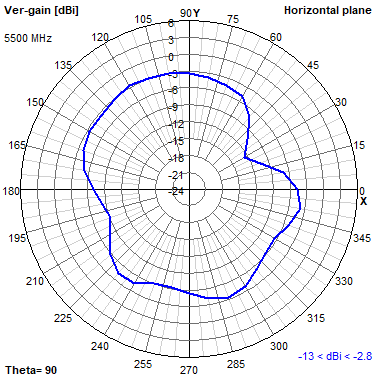

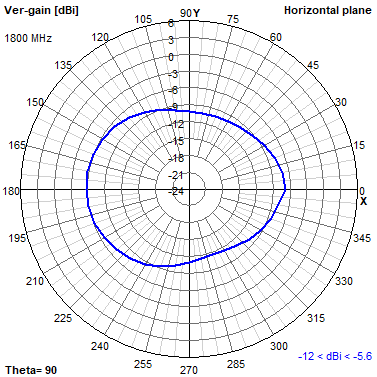

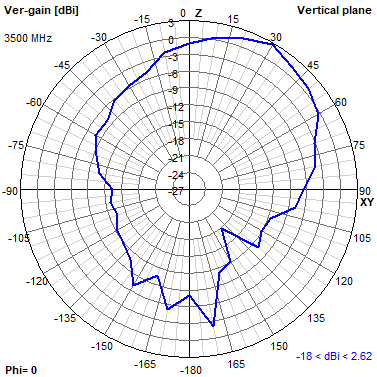

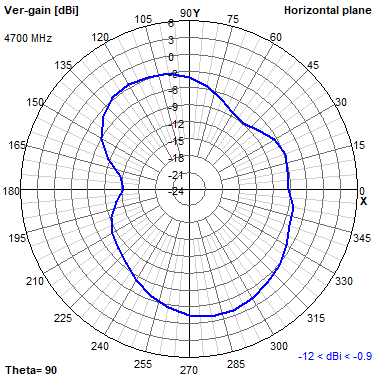

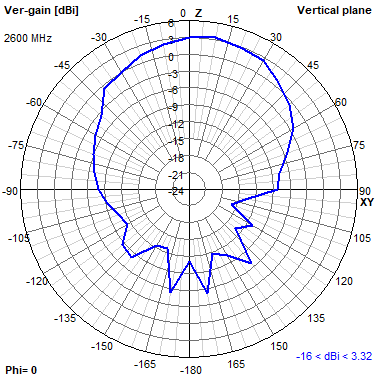

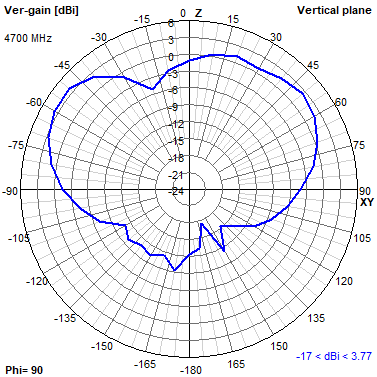

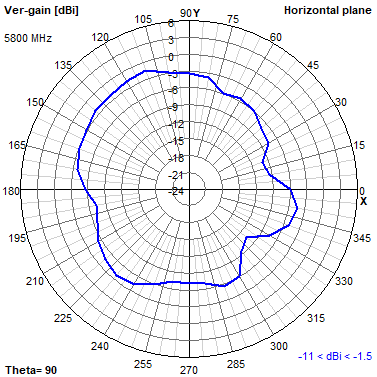

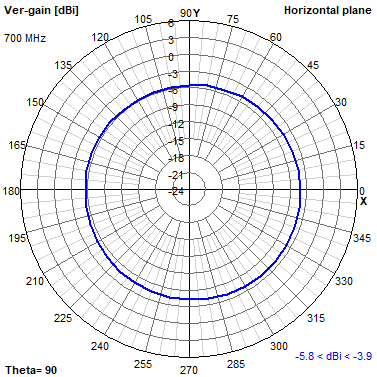

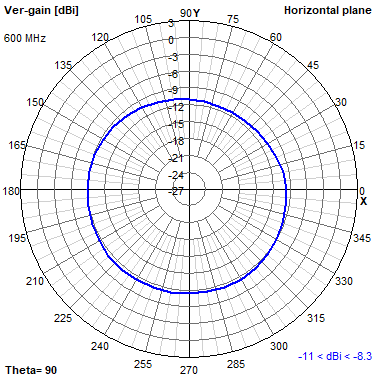

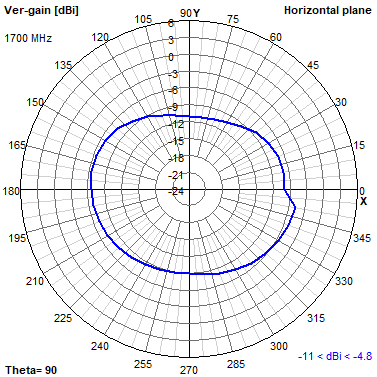

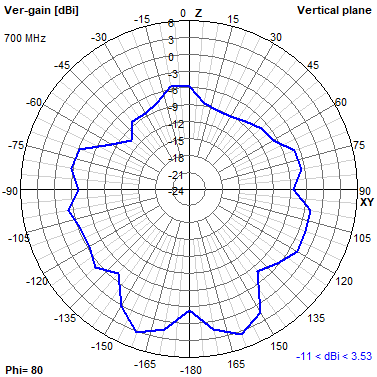

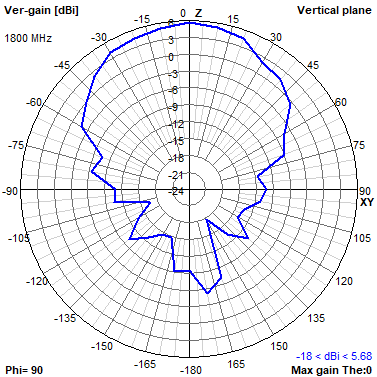

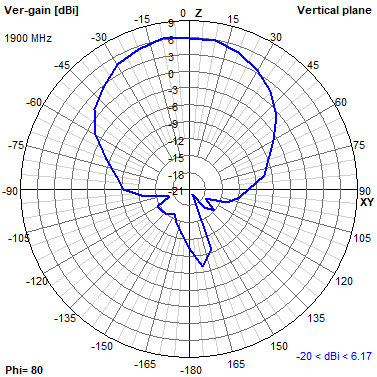

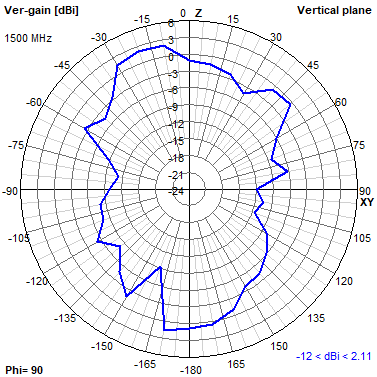

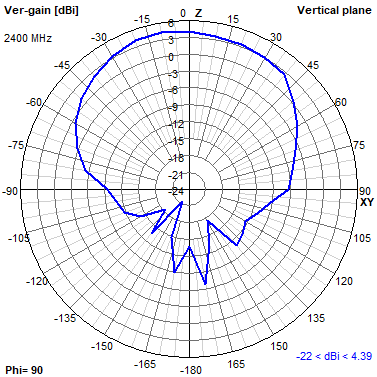

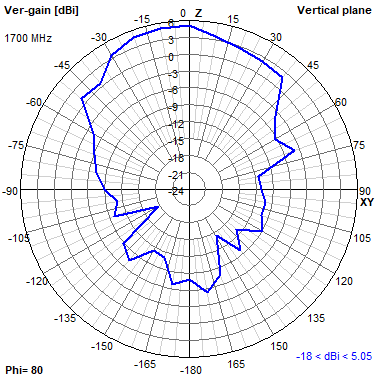

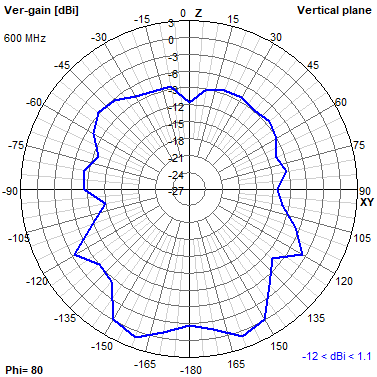

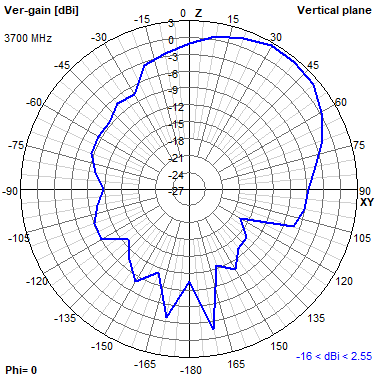

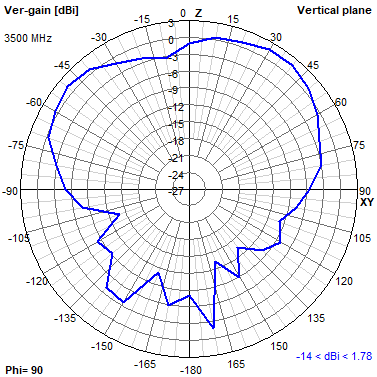

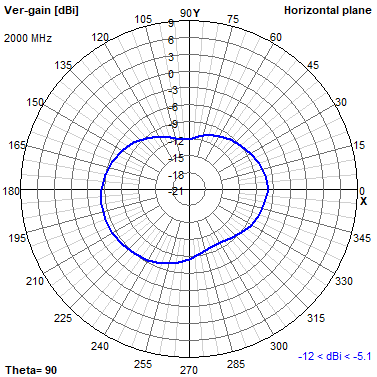

¶ 2D Radiation Plots

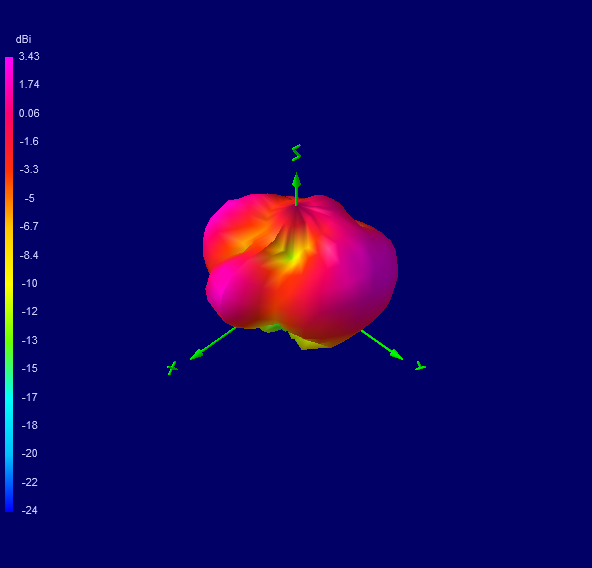

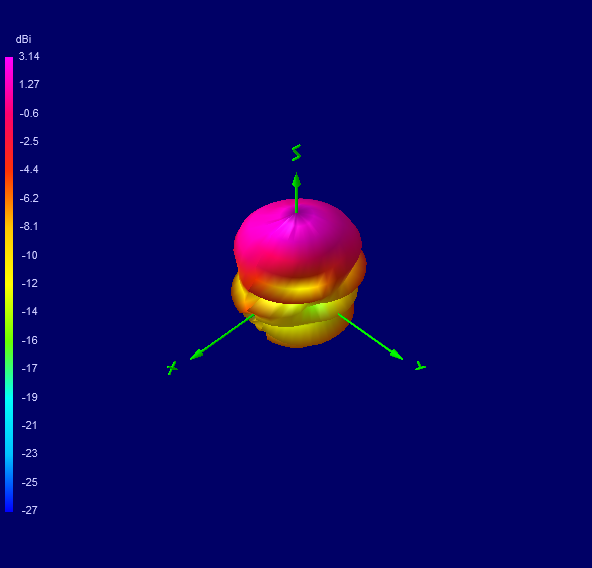

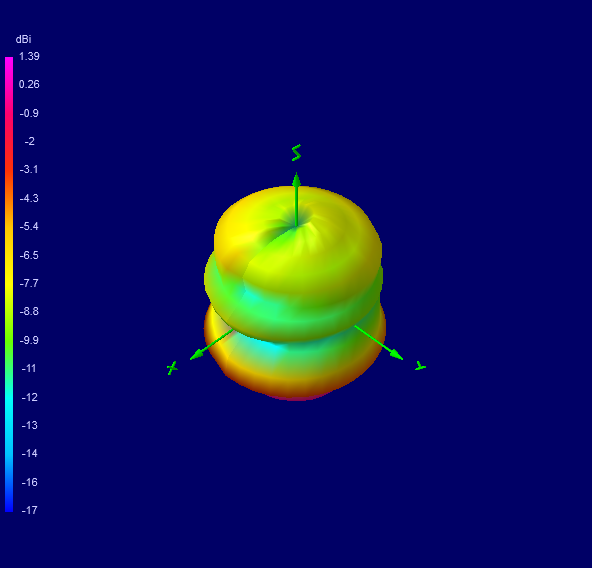

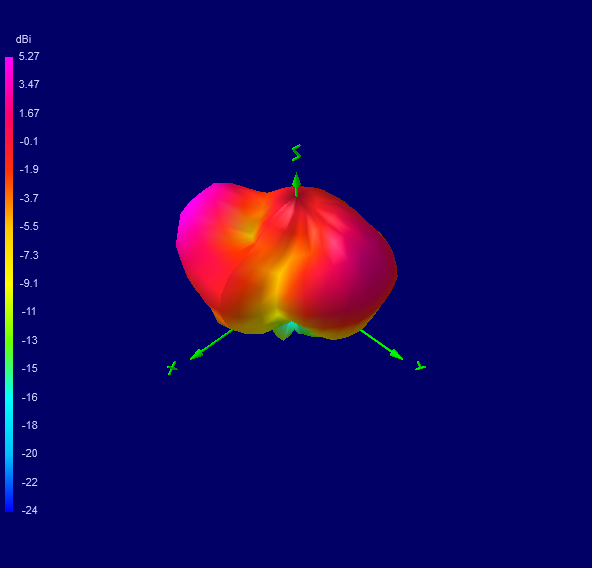

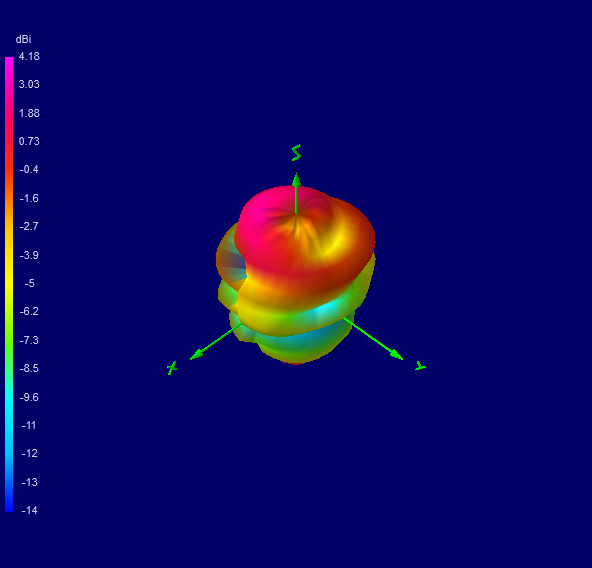

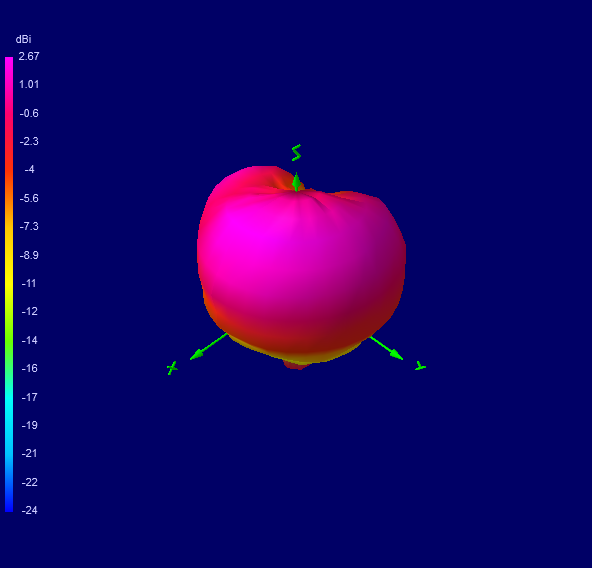

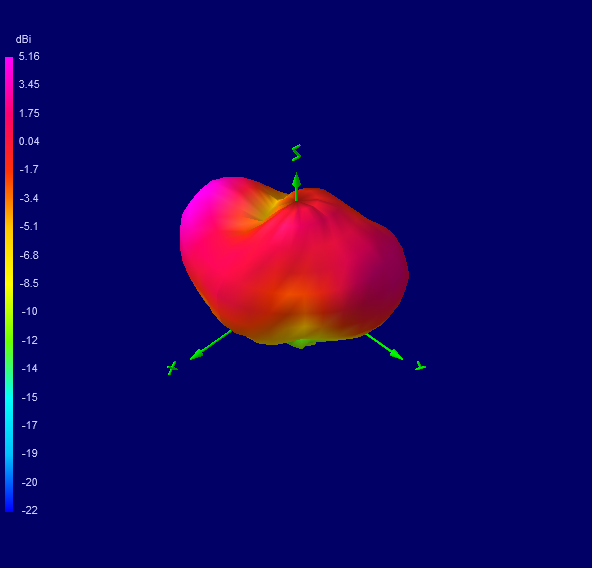

¶ 3D Radiation Plots
