¶ General Description
The Tango 73 is a high-performance, ultra-wideband antenna designed for reliable connectivity across the 700–960 MHz and 1700–6000 MHz frequencies, supporting 5G NR, 4G LTE, 3G UMTS, 2G quad-band GSM, dual-band Wi-Fi, LTE Cat M, NB-IoT, LoRa and ISM bands including 868 MHz, 915 MHz, and 5.8 GHz.
Despite its miniature form factor of less than 50 mm diameter, the Tango 73 delivers omnidirectional coverage with 2—4 dBi gain, providing stable, high-bandwidth RF performance for industrial IoT, routers, gateways, telematics, and next-generation wireless applications.
Its compact IP68-rated puck design offers durable anti-theft and tamper-proof protection, while the through-hole mounting enables discreet, low-profile installation in demanding indoor and outdoor environments. The antenna is supplied with an SMA Male connector as standard, with alternative connector options available from Siretta.
¶ Key Features
- IP68-rated for outdoor durability (rubber seal to prevent water/dust ingress)
- Supports 5G NR / 4G LTE / 3G UMTS / 2G Quad-band GSM
- Supports Dual-band Wifi 2.4 GHz and 5 GHz
- Covers LTE Cat M, NB-IoT, LoRa, IEEE 802.15.4 and ISM 868 MHz / 915 MHz / 5.8 GHz bands
- High bandwidth and 2—4 dBi gain
- Durable and compact puck design (anti-theft and anti-vandalism)
¶ Typical Applications
-
Public-facing IoT devices (kiosks, EV chargers, vending machines, smart parcel lockers)
-
Smart utility and industrial monitoring systems
-
Transportation, telematics, and fleet management
-
Industrial routers, gateways, and edge devices
|
Wideband
Coverage
|
IP68 Rated
Outdoor Durability
|
Cellular
3G–5G Support
|
2—4 dBi
Gain
|
Through-Hole
Low-Profile Mount
|
Product Features
2G
GSM
3G
UMTS
4G
LTE
5G
NR
BLE
Bluetooth
IEEE
802.15.4
IP
68
ISM
868
ISM
915
ISM
2.4 GHz
ISM
5.8 GHz
LoRa
Wireless
LTE
CAT-M
LTE
NB-IoT
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
Cellular Band Support
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B17
B18
B19
B20
B21
B22
B24
B25
B26
B27
B28
B28A
B29
B30
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B65
B66
B67
B68
B69
B70
B71
B74
B75
B76
B85
B103
B106
B111
5G NR Band Support
n1
n2
n3
n5
n7
n8
n12
n14
n18
n20
n24
n25
n26
n28
n29
n30
n34
n38
n39
n40
n41
n46
n47
n48
n50
n51
n53
n54
n65
n66
n67
n70
n71
n74
n75
n76
n77
n78
n79
n80
n81
n82
n83
n84
n85
n86
n89
n90
n91
n92
n93
n94
n95
n97
n98
n99
n100
n101
n109
n110
¶ Electrical Specifications
| Frequency Range: | 700–960 MHz 1700–6000 MHz |
| Impedance: | 50 Ohm |
| Polarisation: | Linear |
| Average Gain | |
| 700-960 MHz: | 2.1 dBi |
| 1700-6000 MHz: | 4.4 dBi |
| Average Radiation Efficiency: | |
| 700-960 MHz: | 48% |
| 1700-6000 MHz: | 55% |
| Max Input Power: | 2 W |
| Ground plane independent: | Yes |
¶ Environmental Specifications
| Operating Temperature range: | -40°C to 85 °C |
| Storage Temperature range: | -40°C to 85 °C |

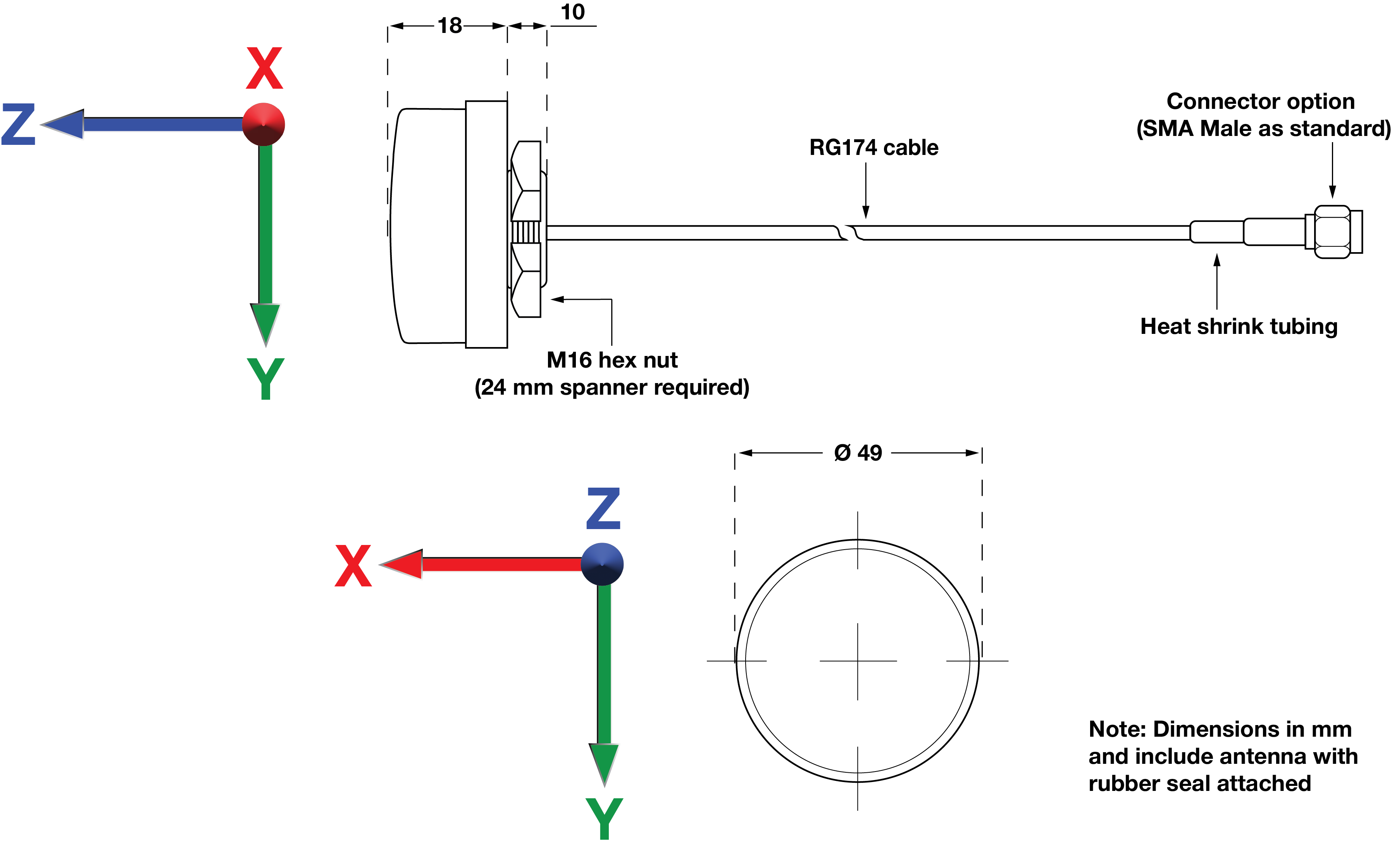

¶ Mechanical Specifications
| Dimensions: | Ø 49 x 18 mm |
| Weight: | 100 g |
| Cable: | RG174 (3 m) |
| Connector: | SMA Male as standard (other options available upon request) |
| Mounting method: | Through-hole, screw |
| Housing materials: | ABS |
¶ Spectrum Coverage*

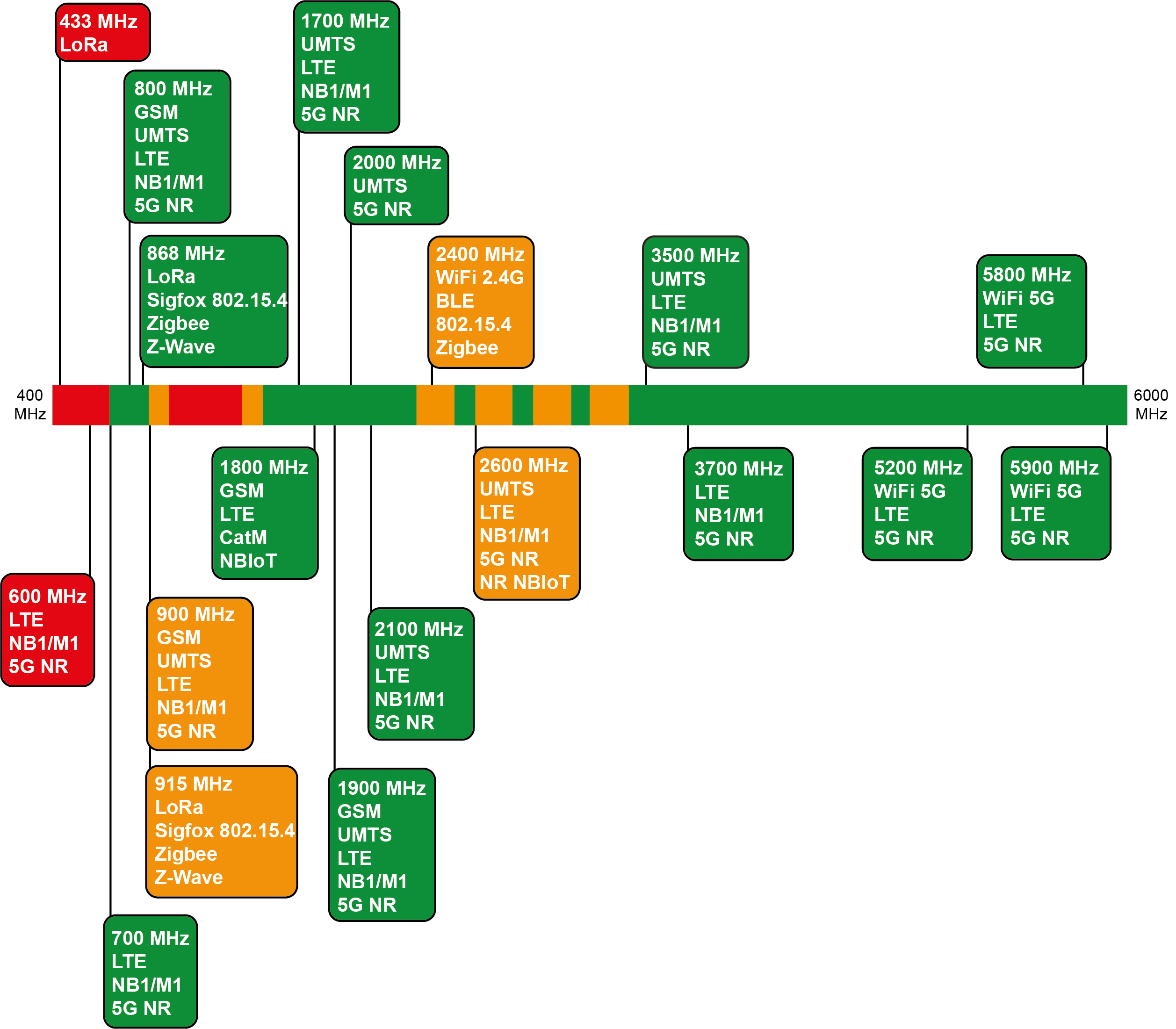

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency, taking into consideration the VSWR and radiated efficiency of the antenna.
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

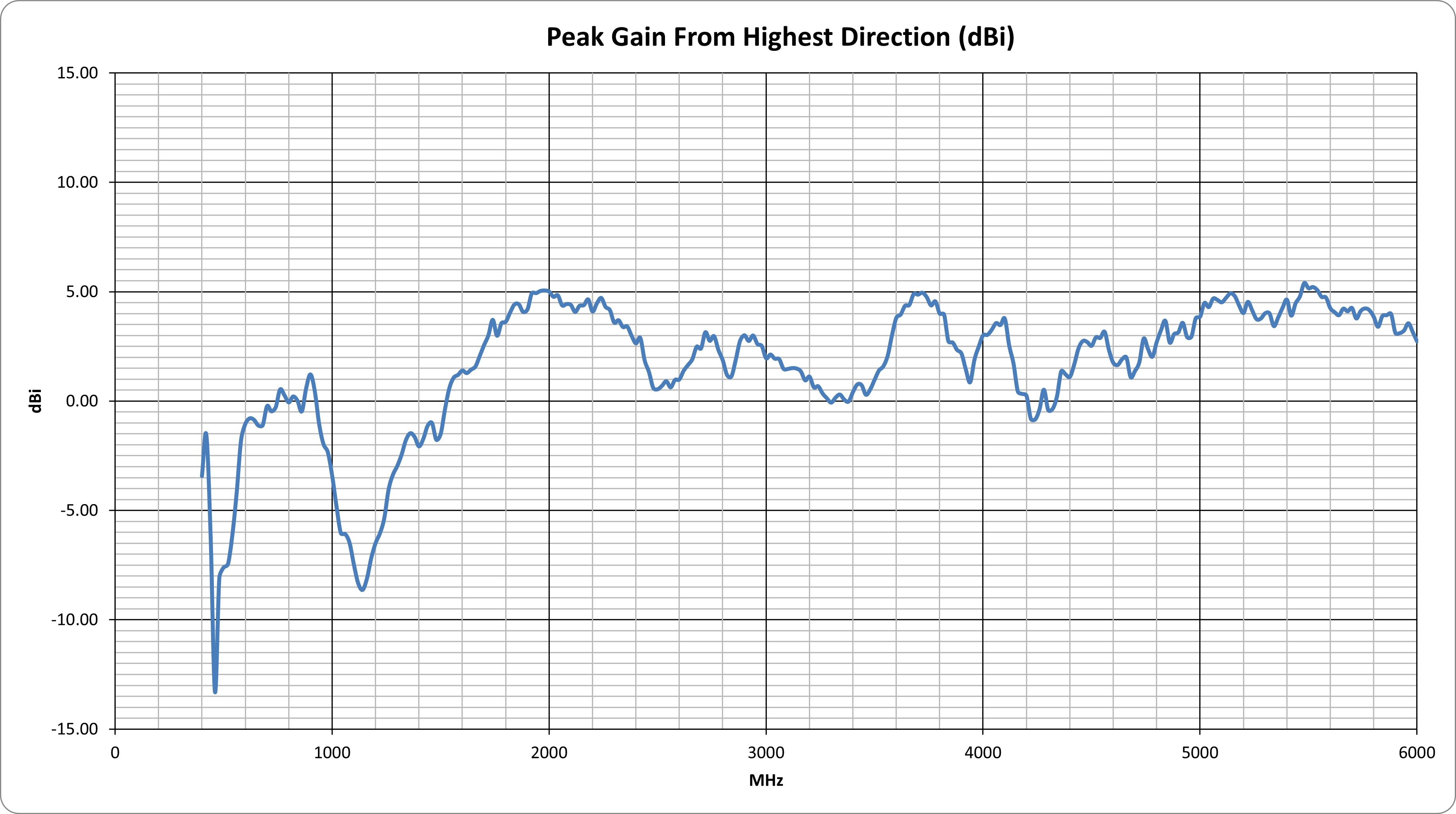

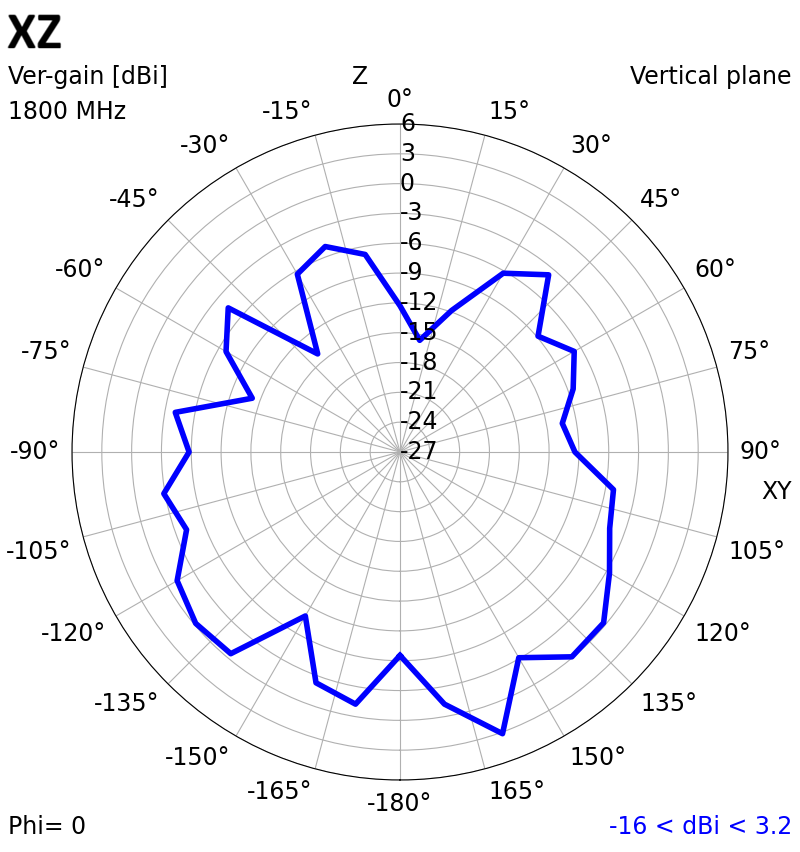

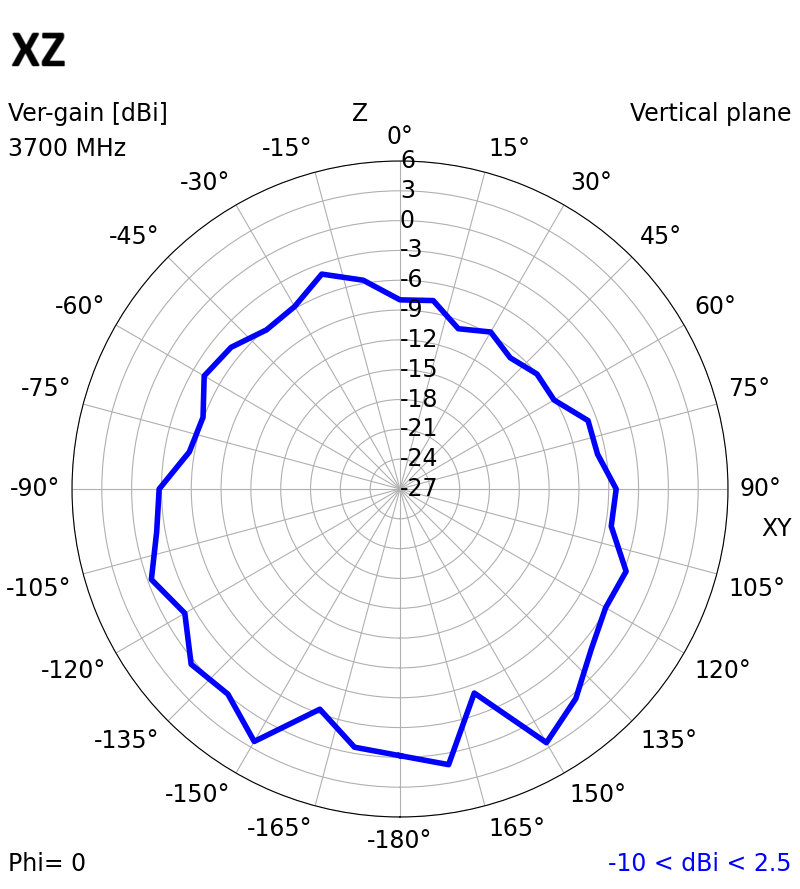

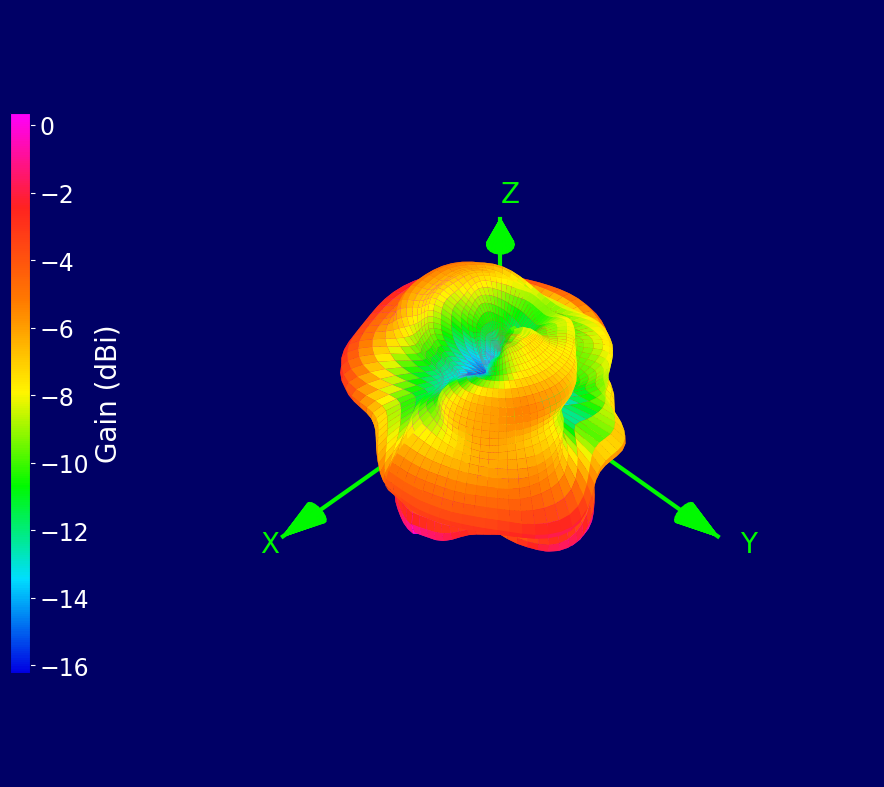

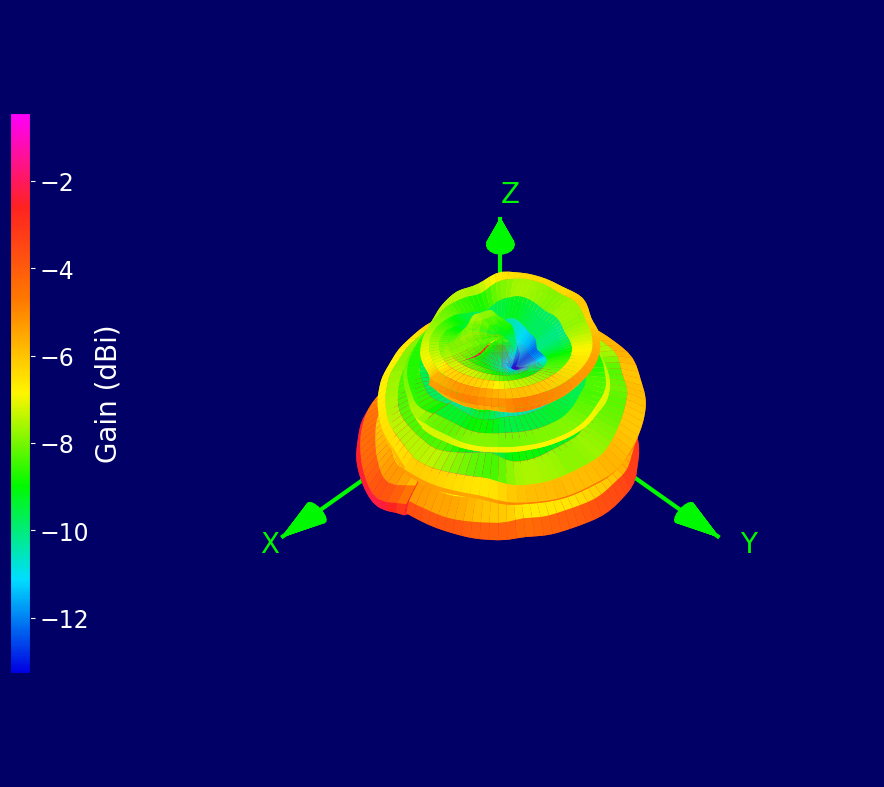

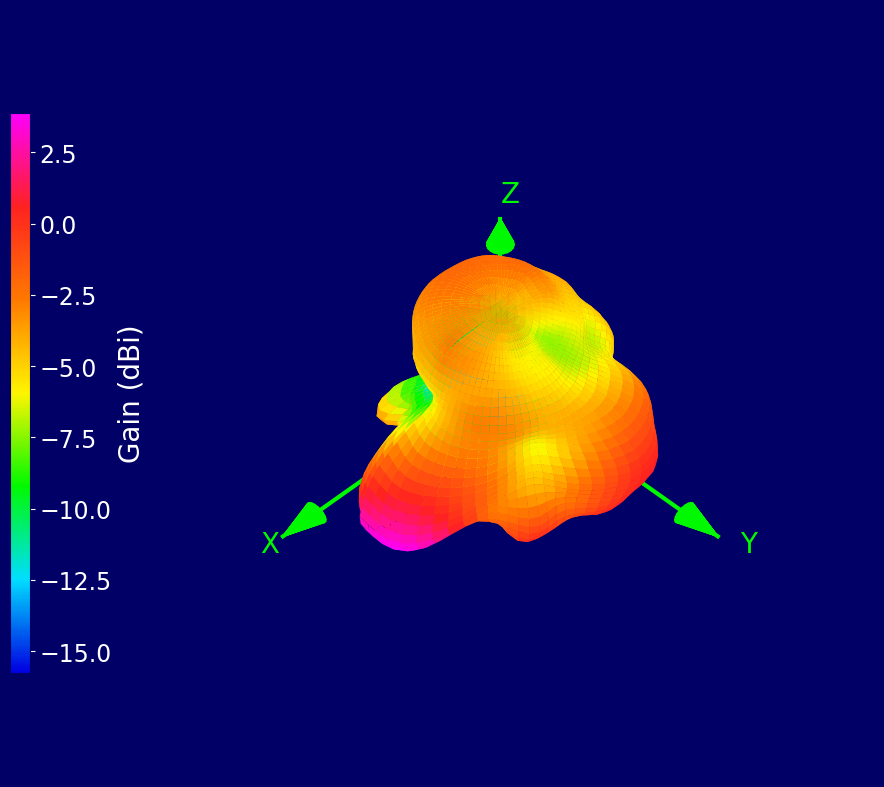

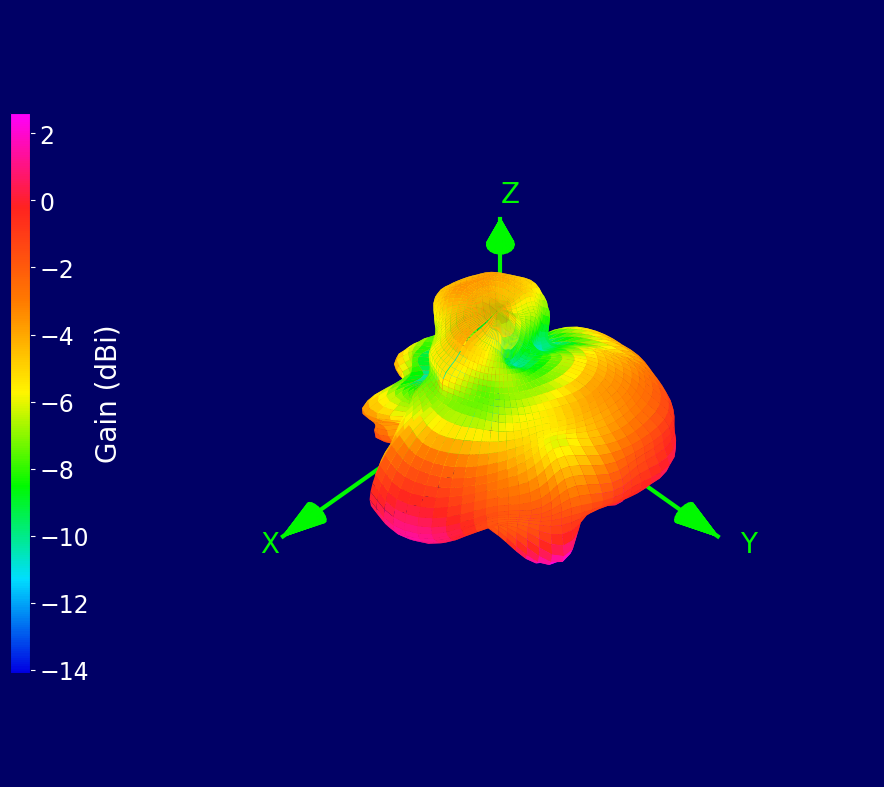

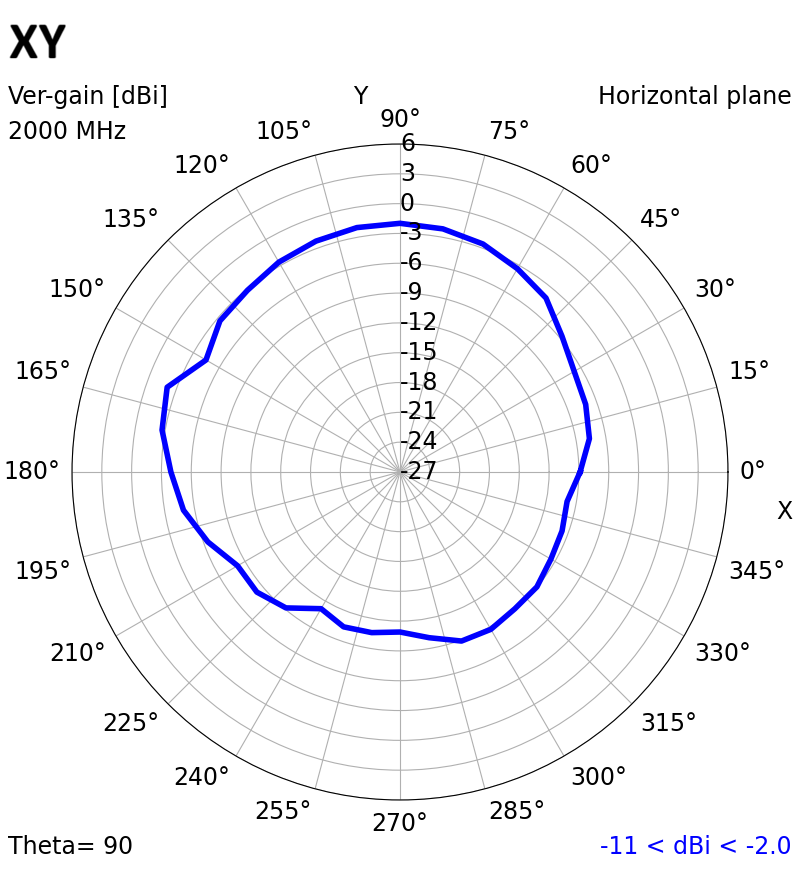

¶ Peak Gain vs. Frequency

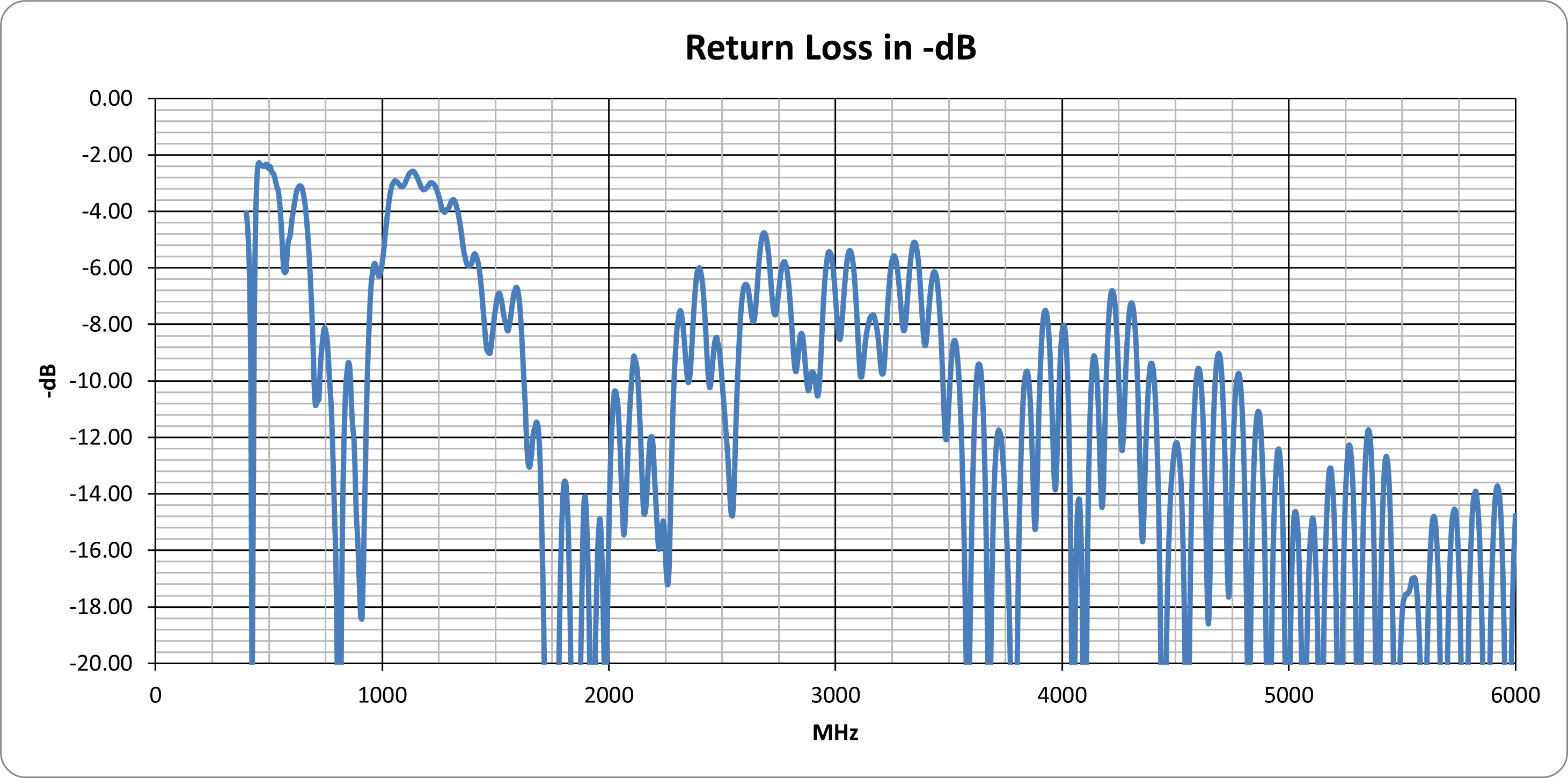

¶ Return Loss

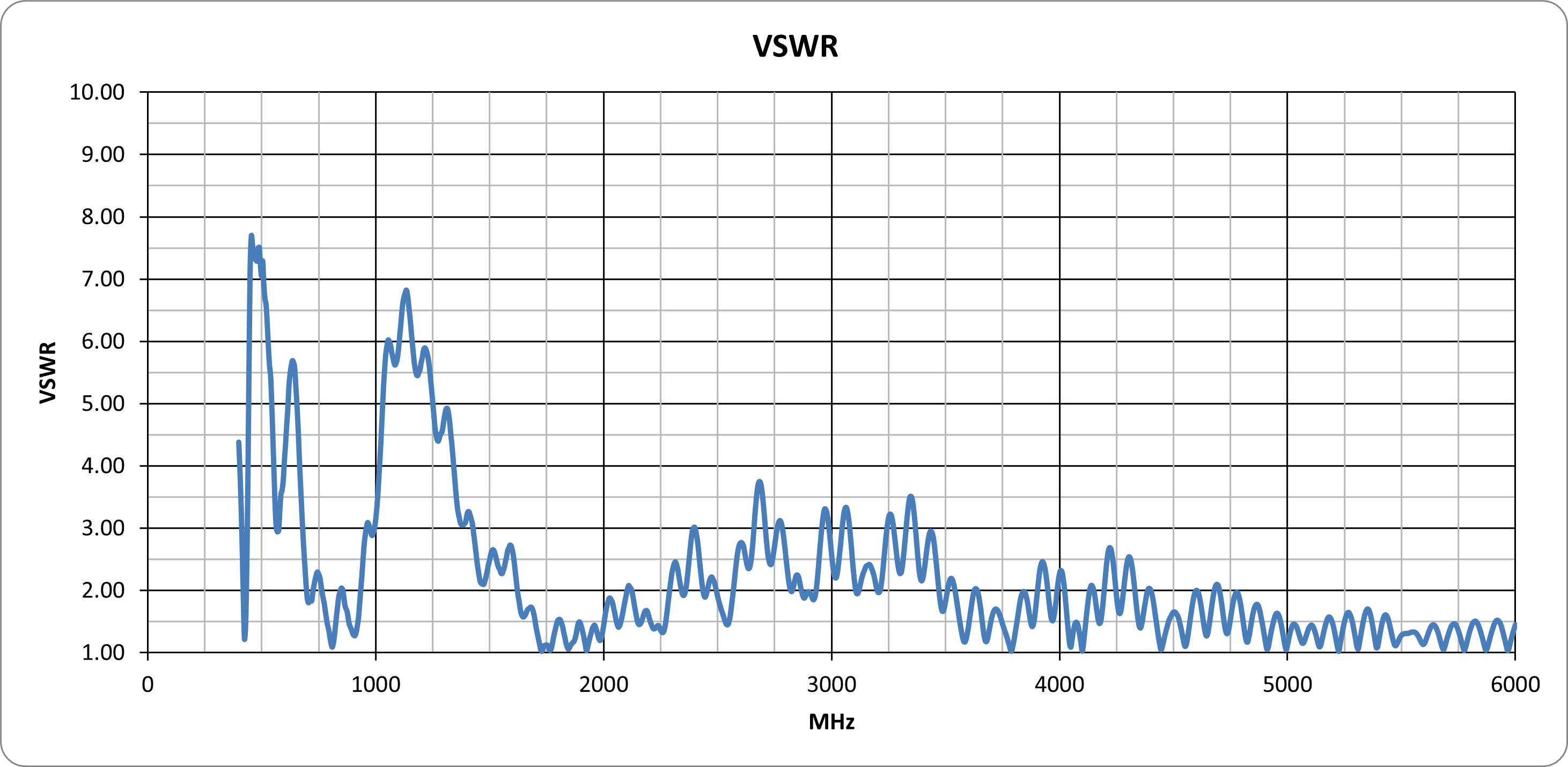

¶ VSWR

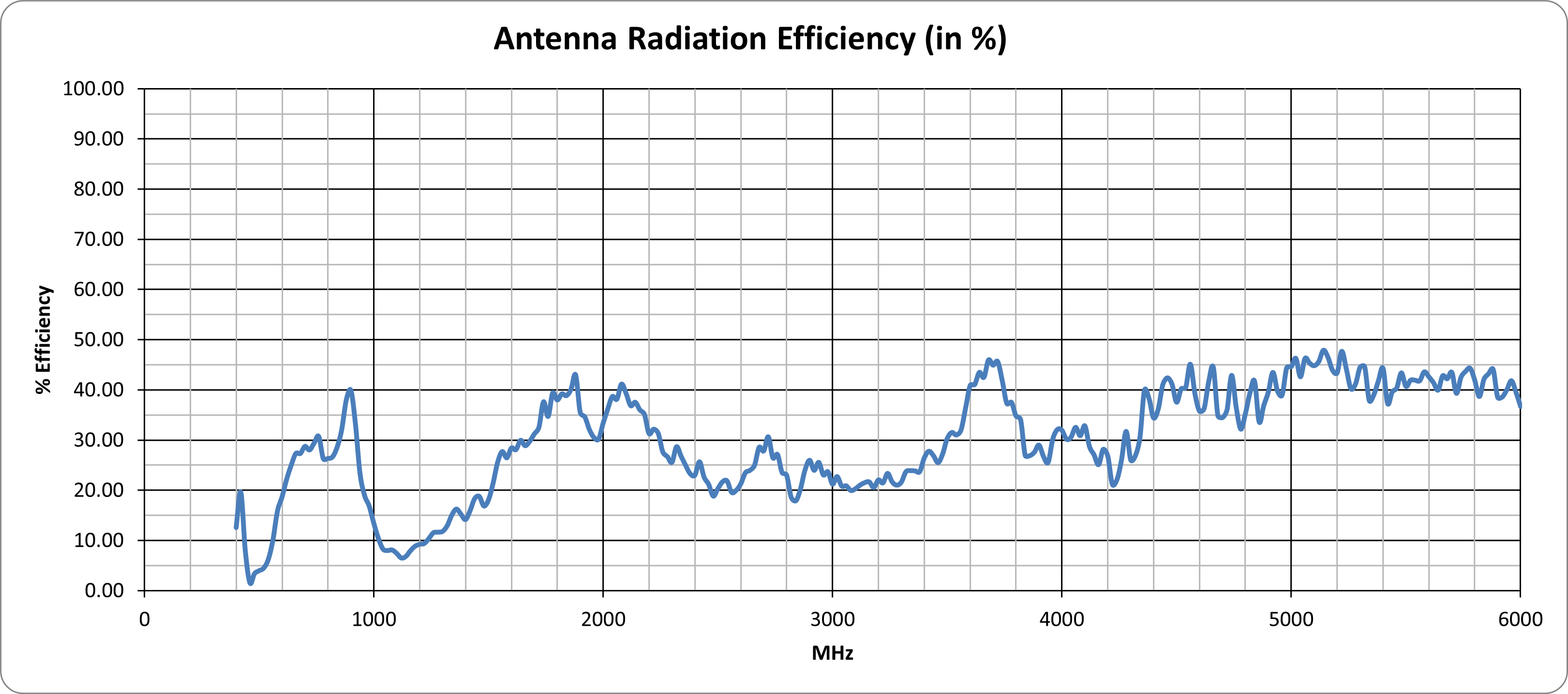

¶ Radiation Efficiency
¶ Cellular Bands*
| GSM (2G) Bands | UMTS (3G) Bands | E-UTRA (4G) Bands | NR (5G) Bands | Uplink (MHz) | Downlink (MHz) | Average Upload Efficiency (%) | Average Download Efficiency (%) | Maximum Upload VSWR | Maximum Download VSWR | Use Indicator |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | n1 | 1920 - 1980 | 2110 - 2170 | 31.64 | 36.83 | 1.44 | 2.08 | ↑ | |
| PCS-1900 | 2 | 2 | n2 | 1850 - 1910 | 1930 - 1990 | 39.41 | 31.13 | 1.49 | 1.44 | ↑ |
| DCS-1800 | 3 | 3 | n3 | 1710 - 1785 | 1805 - 1880 | 35.75 | 39.73 | 1.32 | 1.53 | ↑ |
| 4 | 4 | 1710 - 1755 | 2110 - 2155 | 34.89 | 37.14 | 1.30 | 2.08 | ↑ | ||
| GSM-850 | 5 | 5 | n5 | 824 - 849 | 869 - 894 | 28.31 | 37.60 | 2.02 | 1.72 | ↑ |
| 6 | 830 - 840 | 875 - 885 | 28.03 | 37.68 | 1.92 | 1.66 | ↑ | |||
| 7 | 7 | n7 | 2500 - 2570 | 2620 - 2690 | 20.91 | 25.44 | 2.02 | 3.75 | □ | |
| E-GSM-900 | 8 | 8 | n8 | 880 - 915 | 925 - 960 | 38.26 | 23.63 | 1.56 | 3.01 | □ |
| 9 | 9 | 1749.9 - 1784.9 | 1844.9 - 1879.9 | 36.86 | 40.69 | 1.32 | 1.29 | ↑ | ||
| 10 | 10 | 1710 - 1770 | 2110 - 2170 | 35.06 | 36.83 | 1.30 | 2.08 | ↑ | ||
| 11 | 11 | 1427.9 - 1447.9 | 1475.9 - 1495.9 | 17.92 | 17.25 | 2.98 | 2.43 | □ | ||
| 12 | 12 | n12 | 699 - 716 | 729 - 746 | 28.44 | 29.20 | 1.93 | 2.30 | ↑ | |
| 13 | 13 | n13 | 777 - 787 | 746 - 756 | 26.35 | 30.10 | 1.73 | 2.29 | ↑ | |
| 14 | 14 | n14 | 788 - 798 | 758 - 768 | 26.28 | 29.96 | 1.47 | 2.15 | ↑ | |
| 17 | 704 - 716 | 734 - 746 | 28.35 | 29.37 | 1.83 | 2.30 | ↑ | |||
| 18 | n18 | 815 - 830 | 860 - 875 | 26.91 | 34.22 | 1.63 | 1.91 | ↑ | ||
| 19 | 19 | 830 - 845 | 875 - 890 | 28.34 | 38.01 | 1.98 | 1.66 | ↑ | ||
| 20 | 20 | n20 | 832 - 862 | 791 - 821 | 29.82 | 26.41 | 2.04 | 1.42 | ↑ | |
| 21 | 21 | 1447.9 - 1462.9 | 1495.9 - 1510.9 | 18.62 | 18.65 | 2.39 | 2.63 | □ | ||
| 22 | 22 | 3410 - 3490 | 3510 - 3590 | 26.86 | 32.77 | 2.95 | 2.19 | ↑ | ||
| 23 | 2000 - 2020 | 2180 - 2200 | 34.74 | 33.17 | 1.83 | 1.67 | ↑ | |||
| 24 | n24 | 1626.5 - 1660.5 | 1525 - 1559 | 29.34 | 25.40 | 1.89 | 2.57 | ↑ | ||
| 25 | 25 | n25 | 1850 - 1915 | 1930 - 1995 | 39.07 | 31.21 | 1.49 | 1.44 | ↑ | |
| 26 | 26 | n26 | 814 - 849 | 859 - 894 | 27.84 | 36.34 | 2.02 | 1.93 | ↑ | |
| 27 | 807 - 824 | 852 - 869 | 26.58 | 32.37 | 1.42 | 2.03 | ↑ | |||
| 28 | n28 | 703 - 748 | 758 - 803 | 28.71 | 27.45 | 2.30 | 2.15 | ↑ | ||
| 28A | 703 - 733 | 758 - 788 | 28.36 | 28.02 | 2.13 | 2.15 | ↑ | |||
| 29 | n29 | - | 717 - 728 | - | 28.21 | - | 2.04 | ↑ | ||
| 30 | n30 | 2305 - 2315 | 2350 - 2360 | 27.08 | 25.35 | 2.46 | 2.00 | ↑ | ||
| 31 | n31 | 452.5 - 457.5 | 462.5 - 467.5 | 3.11 | 1.98 | 7.69 | 7.47 | ↓ | ||
| 32 | 32 | - | 1452 - 1496 | - | 17.77 | - | 2.43 | □ | ||
| 33 | 1900 - 1920 | 1900 - 1920 | 35.04 | 35.04 | 1.45 | 1.45 | ↑ | |||
| 34 | n34 | 2010 - 2025 | 2010 - 2025 | 35.78 | 35.78 | 1.87 | 1.87 | ↑ | ||
| 35 | 1850 - 1910 | 1850 - 1910 | 39.41 | 39.41 | 1.49 | 1.49 | ↑ | |||
| 36 | 1930 - 1990 | 1930 - 1990 | 31.13 | 31.13 | 1.44 | 1.44 | ↑ | |||
| 37 | 1910 - 1930 | 1910 - 1930 | 34.39 | 34.39 | 1.31 | 1.31 | ↑ | |||
| 38 | n38 | 2570 - 2620 | 2570 - 2620 | 21.14 | 21.14 | 2.77 | 2.77 | ↑ | ||
| 39 | n39 | 1880 - 1920 | 1880 - 1920 | 37.13 | 37.13 | 1.49 | 1.49 | ↑ | ||
| 40 | n40 | 2300 - 2400 | 2300 - 2400 | 25.55 | 25.55 | 3.01 | 3.01 | □ | ||
| 41 | n41 | 2496 - 2690 | 2496 - 2690 | 22.59 | 22.59 | 3.75 | 3.75 | □ | ||
| 42 | 3400 - 3600 | 3400 - 3600 | 30.18 | 30.18 | 2.95 | 2.95 | ↑ | |||
| 43 | 3600 - 3800 | 3600 - 3800 | 41.76 | 41.76 | 2.02 | 2.02 | ↑ | |||
| 44 | 703 - 803 | 703 - 803 | 28.29 | 28.29 | 2.30 | 2.30 | ↑ | |||
| 45 | 1447 - 1467 | 1447 - 1467 | 18.54 | 18.54 | 2.41 | 2.41 | □ | |||
| 46 | n46 | 5150 - 5925 | 5150 - 5925 | 42.02 | 42.02 | 1.70 | 1.70 | ↑ | ||
| 47 | n47 | 5855 - 5925 | 5855 - 5925 | 41.09 | 41.09 | 1.52 | 1.52 | ↑ | ||
| 48 | n48 | 3550 - 3700 | 3550 - 3700 | 40.56 | 40.56 | 2.02 | 2.02 | ↑ | ||
| 49 | 3550 - 3700 | 3550 - 3700 | 40.56 | 40.56 | 2.02 | 2.02 | ↑ | |||
| 50 | n50 | 1432 - 1517 | 1432 - 1517 | 18.21 | 18.21 | 2.86 | 2.86 | □ | ||
| 51 | n51 | 1427 - 1432 | 1427 - 1432 | 17.06 | 17.06 | 3.01 | 3.01 | □ | ||
| 52 | 3300 - 3400 | 3300 - 3400 | 23.80 | 23.80 | 3.51 | 3.51 | □ | |||
| 53 | n53 | 2483.5 - 2495 | 2483.5 - 2495 | 19.48 | 19.48 | 2.15 | 2.15 | □ | ||
| 54 | n54 | 1670 - 1675 | 1670 - 1675 | 29.39 | 29.39 | 1.71 | 1.71 | ↑ | ||
| 65 | n65 | 1920 - 2010 | 2110 - 2200 | 31.93 | 35.84 | 1.66 | 2.08 | ↑ | ||
| 66 | n66 | 1710 - 1780 | 2110 - 2200 | 35.51 | 35.84 | 1.30 | 2.08 | ↑ | ||
| 67 | n67 | - | 738 - 758 | - | 29.90 | - | 2.30 | ↑ | ||
| 68 | 698 - 728 | 753 - 783 | 28.35 | 28.71 | 2.04 | 2.23 | ↑ | |||
| 69 | - | 2570 - 2620 | - | 21.14 | - | 2.77 | ↑ | |||
| 70 | n70 | 1695 - 1710 | 1995 - 2020 | 31.35 | 34.38 | 1.61 | 1.83 | ↑ | ||
| 71 | n71 | 663 - 698 | 617 - 652 | 27.62 | 24.12 | 4.37 | 5.69 | ↓ | ||
| 72 | n72 | 451 - 456 | 461 - 466 | 3.58 | 1.84 | 7.69 | 7.52 | ↓ | ||
| 73 | 450 - 455 | 460 - 465 | 3.90 | 1.75 | 7.69 | 7.55 | ↓ | |||
| 74 | n74 | 1427 - 1470 | 1475 - 1518 | 18.17 | 18.26 | 3.01 | 2.65 | □ | ||
| 75 | n75 | - | 1432 - 1517 | - | 18.21 | - | 2.86 | □ | ||
| 76 | n76 | - | 1427 - 1432 | - | 17.06 | - | 3.01 | □ | ||
| n77 | 3300 - 4200 | 3300 - 4200 | 31.68 | 31.68 | 3.51 | 3.51 | □ | |||
| n78 | 3300 - 3800 | 3300 - 3800 | 33.54 | 33.54 | 3.51 | 3.51 | □ | |||
| n79 | 4400 - 5000 | 4400 - 5000 | 38.99 | 38.99 | 2.10 | 2.10 | ↑ | |||
| n80 | 1710 - 1785 | - | 35.75 | - | 1.32 | - | ↑ | |||
| n81 | 880 - 915 | - | 38.26 | - | 1.56 | - | ↑ | |||
| n82 | 832 - 862 | - | 29.82 | - | 2.04 | - | ↑ | |||
| n83 | 703 - 748 | - | 28.71 | - | 2.30 | - | ↑ | |||
| n84 | 1920 - 1980 | - | 31.64 | - | 1.44 | - | ↑ | |||
| 85 | n85 | 698 - 716 | 728 - 746 | 28.44 | 29.16 | 1.97 | 2.30 | ↑ | ||
| n86 | 1710 - 1780 | - | 35.51 | - | 1.30 | - | ↑ | |||
| 87 | 410 - 415 | 420 - 425 | 16.97 | 18.16 | 3.39 | 1.90 | □ | |||
| 88 | 412 - 417 | 422 - 427 | 17.68 | 16.99 | 3.12 | 1.63 | □ | |||
| n89 | 824 - 849 | - | 28.31 | - | 2.02 | - | ↑ | |||
| n90 | 2496 - 2690 | 2496 - 2690 | 22.59 | 22.59 | 3.75 | 3.75 | □ | |||
| n91 | 832 - 862 | 1427 - 1432 | 29.82 | 17.06 | 2.04 | 3.01 | □ | |||
| n92 | 832 - 862 | 1432 - 1517 | 29.82 | 18.21 | 2.04 | 2.86 | ↑ | |||
| n93 | 880 - 915 | 1427 - 1432 | 38.26 | 17.06 | 1.56 | 3.01 | □ | |||
| n94 | 880 - 915 | 1432 - 1517 | 38.26 | 18.21 | 1.56 | 2.86 | ↑ | |||
| n95 | 2010 - 2025 | - | 35.78 | - | 1.87 | - | ↑ | |||
| n97 | 2300 - 2400 | - | 25.55 | - | 3.01 | - | □ | |||
| n98 | 1880 - 1920 | - | 37.13 | - | 1.49 | - | ↑ | |||
| n99 | 1626.5 - 1660.5 | - | 29.34 | - | 1.89 | - | ↑ | |||
| n100 | 874.4 - 880 | 919.4 - 925 | 37.10 | 32.09 | 1.67 | 1.56 | ↑ | |||
| n101 | 1900 - 1910 | 1900 - 1910 | 35.26 | 35.26 | 1.45 | 1.45 | ↑ | |||
| 103 | 787 - 788 | 757 - 758 | 26.26 | 30.53 | 1.49 | 2.17 | ↑ | |||
| n105 | 663 - 703 | 612 - 652 | 27.75 | 23.75 | 4.37 | 5.69 | ↓ | |||
| 106 | n106 | 896 - 901 | 935 - 940 | 39.71 | 24.52 | 1.35 | 2.23 | ↑ | ||
| 107 | - | 612 - 652 | - | 23.75 | - | 5.69 | ↓ | |||
| 108 | - | 470 - 698 | - | 15.37 | - | 7.51 | ↓ | |||
| n109 | 703 - 733 | 1432 - 1517 | 28.36 | 18.21 | 2.13 | 2.86 | ↑ | |||
| n110 | 1390 - 1395 | 1432 - 1435 | 14.53 | 17.54 | 3.10 | 2.86 | □ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |
¶ ISM Standards Frequency Support*
| Application | Frequency Range (MHz) | Average Efficiency (%) | Maximum VSWR | Peak Gain from highest direction (dBi) | Use Indicator |
|---|---|---|---|---|---|
| ISM 433 MHz | 433.05 - 434.79 | 11.45 | 2.29 | -4.59 | ↓ |
| ISM 868 MHz | 863 - 870 | 33.92 | 1.83 | 0.05 | ↑ |
| ISM 915 | 902 - 928 MHz | 34.67 | 1.69 | 1.14 | ↑ |
| ISM 2.4 | 2400 - 2500 | 21.96 | 3.01 | 2.89 | □ |
| WiFi 2.4G channels 1-11 | 2401 - 2473 | 22.88 | 3.00 | 2.89 | ↑ |
| WiFi 2.4G channels 1-13 | 2401 - 2483 | 22.42 | 3.00 | 2.89 | ↑ |
| WiFi 2.4G channels 1-14 | 2401 - 2495 | 22.04 | 3.00 | 2.89 | ↑ |
| Citizens Broadband Radio Service | 3550 - 3700 | 40.56 | 2.02 | 4.90 | ↑ |
| WiFi CBRS channels 131-138 | 3655 - 3695 | 44.49 | 1.68 | 4.90 | ↑ |
| WiFi 5G (Ch 32-48) | 5150 - 5250 | 45.03 | 1.57 | 4.87 | ↑ |
| WiFi 5G (Ch 32-68) | 5150 - 5350 | 43.39 | 1.70 | 4.87 | ↑ |
| WiFi 5G (Ch 32-165) | 5150 - 5835 | 42.10 | 1.70 | 5.40 | ↑ |
| WiFi 5G (Ch 32-173) | 5150 - 5875 | 42.14 | 1.70 | 5.40 | ↑ |
| WiFi 5G (Ch 32-177) | 5150 - 5895 | 42.15 | 1.70 | 5.40 | ↑ |
| WiFi 5.9G (Ch 172-180) | 5855 - 5905 | 42.09 | 1.44 | 3.99 | ↑ |
| WiFi 5.9G (Ch 182-196) | 5905 - 5990 | 39.77 | 1.52 | 3.56 | ↑ |
| ISM 5.8 GHz | 5725 - 5875 | 42.25 | 1.51 | 4.24 | ↑ |
| UWB band group 1, BAND_ID 1 | 3168 - 3696 | 29.19 | 3.51 | 4.90 | □ |
| UWB band group 1, BAND_ID 2 | 3696 - 4224 | 31.30 | 2.69 | 4.96 | ↑ |
| UWB band group 1, BAND_ID 3 | 4224 - 4752 | 36.14 | 2.67 | 3.17 | ↑ |
| UWB band group 2, BAND_ID 4 | 4752 - 5280 | 41.95 | 1.97 | 4.93 | ↑ |
| UWB band group 2, BAND_ID 5 | 5280 - 5808 | 41.74 | 1.70 | 5.40 | ↑ |
| ↑ Suitable band | □ Adequate band in good signal conditions | ↓ Likely to be unsuitable |

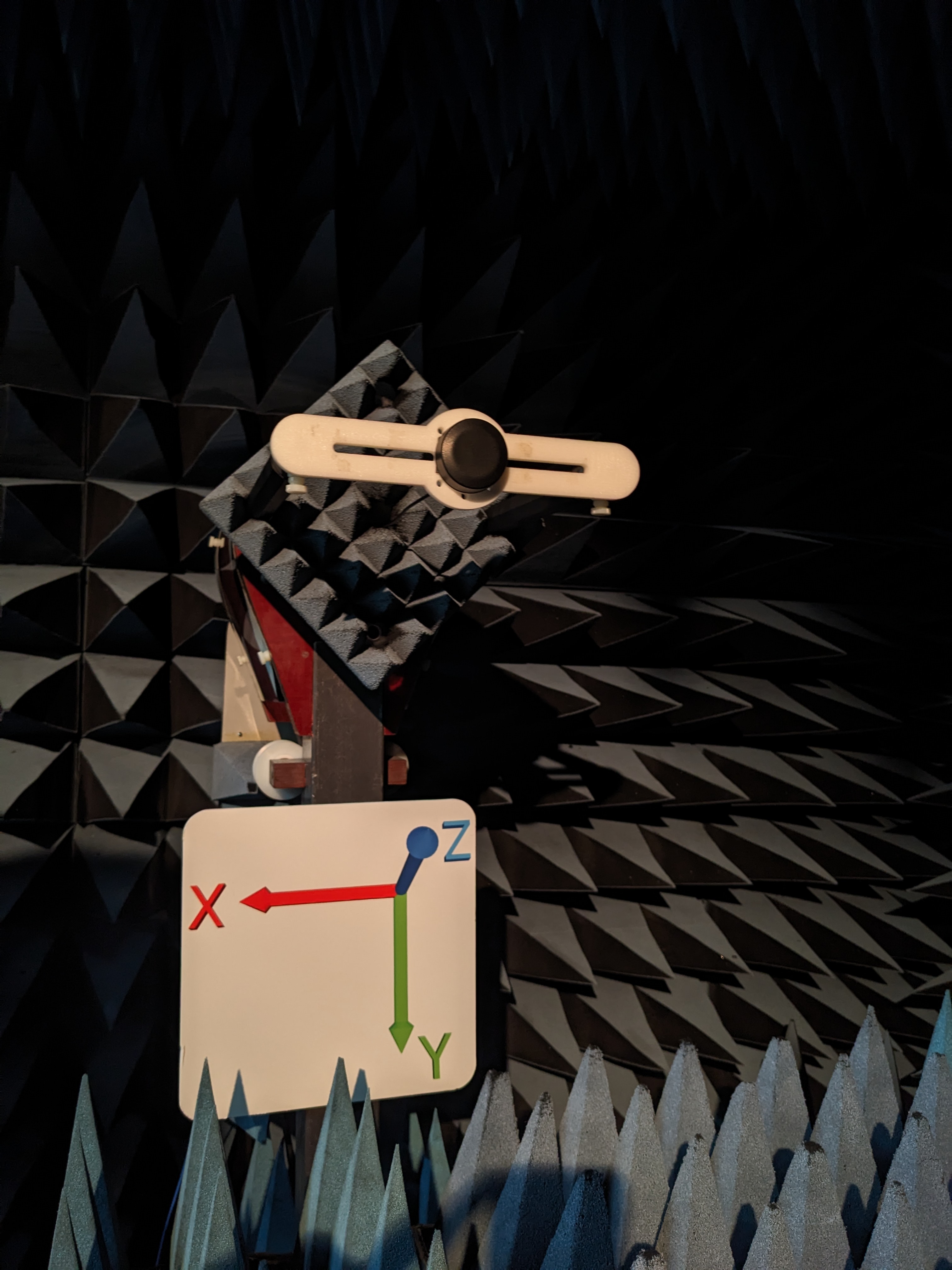

¶ Test Setup (in Free Space)

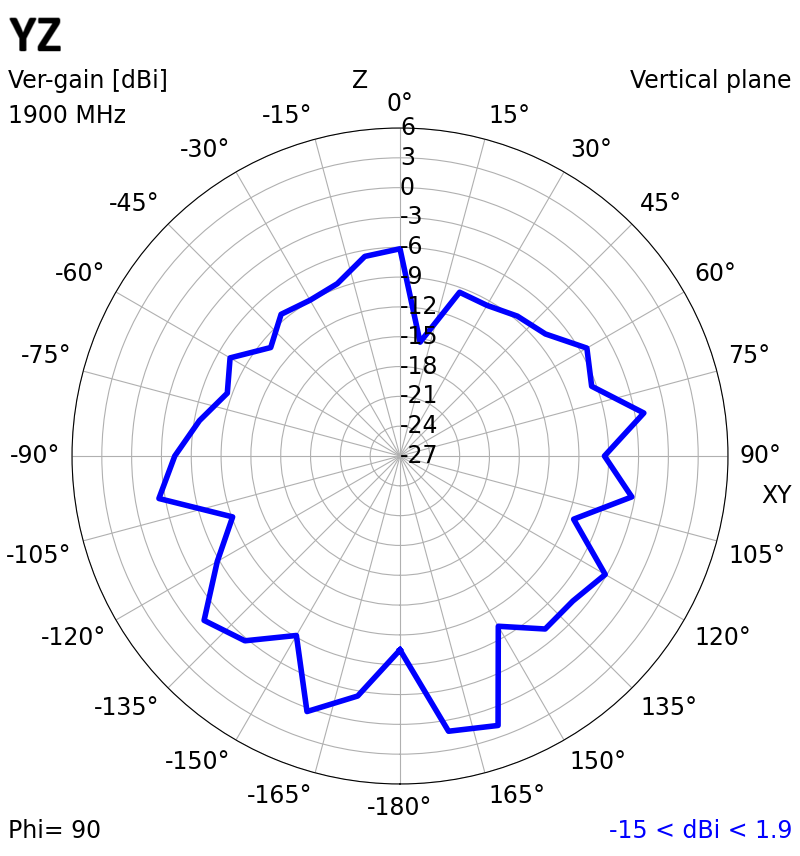

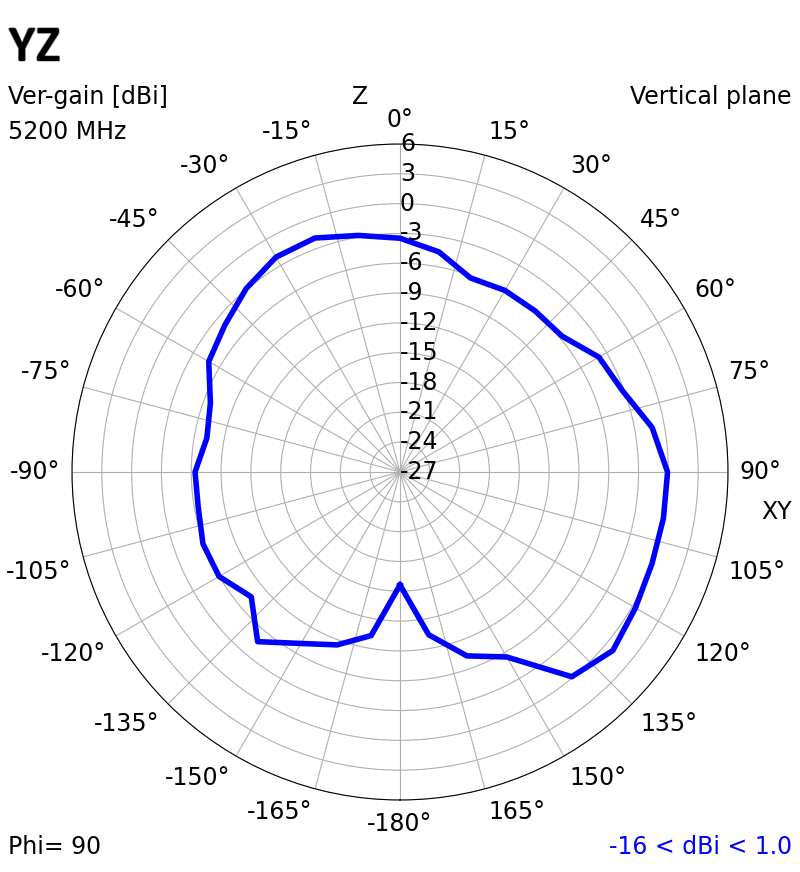

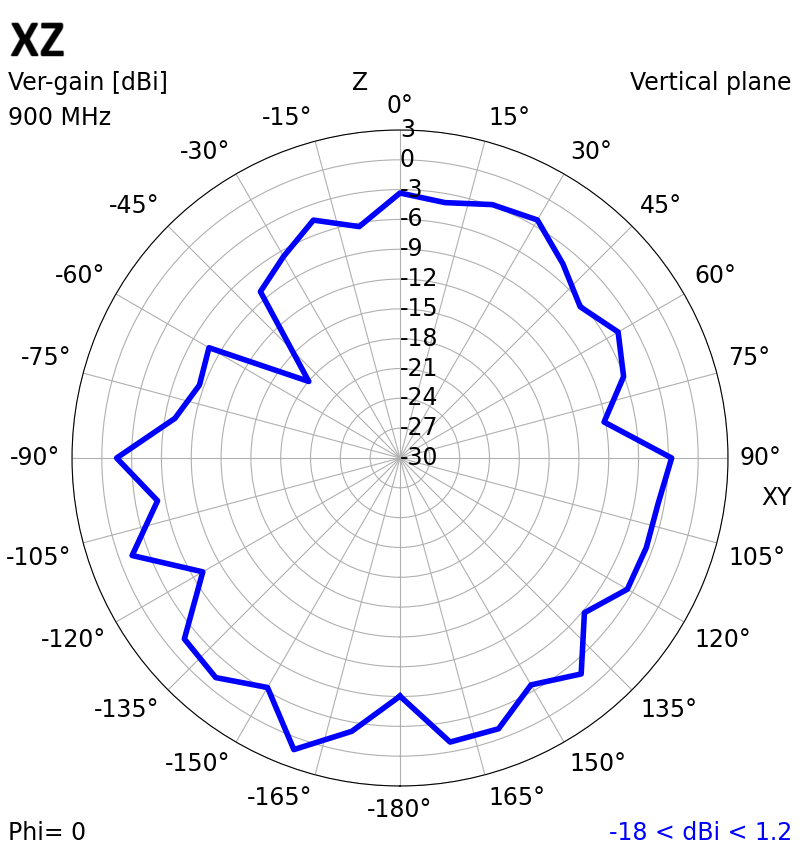

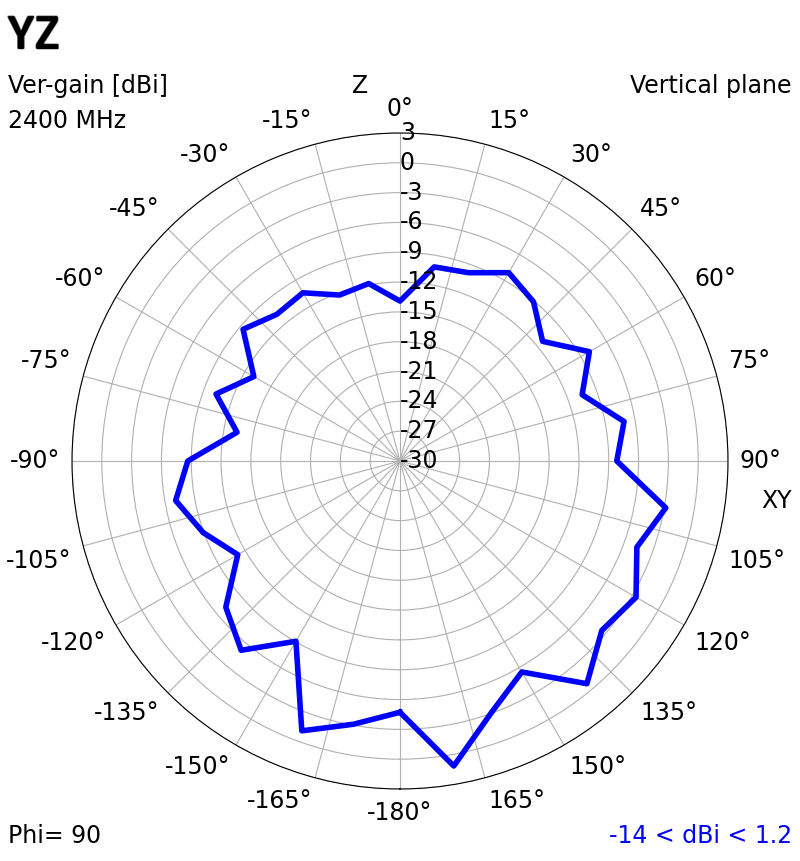

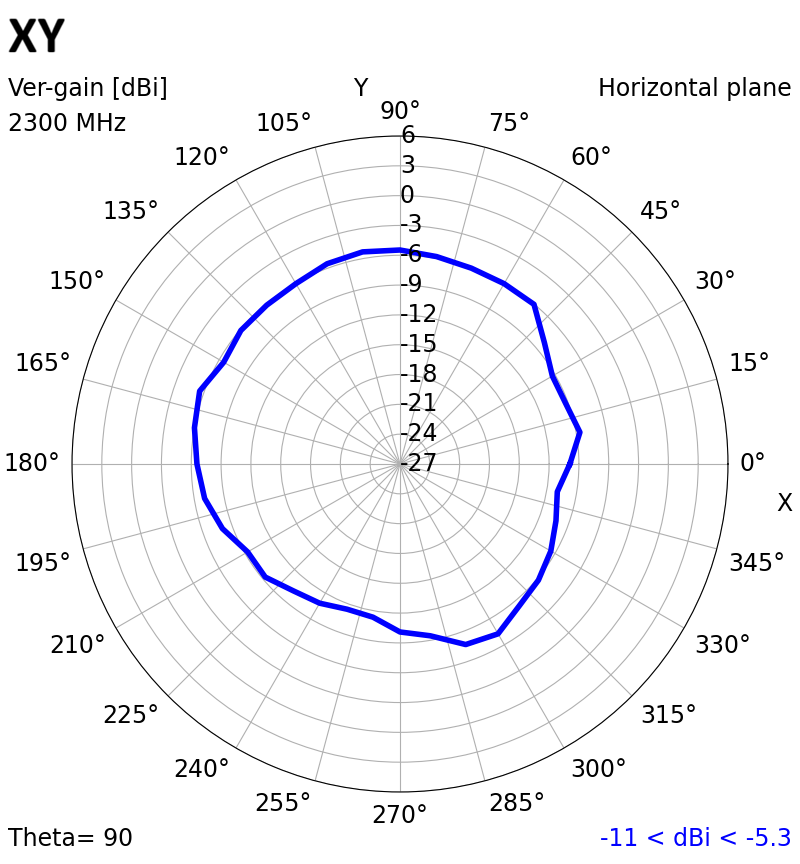

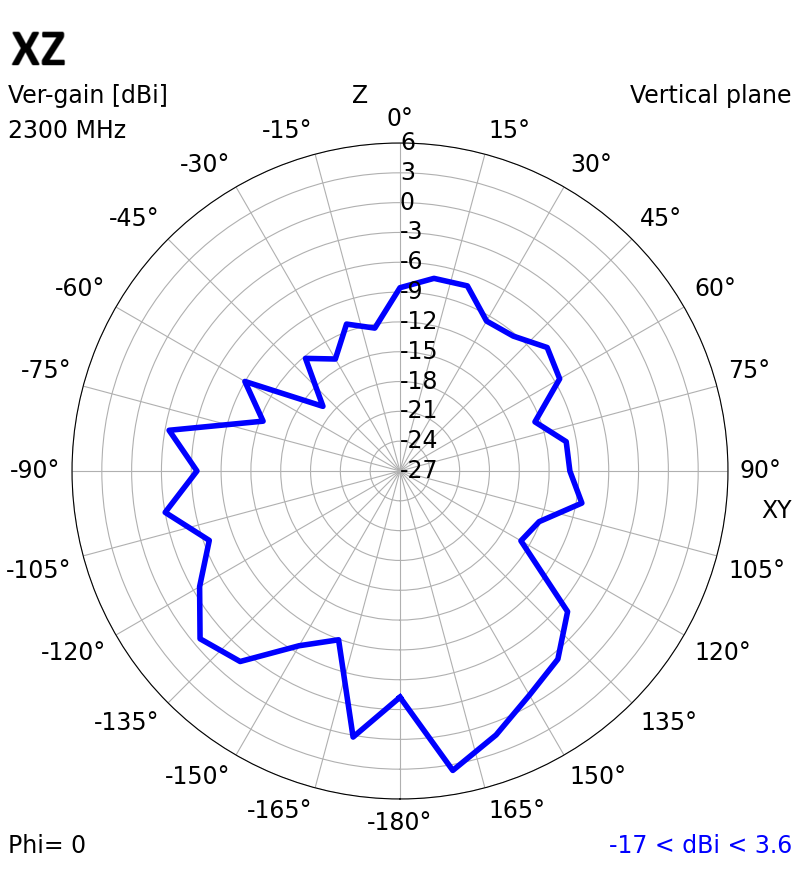

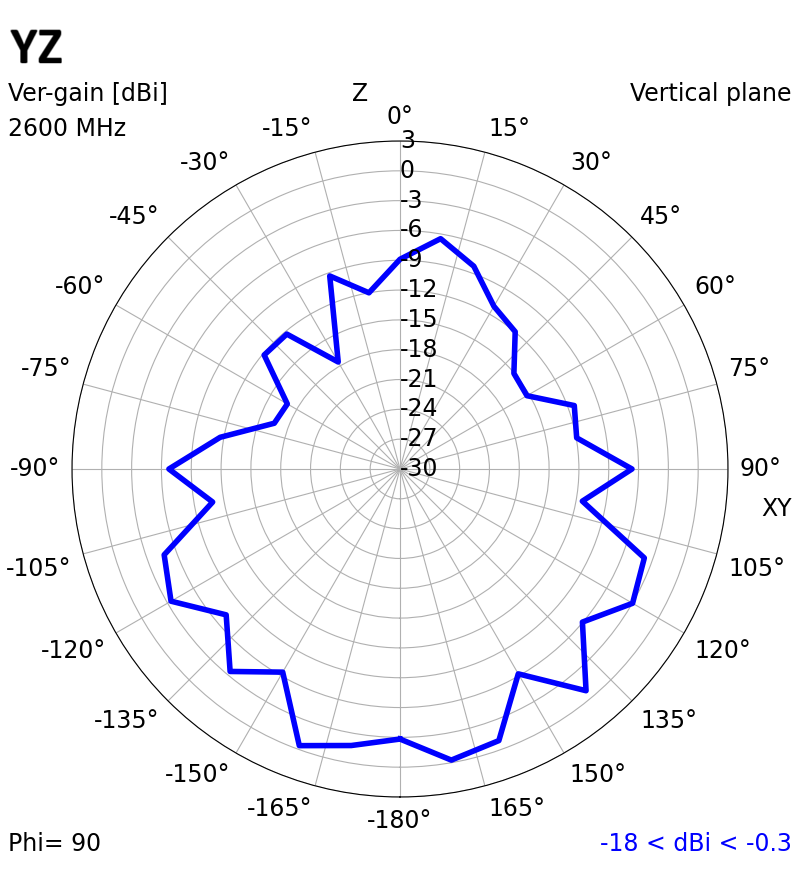

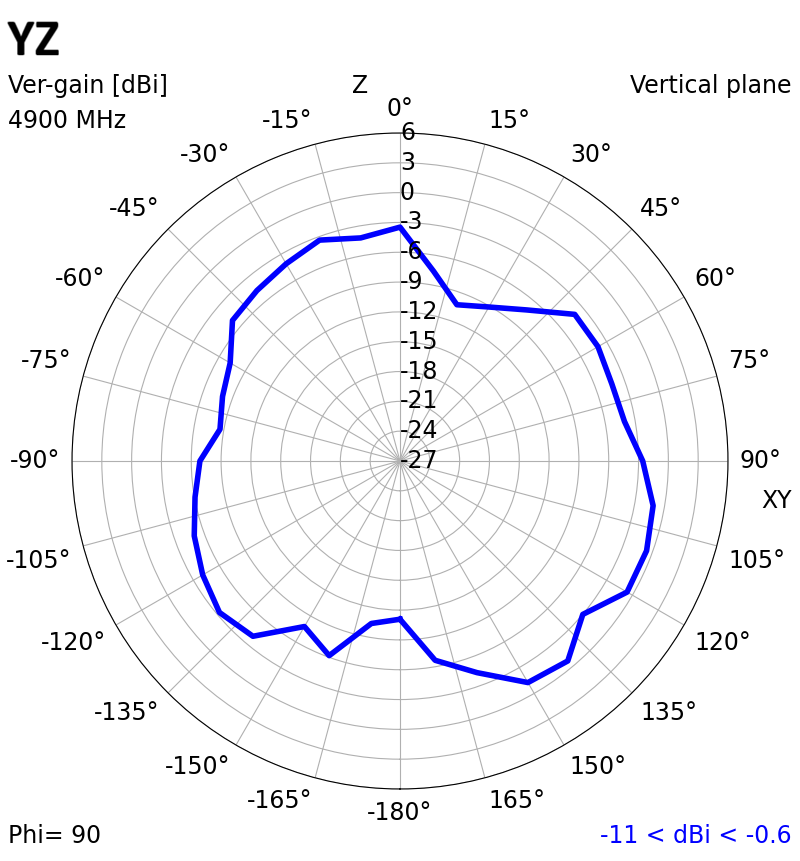

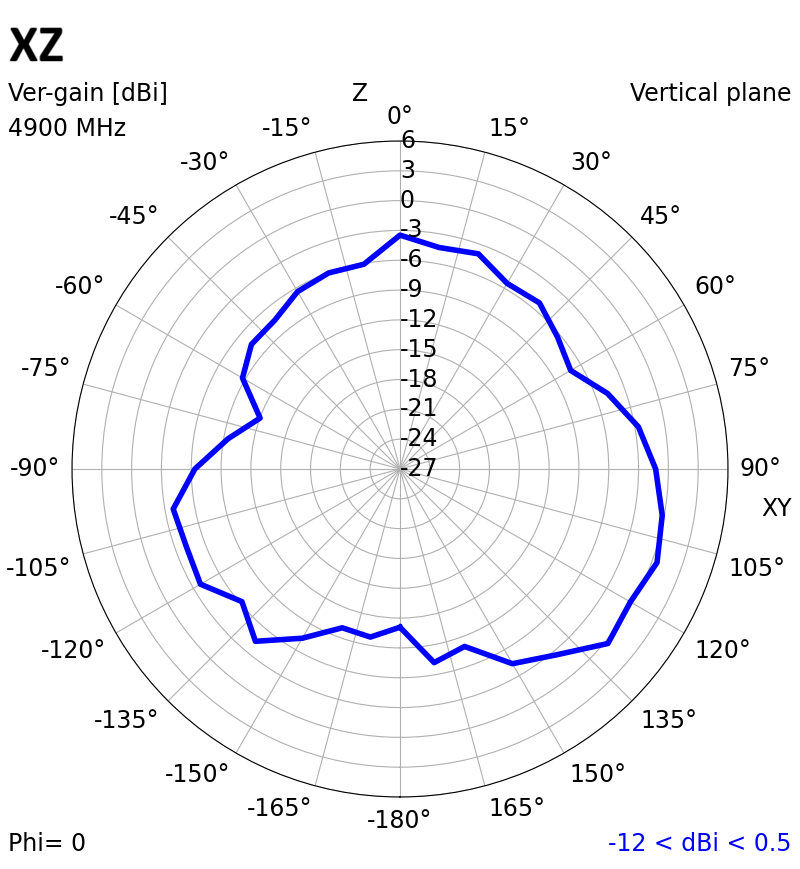

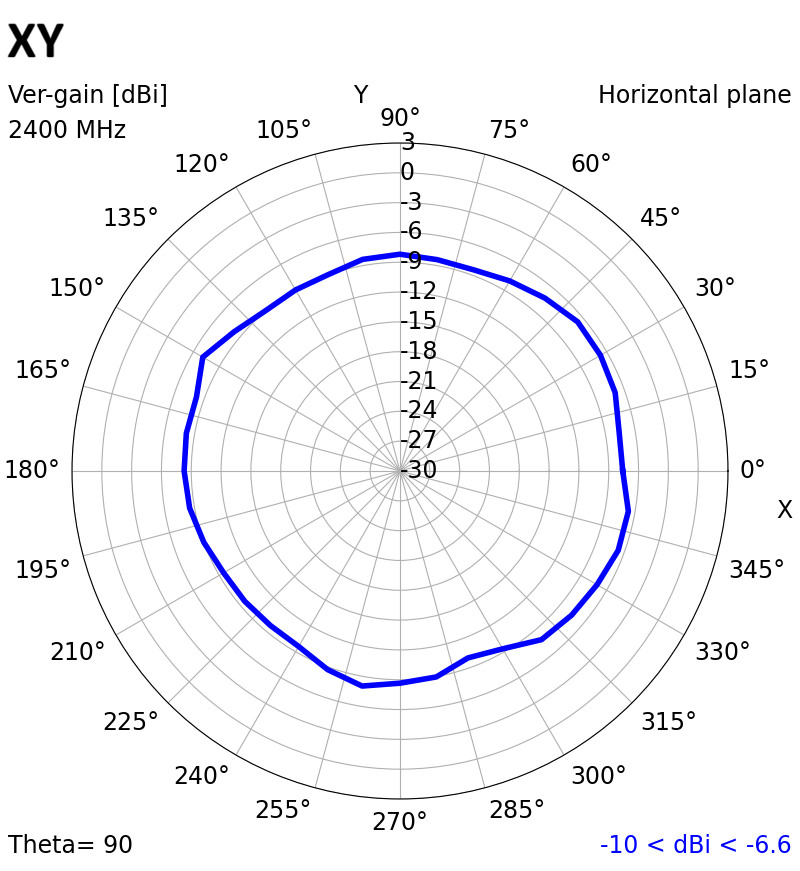

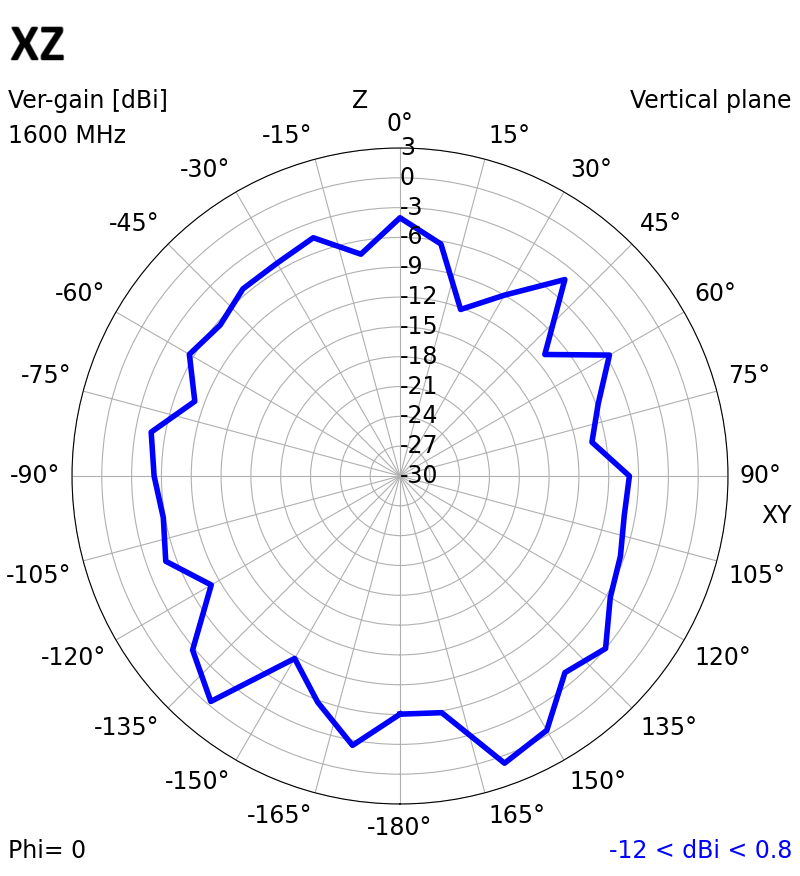

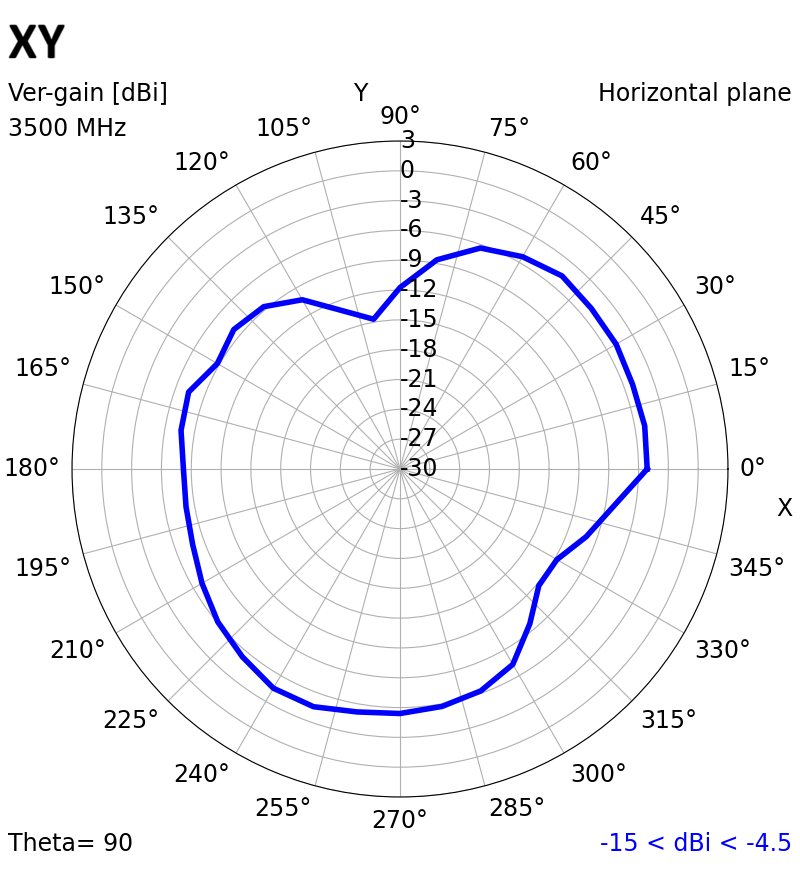

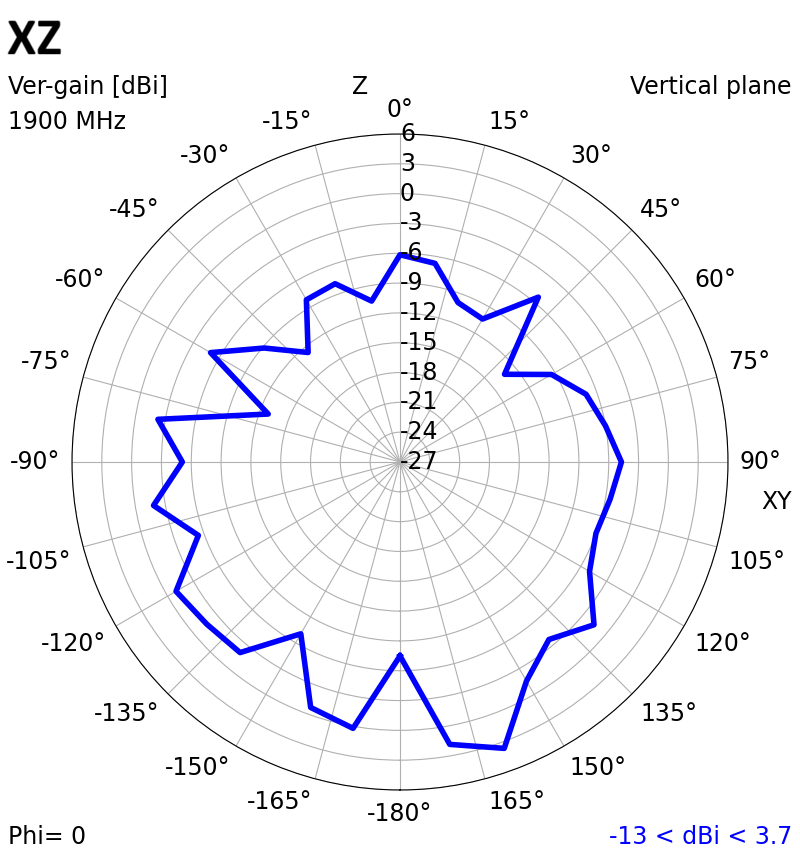

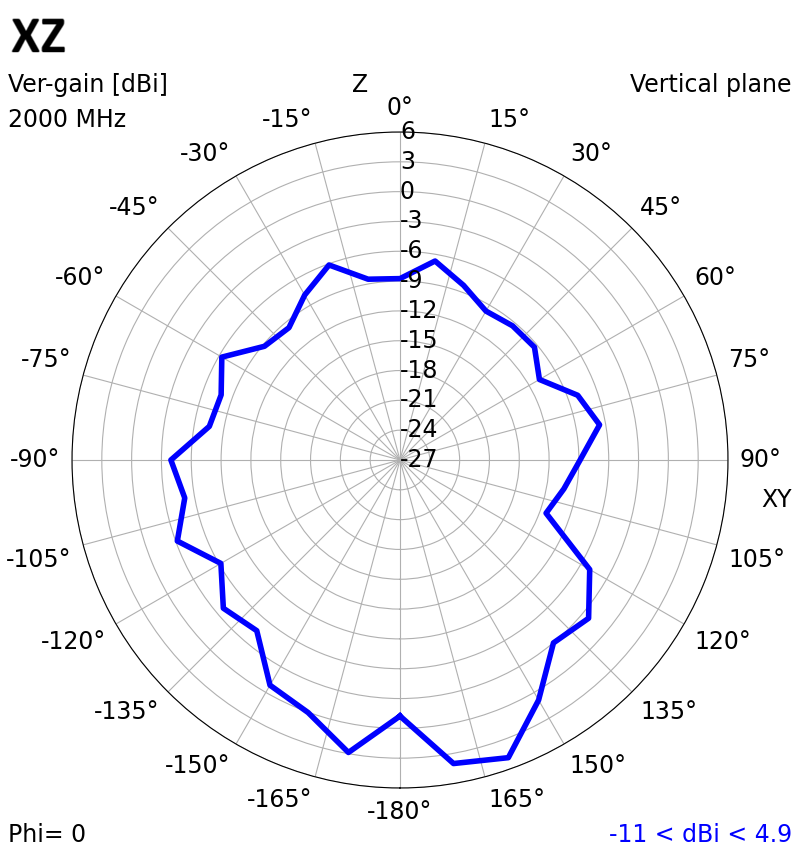

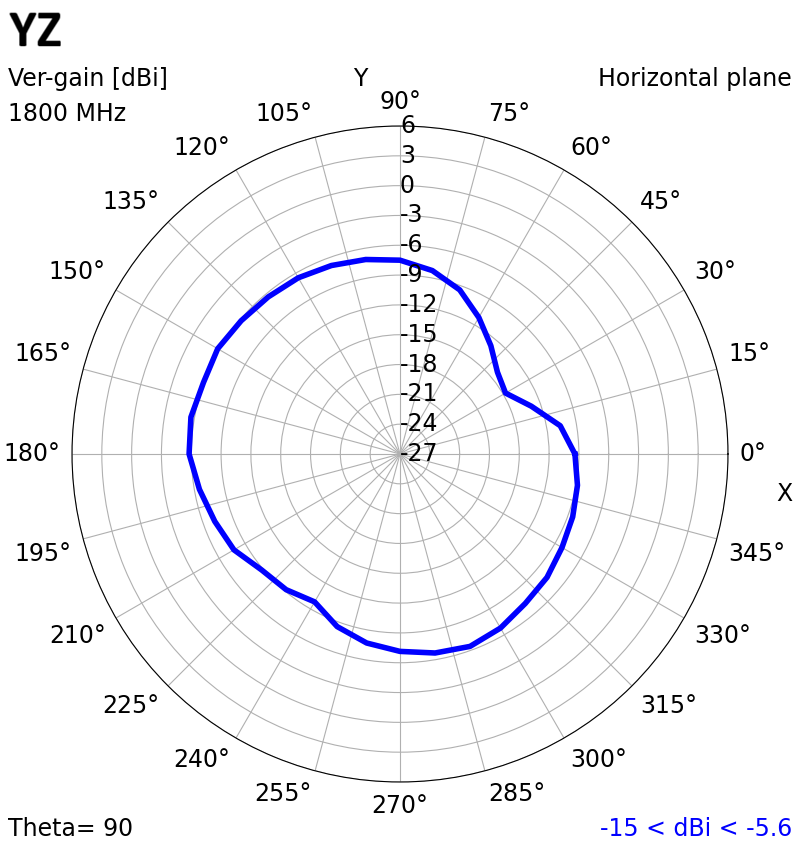

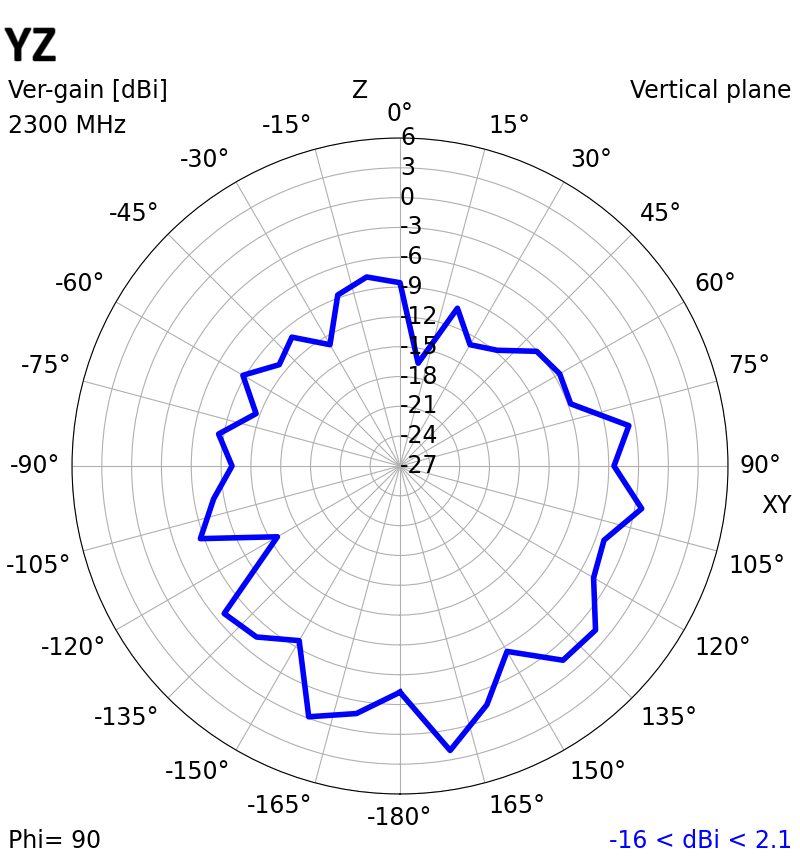

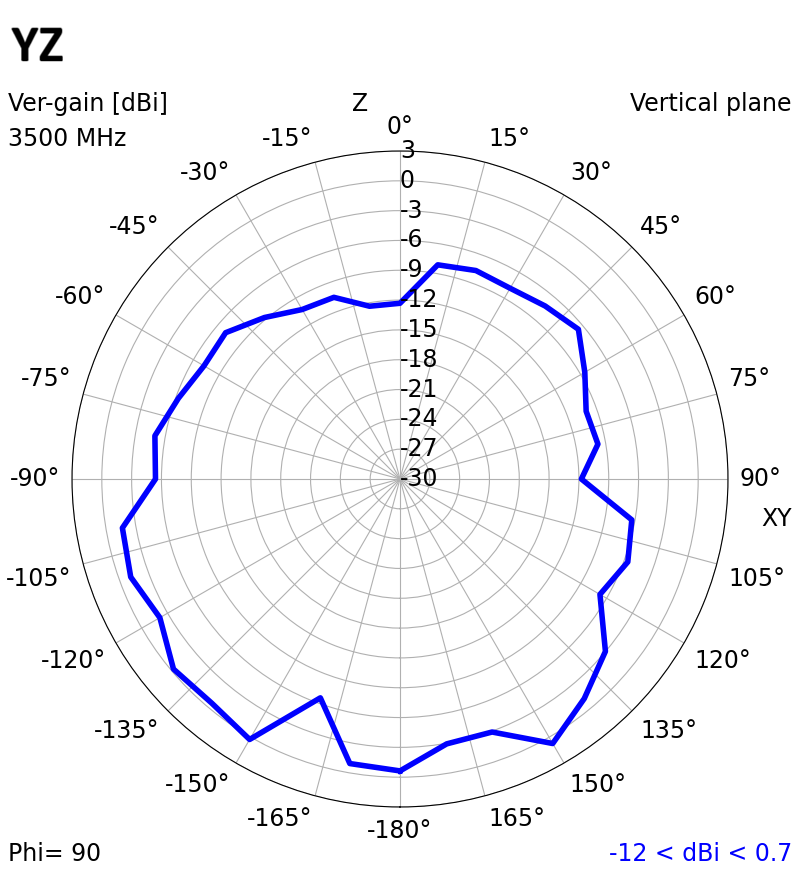

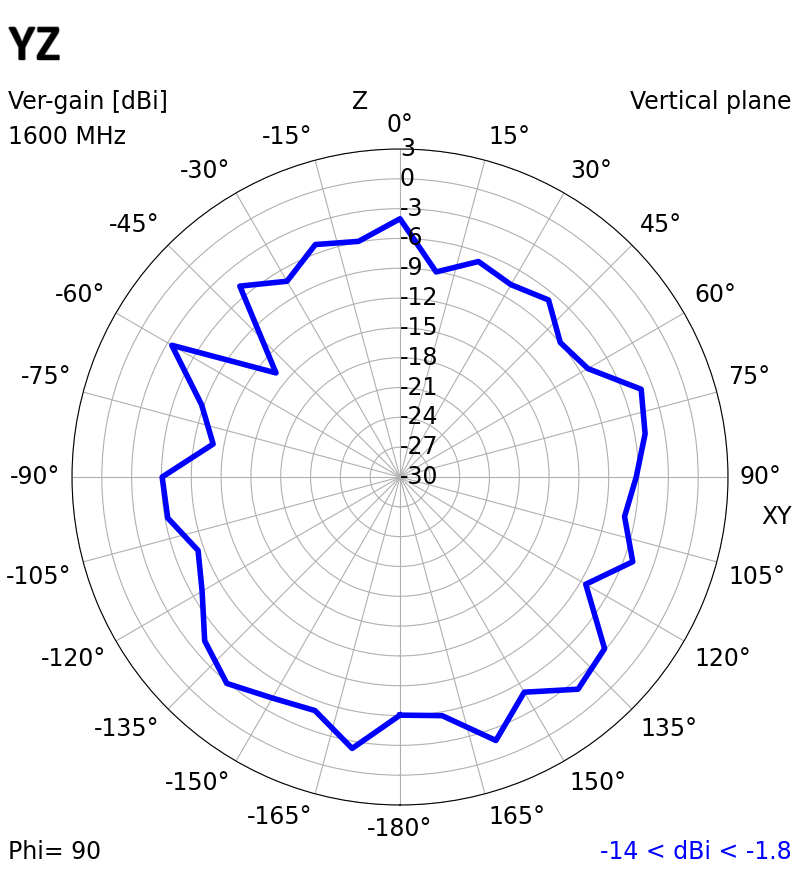

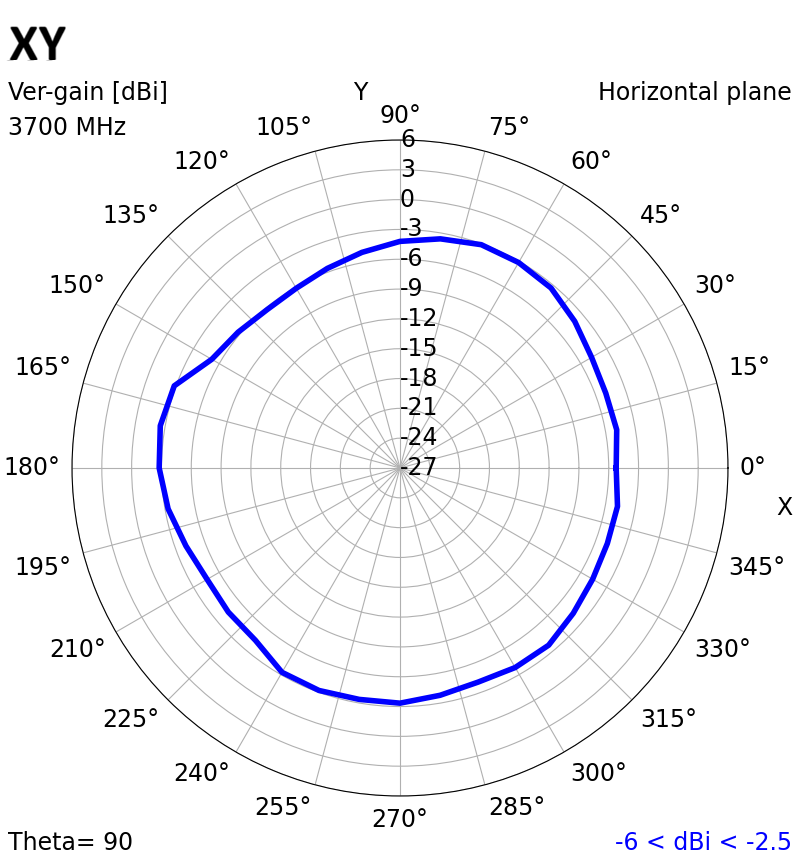

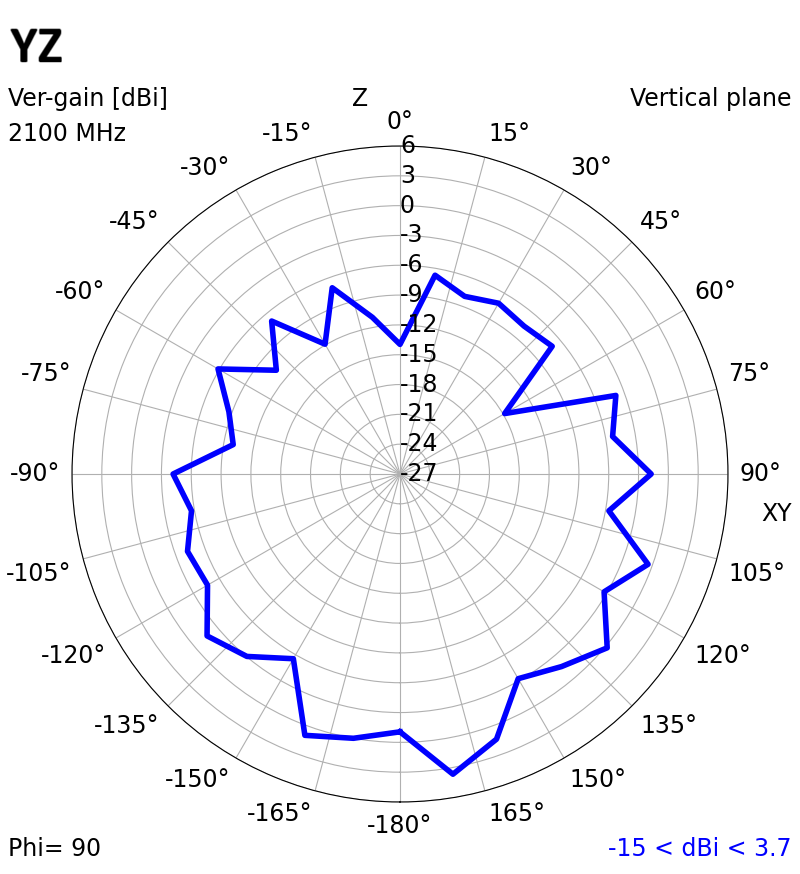

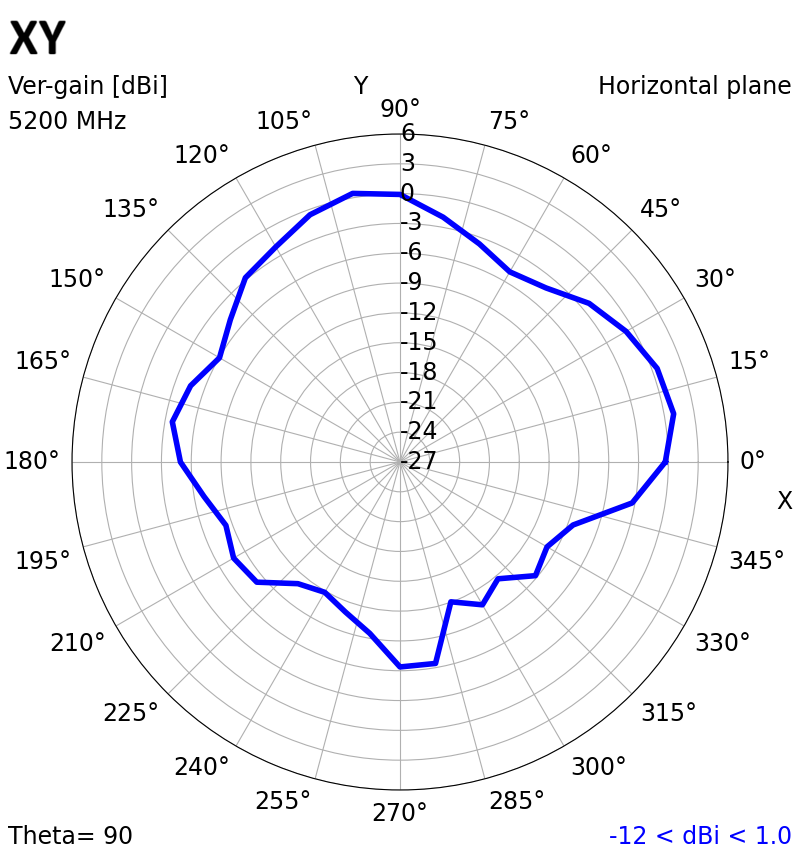

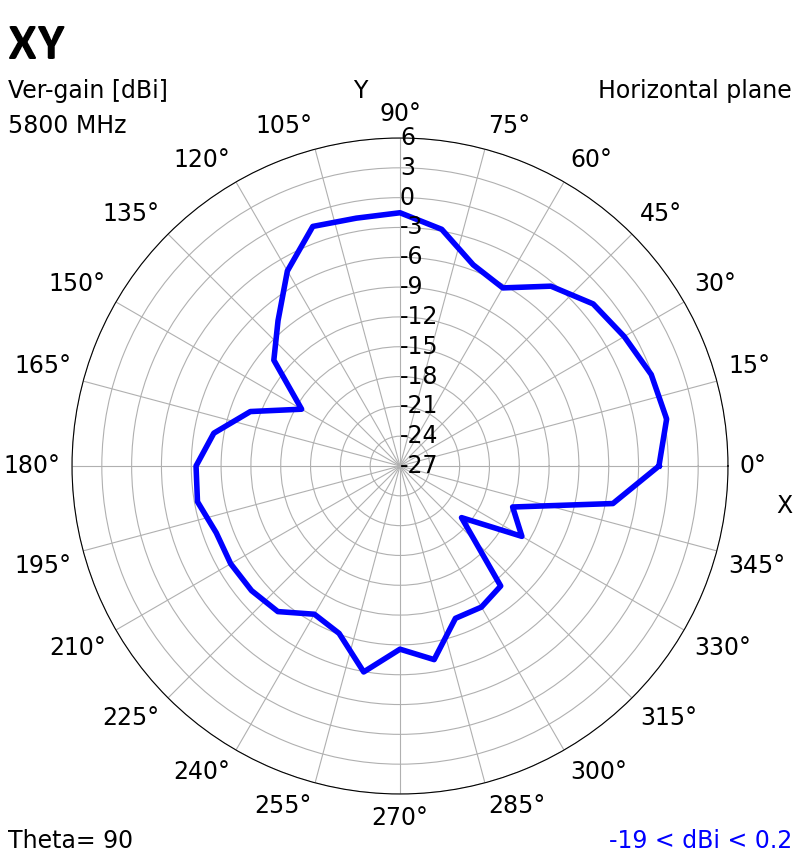

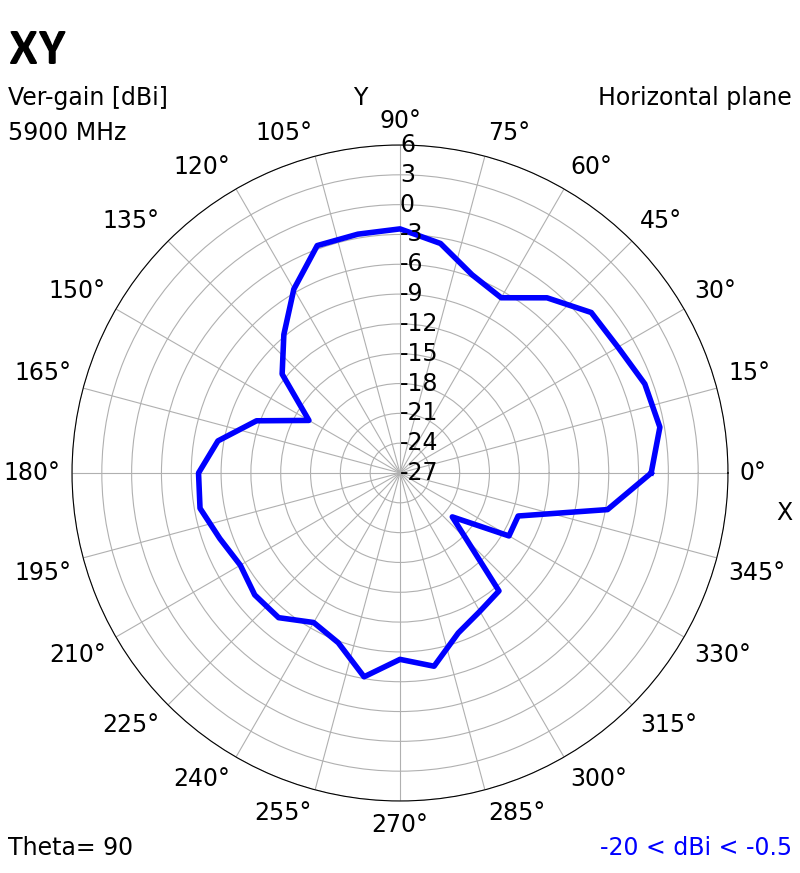

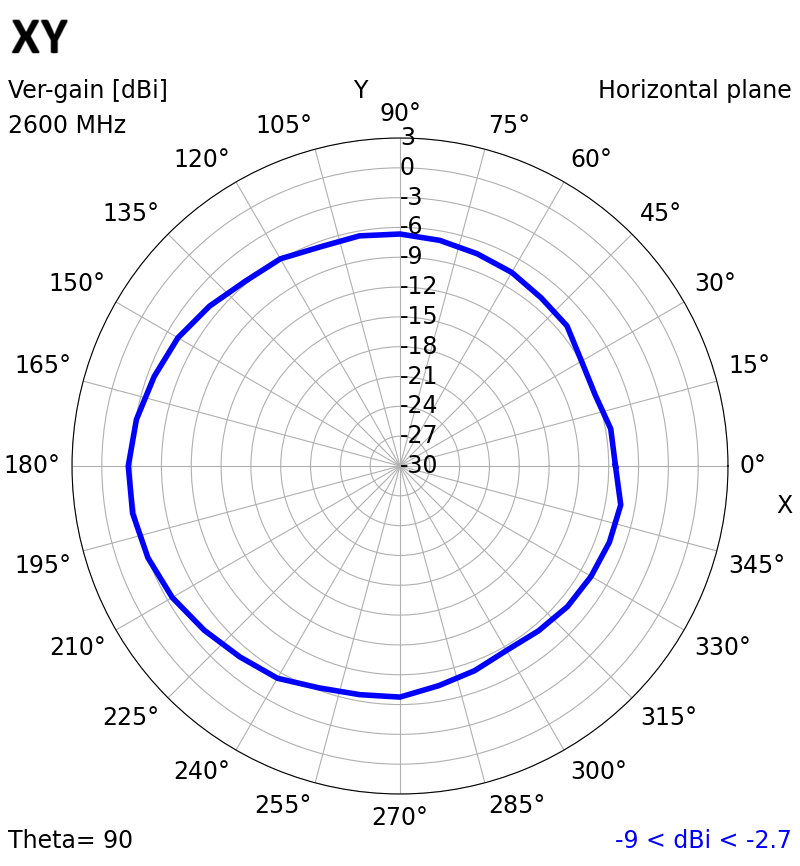

¶ 2D Radiation Plots

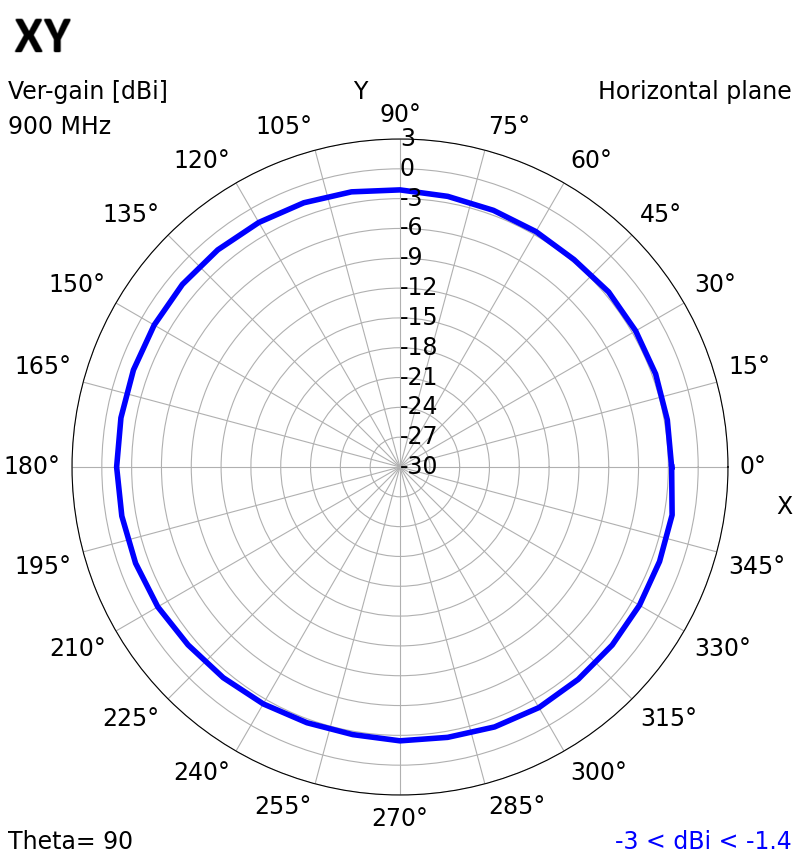

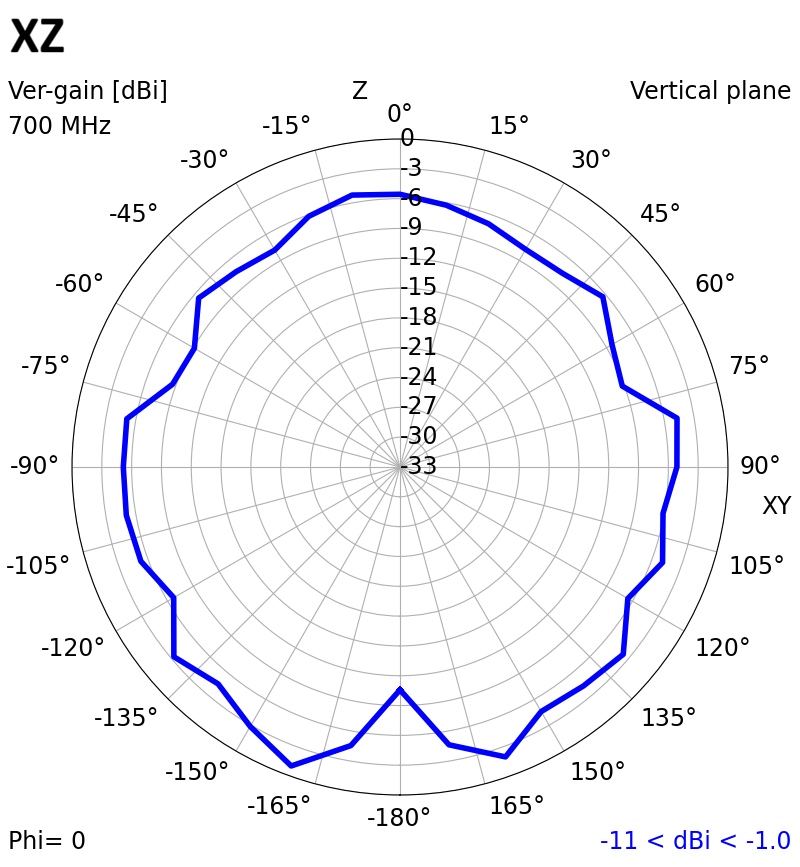

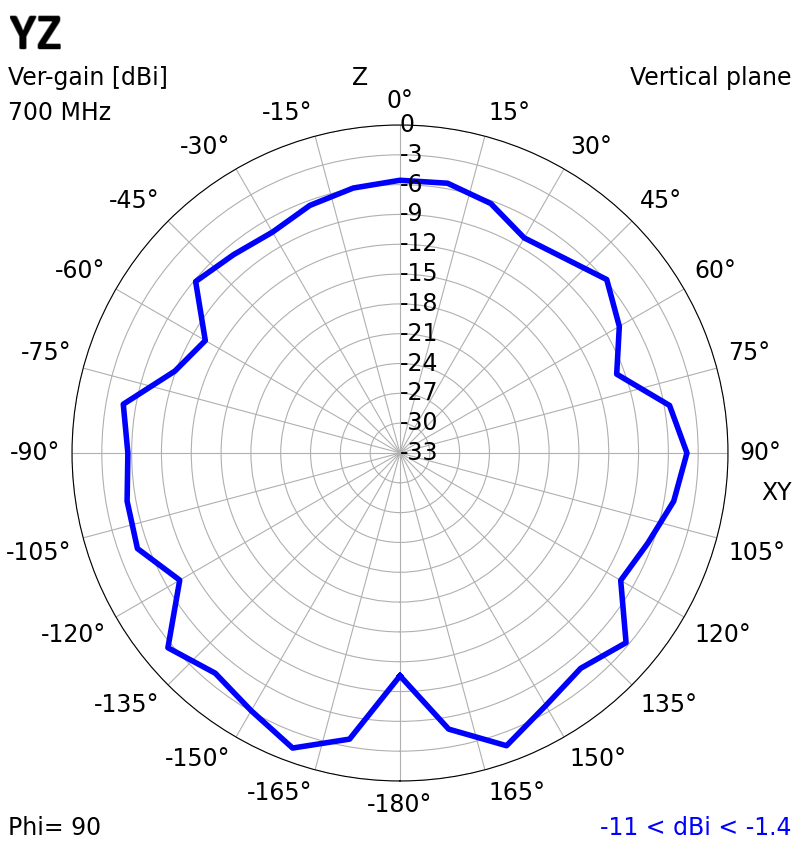

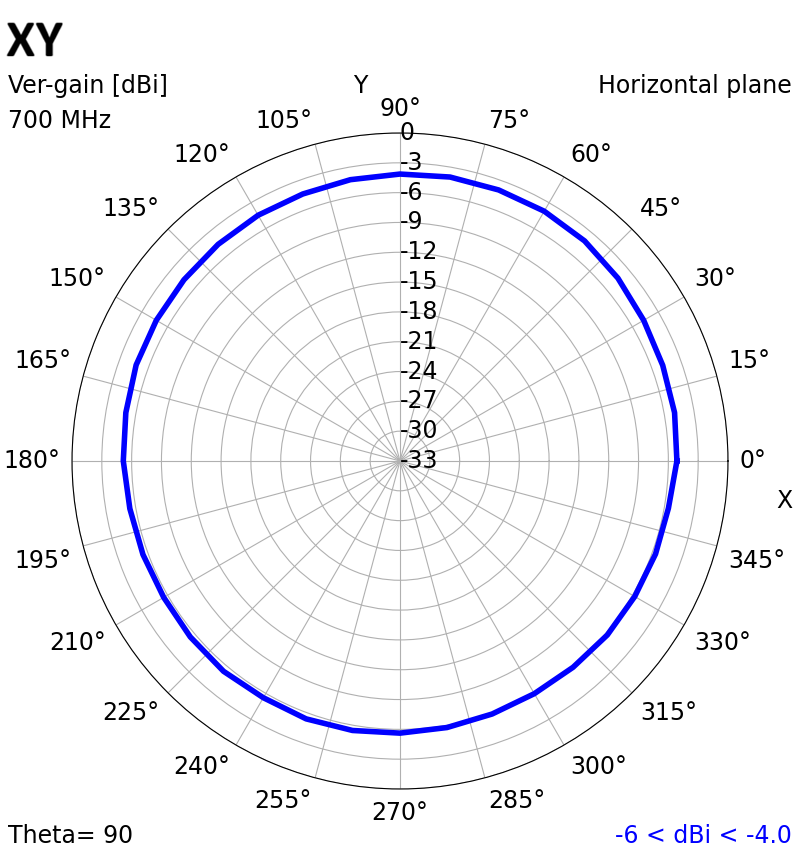

| 700 MHz | ||
|
|
|

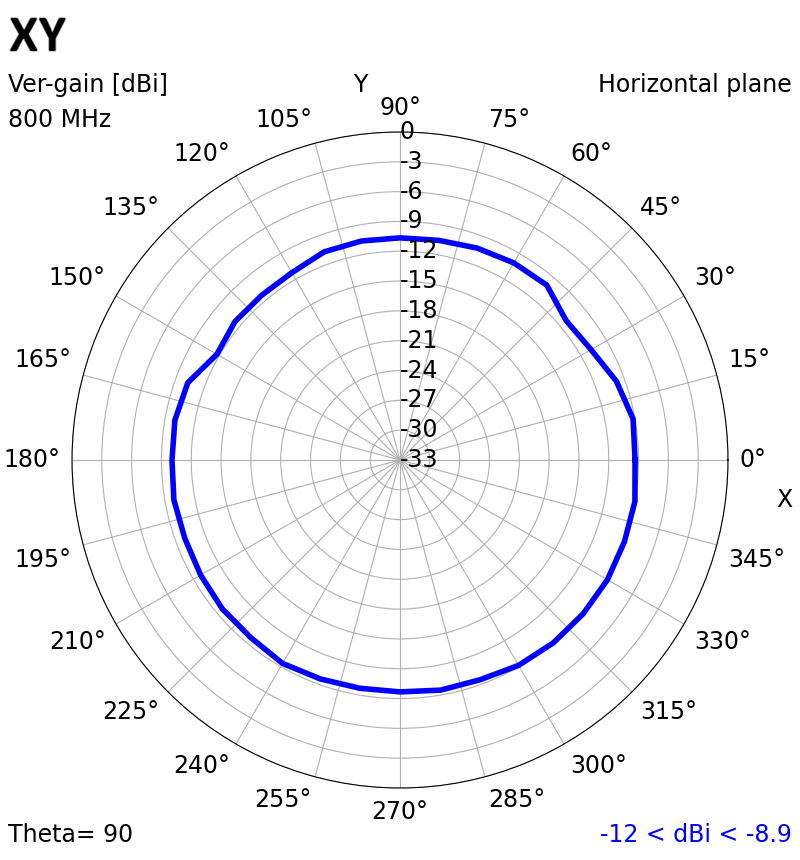

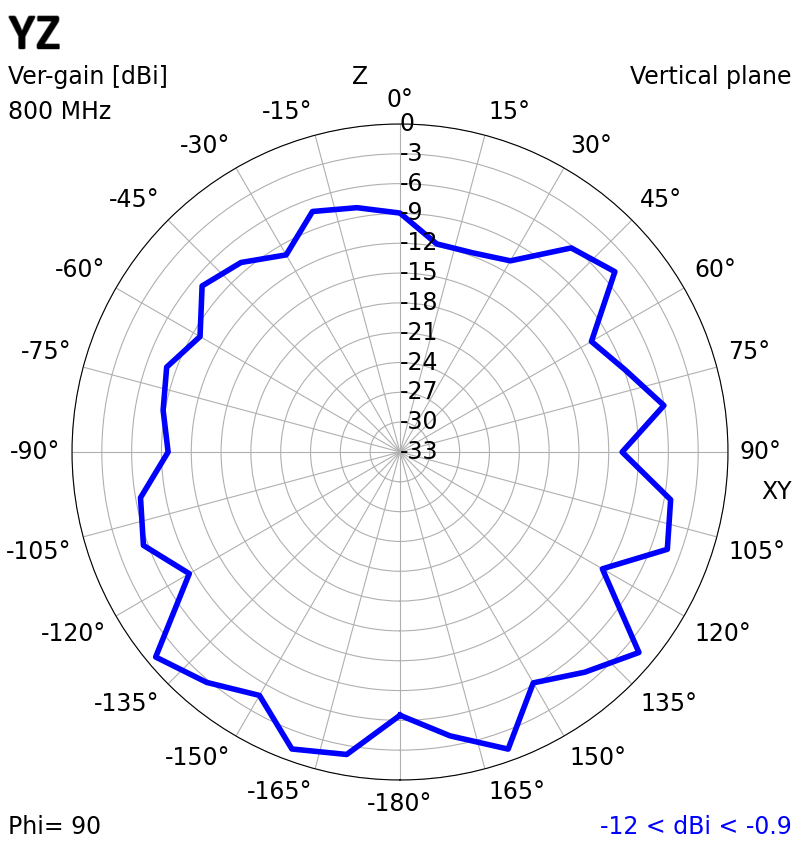

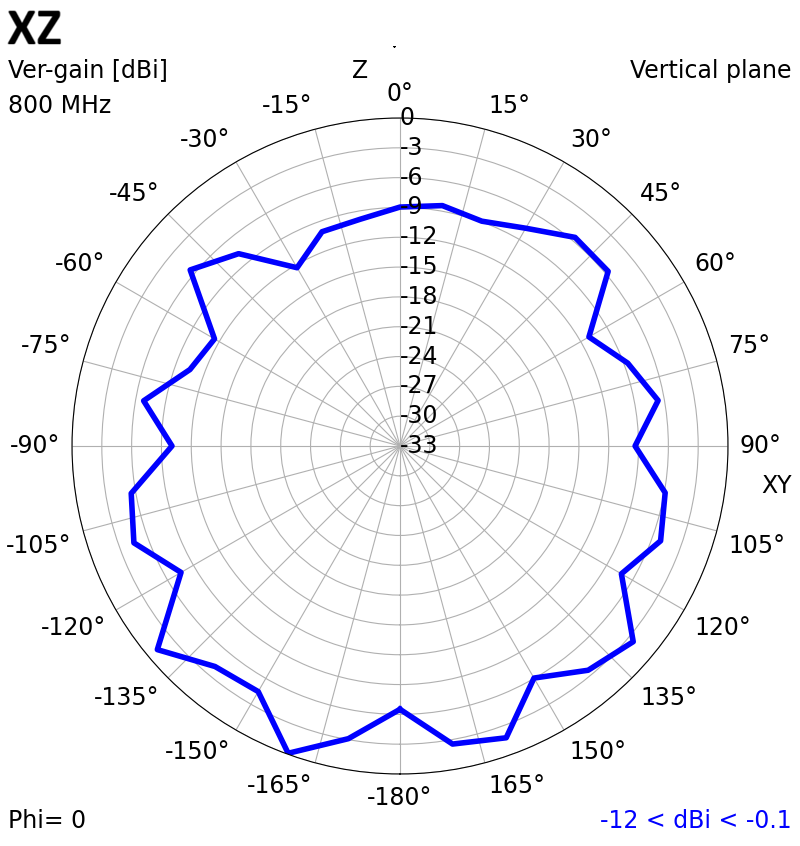

| 800 MHz | ||
|
|
|

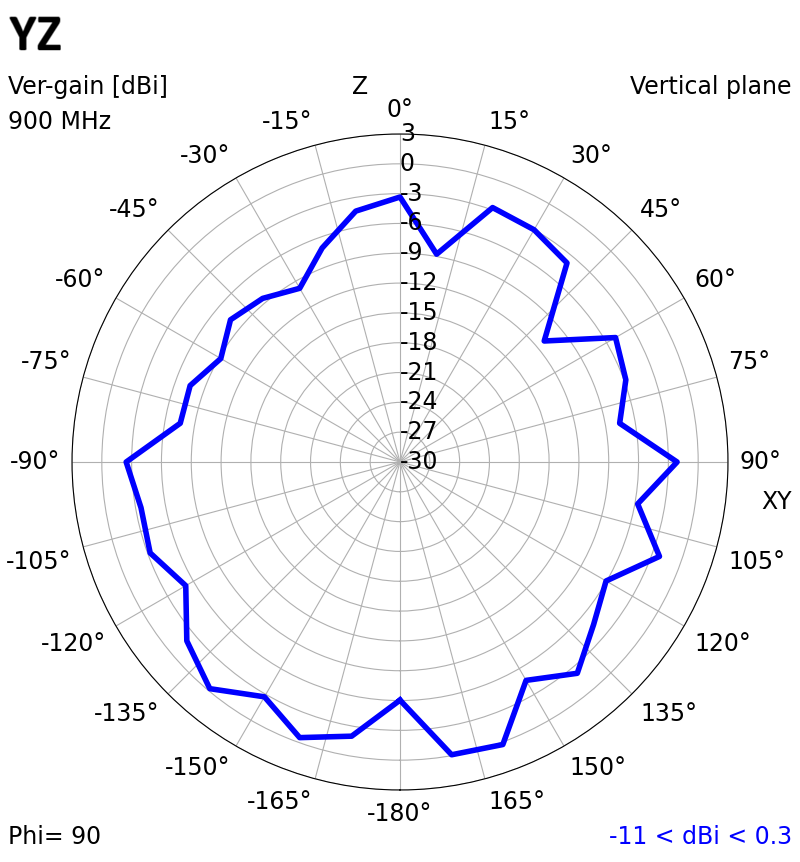

| 900 MHz | ||
|
|
|

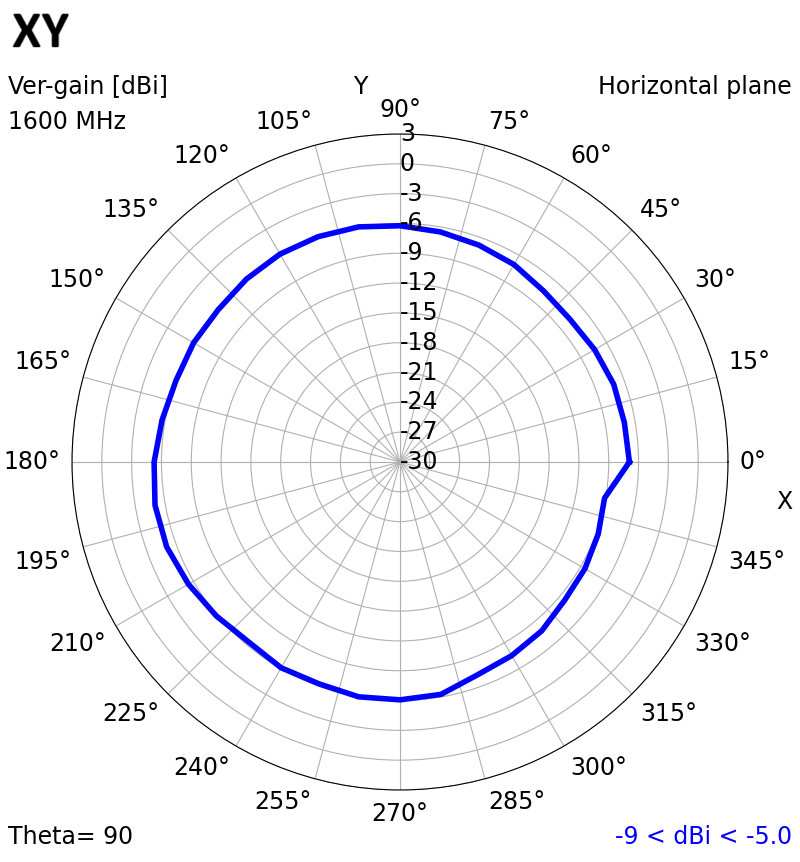

| 1600 MHz | ||
|
|
|

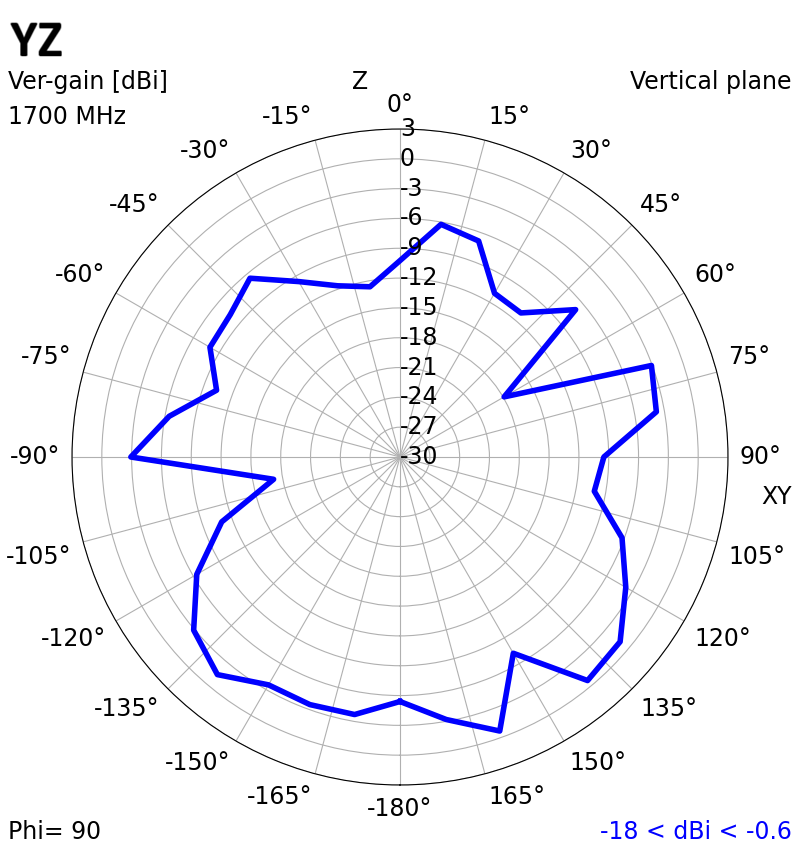

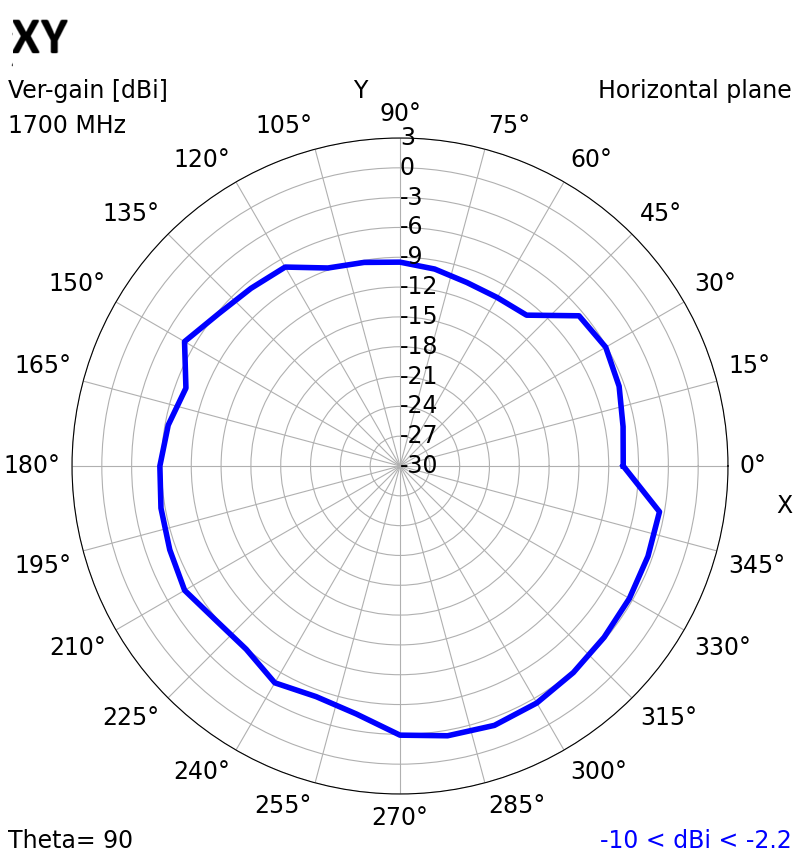

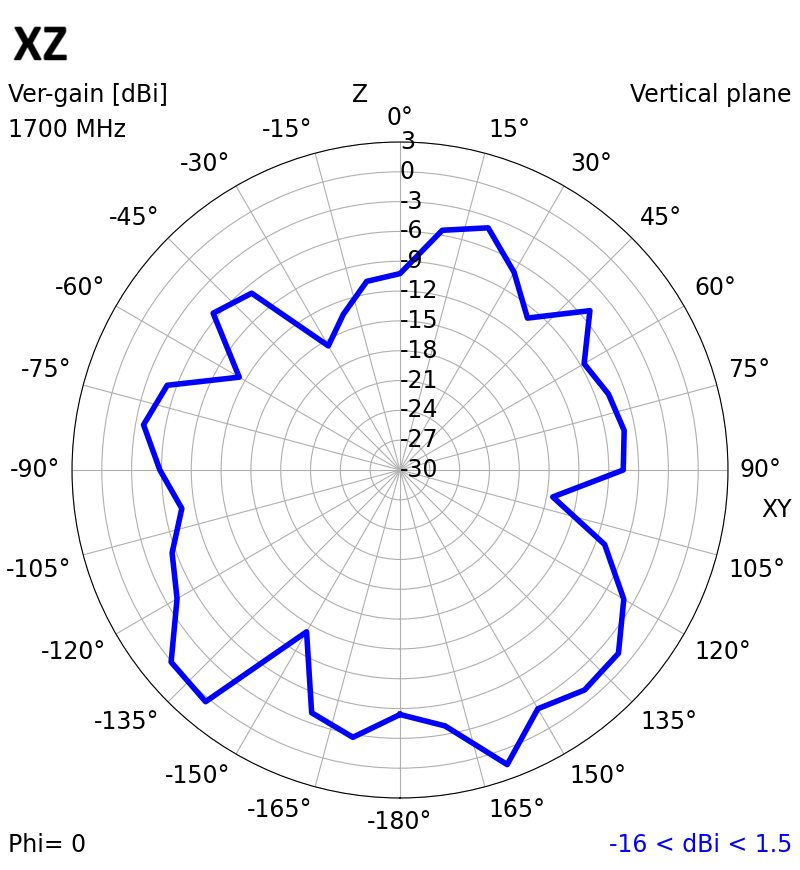

| 1700 MHz | ||
|
|
|
| 1800 MHz | ||
|
|
|

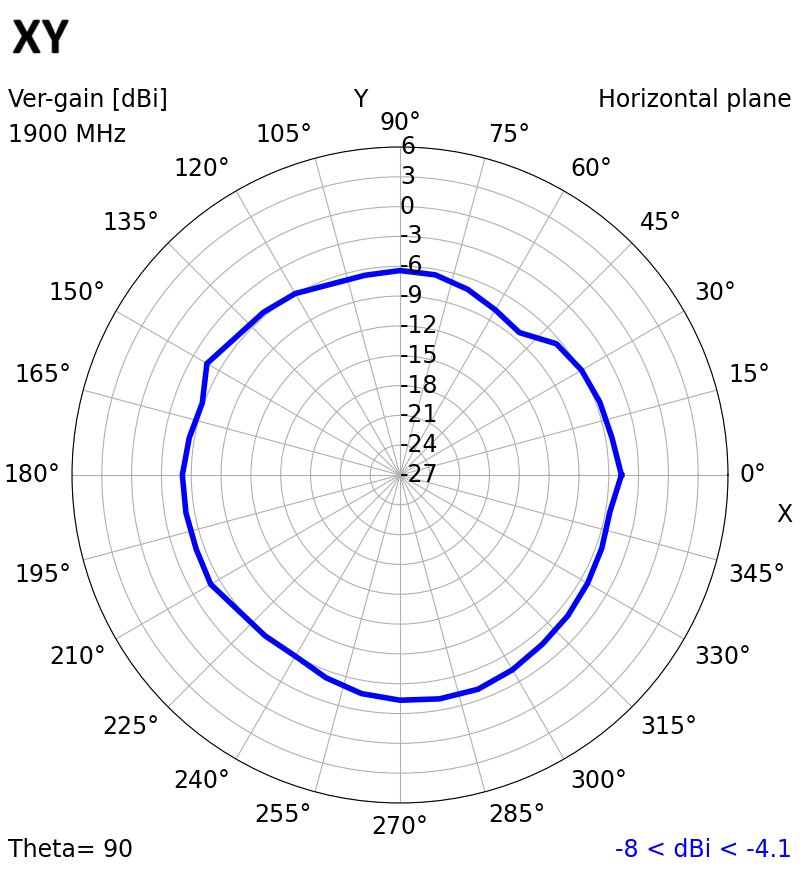

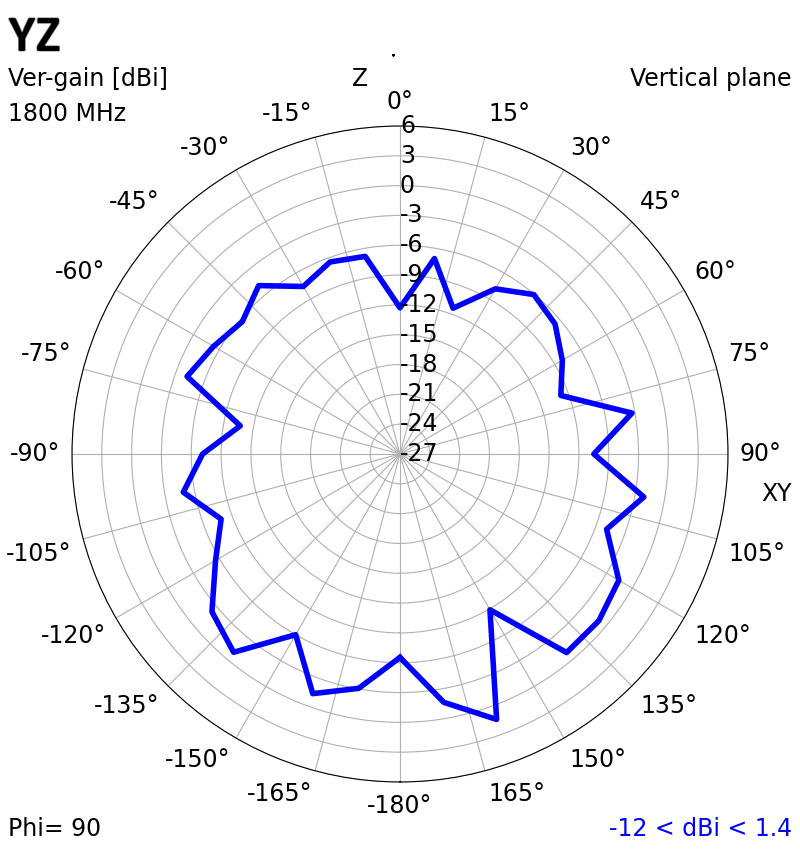

| 1900 MHz | ||
|
|
|

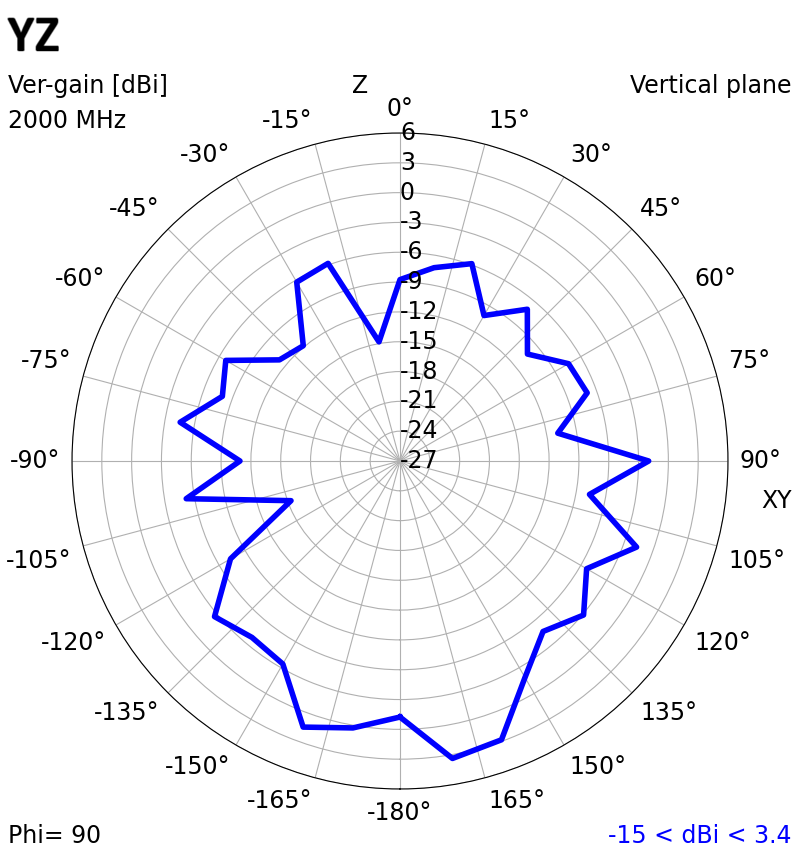

| 2000 MHz | ||
|
|
|

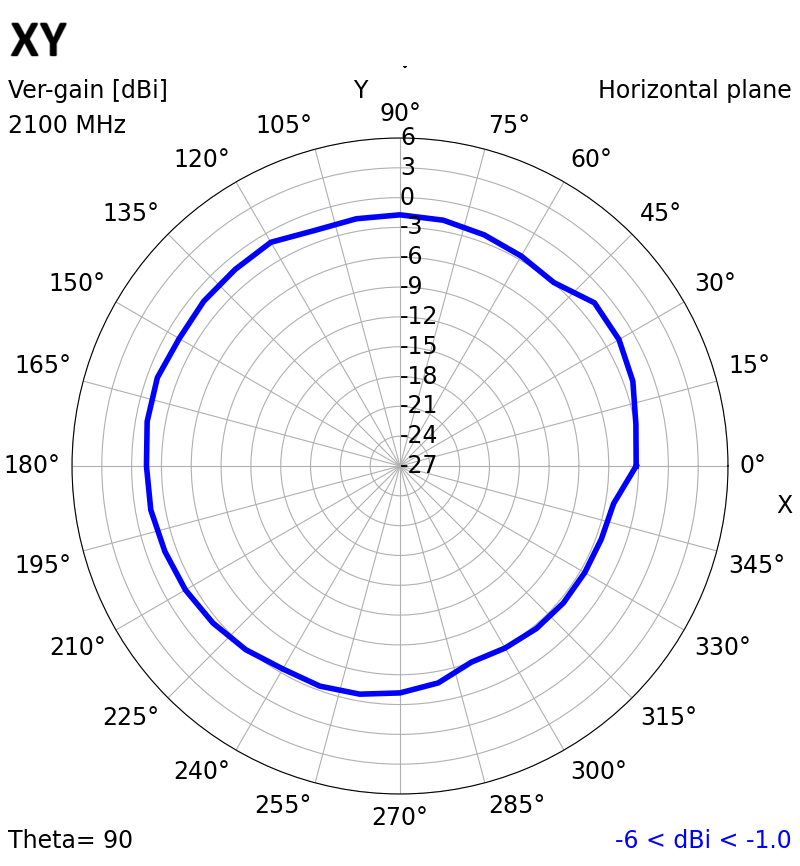

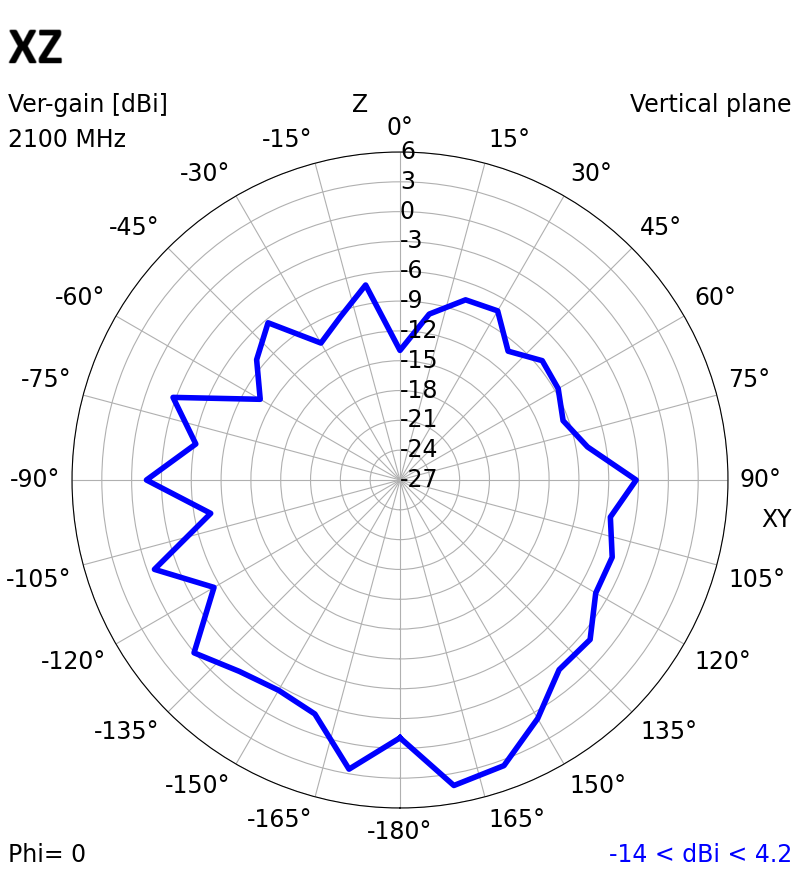

| 2100 MHz | ||
|
|
|
| 2300 MHz | ||
|
|
|

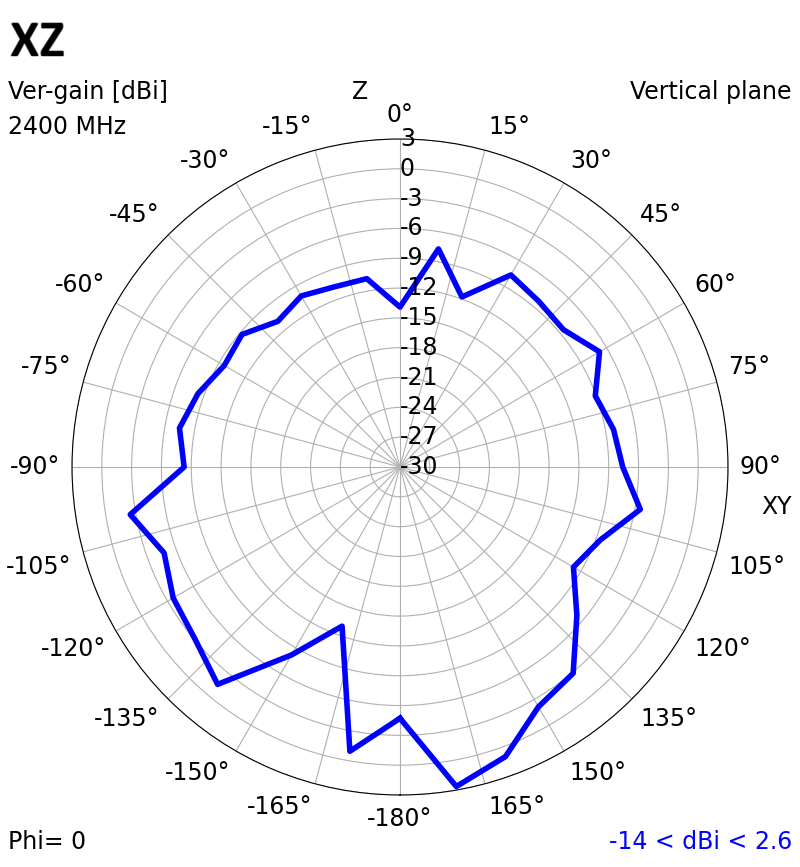

| 2400 MHz | ||
|
|
|

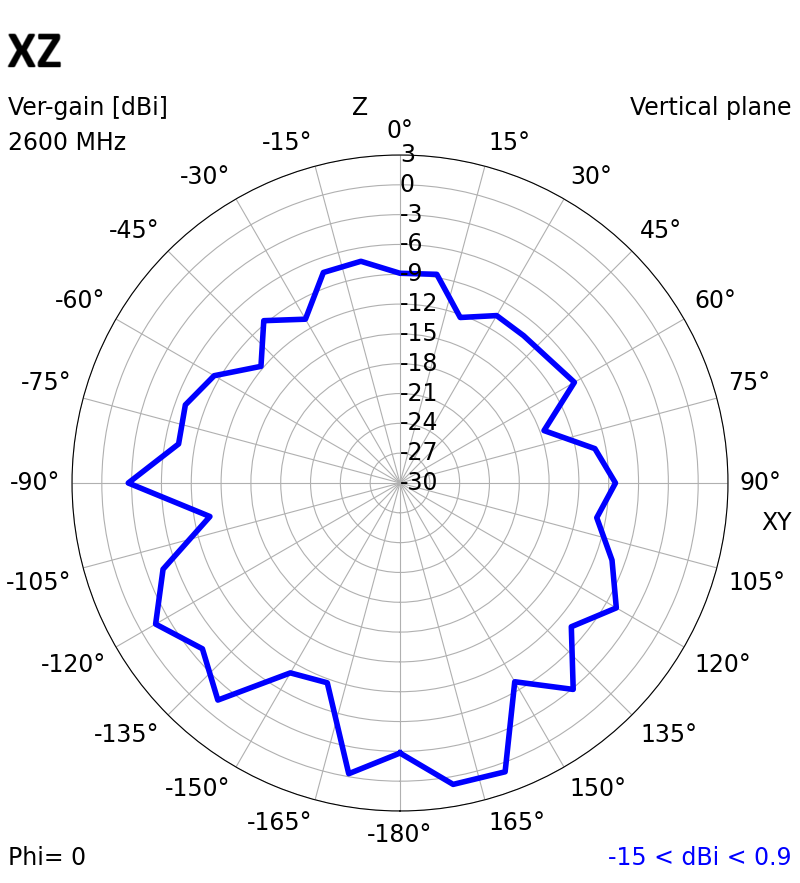

| 2600 MHz | ||
|
|
|

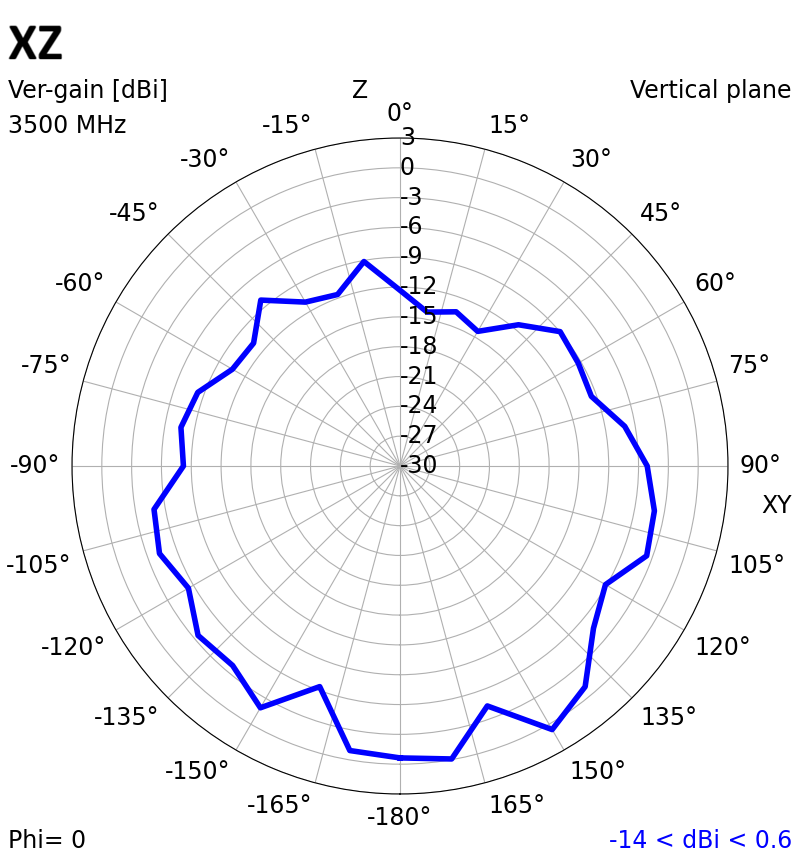

| 3500 MHz | ||
|
|
|
| 3700 MHz | ||
|
|
|

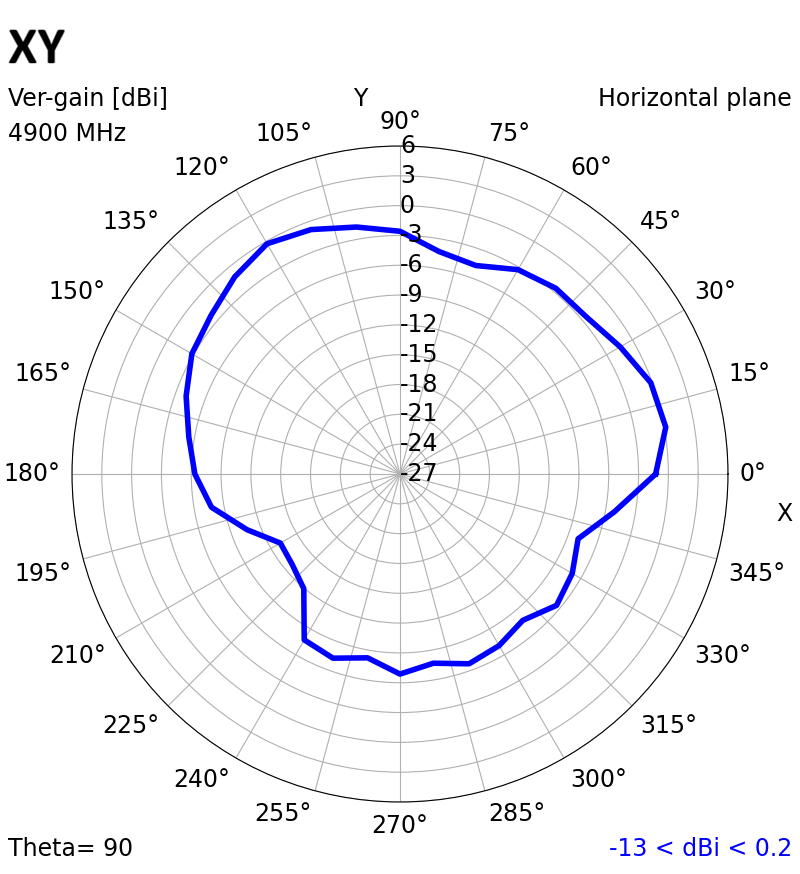

| 4900 MHz | ||
|
|
|

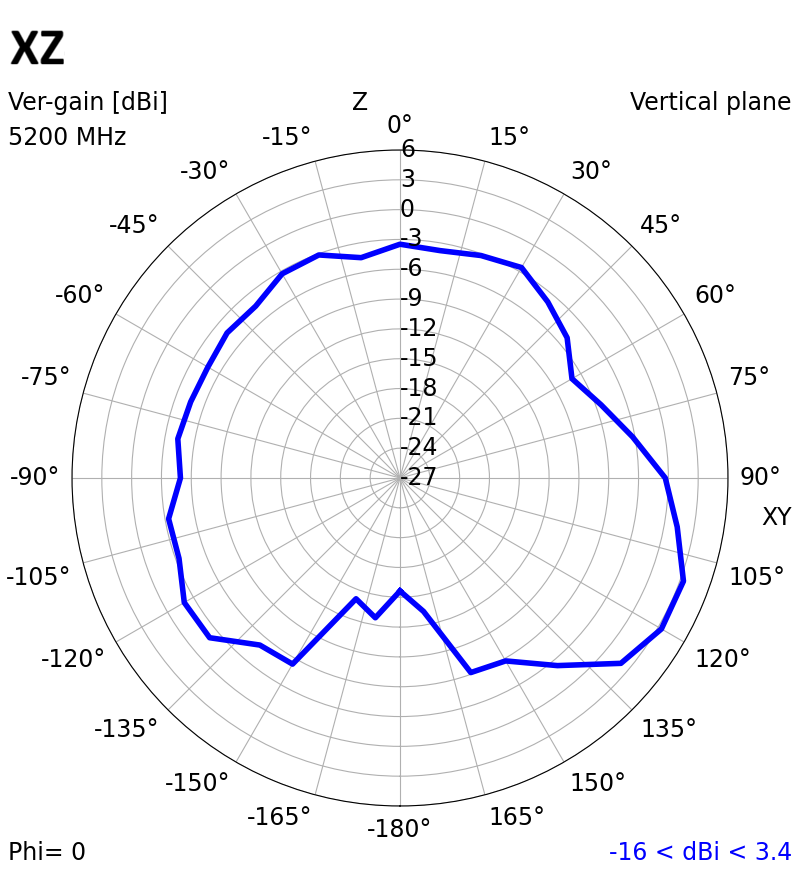

| 5200 MHz | ||
|
|
|

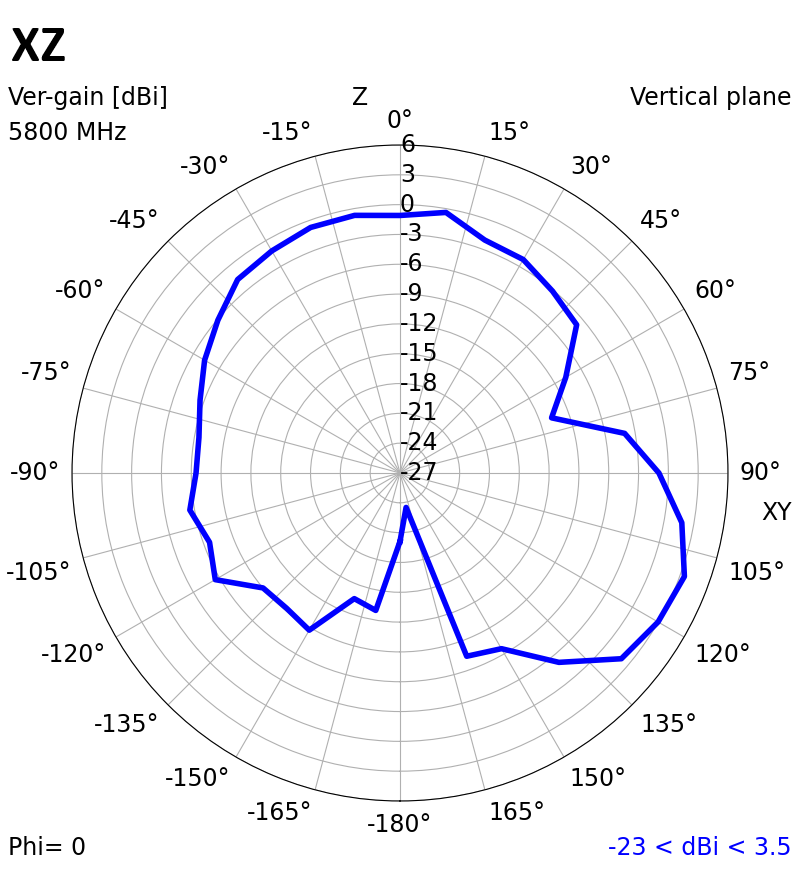

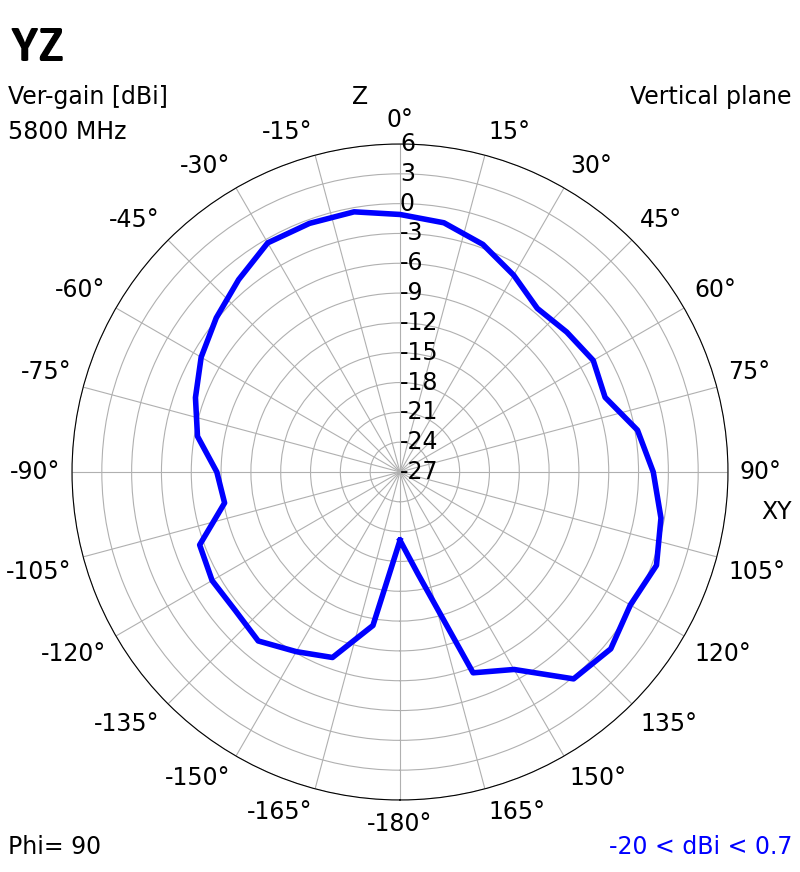

| 5800 MHz | ||
|
|
|

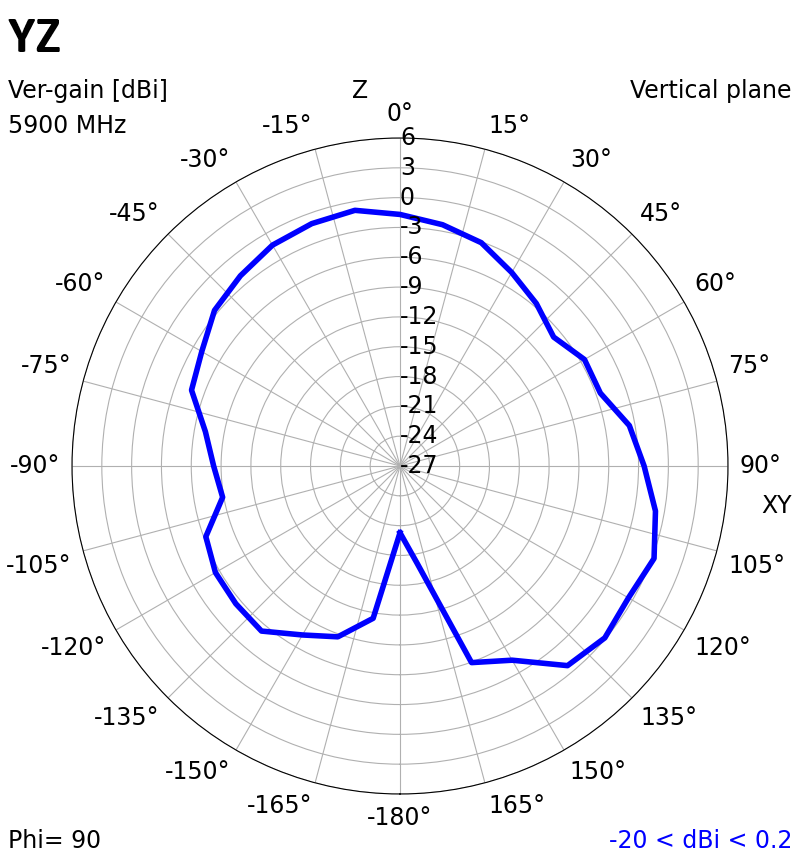

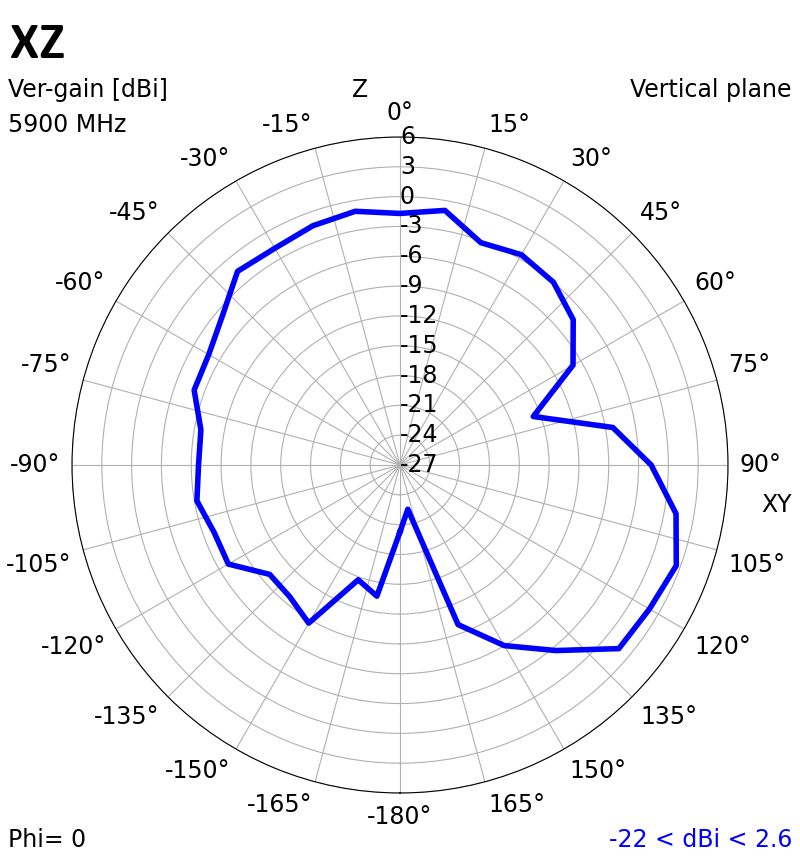

| 5900 MHz | ||
|
|
|

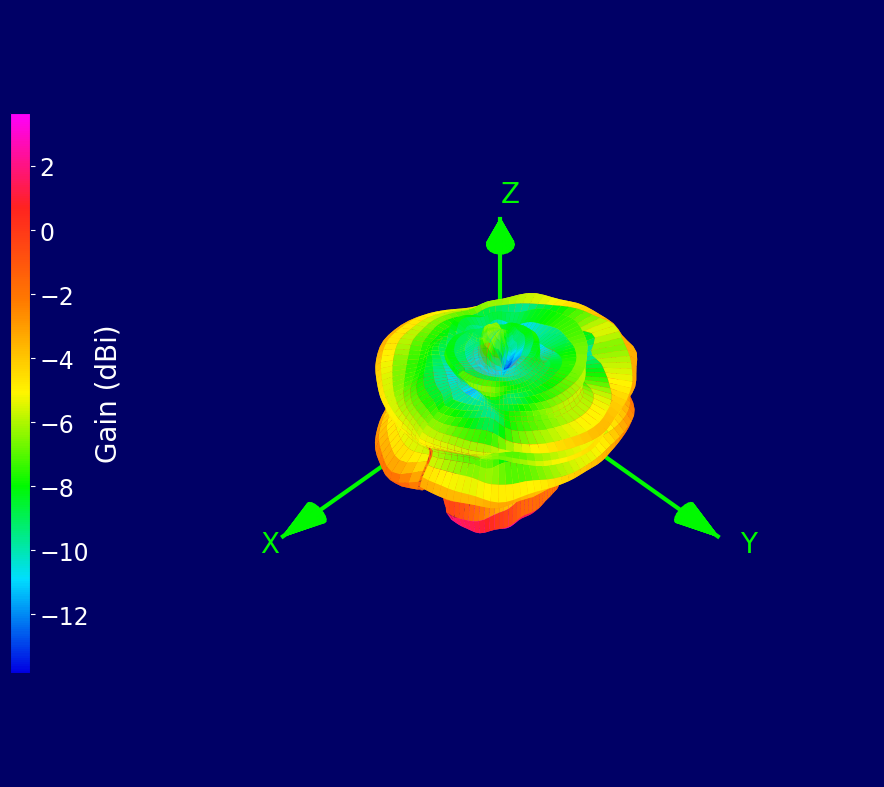

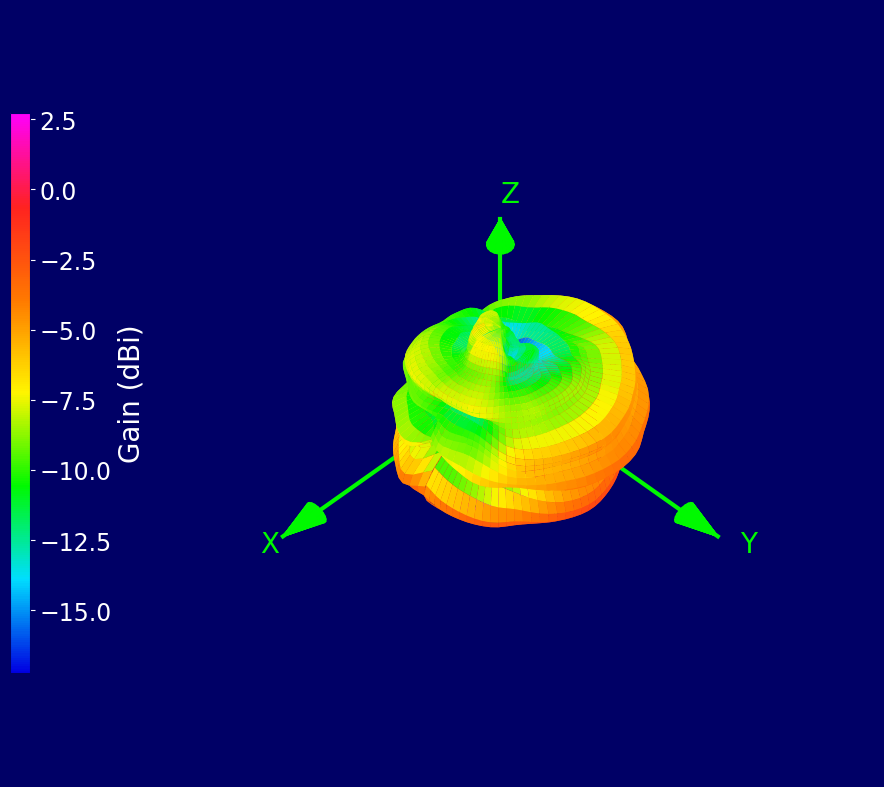

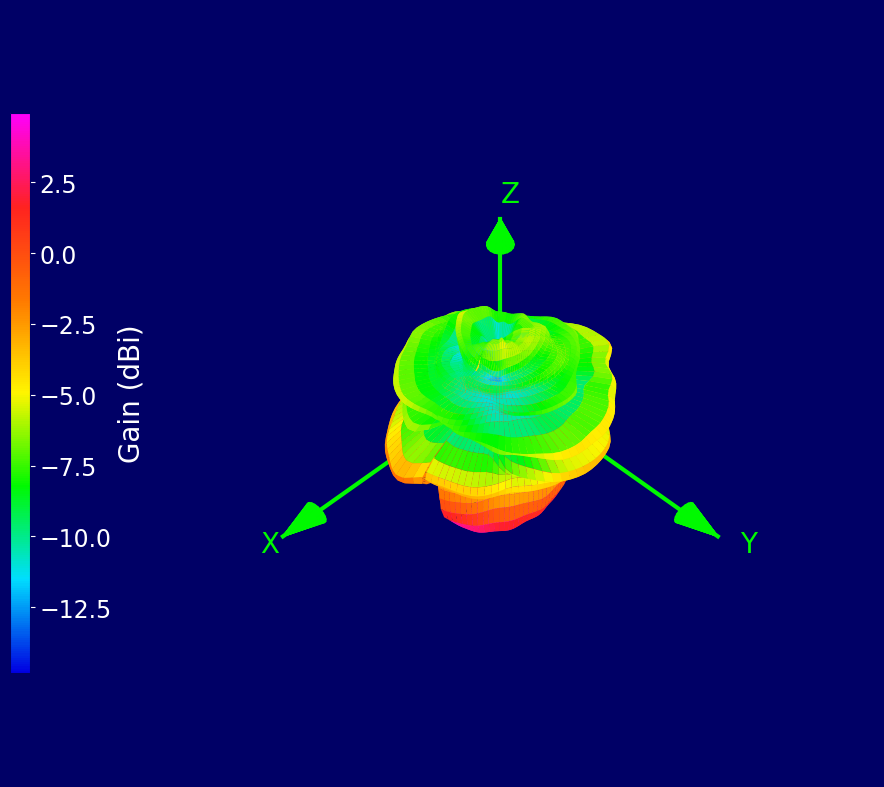

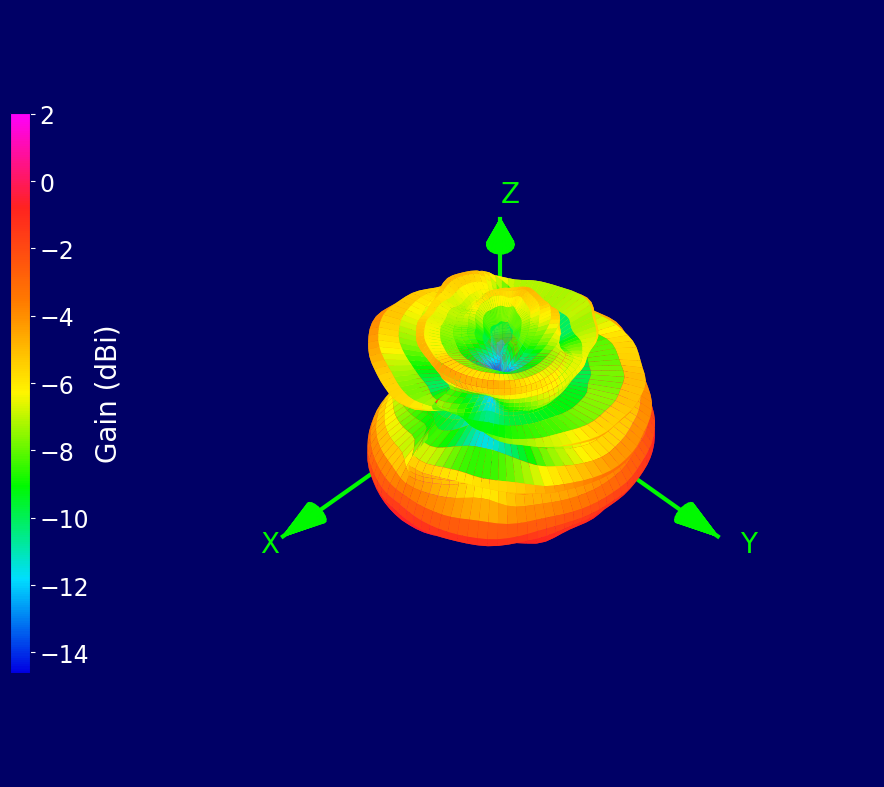

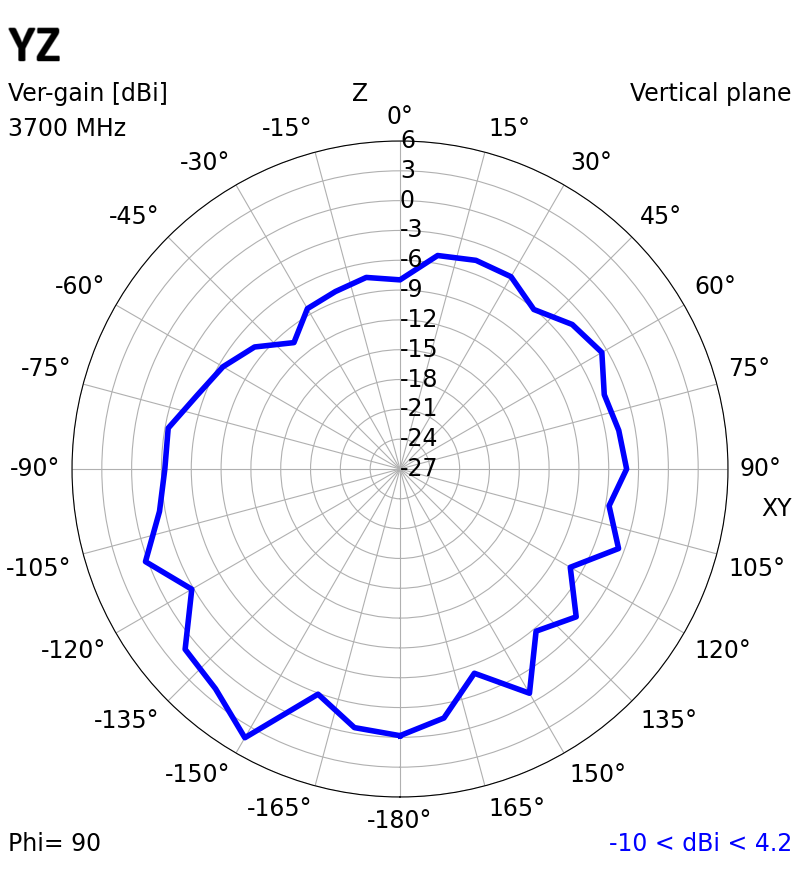

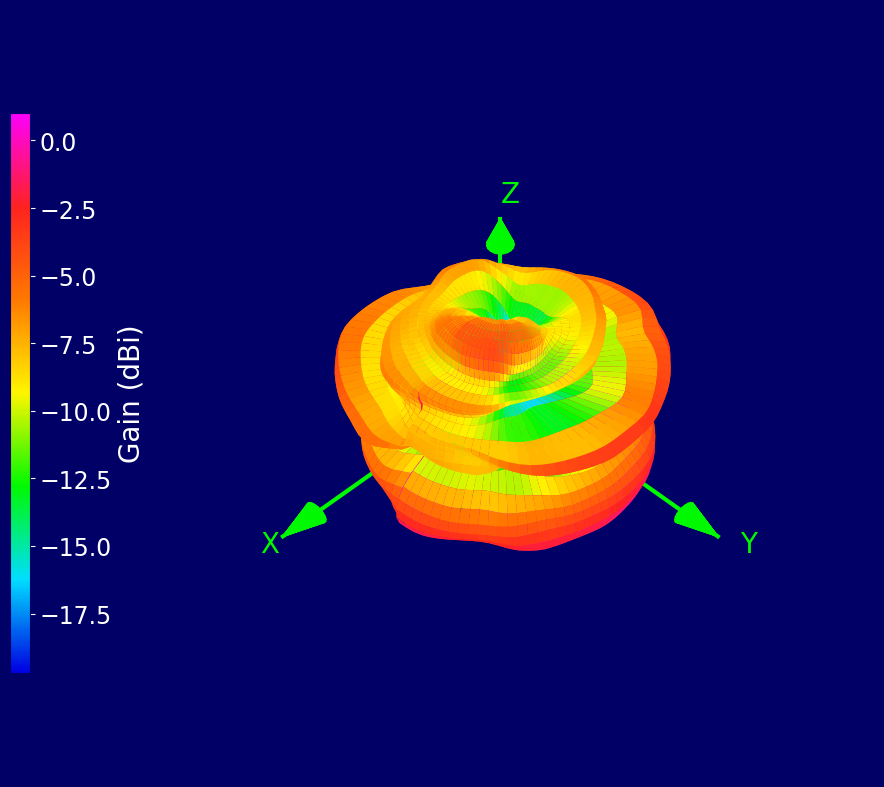

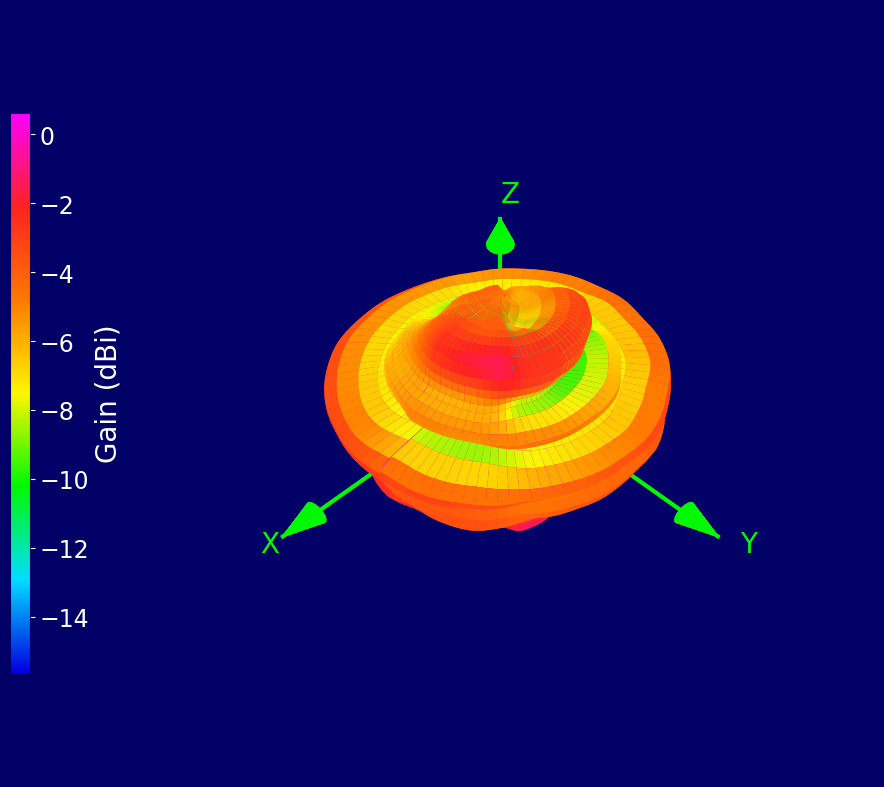

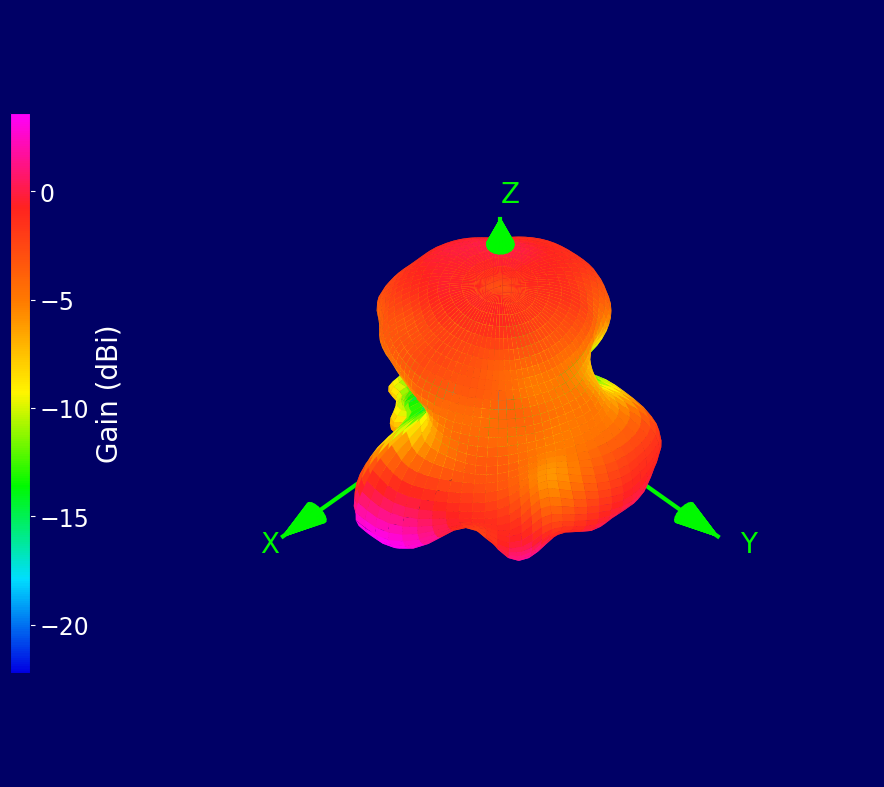

¶ 3D Radiation Plots

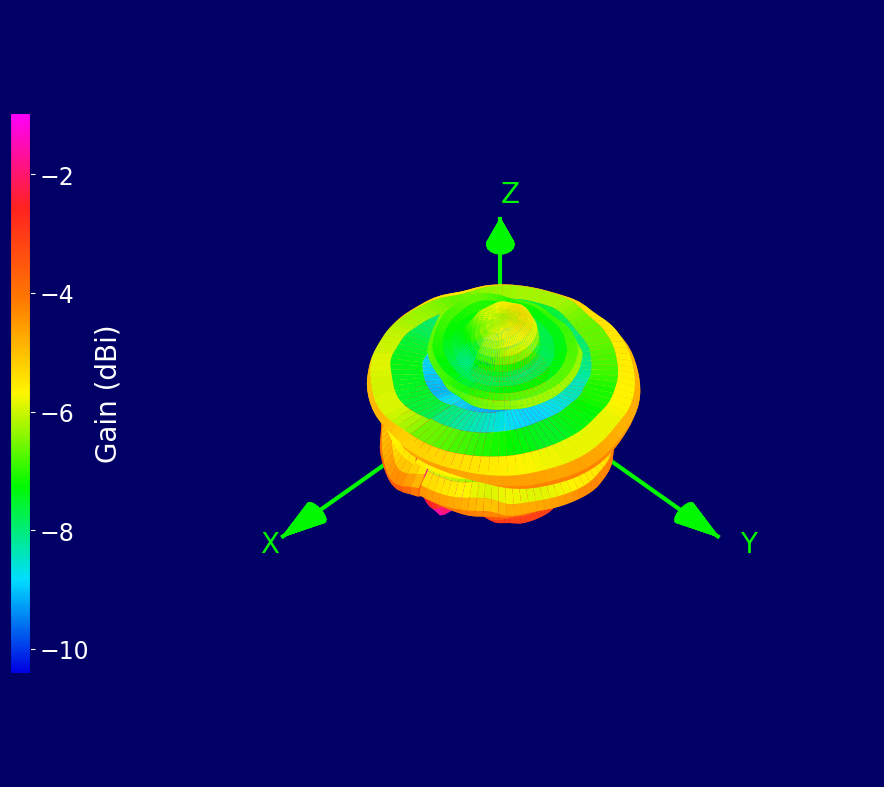

| 700 MHz | 800 MHz | 900 MHz |
|
|
|

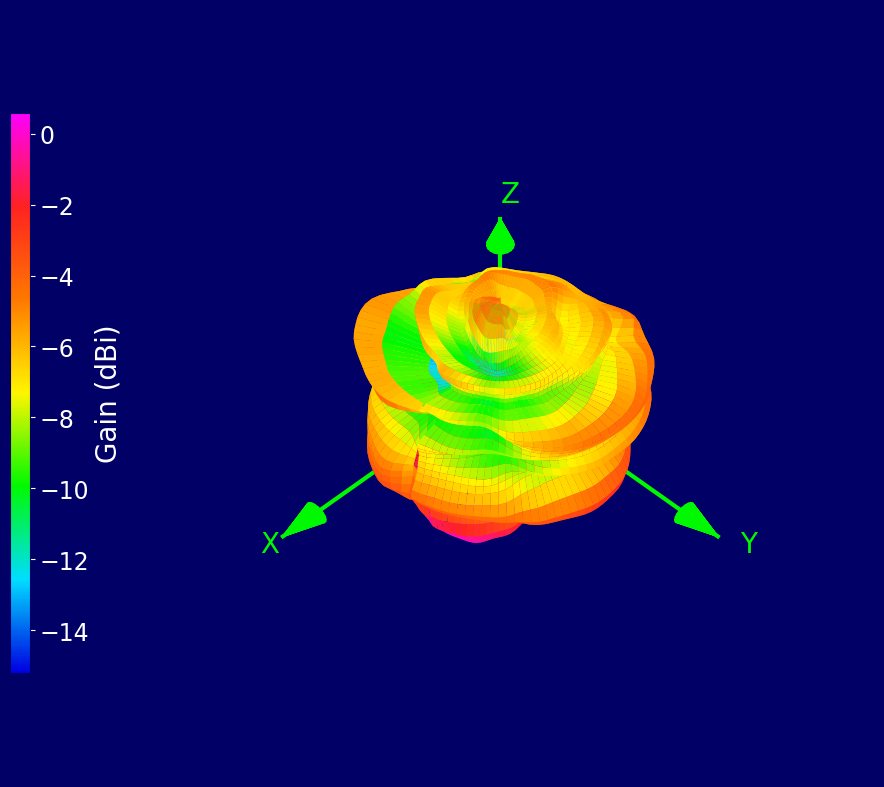

| 1600 MHz | 1700 MHz | 1800 MHz |
|
|
|
| 1900 MHz | 2000 MHz | 2100 MHz |
|
|
|

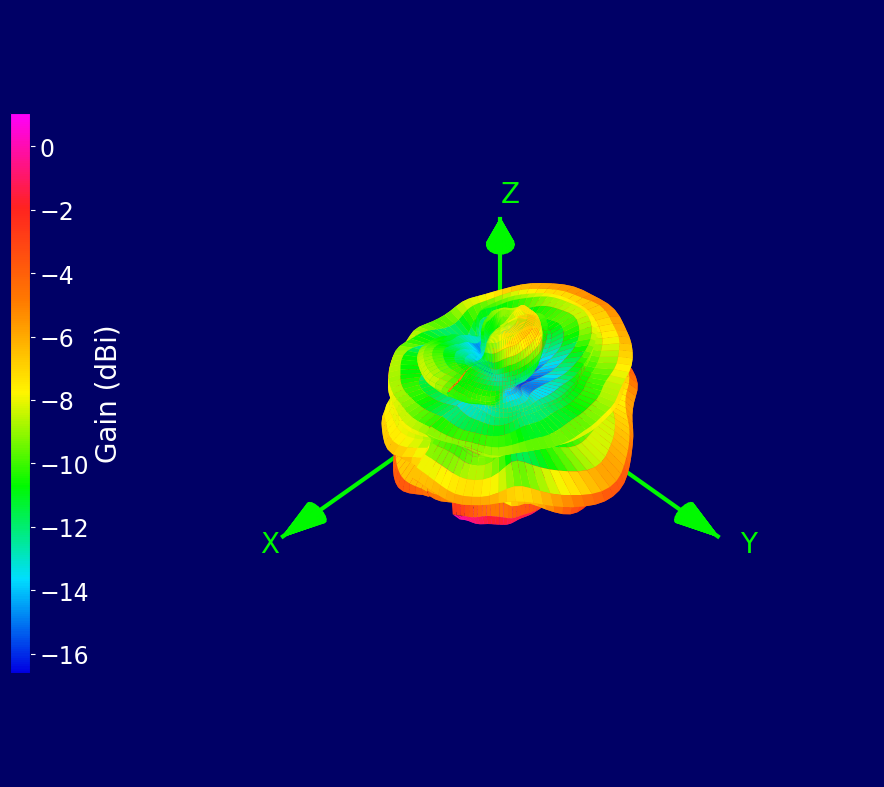

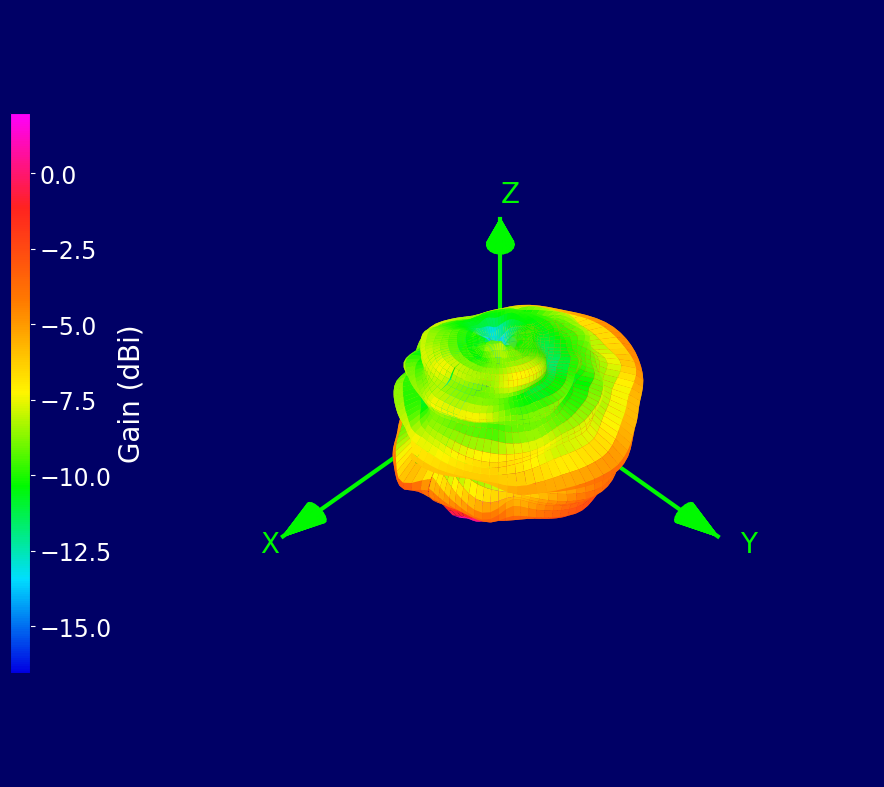

| 2300 MHz | 2400 MHz | 2600 MHz |
|
|
|

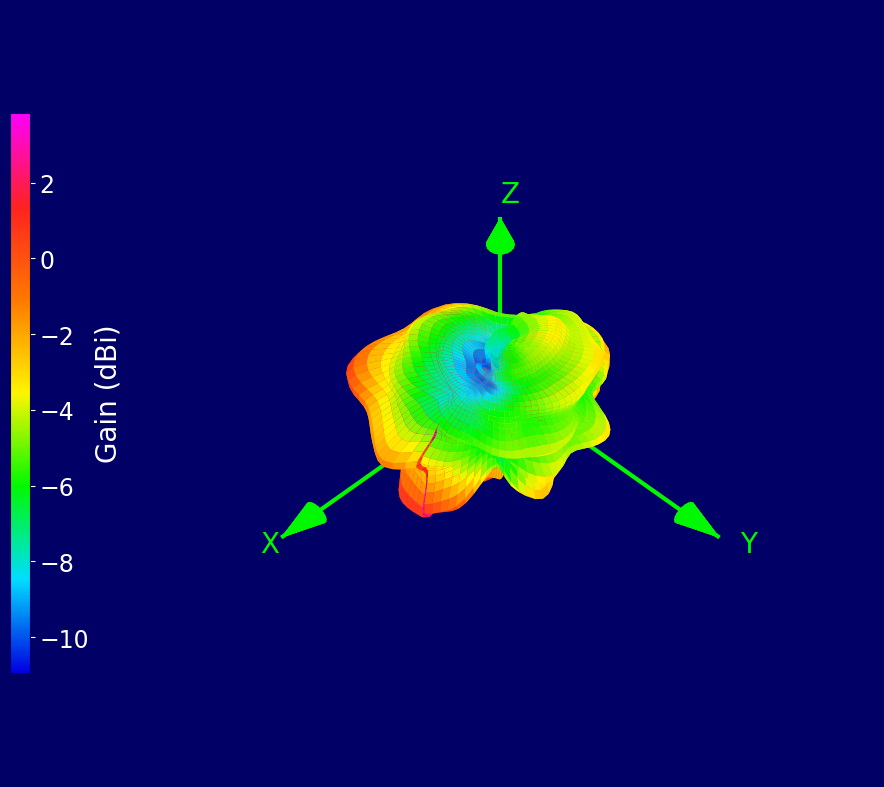

| 3500 MHz | 3700 MHz | 4900 MHz |
|
|
|
| 5200 MHz | 5800 MHz | 5900 MHz |
|
|
|
¶ Ordering Details
| Part Number | Description |
|---|---|
| TANGO73/1M/SMAM/S/S/26 |

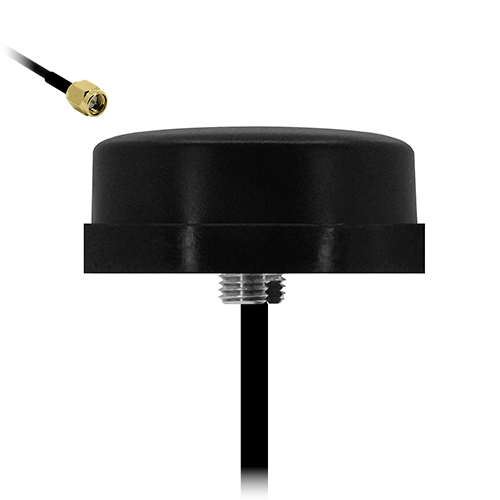

5G NR/4G LTE IP68 Miniature Omnidirectional Through-hole Mount Antenna 1m RG174 Cable and SMA Male Connector |
| TANGO73/1M/SMAM/RP/S/26 |
5G NR/4G LTE IP68 Miniature Omnidirectional Through-hole Mount Antenna 1m RG174 Cable and Reverse Polarity SMA Male Connector |
| TANGO73/2.5M/SMAM/S/S/26 |
5G NR/4G LTE IP68 Miniature Omnidirectional Through-hole Mount Antenna 2.5m RG174 Cable and SMA Male Connector |
| TANGO73/2.5M/SMAM/RP/S/26 |
5G NR/4G LTE IP68 Miniature Omnidirectional Through-hole Mount Antenna 2.5m RG174 Cable and Reverse Polarity SMA Male Connector |
| TANGO73/5M/SMAM/S/S/26 |
5G NR/4G LTE IP68 Miniature Omnidirectional Through-hole Mount Antenna 5m RG174 Cable and SMA Male Connector |
| TANGO73/5M/SMAM/RP/S/26 |
5G NR/4G LTE IP68 Miniature Omnidirectional Through-hole Mount Antenna 5m RG174 Cable and Reverse Polarity SMA Male Connector |
